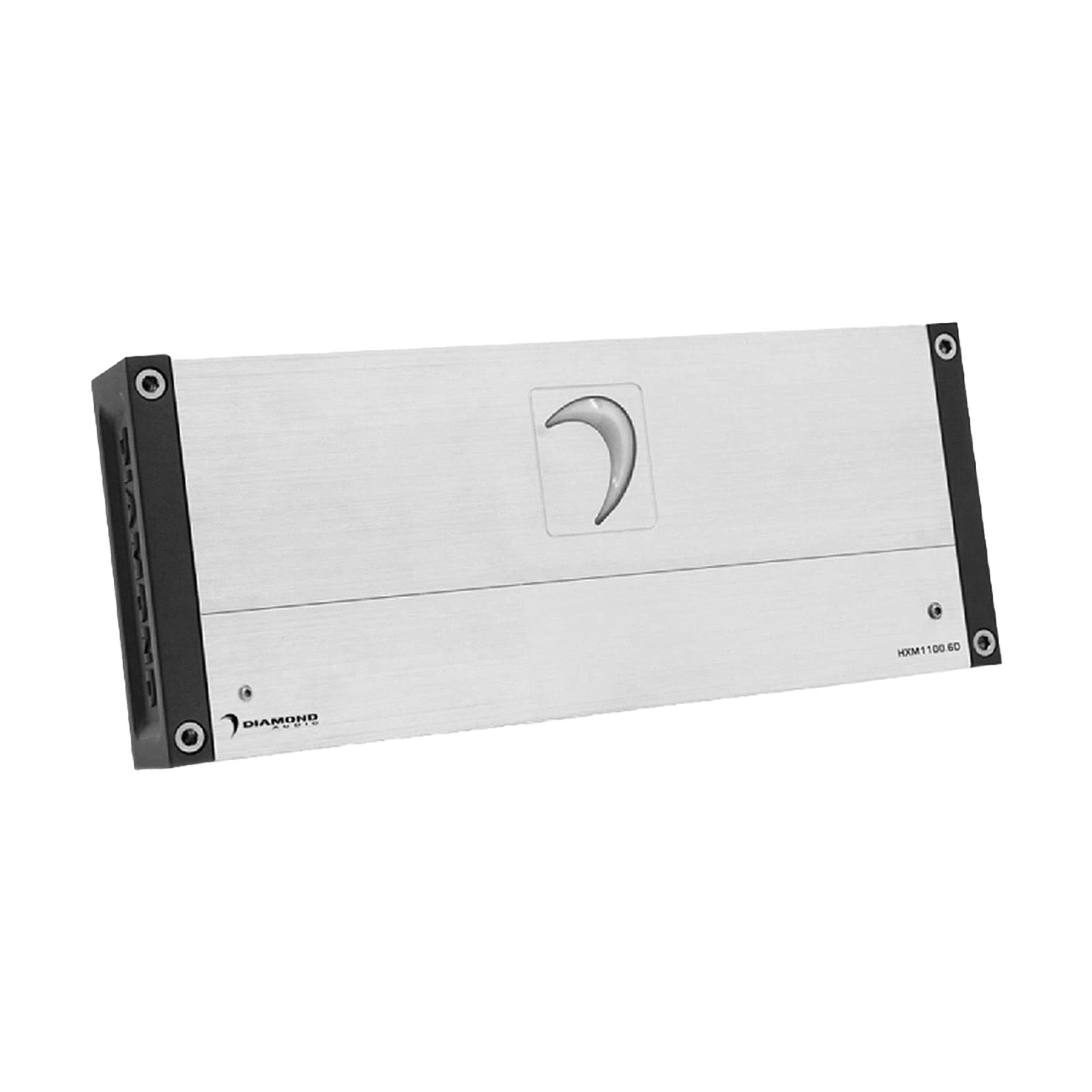

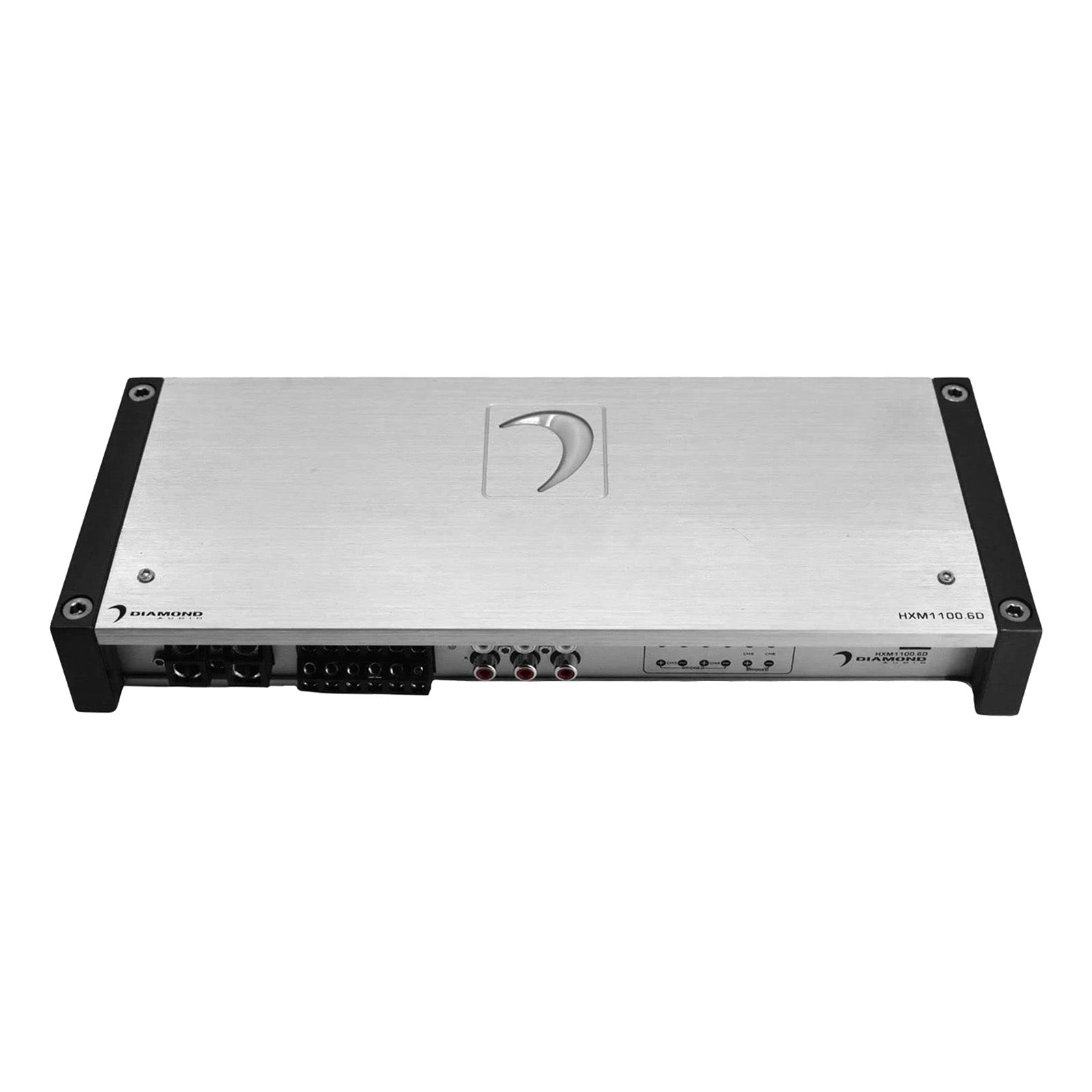

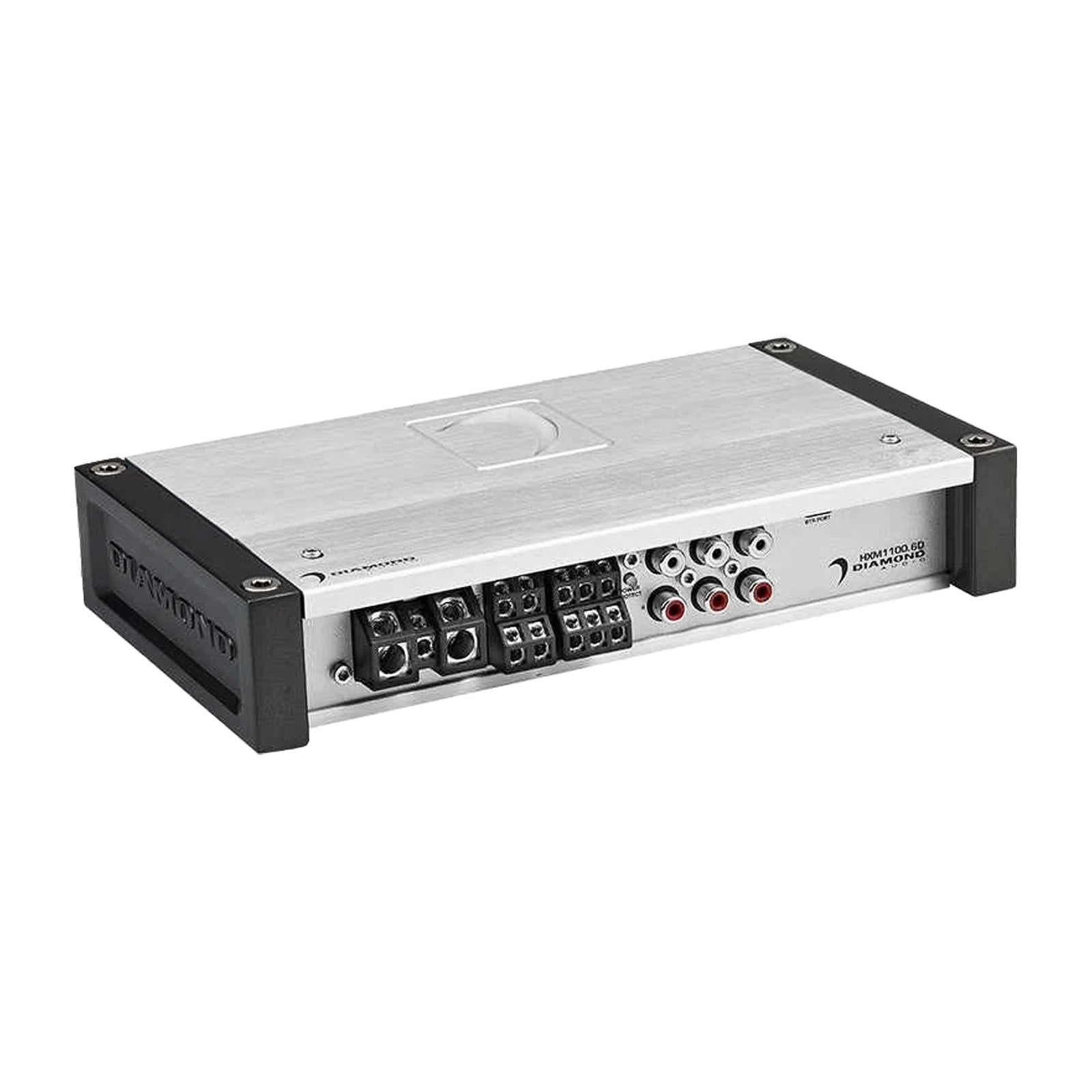

Diamond Audio HXM1100.6D 6-Channel 1100W Full Range Class D Amplifier

This powerhouse amp brings the party to your boat or UTV with 1100W of crystal-clear digital sound. Its water-resistant, conformal-coated design laughs in the face of splashes and mud while keeping your music pumping. Fine-tune your audio experience effortlessly using the top-mounted controls and adjustable crossovers for that perfect sonic punch. Whether you're hitting the waves or the trails, this compact beast ensures your soundtrack never skips a beat.

POWER RATING

• RMS Power (4 Ω): 90W X 4/150W X 2
• RMS Power (2 Ω): 150W X 4/250W X 2
• Bridged (mono 4 Ω): 300W X 2/500W X 1(Ch 5/6 Bridged)
• Bridged (mono 2 Ω): N/A
• Bridged (mono 4 Ω): N/A

POWER SUPPLY

• Power Supply: Full PWM
• Power Supply Threshold: 10.0V-17.0V (DC)
• Idle Current: (0.7A)

DISTORTION

• THD 4 (1KHz @4Ω): 0.03%
• S/N Ratio (A weighted @1W): -76.7dBA
• S/N Ratio (A weighted @FP): -96.7dBA

INPUT SENSITIVITY

• Low Input Level: 0.2mV-10.0V
• High Input Level: Up to 25W RMS

INPUT IMPEDANCE

• Low Input Level: 20 KΩ
• High Input Level: N/A

OUTPUT STAGE

• Output Impedance: 0.051Ω
• Damping Factor (50Hz @ 4Ω): >70
• Bandwidth (-3dB): 10Hz-35KHz

CROSSOVER (-12dB/Oct)

• Variable High-Pass: 40Hz - 400Hz
• Variable Low-Pass: 30Hz - 300Hz
• Variable Sub-Sonic:

FUSE RATINGS

• ATC: 60A

DIMENSIONS

• L x W x H: 12.5 x 5.27 x 1.75 (317.6mm x 133.9mm x 44.5mm)

FEATURES

• Bass Remote Control Included)
• Anodized Extruded Aluminum Heat Sink Provides Superior Thermal Performance
• Full Range Class D IR Chipset
• Illuminated Logo / Fully Concealed Mounting
• Output Clip Indicators for Precise Set-Up
• Fine Tuned Fully Variable Crossovers and Phase Control
• Top Mounted Controls for Convenient Amplifier Adjustment
