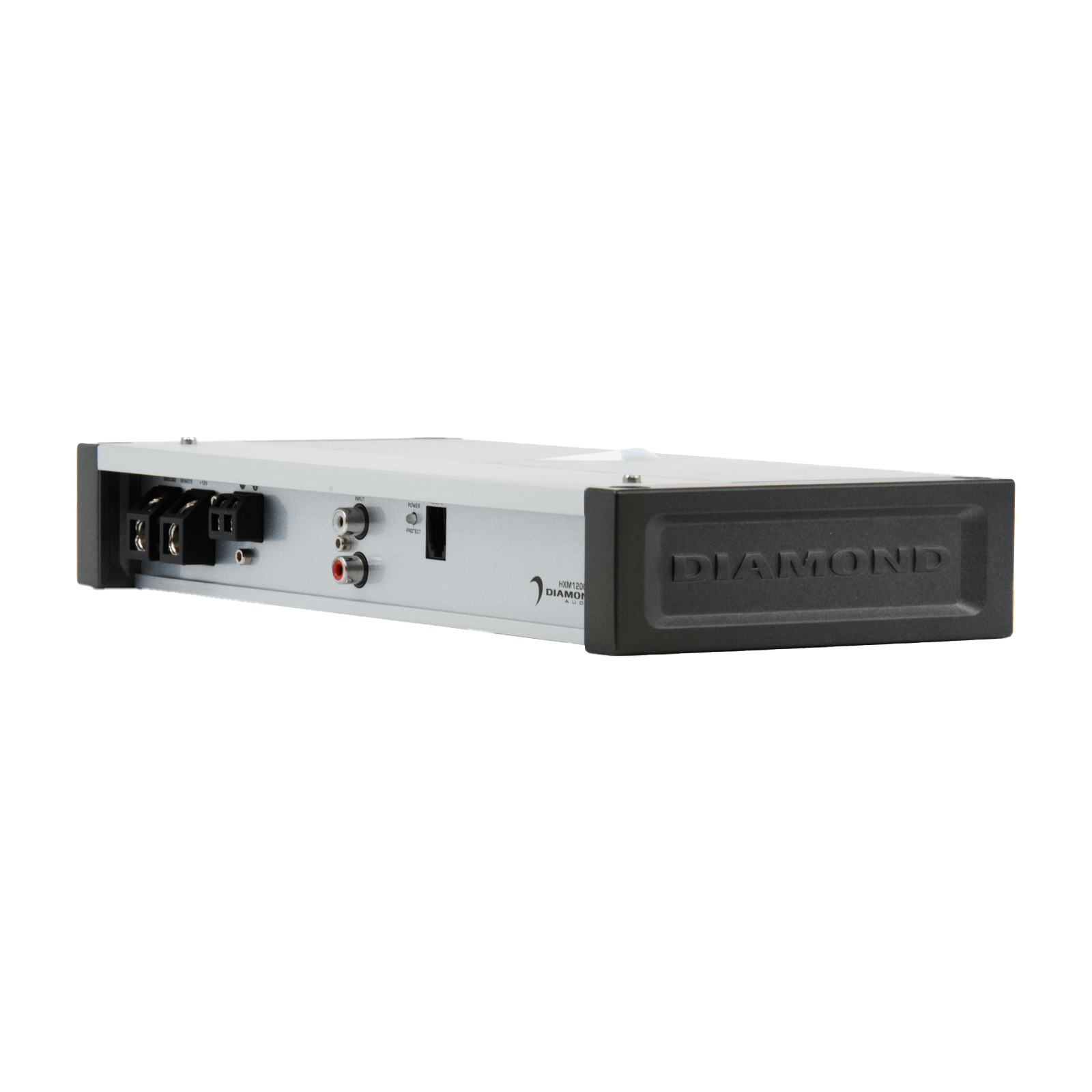

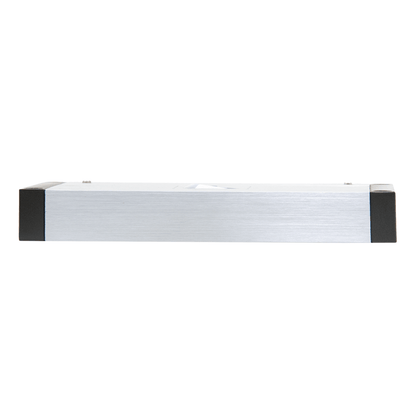

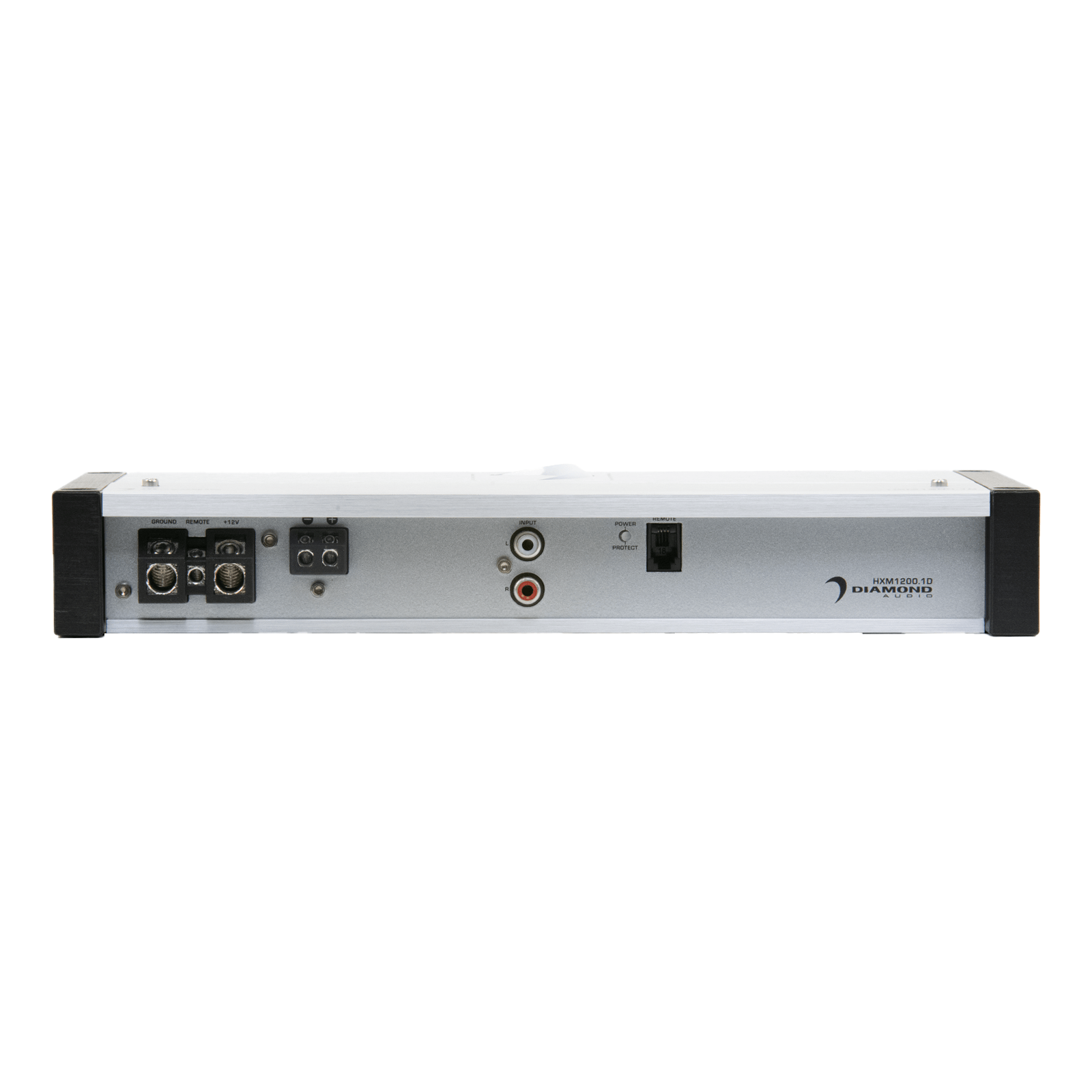

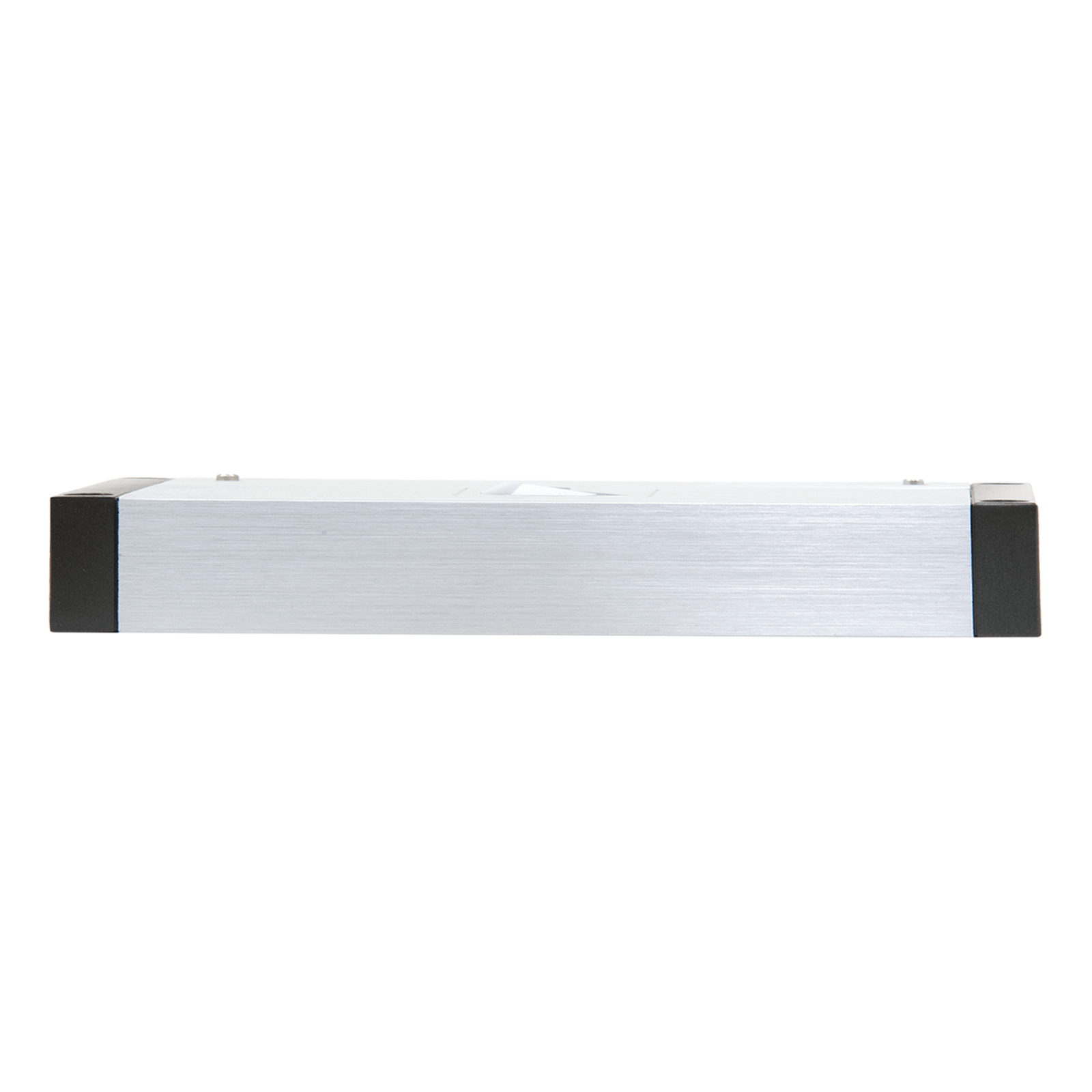

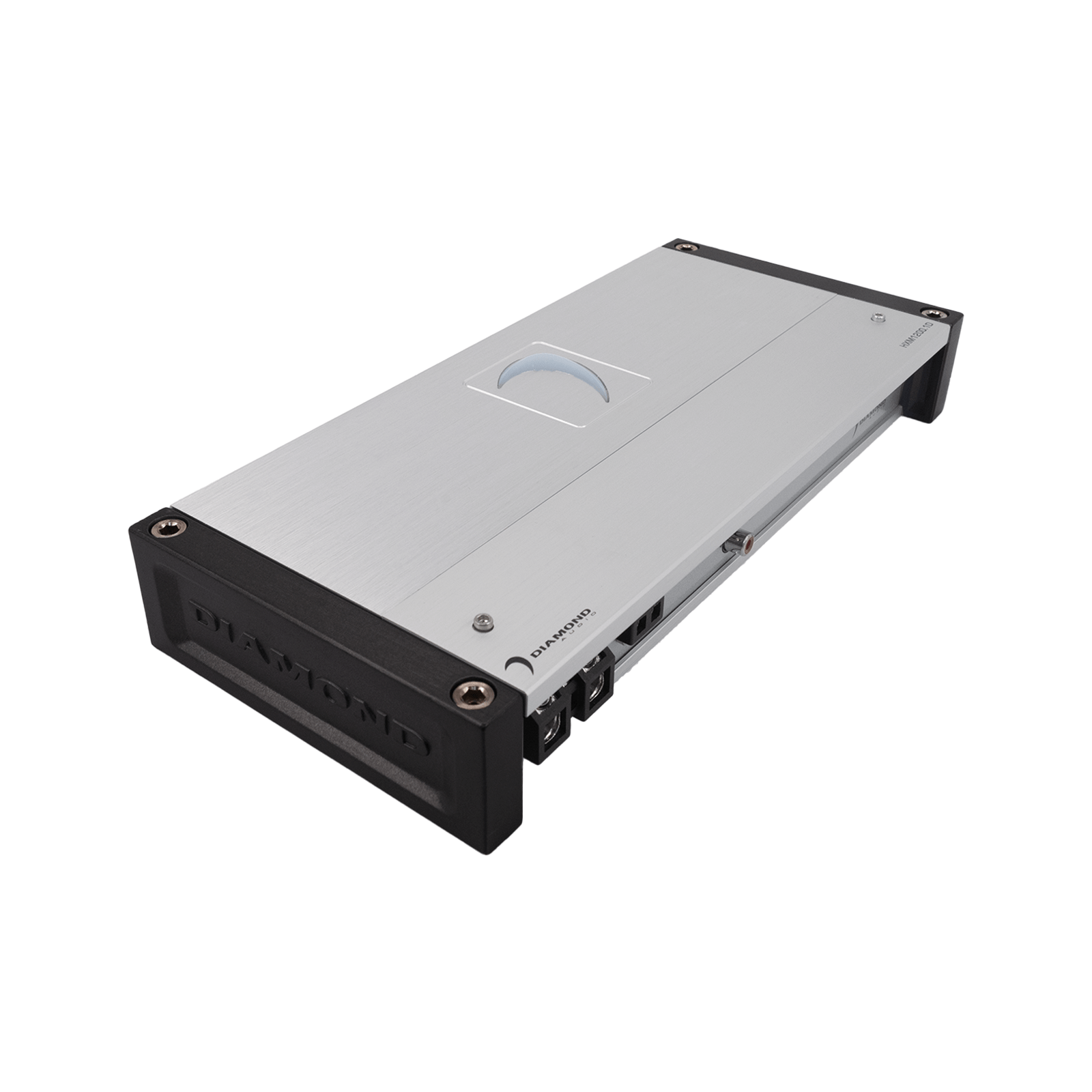

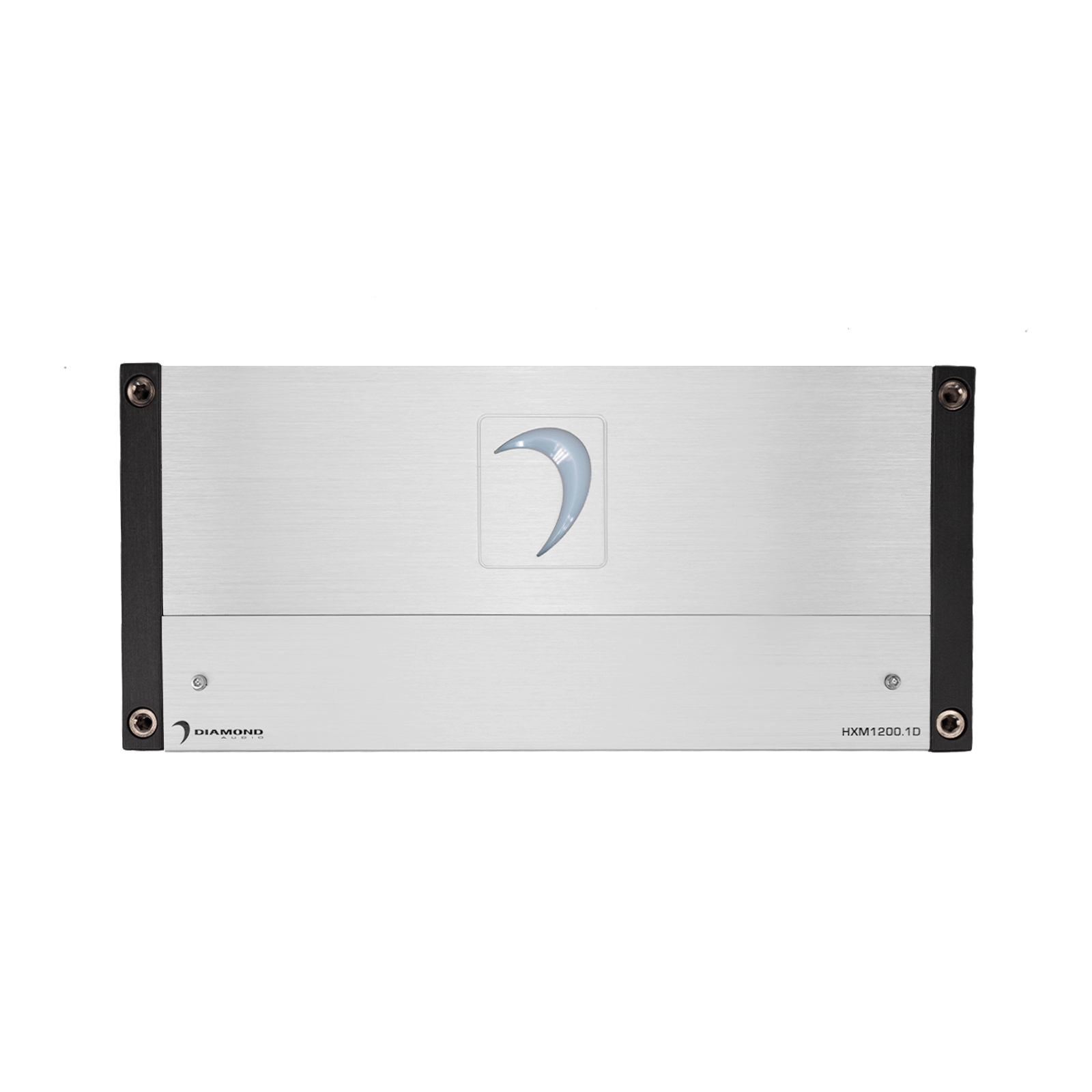

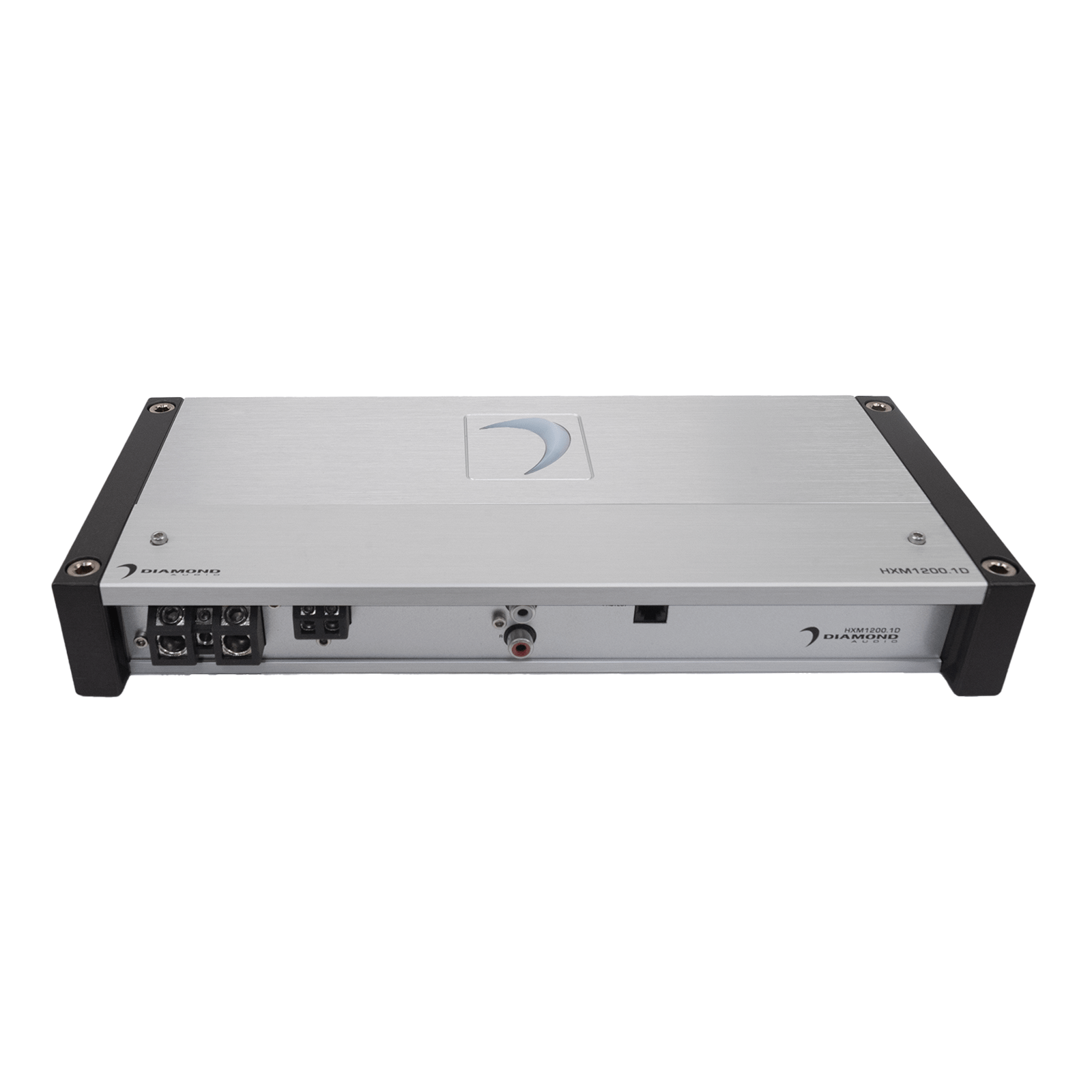

Diamond Audio HXM1200.1D 1200W Class D Monoblock Motorsport Amplifier

This powerhouse amplifier shrugs off splashes and dirt while pumping out massive sound for your boat or UTV. High-efficiency Class D technology packs 1200W of pure audio muscle into a compact, adventure-ready frame. The water-resistant design and coated circuit boards ensure your playlist keeps rocking through every muddy trail or ocean wave. Tuning is a breeze with top-mounted controls, making it the perfect co-pilot for your wild outdoor escapes.

POWER RATING

• RMS Power (1Ω): 1200W
• RMS Power (2Ω): 850W
• RMS Power (4Ω): 550W

POWER SUPPLY

• Power Supply: Full PWM
• Power Supply Threshold: 10.0V-17.0V (DC)
• Idle Current: (0.7A)

DISTORTION

• THD 4 (1KHz @4Ω): 0.07%
• S/N Ratio (A weighted @1W): -77.4dBA
• S/N Ratio (A weighted @FP): -97.4dBA

INPUT SENSITIVITY

• Low Input Level: 0.2mV-10.0V
• High Input Level: Up to 25W RMS

INPUT IMPEDANCE

• Low Input Level: 22 KΩ
• High Input Level: 22 KΩ

OUTPUT STAGE

• Output Impedance: 0.047Ω
• Damping Factor (50Hz @ 4Ω): >250
• Bandwidth (-3dB): 10Hz-350Hz

CROSSOVER (-12/Oct)

• Variable High-Pass: N/A
• Variable Low-Pass: 30Hz-300Hz
• Variable Sub-Sonic: 10Hz-55Hz

FUSE RATINGS

• ATC: 60A

DIMENSIONS

• L x W x H: 11.72”x 5.27”x 1.75” (297.6mm x 133.9mm x 44.5mm)

FEATURES

• Bass Remote Control Included
• Anodized Extruded Aluminum Heat Sink Provides Superior Thermal Performance
• Spring Steel FET Clips Provide a Cleaner Board Design
• Illuminated Logo / Fully Concealed Mounting
• Output Clip Indicators for Precise Set-Up
• Fine Tuned Fully Variable Crossovers and Phase Control

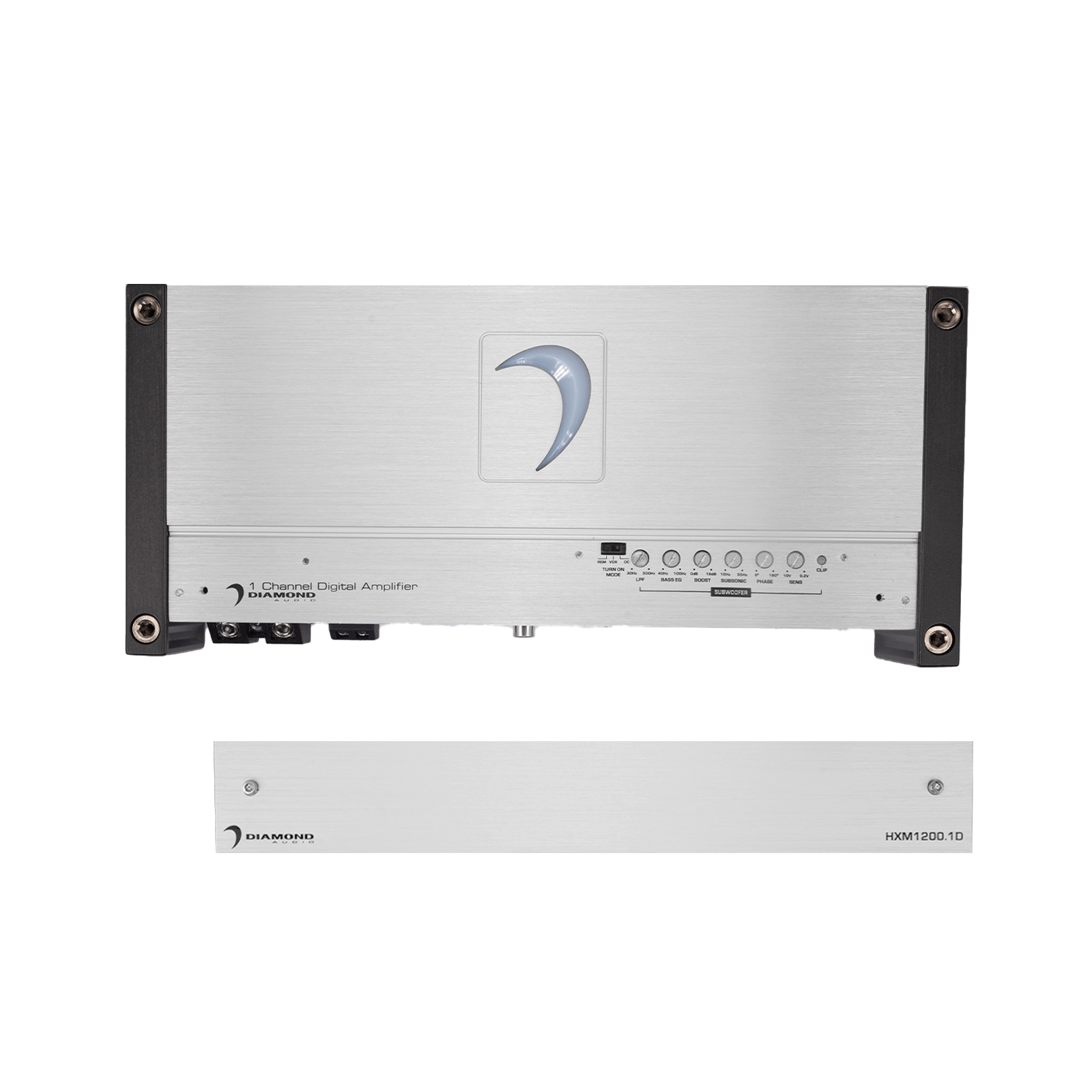

• Top Mounted Controls for Convenient Amplifier Adjustment
