Diamond Audio HXM800.1D HXM Series 800W Class D Monoblock Amplifier

This compact powerhouse brings concert-level energy to your boat, motorcycle, or UTV without breaking a sweat. Its water-resistant design and coated circuit boards mean the party keeps rocking even when things get a little wild and wet. You can dial in the perfect vibe with precision crossovers and top-mounted controls that make tuning a total breeze. Installation is just as smooth thanks to the smart auto turn-on mode that plays nice with any factory head unit.

POWER RATING

• RMS Power (1Ω): 800W
• RMS Power (2Ω): 550W
• RMS Power (4Ω): 350W

POWER SUPPLY

• Power Supply: Full PWM
• Power Supply Threshold: 10.0V-17.0V (DC)
• Idle Current: (0.7A)

DISTORTION

• THD 4 (1KHz @4Ω): 0.05%
• S/N Ratio (A weighted @1W): -77.2dBA
• S/N Ratio (A weighted @FP): -98.9dBA

INPUT SENSITIVITY

• Low Input Level: 0.2mV-10.0V
• High Input Level: Up to 25W RMS

INPUT IMPEDANCE

• Low Input Level: 22 KΩ
• High Input Level: 22 KΩ

OUTPUT STAGE

• Output Impedance: 0.047Ω
• Damping Factor (50Hz @ 4Ω): >250
• Bandwidth (-3dB): 10Hz-350Hz

CROSSOVER (-12/Oct)

• Variable High-Pass: N/A
• Variable Low-Pass: 30Hz-300Hz
• Variable Sub-Sonic: 10Hz-55Hz

FUSE RATINGS

• ATC: 45A

DIMENSIONS

• L x W x H: 8.56”x5.27”x1.75” (217.6mm x 133.9mm x 44.5mm)

FEATURES

• Bass Remote Control Included
• Anodized Extruded Aluminum Heat Sink Provides Superior Thermal Performance
• Spring Steel FET Clips Provide a Cleaner Board Design

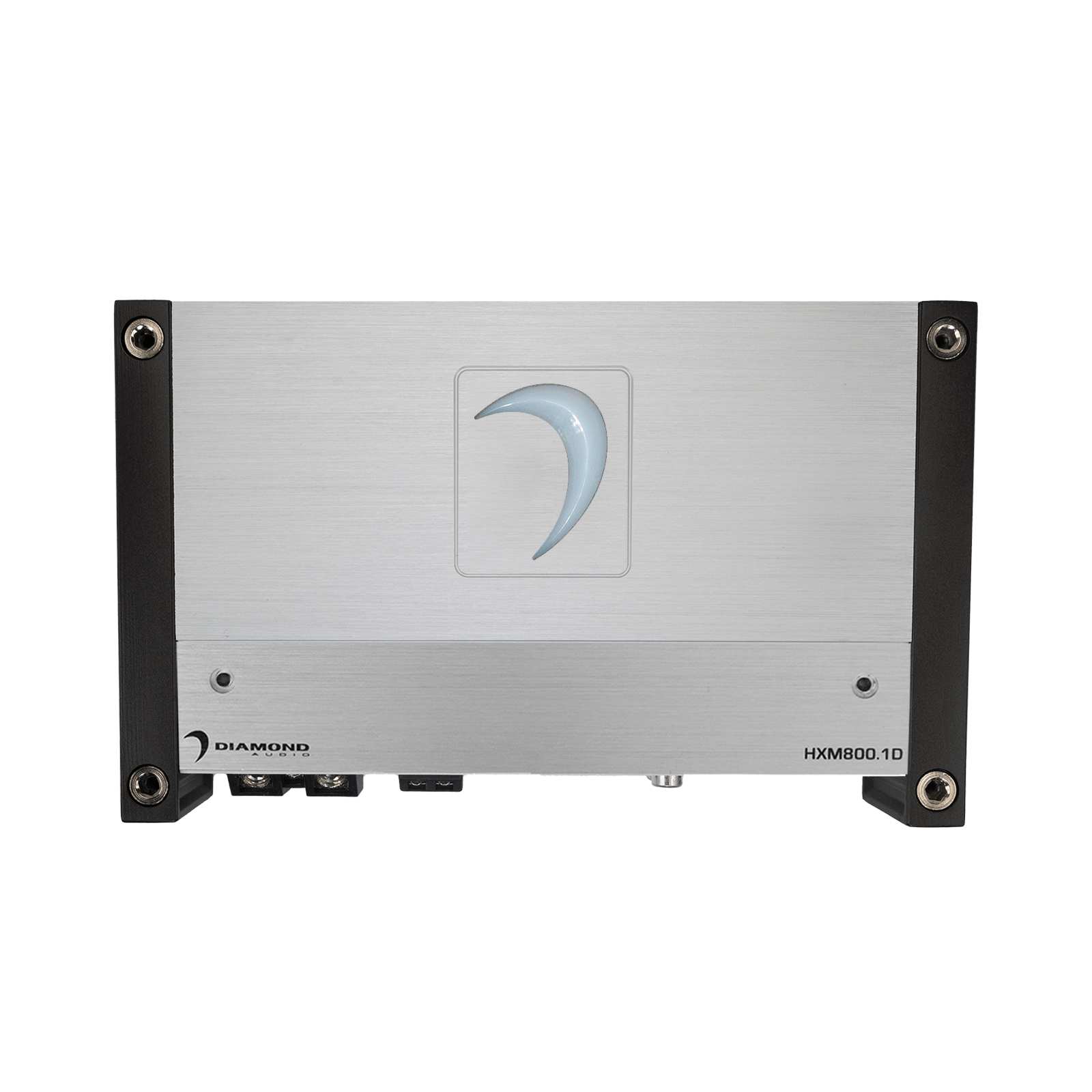

• Illuminated Logo / Fully Concealed Mounting
• Output Clip Indicators for Precise Set-Up
• Fine Tuned Fully Variable Crossovers and Phase Control

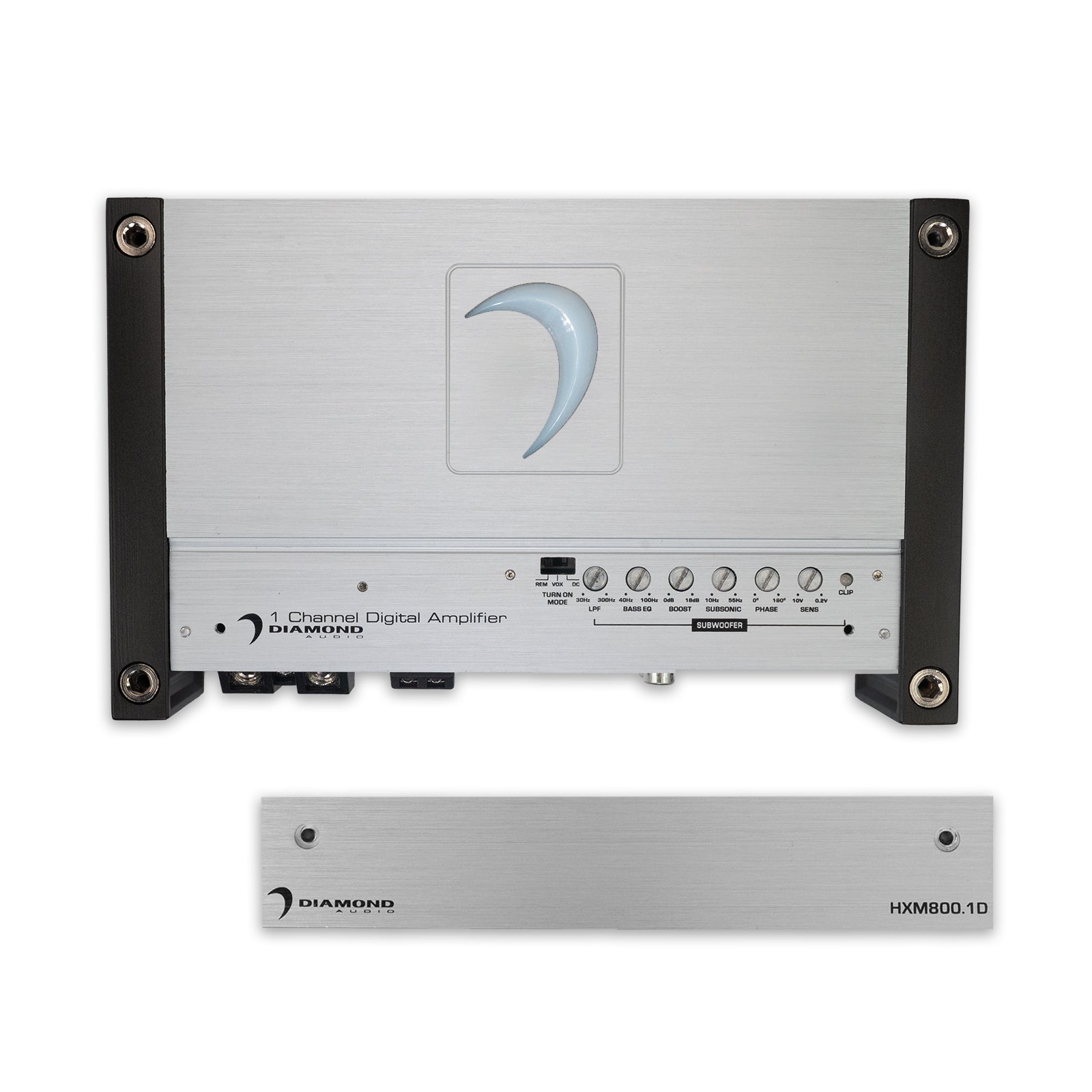

• Top Mounted Controls for Convenient Amplifier Adjustment
