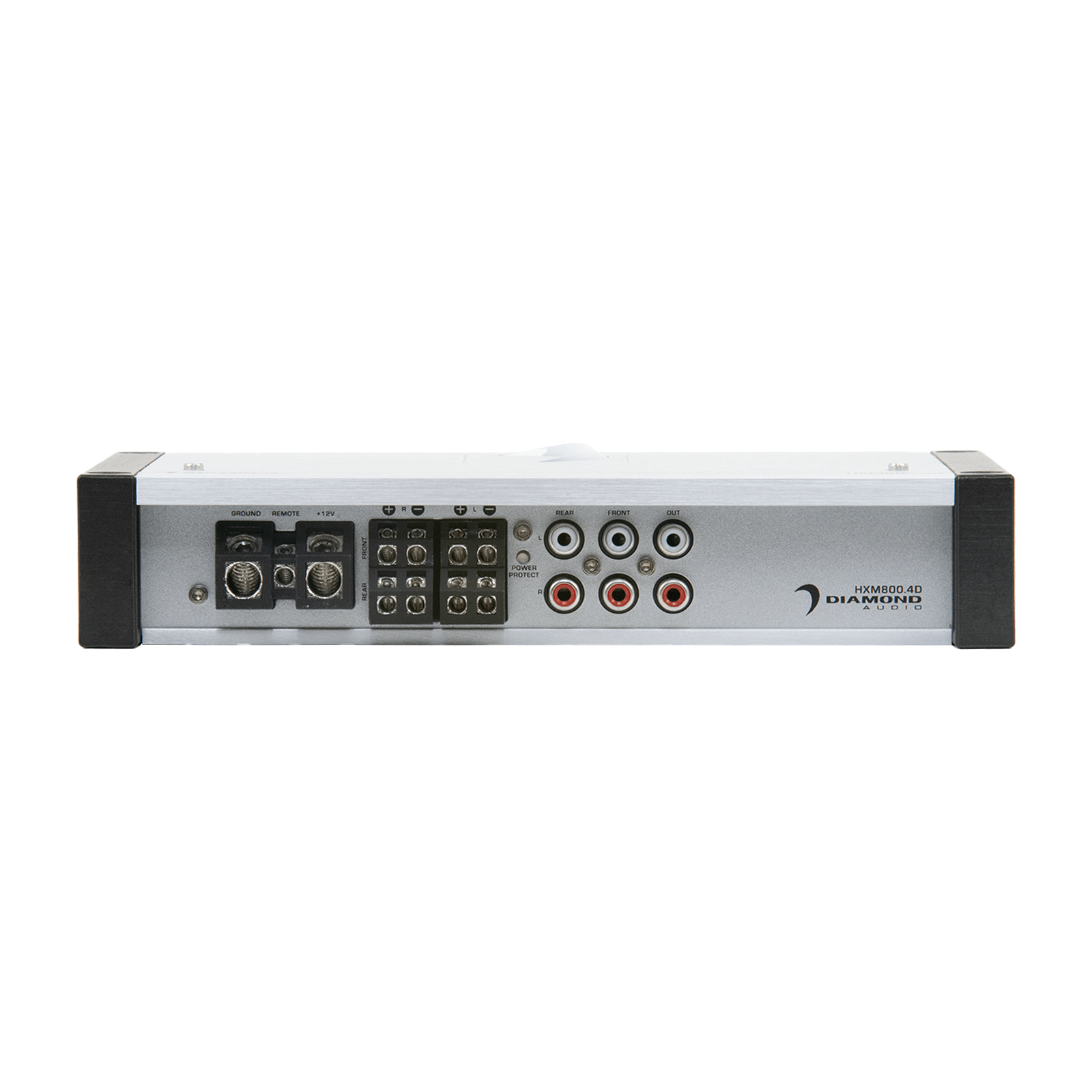

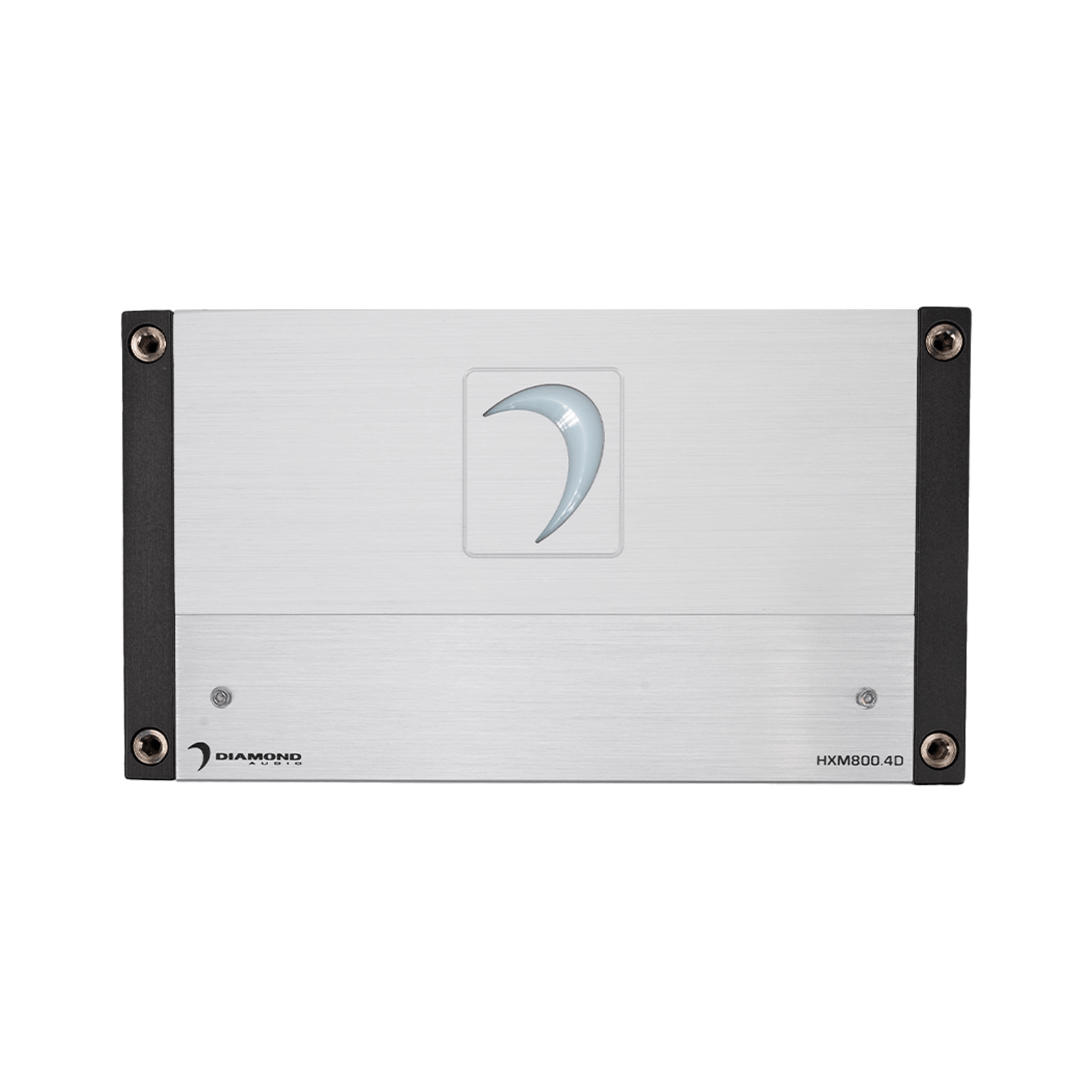

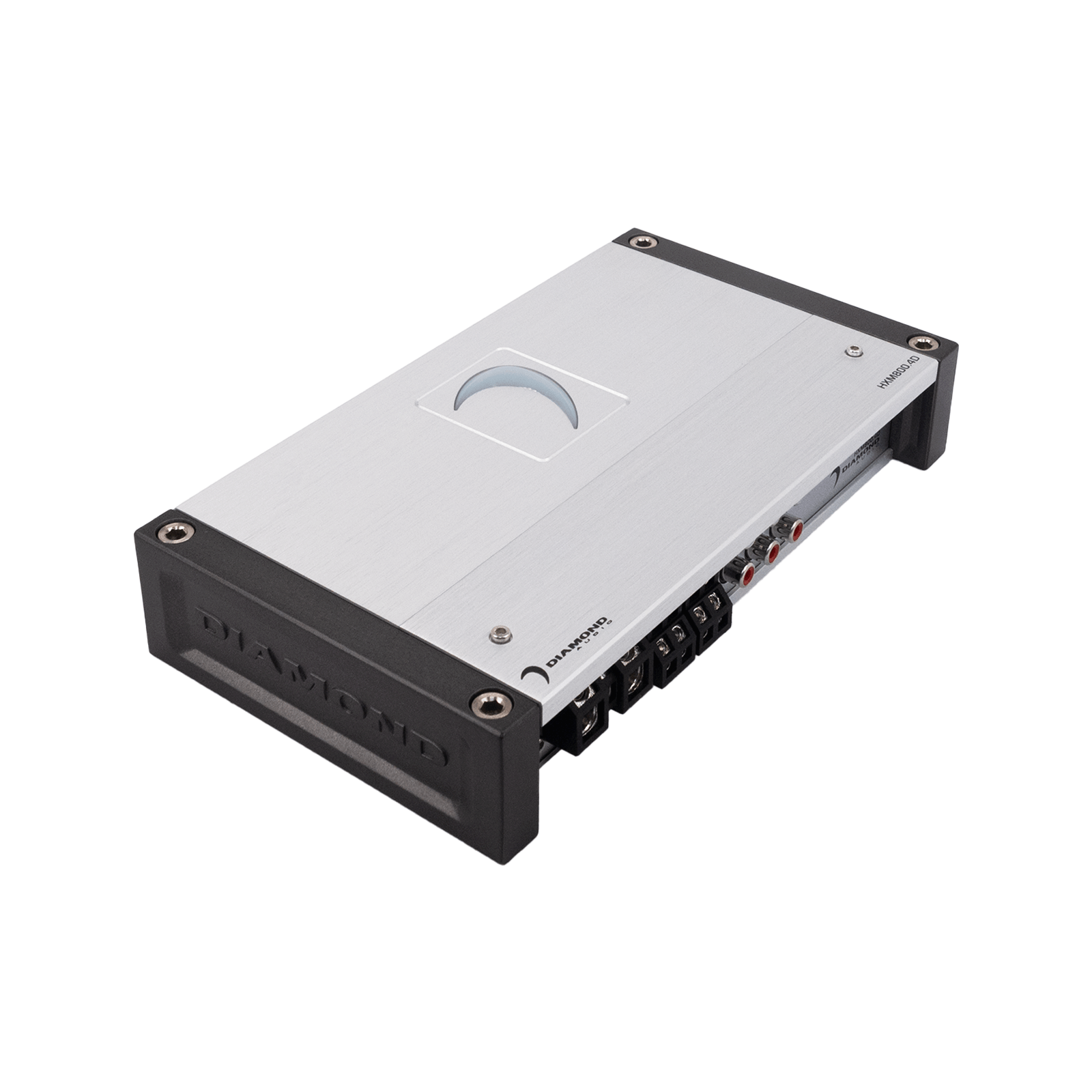

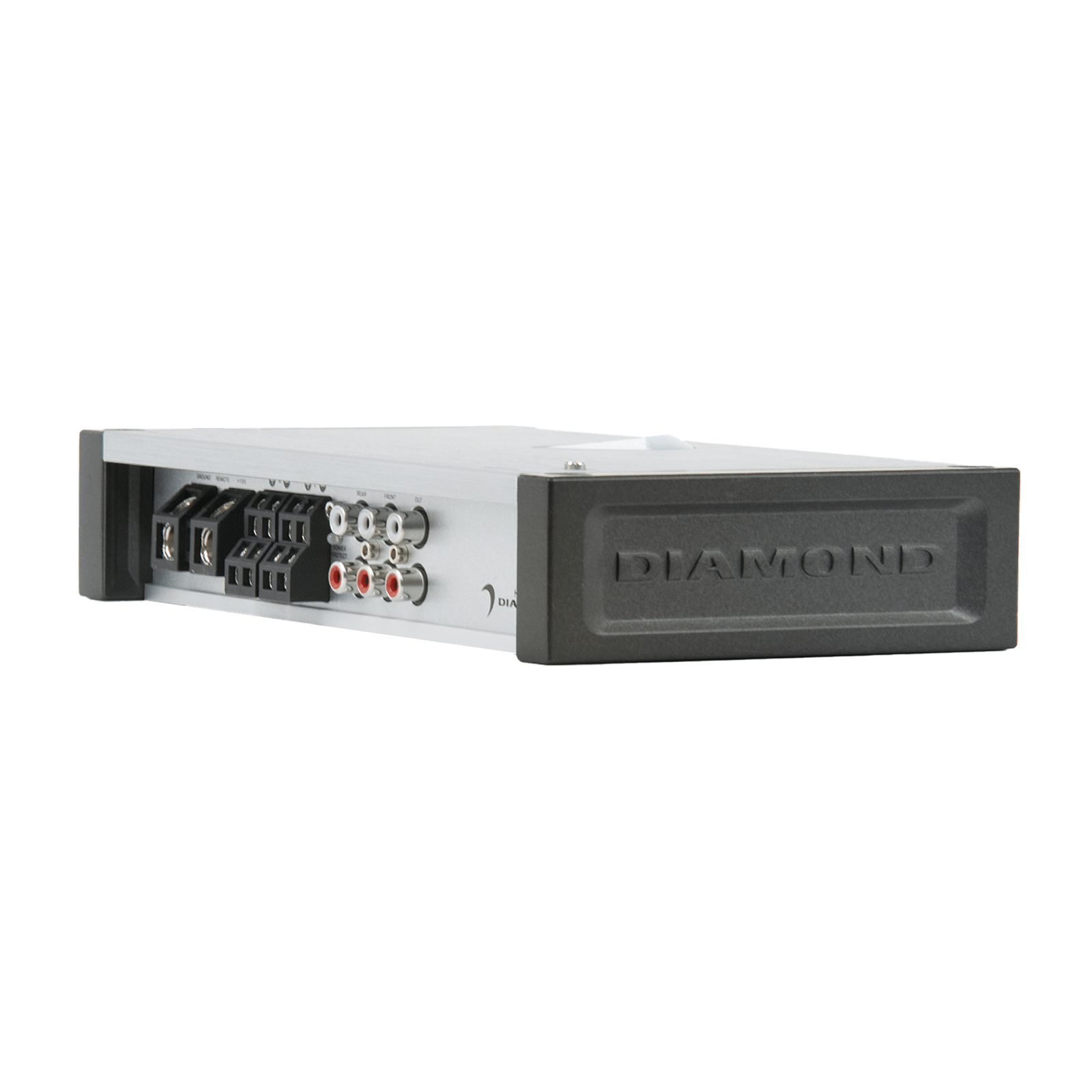

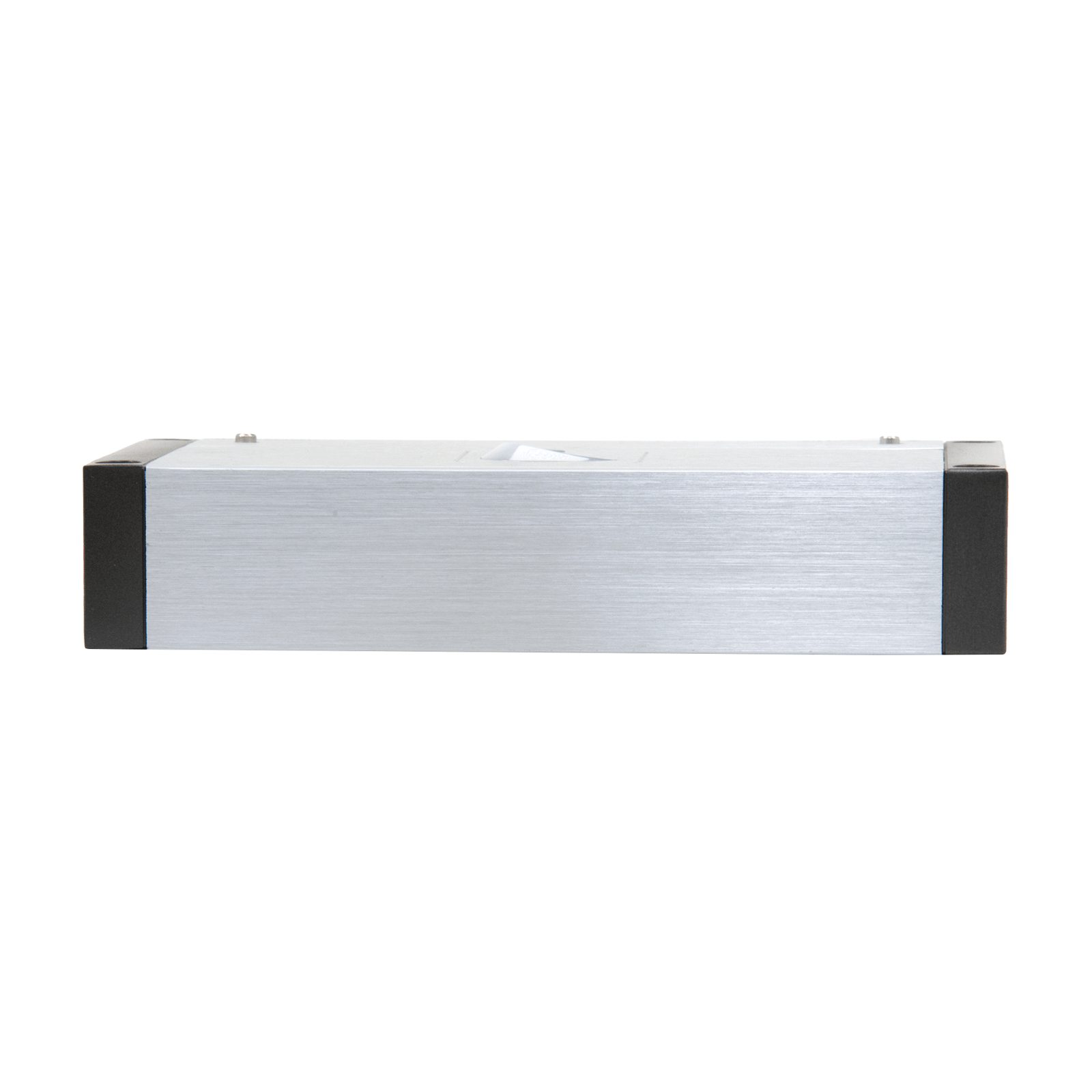

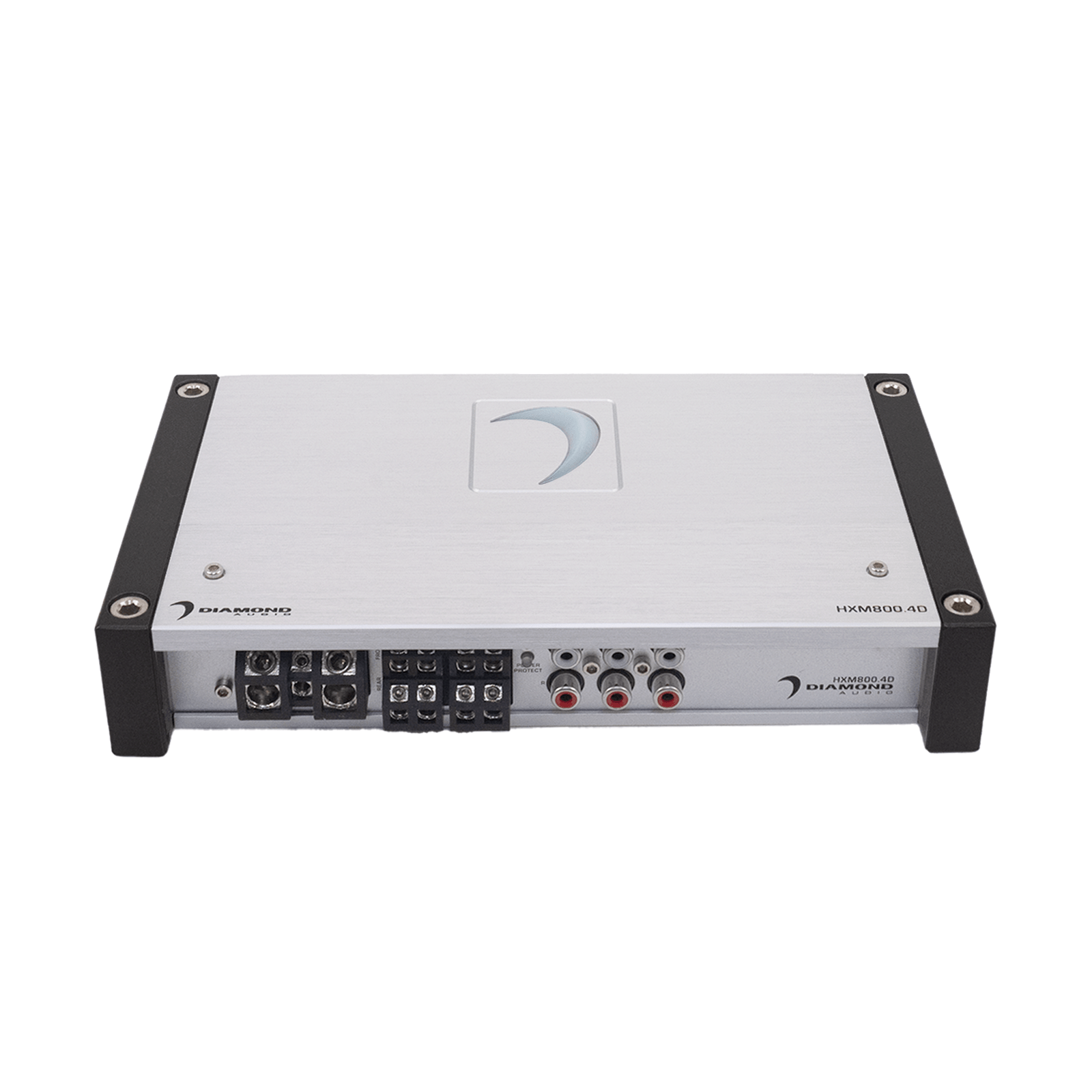

Diamond Audio HXM800.4D 800W 4-Channel Full Range Class D Amplifier

This powerhouse delivers crystal-clear audio while laughing in the face of rain and mud. Its compact Class D design packs a punch without hogging space on your bike or boat. Conformal-coated circuitry ensures your tunes keep pumping through every splash and dusty trail. Fine-tune your sound with ease using the convenient top-mounted controls and adjustable crossovers.

POWER RATING

• RMS Power (2Ω): 200W X 4
• RMS Power (4Ω): 120W X 4
• Bridged (Mono 1Ω): N/A
• Bridged (Mono 2Ω): N/A
• Bridged (Mono 4Ω): 400W X 2 (4Ω ONLY)

POWER SUPPLY

• Power Supply: Full PWM
• Power Supply Threshold: 10.0V-17.0V (DC)
• Idle Current: (0.7A)

DISTORTION

• THD 4 (1KHz @4Ω): 0.05%
• S/N Ratio (A weighted @1W): -77.4dBA
• S/N Ratio (A weighted @FP): -97.4dBA

INPUT SENSITIVITY

• Low Input Level: 0.2mV-10.0V
• High Input Level: Up to 25W RMS

INPUT IMPEDANCE

• Low Input Level: 22KΩ
• High Input Level: N/A

OUTPUT STAGE

• Output Impedance: 0.047Ω
• Damping Factor (50Hz @ 4Ω): >250
• Bandwidth (-3dB): 10Hz-35KHz

CROSSOVER (-12dB/Oct)

• Variable High-Pass: 40Hz-400Hz
• Variable Low-Pass: 40Hz-400Hz
• Variable Sub-Sonic: N/A

FUSE RATINGS

• ATC: 40A

DIMENSIONS

• L x W x H: 9.3" x 5.27 x 1.75 (234mm x 133.9mm x 44.5mm)

FEATURES

• Anodized Extruded Aluminum Heat Sink Provides Superior Thermal Performance
• Full Range Class D IR Chipset
• Illuminated Logo / Fully Concealed Mounting
• Output Clip Indicators for Precise Set-Up
• Fine Tuned Fully Variable Crossovers and Phase Control

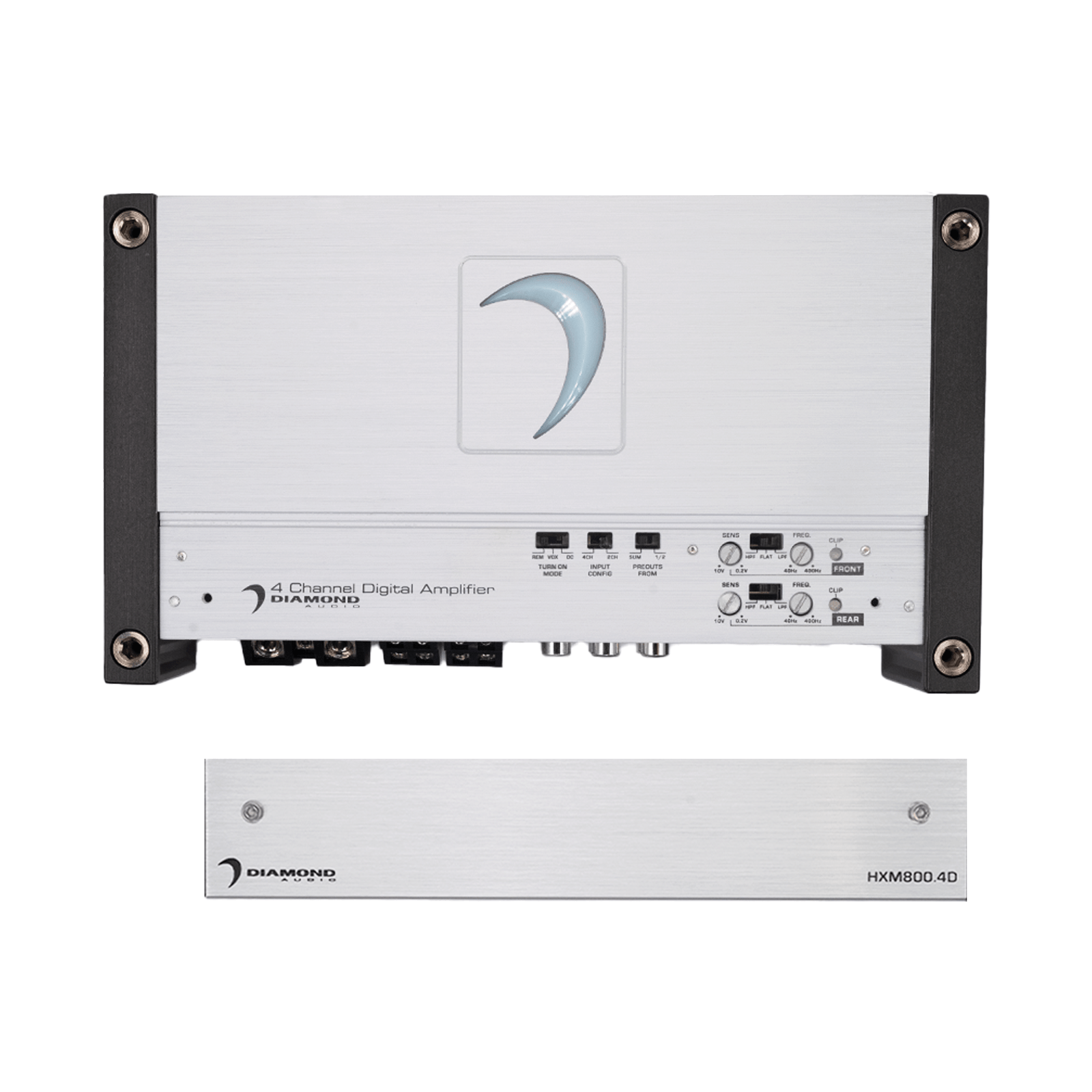

• Top Mounted Controls for Convenient Amplifier Adjustment
