Diamond Audio

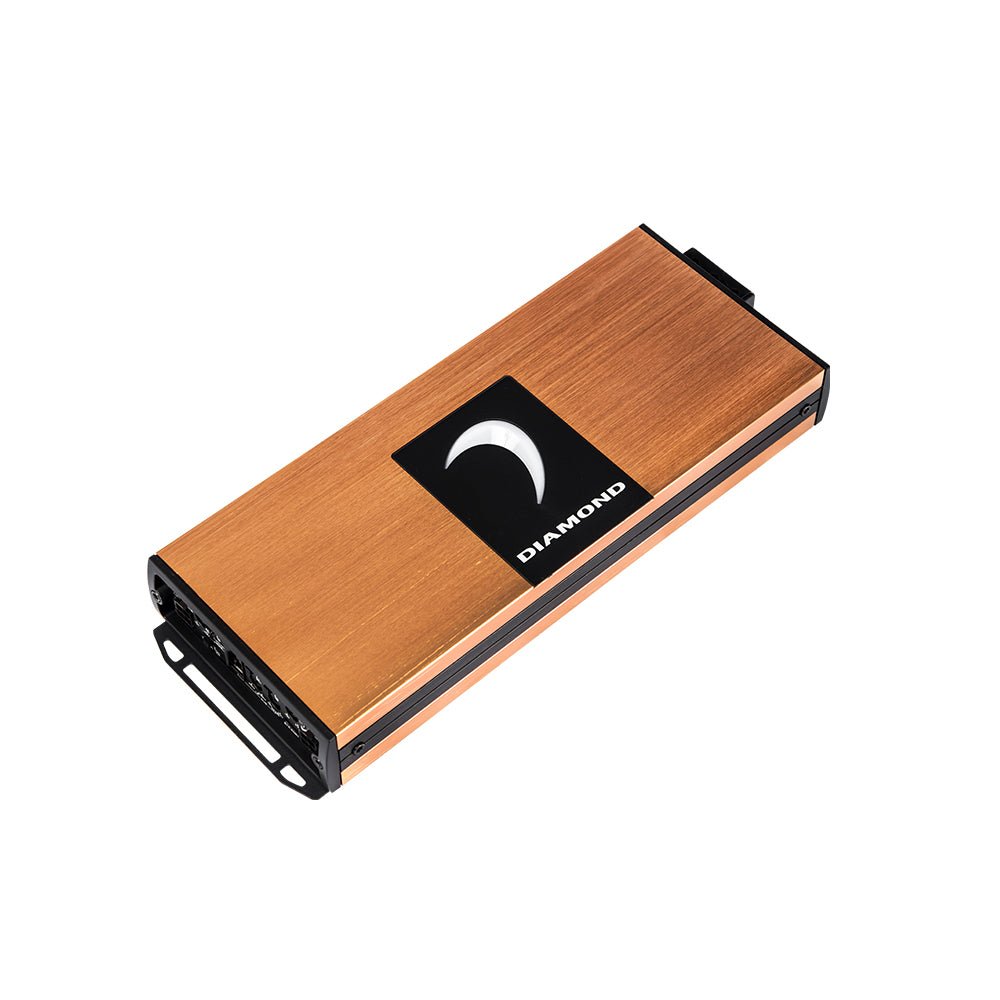

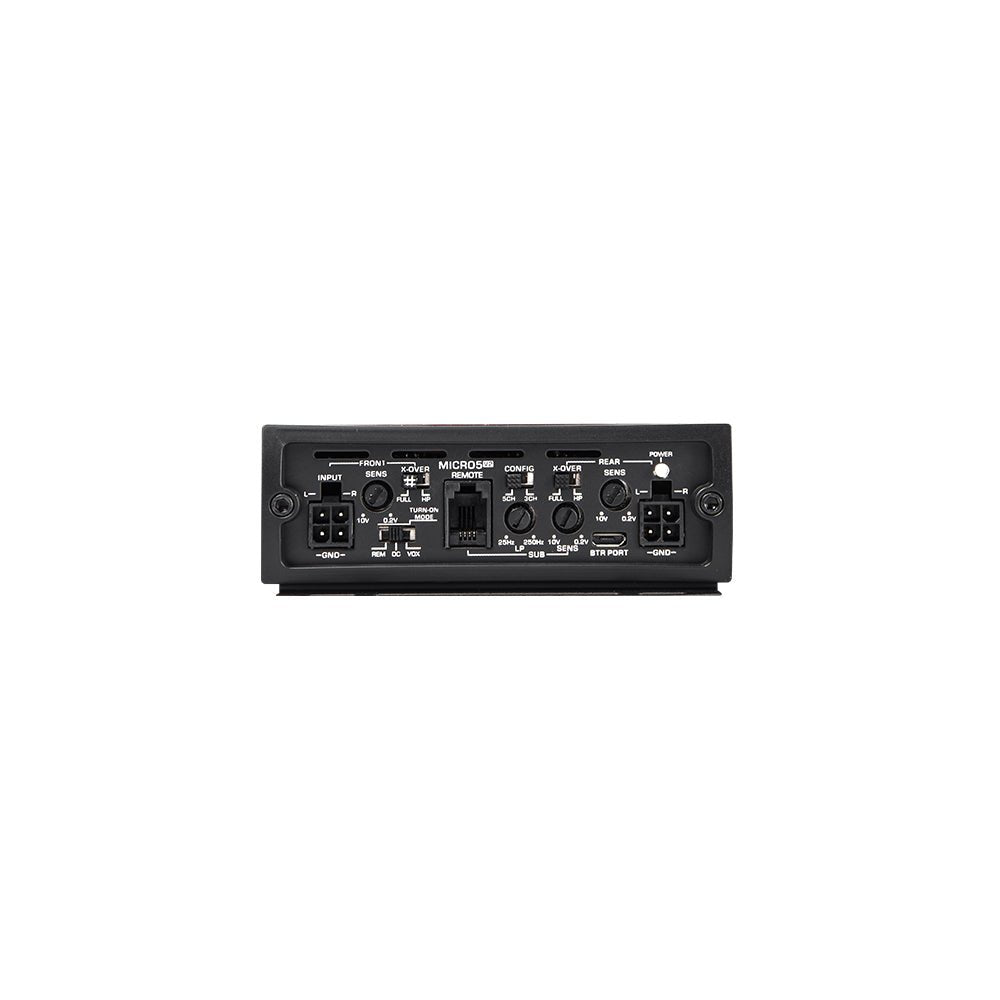

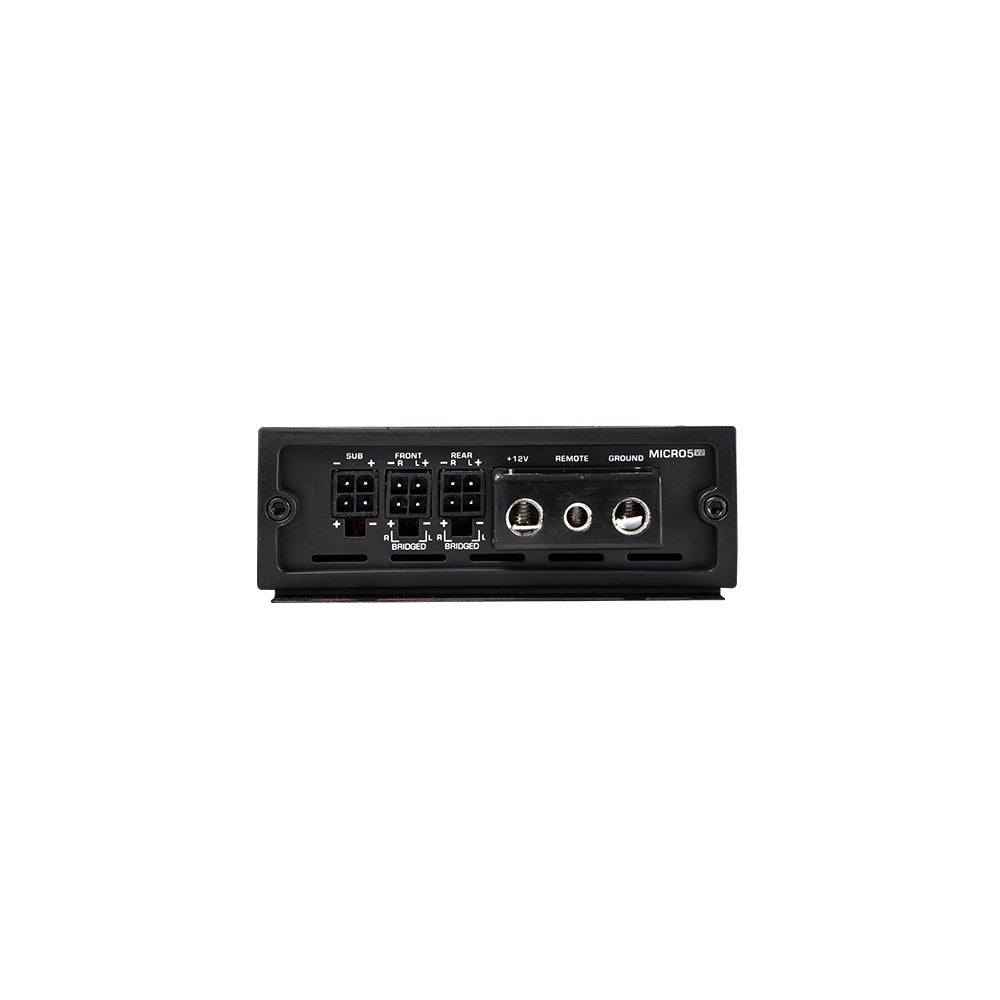

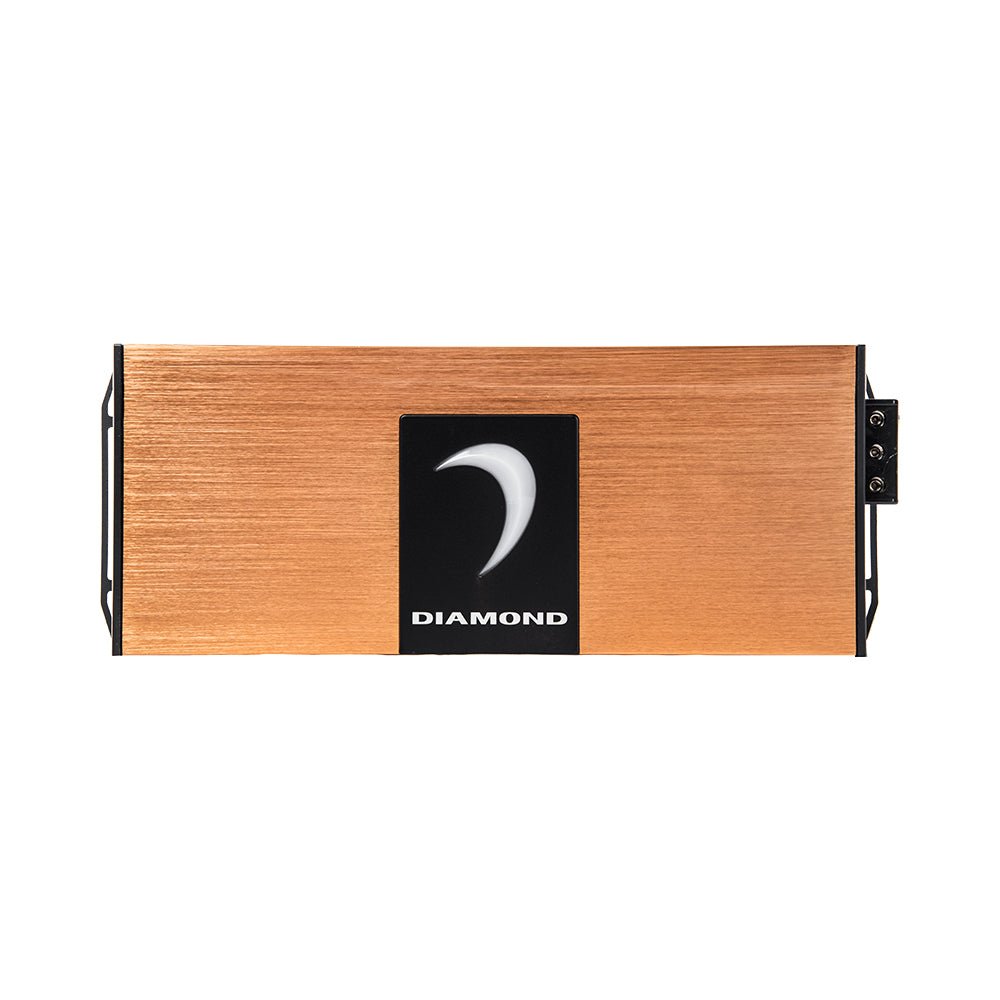

Diamond Audio MICRO5V2 5-Channel Full Range Class D Amplifier

Diamond Audio MICRO5V2 5-Channel Full Range Class D Amplifier

In stock

  • price-tag logoNew Launch
Regular price $599.99
Regular price Sale price $599.99
Save: $-599.99 (% Off)*
Sale Sold out
Shipping calculated at checkout.
  • cargo-truck logoFree shipping Over $99
Sold in last hours
  • free logo
    Fast, FREE Delivery

    Free, Fast, Doorstep Delight!

  • return logo
    Delivery & Returns

    Effortless Delivery, Easy Returns

View full details
  • Overview
  • Details
  • Accessories

This compact powerhouse packs a punch, fitting into tight spaces without breaking a sweat. Your music stays crisp and cool thanks to advanced thermal protection and a high-density aluminum chassis. Installation is a breeze with auto turn-on modes that play nice with your factory head unit. Crank up the volume and let the full-range Class D technology handle the heavy lifting for your audio system.

Amplifier Type 5-Channel Full Range Class D
Chassis Material High-Density Aluminum Alloy
Protection Technology Advanced Rollback/Thermal Protection
Input Type Balanced Differential
Crossover 12dB Per Octave Adjustable
Bass EQ Diamond 12dB @ 45Hz
Power Stage Direct FET Power MOSFET
Turn-On Mode Selectable 3-Option Auto Turn-On
Circuitry Ultra-Efficient Full-Range Digital



  • 150W x 4CH @ 2Ω/350W x 1 CH @ 2Ω
  • 80W x 4CH @ 4Ω/250W x 1CH @ 4Ω
  • Input Sensitivity: 0.2-10 Volt
  • Crossover Filter : Fixed 70Hz (HPF), 12dB Per Octave Slope (Front & Rear)
  • 25-250Hz (LPF), 24dB Per Octave Slope (Sub)
  • Frequency Response: 10-33KHz
  • Selectable REM / VOX / DC Turn On Modes
  • Selectable 3CH / 5CH Input Modes
  • Dimensions: 10.65” x 4.0” x 1.46” / 270.5 x 103 x 37.2 mm
  • Remote Bass Knob Included
  • Disconnected RCA Input & Speaker Output Harness Kits Included
