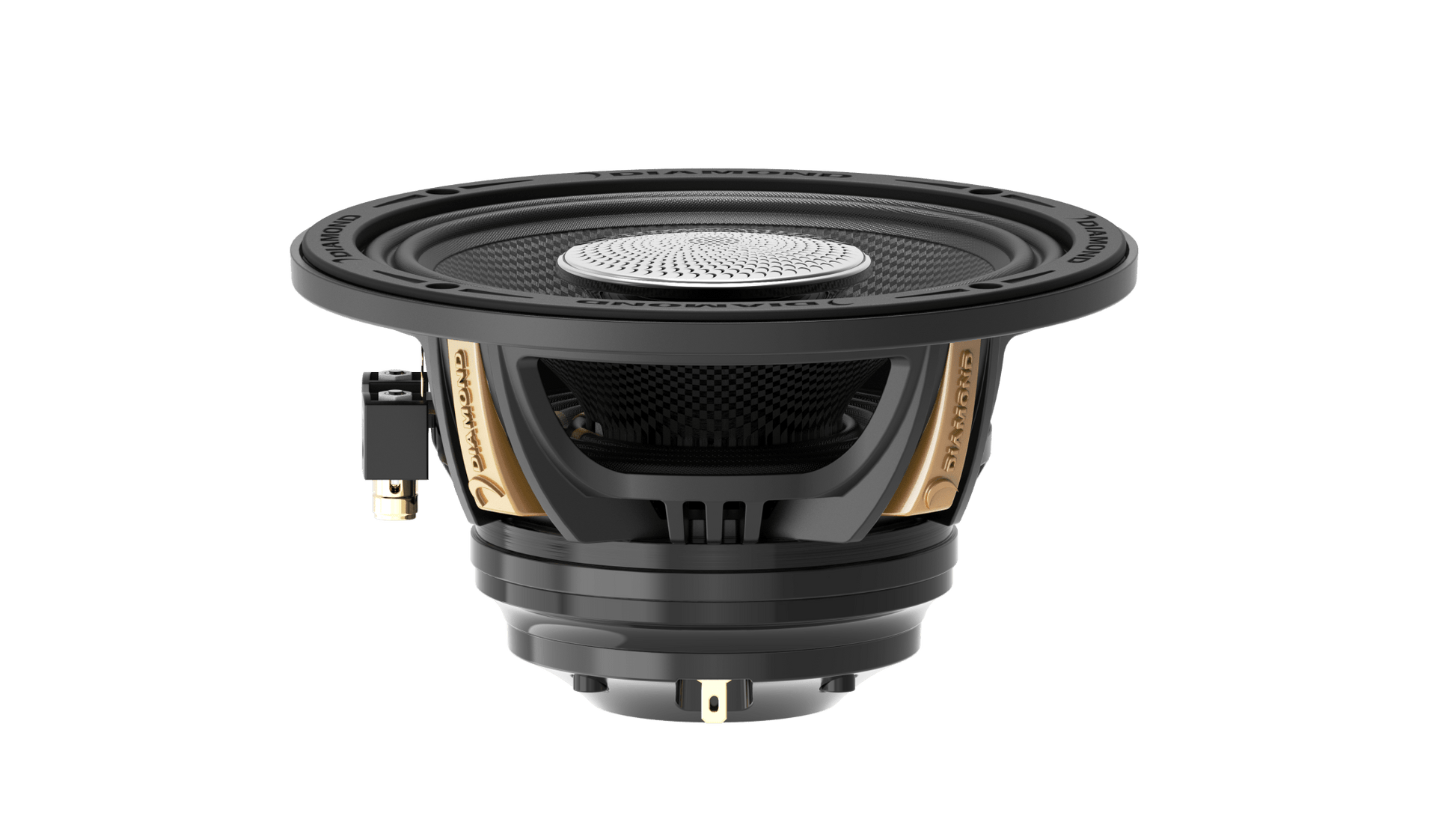

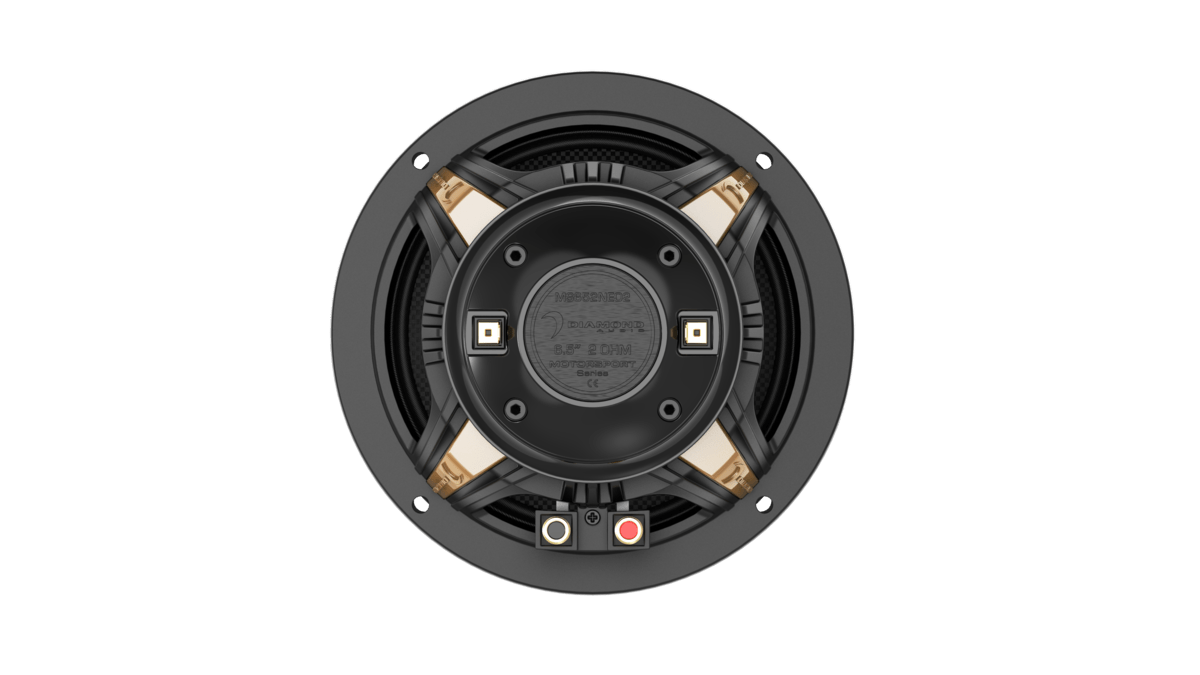

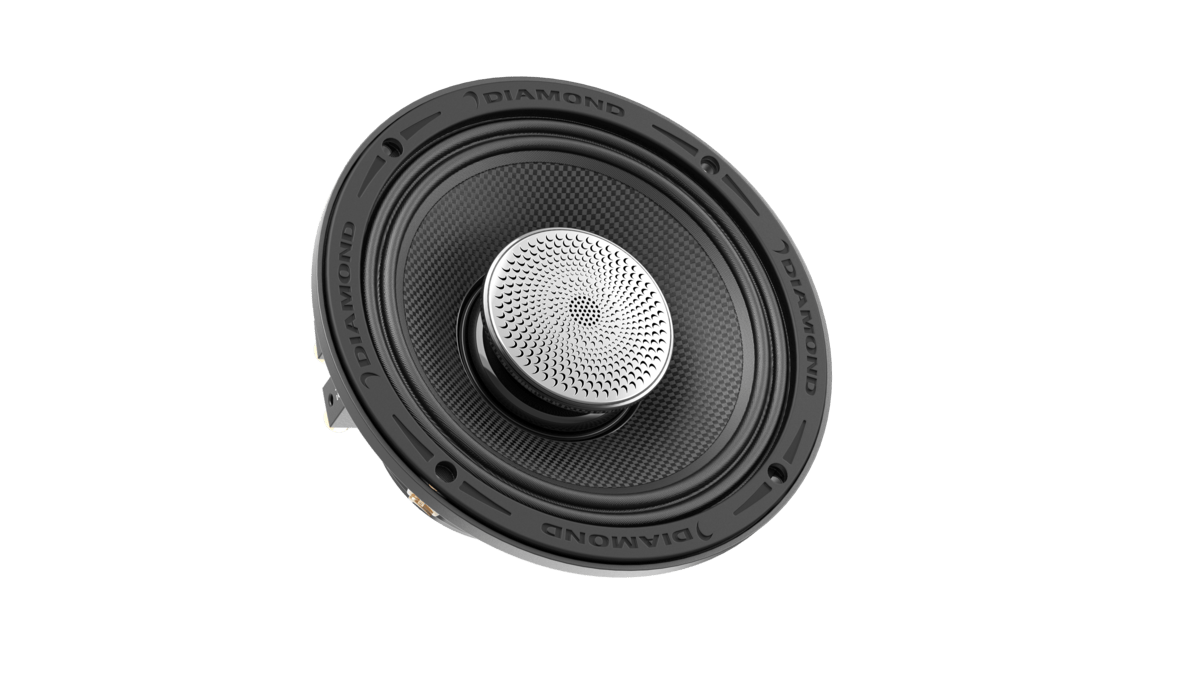

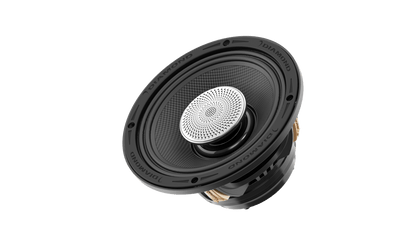

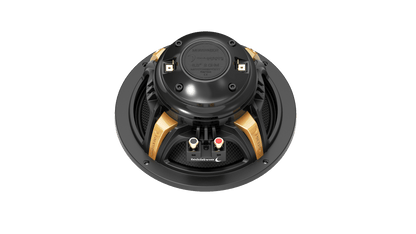

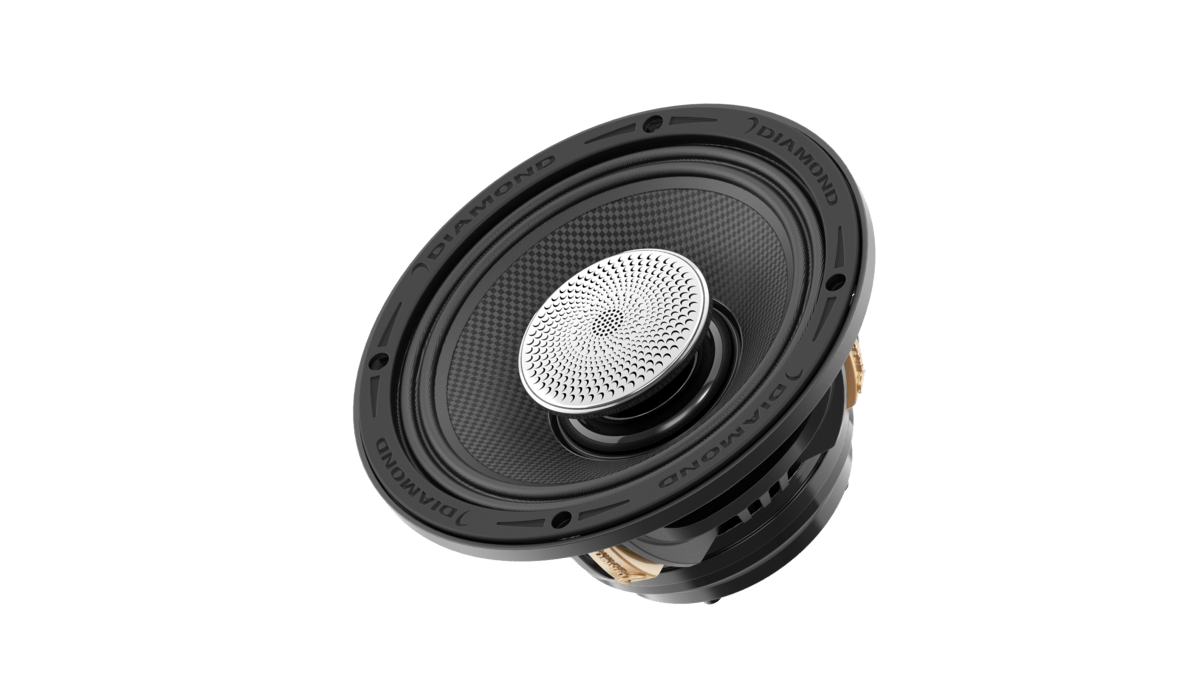

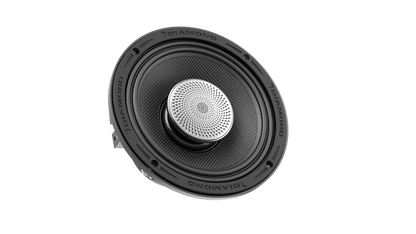

Diamond Audio MS652NEO2 6.5 Inch 2-Way Waterproof Coaxial Horn Speakers

Crank up the volume with these rugged waterproof horn drivers built for the wildest rides. These 2-ohm powerhouses blend high-output midbass with crystalline highs to slice through wind and engine noise. Your motorcycle or boat just became the loudest stage on the block thanks to advanced neodymium magnets and bi-amp ready crossovers. Performance this crisp makes every highway run feel like a front-row concert experience.

SPEAKER SIZE - 6.5"
SPEAKER TYPE - HORN LOADED CO AXIAL
BI-AMPABLE YES
OHMS (PER COIL) - 2Ω
NUMBER OF VOICE COILS - DUAL
FIELD SERVICABLE VOICE COIL - YES
CONE MATERIAL - CARBON FIBER
DIAPHRAGM MATERIAL - (PEN) POLYETHYLENE NAPHTHALATE
BASKET MATERIAL - CAST ALUMINIUM
MAGNET TYPE - NEODYMIUM
SURROUND MATERIAL - RUBBER
WATER RESISTANCE -
VOICE COIL DIAMETER - INCH (MM) - 2"
THIELE/SMALL PARAMETERS
SENSITIVITY (1W/1M): 93
RE (Ω) [SERIES]: 3.2
QMS: 10.357
QES: 0.67
QTS: 0.629
FS (HZ): 151
VAS (L): 2.756
CMS (MM/N): 0.094
MMS (G): 11.728
SD (M2): 143.14
BL (T*M): 7.289
XMAX (MM): 1.2
POWER HANDLING RMS: 200
POWER HANDLING MAX: 400
MOUNTING DEPTH: IN.(MM):3.43"" (87.13MM)
CUT OUT DIAMETER IN.(MM):5.63"" (143MM)
OVER ALL DIAMETER IN.(MM):6.65"" (169MM)
OVER ALL HEIGHT IN.(MM):3.79"" (96.33MM)
