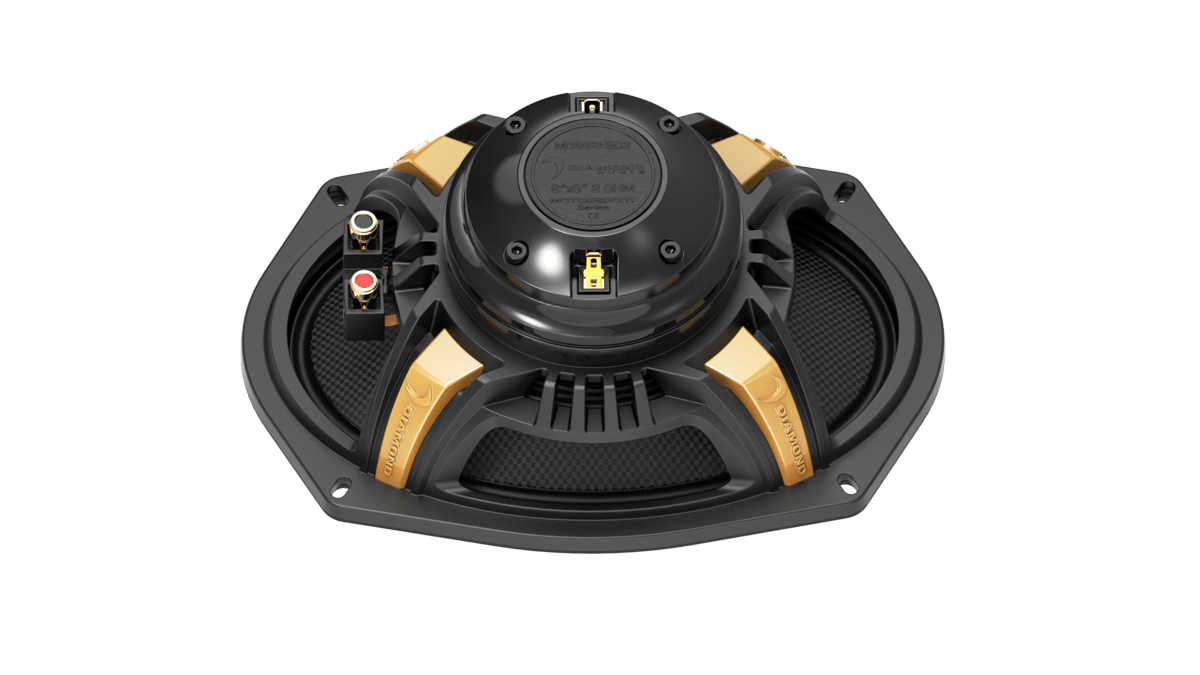

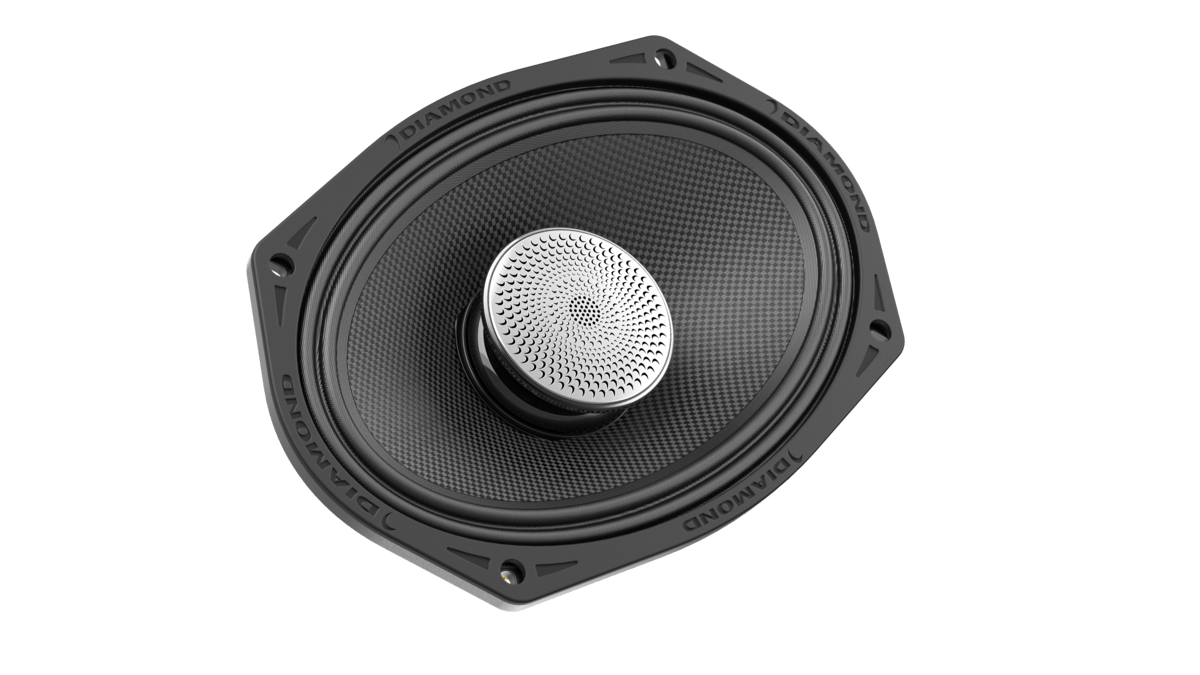

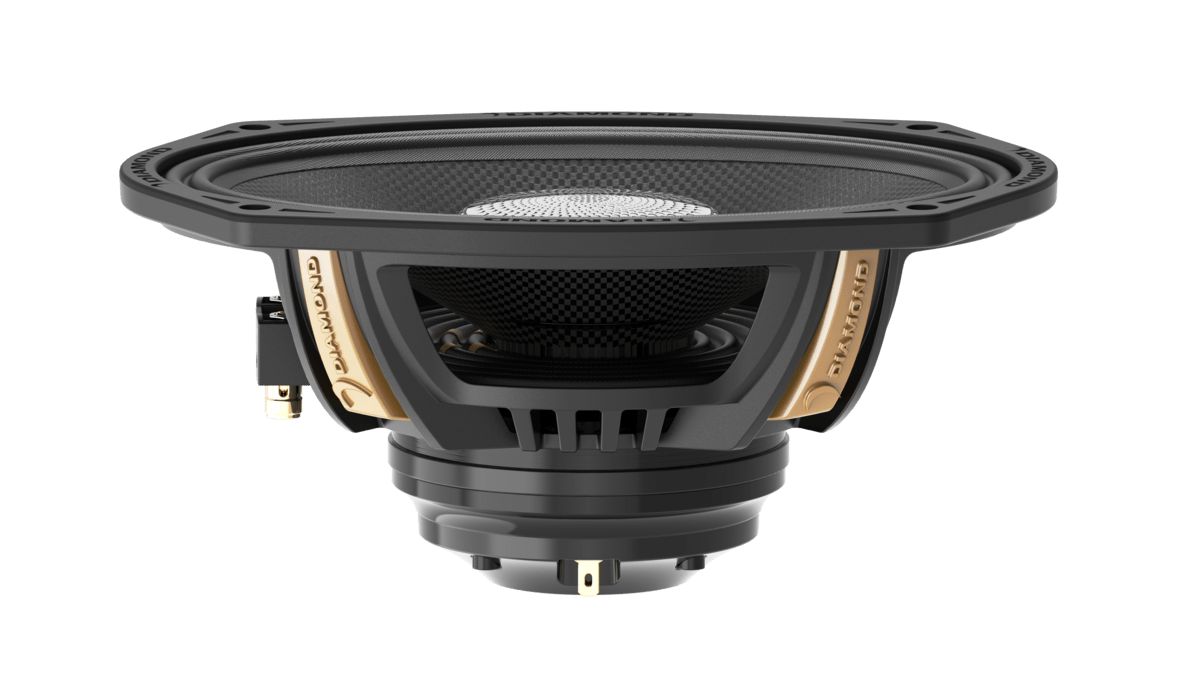

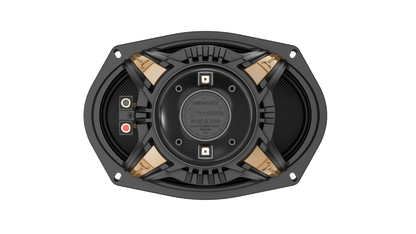

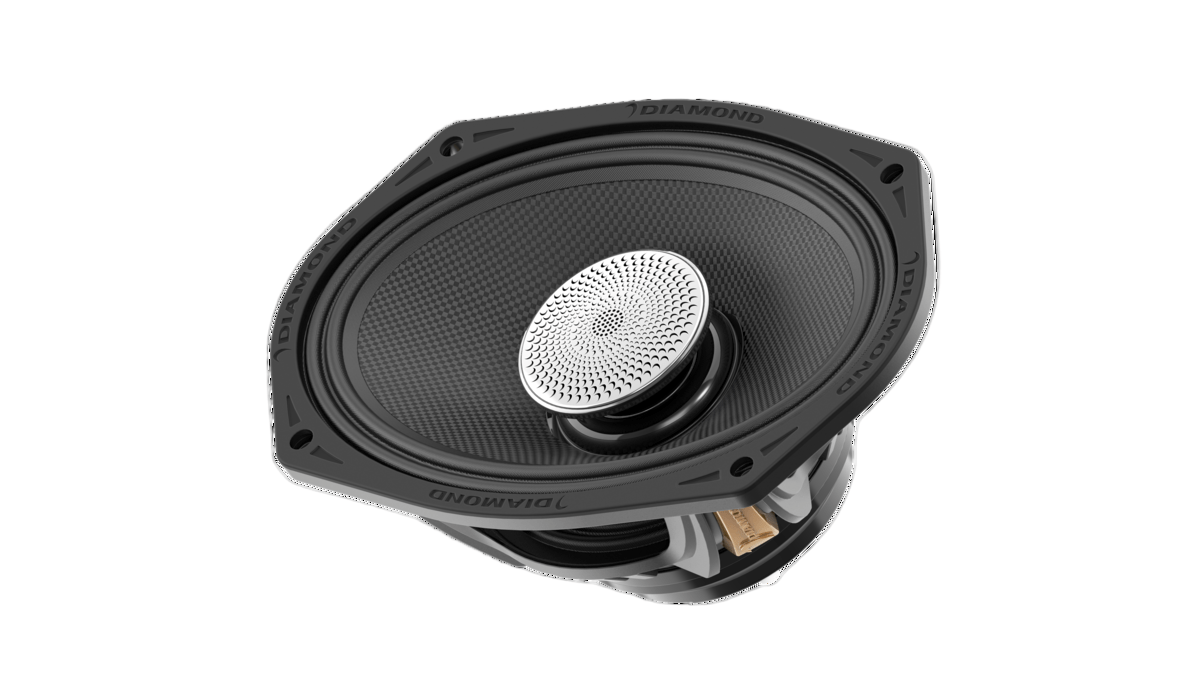

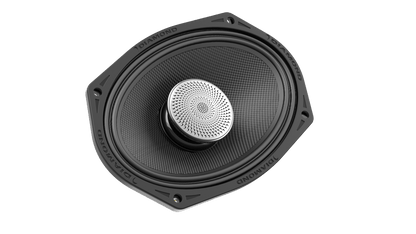

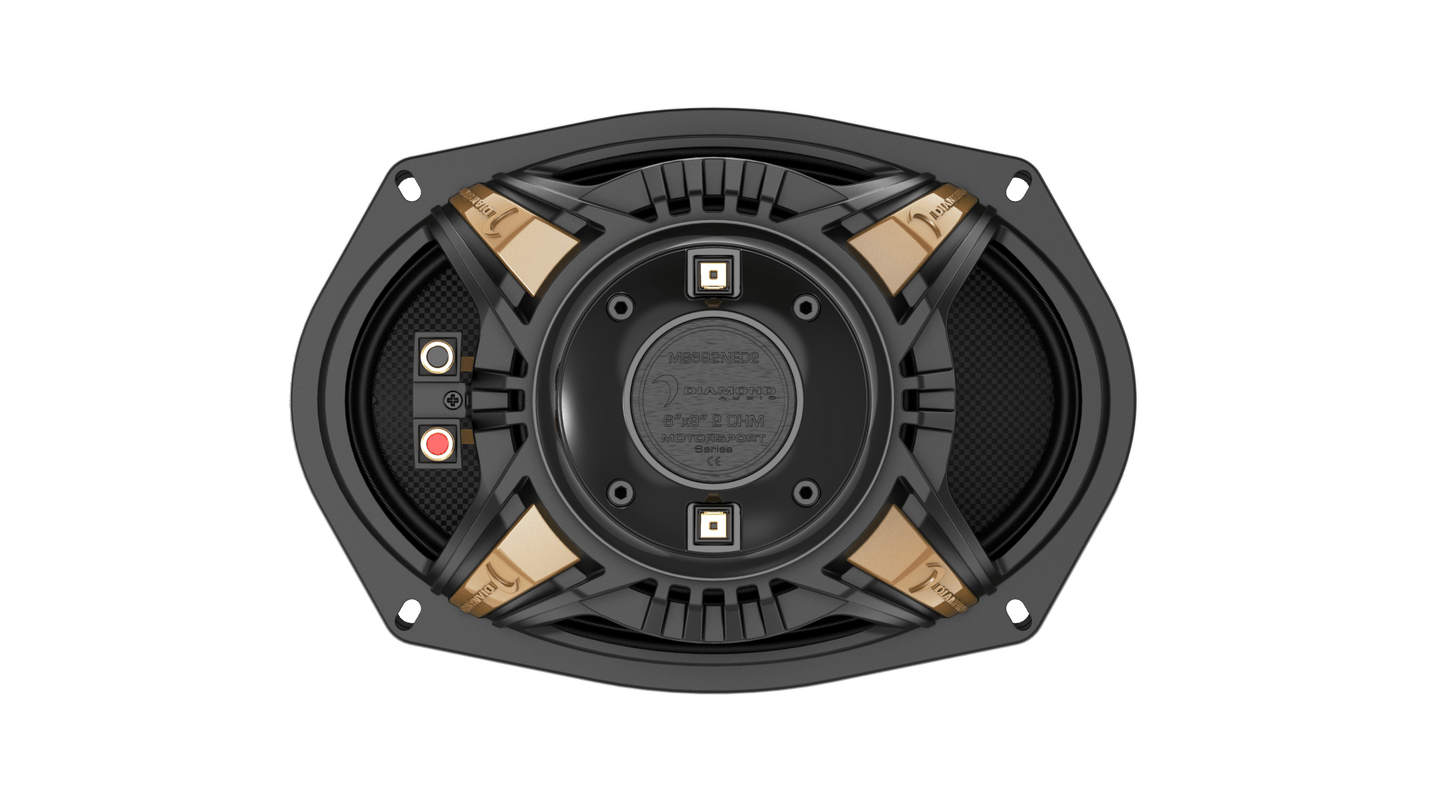

Diamond Audio MS692NEO2 NEO Series 6x9 Inch 2-Way Coaxial Speakers

These waterproof warriors bring concert-level energy to your motorcycle or boat without breaking a sweat. High-tech neodymium motors and premium voice coils ensure every beat hits with crystal-clear precision. The bi-amp capable design gives you total control over your audio landscape for a truly custom sound. Whether you're cruising the highway or hitting the waves, these rugged speakers turn any ride into a sonic party.

SPEAKER SIZE - 6"X9"
SPEAKER TYPE - HORN LOADED CO AXIAL
BI-AMPABLE YES
OHMS (PER COIL) - 2Ω
NUMBER OF VOICE COILS - DUAL
FIELD SERVICABLE VOICE COIL - YES
CONE MATERIAL - CARBON FIBER
DIAPHRAGM MATERIAL - (PEN) POLYETHYLENE NAPHTHALATE
BASKET MATERIAL - CAST ALUMINIUM
MAGNET TYPE - NEODYMIUM
SURROUND MATERIAL - RUBBER
WATER RESISTANCE -
VOICE COIL DIAMETER - INCH (MM) - 2"
THIELE/SMALL PARAMETERS
SENSITIVITY (1W/1M): 94
RE (Ω) [SERIES]: 3.2
QMS: 7.368
QES: 0.597
QTS: 0.552
FS (HZ): 104
VAS (L): 9
CMS (MM/N): 0.148
MMS (G): 15.6
SD (M2): 206.84
BL (T*M): 7.418
XMAX (MM): 1.2
POWER HANDLING RMS: 200W
POWER HANDLING MAX: 400W
MOUNTING DEPTH: 3.74" (95mm)
CUT OUT DIAMETER: 8.58 X 5.75 (218mmn X 146mm)
OVER ALL DIAMETER: 9.19 X 6.38 (233.5mm X 162mm)
OVER ALL HEIGHT: 4.08" (103.7mm)
