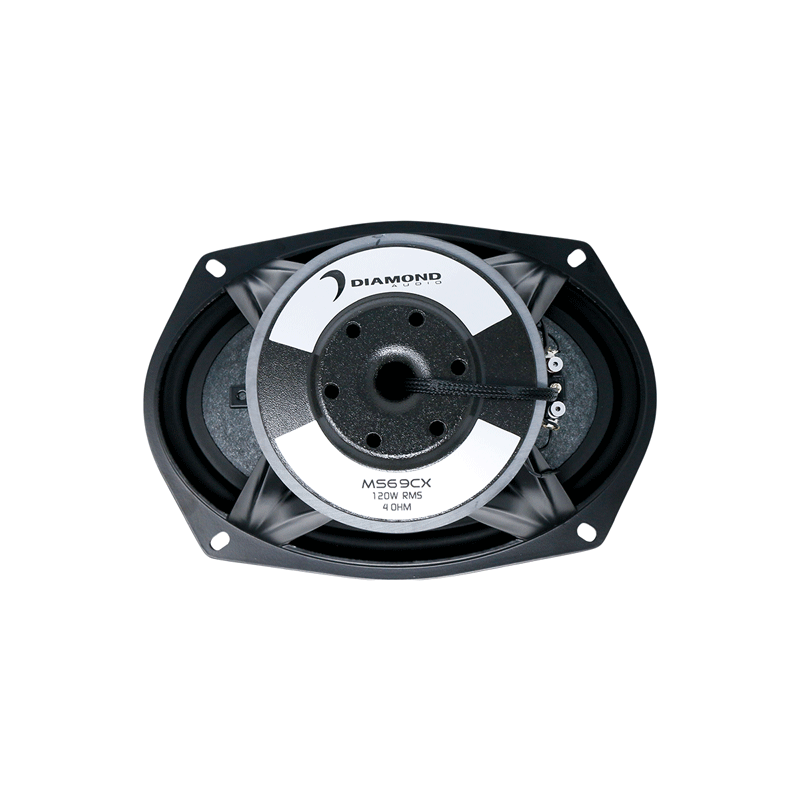

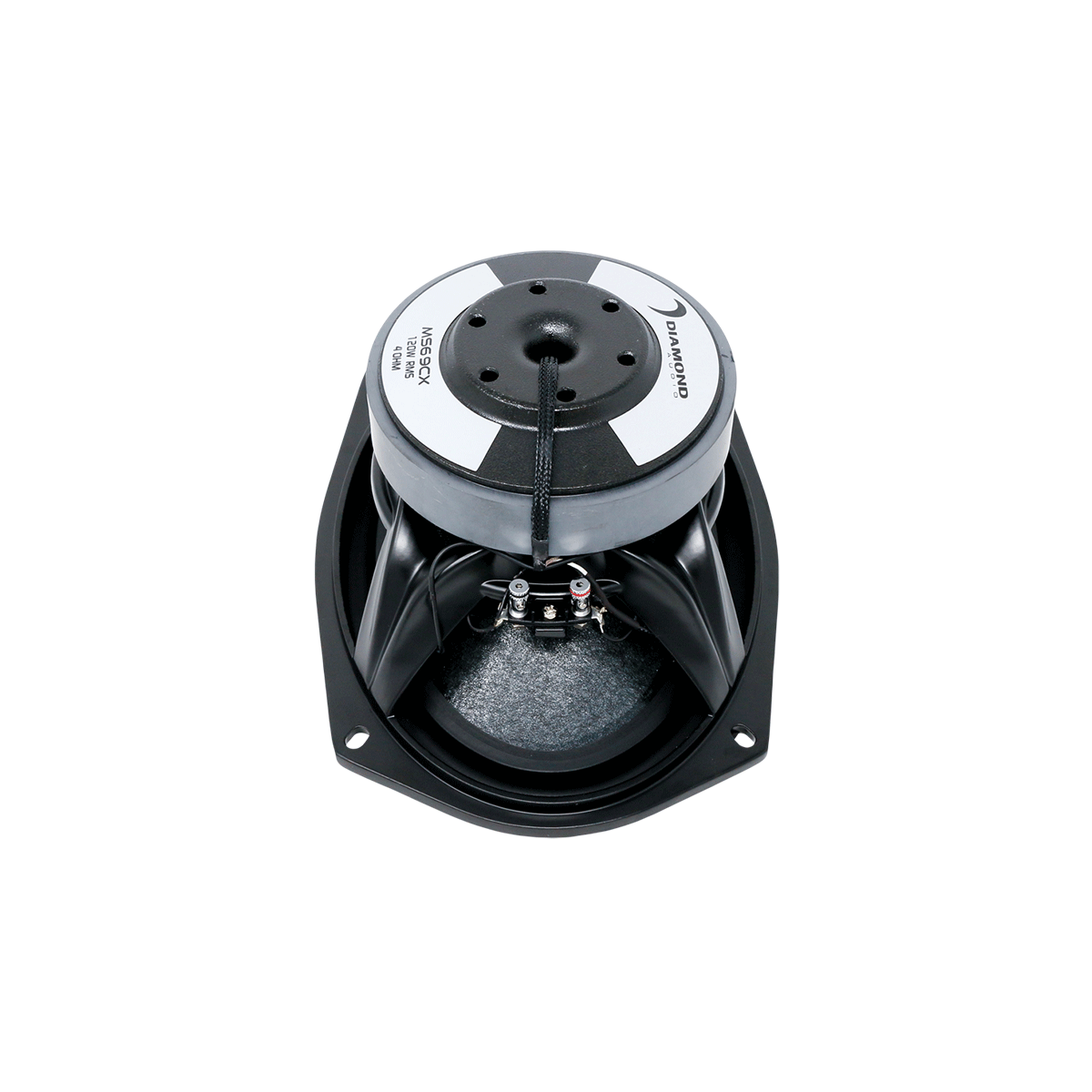

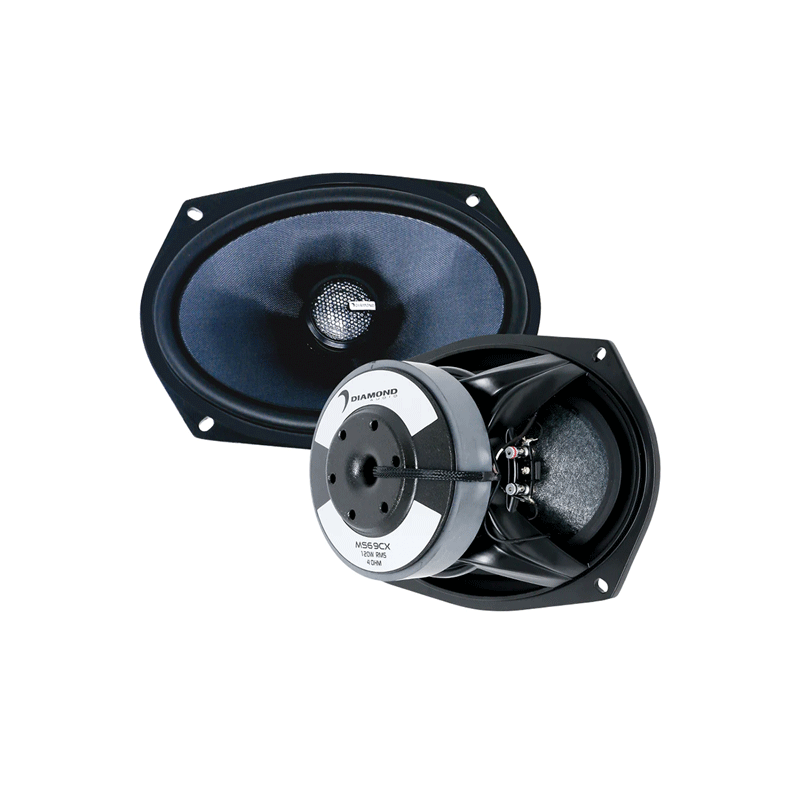

Diamond Audio MS69CX 6x9 Inch 2-Way Marine Coaxial Speaker System

Turn up the volume on your next adventure with the Diamond Audio MS69CX coaxial speakers, engineered to withstand the harshest marine and off-road conditions. Featuring aerospace-grade materials and a high-performance titanium dome tweeter, these speakers deliver crystal-clear highs and deep, resonant bass that cuts through the noise. Whether you are hitting the waves or tackling rugged trails, the robust construction ensures your music stays loud and distortion-free. Experience the perfect harmony of precision craftsmanship and rugged durability for an audio setup that truly performs.

Parameter (Unit)

• Power Handling Watts (RMS/Peak): 125W/500W
• Nominal Impedance (Ω): 4Ω
• Frequency Response (Hz): 46Hz-20kHz
• Voice Coil: 1.66" (42.2mm)
• Fs - Free Air Resonance (Hz): 46Hz
• Qts: 0.57
• Vas ft³ (Liter): 0.829" (23.5L)
• Sensitivity (1W/1M): 87.4db
• Sensitivity( 2.83V/1M): 91.1db
• Xmax (mm): 0.315" (8mm)
• Mounting Depth: 3.81” (97mm)
• Mounting Diameter: 5.98” x 8.85” (152mm x 225mm)

FEATURES

• Manufactured to IPx65 Marine Grade Compliant Specifications
• 1" High Output Titanium Dome Tweeter
• UV-Treated Thermal Molded Waterproof Kevlar Cone with Rubber Surround
• 12dB Bessel Crossover Network
• Super High Energy Ferrite Motor System With Milled Aluminum Top Plate
• T-Yoke Back Plate Drilled For 35% More Cooling, Increased Power Handling
• High-Temperature Cast Aluminum Basket
• Coax-Sub
