DB Drive Euphoria EA8.600 : 8-channel Class D amplifier

Overview

A Higher Standard of Sound. Full range eight-channel amplification with refined connectivity, robust protection, and installation-focused power handling.

Features

• High efficiency full range Class D Technology

• Audiophile Grade tiffany RCA connectors

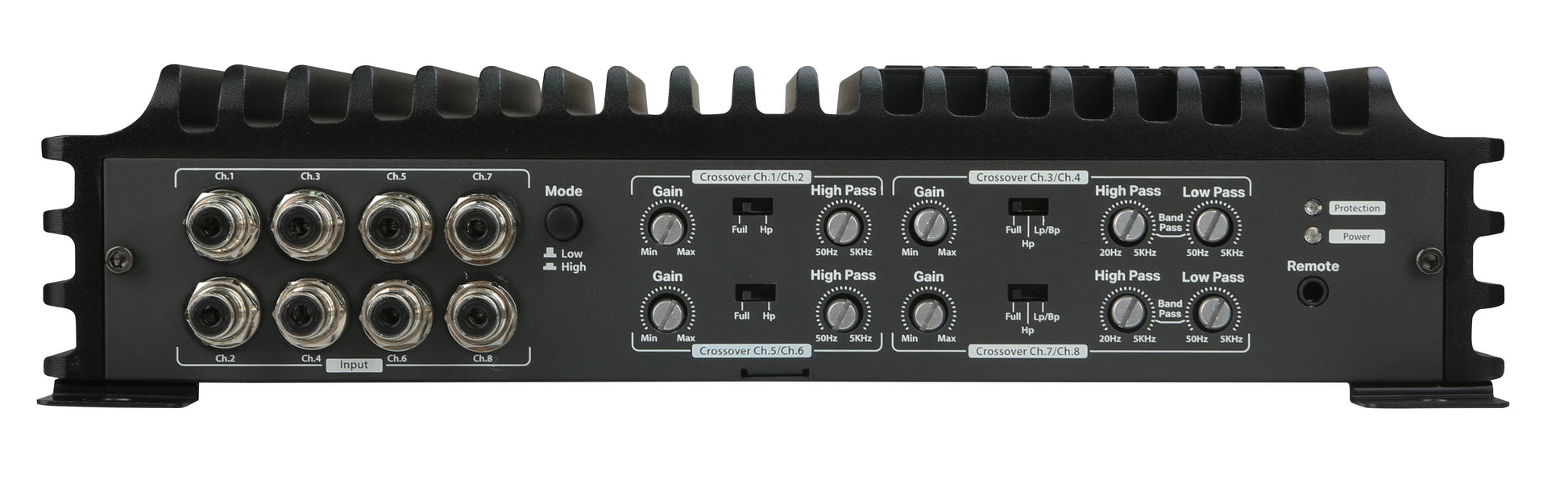

• ACT-adaptive High-Pass filter on Ch 1-2 , 5-6

• ACT-adaptive Low-Pass, Band-Pass,  High-Pass filter on Ch 3-4 , 7-8

• SESI-Signal Evaluation status indicator

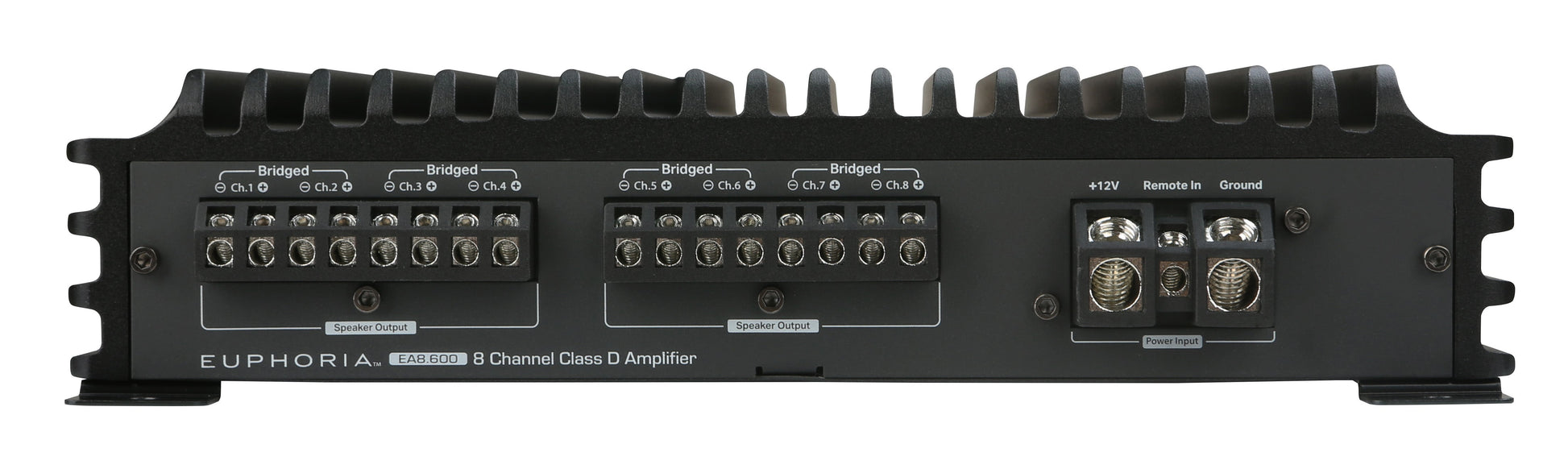

• Direct Connect Speaker Outputs

• Large Gauge Power Wire Inputs

• APC-Audio Circuit Protection

Specifications

• 8 x 65 Watts @ 4 ohms

• 8 x 100 Watts @ 2 ohms

• 4 x 150 Watts @ 4ohms (Bridged)

• Ch 1/2 High Pass Filter Variable: 50 Hz - 5K Hz

• Ch 3/4 High Pass Filter Variable: 20 Hz - 5K Hz

• Ch 3/4 Low Pass Filter Variable: 50 Hz - 5K Hz

• Ch 5/6 High Pass Filter Variable: 50 Hz - 5K Hz

• Ch 7/8 Low Pass Filter Variable: 50 Hz - 5K Hz

• Ch 7/8 High Pass Filter Variable: 20 Hz - 5 K Hz

• Working Voltage: 9- 16 Volts

• Frequency Response: 20Hz - 60KHz

• Signal to Noise Ratio: <90dB

• Damping Factor @ 100Hz - 4volts/4-ohms <100

• Selectable Low Level Input ranges : 400MV - 6.75V

Description

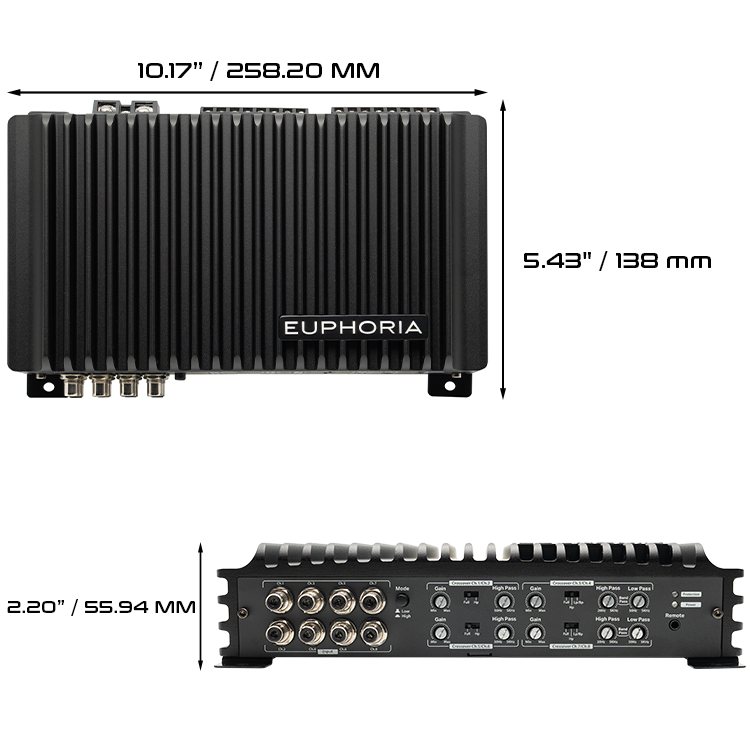

For those who demand premium sound, the Euphoria EA8.600 8-channel amplifier is your ultimate solution. Designed for both audiophiles and casual listeners, it offers dynamic, high-performance audio. Key Features: •    Power Output: 65W x 8 at 4 ohms, 100W x 8 at 2 ohms, delivering clear, full-range sound. •    Bridgeable Design: Easily drive a subwoofer for enhanced low-end performance. •    High-Efficiency Class D Design: Ideal for modern electrical systems. •    Adaptive Crossover: Fine-tune your audio for optimal sound. •    Precision Tuning: Metal potentiometers ensure stable settings. •    4-Layer PCB: Delivers cleaner, more accurate sound. •    Compact Design: Easy to install without compromising on power. Elevate your car audio experience with the Euphoria EA8.600 for sound like never before.

Product Manual

Product Manual PDF
