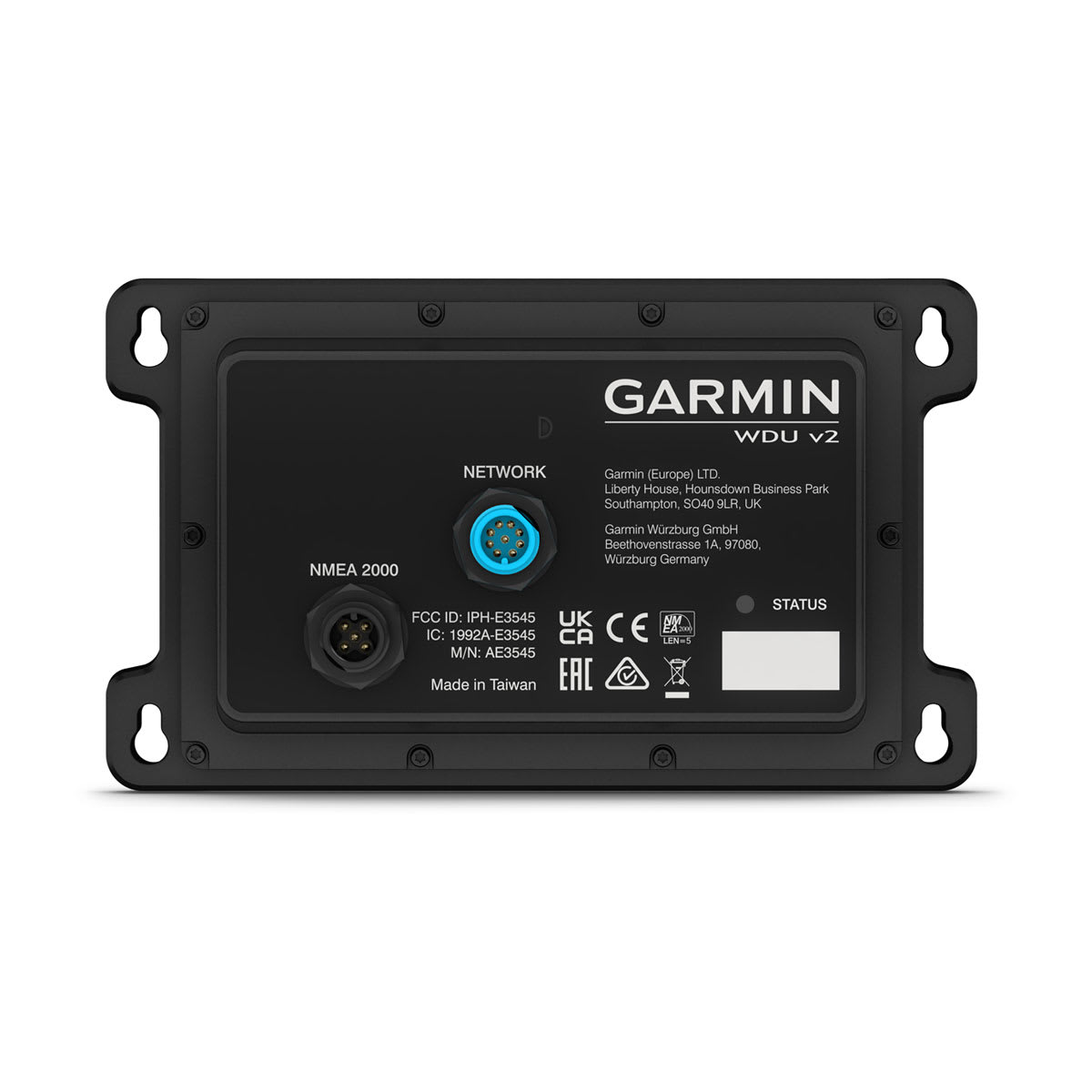

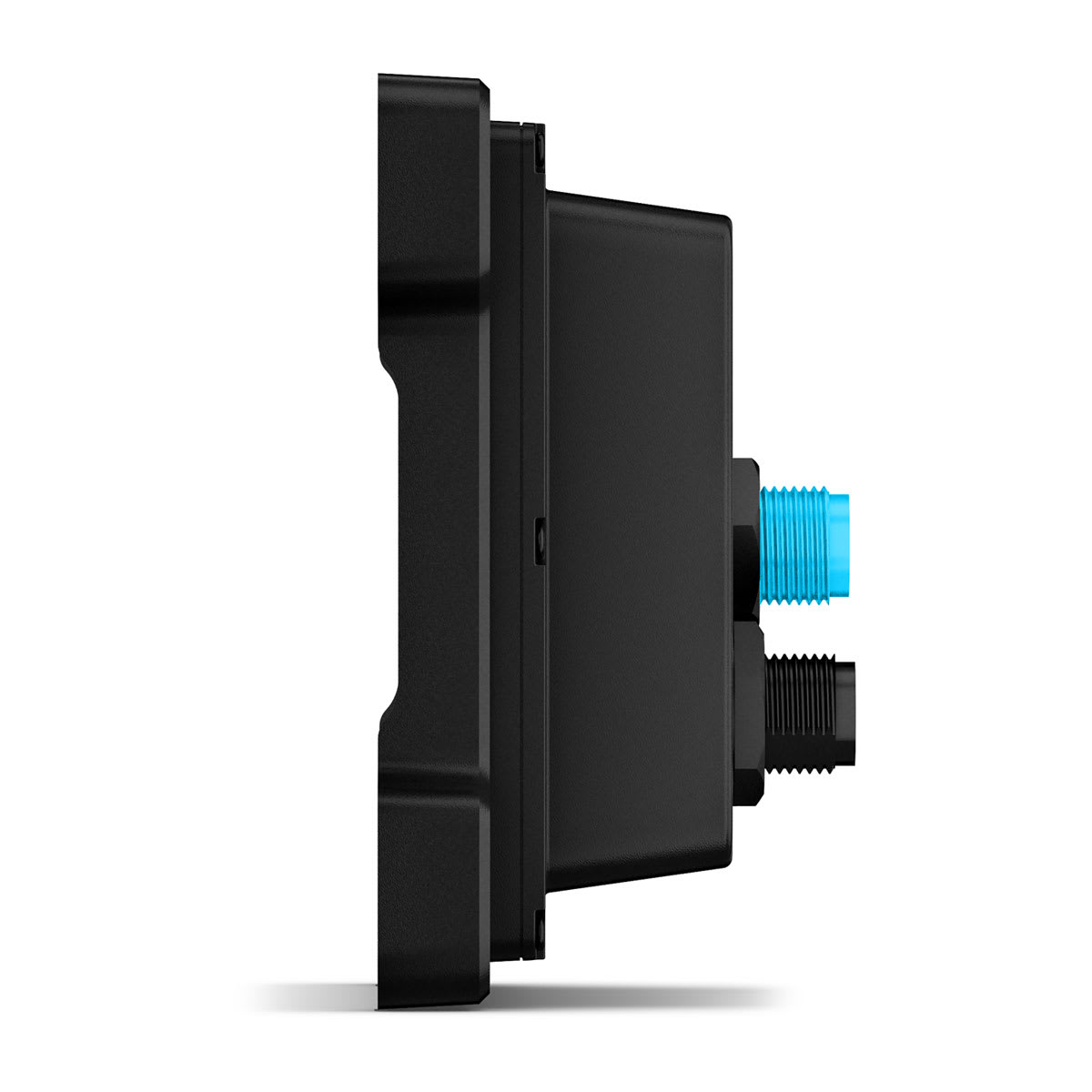

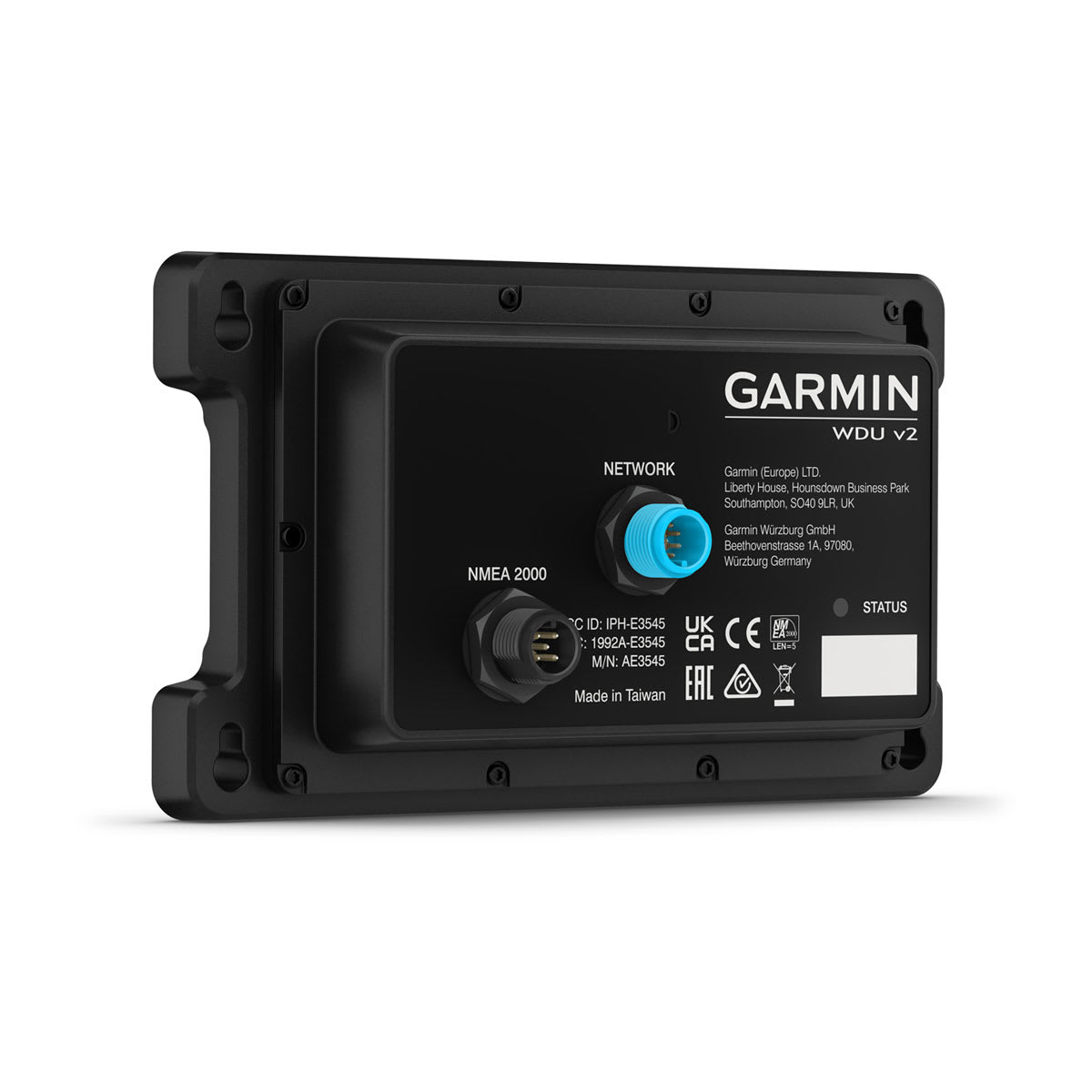

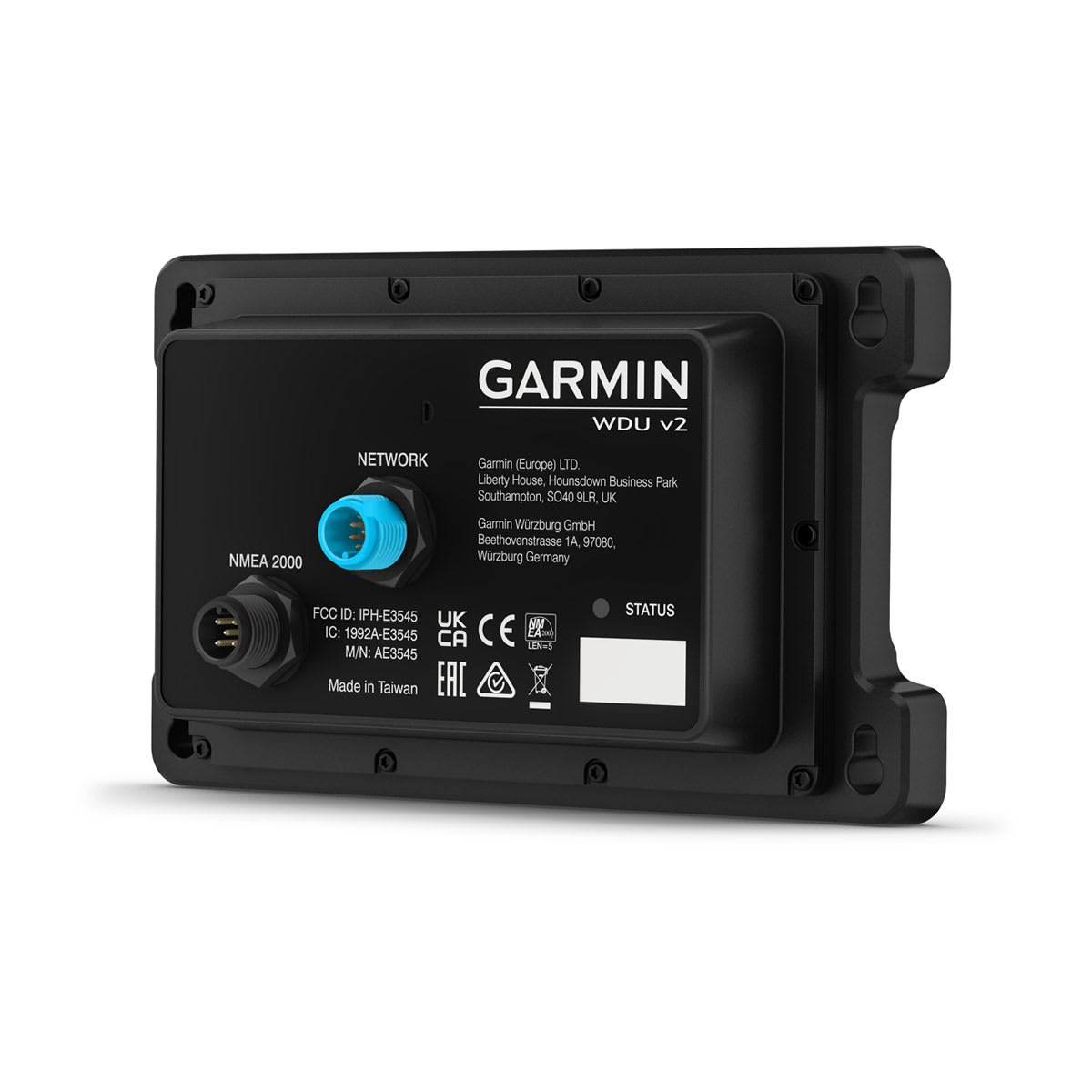

WDU is a web server unit that distributes rich, customized graphics to any HTML5-supporting device. The WDU device allows any EmpirBus system to be controlled and monitored by a user interface that’s fully optimized for its purpose and supported by our GPSMAP® touchscreen MFD helm displays. HTML5 pages and apps can be graphically configured without limitations and can work seamlessly with the EmpirBus software.
The WDU device, operating via an NMEA 2000® network, works at Ethernet speeds (GMN circular connector) for HTML5 distribution. It also offers optional connectivity for wireless links via Wi-Fi® technology. This adds the possibility of using compatible smartphones and tablets as control devices for the EmpirBus switching system.
| General | |
| Dimensions (WxHxD) | 6.1" x 3.6" x 1.9" (15.5 x 9.2 x 4.7 cm) |
| Weight | 7.3 oz (206 g) |
| Communication | NMEA 2000® network LEN-5 Garmin Marine Network Wi-Fi® connectivity |
| Ambient temperature | -15° C to +55° C |
| Enclosure water rating | IPX7 |
| Power Supply | |
| Power supply | Powered via NMEA 2000 |
| Power consumption | Max/average 195 mA @ 9 volts / 165 mA @ 9 volts |
| Supply voltage | 9-32 volts DC |
| Connector | |
| NMEA 2000 | Micro 5-pin M12 male |
| Garmin Marine Network | small connector |
| Wi-Fi is a registered trademark of the Wi-Fi Alliance. | ✓ |
