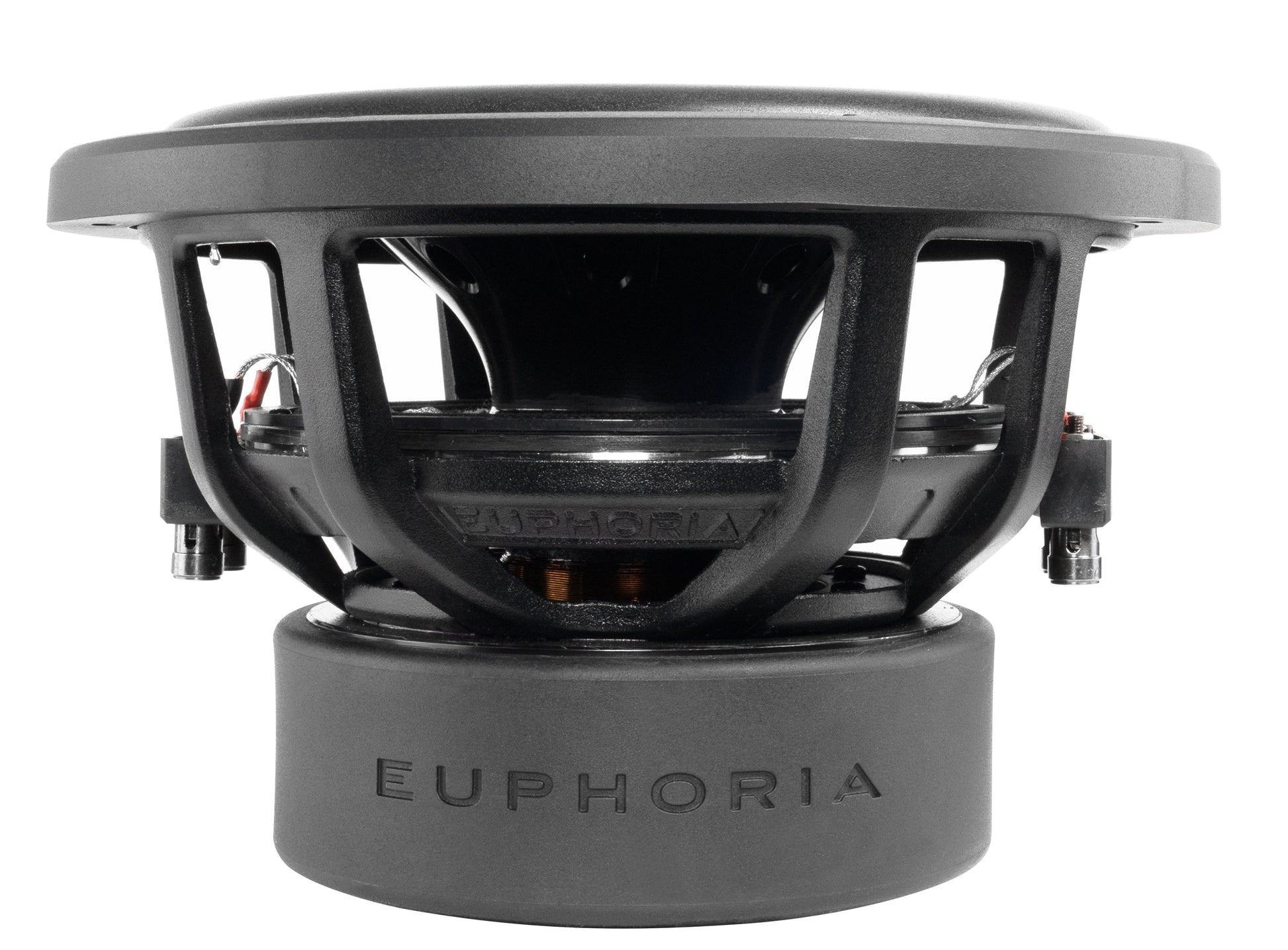

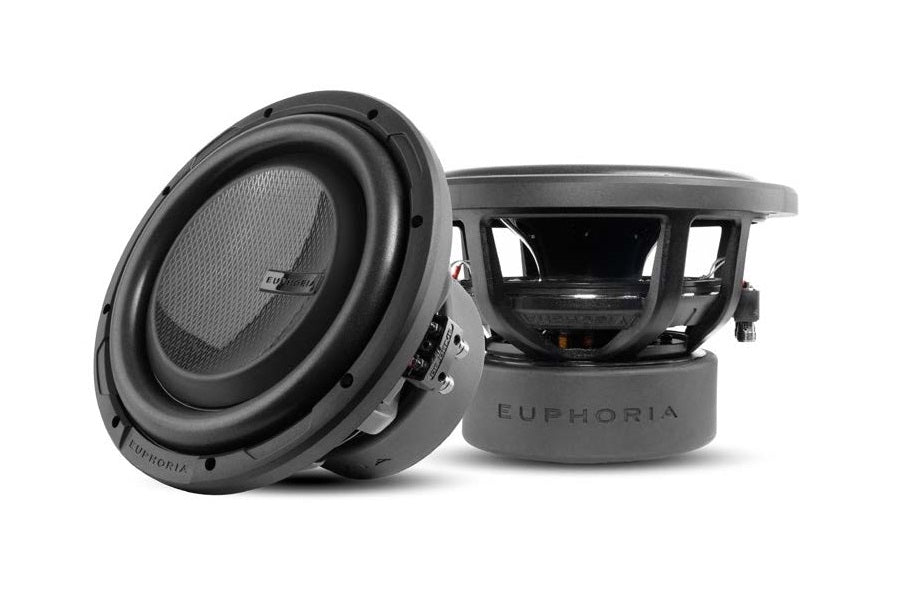

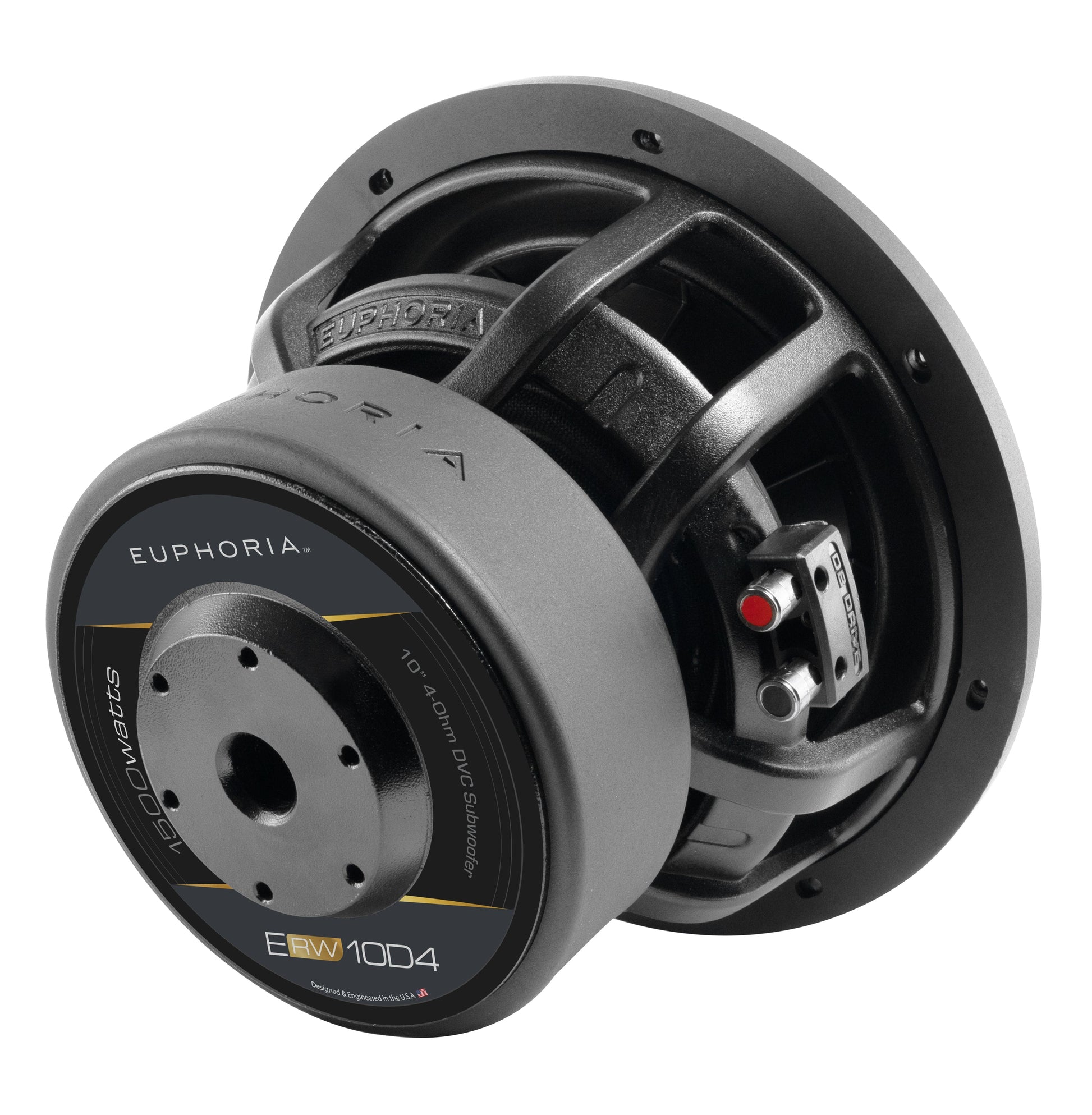

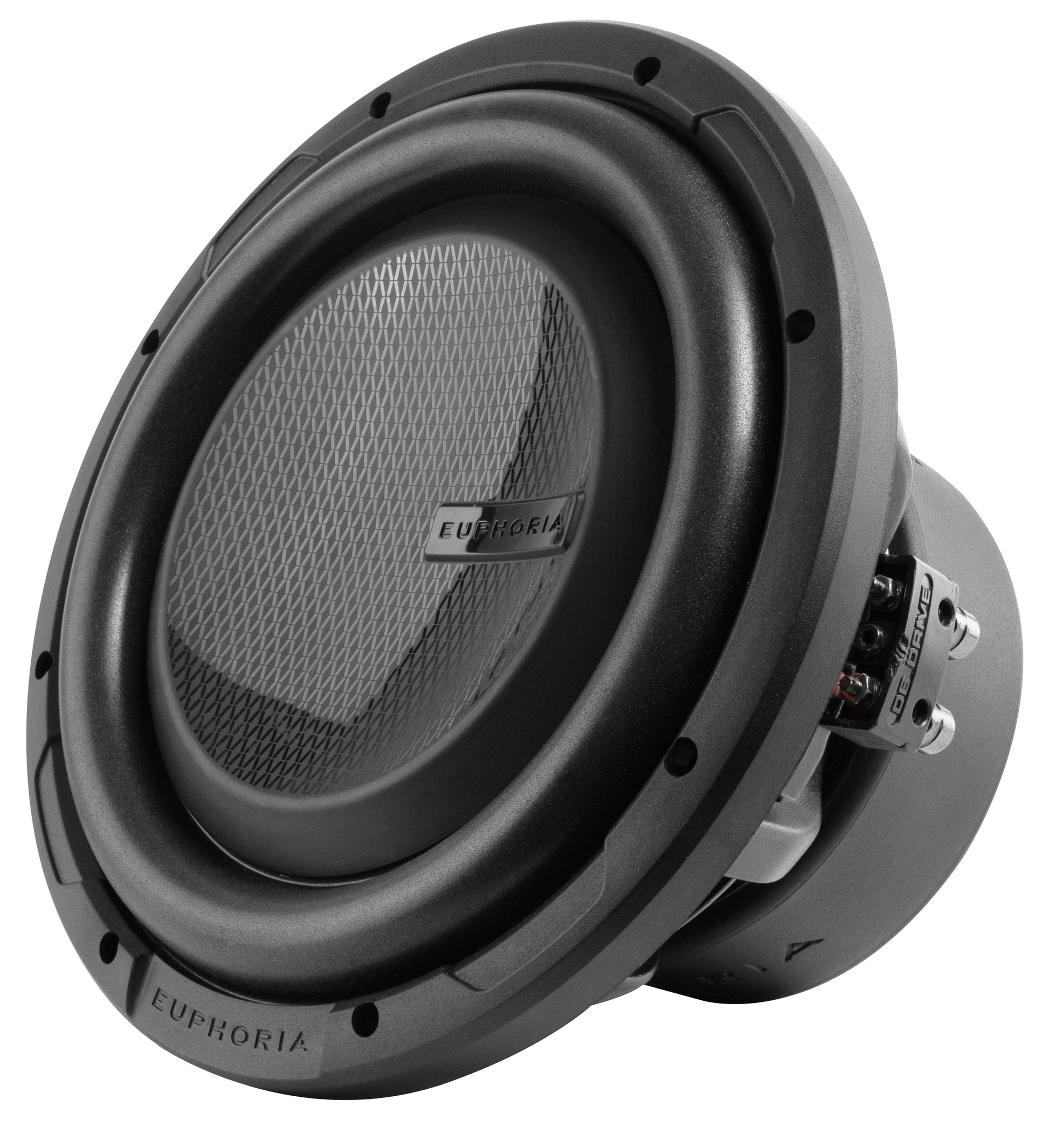

DB Drive Euphoria ERW10D4 : 10” Diecast 4 Ohm DVC Subwoofer

Overview

A Higher Standard of Sound. High excursion subwoofer built for clean bass output, stable damping, and custom installation flexibility.

Features

• High Temp Voice Coil Wire Around Vented KSV Former
• Radial Basket Vents for Voice Coil Cooling
• Large Gauge Push Button Speaker Wire Terminals
• Proprietary Injection Molded Polypropylene Cone
• High Excursion Foam Surround
• Extended Linear Roll Progressive Dampener
• Stealth Gasket for Custom Mounting Applications
• Anti- Resonance Heavy Gauge Die-Cast basket
• Optimized Motor for Low Frequency Response

Specifications

• Nominal Power Handling: 750 Watts
• Peak Power Handling: 1500 Watts
• Impedance: Dual 4Ω Voice Coil
• Free Air Resonance (Fo) 37.408 Hz
• D.C. Voice Coil Resistance (Re): 6.800Ω
• Mechanical Quality Factor (Qms): 4.173
• Electrical Quality Factor (Qes): 0.649
• Total Quality Factor (Qts): 0.562
• Equivalent Air Volume (Vas): 12.831 L
• Mass of Diaphragm/Coil (Mms): 218.236 g
• Force Factor (BL): 23.182 TM
• Sound Pressure Level (SPL): 82 dB
• Effective Diaphragm Area (Sd): 33.006m
• Compliance of Mechanical Suspension (Cms): 82.944 mm/N
• Moving Mass of Diaphragm (Mmd): 214.788m Kg
• MMd: 170.000g

DIMENSIONS

• Overall Diameter: 10.71"/272 mm
• Mounting Depth: 6.24"/158.5 mm
• Cutout Diameter: 9.13"/232 mm
