DB Drive Euphoria

DB Drive Euphoria EW3 10D4 : 10" Dual 4-Ohm Subwoofer

DB Drive Euphoria EW3 10D4 : 10" Dual 4-Ohm Subwoofer

The Euphoria EW3 10D4 is a 10-inch subwoofer featuring a dual 4-ohm voice coil, 750 Watts max power, and 250 Watts nominal power, designed for accurate frequency response and durability.

  • price-tag logoNew Launch
Regular price $219.95
Regular price Sale price $219.95
Save: $-219.95 (% Off)*
Sale Sold out
Shipping calculated at checkout.
  • cargo-truck logoFree shipping Over $99
Sold in last hours
  • free logo
    Fast, FREE Delivery

    Free, Fast, Doorstep Delight!

  • return logo
    Delivery & Returns

    Effortless Delivery, Easy Returns

View full details
  • Overview
  • Details
  • Accessories

Features

  • High Temp Voice Coil Wire Around Vented KSV Former
  • Radial Basket Vents for Voice Coil Cooling
  • Large Gauge Push Button Speaker Wire Terminals
  • Proprietary Injection Molded Polypropylene Cone
  • High Excursion Butyl Rubber Surround
  • Extended Linear Roll Progressive Dampener
  • Stealth Gasket for Custom Mounting Applications
  • Propriotarty Protective Magnet Band
  • Anti- Resonance Heavy Gauge Solid Steal Frame
  • Optimized Drive Motor for Acurate Frequency Response

Specifications

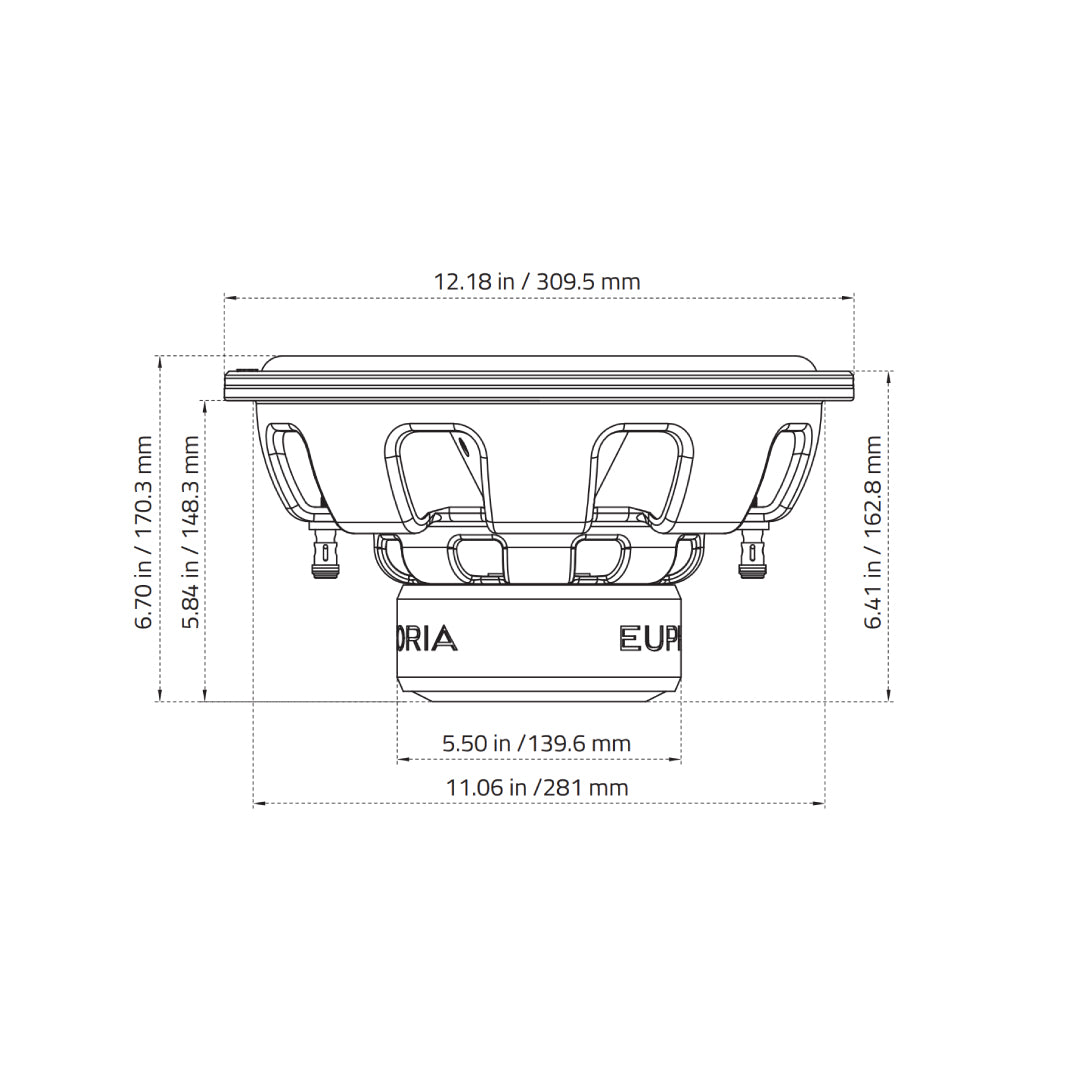

Structure 10” (25.4 cm)
Max Power 750 Watts
Nominal Power 250 Watts
Impedance 4Ω Voice Coil
PARAMETERS
Free Air Resonance (Fo) 31.39 Hz
D.C. Voice Coil Resistance (Re) 3.20Ω x 2
Mechanical Quality Factor (Qms) 9.86
Electrical Quality Factor (Qes) 0.399
Total Quality Factor (Qts) 0.384
Equivalent Air Volume to Cms (Vas) 49.41 L
Force Factor (BL) 16.73 TM
Mass of Diaphragm/Coil (Mms) 88.61 g
Sound Pressure Level (SPL) 87.7 dB

Description

Feel the Euphoria in every beat.

Introducing the Euphoria EW3 10D4, a 10-inch subwoofer that redefines your audio experience with unparalleled power and precision. Engineered with a powerful motor structure, this woofer maximizes bass output while ensuring your music sounds as tight and accurate as the day it was recorded. The innovative Stealth Lock Gasket and radial venting for voice coil cooling extend the durability, offering endless musical performance. With a dual 4Ω voice coil, 750 Watts max power, and 250 Watts nominal power, the EW3 SERIES SUBWOOFERS deliver a punch that will elevate your car audio system to new heights. Get ready to feel every beat and experience the true essence of sound with Euphoria.

Product Manual

Product Manual PDF
