DB Drive Euphoria

DB Drive Euphoria EW3 12D4 : 12" Dual 4-Ohm Subwoofer

DB Drive Euphoria EW3 12D4 : 12" Dual 4-Ohm Subwoofer

12-inch dual 4-ohm subwoofer with 750W max power, featuring a proprietary injection molded polypropylene cone and high excursion butyl rubber surround for accurate bass response.

  • price-tag logoNew Launch
Regular price $269.95
Regular price Sale price $269.95
Save: $-269.95 (% Off)*
Sale Sold out
Shipping calculated at checkout.
  • cargo-truck logoFree shipping Over $99
Sold in last hours
  • free logo
    Fast, FREE Delivery

    Free, Fast, Doorstep Delight!

  • return logo
    Delivery & Returns

    Effortless Delivery, Easy Returns

View full details
  • Overview
  • Details
  • Accessories

Features

  • High Temp Voice Coil Wire Around Vented KSV Former
  • Radial Basket Vents for Voice Coil Cooling
  • Large Gauge Push Button Speaker Wire Terminals
  • Proprietary Injection Molded Polypropylene Cone
  • High Excursion Butyl Rubber Surround
  • Extended Linear Roll Progressive Dampener
  • Stealth Gasket for Custom Mounting Applications
  • Propriotarty Protective Magnet Band
  • Anti- Resonance Heavy Gauge Solid Steal Frame
  • Optimized Drive Motor for Acurate Frequency Response

Specifications

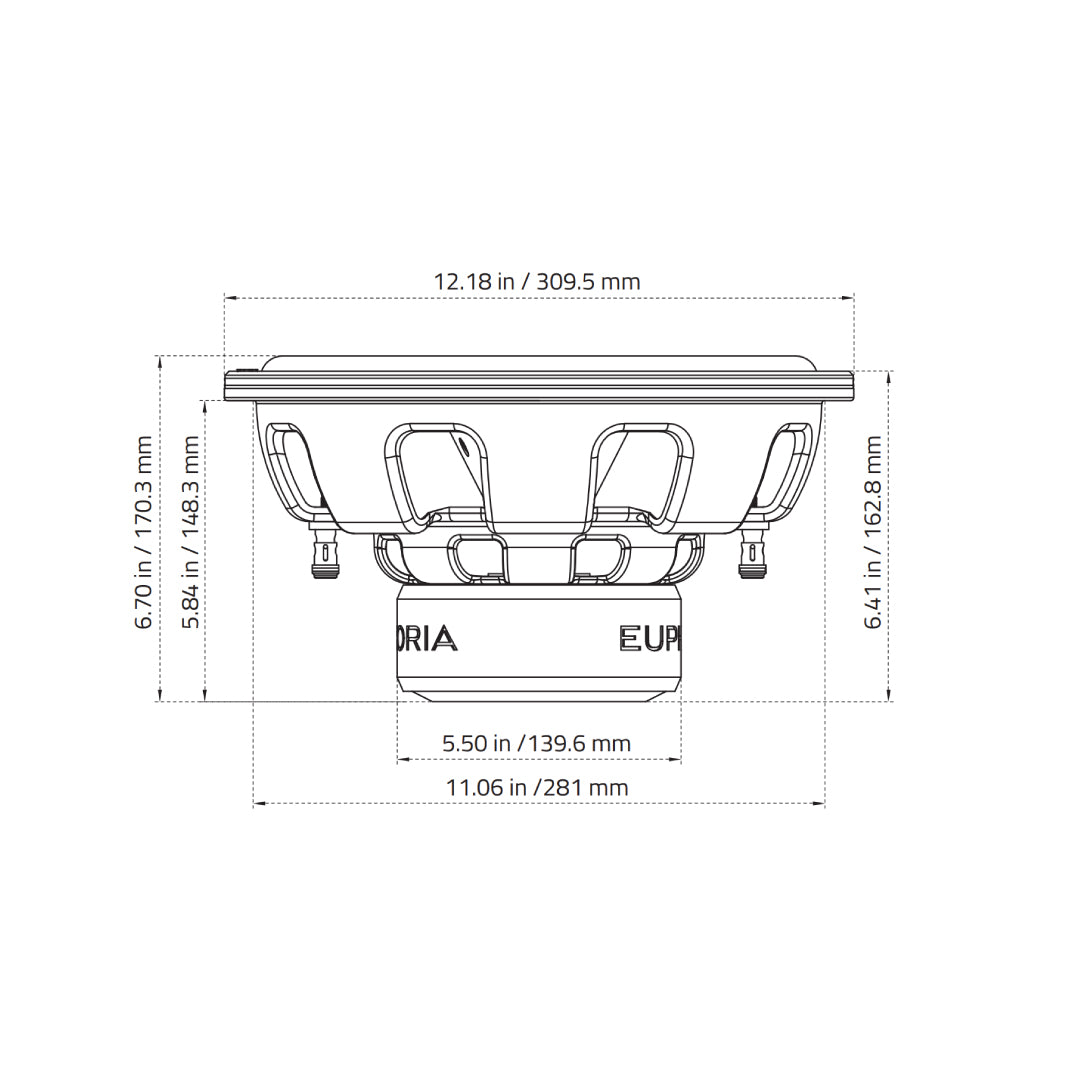

Structure 12” (30.48 cm)
Max Power 750 Watts
Nominal Power 250 Watts
Impedance 4Ω Voice Coil
PARAMETERS
Free Air Resonance (Fo) 35.63 Hz
D.C. Voice Coil Resistance (Re) 3.20Ω x 2
Mechanical Quality Factor (Qms) 11.31
Electrical Quality Factor (Qes) 0.527
Total Quality Factor (Qts) 0.504
Equivalent Air Volume to Cms (Vas) 62.05 L
Force Factor (BL) 18.25 TM
Mass of Diaphragm/Coil (Mms) 120.93 g
Sound Pressure Level (SPL) 89 dB

Description

Feel the power of every beat with Euphoria's EW3 12D4 Subwoofer!

Introducing the EW3 12D4 from Euphoria, a subwoofer that truly lives up to its name. With a powerful motor structure that maximizes bass output, you can experience your music as tight and accurate as the day it was recorded. The stealth lock gasket ensures a seamless installation, while radial venting for voice coil cooling extends its durability, promising endless musical performance. Whether you're pushing it to its max power of 750 watts or enjoying its nominal power of 250 watts, the dual 4Ω voice coil impedance keeps your sound crisp and clear. With its 12-inch structure, this subwoofer is designed to deliver a euphoric audio experience that will elevate your sound system to new heights.
