Features
- High Temp Voice Coil Wire Around Vented KSV Former
- Radial Basket Vents for Voice Coil Cooling
- Large Gauge Push Button Speaker Wire Terminals
- Proprietary Injection Molded Polypropylene Cone
- High Excursion Butyl Rubber Surround
- Extended Linear Roll Progressive Dampener
- Stealth Gasket for Custom Mounting Applications
- Propriotarty Protective Magnet Band
- Anti- Resonance Heavy Gauge Solid Steal Frame
- Optimized Drive Motor for Accurate Frequency Response
Specifications

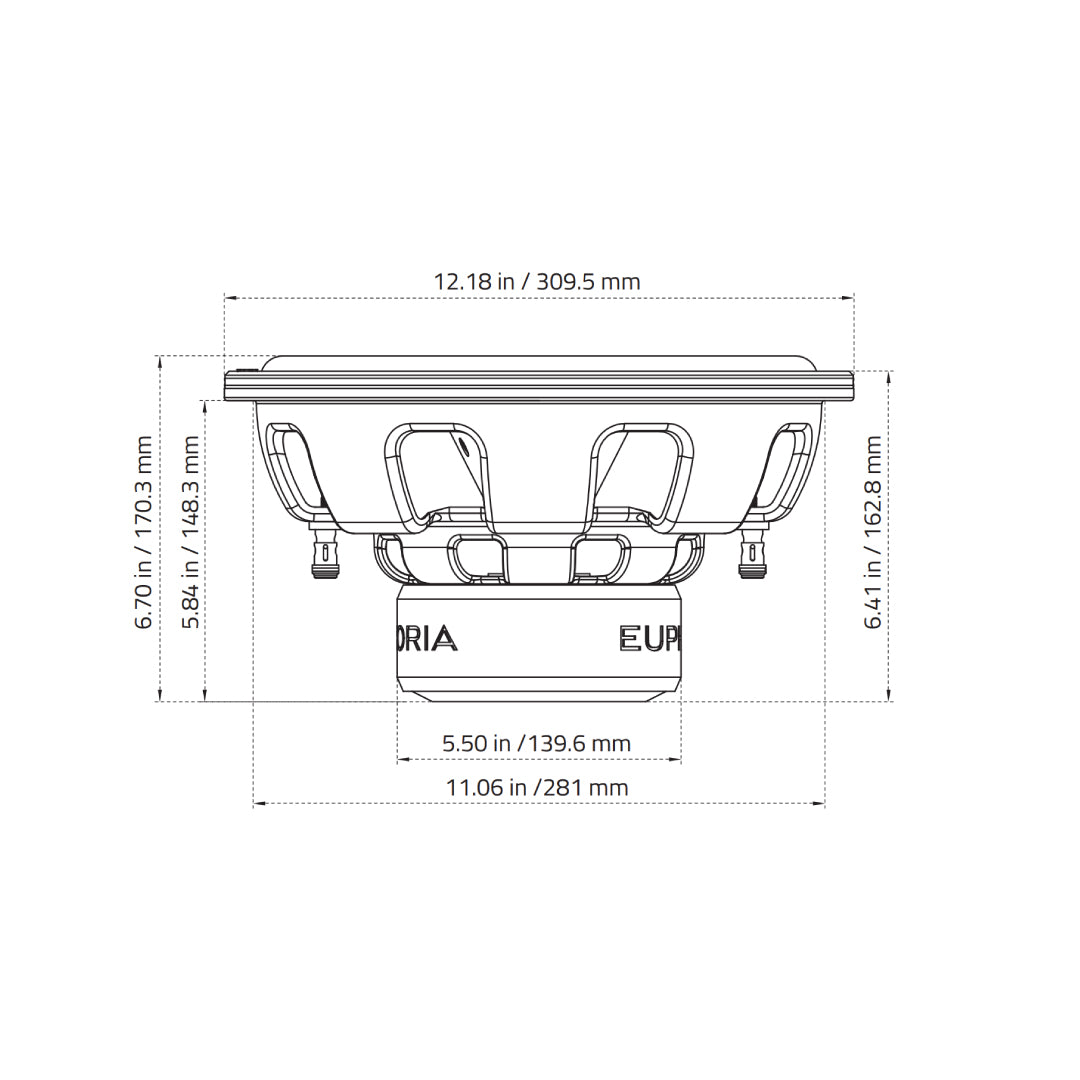

| Structure |
12” (30.48 cm) |
| Max Power |
1000 Watts |
| Nominal Power |
350 Watts |
| Impedance |
Dual 4Ω Voice Coil |
| PARAMETERS |
| Free Air Resonance (Fo) |
34.820 Hz |
| D.C. Voice Coil Resistance (Re) |
3.35Ω x2 |
| Mechanical Quality Factor (Qms) |
11.725 |
| Electrical Quality Factor (Qes) |
0.507 |
| Total Quality Factor (Qts) |
0.486 |
| Equivalent Air Volume to Cms (Vas) |
64.704 L |
| Force Factor (BL) |
18.736 TM |
| Mass of Diaphragm/Coil (Mms) |
121.455 g |
| Sound Pressure Level (SPL) |
89 dB |
Description

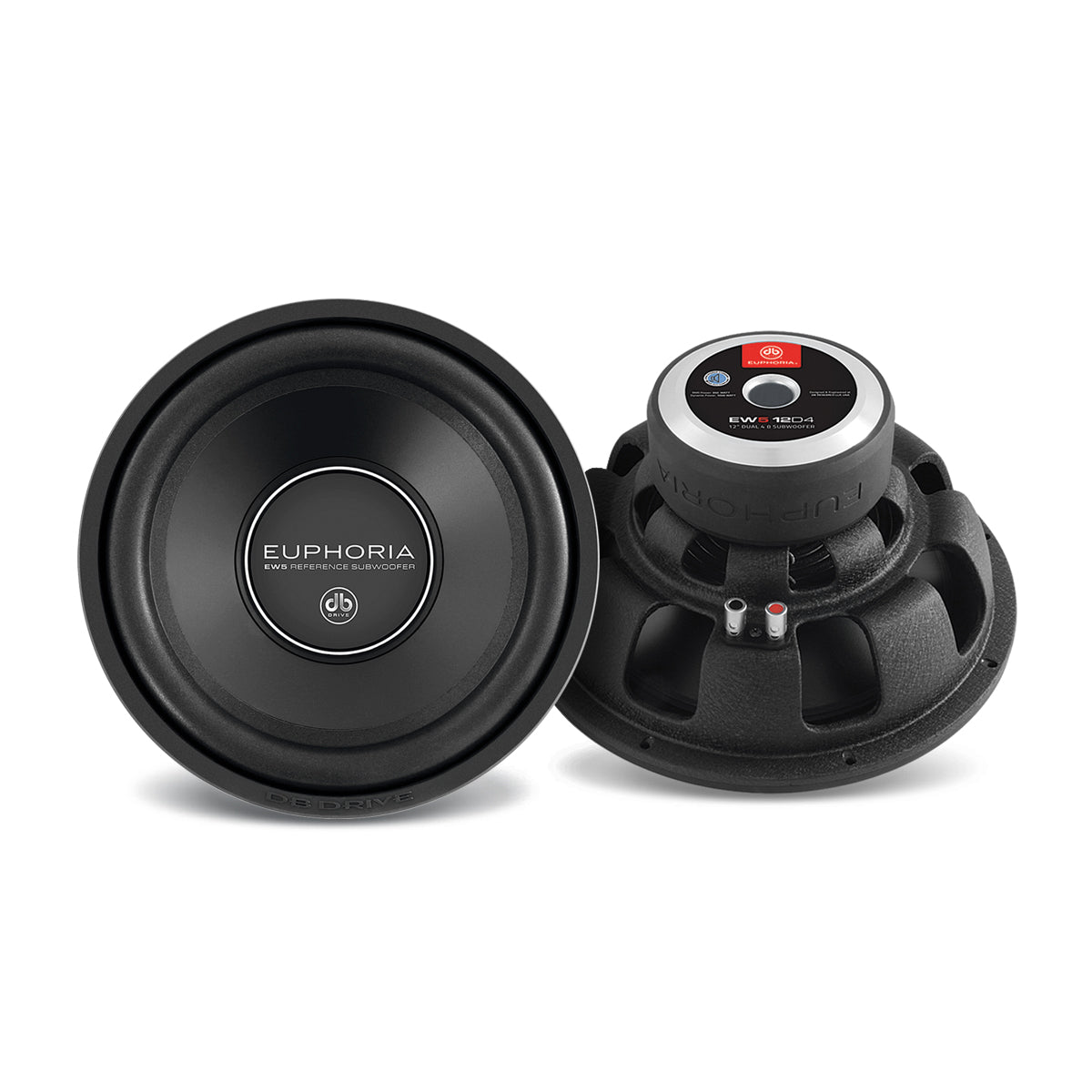

Euphoria's EW5 12D4: Feel the Power, Hear the Precision.
Step into a world of unparalleled sound with Euphoria's EW5 12D4 subwoofer. Engineered with a powerful motor structure that maximizes bass output, this subwoofer ensures your music sounds as tight and accurate as the day it was recorded. Featuring a Stealth Lock Gasket and radial venting for voice coil cooling, the EW5 12D4 is built for endless musical performance and extended durability. Whether you're using it in a vented or sealed application, this subwoofer is a perfect fit. With a dual 4Ω voice coil, 1000 watts of max power, and 350 watts of nominal power, the EW5 12D4 offers a robust and dynamic listening experience. Measuring 12 inches in diameter, this powerhouse from the EW5 series is designed to elevate your audio experience to new heights. Feel the power and hear the precision with the EW5 12D4, where every beat and note come alive.
Product Manual
Product Manual PDF
