Features
- N38 Neodymium motor design
- Pulp fiber reinforced cone
- Multi-layer foam surround
- Progressive dampeners
- 2.0” Dual 3.2 Ohm voice coils
Specifications
RMS: 300 Watts
|
| Resonant Frequency (fs) 50.261Hz |
| DC Resistance (RE) 3.2+3.2 Ohm |
| Coil Inductance (LE) 577.89 mH |
| Mechanical Q (Qms) 1.975 |
| Electromagnetic Q (QES): 0.789 |
| Total Q (QTS) 0.564 |
| Compliance Equivalent volume (VAS) 5.248m |
| Mechanical Compliance of Suspension (CMS) 80.844u m/N |
| BL Product (BL)8.911 |
| Diaphragm Mass Inc. Airload (Mms) 124.032gr |

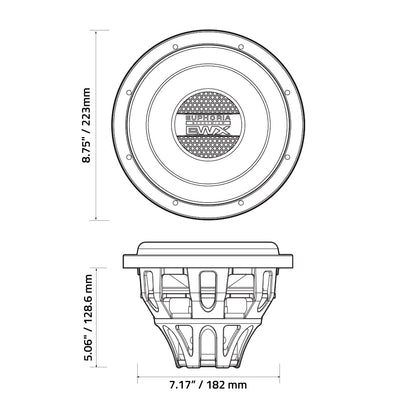

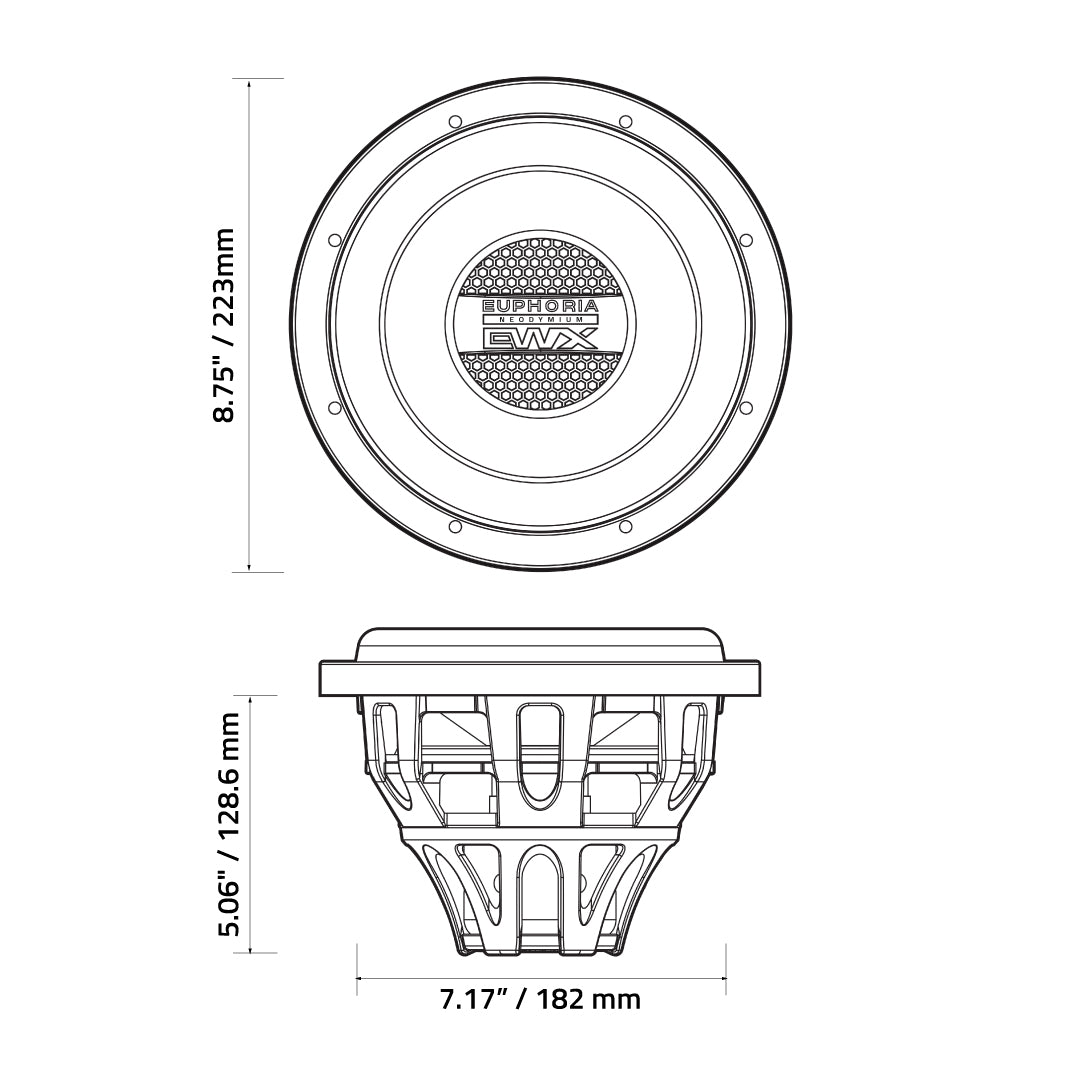

| Mounting Informaion
|
| Overall Diameter: 8.75"/222.5mm |
| Cutout diameter: 7.17"/182.3mm |
| Mounting Depth: 5.06"/128.6mm |
|
| Sealed enclosure
|
| Box Volume: 0.5cuft
|
|
| Ported Enclosure
|
| Box Volume: 0.6cuft
|
| Box Tuning: 39Hz |
| Port Area: 3” round |
| Port Length 24” |
Description
Feel the Euphoria: Big Bass, Small Space!
Introducing the EWX8NEO 8in Subwoofer NEO Magnet DVC by Euphoria – the small but mighty marvel that packs a punch! This subwoofer is designed to blow your mind and not your budget, with its N38 Neodymium Motor Design and Pulp Fiber Reinforced Cone. Its Multi-Layer Foam Surround and Progressive Dampeners ensure durability and superior sound quality, optimized for low tuned vented enclosures. Perfect for truck enclosures or compact cars, this beast delivers big bass out of a small enclosure. With a dual 4Ω voice coil, max power of 600 watts, and nominal power of 300 watts, the EWX NEO SERIES guarantees an immersive audio experience. Don't let its size fool you; this 8” subwoofer is a powerhouse of efficiency and innovation. Get ready to feel the euphoria of extraordinary sound! So, are you ready to transform your audio experience?
