DB Drive Euphoria

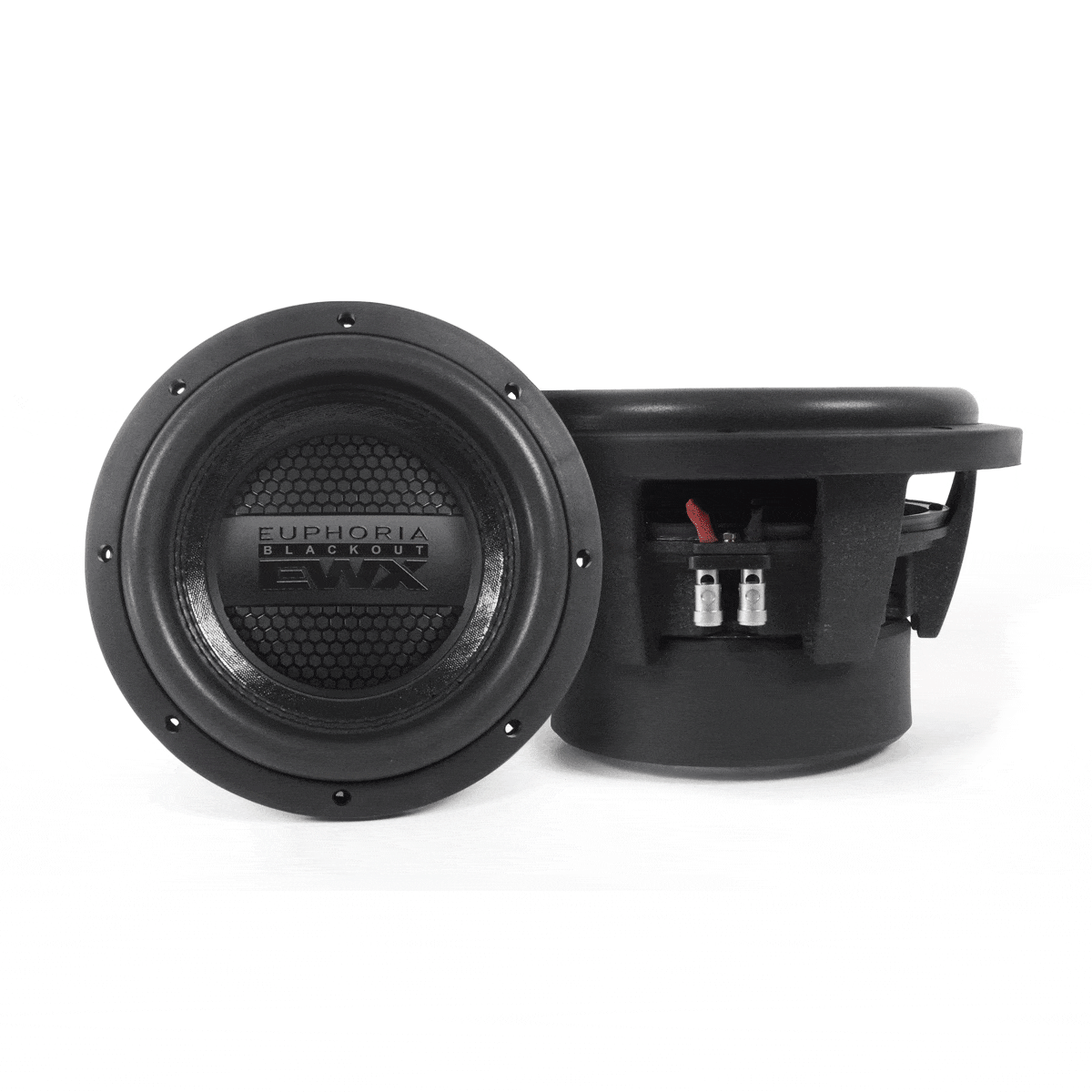

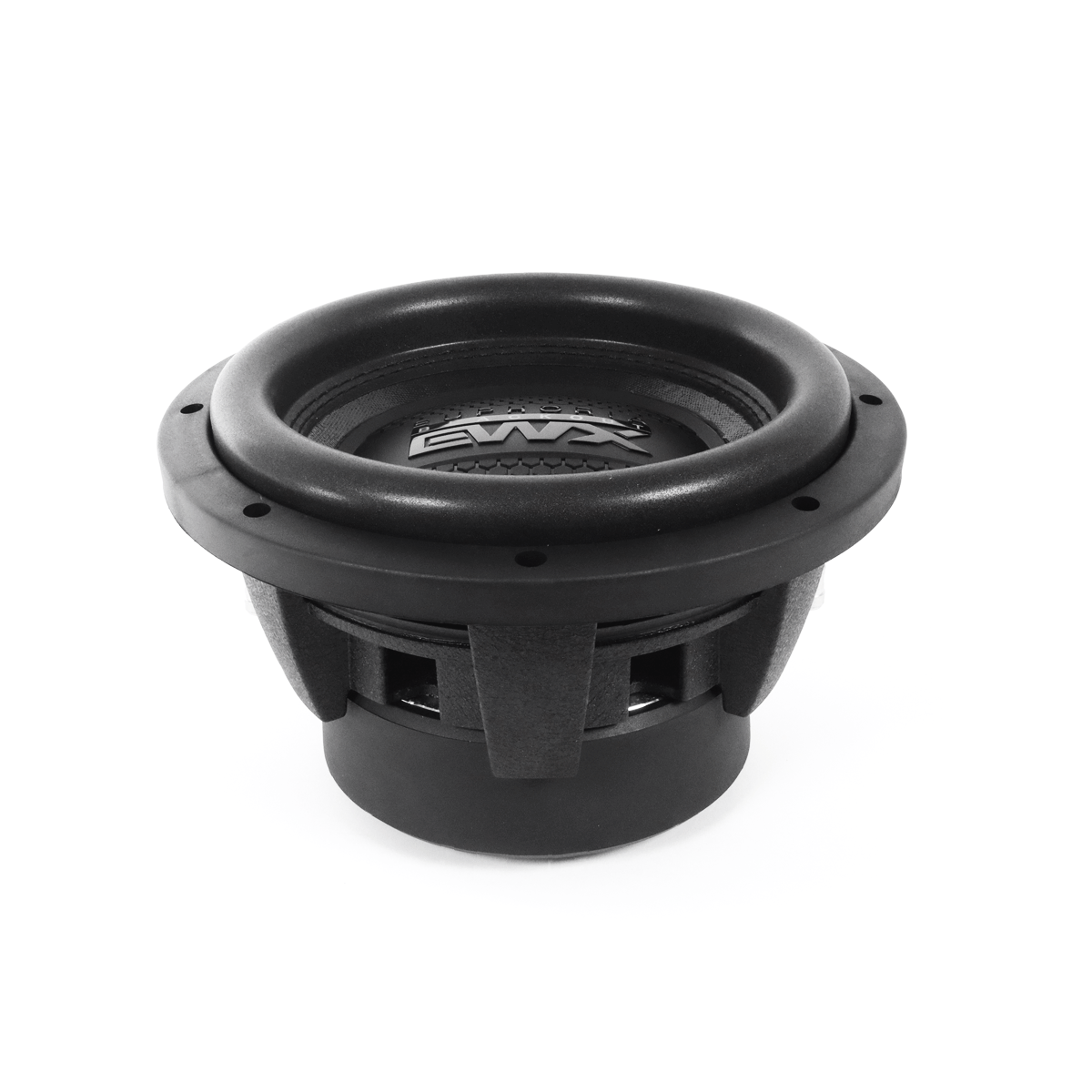

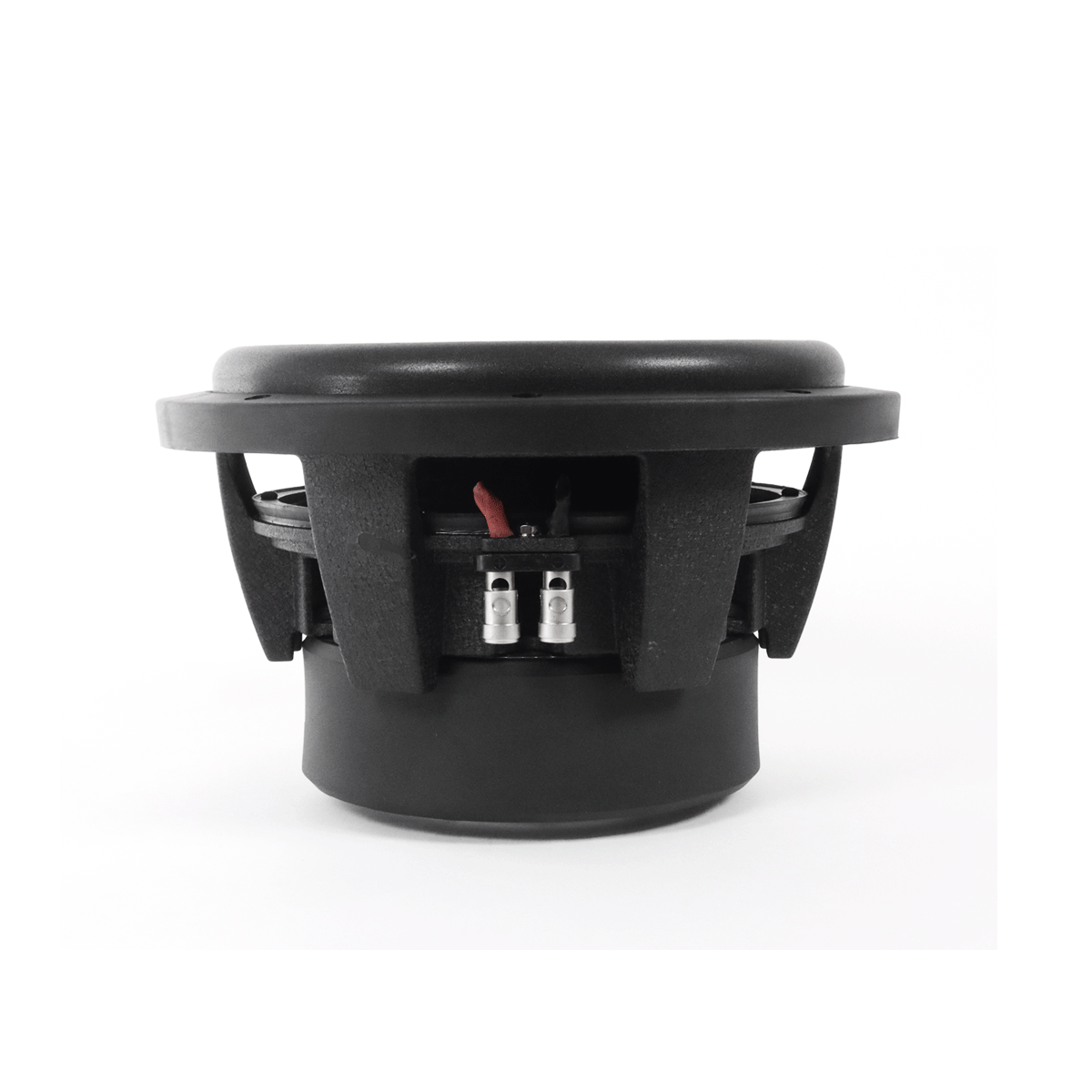

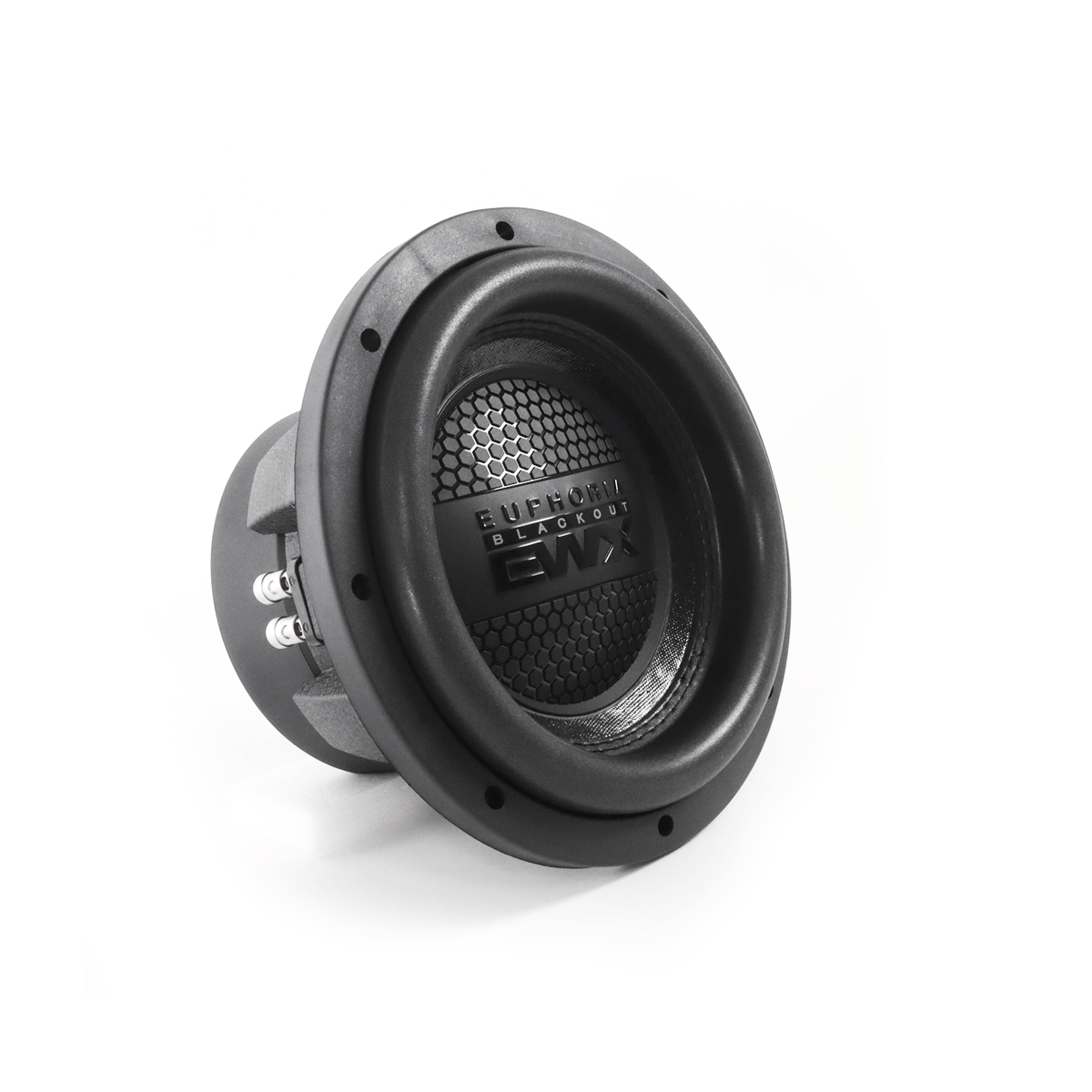

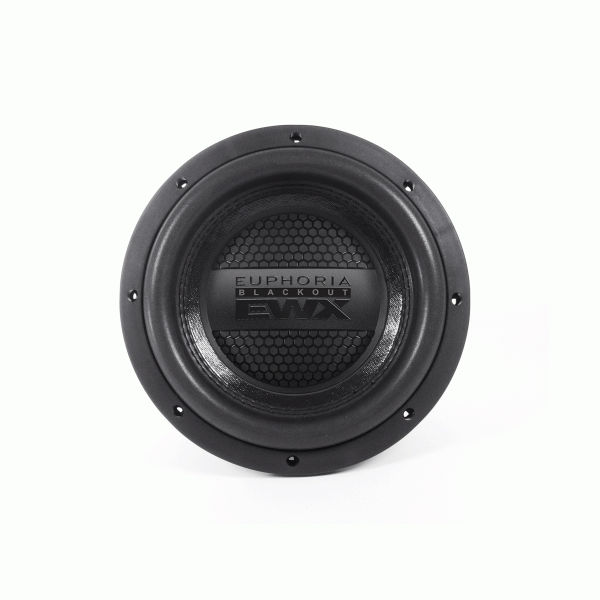

DB Drive Euphoria EWXB10D4 : 10" Dual 4-Ohm Subwoofer Black Out Edition

DB Drive Euphoria EWXB10D4 : 10" Dual 4-Ohm Subwoofer Black Out Edition

10" Dual 4-Ohm Subwoofer Black Out Edition, designed to optimize SPL performance with 2500W max power.

  • price-tag logoNew Launch
$349.95
$349.95
Save: $-349.95 (% Off)*
Sale Sold out
Shipping calculated at checkout.
  • cargo-truck logoFree shipping Over $99
Sold in last hours
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • USDC
  • Visa
  • free logo
    Fast, FREE Delivery

    Free, Fast, Doorstep Delight!

  • return logo
    Delivery & Returns

    Effortless Delivery, Easy Returns

View full details
  • Overview
  • Details
  • Accessories

Features

Our engineers at DB Drive have designed this subwoofer from the ground up to shake the ground up. The double stitched foam surround along with the die-cast aluminum vented basket allow for maximum excursion while the protective magnet cover gives the woofer a rugged yet stylish appearance.

  • High Temperature Voice Coil
  • 120 oz. Ceramic Ferrite Magnet ( EWX8D2/8D4 Only )
  • 145 oz. Ceramic Ferrite Magnet
  • High Grade Low Carbon Steel Top & Bottom Plate
  • Design to optimize SPL Performance
  • 1.5” High Roll Foam Surround
  • Large Gauge Push Button Speaker Terminals
  • Available in Dual 2Ω or Dual 4Ω Voice Coil

Specifications

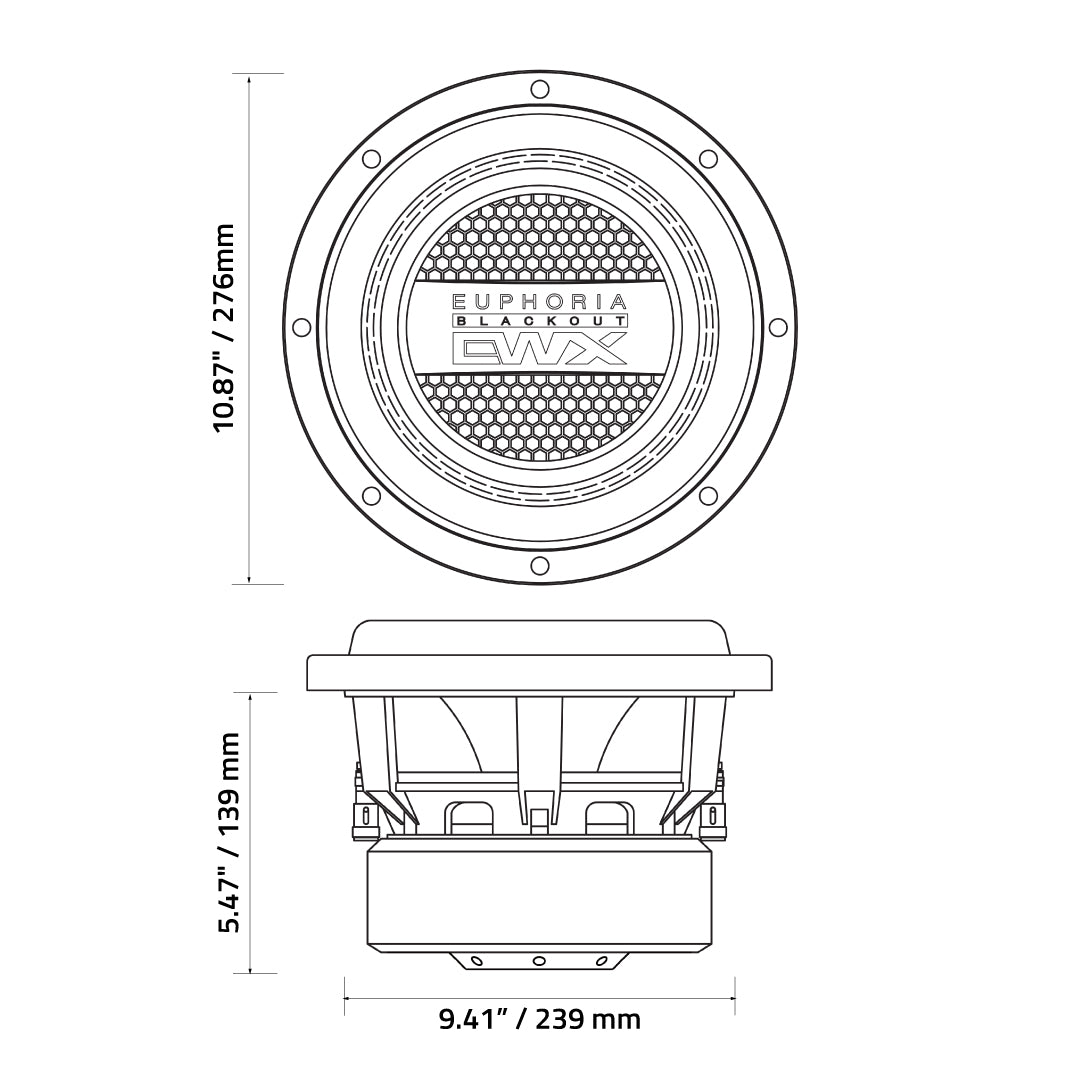

Structure 10” (276 mm)
Max Power 2500 Watts
Nominal Power 1000 Watts
Impedance Dual 4Ω Voice Coil
PARAMETERS
Resonant Frequency (fs) 38.955 Hz
D.C. Voice Coil Resistance (Re) 3.6Ω + 3.6Ω
Mechanical Quality Factor (Qms) 4.566
Electrical Quality Factor (Qes) 0.896
Total Quality Factor (Qts) 0.749
Equivalent Air Volume to Cms (Vas) 23.655L
Force Factor (BL) 23.609 N/A
Mass of Diaphragm/Coil (Mms) 284.56 g
Sound Pressure Level (SPL) 83.8 dB

Description

Feel the bass, and live the Euphoria with every beat!

Introducing the Euphoria EWXB10D4: 10in Subwoofer Black Out Edition, a true marvel designed to optimize SPL performance. This subwoofer is not just about looks; its blacked-out cosmetic design exudes sophistication and power. Equipped with a high excursion multi-layer foam surround and optimized for high-output bass, it delivers an unparalleled auditory experience. With a high-temperature voice coil and high-grade low-carbon steel top & bottom plate, durability meets performance. The 1.5” high roll foam surround and large gauge push button speaker terminals ensure seamless connectivity and superior sound. Boasting a dual 4Ω voice coil, 145 oz. magnet size, and max power of 2500 Watts, this subwoofer is engineered to impress. Whether you're a casual listener or a hardcore audiophile, the Euphoria EWXB10D4 promises to elevate your audio experience to new heights.

Product Manual

Product Manual PDF
