Features
- High Temperature Voice Coil
- 120 oz. Ceramic Ferrite Magnet ( EWX8D2/8D4 Only )
- 145 oz. Ceramic Ferrite Magnet
- High Grade Low Carbon Steel Top & Bottom Plate
- Design to optimize SPL Performance
- 1.5” High Roll Foam Surround
- Large Gauge Push Button Speaker Terminals
- Available in Dual 2Ω or Dual 4Ω Voice Coil
Specifications

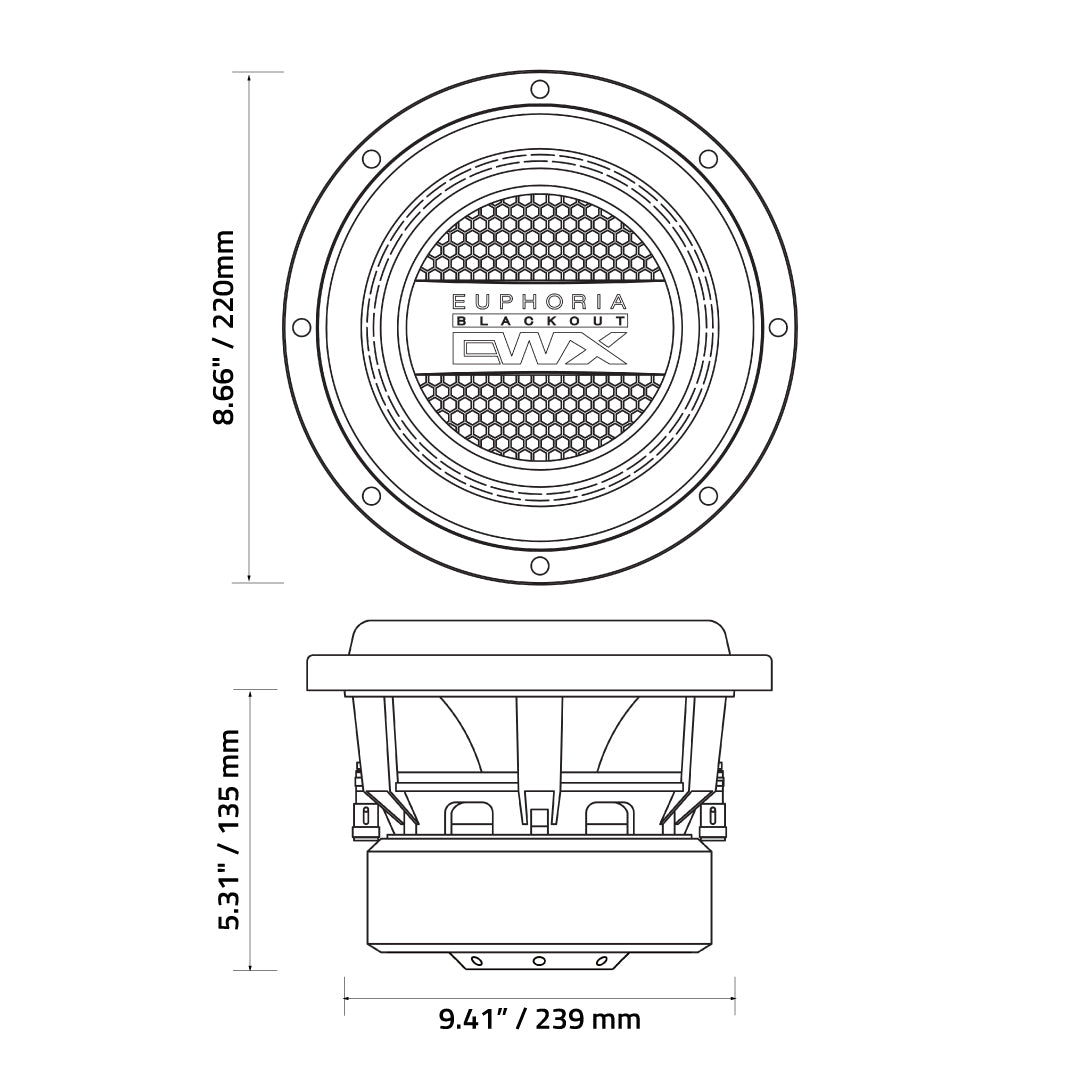

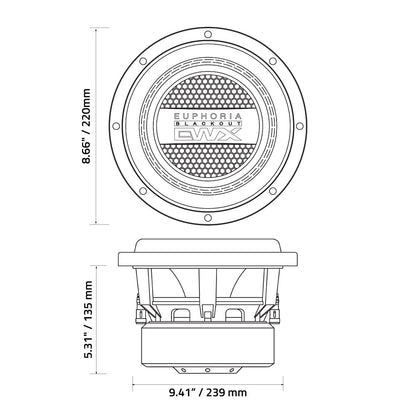

| Structure |
8” (220 mm) |
| Max Power |
1500 Watts |
| Nominal Power |
600 Watts |
| Impedance |
Dual 4Ω Voice Coil |
Parameters
| Resonant Frequency (fs) |
48.621 Hz |
| D.C. Voice Coil Resistance (Re) |
3.2Ω + 3.2Ω |
| Mechanical Quality Factor (Qms) |
5.405 |
| Electrical Quality Factor (Qes) |
0.695 |
| Total Quality Factor (Qts) |
0.616 |
| Equivalent Air Volume to Cms (Vas) |
6.076L |
| Force Factor (BL) |
17.919 N/A |
| Mass of Diaphragm/Coil (Mms) |
113.921 g |
| Sound Pressure Level (SPL) |
81.9 dB |
Description
Feel the Euphoria with every beat!

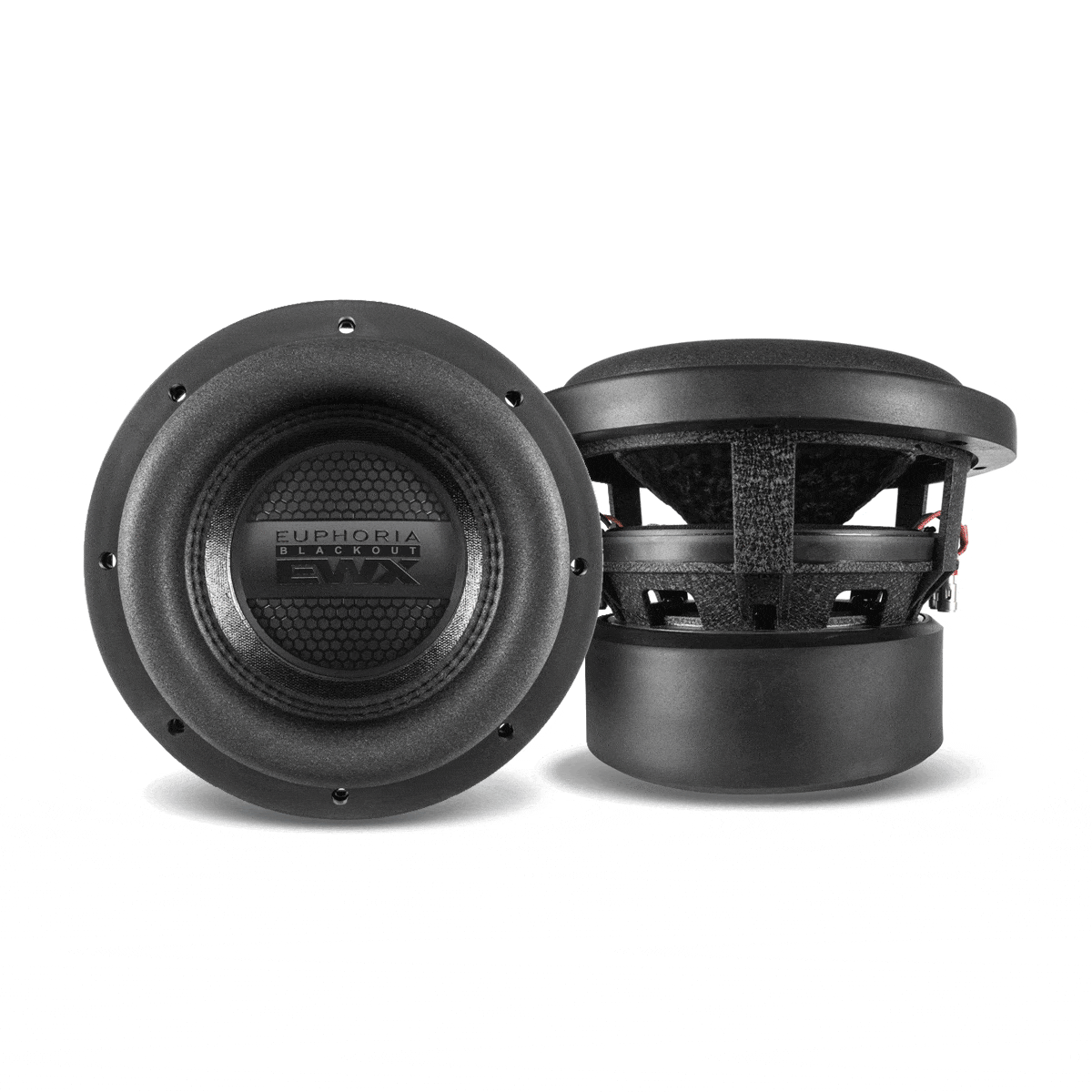

Introducing the EWXB8D4: 8in Subwoofer Black Out Edition by Euphoria, where elegance meets power in the world of audio. Engineered to optimize SPL performance, this subwoofer boasts a high excursion multi-layer foam surround and a high-temperature voice coil, ensuring that every beat is felt as much as heard. Its sleek blacked-out cosmetic design adds a touch of sophistication to any setup, while the dual 4Ω voice coil and 120 oz. magnet size promise unrivaled performance. With a maximum power of 1500 Watts and nominal power of 600 Watts, the EWX BLACKOUT SERIES is built for those who crave high output bass. The 1.5” high roll foam surround and large gauge push button speaker terminals further enhance its reliability and ease of use. Crafted from high-grade low carbon steel, this 8” subwoofer is not just a component; it's a statement. Elevate your audio experience and feel the euphoria with every beat!
Product Manual
Product Manual PDF
