Features
- 3″ High-temperature voice coil
- 145 oz. ceramic ferrite magnet
- High-grade Low Carbon steel on top and bottom plate
- Designed to optimize SPL performance
- High excursion spider designed
- 1.5″ high roll foam surround
- Large gauge push button speaker terminals
- Dual 4 ohm voice coils
Specifications

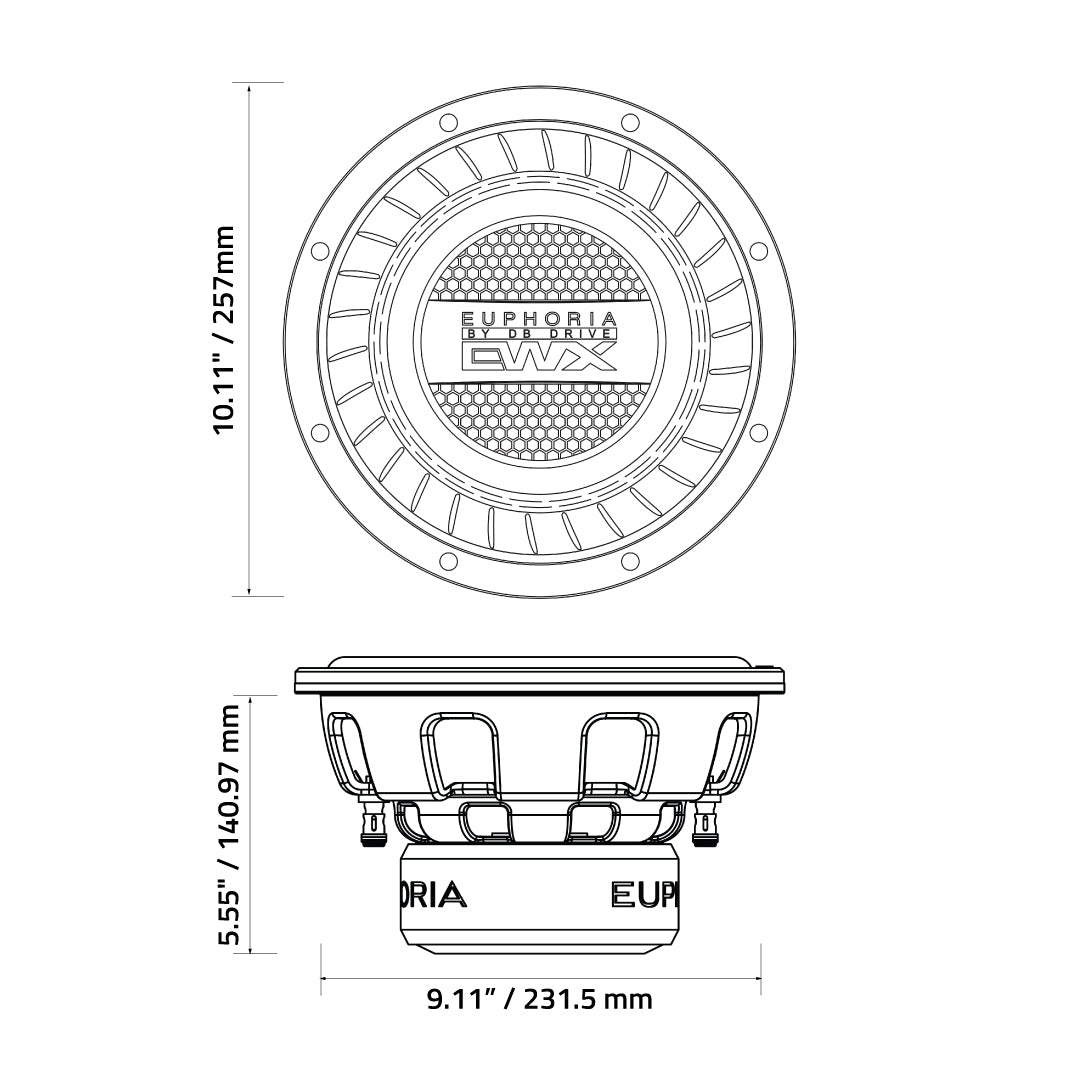

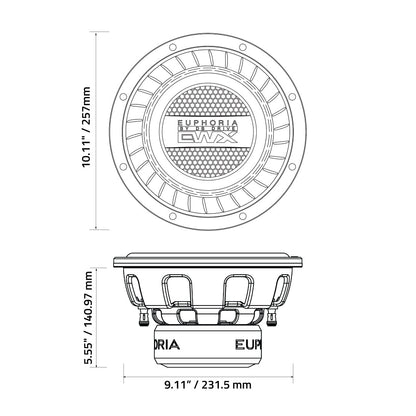

| Structure |
10.11” (257 mm)
|
| Max Power |
1500 Watts |
| Nominal Power |
500 Watts |
| Impedance |
2.5" (63.5mm) Dual 4Ω Voice Coil |
| PARAMETERS |
| Resonant Frequency (fs) |
28.356 Hz |
| D.C. Voice Coil Resistance (Re) |
6.54 Ω |
| Mechanical Quality Factor (Qms) |
10.218 |
| Electrical Quality Factor (Qes) |
0.365 |
| Total Quality Factor (Qts) |
0.352 |
| Equivalent Air Volume to Cms (Vas) |
4.3L |
| Force Factor (BL) |
19.298 N/A |
| Mass of Diaphragm/Coil (Mms) |
116.580 g |
| Sound Pressure Level (SPL) |
86.453dB |
Product Manual
Product Manual PDF
Description
Feel the Euphoria with every beat!
Unleash the ultimate sound experience with the Euphoria EWXPW10D4 10in Woofer! This subwoofer is a game-changer in the audio world, boasting distortion-free excursion and SQL-designed performance that will blow your mind. It’s optimized for small enclosures, featuring a foam ribbed surround and a non-pressed paper cone with high excursion for exceptional sound quality. With a powerful 145 oz. Magnet and dual 4Ω voice coils, this subwoofer can handle up to 1500 watts of max power and 500 watts of nominal power. The pole piece and radial basket venting ensure optimum voice coil cooling and the anti-resonance heavy gauge solid steel frame provides unparalleled durability. The large gauge push button speaker wire terminals make installation a breeze. Whether you’re looking to enhance your car audio system or bring the party to your home, the Euphoria EWXPW10D4 has got you covered. Experience the power and precision of Euphoria today!
