Features
- 3″ High-temperature voice coil
- 145 oz. ceramic ferrite magnet
- High-grade Low Carbon steel on top and bottom plate
- Designed to optimize SPL performance
- High excursion spider designed
- 1.5″ high roll foam surround
- Large gauge push button speaker terminals
- Dual 4 ohm voice coils
Specifications

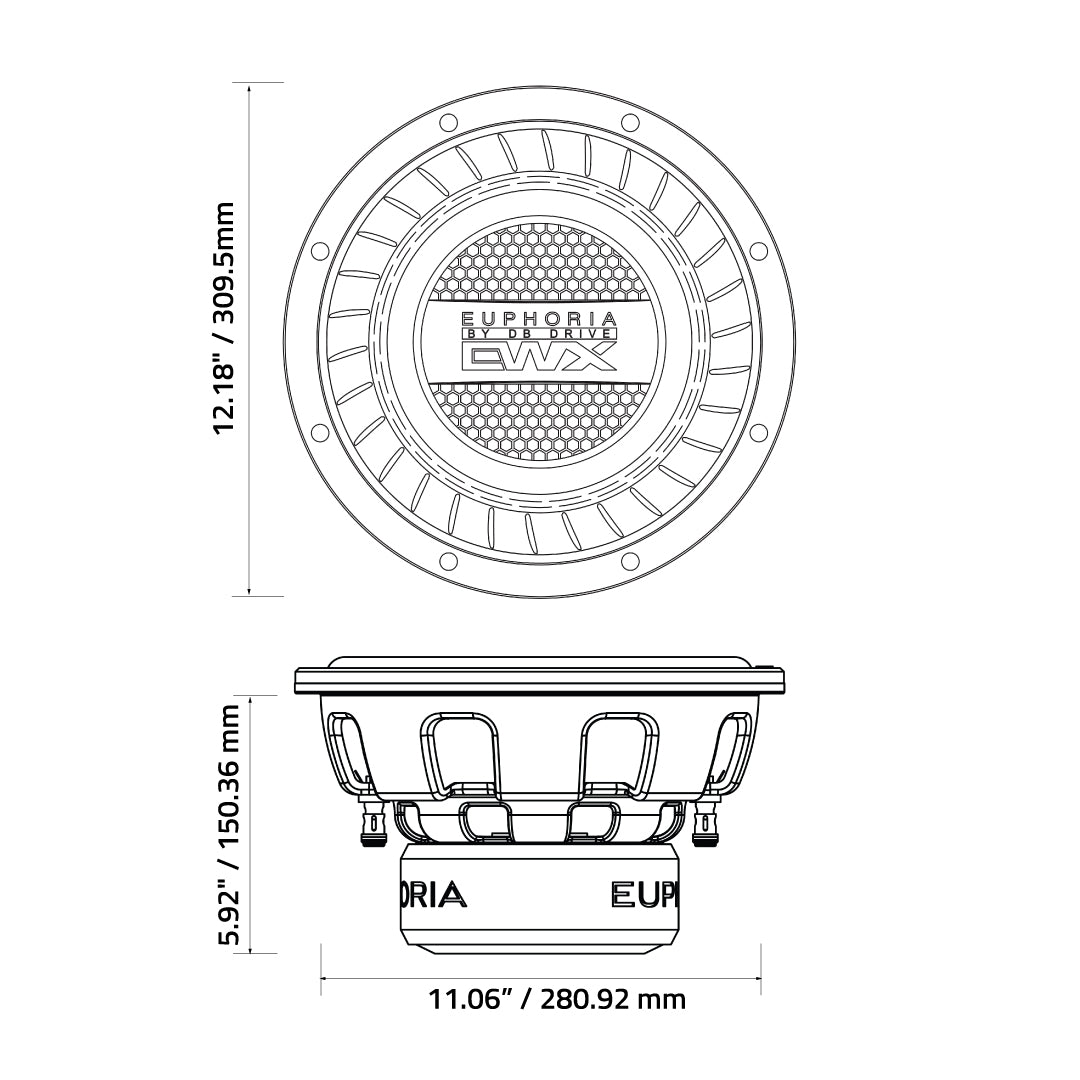

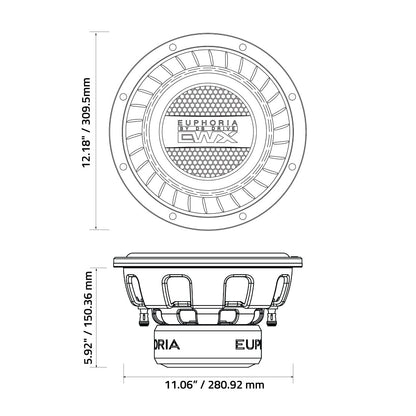

| Structure |
12.18” (309.5 mm)
|
| Max Power |
1500 Watts |
| Nominal Power |
500 Watts |
| Impedance |
3" (76.2mm) Dual 4Ω Voice Coil |
| PARAMETERS |
| Resonant Frequency (fs) |
26.951 Hz |
| D.C. Voice Coil Resistance (Re) |
6.57 Ω |
| Mechanical Quality Factor (Qms) |
10.212 |
| Electrical Quality Factor (Qes) |
0.529 |
| Total Quality Factor (Qts) |
0.503 |
| Equivalent Air Volume to Cms (Vas) |
8.9L |
| Force Factor (BL) |
17.724 N/A |
| Mass of Diaphragm/Coil (Mms) |
149.474 g |
| Sound Pressure Level (SPL) |
86.986dB |
Product Manual
Product Manual PDF
Description
Feel the Euphoria with every beat!

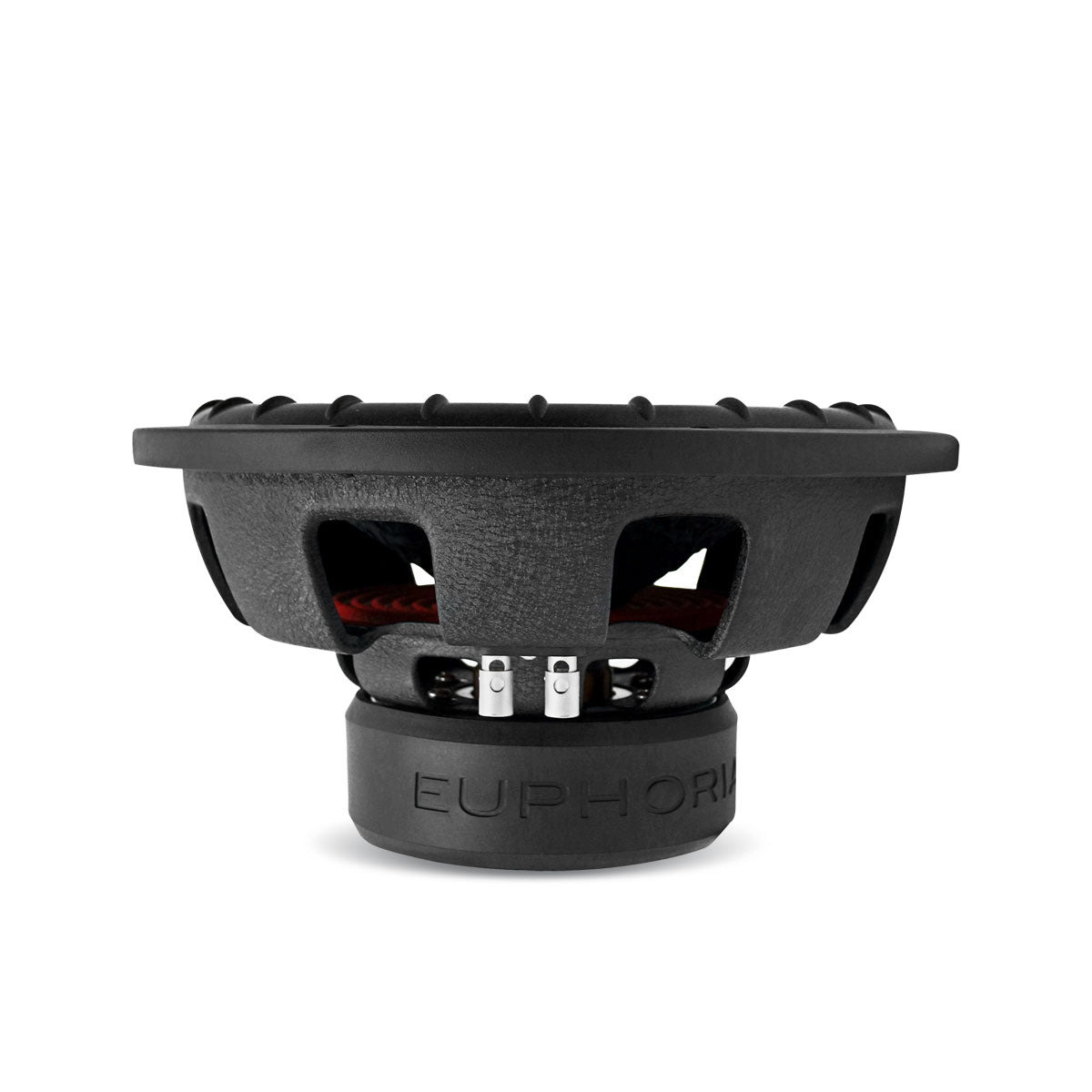

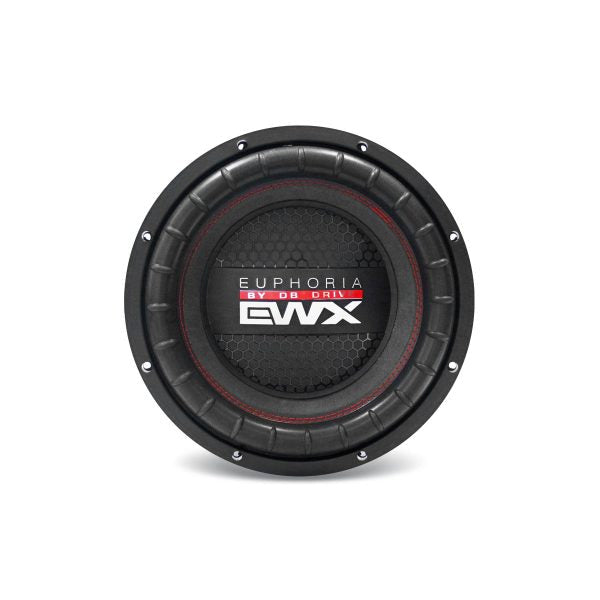

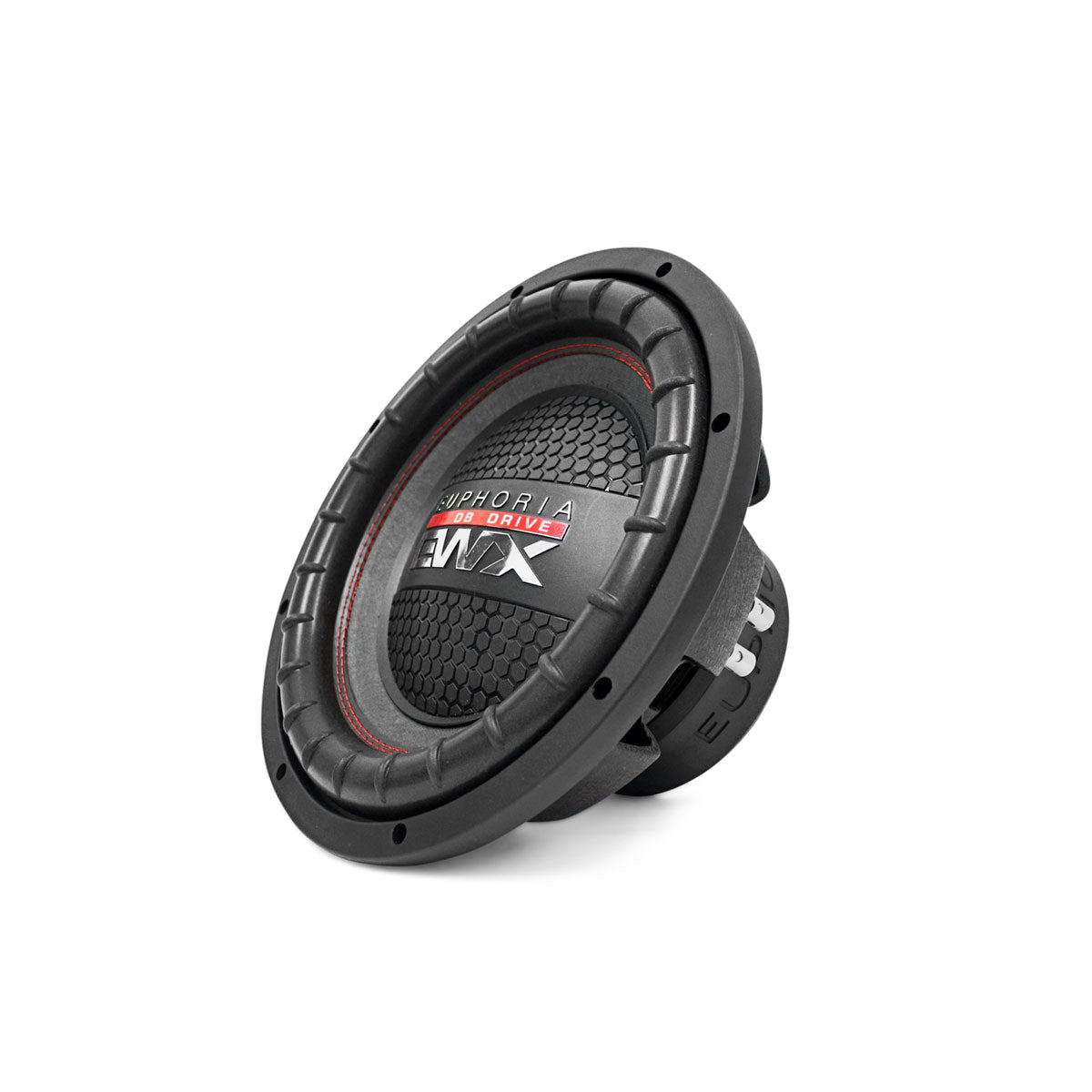

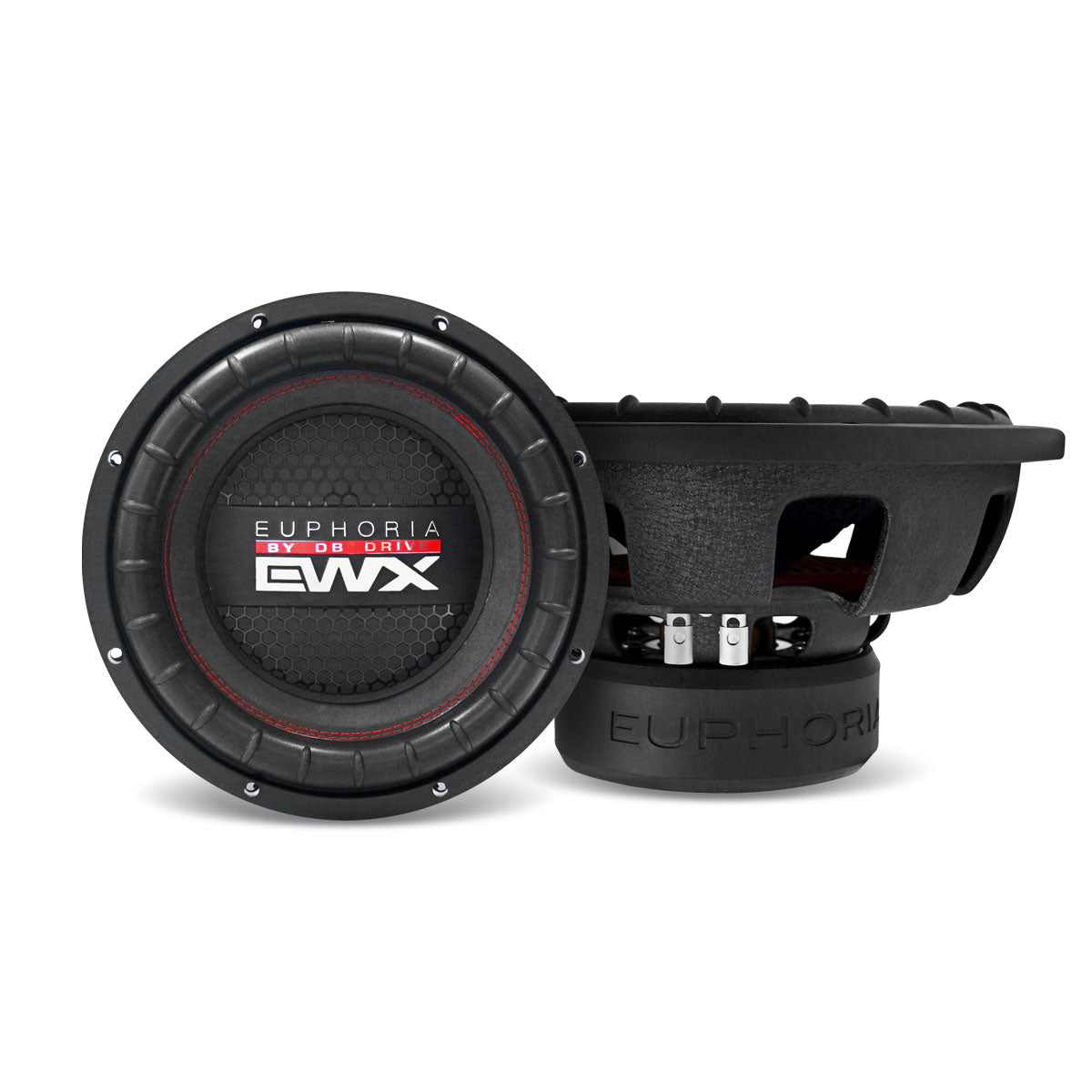

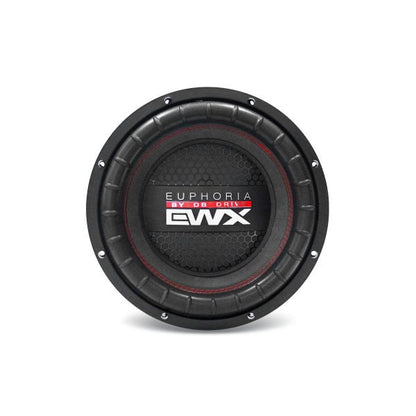

Introducing the Euphoria EWXPW12D4: 12in Woofer 4 Ohm DVC, a powerhouse in the world of subwoofers. Crafted for the true audiophile, this subwoofer boasts distortion-free excursion and SQL designed performance that delivers crisp and clear sound, even at high volumes. Optimized for small enclosures, it makes the most of your space while providing an immersive audio experience. The foam ribbed surround and non-pressed paper cone with high excursion ensure durability and longevity. With large gauge push button speaker wire terminals, installation is a breeze. The pole piece and radial basket venting offer optimum voice coil cooling, while the linear roll progressive dampener and proprietary protective magnet band enhance performance and protection. The anti-resonance heavy gauge solid steel frame ensures stability, making this subwoofer a reliable addition to your sound system. With a 145 oz. magnet size and the ability to handle up to 1500 Watts of max power, the Euphoria EWXPW12D4 is designed to deliver powerful, deep bass that will elevate your listening experience to new heights. Feel the euphoria with every beat and transform your audio experience with this exceptional subwoofer.
