Features
- 2″ High-temperature voice coil
- 120 oz. ceramic ferrite magnet
- High-grade Low Carbon steel on top and bottom plate
- Designed to optimize SPL performance
- High excursion spider designed
- 1.5″ high roll foam surround
- Large gauge push button speaker terminals
- Dual 4 ohm voice coils
Specifications

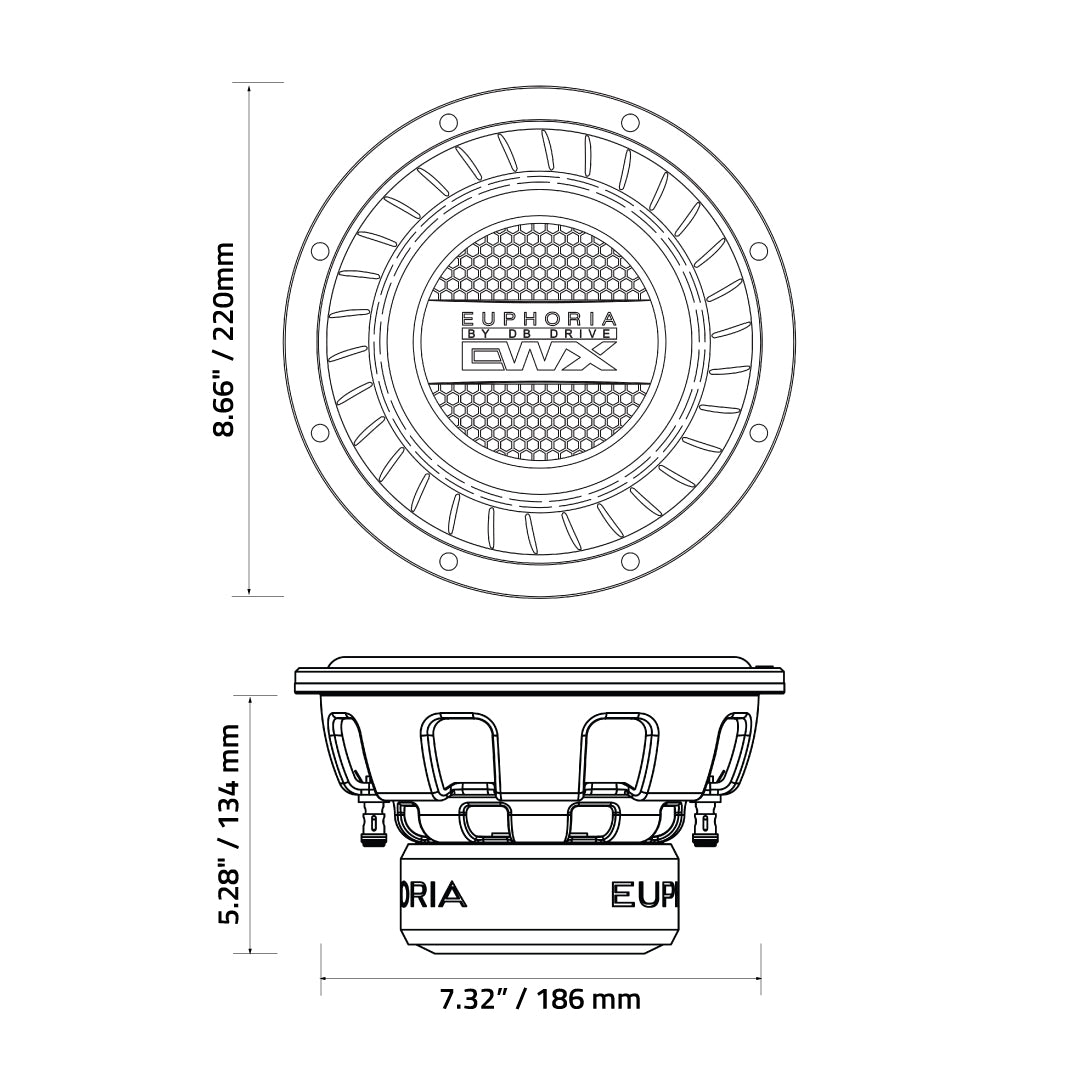

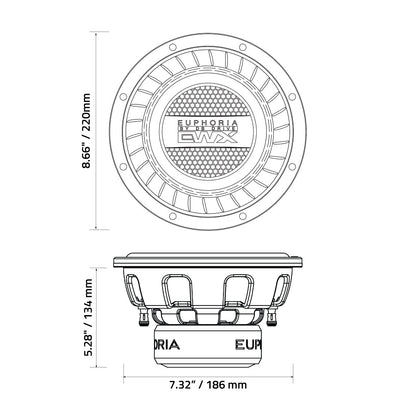

| Structure |
8” (203.3 mm)
|
| Max Power |
500 Watts |
| Nominal Power |
250 Watts |
| Impedance |
2" (50.8mm) Dual 4 Ω Voice Coil |
| PARAMETERS |
| Resonant Frequency (fs) |
36.564 Hz |
| D.C. Voice Coil Resistance (Re) |
6.9 Ω |
| Mechanical Quality Factor (Qms) |
9.833 |
| Electrical Quality Factor (Qes) |
0476 |
| Total Quality Factor (Qts) |
0.454 |
| Equivalent Air Volume to Cms (Vas) |
2.8L |
| Force Factor (BL) |
13.339 N/A |
| Mass of Diaphragm/Coil (Mms) |
53.383 g |
| Sound Pressure Level (SPL) |
85.722dB |
Product Manual
Product Manual
Description
Feel the Euphoria with Every Beat!
Introducing the Euphoria EWXPW8D4 8in Woofer 4 Ohm DVC, your ultimate companion for unbeatable sound quality. With features like distortion-free excursion and SQL designed performance, this subwoofer ensures you experience every note with crystal clarity. Optimized for small enclosures, it fits seamlessly into your setup while delivering maximum power of 500 watts and nominal power of 250 watts. The foam ribbed surround and non-pressed paper cone with high excursion create an immersive audio experience. Add in the large gauge push button speaker wire terminals, pole piece and radial basket venting for optimum voice coil cooling, and a solid steel frame to combat resonance, and you have a subwoofer that's built to last. Feel the power of the dual 4Ω voice coils and the 120 oz. magnet size, designed to deliver the ultimate performance. Elevate your audio game with the Euphoria EWXPW8D4 – where every beat is a masterpiece.
