DB Drive Euphoria Xpert EX10NMB : 10" Die-Cast NEO Midbass

DB Drive Euphoria Xpert EX10NMB : 10" Die-Cast NEO Midbass

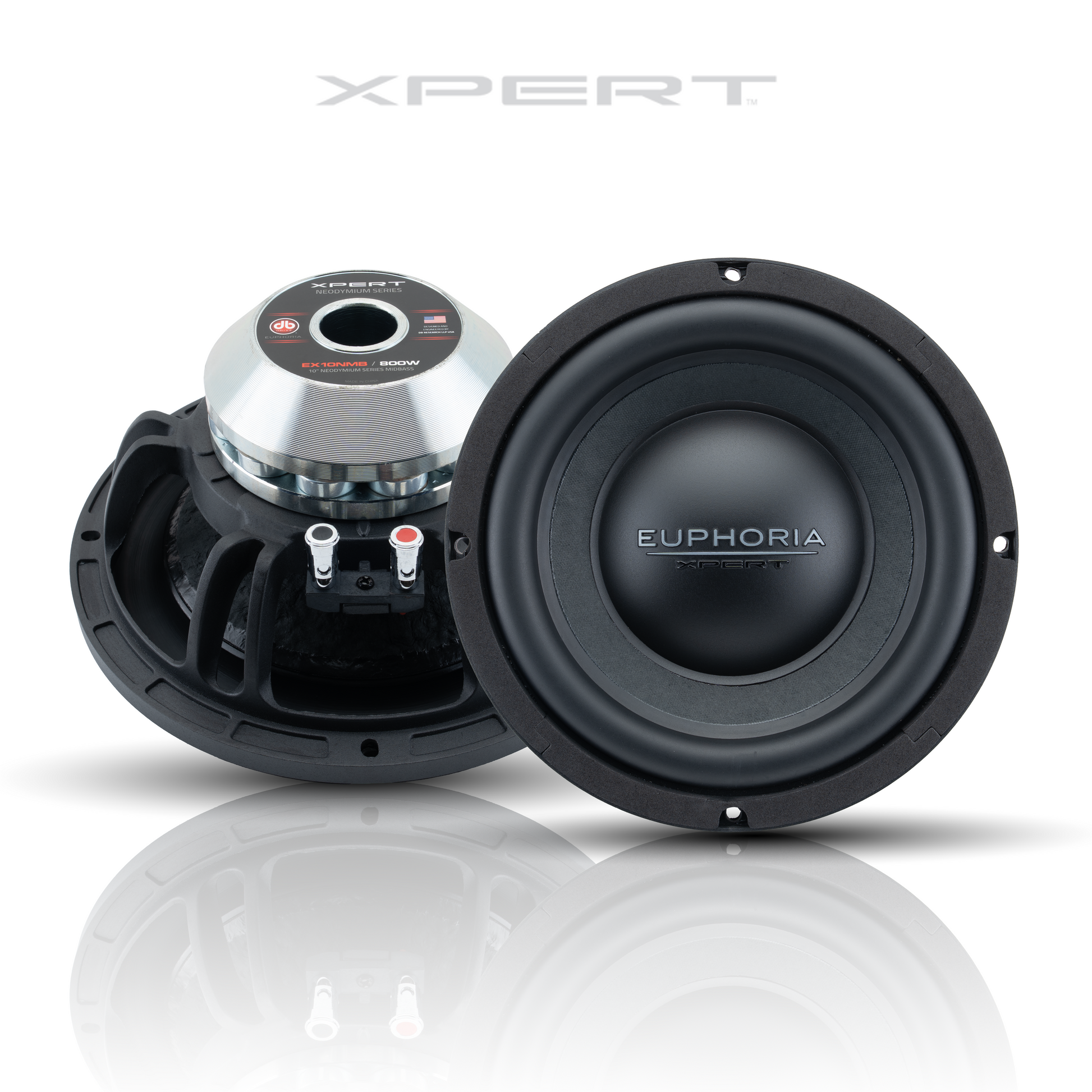

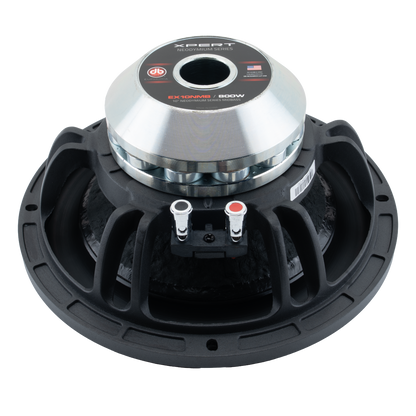

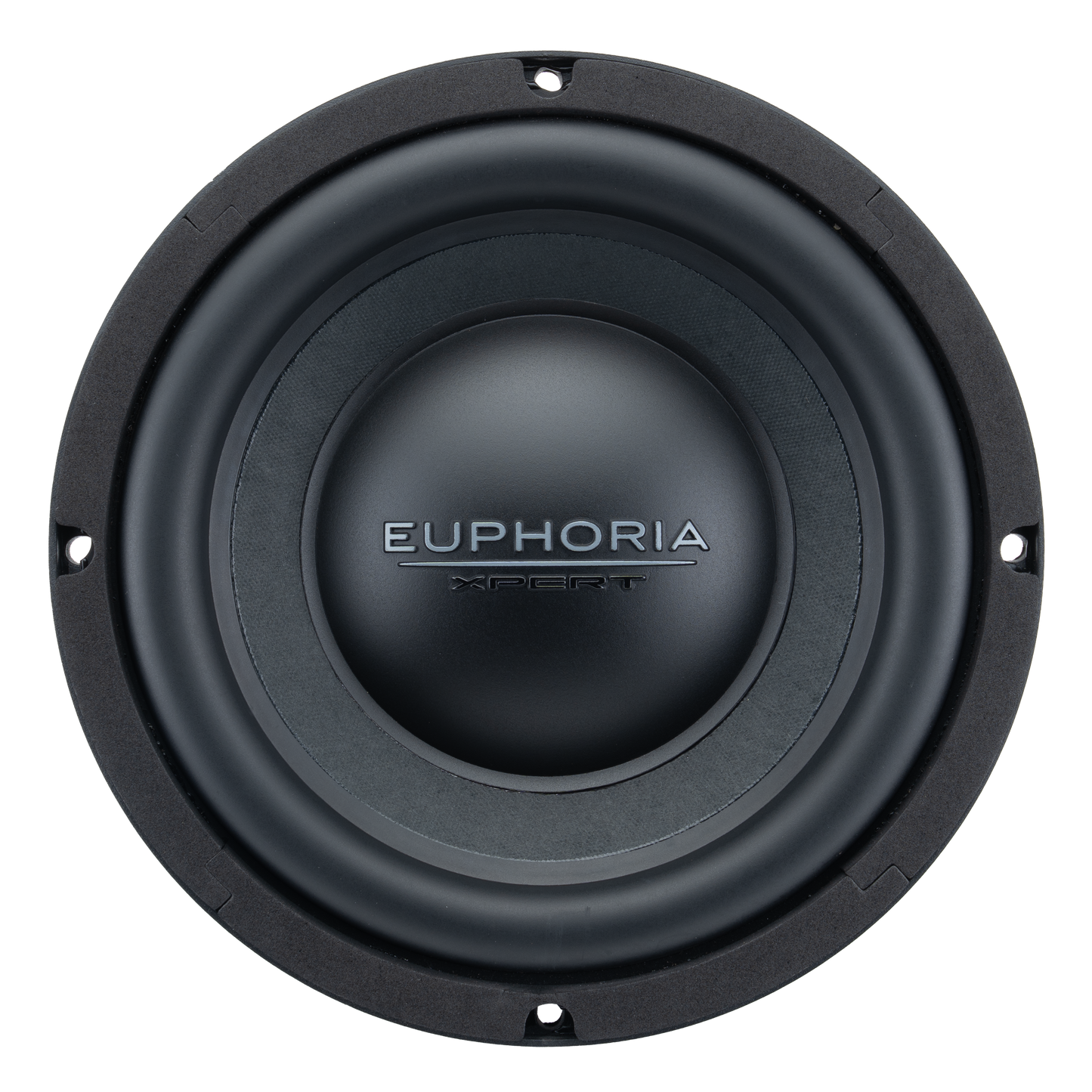

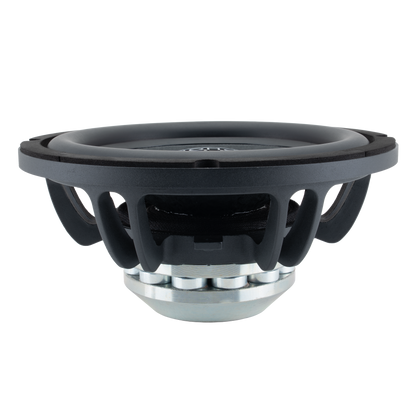

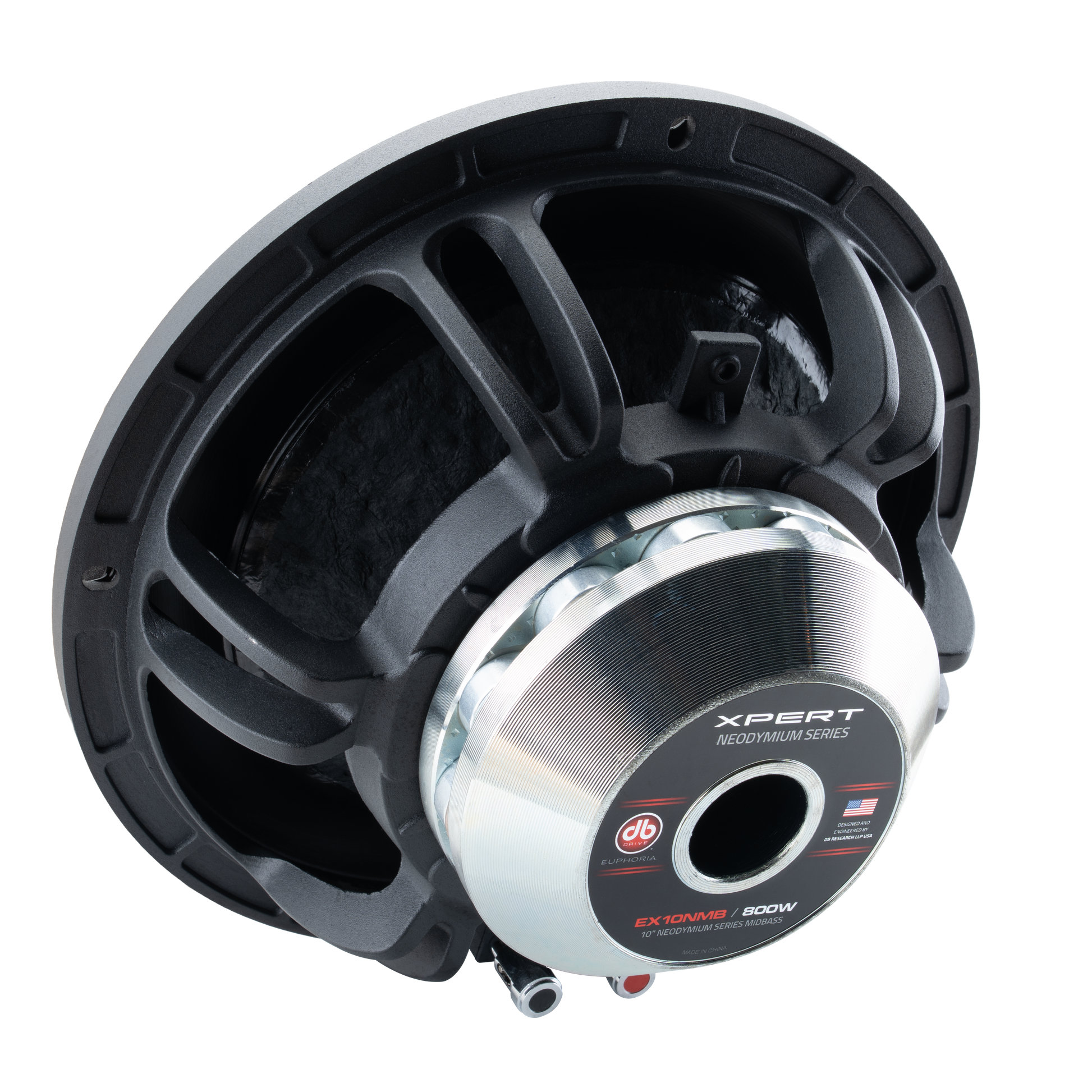

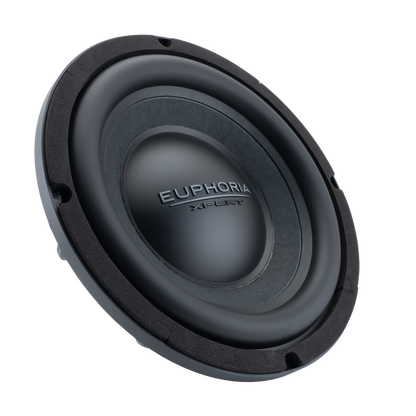

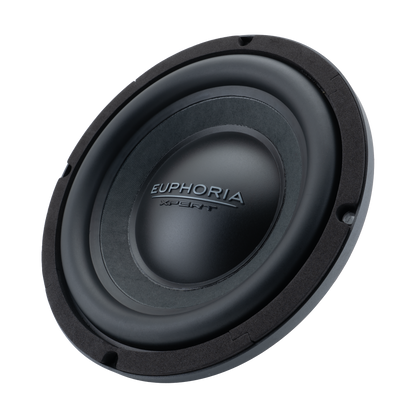

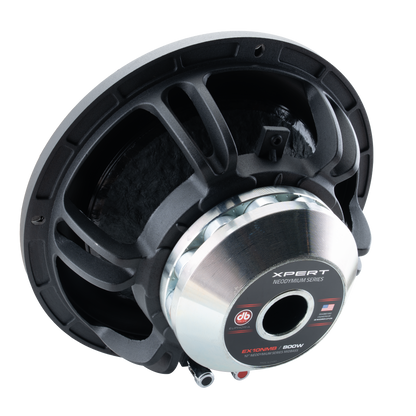

10" Die-Cast NEO Midbass driver with Neodymium magnet, IP52 paper cone, and aluminum basket.

  • price-tag logoNew Launch
$469.98
$469.98
Save: $-469.98 (% Off)*
Sale Sold out
Shipping calculated at checkout.
  • cargo-truck logoFree shipping Over $99
Sold in last hours
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • USDC
  • Visa
  • free logo
    Fast, FREE Delivery

    Free, Fast, Doorstep Delight!

  • return logo
    Delivery & Returns

    Effortless Delivery, Easy Returns

View full details
  • Overview
  • Details
  • Accessories

Features:

  • 10″ Neodymium Series Mid Bass
  • 2.5″ (63.5mm) Midrange Voice Coil

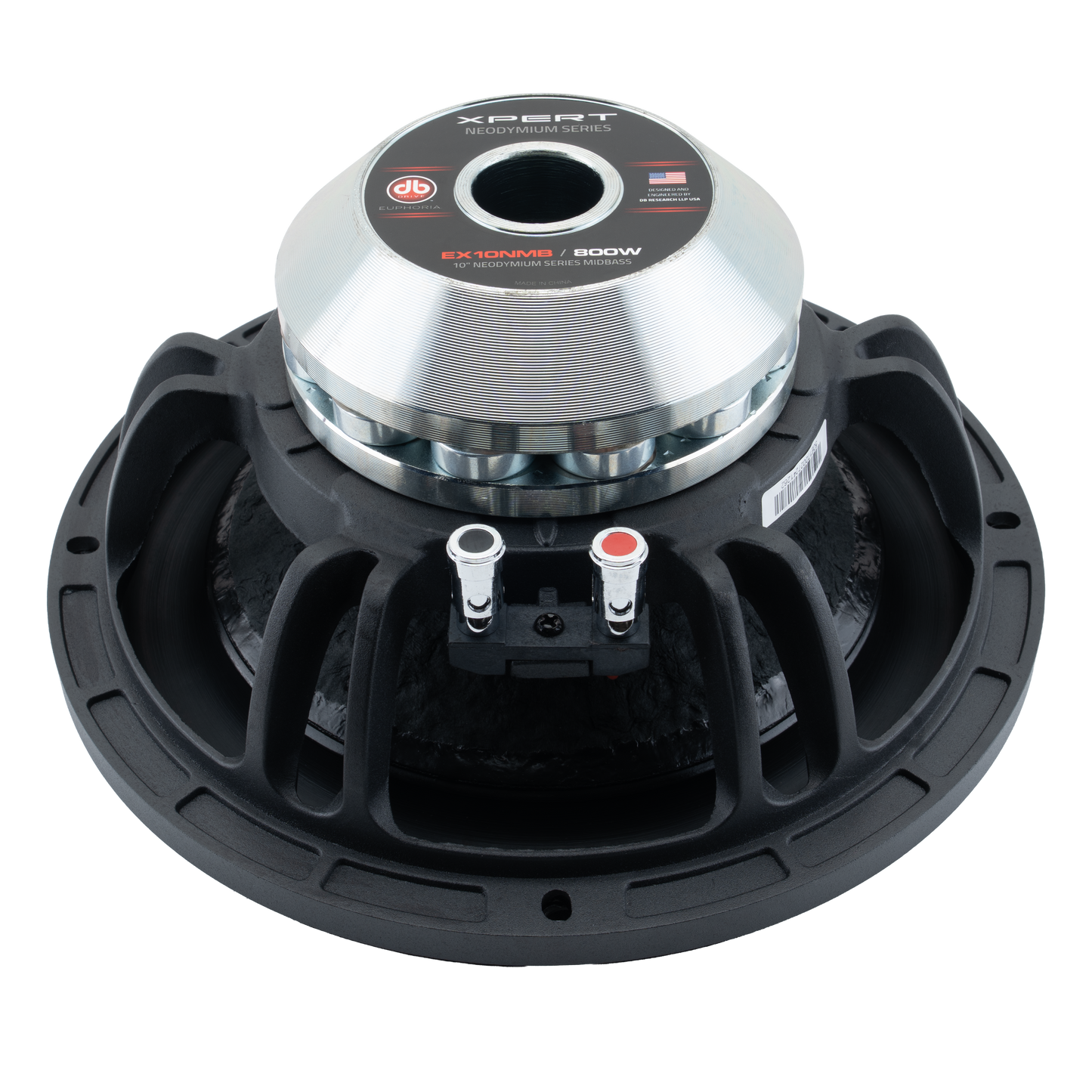

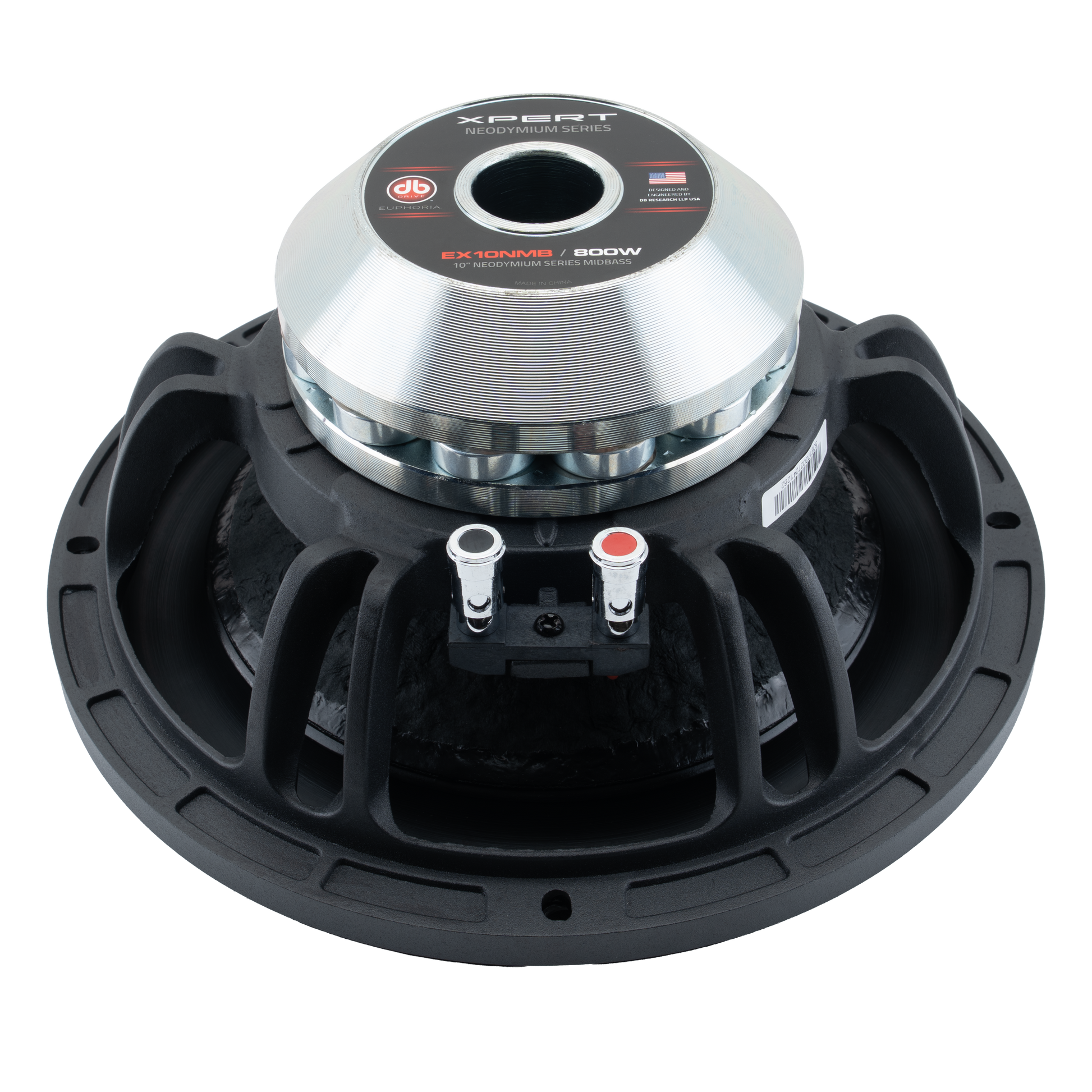

  • Neodymium 12 Piece Radially Equalized Magnet Assembly

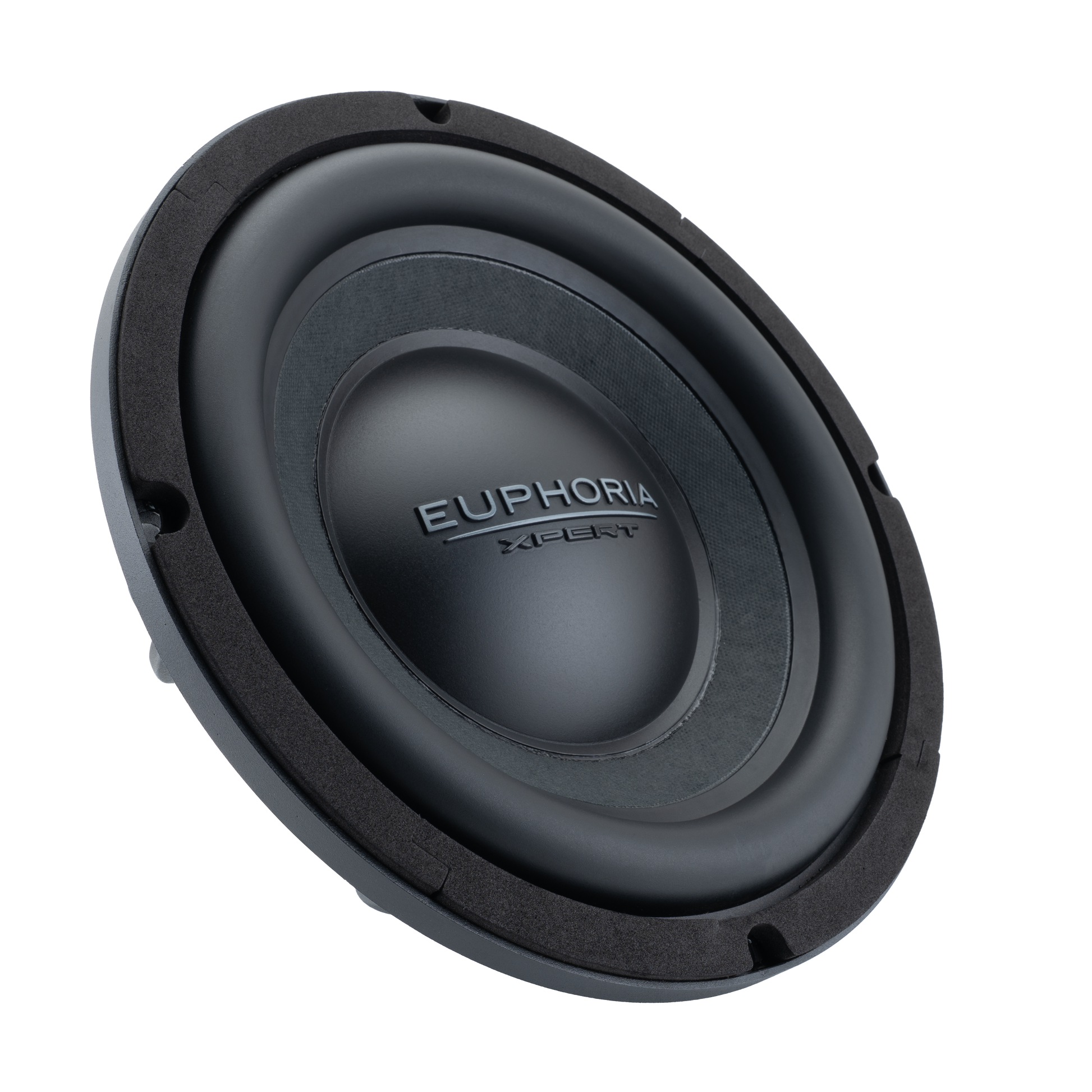

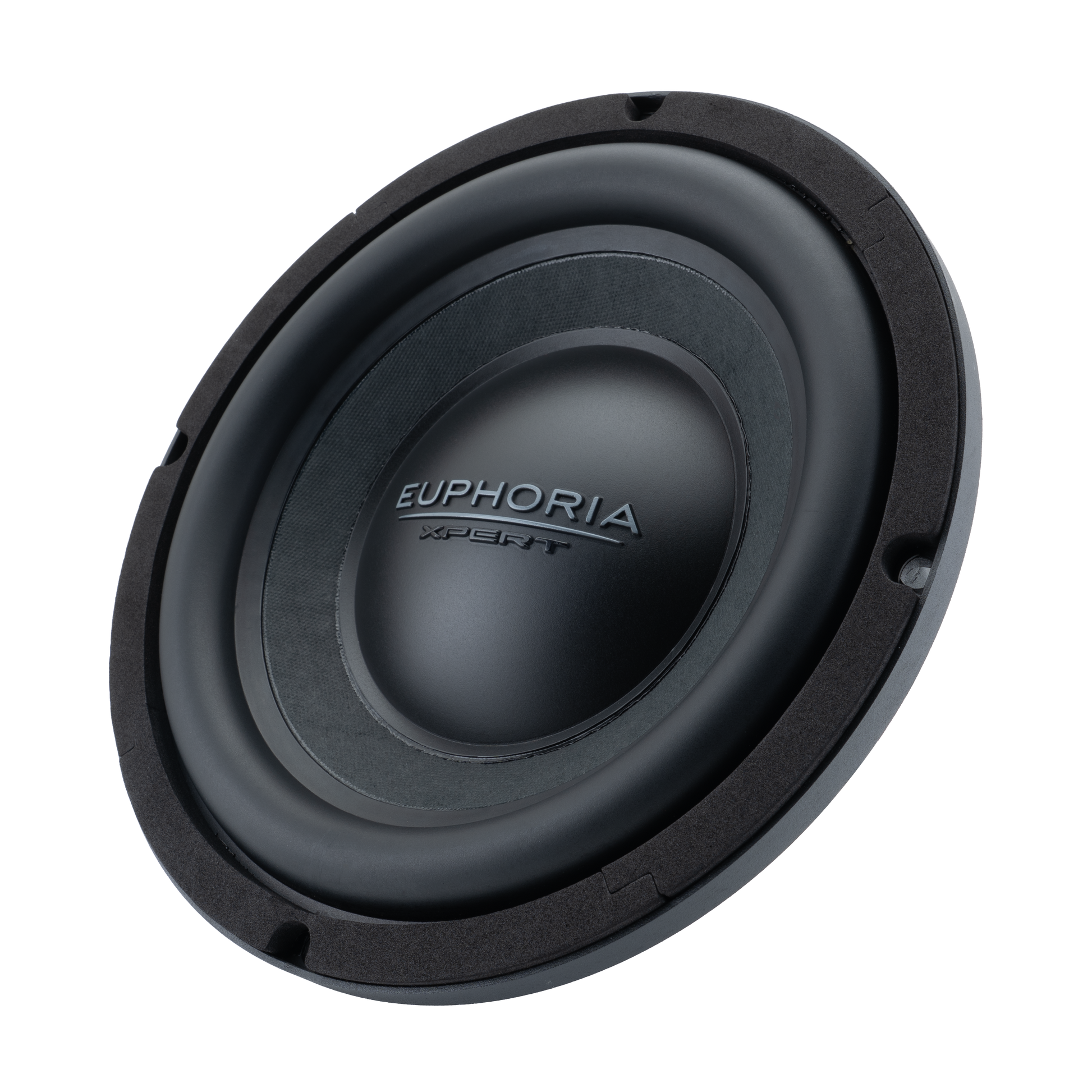

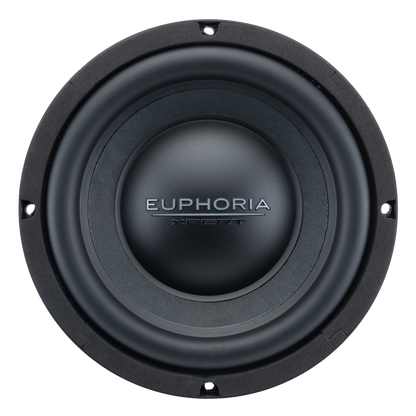

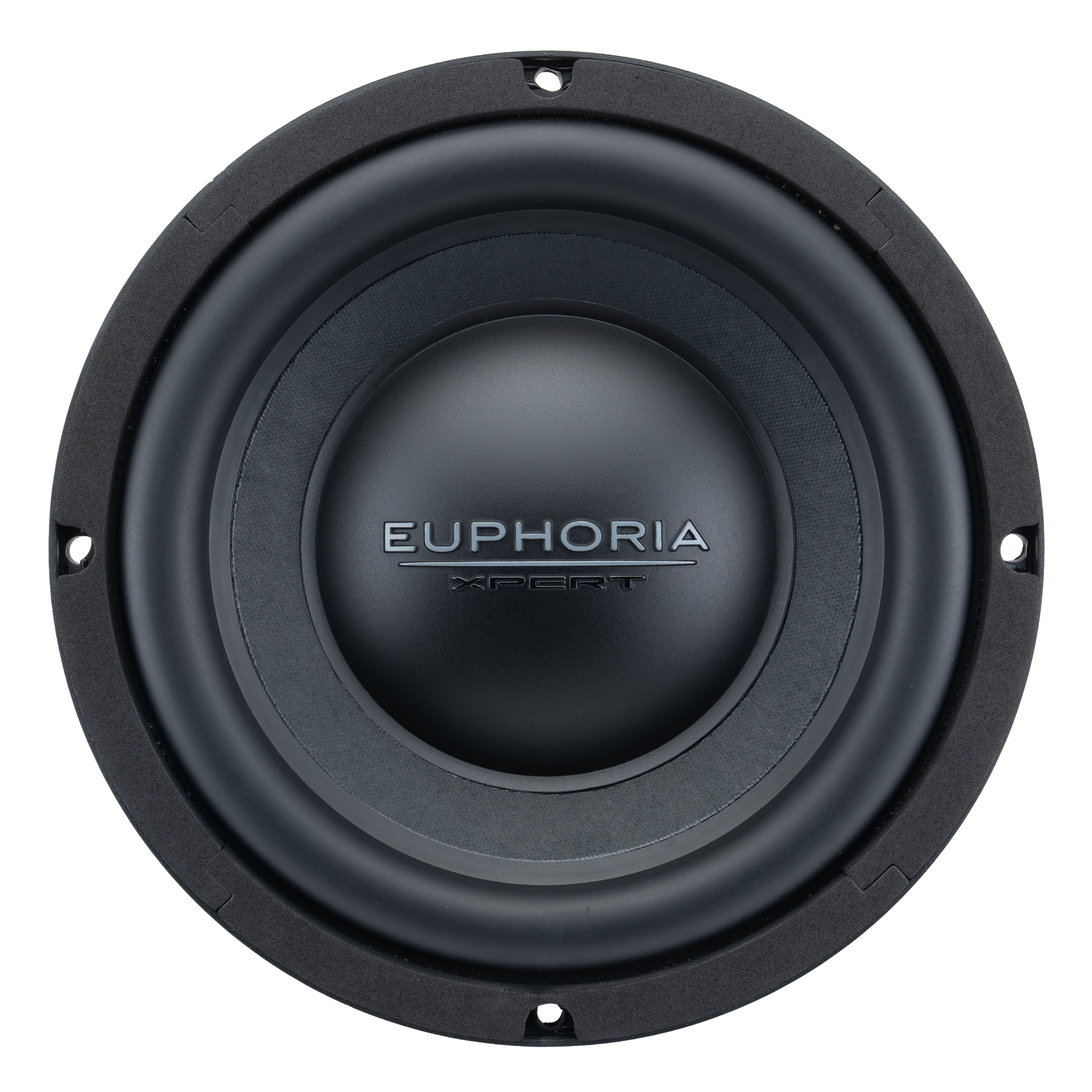

  • IP52 Rated Paper Cone with Treated Rubber Surround

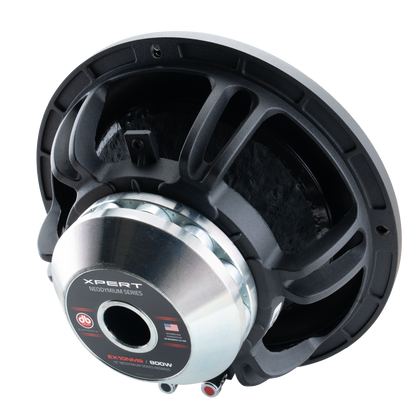

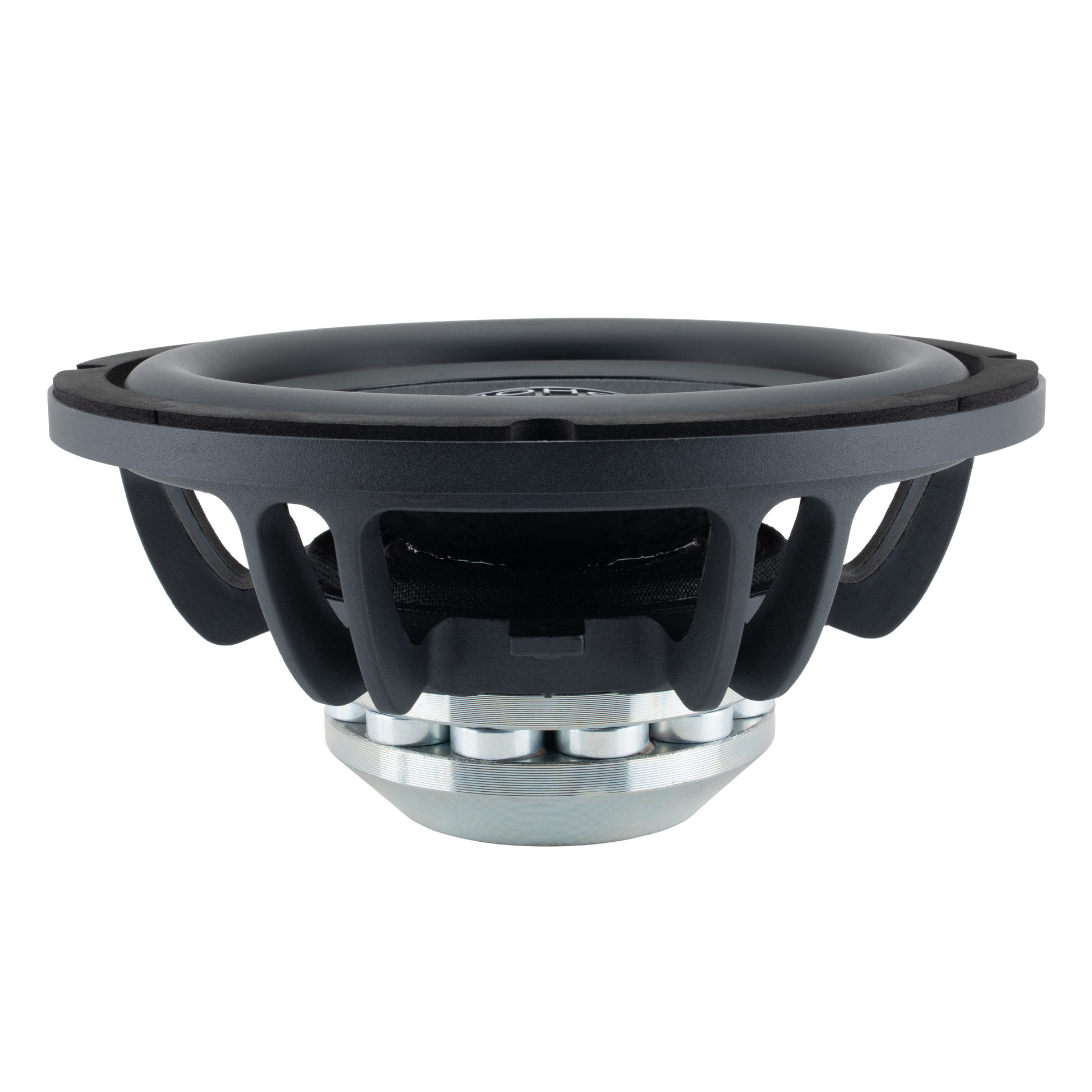

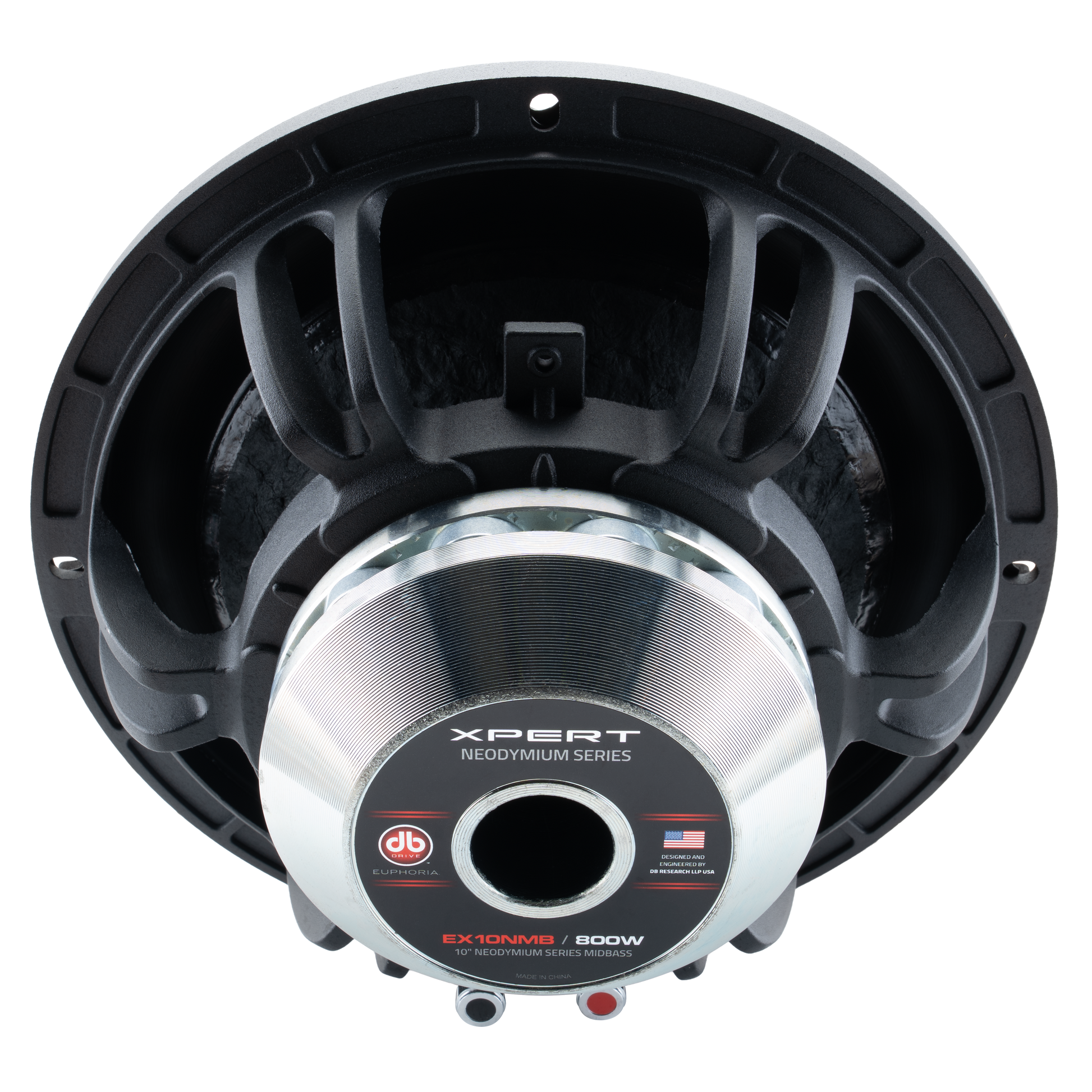

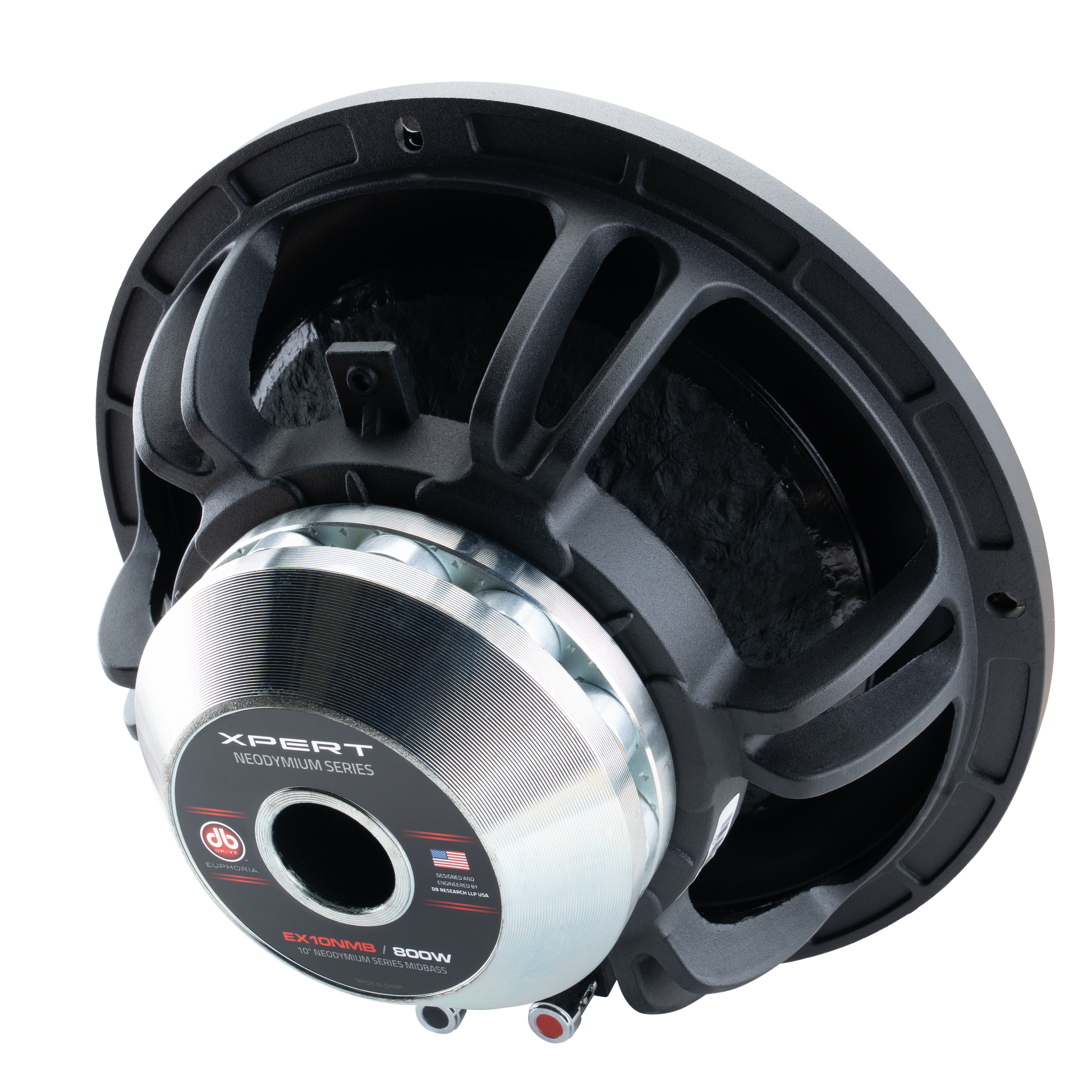

  • Die-cast aluminum Basket with Radial Venting Dimensions

Specifications:

Resonant Frequency (fs) 40Hz
D.C. Voice Coil Resistance (Re) 3Ω
Mechanical Quality Factor (Qms) 2.913
Electrical Quality Factor (Qes) 0.485
Total Quality Factor (Qts) 0.416
Compliance Equivalent Volume (Vas) 25.94L
Mechanical Compliance (Cms) 167.735 mm/N
Nominal Impedance 4Ω
Power Handling 400 Watts
Dynamic Wattage 800 Watts
Sensitivity (1w/1m) 92 dB
Voice Coil Diameter 2.5″ (63.5mm)

Description

Experience the XPERT sound revolution with the EX10NMB 10in Die-Cast NEO Mid bass Driver!

Elevate your audio experience with the XPERT EX10NMB 10in Die-Cast NEO Mid bass Driver. This powerhouse of sound features a Neodymium 12 Piece Radially Equalized Magnet Assembly that ensures exceptional magnetic strength and clarity. With an IP52 Rated Paper Cone and Treated Rubber Surround, it promises durability and superior sound quality. The Die-Cast Aluminum Basket with Radial Venting enhances cooling and longevity. Boasting a Frequency Response of 45Hz - 2000KHz and a Sensitivity of 92dB, it delivers precise, powerful sound. Whether you're looking to amplify your music or upgrade your audio system, the EX10NMB offers unparalleled performance with its 800 Watts Max Power and 400 Watts Nominal Power. Embrace innovation with the XPERT NEO MID-BASS series and transform your sound experience today.

Recone Available

If you would like to purchase the recone for this product, please email support@dbdrive.net

Product Manual

Product Manual PDF
