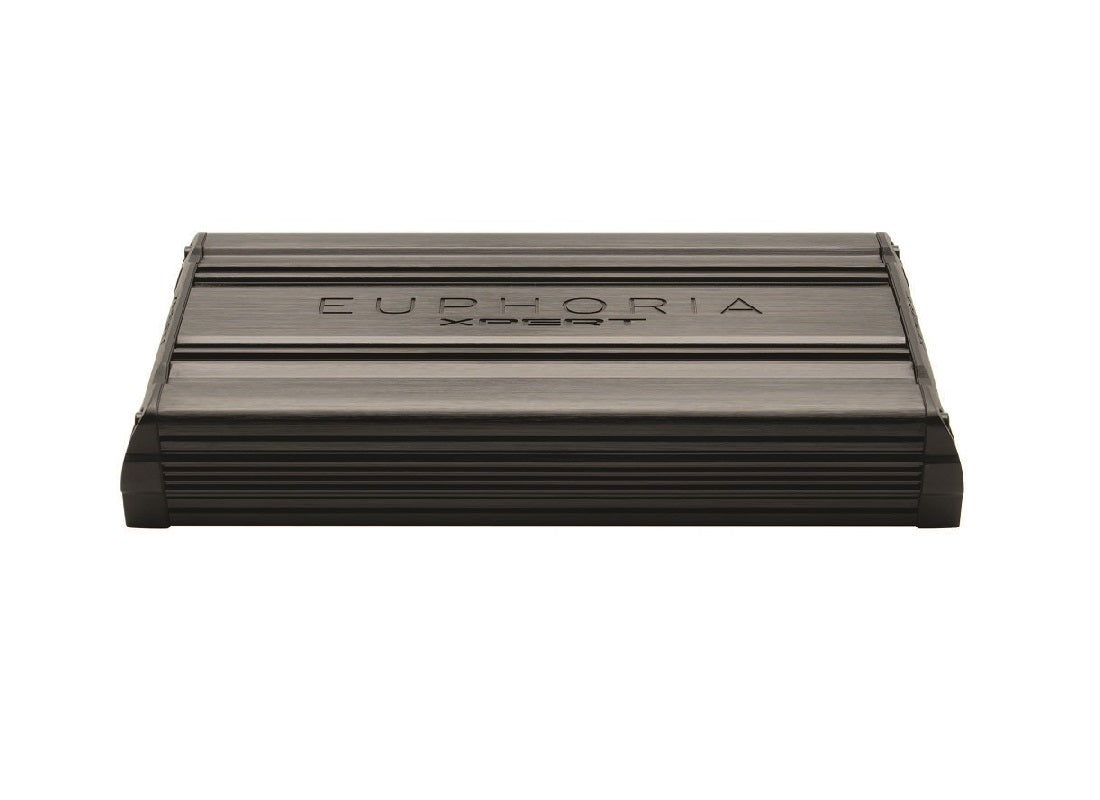

DB Drive Euphoria Xpert EX200.4DSP : 4 CHANNEL AMPLIFIER WITH BUILT IN 6 CHANNEL DSP

Features

• Frequency Response: 20 Hz – 20,000 Hz
• Fully Digital Crossover: Selectable between 0 to 20 kHz for High Pass (HP), Low Pass (LP), and Band Pass (BP) filters
• Configurable Slope Per Channel: 6, 12, 18, 24, 48 dB/octave
• DSP Parametric Equalizer (PEQ): 31 Bands of adjustable EQ
• Q Factor Range: Adjustable from 0.05 to 20
• Low Level 4 Channel RCA input:  200mV- 12v
• Speaker Level Input: Compatible with OEM systems for easy integration
• External Outputs: 2 channel-assignable RCA outputs for system expansion
• Quick Disconnect Terminals: For easy and fast connections
• Operating Voltage: 8V – 16V
• Damping Factor: 200 for improved control over speaker movement
• Signal-to-Noise Ratio (SNR): 91 dB for clear sound output

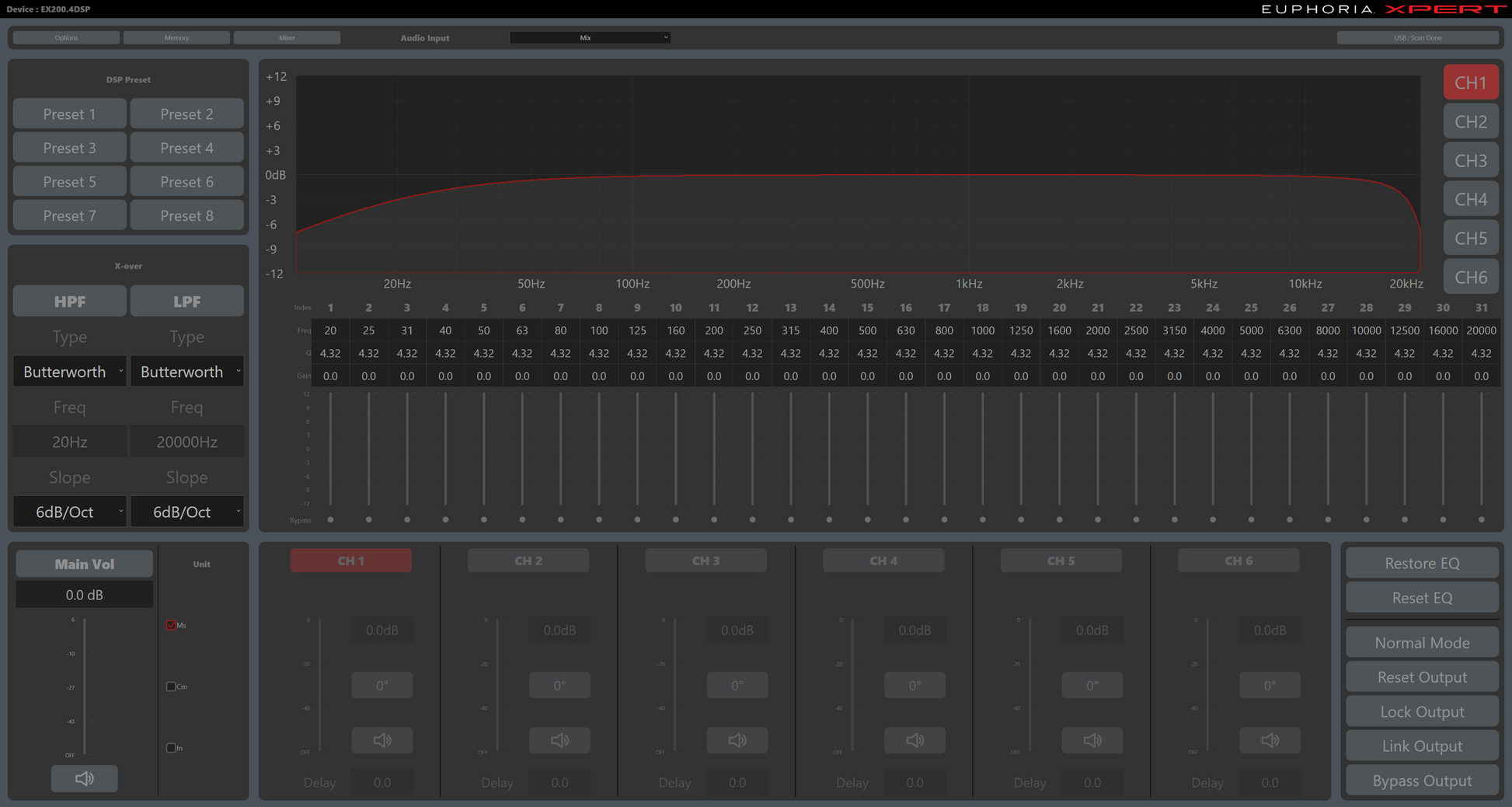

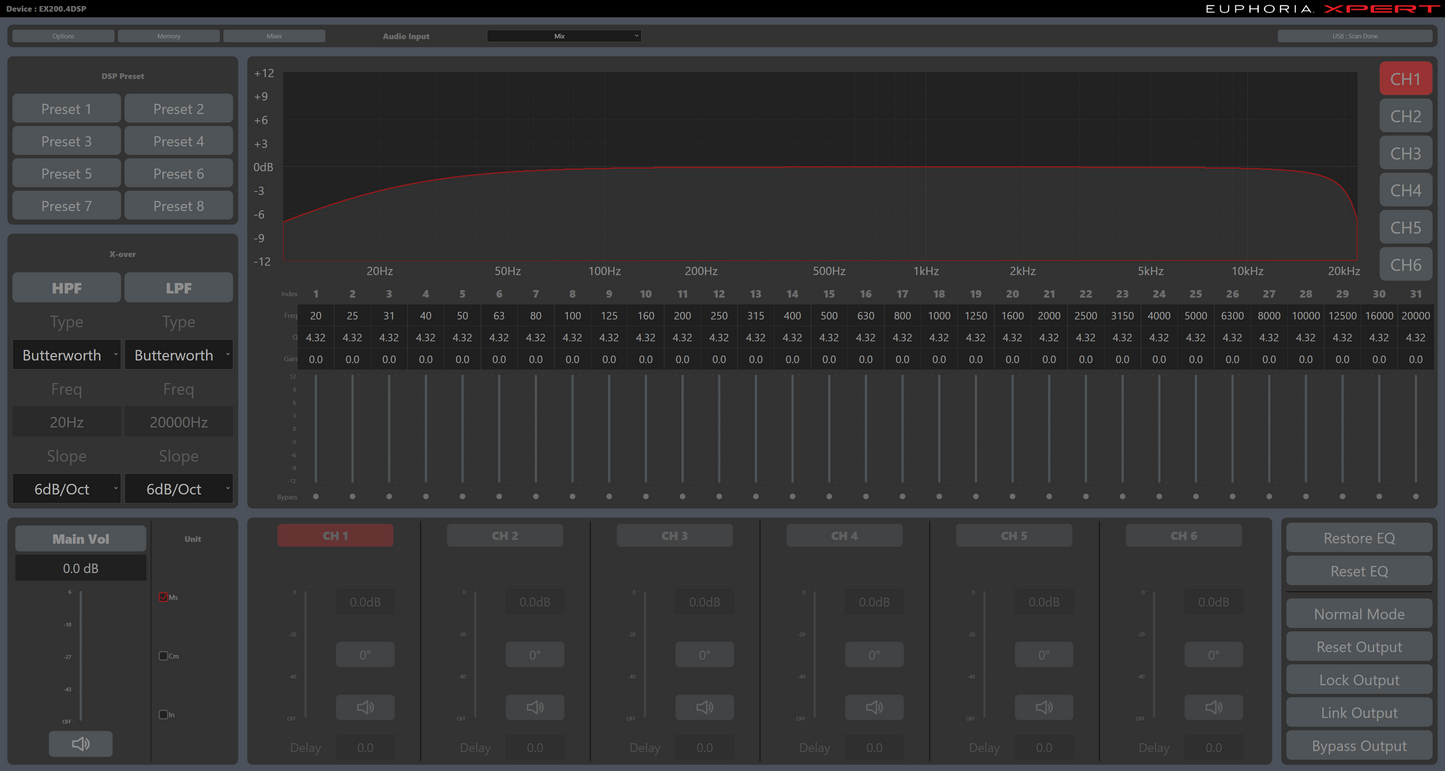

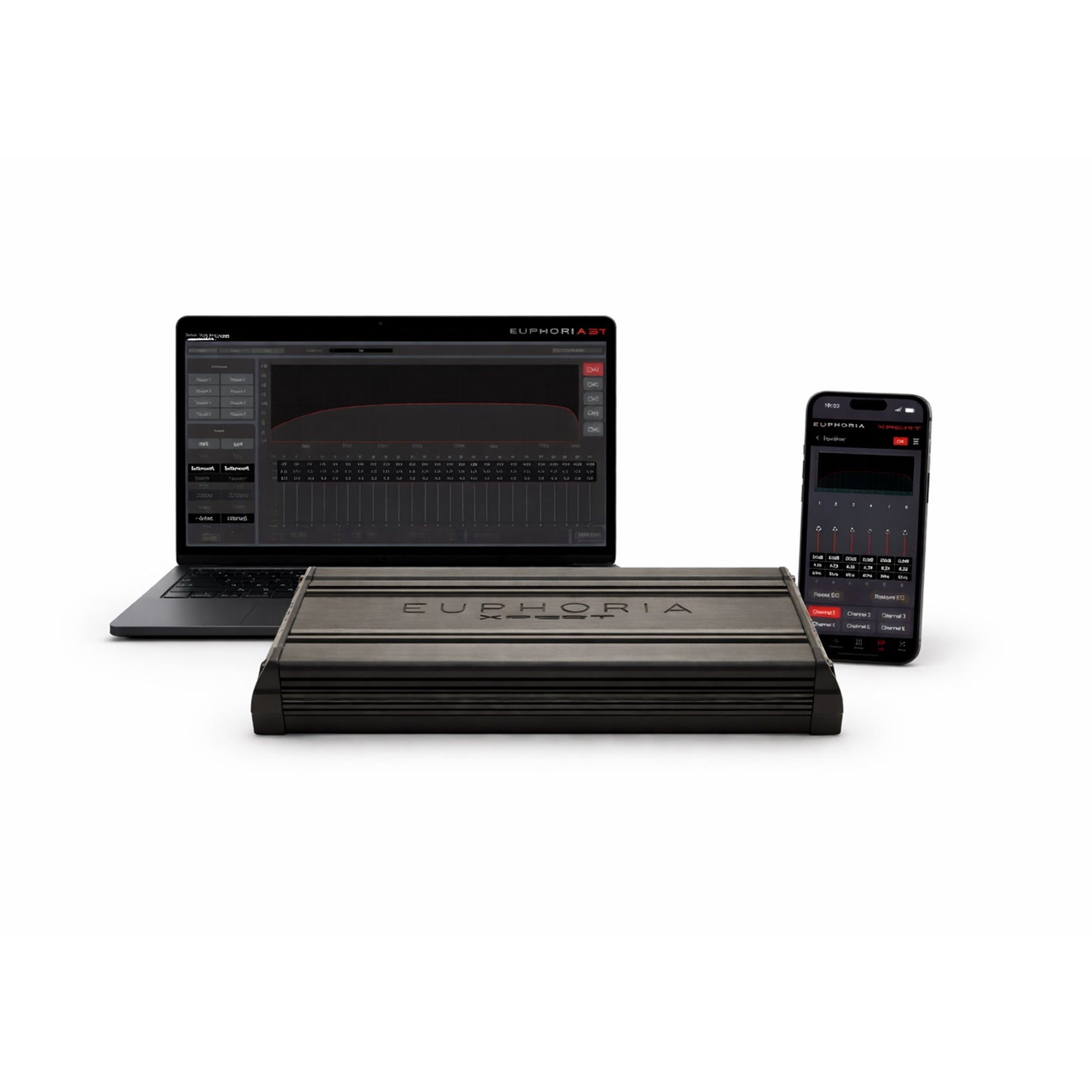

• DSP App Compatibility: Supports Windows, Android, and iOS platforms for flexible control


Specifications

Product Manual

Download Manual

PC Software

Download PC Software

IOS Software

Android Software
