Features

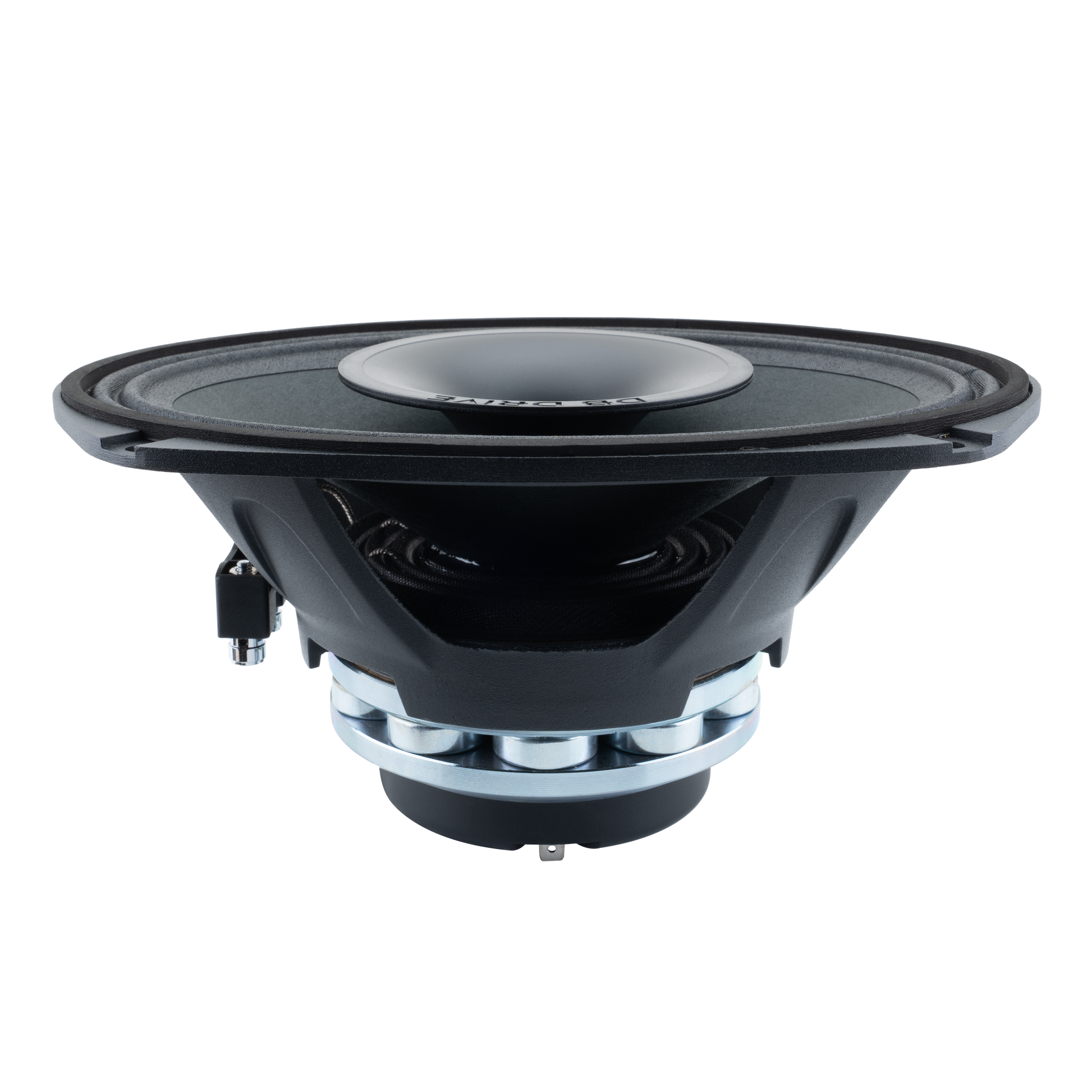

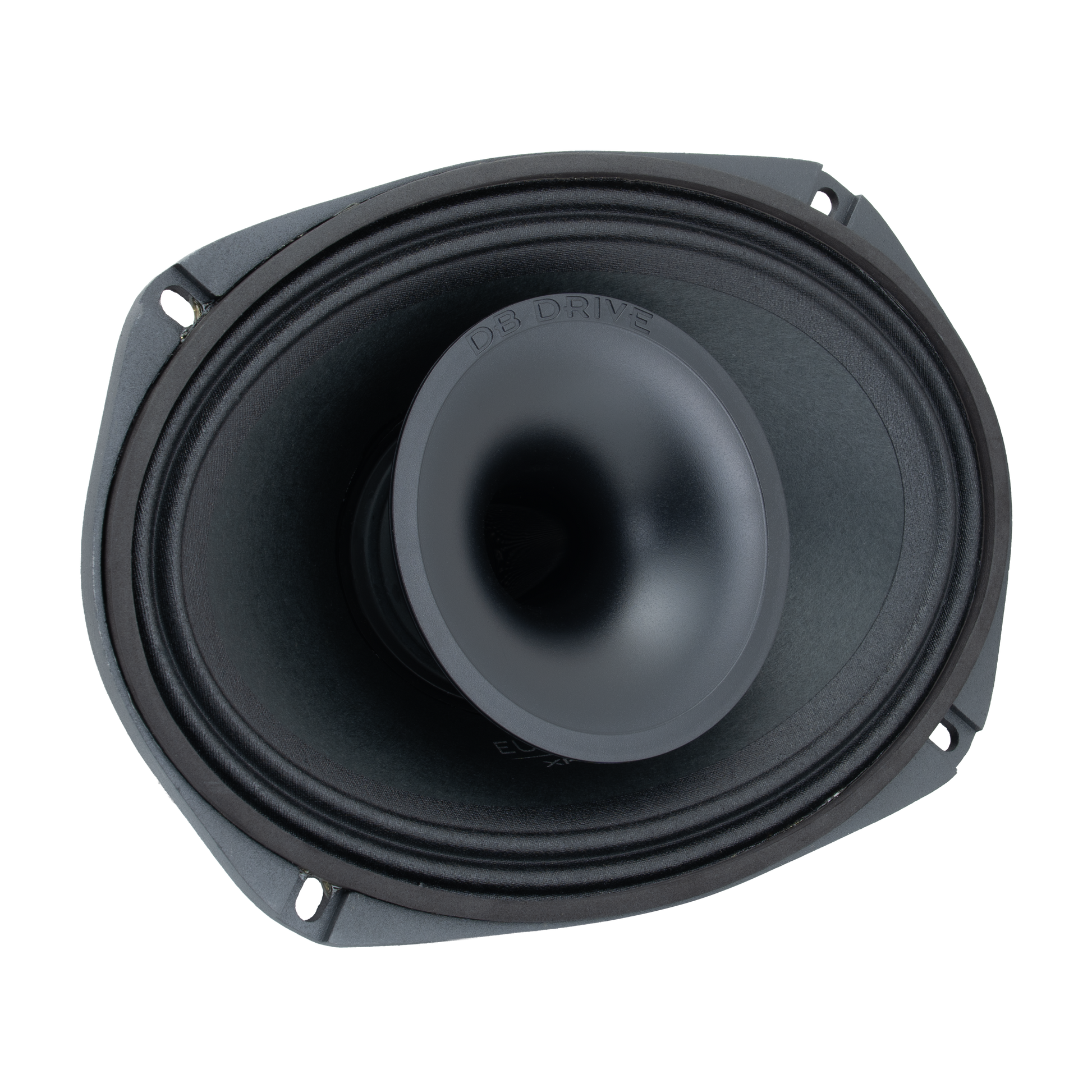

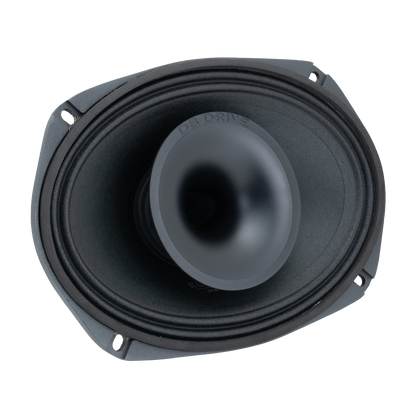

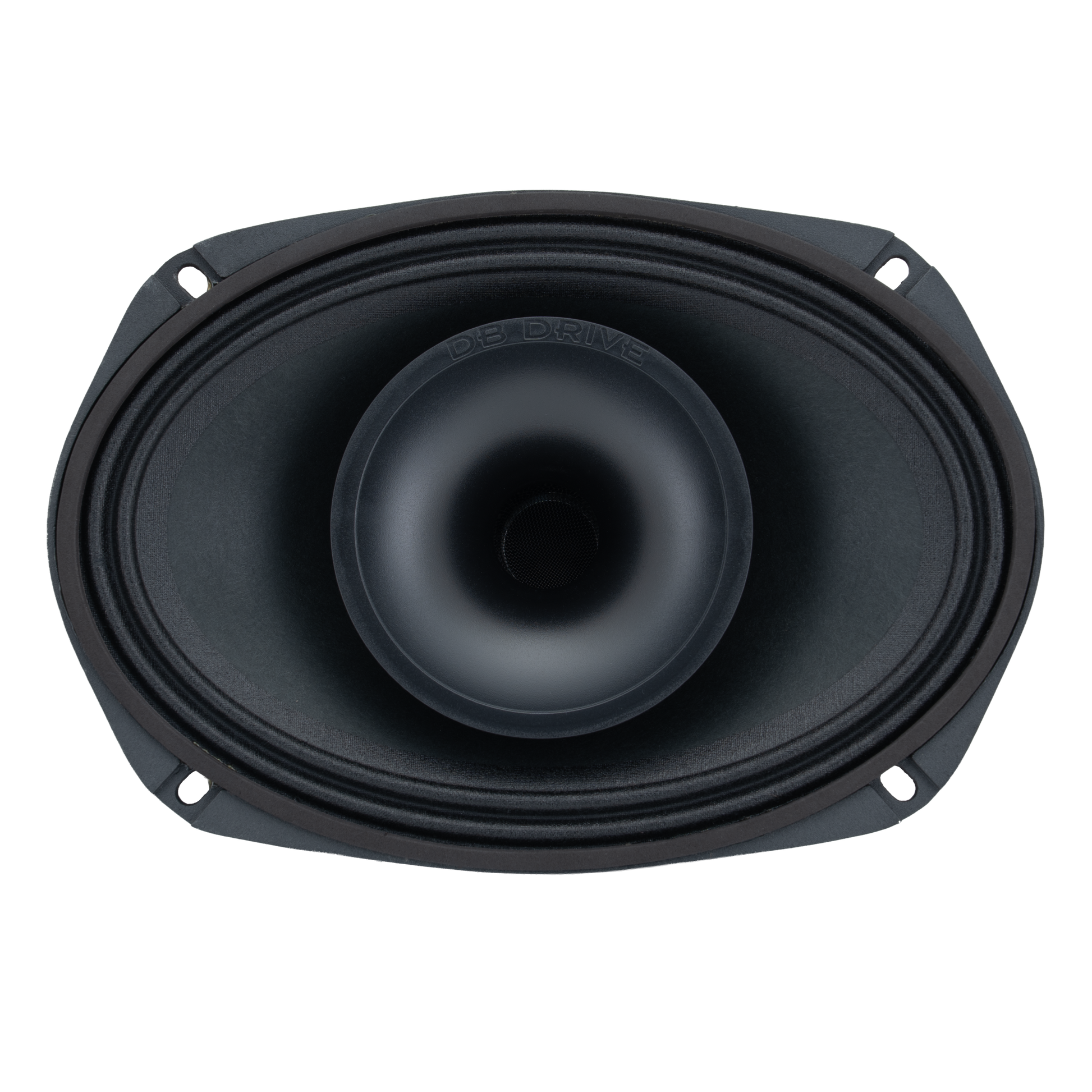

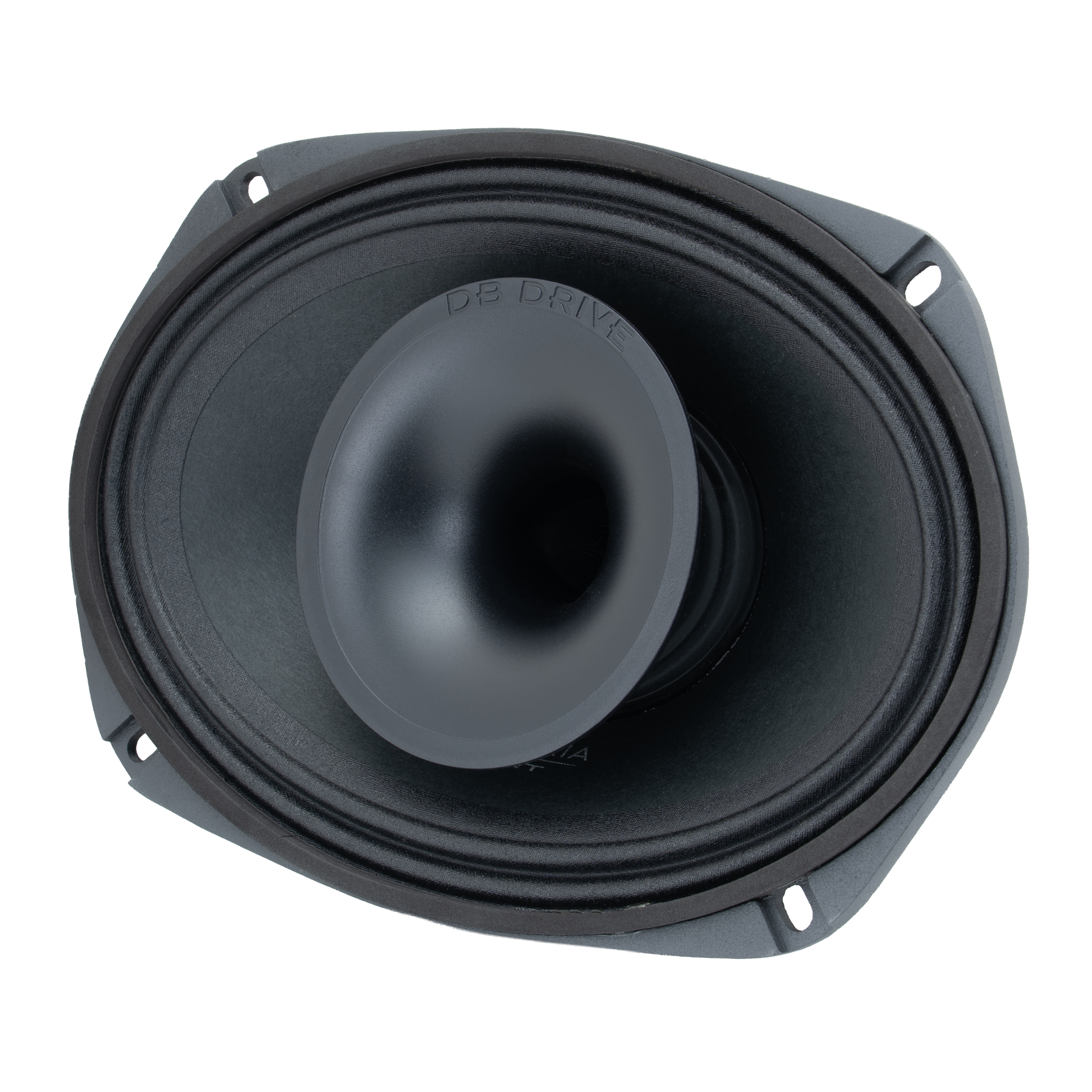

- 6″x9″ 2-Way Loudspeaker
- 10 Neodymium Ring Magnet Assembly

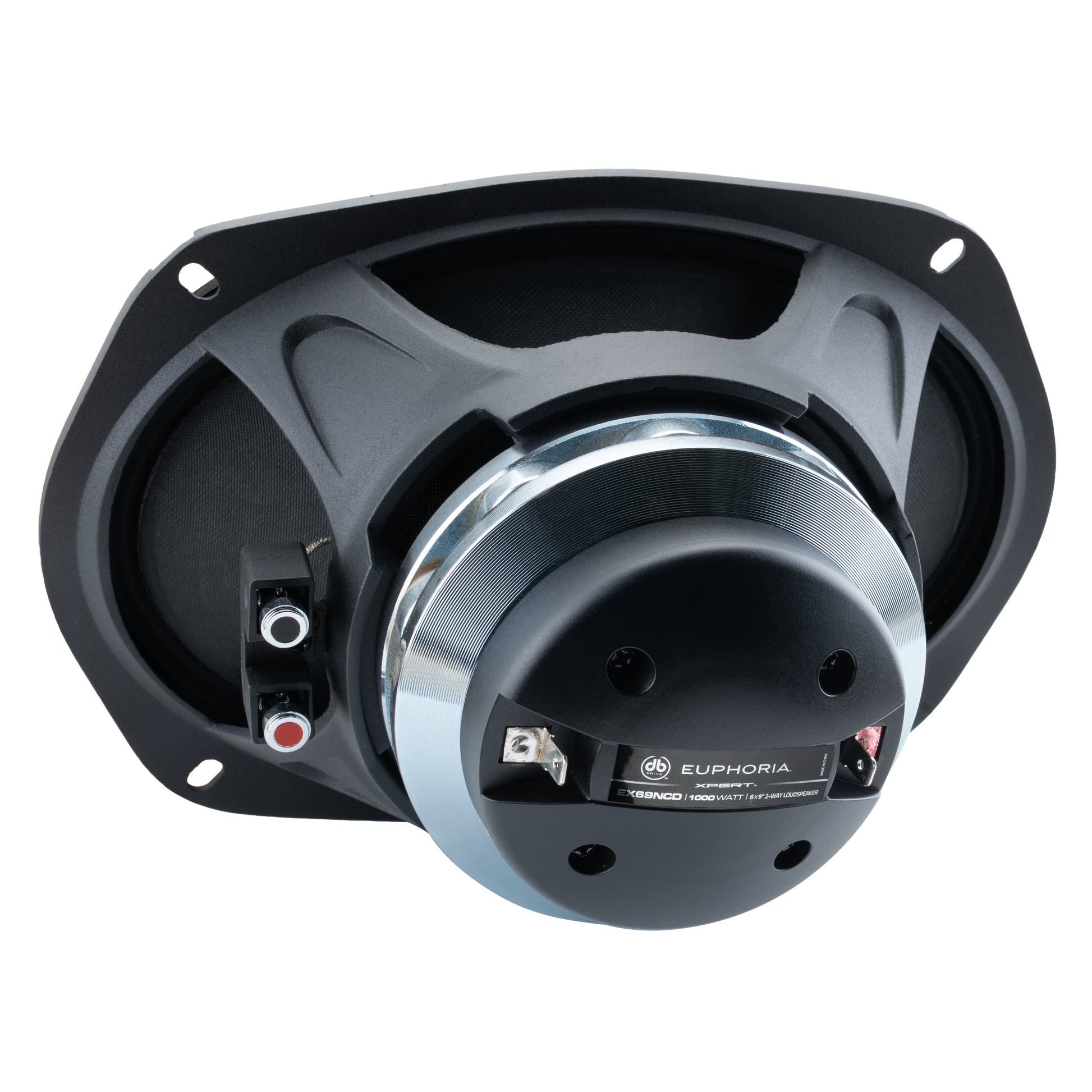

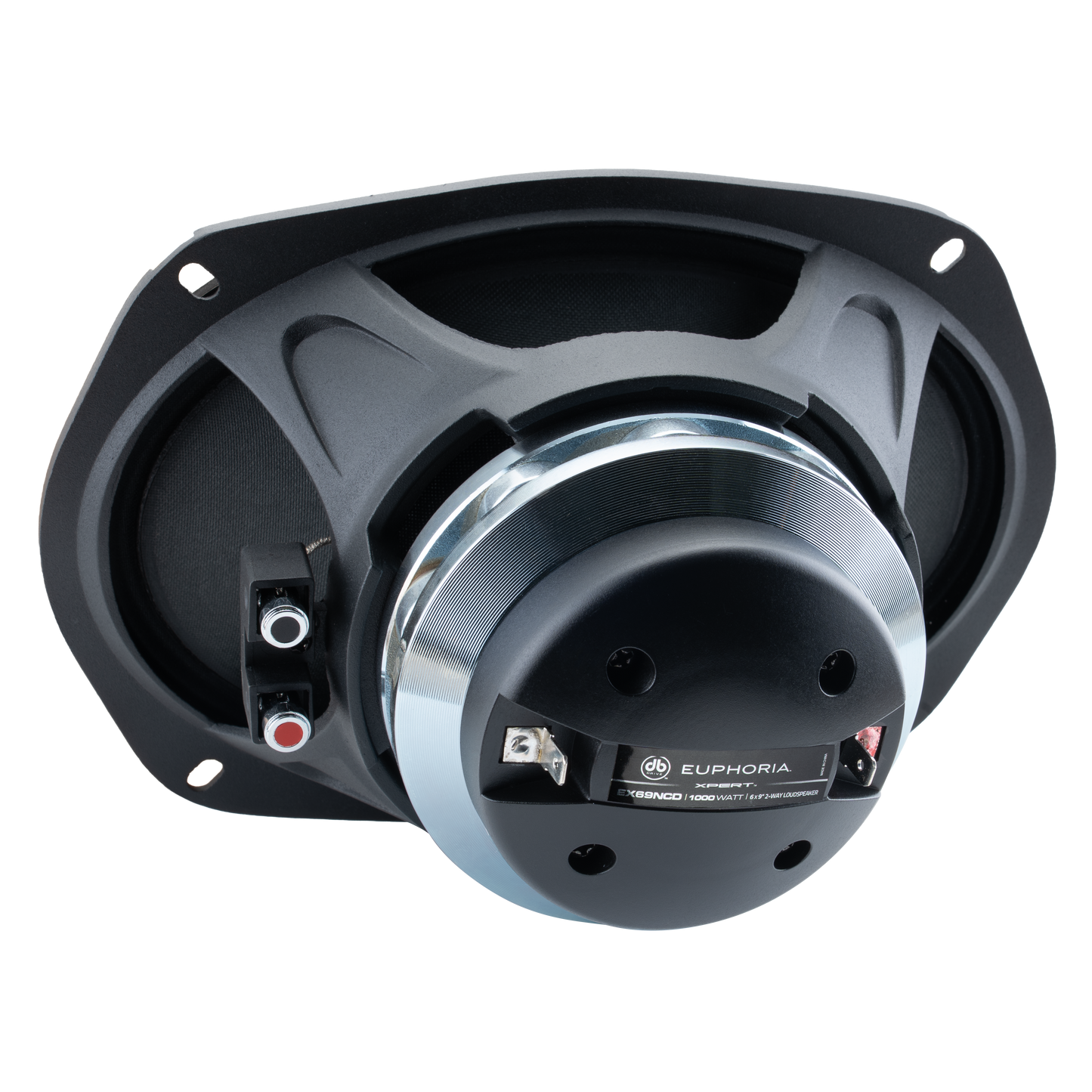

- Rear Mounted Full Sized Compression Driver
- IP52 Rated Paper Cone With Treated Cloth Surround
- Die-Cast Aluminum Basket With Radial Venting
- 1.4″ (36MM) Polyester Tweeter Diaphragm
- Wide Dispersion Conical HF Waveguide

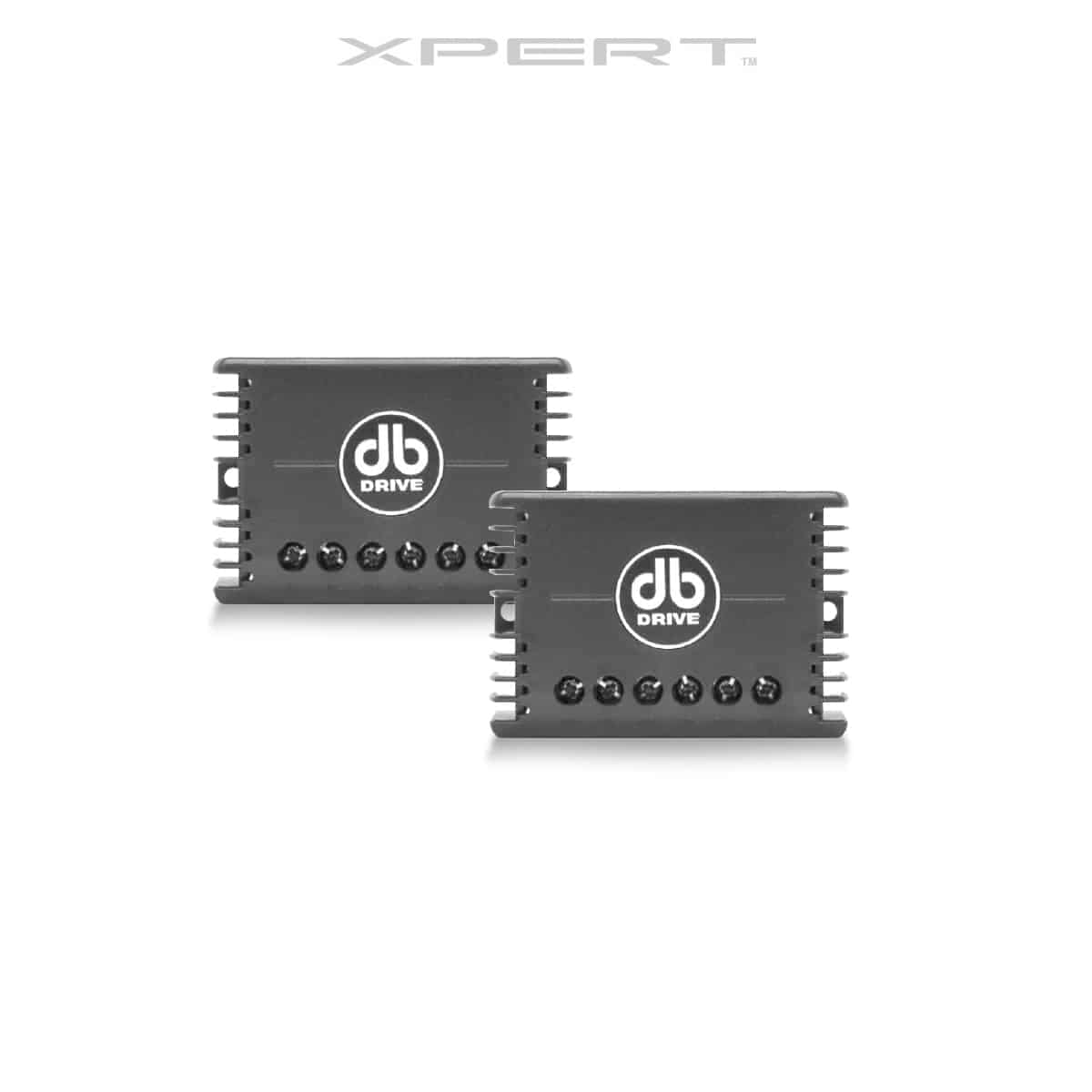

- 12dB Passive Crossover Included
- Sold in Pairs
Specifications
Resonant Frequency (fs)78.1HzD.C. Voice Coil Resistance (Re)3.2ΩMechanical Quality Factor (Qms)10.75Electrical Quality Factor (Qes)0.35Total Quality Factor (Qts)0.34Compliance Equivalent Volume (Vas)10.6LMechanical Compliance (Cms)0156 mm/Nominal Impedance4ΩPower Handling500 Watts Dynamic Wattage1000 Watts Sensitivity (1w/1m)93.4 dB Voice Coil Diameter2.0″ (51mm)
Product Manual
Product Manual PDF
Description
EX69NCD: Elevate Your Sound Experience to the Next Level!
Introducing the EX69NCD, the ultimate 6x9” speaker that brings your audio experience to life with cutting-edge innovation and superior craftsmanship. Featuring a Neodymium Ring Magnet Assembly and a Rear Mounted Full Sized Compression Driver, this speaker ensures powerful and clear sound. The IP52 Rated Paper Cone with Treated Cloth Surround and Die-Cast Aluminum Basket with Radial Venting provides durability and optimal performance. With a 1.4” Polyester Tweeter Diaphragm and a 2” Voice Coil, you get unmatched sound quality. The Wide Dispersion Conical HF Waveguide and 12db Passive Crossover Included ensure broad and even sound distribution. With an impedance of 5.2Ω, the EX69NCD is designed to deliver exceptional audio accuracy and efficiency. Elevate your sound experience with the EX69NCD and hear every detail like never before!
