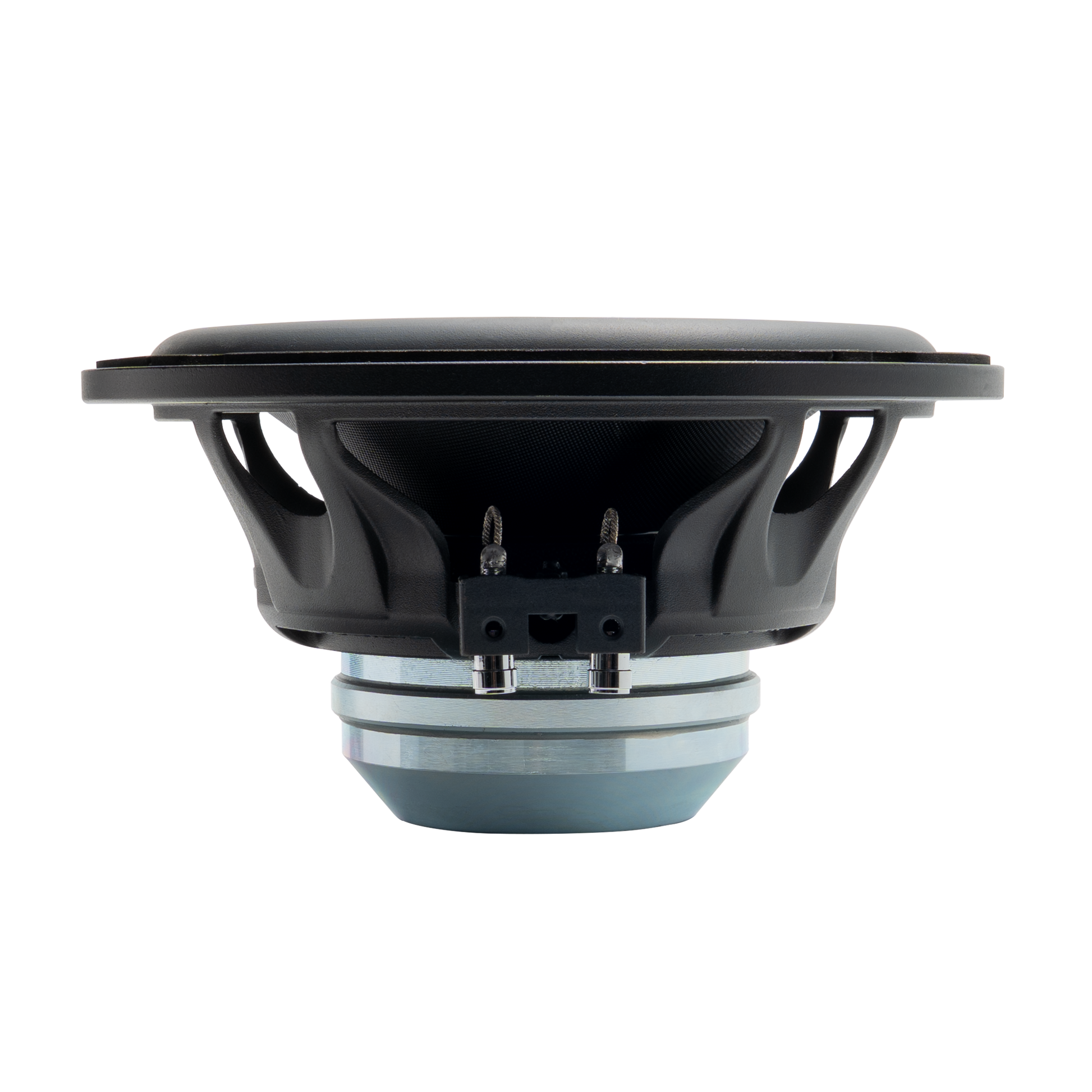

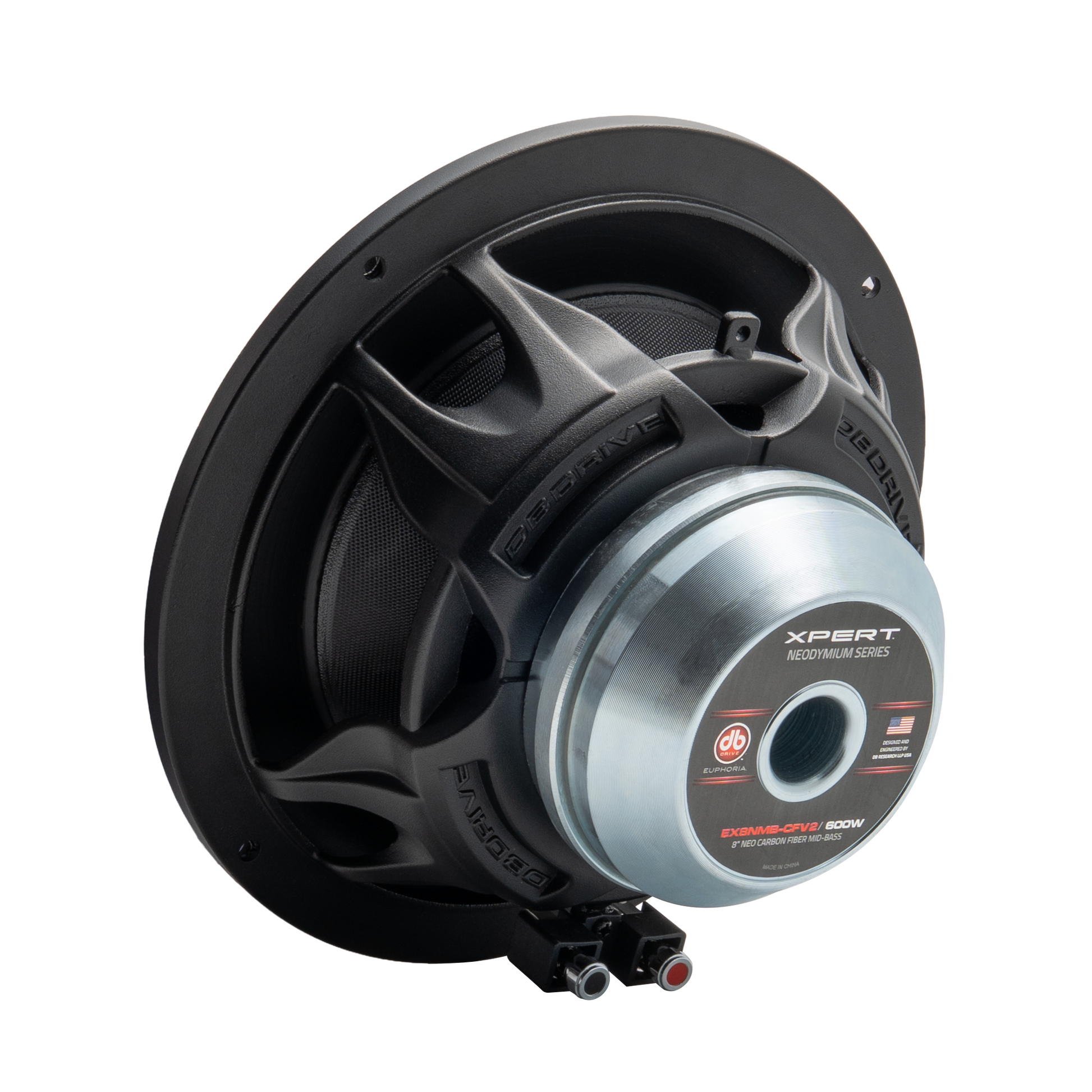

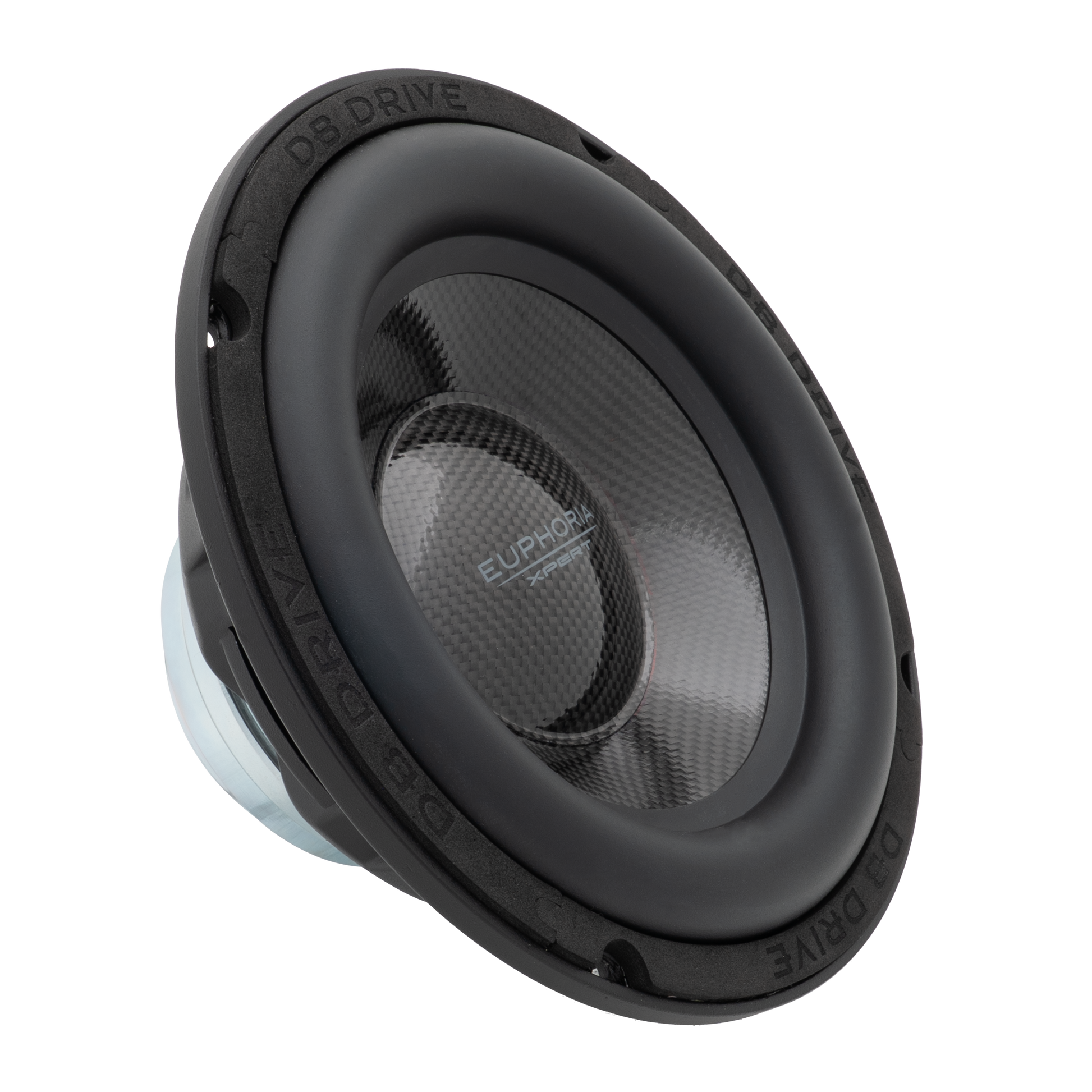

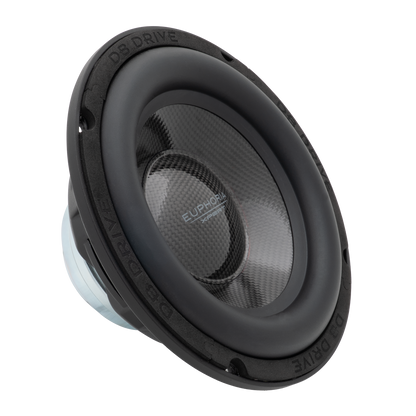

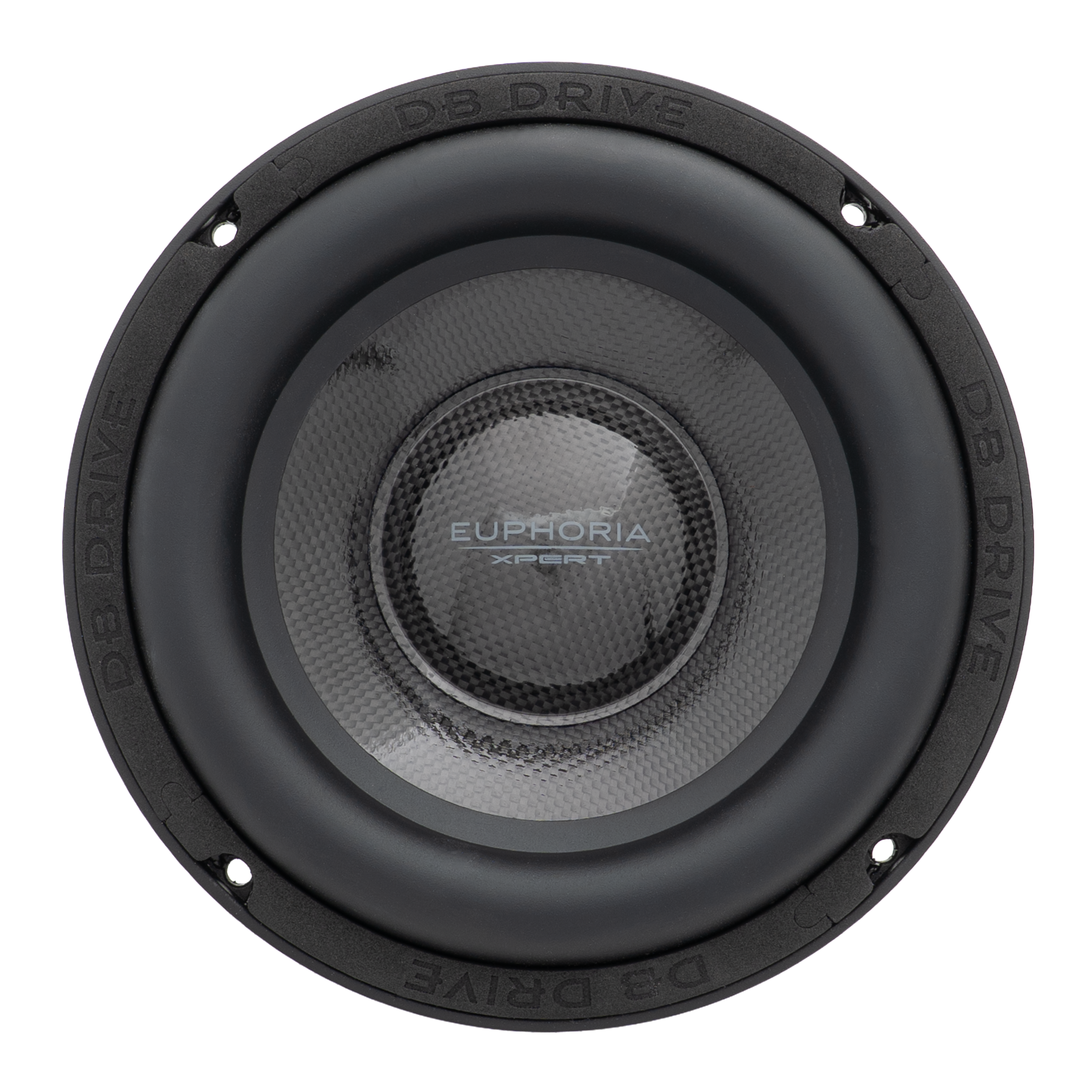

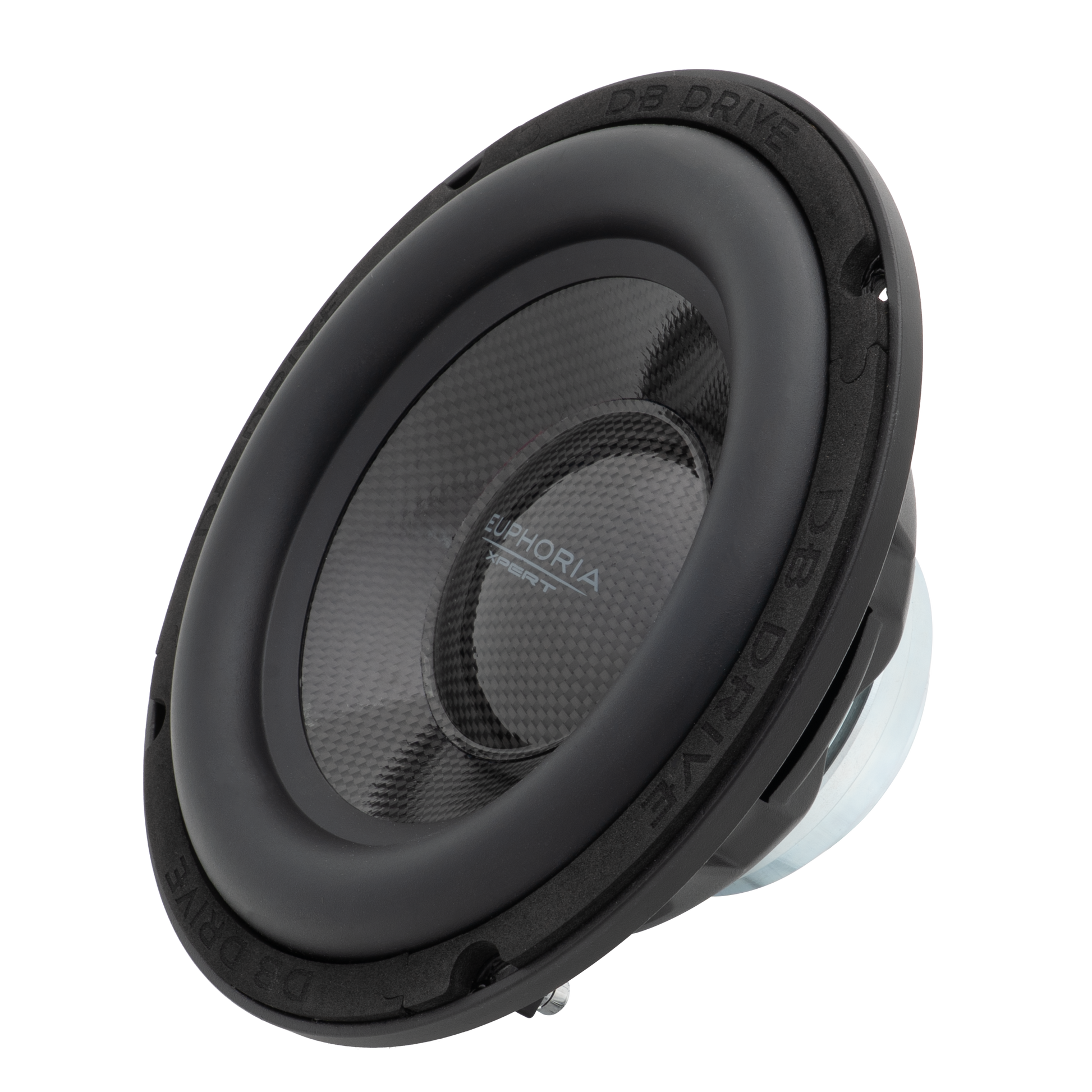

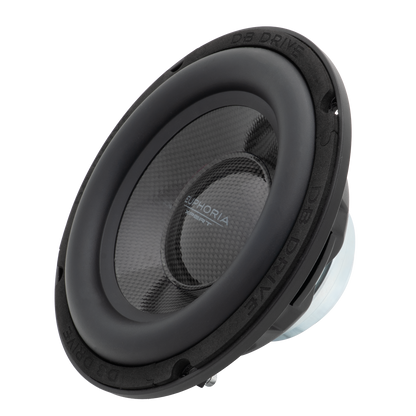

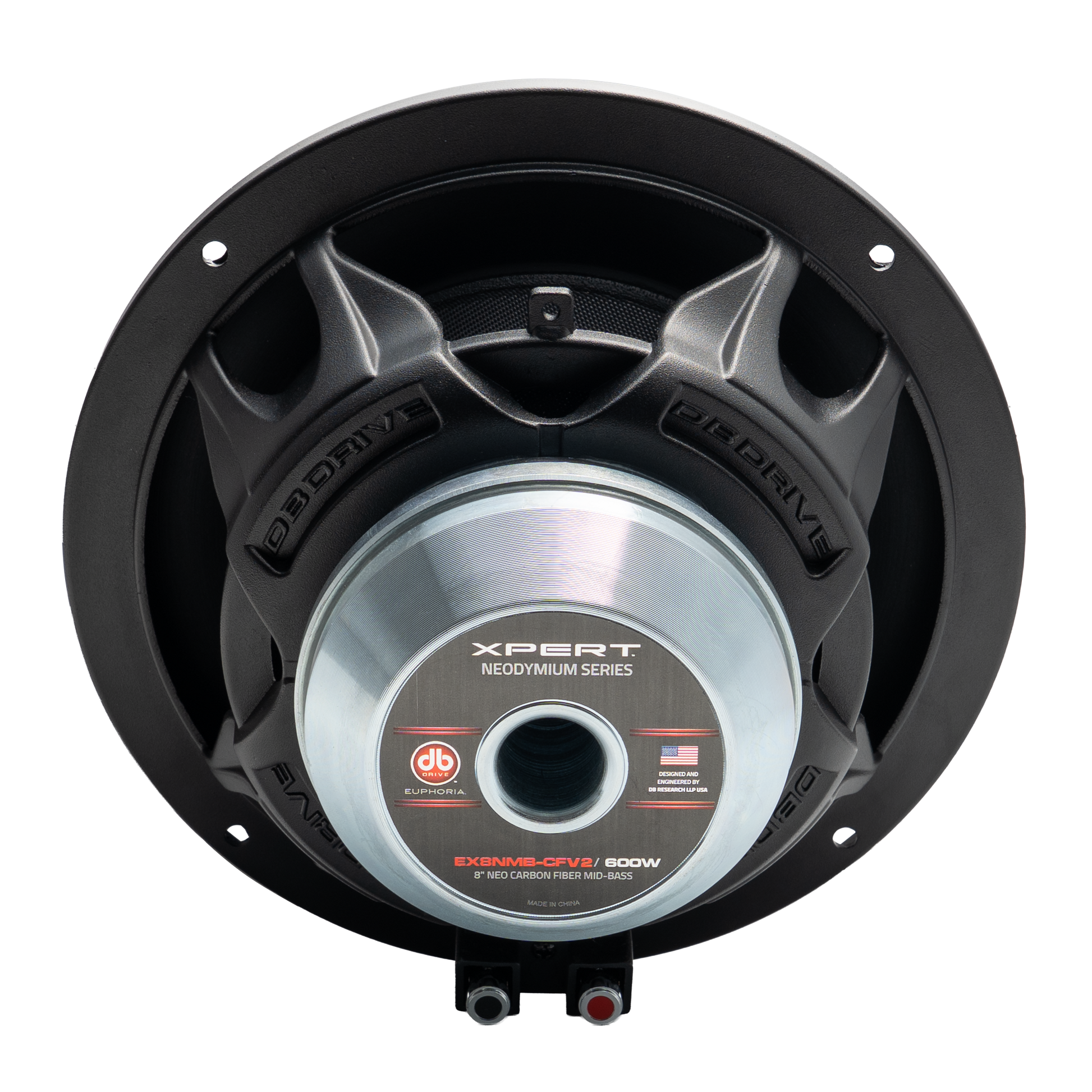

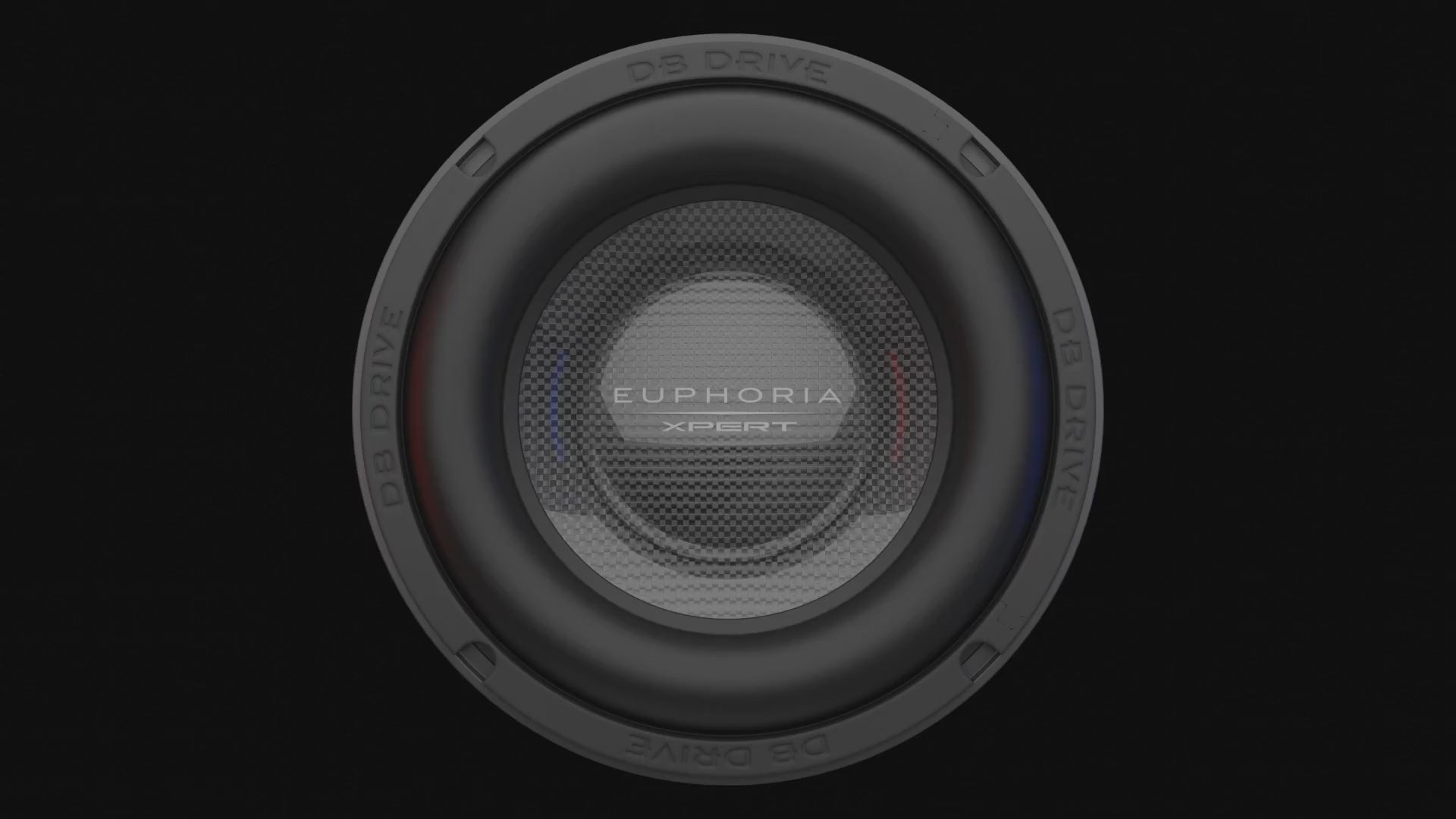

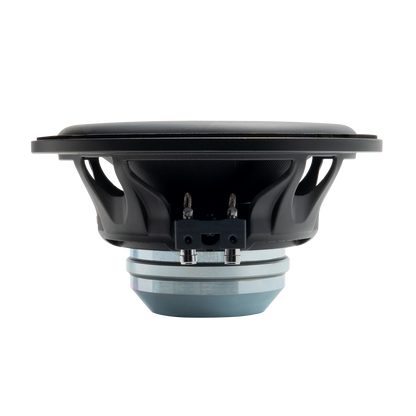

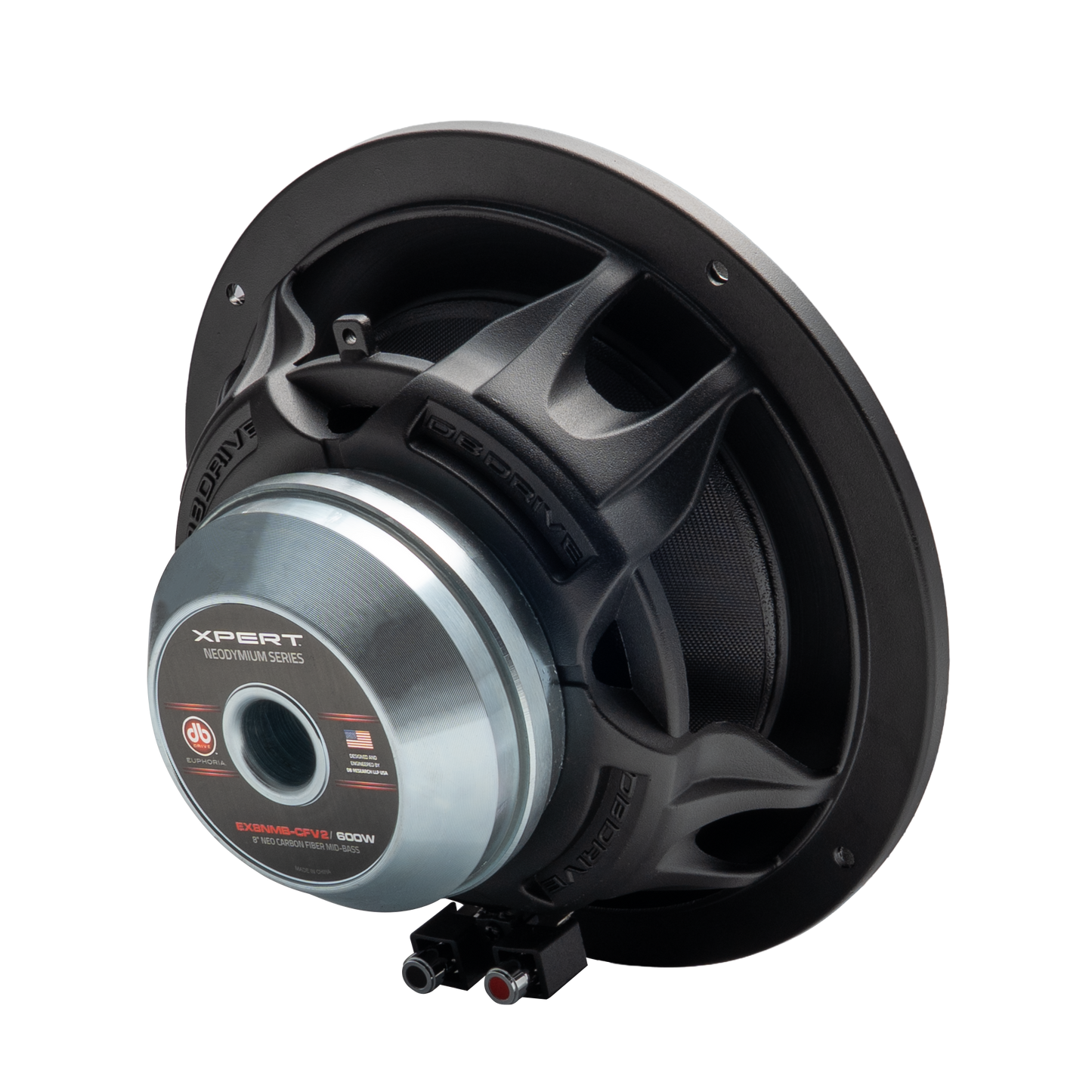

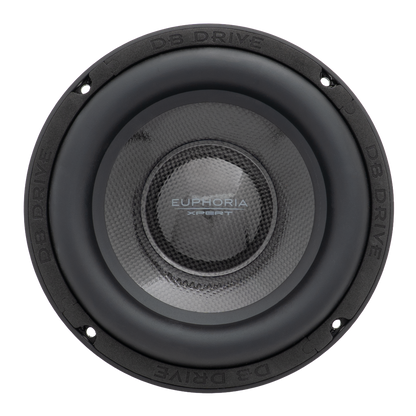

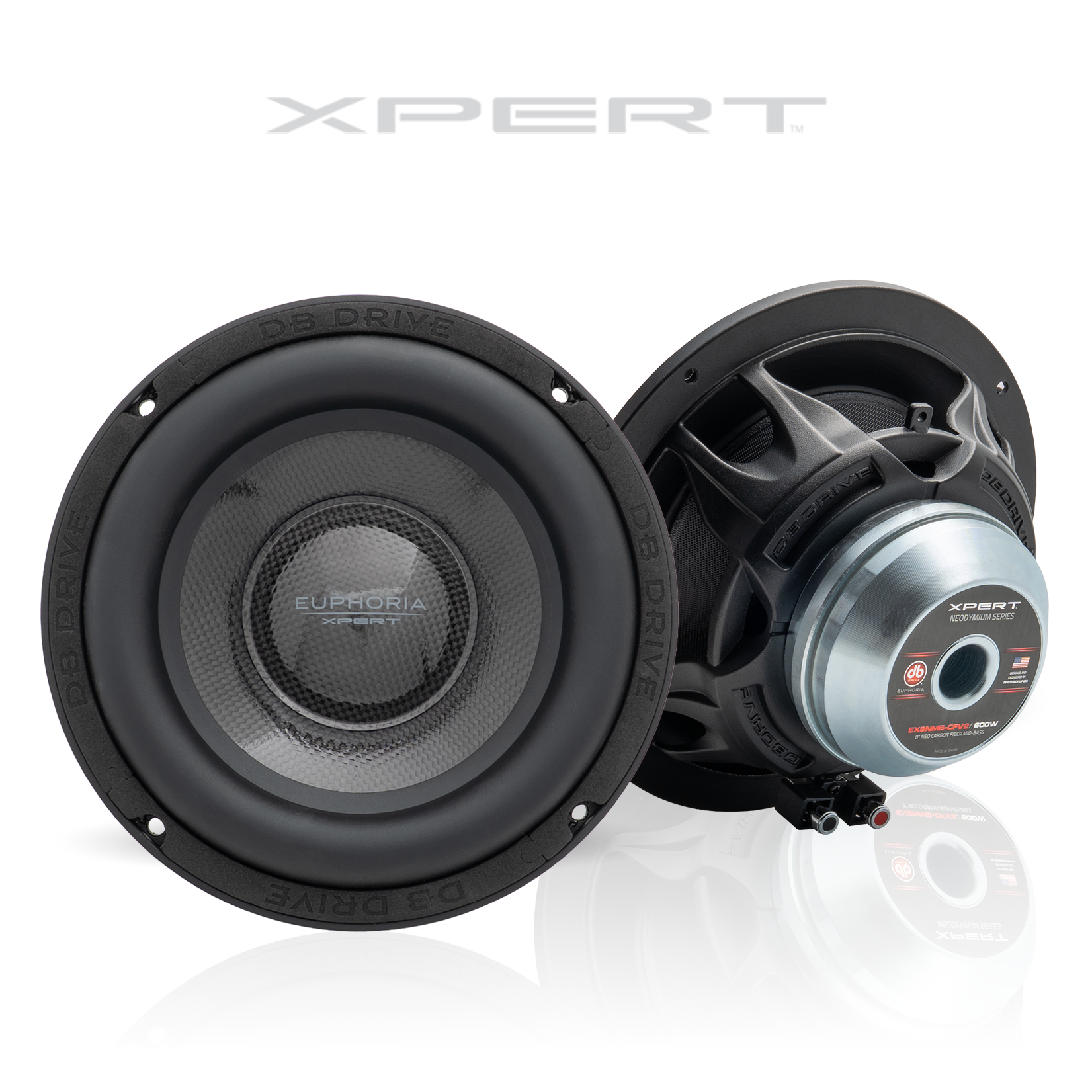

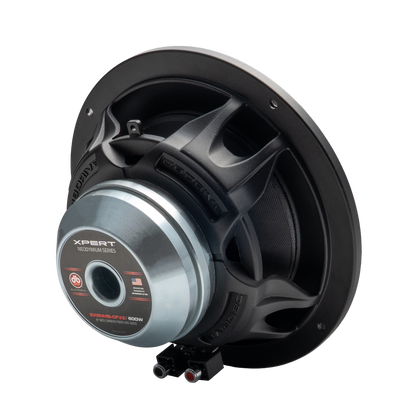

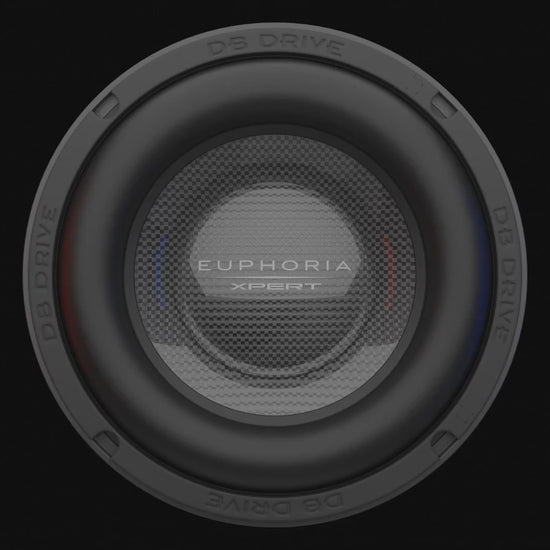

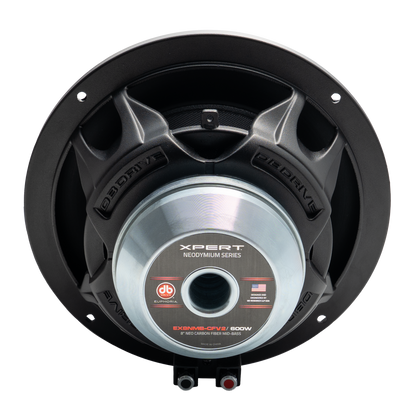

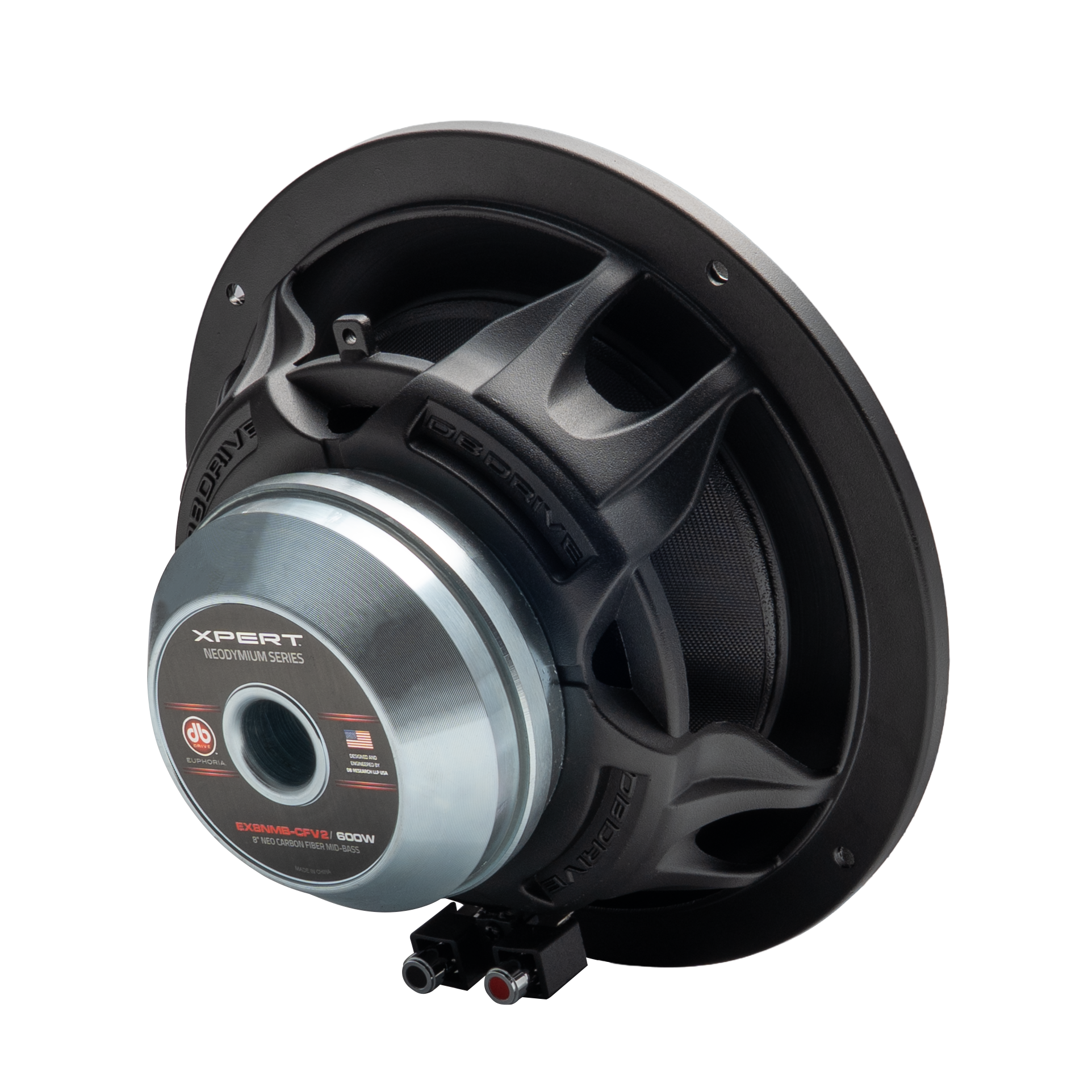

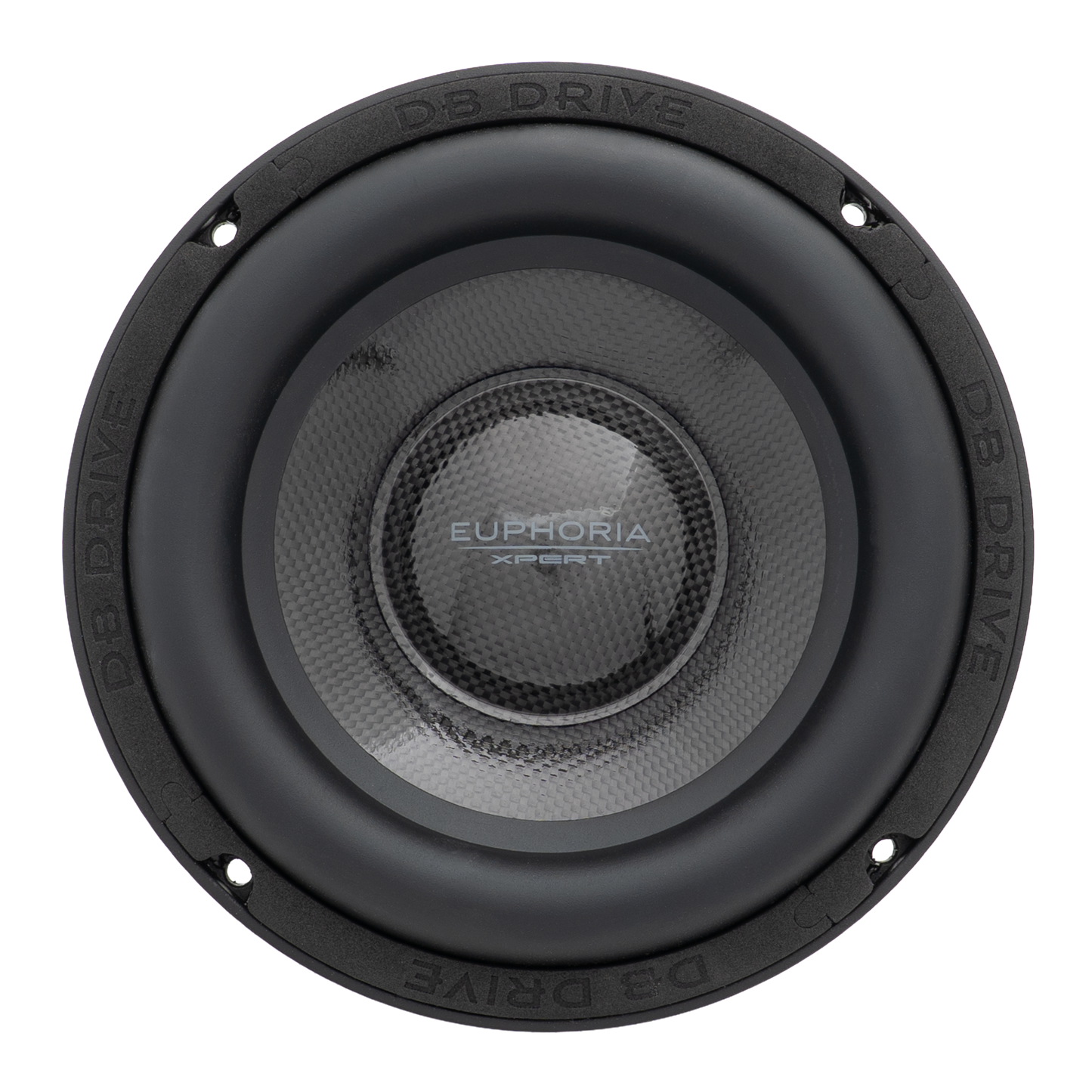

DB Drive Euphoria Xpert EX8NMB-CFV2 : 8 in. NEO Carbon Fiber MidBass (Sold As Single)

Features

• 2″ (51 mm) Voice Coil

• Neodymium M-Ring Magnet Assembly

• Optimized for High Output SQ Sound Systems

• Weather Resistant Carbon Fiber Cone with Rubber Surround

• Custom Aluminum Basket with Radial Venting

Specifications

• Power Handling: 300 Watts

• Dynamic Wattage: 600 Watts

• Resonant Frequency (fs): 57.62 Hz

• D.C. Voice Coil Resistance (Re): 3Ω

• Mechanical Quality Factor (Qms): 2.81

• Electrical Quality Factor (Qes): 0.68

• Total Quality Factor (Qts): 0.553

• Compliance Equivalent Volume (Vas): 8.60 L

• Mechanical Compliance (Cms): 157.69 mm/N

• Sensitivity (1w/1m): 93.2 dB

• Impedance: 3Ω

• DIMENSIONS

• Overall Diameter: 8.29"/ 210.50 mm

• Cutout Diameter: 7.09"/ 180 mm

• Mounting Depth: 3.78"/ 96 mm
