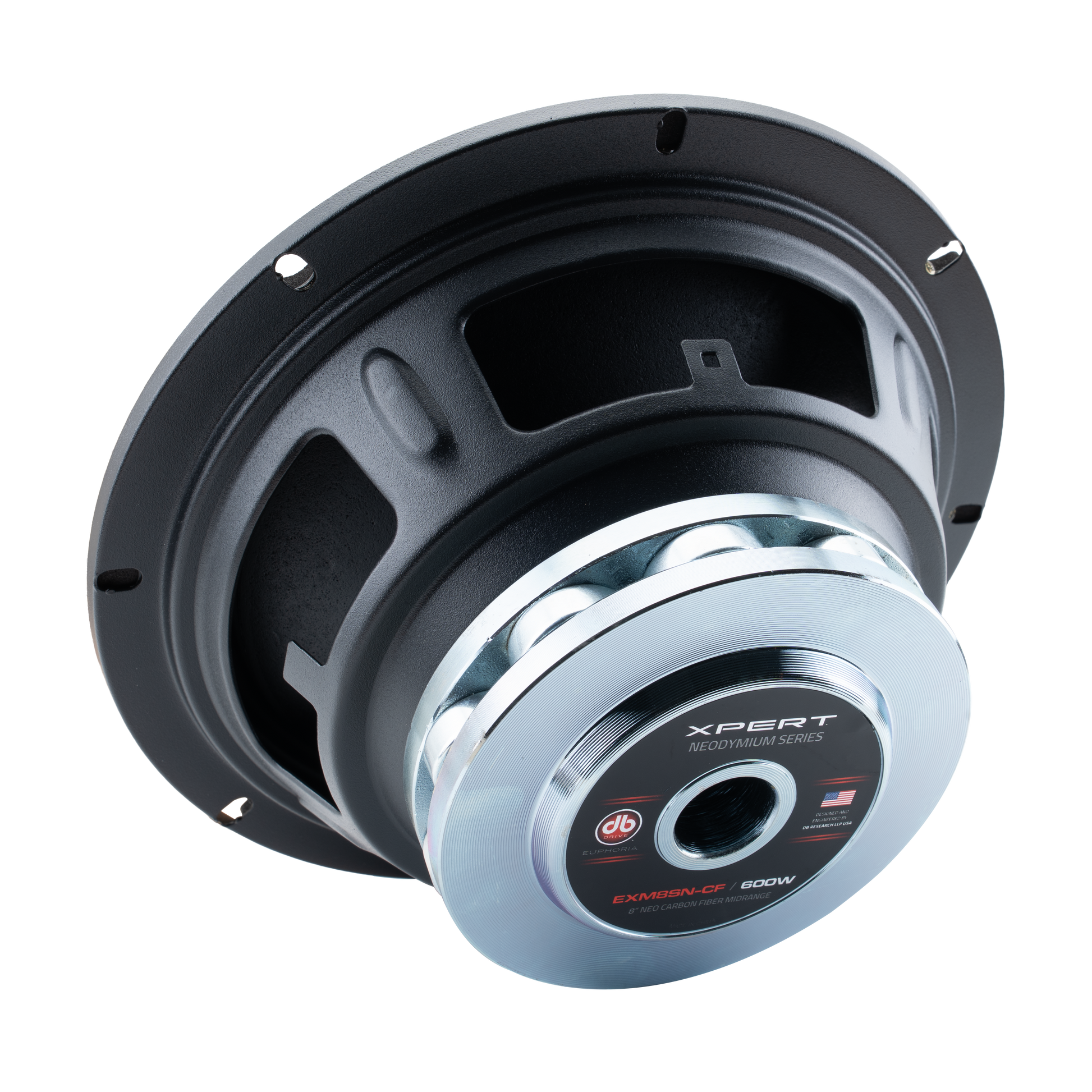

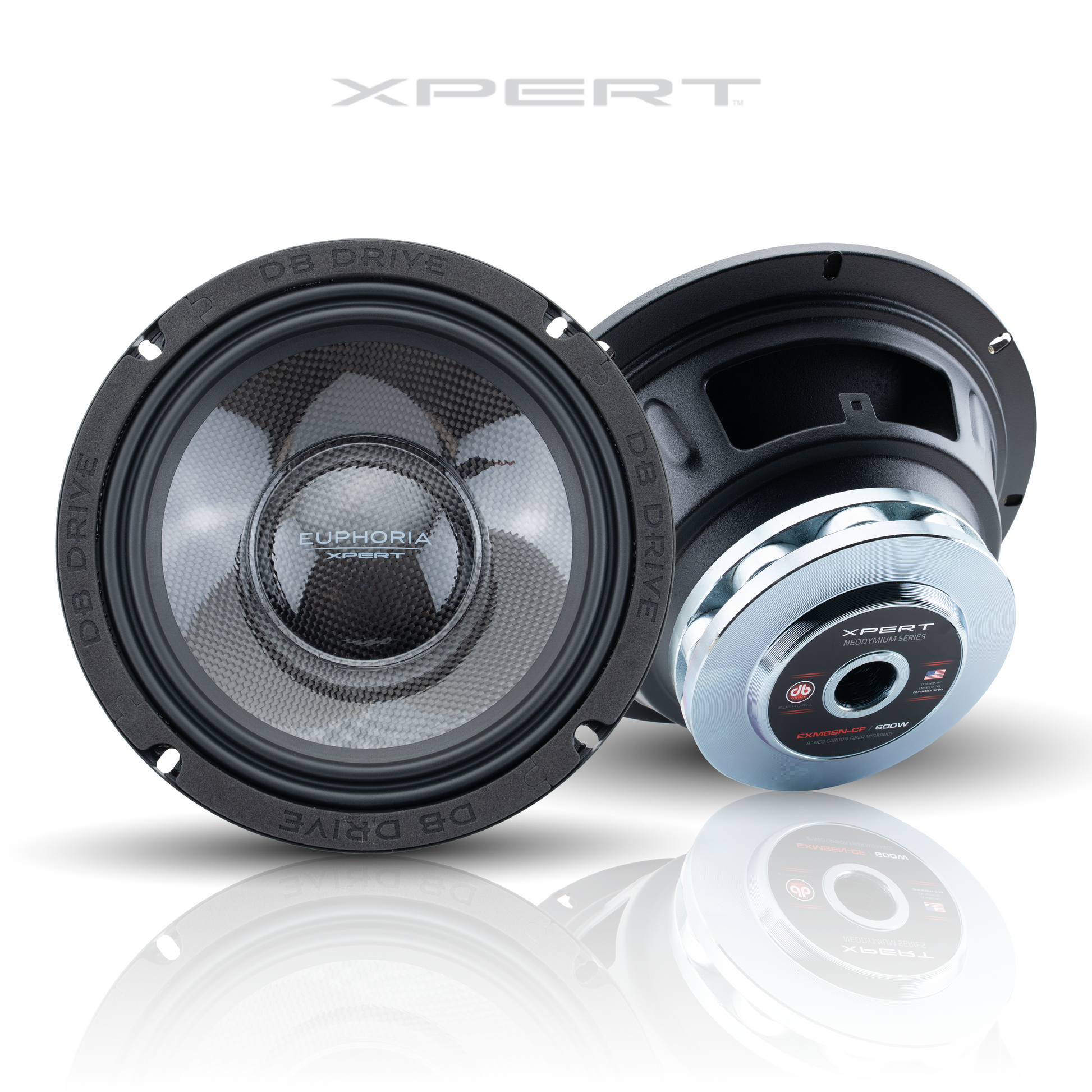

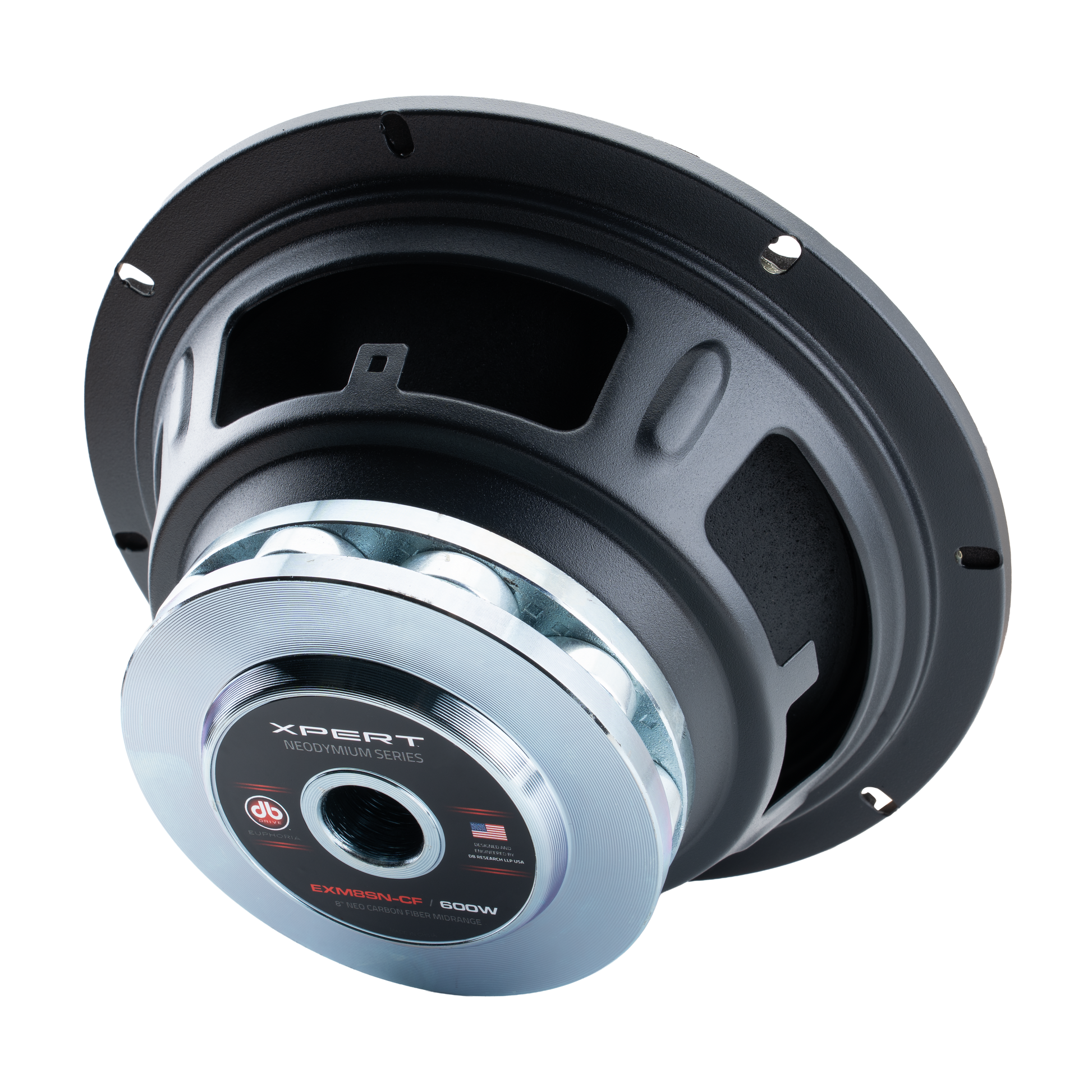

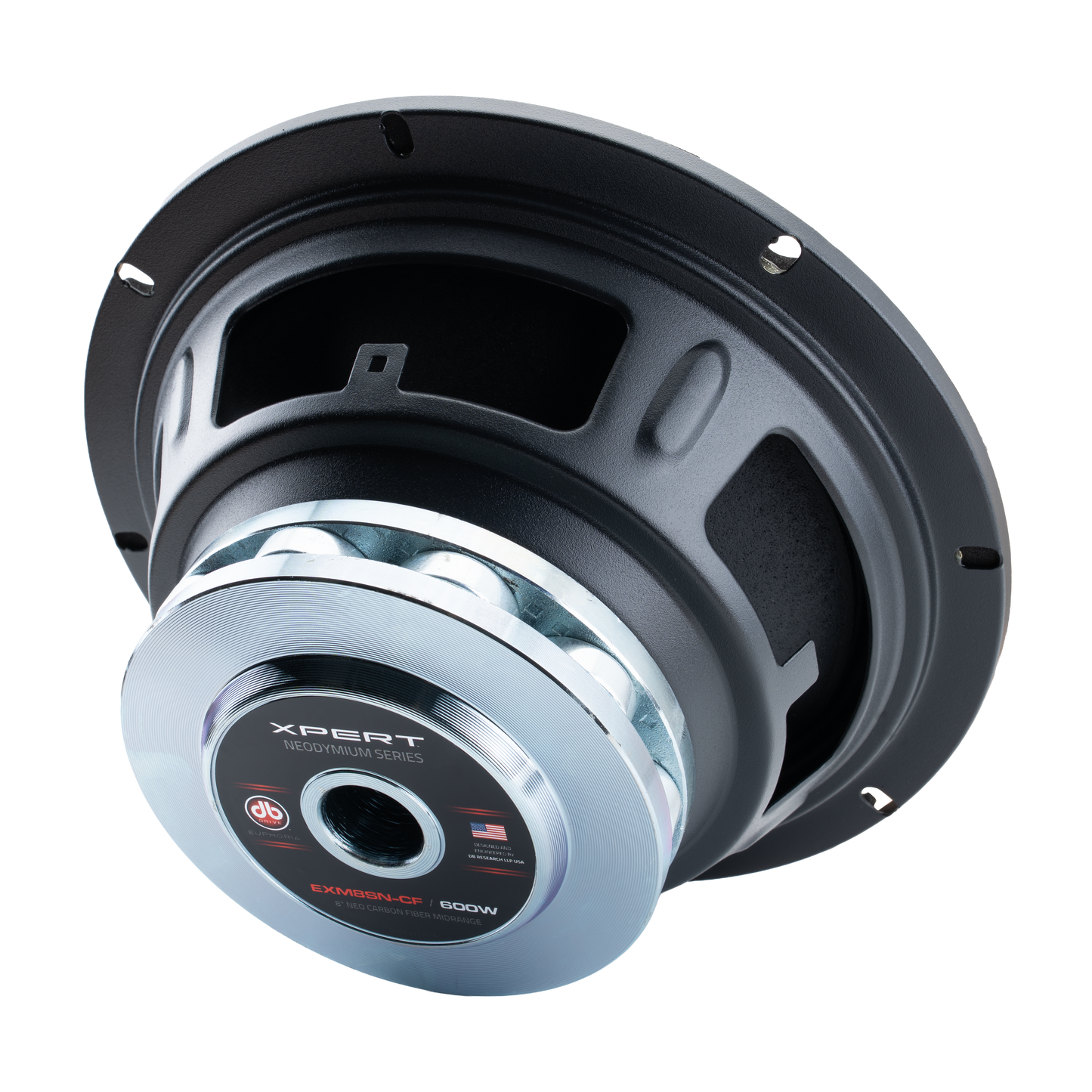

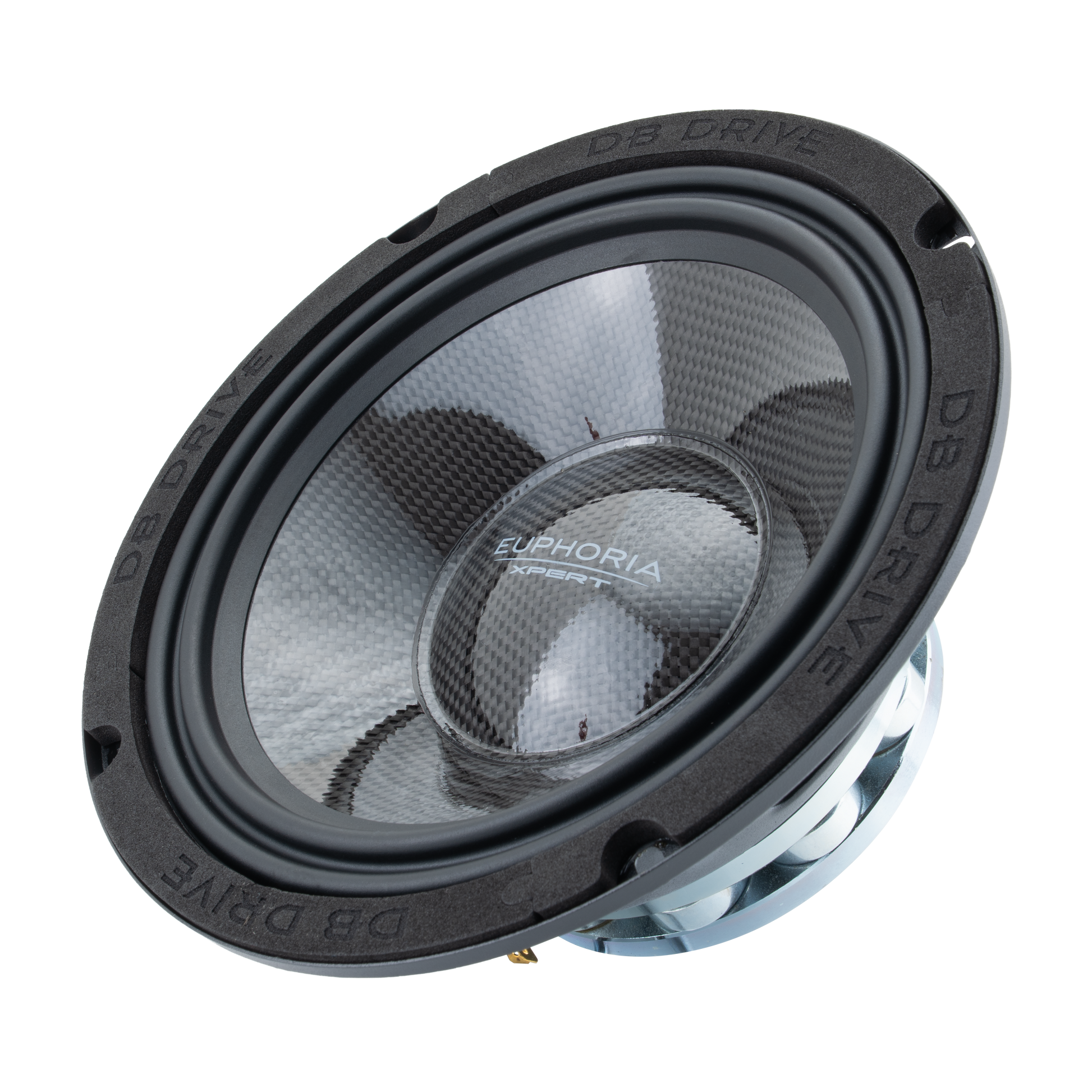

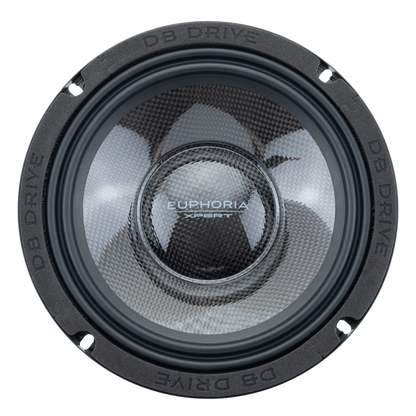

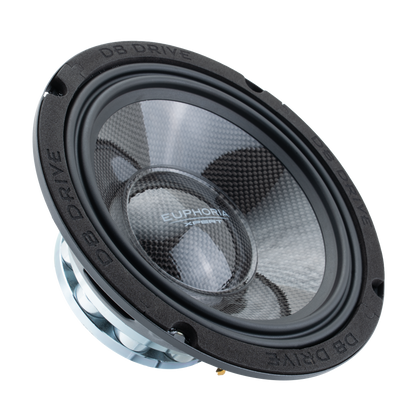

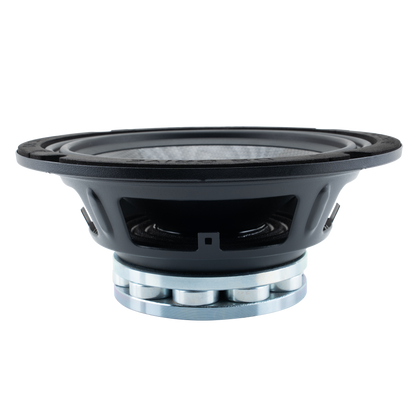

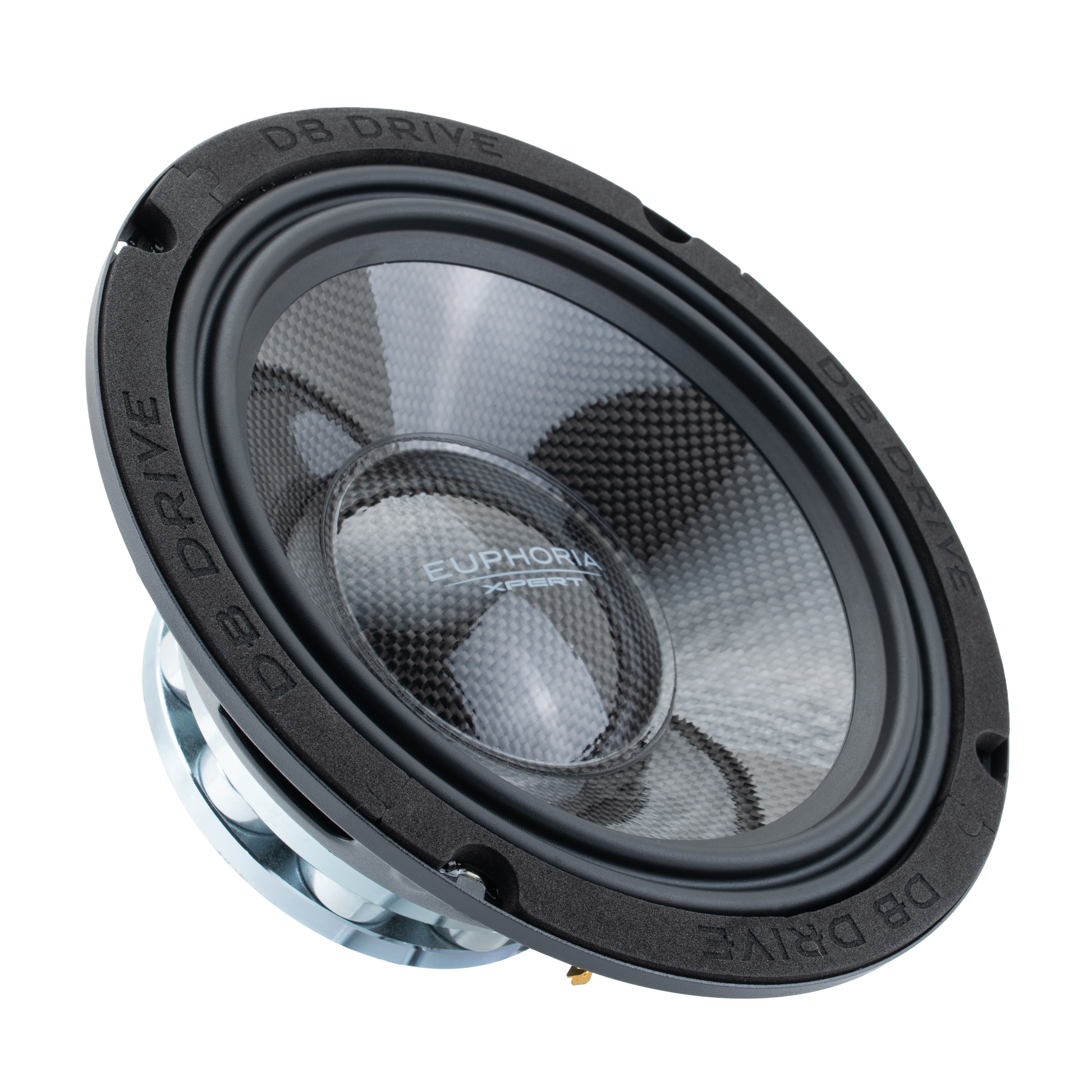

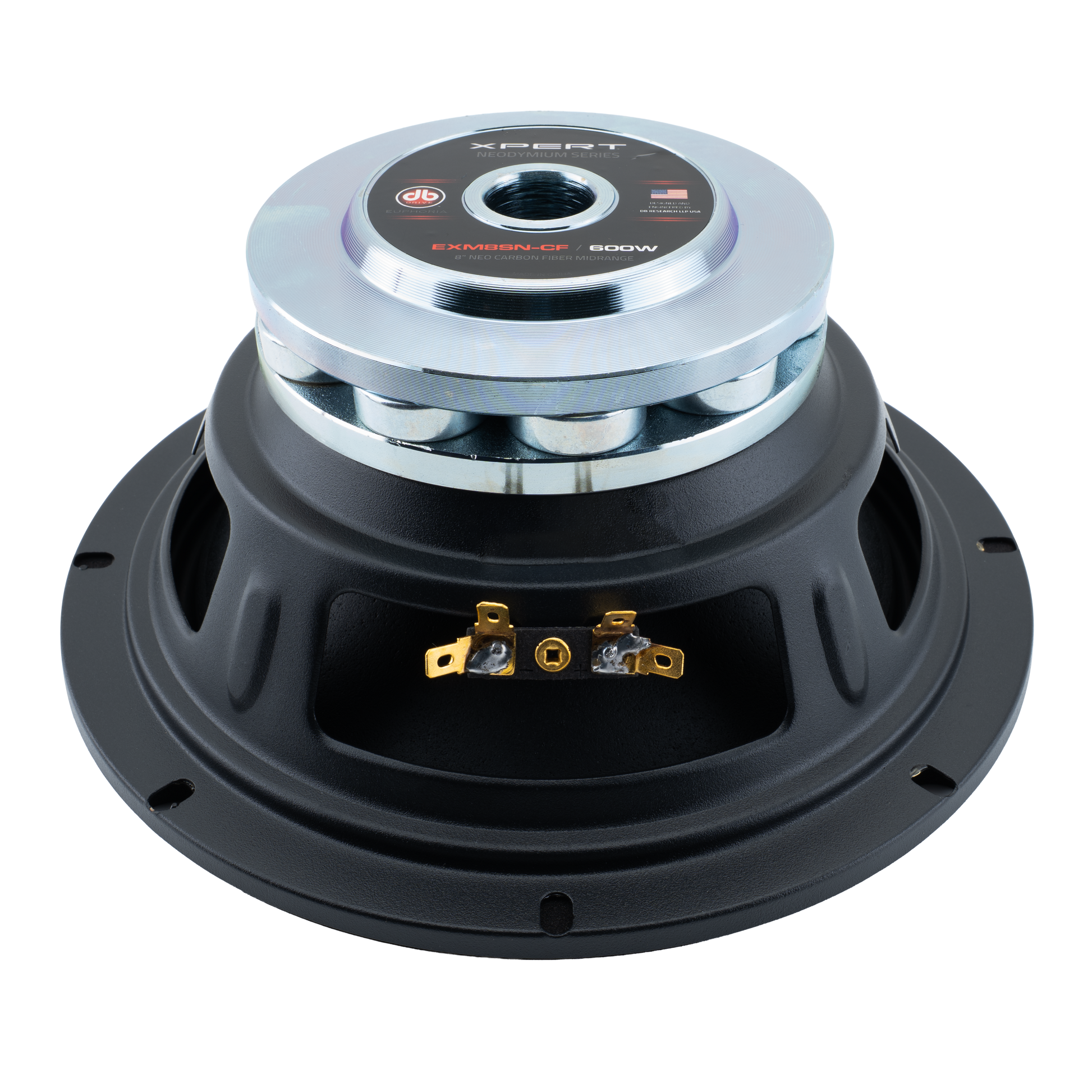

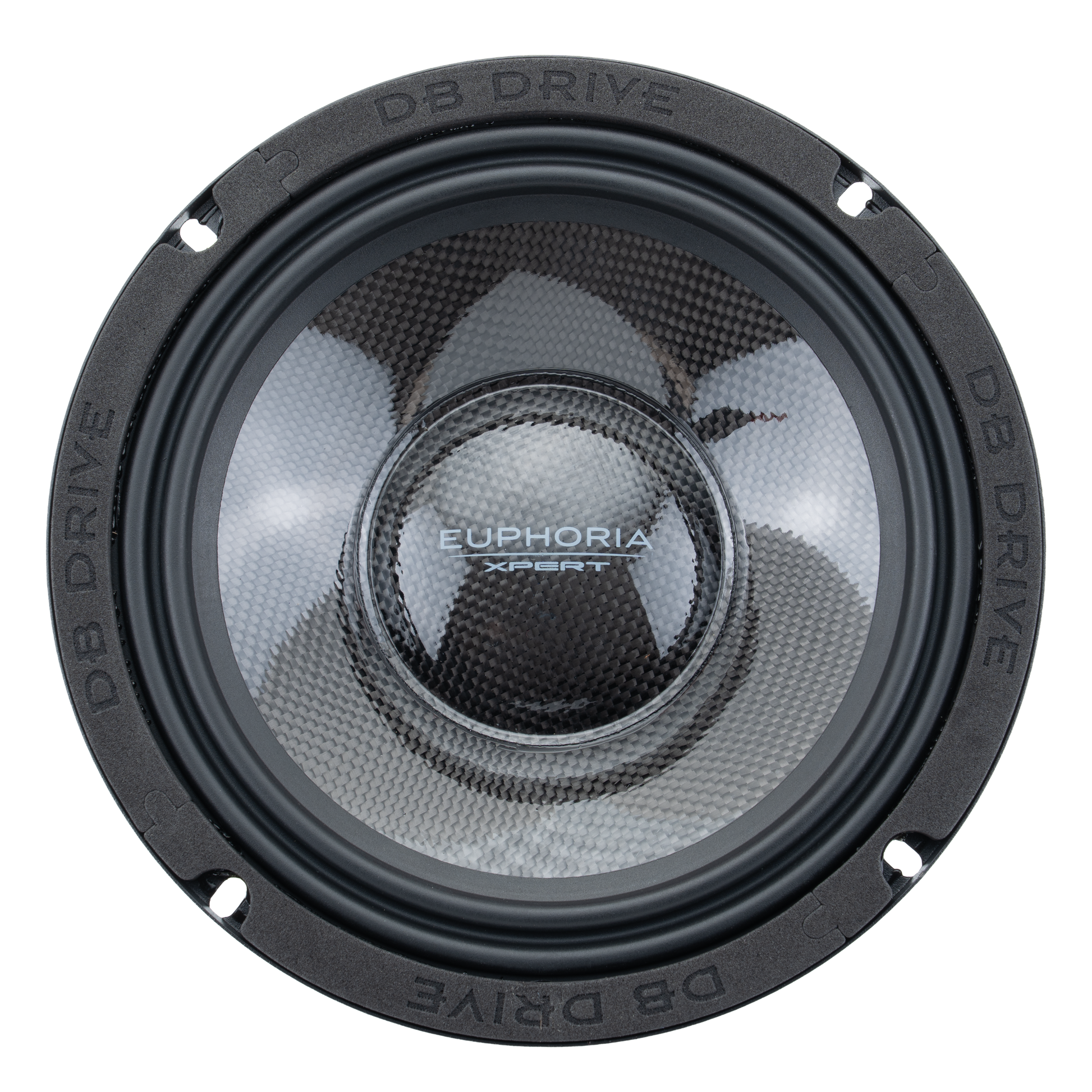

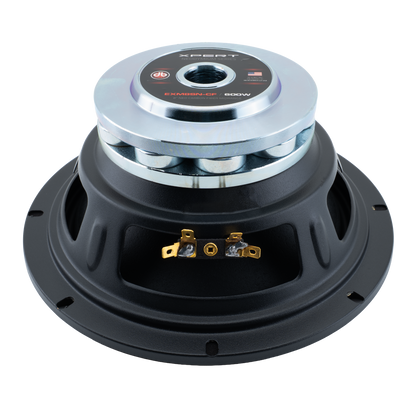

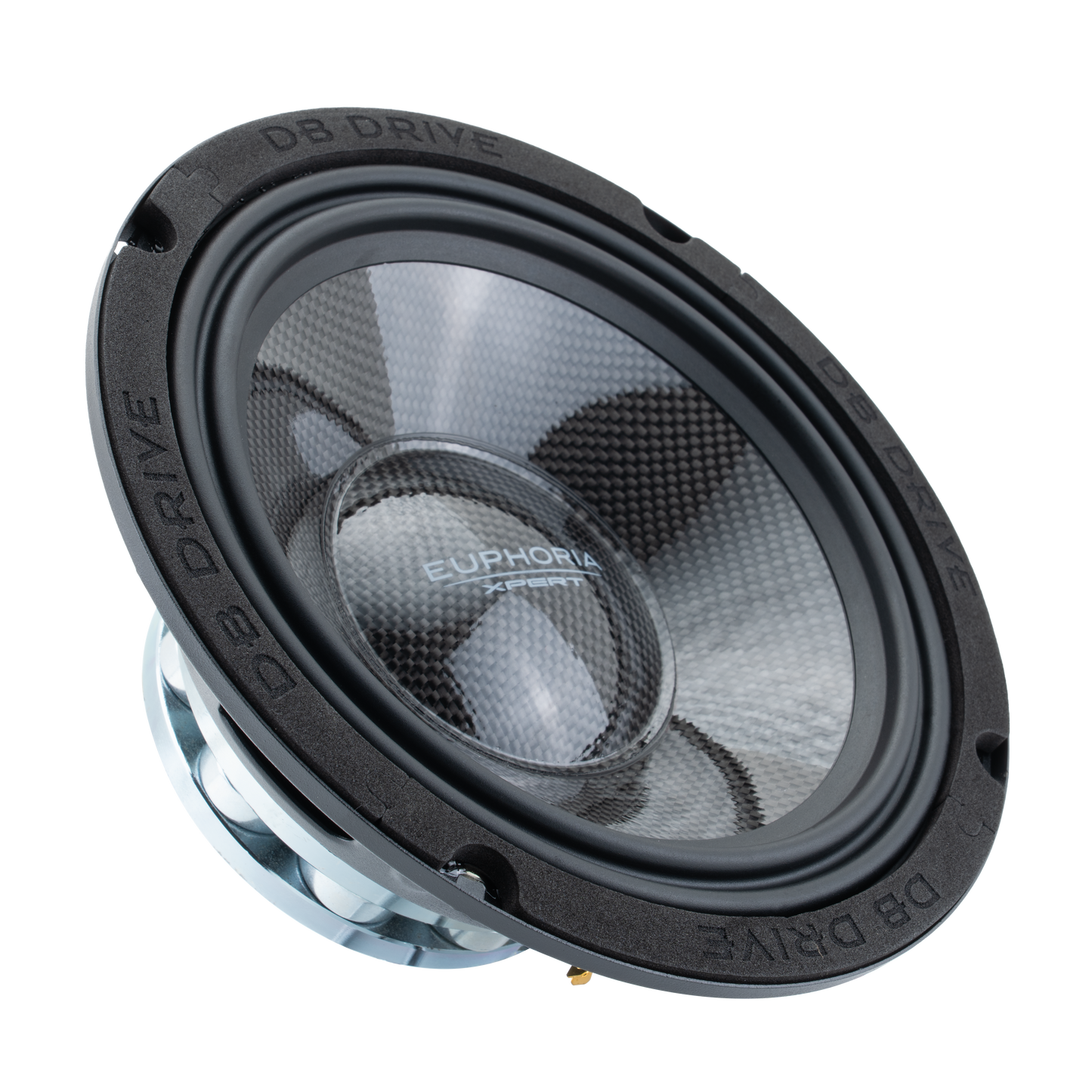

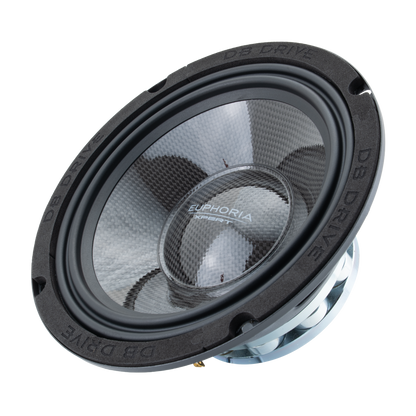

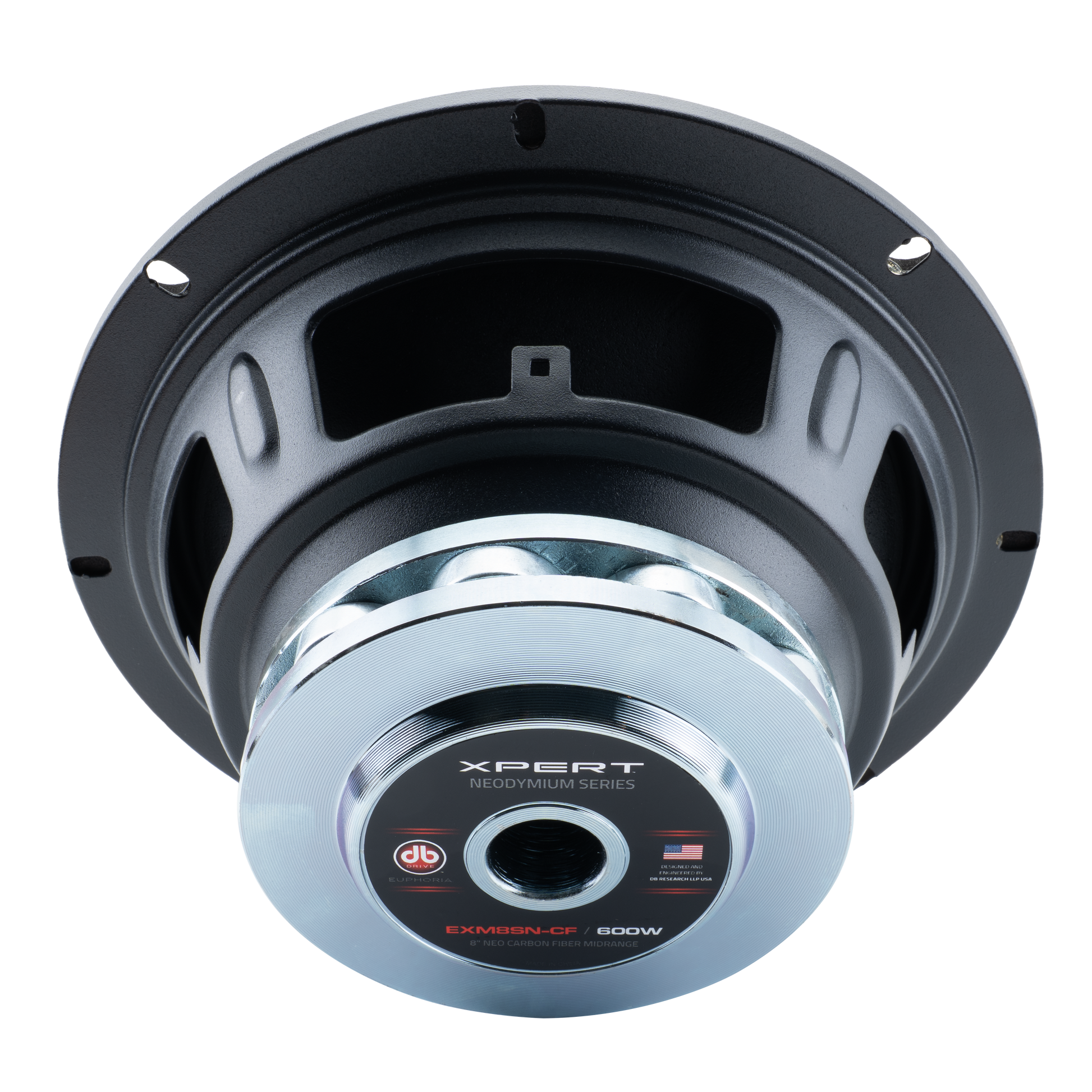

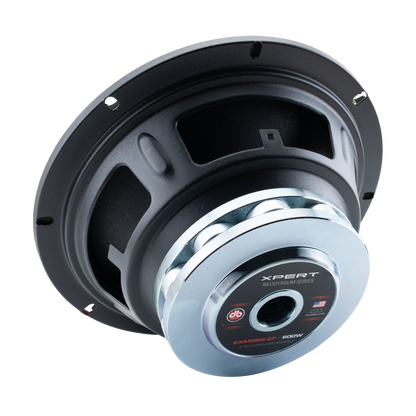

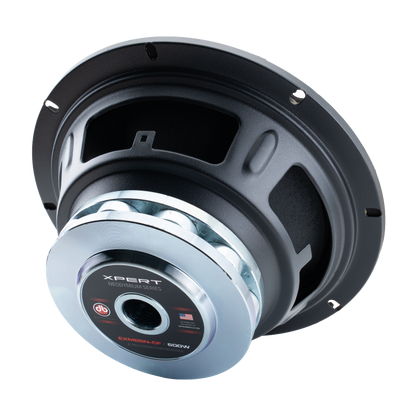

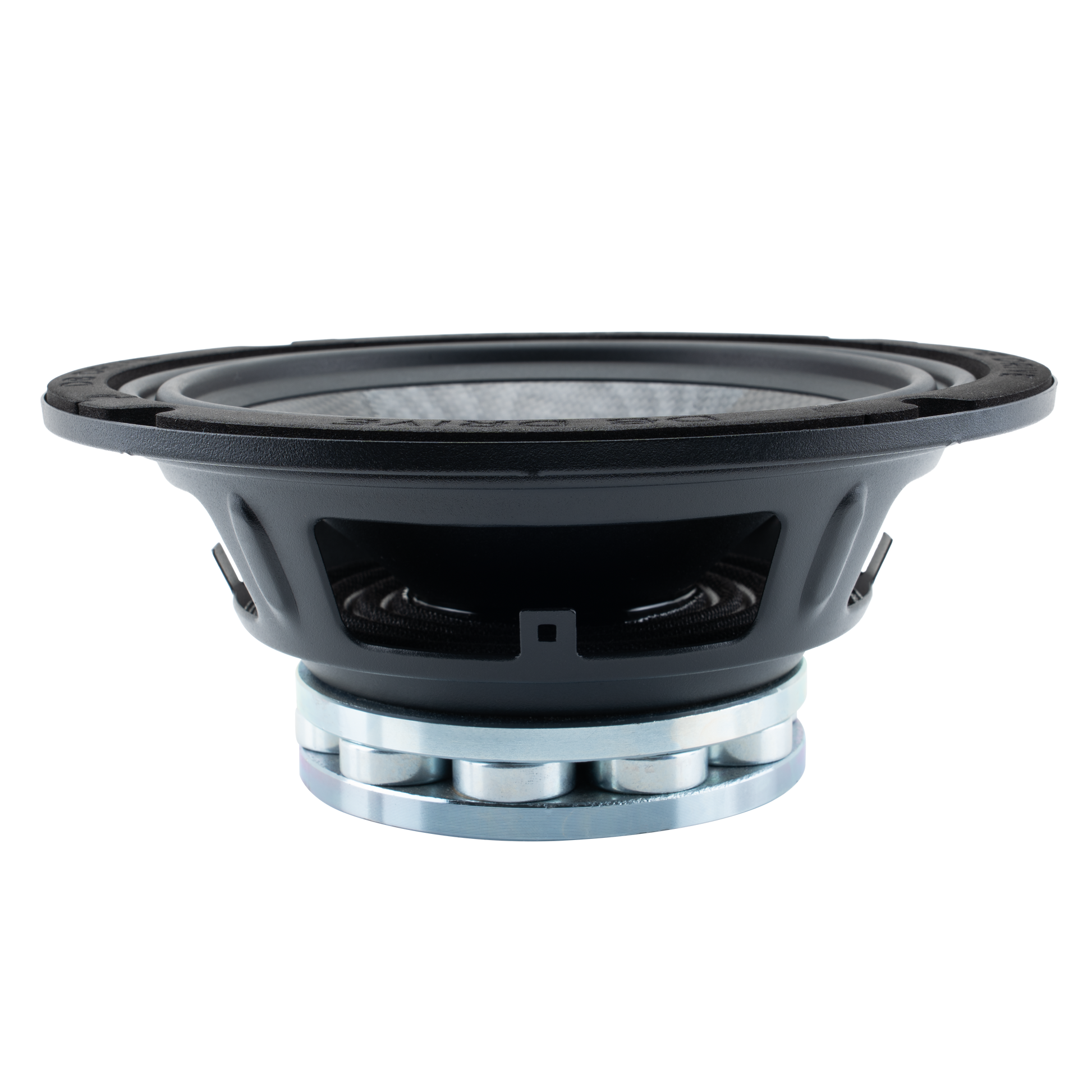

DB Drive Euphoria Xpert EXM8SN-CF : 8" NEO Carbon Fiber Midrange/Stamp Steel

Features

• 2” (51 mm) Midrange Voice Coil
• 10 Neodymium Ring Magnet Assembly
• IP65 Rated Weather Resistant Carbon
• Fiber Cone with Rubber Surround
• Heavy Gauge Stamped Steel Basket

Specifications

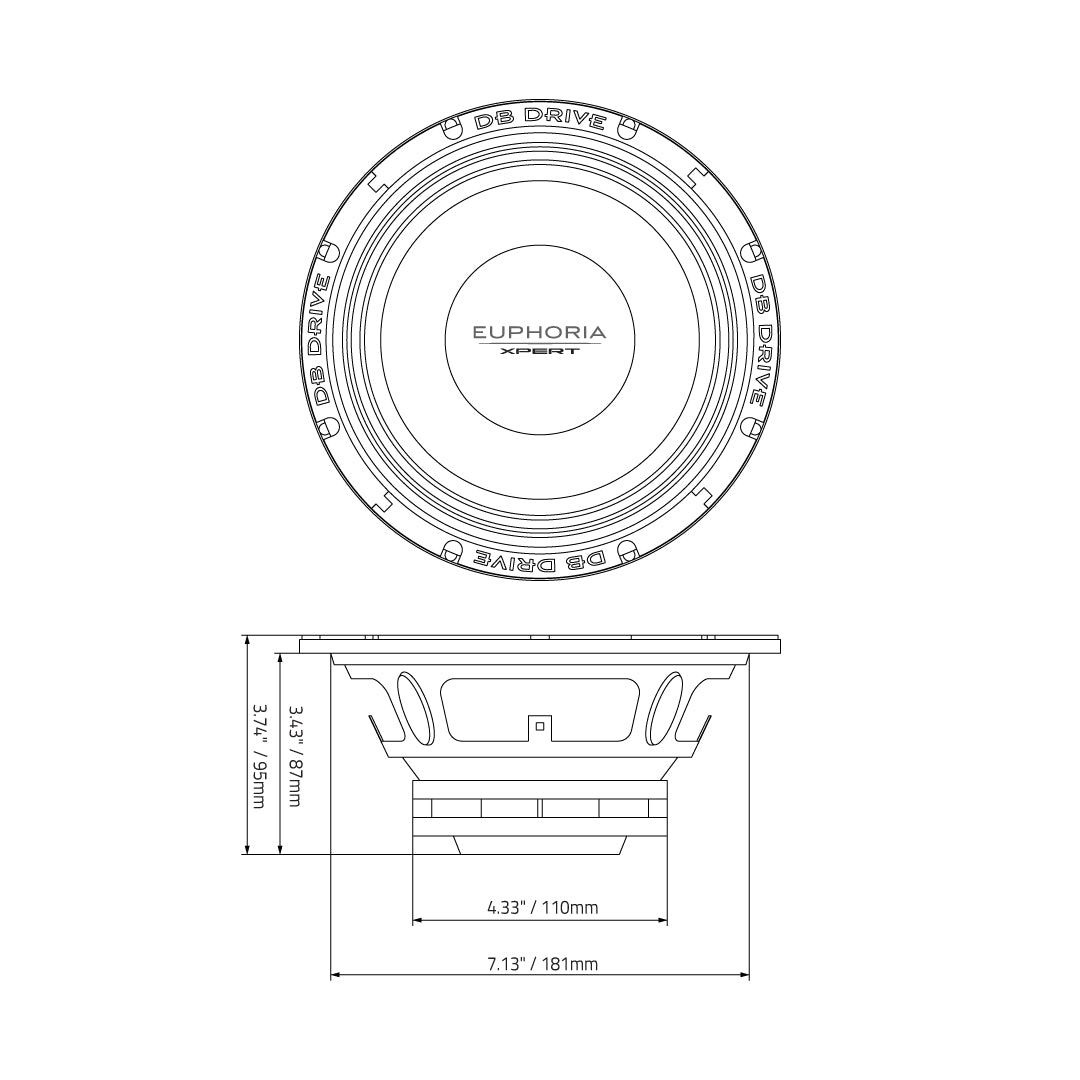

Nominal Basket Size	8" (203.2 mm)
Resonant Frequency (fs)	74.4Hz
D.C. Voice Coil Resistance (Re)	3.2Ω
Mechanical Quality Factor (Qms)	8.81
Electrical Quality Factor (Qes)	0.54
Total Quality Factor (Qts)	0.51
Compliance Equivalent Volume (Vas)	8.0L
Mechanical Compliance (Cms)	0.13 mm/N
Nominal Impedance	4Ω
Power Handling	300 Watts
Dynamic Wattage	600 Watts
Sensitivity (1w/1m)	99.7 dB
Voice Coil Diameter	2.0″ (51mm)

Product Manual

Product Manual PDF

Description

Feel the Power of Precision with XPERT's EXM8SN-CF Mid-Range!

Introducing the XPERT NEO MID-RANGE EXM8SN-CF, where innovation meets performance! This 8-inch (20.3cm) marvel boasts a 2-inch (51mm) voice coil and features a robust 10 Neodymium Ring Magnet Assembly, ensuring you experience unparalleled sound clarity and power. Designed with an IP65-rated weather-resistant carbon fiber cone and a durable rubber surround, it's built to withstand the toughest conditions while delivering pristine audio. The heavy gauge stamped steel basket adds a layer of durability, making it a reliable choice for any audio enthusiast. With a 4Ω impedance, it seamlessly integrates into your audio setup. Elevate your sound game with the EXM8SN-CF and let every note resonate with precision and power!
