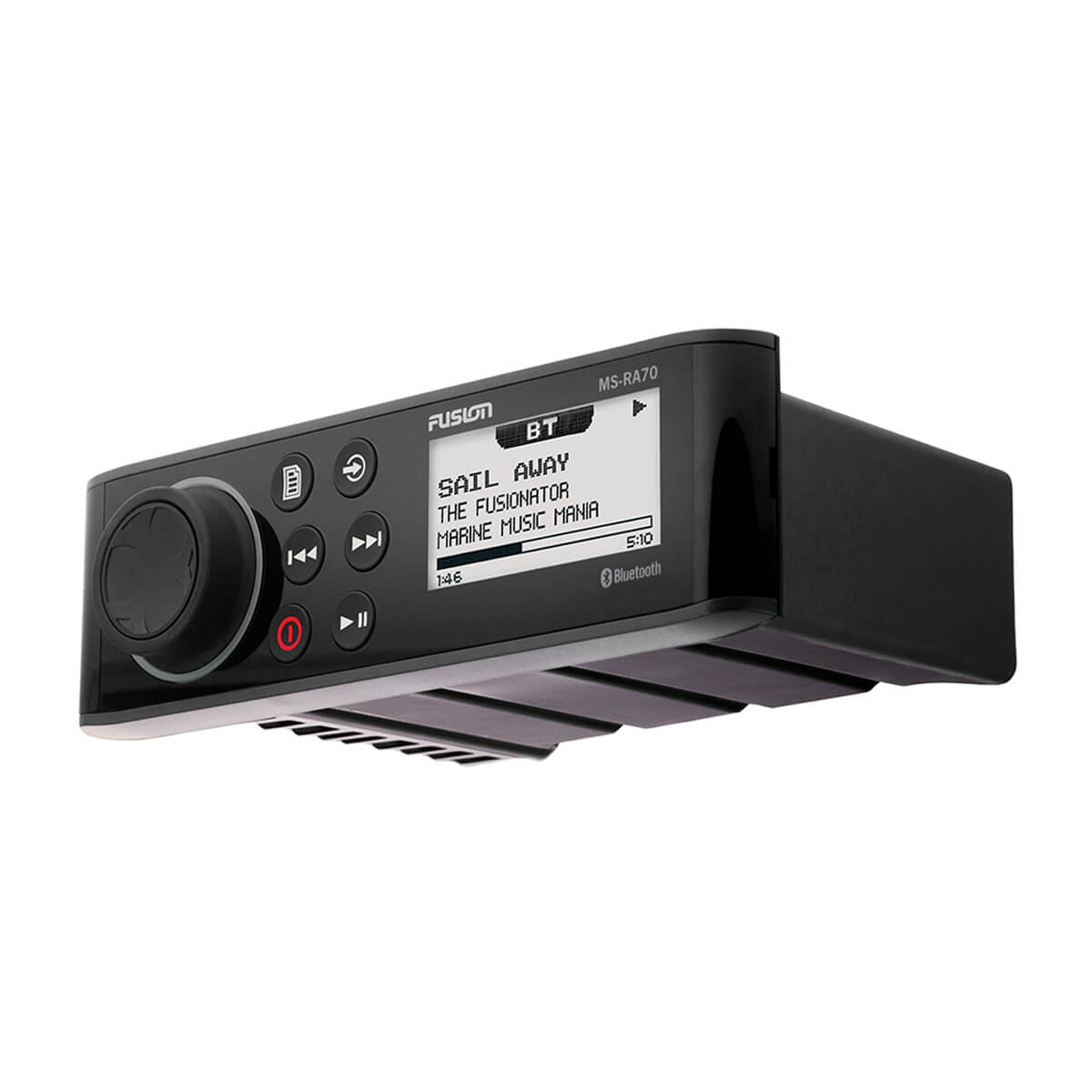

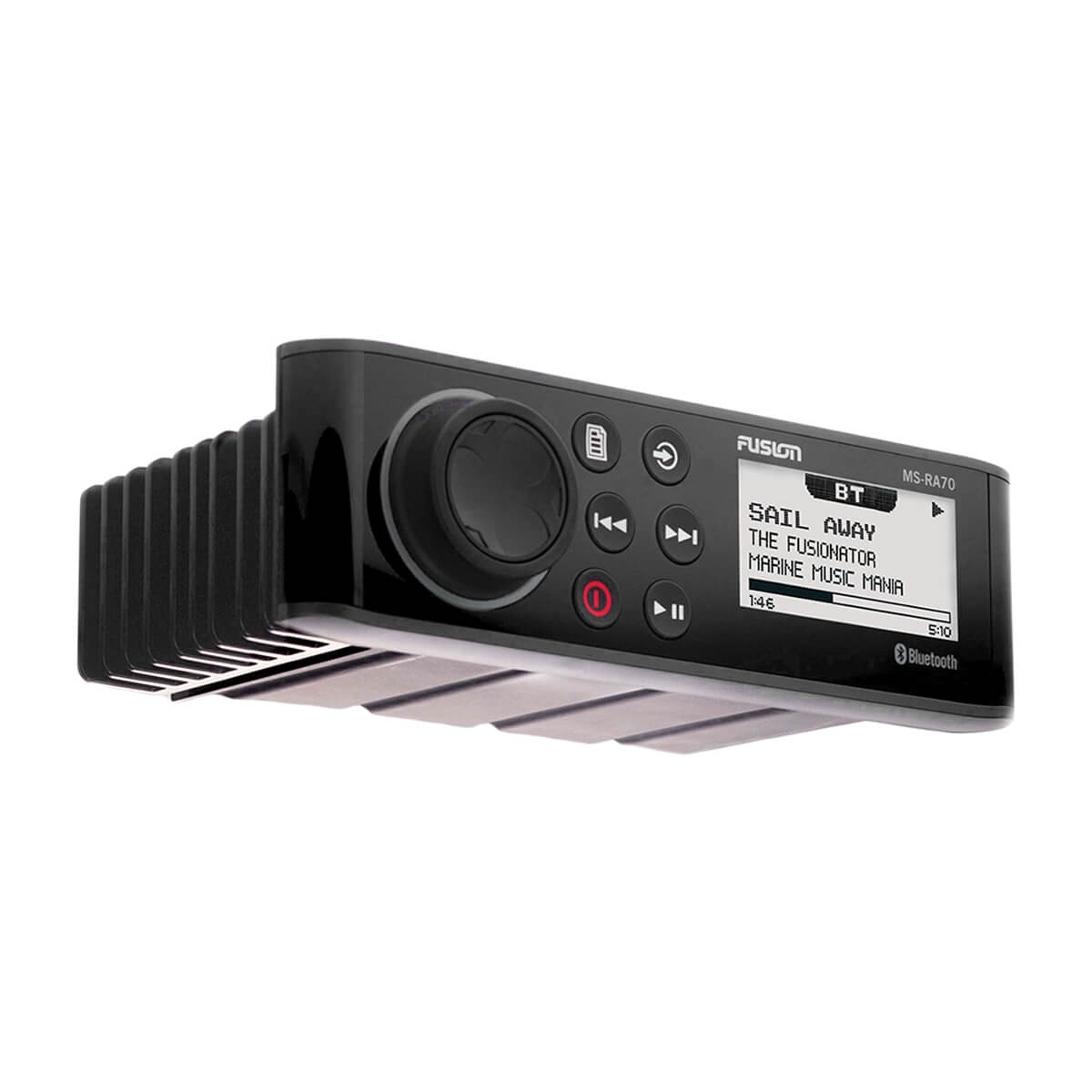

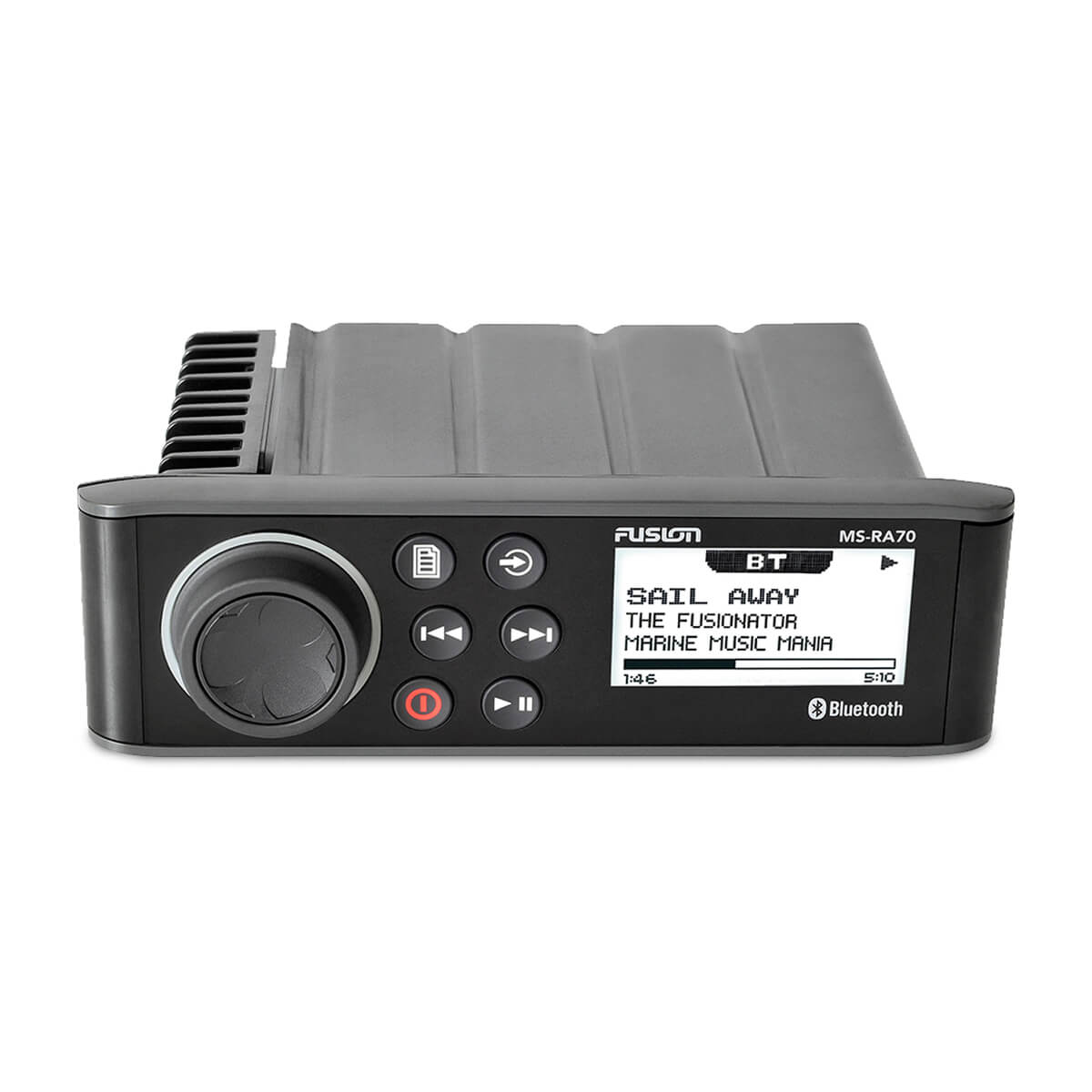

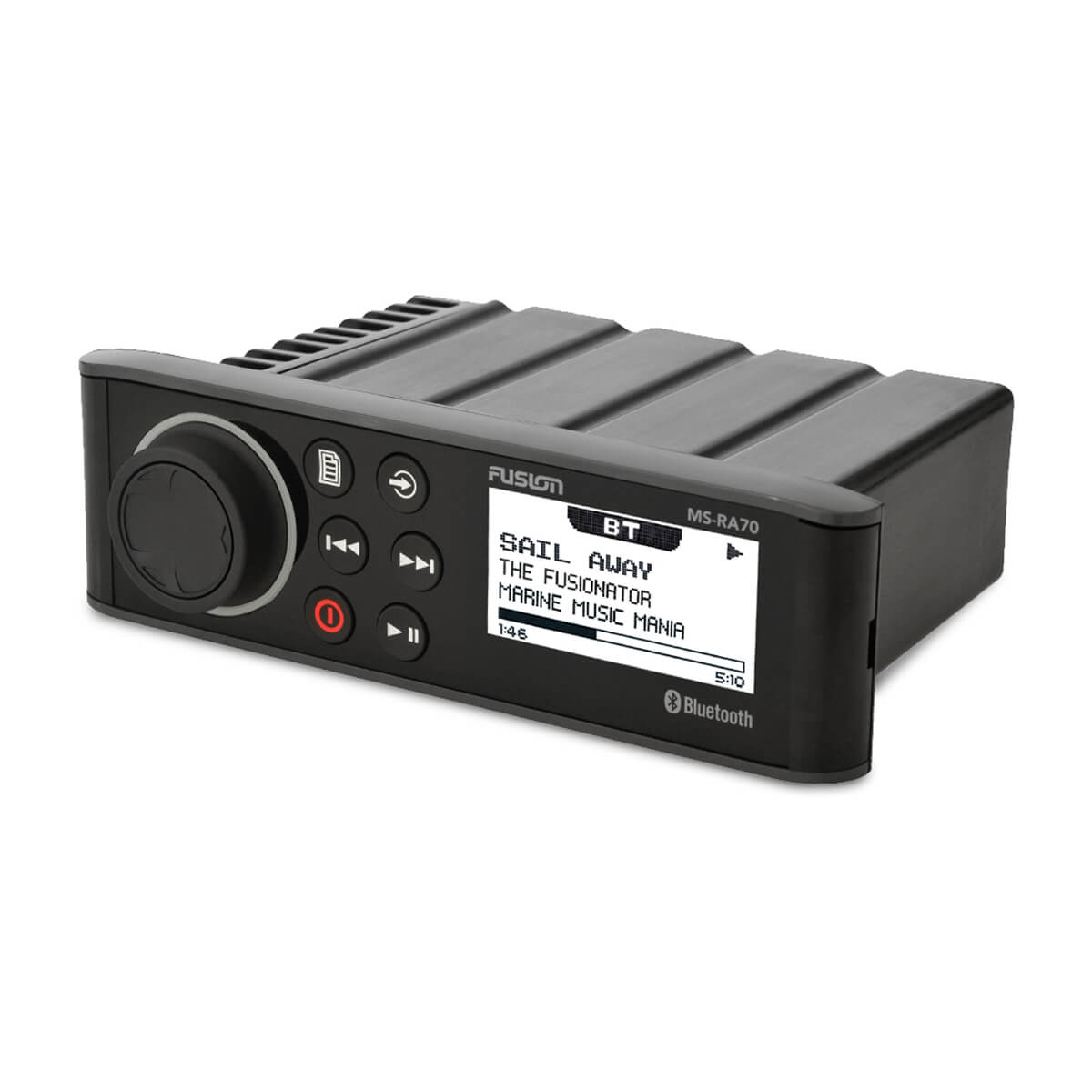

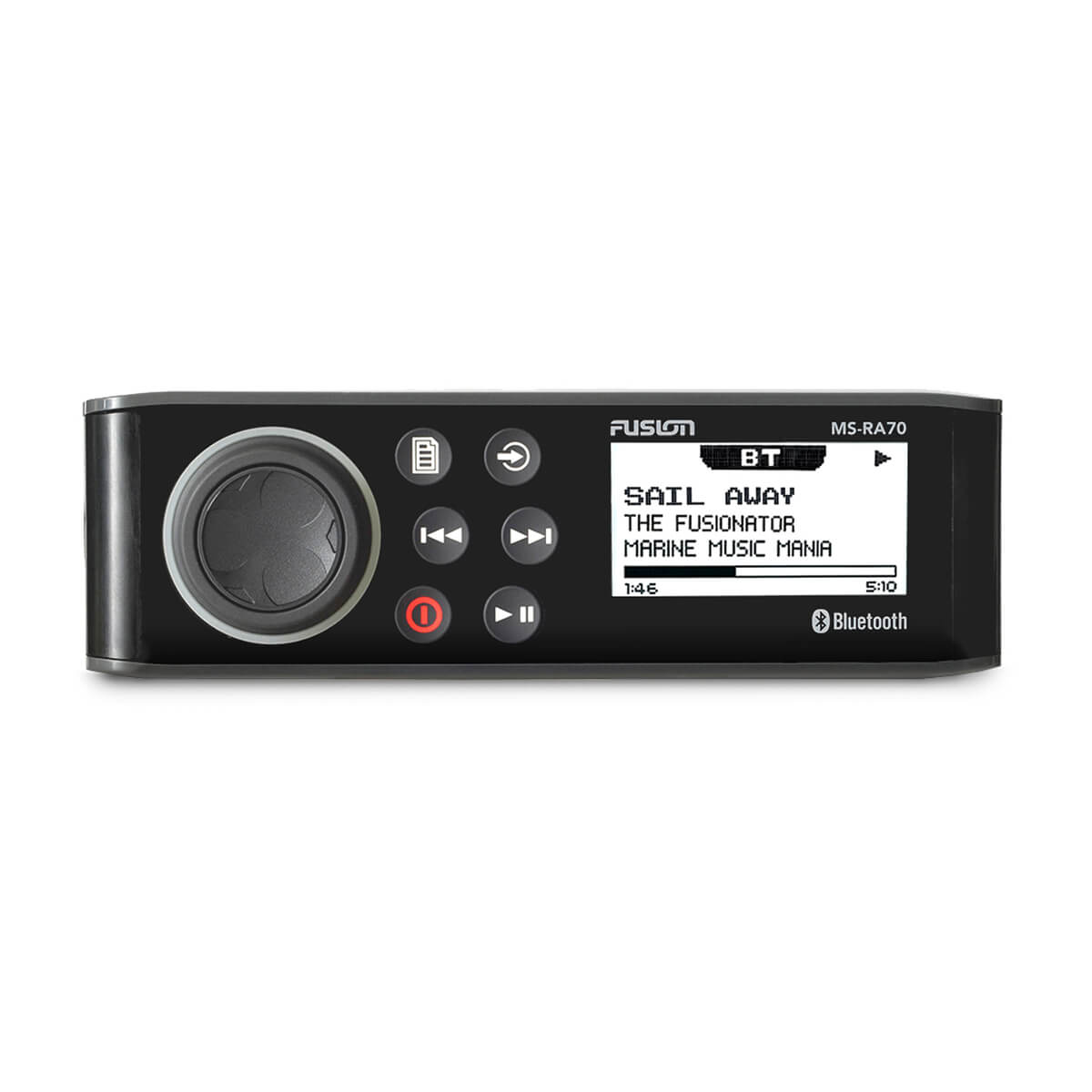

Seamlessly retrofit your existing DIN-sized stereo with a value-packed RA70 Series marine stereo from Fusion®. The RA70 Series includes three marine stereos — MS-RA70 and MS-RA70N.
Seamlessly retrofit your existing DIN-sized cutout without needing to reconfigure dash space.
Built-in Class-AB amplifier delivers efficiency with reduced distortion.
Take advantage of the many source options available, including Bluetooth® technology, DAB+ radio, AM/FM radio, AUX and USB connections.
| General | |
| Dimensions | 7.4" x 2.36" x 4.87" (188 x 60 x 123.5 mm) |
| Weight | 1.23 lbs (556 g) |
| Water rating | IPX7 (front panel only, when properly installed) |
| Display | 2.6" optically bonded monochrome LCD |
| Operating temperature | 32° to 122° F (0° to 50° C) |
| Current (max) | 15 A |
| Networking | |
| NMEA 2000® LEN | see Additional |
| Bluetooth® wireless range | up to 30 ft |
| ANT® wireless range | Up to 10 ft |
| Wireless frequencies/protocols | BLUETOOTH®: 2.4 GHz @ +1.9 dBm nominal ANT®: 2.4 GHz @ +1.9 dBm nominal |
| Audio | |
| Amplifier | Class-AB (4 ohm) |
| Electrical Features | |
| Power Input | 10.8 - 16 VDC |
| Compass-safe distance | 5.9" (150 mm) |
| Stereo Features | |
| Peak power | 200 W |
| Rated power output (4 ohm) | 26 watts RMS x 4 @ 14.4 V input < 10% THD |
| Fusion-Link™ control | yes (see Additional) |
| Multi-Zone™ technology | 2 zones |
| Bluetooth® wireless technology | ANT® wireless technology |
| SiriusXM-ready | see Additional |
| DAB+ ready | see Additional |
| Supports NRX wired remote | see Additional |
| Multi-language interface | Dutch, English, French, German, Italian, Spanish |
| Software updates | USB |
| Warranty | 1 year |
| Sources | |
| Supported sources | AM, FM, BLUETOOTH®, USB audio, iPhone®, iPod®, AUX x1, AOA |
| MS-RA70NSX | SiriusXM-Ready (U.S. only, requires optional SiriusXM Connect vehicle tuner) |
| MS-RA70 and MS-RA70N | DAB+ ready (available in Europe and Australia only) |
| Connections | |
| Auxiliary inputs (RCA) | 1 |
| NMEA 2000® ports | 1 (MS-RA70N and MS-RA70NSX only) |
| USB 2.0 ports | 1 |
| SiriusXM ports | 1 (MS-RA70NSX only) |
| AM/FM ports (Motorola antenna connector) | 1 |
| Speaker connections | 4 (2 zone amplified) |
| RCA pre-out (left, right and subwoofer) | 2 zones (requires external amplification) |
| Line out | 2 (L + R per zone, requires external amplification) |
| Subwoofer out | Zone 1 (mono output, requires external amplification) |
| Additional | |
| NMEA 2000® LEN | 1 (50 mA), MS-RA70N and MS-RA70NSX only |
| Fusion-Link™ control | MS-RA70: smart device and Garmin watch; MS-RA70 and MS-RA70NSX: MFD, smart device and Garmin watch |
| SiriusXM-Ready | MS-RA70NSX only |
| DAB+ Ready | MS-RA70 and MS-RA70N only |
| Supports NRX wired remote | MS-RA70N and MS-RA70NSX only |
All RA70 Series stereos contain:
MS-RA70N and MS-RA70NSX also include 6 ft (2 meters) NMEA 2000® drop cable
