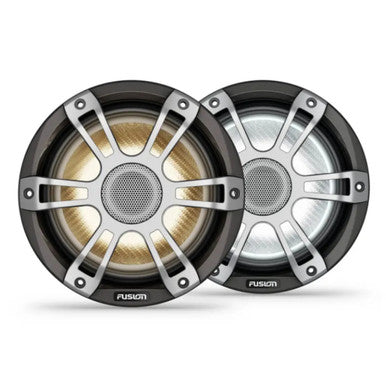

Fusion Signature Series 3i 7.7" 280-watt CRGBW Coaxial Sports Gray Marine Speakers (Pair), 010-02772-11

Fusion Signature Series 3i 7.7" 280-watt CRGBW Coaxial Sports Gray Marine Speakers (Pair), 010-02772-11

  • price-tag logoNew Launch
$599.99
$599.99
Save: $-599.99 (% Off)*
Sale Sold out
Shipping calculated at checkout.
  • cargo-truck logoFree shipping Over $99
Sold in last hours
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • USDC
  • Visa
  • free logo
    Fast, FREE Delivery

    Free, Fast, Doorstep Delight!

  • return logo
    Delivery & Returns

    Effortless Delivery, Easy Returns

View full details
  • Overview
  • Details
  • Accessories

Brand new, genuine Garmin Fusion? Signature Series 3i Marine Coaxial Speakers. This is a factory original equipment item, not aftermarket.

7.7" 280-watt CRGBW Coaxial Sports Gray Marine Speakers (Pair)

Bring on the elements. The Signature Series 3i coaxial speakers deliver crystal-clear audio and withstand the conditions like never before.

General
Physical dimensions (Diameter x Depth) 8.8" classic speaker: 9.75" x 5.16" (247 x 131 mm)
8.8" sports speaker: 8.82" x 5.24" (224 x 133 mm)
7.7" classic speaker: 8.66" x 4.31" (220 x 109.5 mm)
7.7" sports speaker: 7.72" x 4.37" (196 x 111 mm)
6.5" classic speaker: 7.87" x 4.06" (200 x 103 mm)
6.5" sports speaker: 6.93" x 4.11" (176 x 104.5 mm)
Weight 8.8" classic speaker: 5.8 lbs (2.62 kg)
8.8" CRGBW sports speaker: 5.8 lbs (2.61 kg)
7.7" classic speaker: 4 lbs (1.80 kg)
7.7" CRGBW sports speaker: 3.9 lbs (1.77 kg)
7.7" sports speaker: 3.9 lbs (1.76 kg)
6.5" classic speaker: 3 lbs (1.35 kg)
6.5" CRGBW sports speaker: 2.9 lbs (1.32 kg)
6.5" sports speaker: 2.8 lbs (1.29 kg)
Water and dust rating IP65
Configuration Coaxial
Peak power (watts) 8.8" speaker: 330 watts
7.7" speaker: 280 watts
6.5" speaker: 230 watts
RMS power rating (watts) 8.8" speaker: 130 watts
7.7" speaker: 100 watts
6.5" speaker: 75 watts
Sensitivity (1 watt @ 1 meter) 8.8" speaker: 91 dB
7.7" speaker: 91 dB
6.5" speaker: 90 dB
Frequency response 8.8" speaker: 50 Hz-20 kHz
7.7" speaker: 60 Hz-22 kHz
6.5" speaker: 70 Hz-22 kHz
Nominal impedance 4 ohm
Recommended amplifier power (watts RMS) 8.8" speaker: 25-140 watts/channel
7.7" speaker: 25-120 watts/channel
6.5" speaker: 30-90 watts/channel
LED lighting yes, CRGBW (sports style with LED models only)
LED supply voltage 10.8-16 VDC (sports style with LED models only)
LED load current @14.4 VDC (max) 300 mA (sports style with LED models only)
Operating temperature range 32-122 degrees F (0-50 degrees C)
Voice coil diameter 8.8" speaker: 1.5"
7.7" speaker: 1.4"
6.5" speaker: 1.2"
Cone material CURV? Cone Technology with rubber surround
Tweeter type Silk dome
Compass-safe distance 8.8" speaker: 162" (412 cm)
7.7" speaker: 141" (358 cm)
6.5" speaker: 122" (310 cm)
Speaker connection Flying lead with water-resistant 2-way connector, 5.9" (150 mm)
LED connection (sports style with LED models only) Flying lead with water-resistant 6-way connector, 5.9" (150 mm)
Warranty 3 years


Mounting Dimensions
Mounting diameter clearance 8.8" speaker: 7.44" (188 mm)
7.7" speaker: 6.14" (156 mm)
6.5" speaker: 5.35" (136 mm)
Mounting depth clearance 8.8" speaker: 4.13" (106 mm)
7.7" speaker: 3.39" (86 mm)
6.5" speaker: 3.11" (79 mm)


Optimum Enclosure Recommendations
Sealed enclosure volume (fully filled with absorption material) 8.8" speaker: 0.78 cubic ft (22 L)
7.7" speaker: 0.71 cubic ft (20 L)
6.5" speaker: 0.64 cubic ft (18 L)
Ported (vented) enclosure volume (lined with absorption material) 8.8" speaker: 1.23 cubic ft (35 L)
7.7" speaker: 1.06 cubic ft (30 L)
6.5" speaker: 0.88 cubic ft (25 L)
Port diameter 3" (76 mm)
Port length 8.8" speaker: 6.7" (170 mm)
7.7" speaker: 6.3" (160 mm)
6.5" speaker: 6.4" (162 mm)

  • Crystal-clear premium sound quality is suited for the marine environment. Water-resistant connectors provide simplified installation and superior protection.
  • The rigorously tested marinized design has an IP65 rating.
  • Available in 6.5?, 7.7? and 8.8? designs, classic or sports style grilles.
  • CRGBW LED lights set the scene on your boat.
  • Built to last season after season, the Signature Series 3i coaxial speakers include a supported 3-year warranty.

SKU# 010-02772-11

Items included in this kit:

  • One pair of speakers (based on what you select)
  • 12 Phillips stainless steel mounting screws, 4.2 mm x 40 mm (8 gauge x 1.6?)
  • 2 water-resistant cable assemblies with 2-pin connector (5.9" (150mm))
  • 2 water-resistant cable assemblies with 6-pin connector (5.9" (150mm), sports style with LED models only)
  • Documentation

Fits:

Description:
Fusion? Apollo? Marine Amplifiers
Fusion? Apollo? MS-RA670 Marine Stereo
Fusion? Apollo? MS-RA770 Marine Stereo
Fusion? Apollo? MS-SRX400 Marine Zone Stereo
Fusion? Apollo? MS-WB670 Marine Hideaway Stereo
Fusion? Apollo? MS-WB675 Marine Hideaway Stereo
Fusion? MS-BB100 Black Box
Fusion? MS-RA210 Marine Stereo
Fusion? MS-RA60 Marine Stereo
Fusion? RA70 Series Marine Stereos
Fusion? Signature Series Marine Amplifiers
