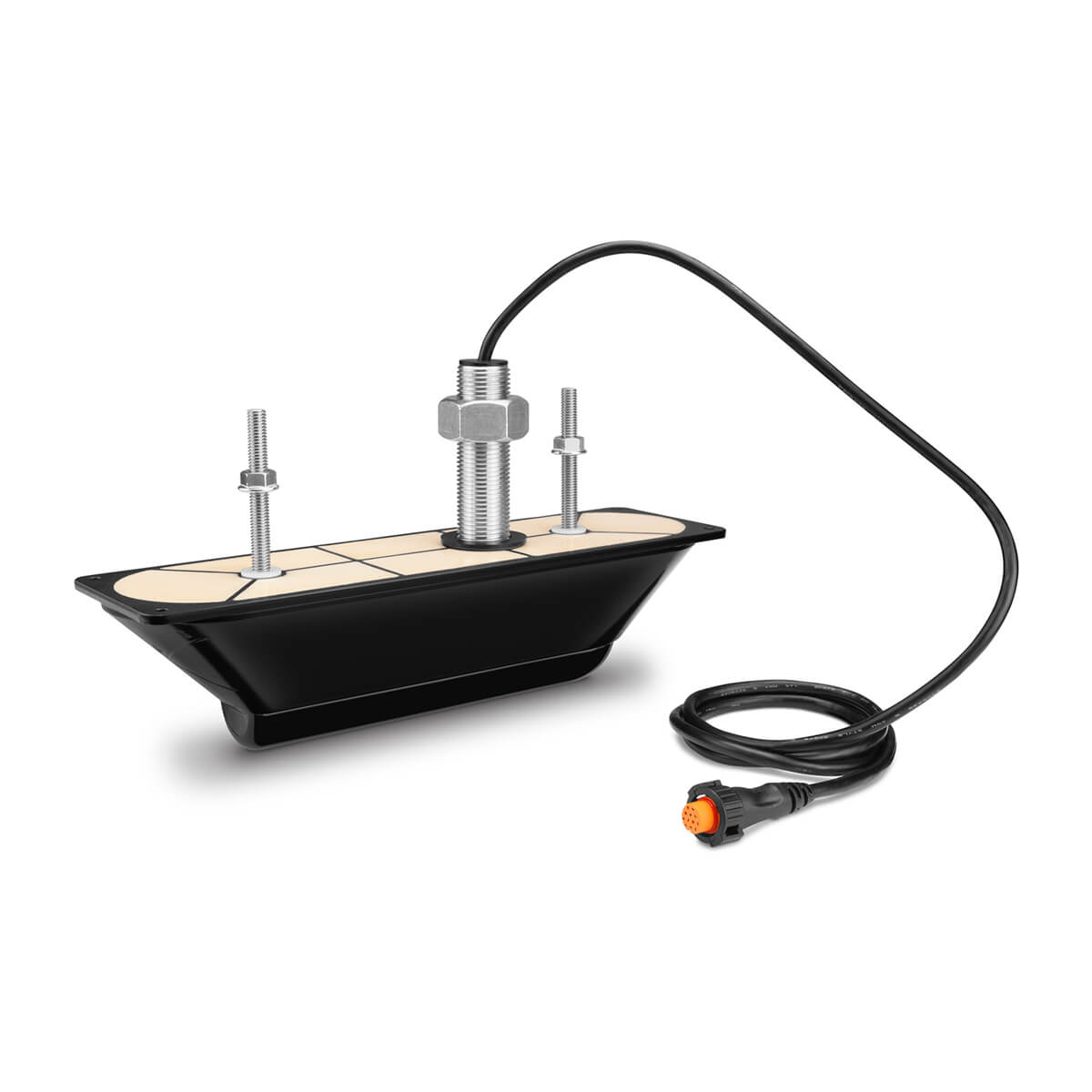

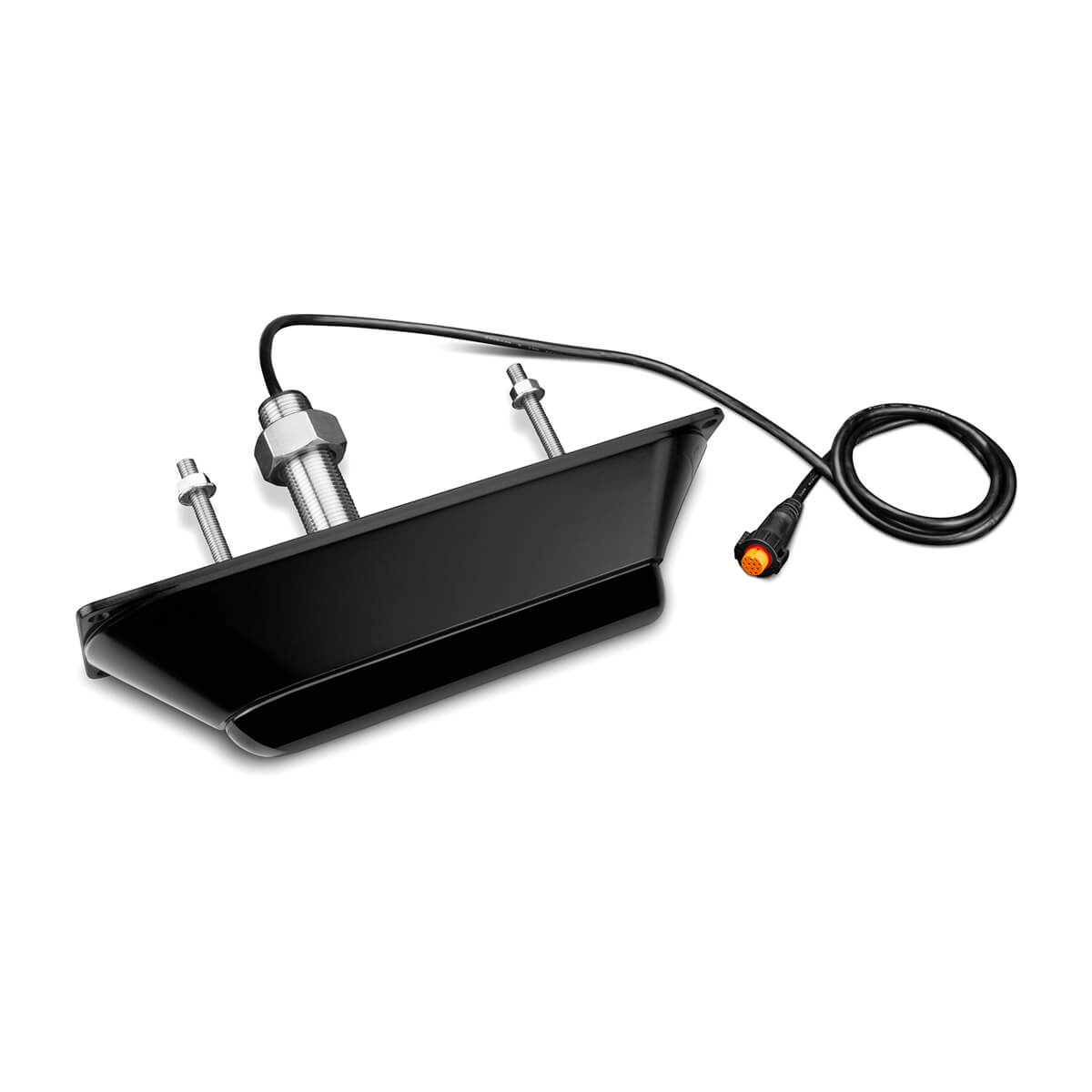

Perfect for the shallow water fisherman who want CHIRP ClearVü and CHIRP SideVü scanning sonar with a stainless steel stem, this 12-pin thru-hull transducer consistently displays clear definition of objects, structure and fish below and to each side of the boat.
The transducer with built-in fast response temperature sensor has a power rating of 500 W per element (1,500 W total); a depth of 750 ft (ClearVü) and 500 ft left and right (SideVü); an operating frequency of CHIRP 455/800 kHz¹; for hull deadrises less than 5 degrees. Pair it with your GCV™ 10 scanning sonar module.

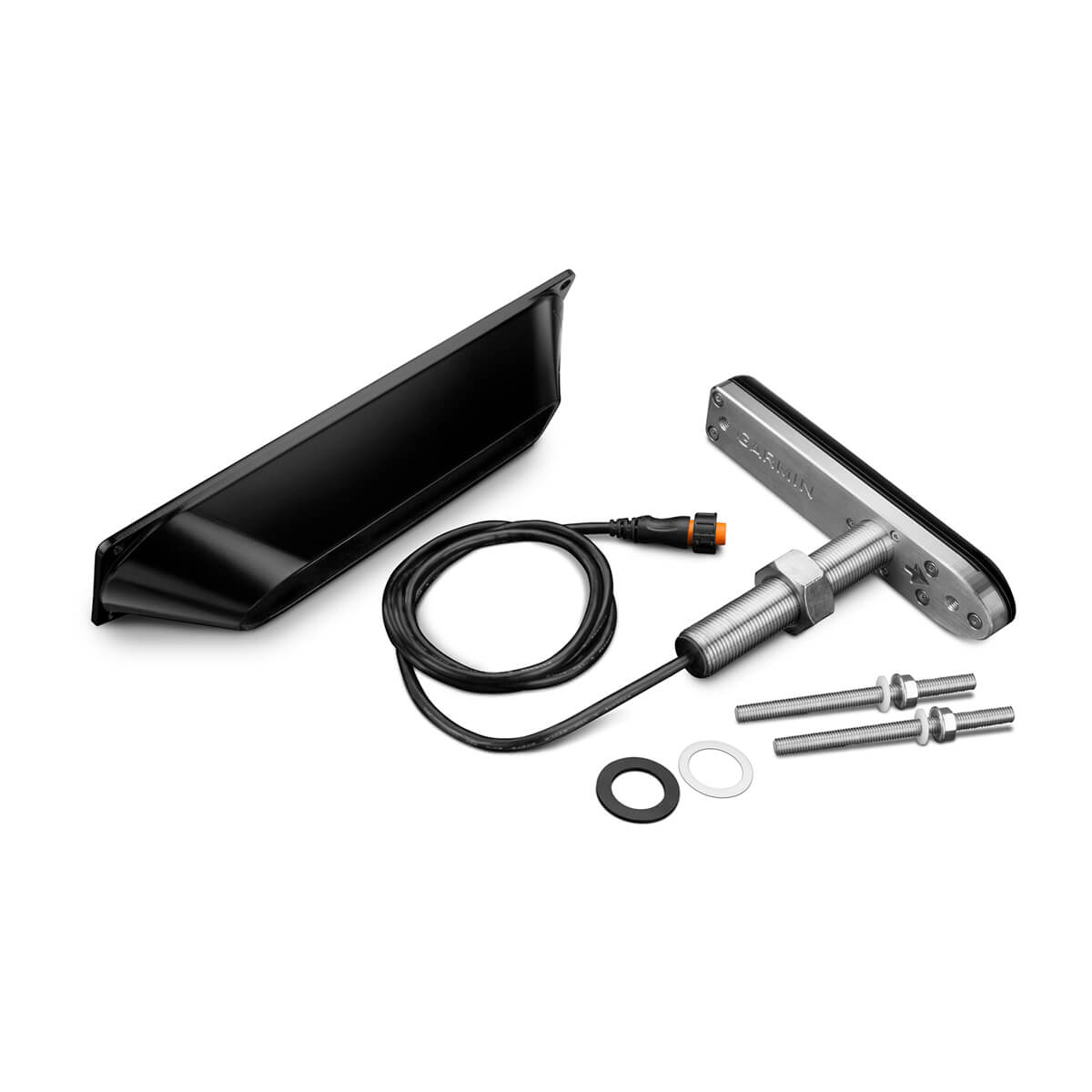

Includes transducer with stainless steel stem, fairing block, isolation plate and bushings, extension cable, mounting hardware and installation instructions. Follow the instructions carefully to avoid damaging your boat.
¹CHIRP frequency bandwidth is 445 to 475 kHz and 805 to 840 kHz.
| Transducer frequency |
Ultra High-Definition ClearVü: 800 kHz (760-880 kHz) Ultra High-Definition SideVü: 1,200 kHz (1,060-1,170 kHz) |
|---|---|
| Transducer power | 500 W |
| Transducer beamwidth | ClearVü: 0.76°x46° @ 800 kHz SideVü: 0.44°x55° @ 1,200 kHz |
| Transducer maximum depth |
200' Ultra High-Definition ClearVü 125' to each side Ultra High-Definition SideVü, 250' total, at a maximum depth of 30' |
| Transducer cable length | 20 ft. |
| Transducer depth/speed/temperature | Depth and Temperature |
| Transducer number of pins | 12-pin |
| Transducer supported deadrise/transom angles | Up to 5° deadrise |
