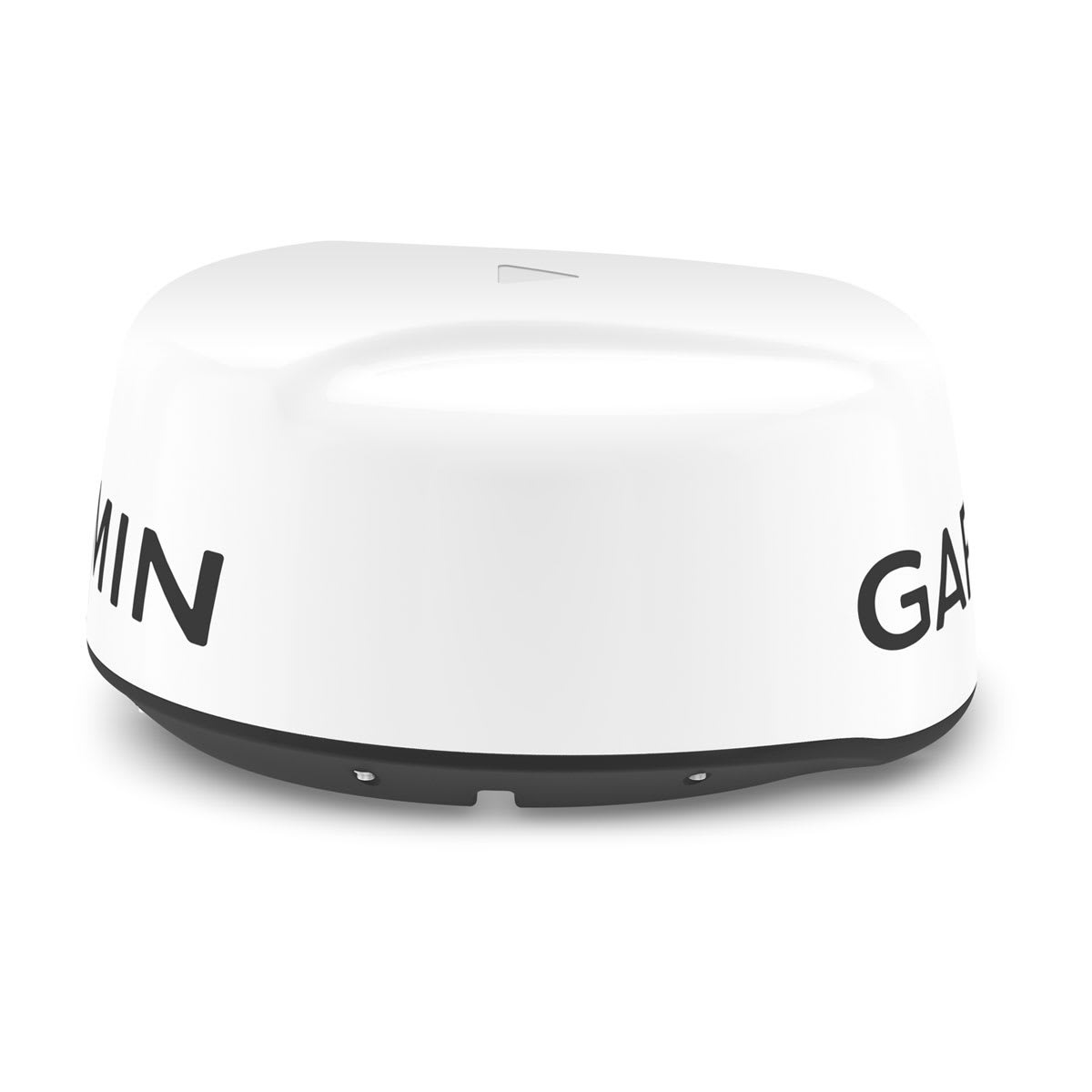

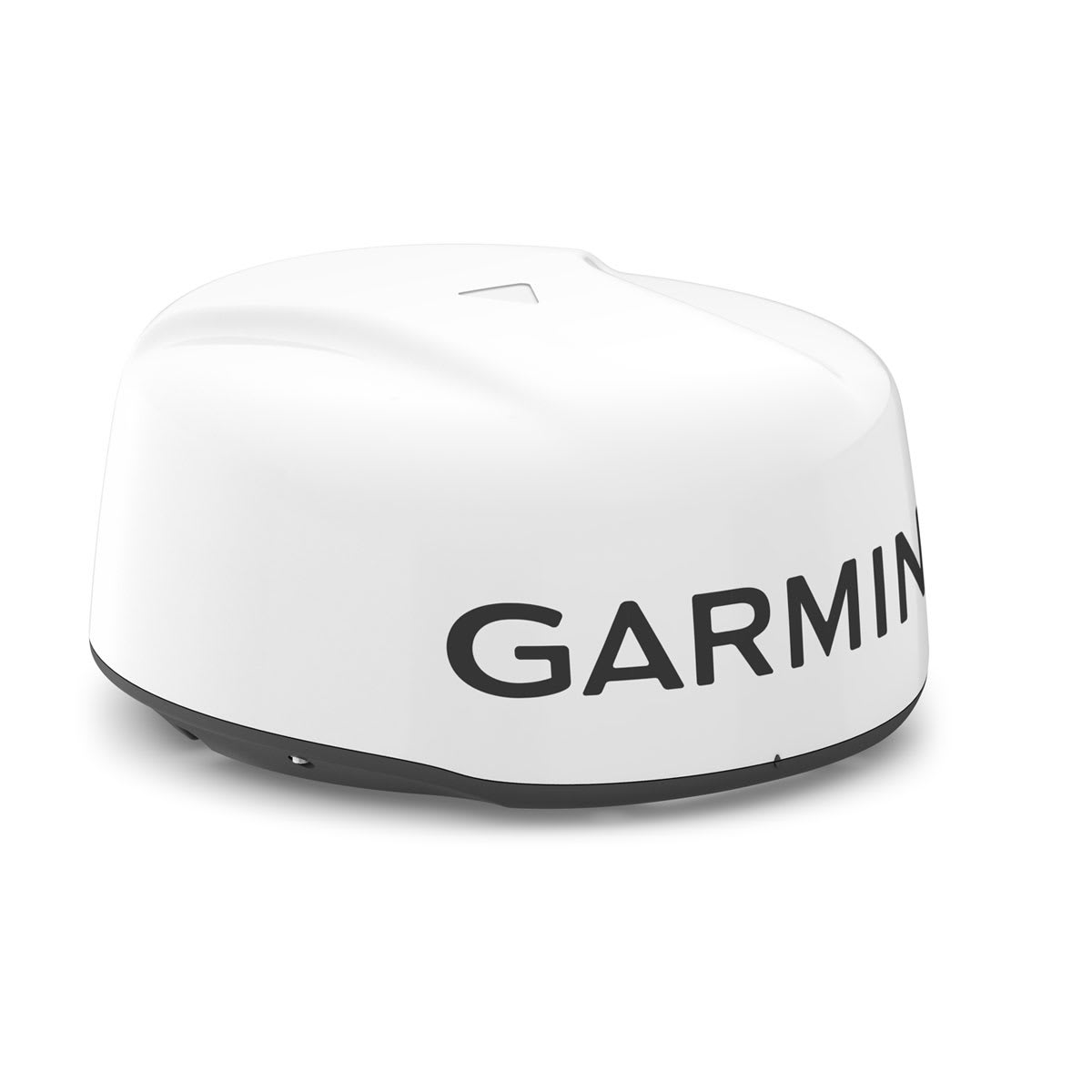

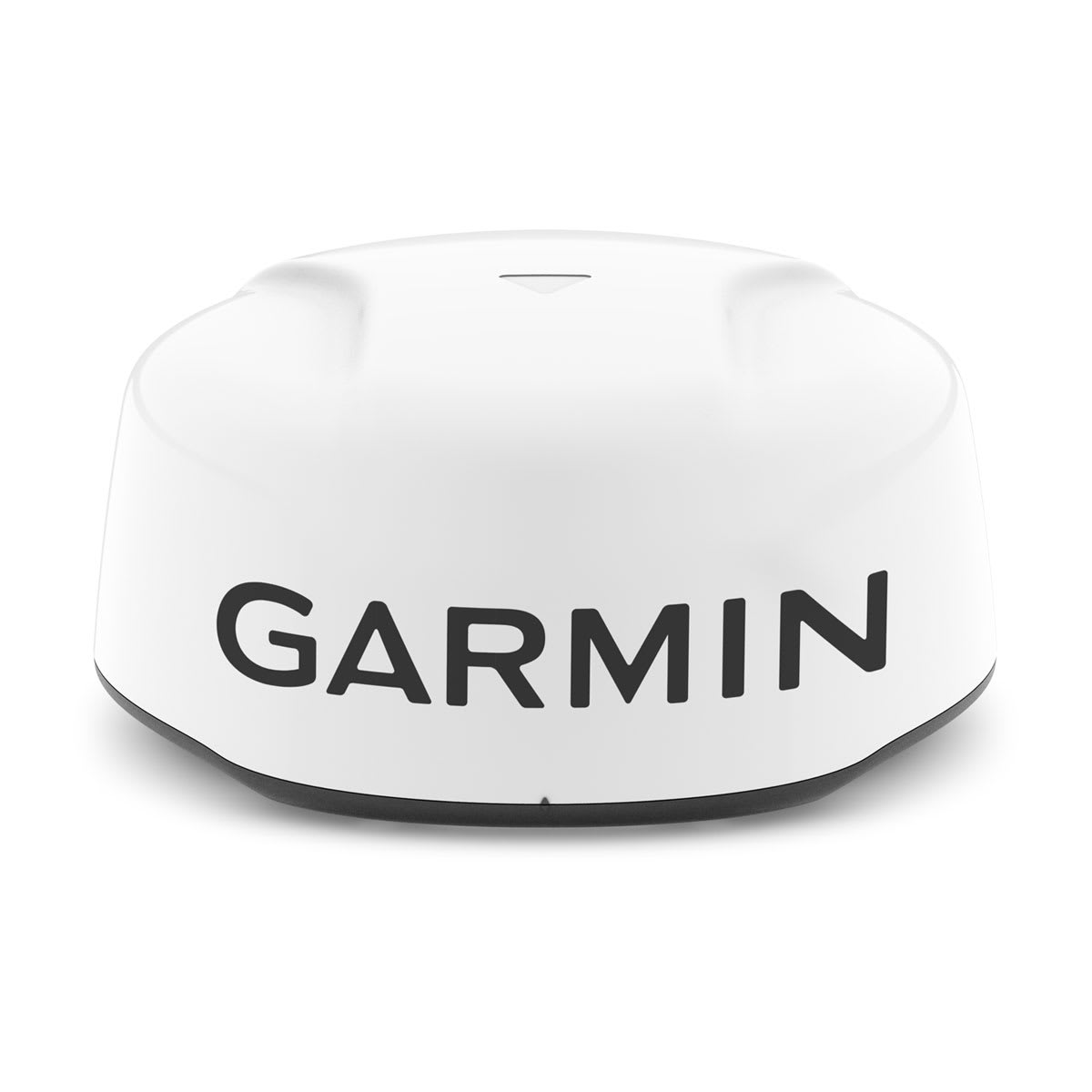

This compact 18” dome radar combines ease of use with powerful scanning features that work to maximize your confidence and situational awareness on the water.
4kW POWER OUTPUT, 36-NAUTICAL MILE MAX RANGE
SPACE-SAVING 18” DOME
MARPA TARGET TRACKING
DYNAMIC AUTO GAIN AND SEA FILTER
DUAL-RADAR SUPPORT
QUIET DOME DRIVE MOTOR
Using dual radar provides redundancy and allows each display unit on the boat to pull data from one of two different radar sources.
Gain automatically adjusts levels to optimum settings.
Radar gain automatically adjusts sea clutter for calm, medium and rough sea conditions.
Overlay radar images onto your chartplotter’s map page. You can add an optional autopilot or heading sensor (sold separately) for best results.
MARPA tracks selected targets to help keep track of other vessels and avoid collisions (with appropriate sensors, sold separately).
The reliable GMR HD3 dome drive motor spins at a fixed 24 rpm, offering reliable, low-noise operation and minimal power consumption.
4kW of transmit power, 36-nautical mile maximum range and clear echo definition at all ranges.
Minimum scanning range of 20 meters for excellent short-range detection and target detail.
8-bit true color for outstanding target separation with less screen clutter.
Specify transmit times down to the seconds to help reduce power consumption.
No complex user settings, so it’s easy to install and start using.
|
Feature |
Specification |
|
General Dimensions |
20" diameter, 9.8" high (508 mm diameter, 248 mm high) |
|
Weight |
7.0 kg |
|
Water rating |
IPX7 |
|
Antenna Length |
17" (43 cm) |
|
Rotation speed (RPM) |
24 rpm |
|
Beam width |
5.2° horizontal, 25° vertical |
|
Maximum range |
36 nm |
|
Minimum range |
20 meters |
|
Radar type |
Radome |
|
Power Input |
11-32 V DC |
|
Power Consumption (standby) |
15 W |
|
Typical power consumption, transmitting (normal mode) |
40 W |
|
Transmit power |
4 kW |
|
Overlay |
Yes |
|
Dual radar support |
Yes |
|
Auto Gain |
Dynamic |
|
MARPA target tracking |
Yes (requires heading sensor, sold separately) |
