Loaded with advanced features typically found on open arrays, these powerful 18” and 24” dome radars offer superior traffic, obstacle and weather detection for peace of mind on the water.
4kW POWER OUTPUT, 48-NAUTICAL MILE MAX RANGE
SCAN AVERAGING TECHNOLOGY
IMPROVED TARGET-SIZE PROCESSING
SPLIT-SCREEN DUAL-RANGE DISPLAY
BIRD DETECTION
QUIET DOME DRIVE MOTOR
A first for Garmin magnetron radar, scan averaging helps filter out sea clutter and interference to enhance the detection and display of consistent targets.
Pulse expansion and angular target-size processing techniques optimize on-screen object shapes for better interpretation at all range scales.
Rotation speeds up to 60 rpm improve the redraw rate for faster target updates.
A historical “trail” of boats on the water is displayed on the screen, removing relative motion influence to help you quickly identify moving targets and potential collision threats.
A single radar antenna is capable of providing split-screen, side-by-side images on your compatible chartplotter, with independent range setting and controls for both close and long range. Overlay either or both ranges on a chart.
Gain automatically adjusts levels to optimum settings for harbors, near shore and offshore in open waters.
See overlaid images on your chartplotter’s map screen (with appropriate sensors, sold separately).
Pick out targets at a distance, thanks to narrow horizontal beamwidth and high antenna gain.
This provides redundancy and allows each display unit to pull data from different sources.
Radar gain automatically adjusts sea clutter for calm, medium and rough sea conditions.
Locate flocks of birds at the water’s surface where baitfish are also likely to be found.
Track up to 30 targets to help avoid collisions (with appropriate sensors, sold separately).
Set the safety zone, and receive an alarm when an object enters the zone.
Variable range markers and electronic bearing lines allow rapid measurements of distance and bearing to vessels and land.
|
Feature |
Specification |
|
General |
|
|
Dimension |

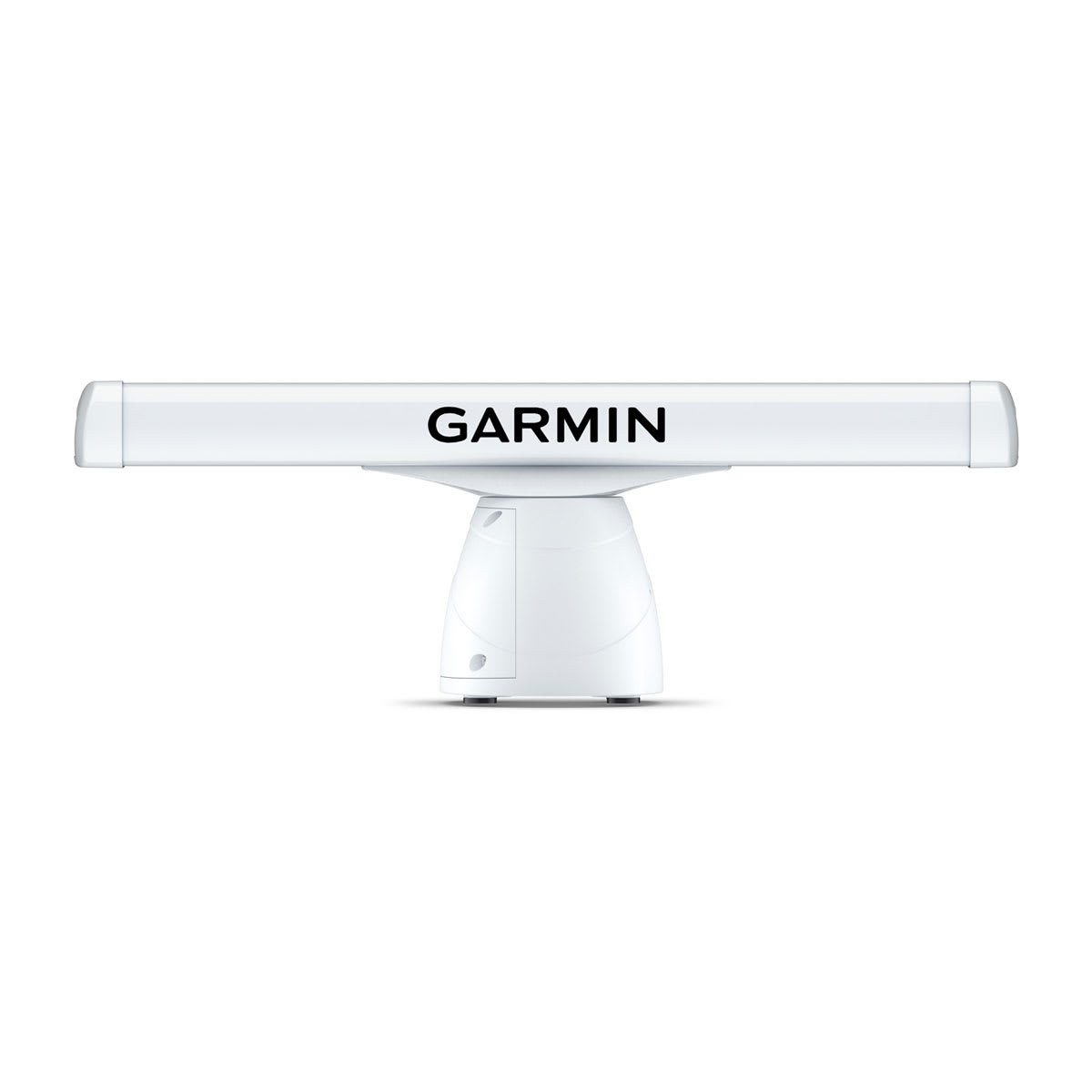

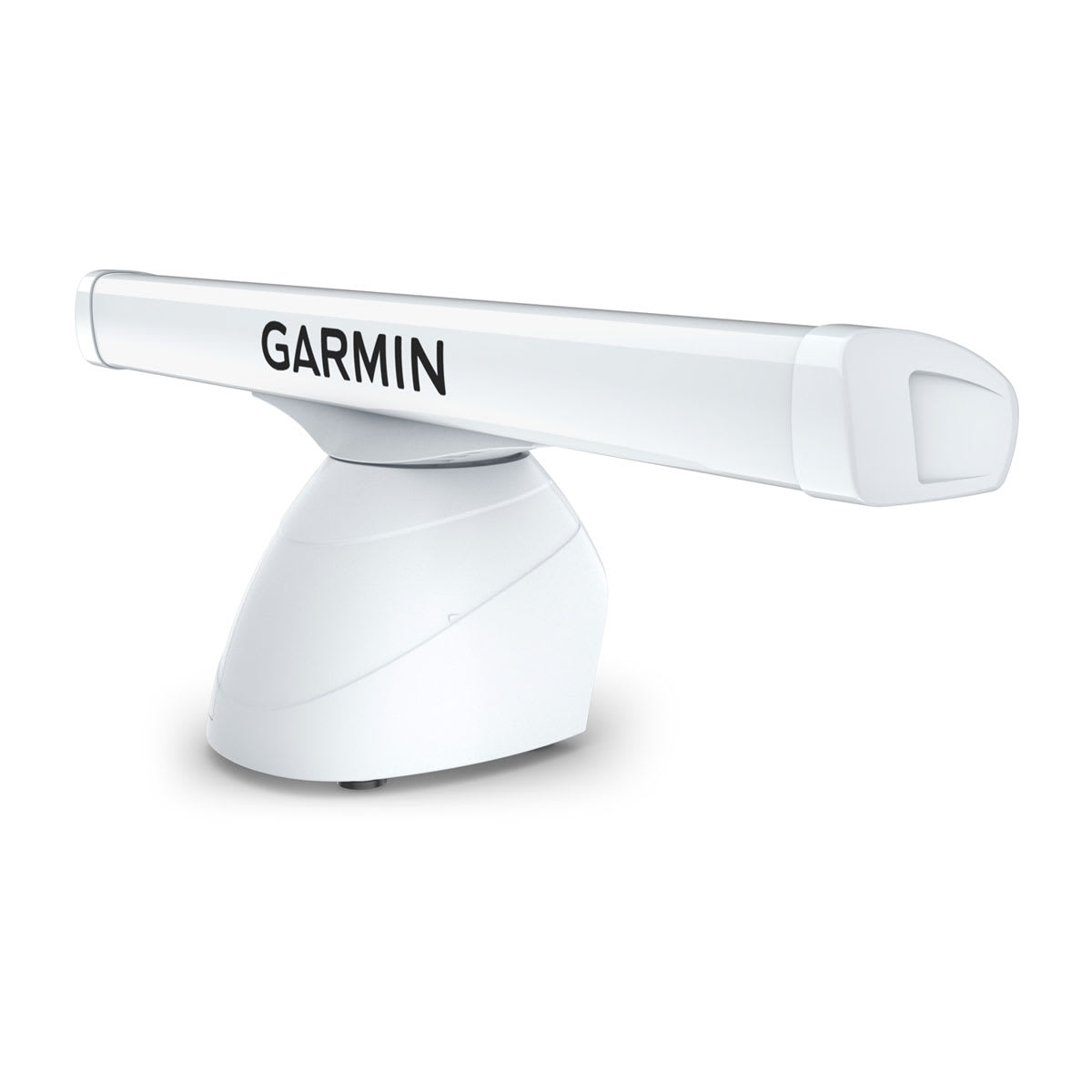

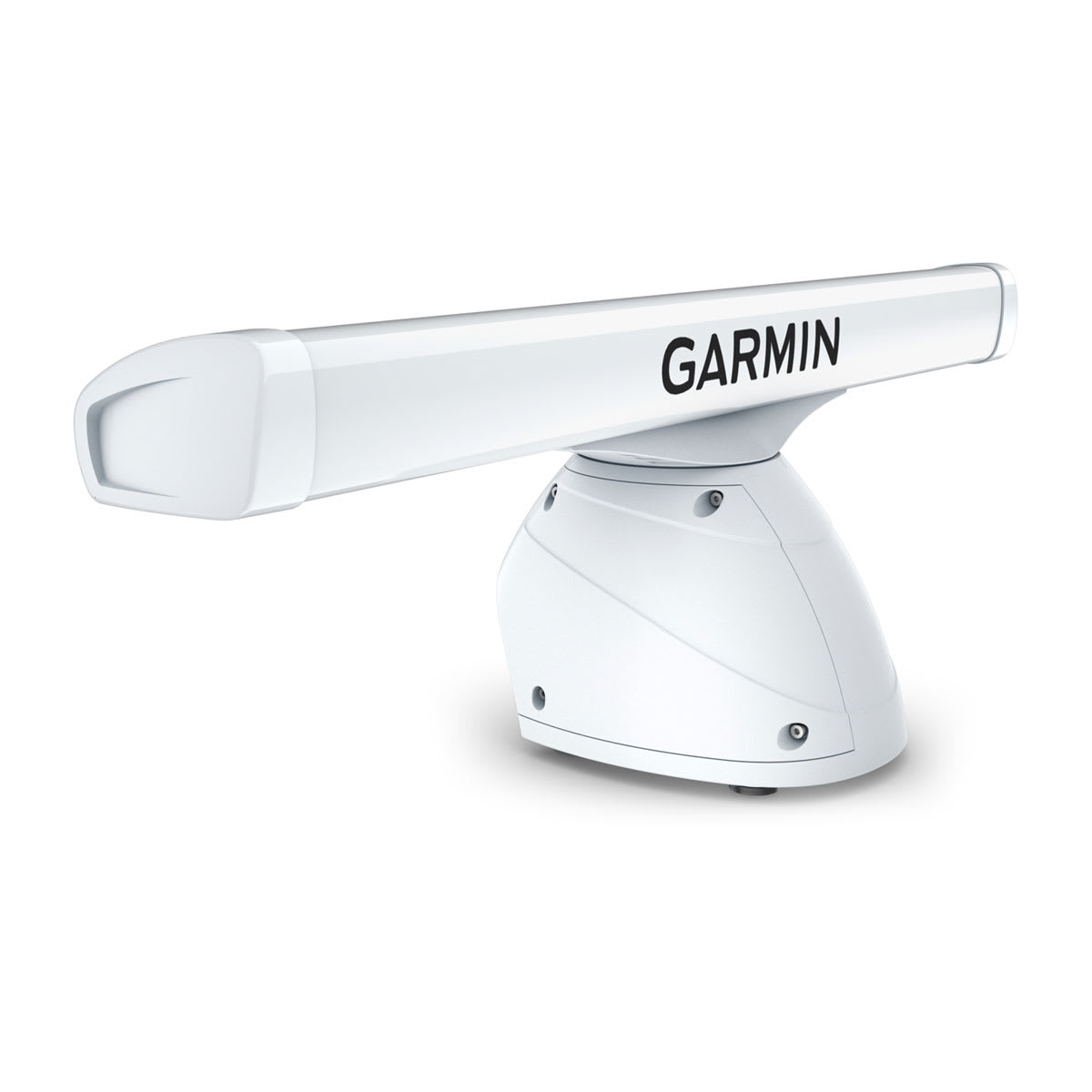

4' array: 1325 x 122 x 170 mm (52.2" x 4.8" x 6.7") |
|
Weight |
4' array and pedestal: 27.6 kg |
|
Water rating |
IPX6 |
|
Max Wind Load |
80kt (100kt with optional voltage converter upgrade) |
|
Antenna Length |
4' array: 48" (122 cm) |
|
Rotation speed (RPM) |
24 and 48 rpm |
|
Beam width |
4' array: 1.8° horizontal, 23° vertical |
|
Maximum range |
72 nm |
|
Minimum range |
20 meters |
|
Radar type |
Open-array |
|
Electrical Features |
|
|
Power Input |
11-32 V DC |
|
Power Consumption (standby) |
18 W |
|
Typical power consumption, transmitting (normal mode) |
55 W |
|
Transmit power |
4 KW |
|
Radar Features |
|
|
Dual range |
Yes |
|
Overlay |
Yes |
|
Dual radar support |
Yes |
|
Auto Bird Gain |
Yes |
|
Auto Gain |
Yes |
|
Dynamic |
Yes |
|
MARPA target tracking |
Yes (requires heading sensor, sold separately) |
|
Echo Trails |
True |
|
Programmable antenna parking |
Yes |
|
Target size |
Yes |
|
Scan averaging |
Yes |
