Garmin

GT30-TM Transducer Bundle GT30-TM and GT15M-IH Transducer Bundle

GT30-TM Transducer Bundle GT30-TM and GT15M-IH Transducer Bundle

  • price-tag logoNew Launch
Regular price $629.99
Regular price Sale price $629.99
Save: $-629.99 (% Off)*
Sale Sold out
Shipping calculated at checkout.
  • cargo-truck logoFree shipping Over $99
Sold in last hours
  • free logo
    Fast, FREE Delivery

    Free, Fast, Doorstep Delight!

  • return logo
    Delivery & Returns

    Effortless Delivery, Easy Returns

View full details
  • Overview
  • Details
  • Accessories

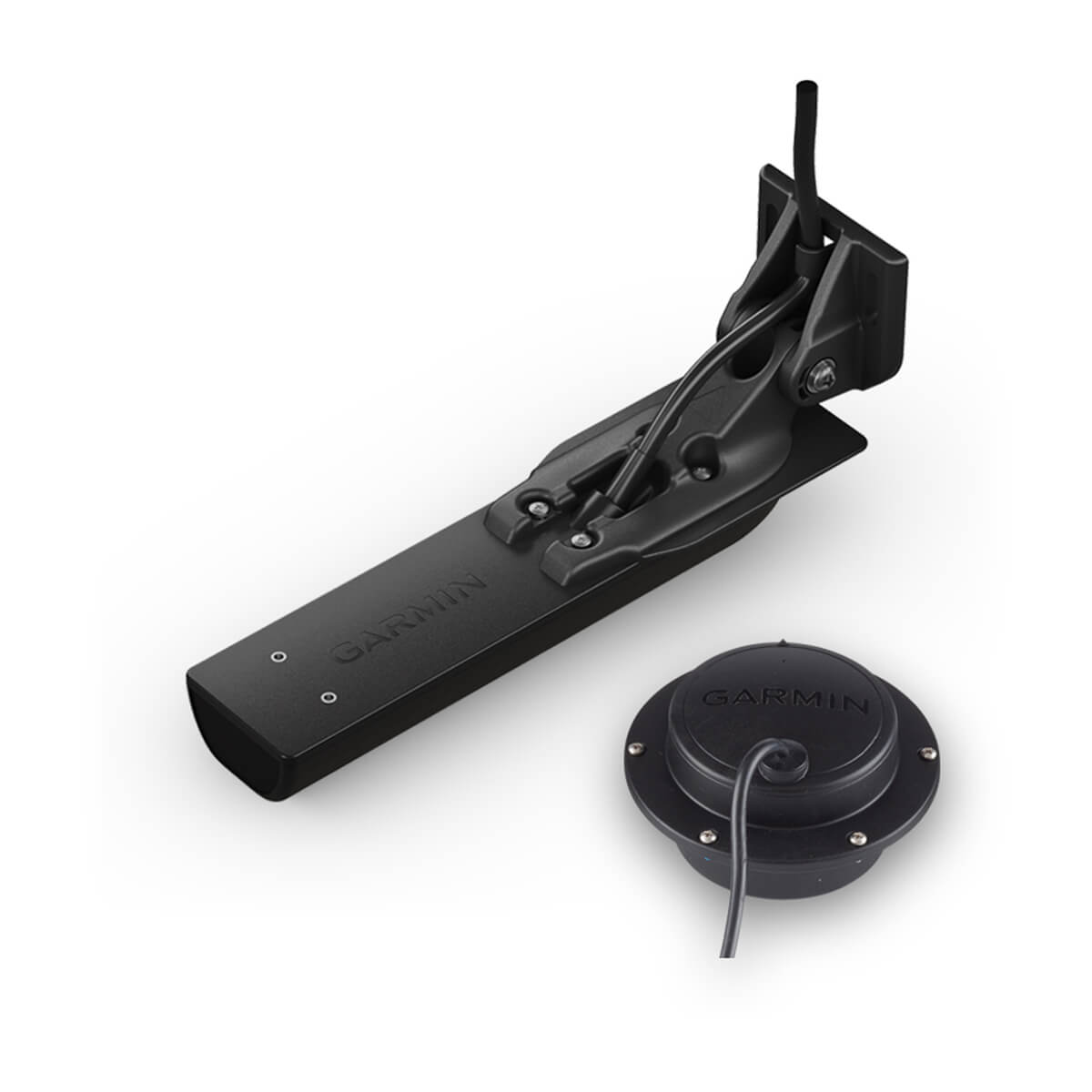

Perfect for the coastal and offshore fisherman who want CHIRP traditional sonar and CHIRP ClearVü and CHIRP SideVü scanning sonar, this bundle consistently displays clear and crisp fish arches with superior target separation as well as clear definition of objects, structure and fish that pass below and to the side of the boat. This bundle includes a GT15M-IH in-hull transducer, featuring mid-band CHIRP traditional sonar. The GT15M-IH is also an excellent choice for boats traveling at high speeds that want to maintain accurate depth readings. The GT30-TM transom mount transducer is also included and features CHIRP ClearVü and CHIRP SideVü scanning sonar.

This transducer bundle is ideal for fiberglass hulls with a deadrise of 0° to 25°.

Specifications:

  • GT30-TM transducer specs:
    • Frequency: ClearVü/SideVü CHIRP 455 kHz (425-485 kHz) & 800 kHz (790-850 kHz)
    • Power: ClearVü/SideVü 500 W
    • Beamwidth: ClearVü (1.4x53 @ 455 kHz) & (0.8x30 @ 800 kHz); SideVü (1.1x53 @ 455 kHz) & (0.7x30 @ 800 kHz)
    • Maximum depth: ClearVü: 750 ft.; SideVü: 500 ft.
    • Depth and Temperature
    • Number of pins: 12-pin
    • Cable length: 20 ft.
    • Supported deadrise/Transom angles: 0°-70° degree transom
  • GT15M-IH transducer specs
    • Frequency: CHIRP Mid-band (85-165 kHz)
    • Power: 600 W
    • Beamwidth: 24-13
    • Maximum depth: 1,900 ft. freshwater
    • Depth only
    • Number of pins: 8-pin
    • Cable length: 20 ft.
    • Supported deadrise: 0°- 25° deadrise

In the Box:

  • GT30-TM transducer specs:
    • Frequency: ClearVü/SideVü CHIRP 455 kHz (425-485 kHz) & 800 kHz (790-850 kHz)
    • Power: ClearVü/SideVü 500 W
    • Beamwidth: ClearVü (1.4x53 @ 455 kHz) & (0.8x30 @ 800 kHz); SideVü (1.1x53 @ 455 kHz) & (0.7x30 @ 800 kHz)
    • Maximum depth: ClearVü: 750 ft.; SideVü: 500 ft.
    • Depth and Temperature
    • Number of pins: 12-pin
    • Cable length: 20 ft.
    • Supported deadrise/Transom angles: 0°-70° degree transom
  • GT15M-IH transducer specs
    • Frequency: CHIRP Mid-band (85-165 kHz)
    • Power: 600 W
    • Beamwidth: 24-13
    • Maximum depth: 1,900 ft. freshwater
    • Depth only
    • Number of pins: 8-pin
    • Cable length: 20 ft.
    • Supported deadrise: 0°- 25° deadrise
