Infinity

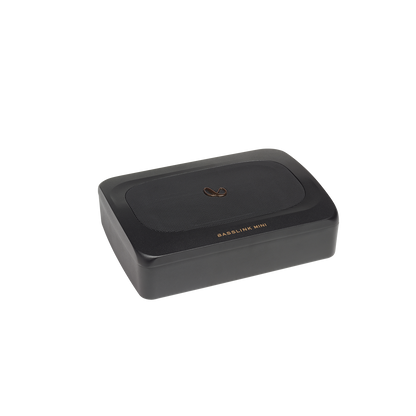

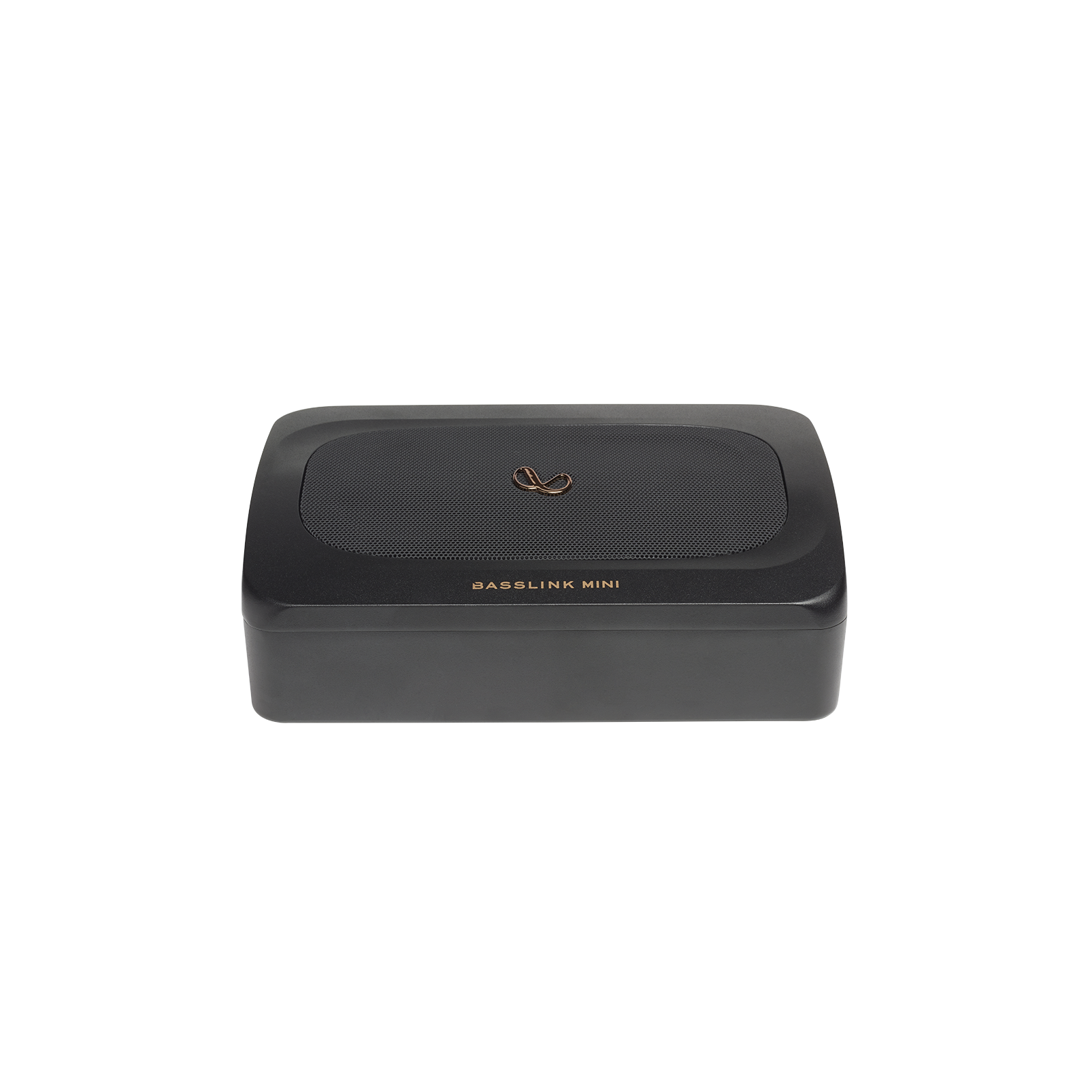

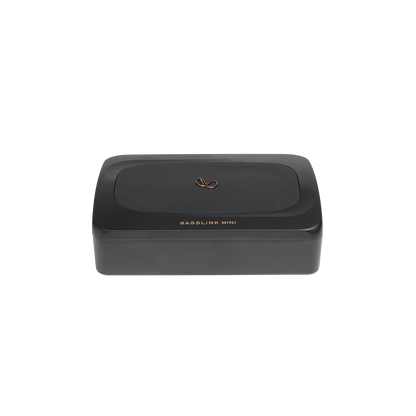

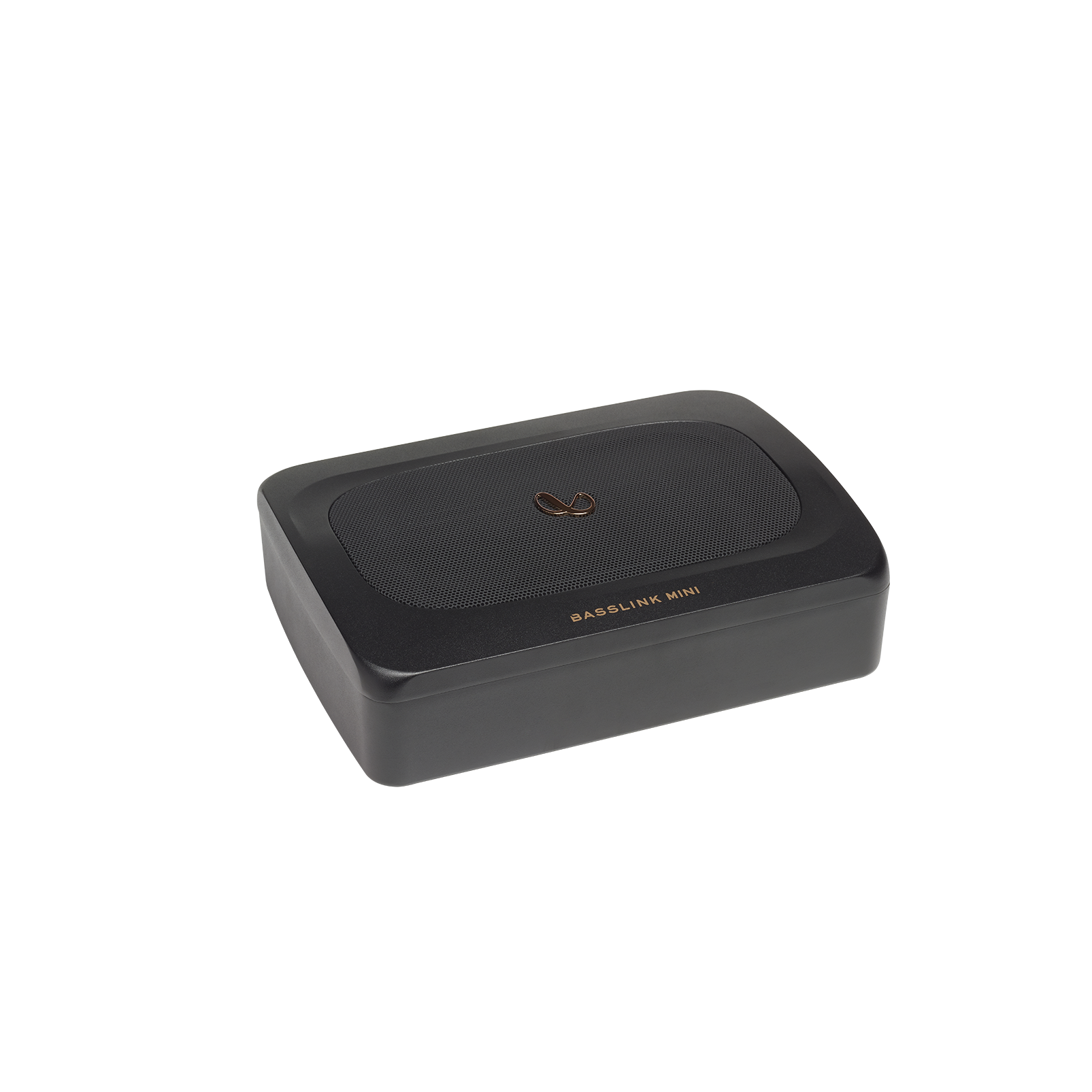

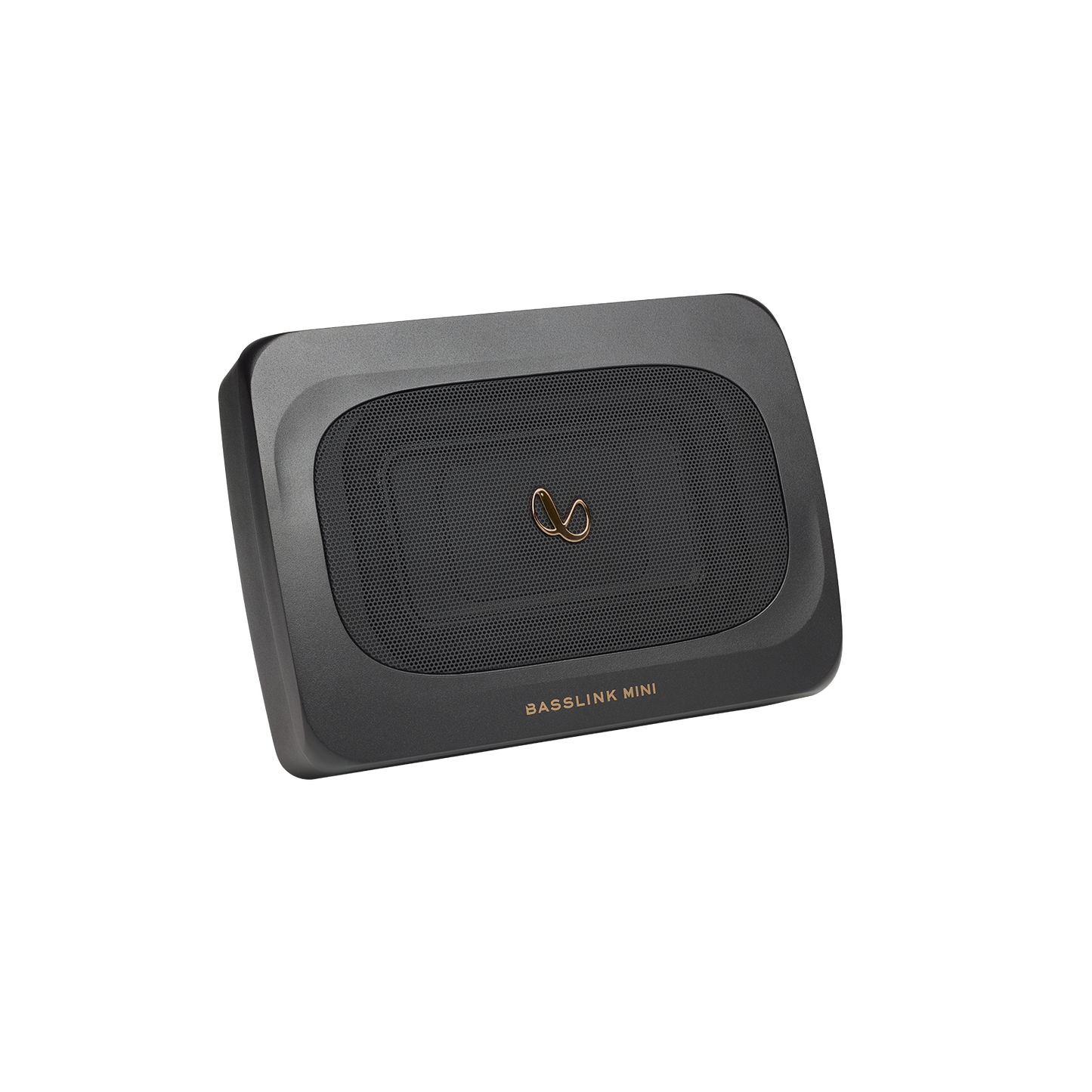

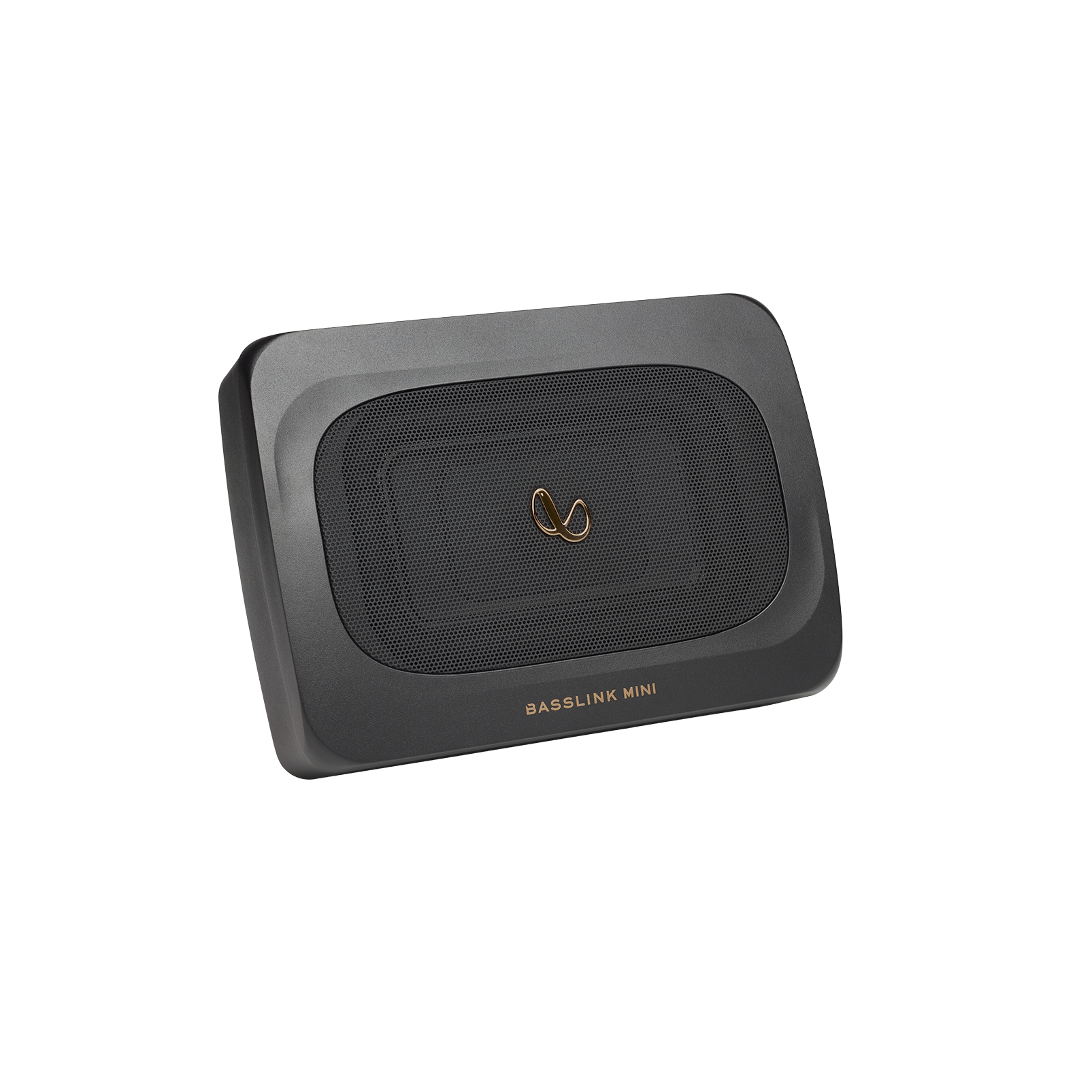

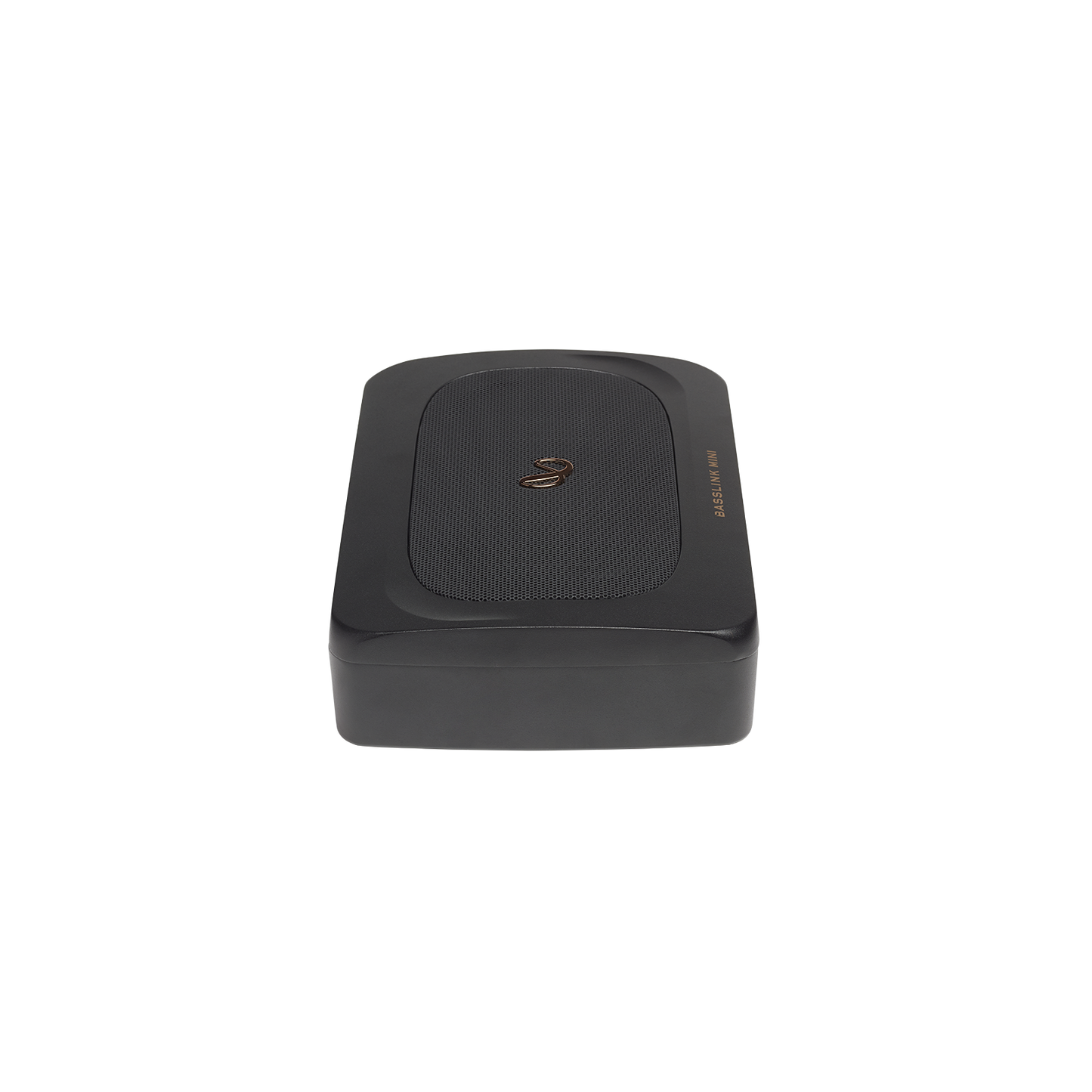

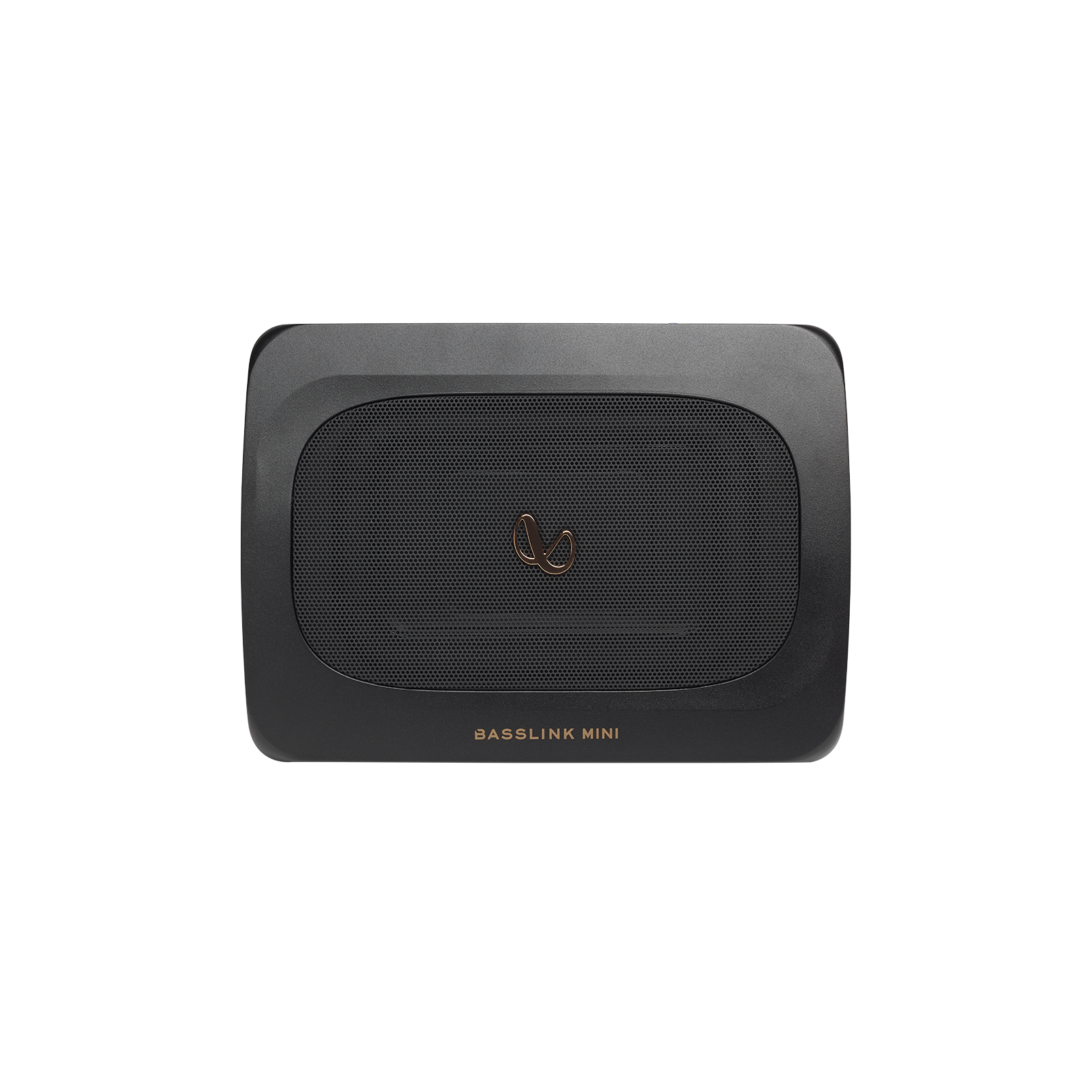

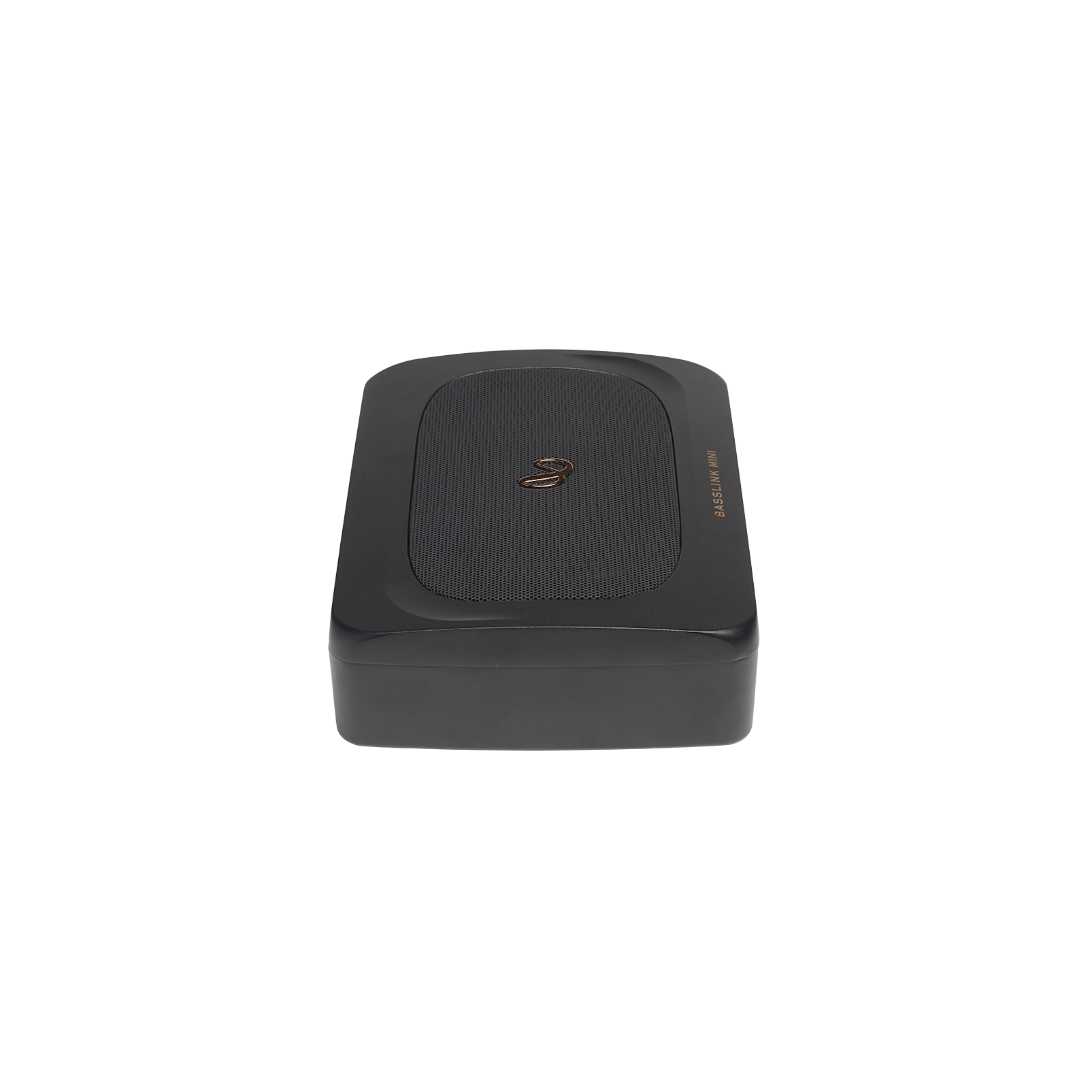

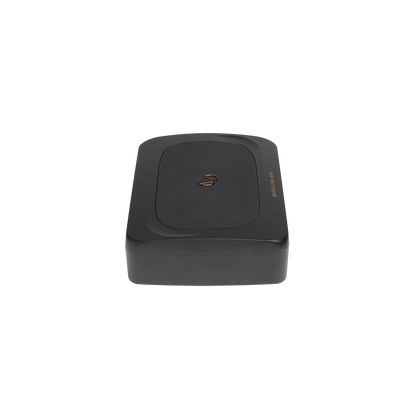

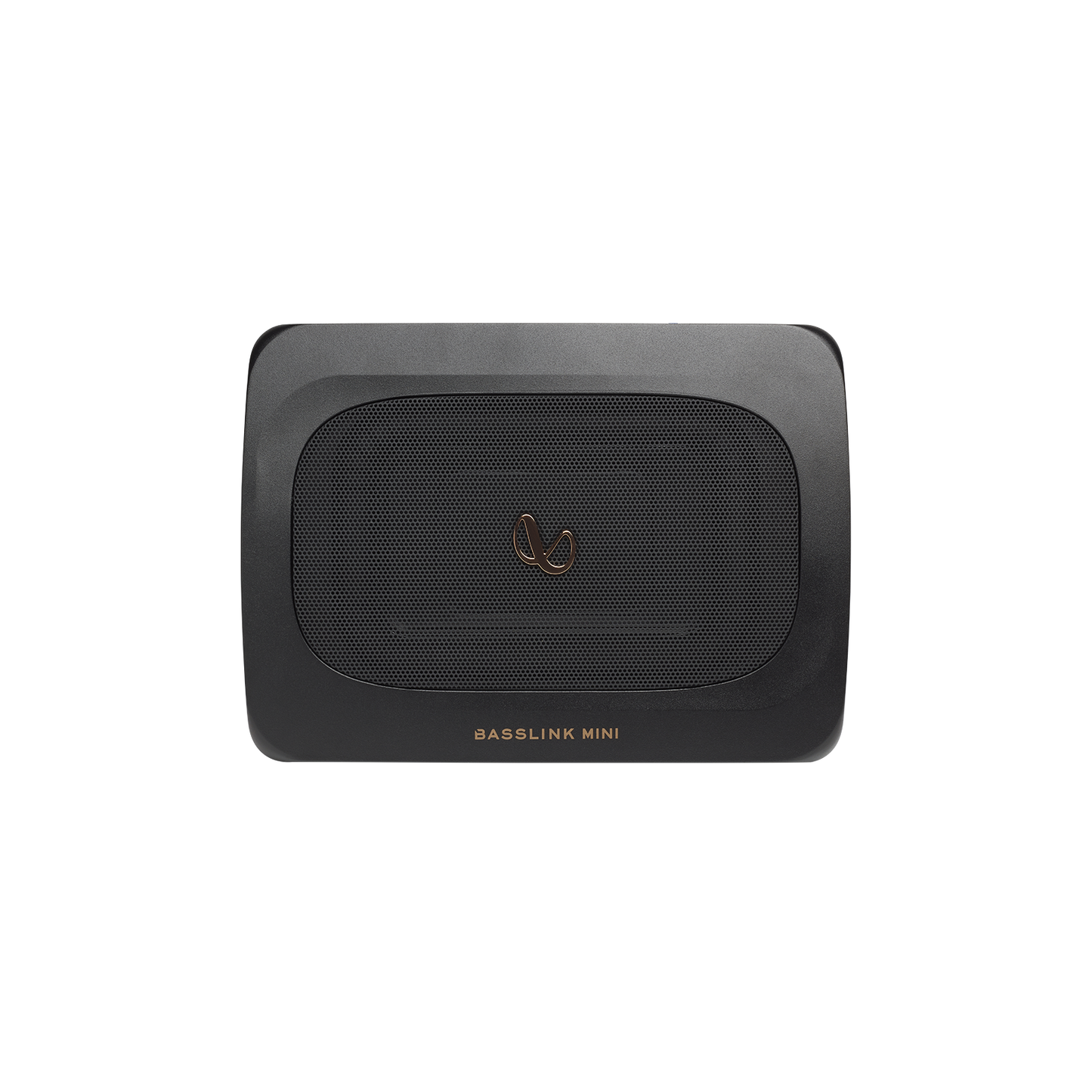

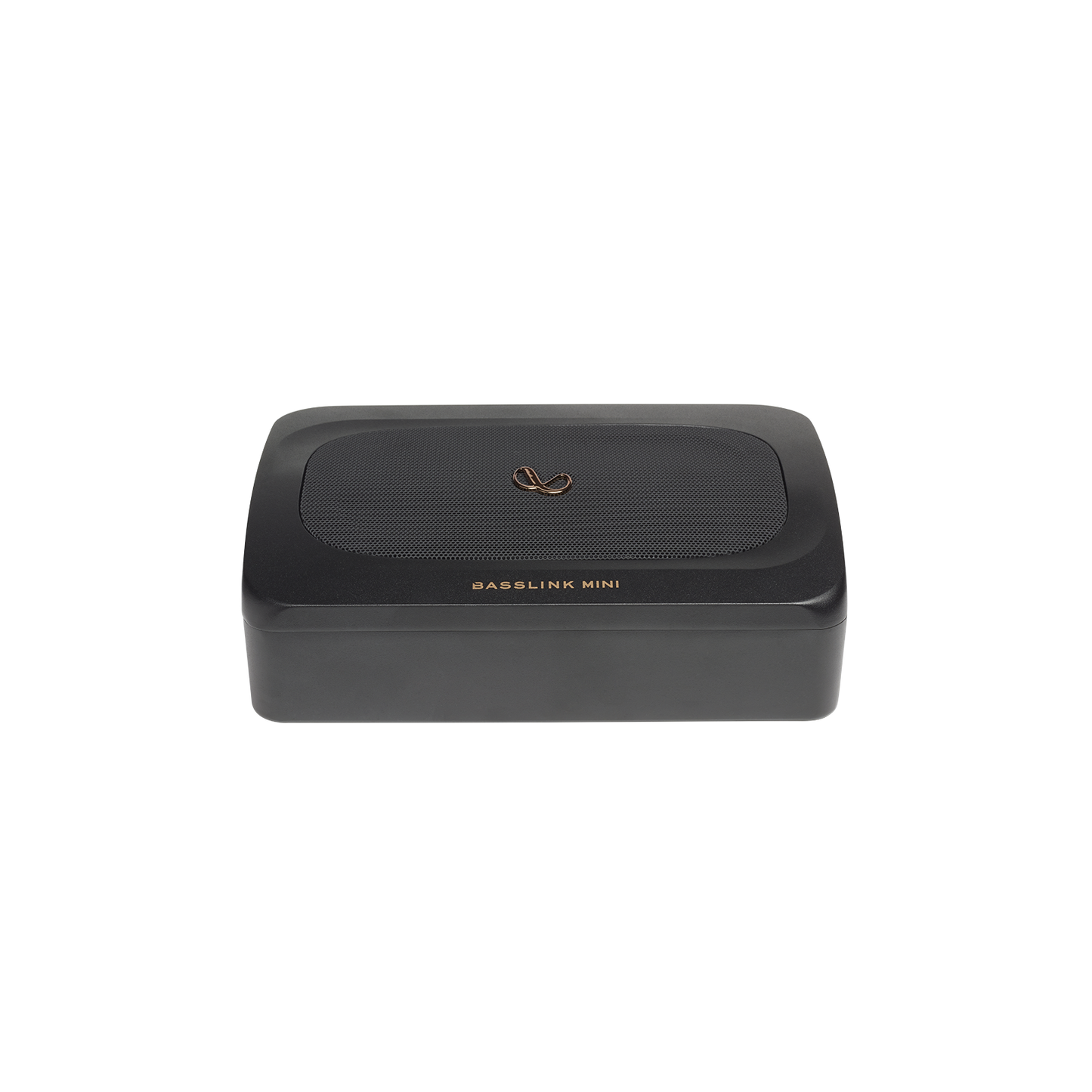

Infinity BassLink MINI Subwoofers

Infinity BassLink MINI Subwoofers

Infinity BassLink MINI delivers deep bass and takes up little space. Infinity's smallest powered subwoofer can be hid in the most compact of locations and deliver exceptional performance to any car audio system.

  • price-tag logoNew Launch
Regular price $299.95
Regular price $349.99 Sale price $299.95
Save: $50.04 (14% Off)*
Sale Sold out
Shipping calculated at checkout.
  • cargo-truck logoFree shipping Over $99
Sold in last hours
  • free logo
    Fast, FREE Delivery

    Free, Fast, Doorstep Delight!

  • return logo
    Delivery & Returns

    Effortless Delivery, Easy Returns

View full details
  • Overview
  • Details
  • Accessories

Product info:

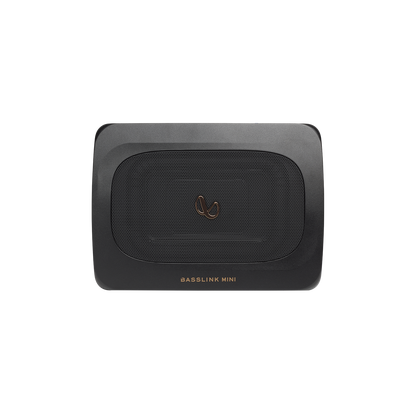

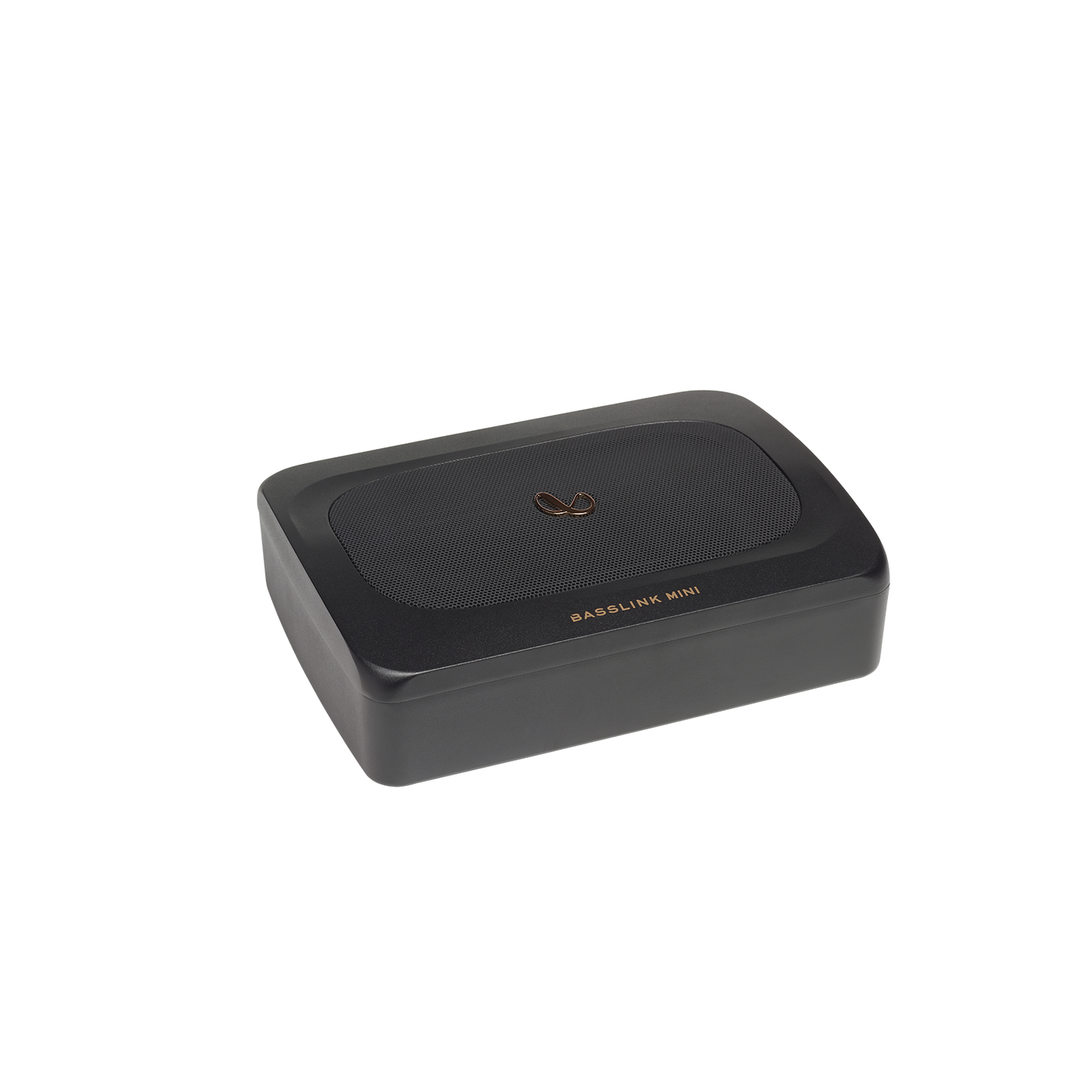

  • powered subwoofer with die-cast aluminum enclosure
  • 6"x8" shallow-profile woofer
  • built-in amplifier: 100 watts RMS (200 watts peak)
  • 10-gauge amp wiring kit required (sold separately)

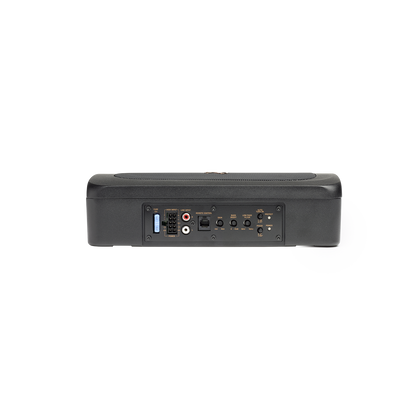

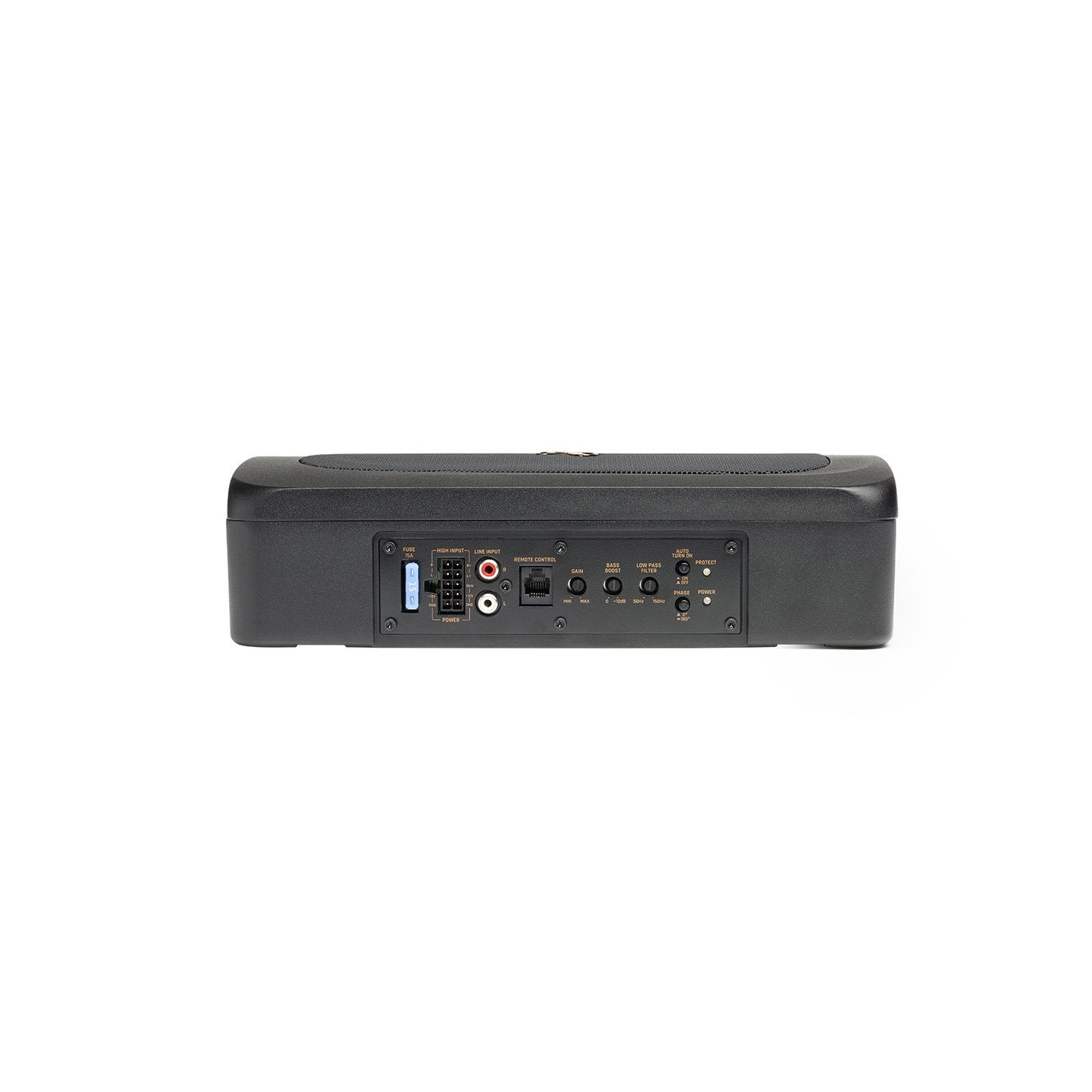

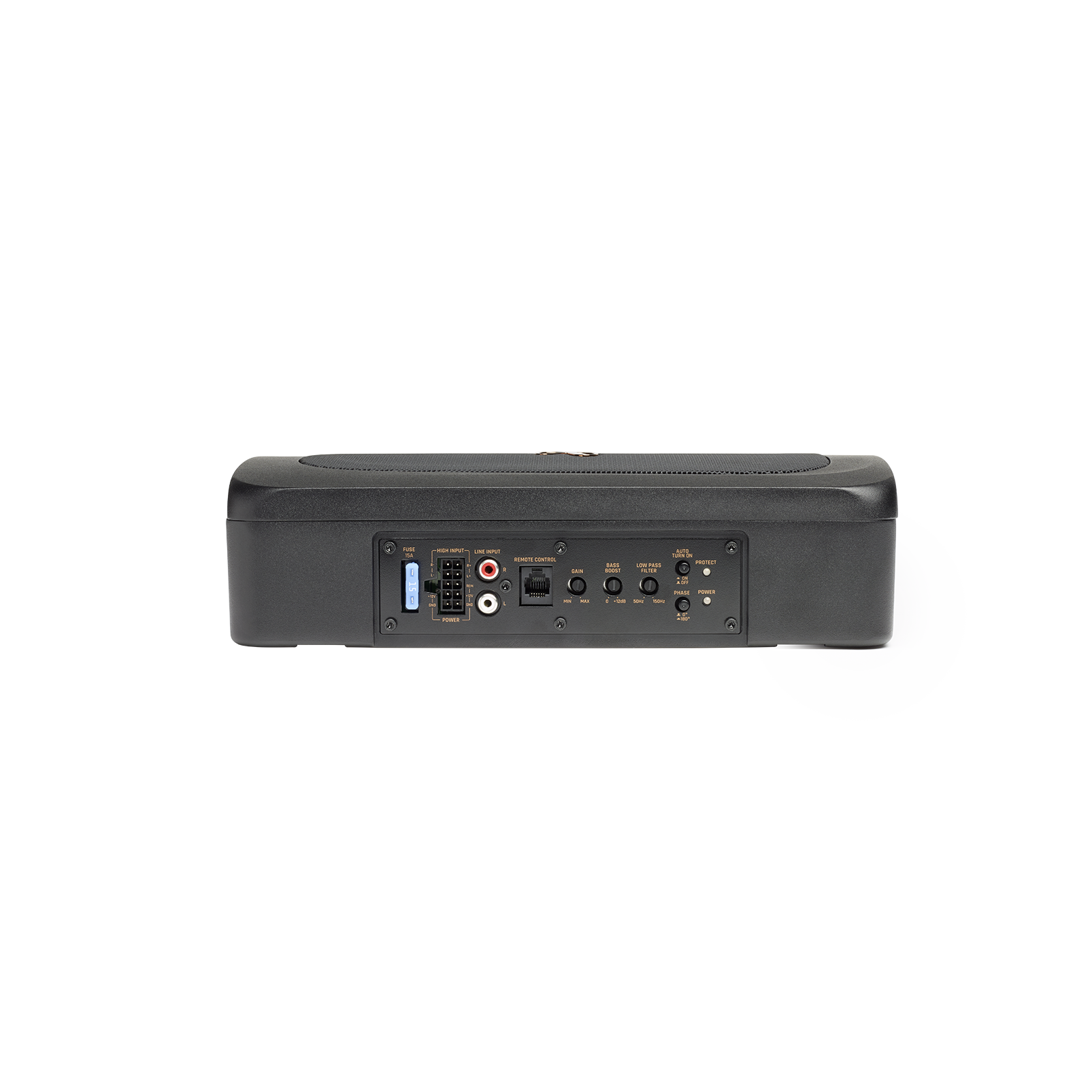

  • controls:
    • low-pass crossover variable from 50-150 Hz at 12 dB per octave
    • variable bass boost (0 to +12 dB at 50 Hz)
    • phase switch (selectable 0 or 180 degrees)

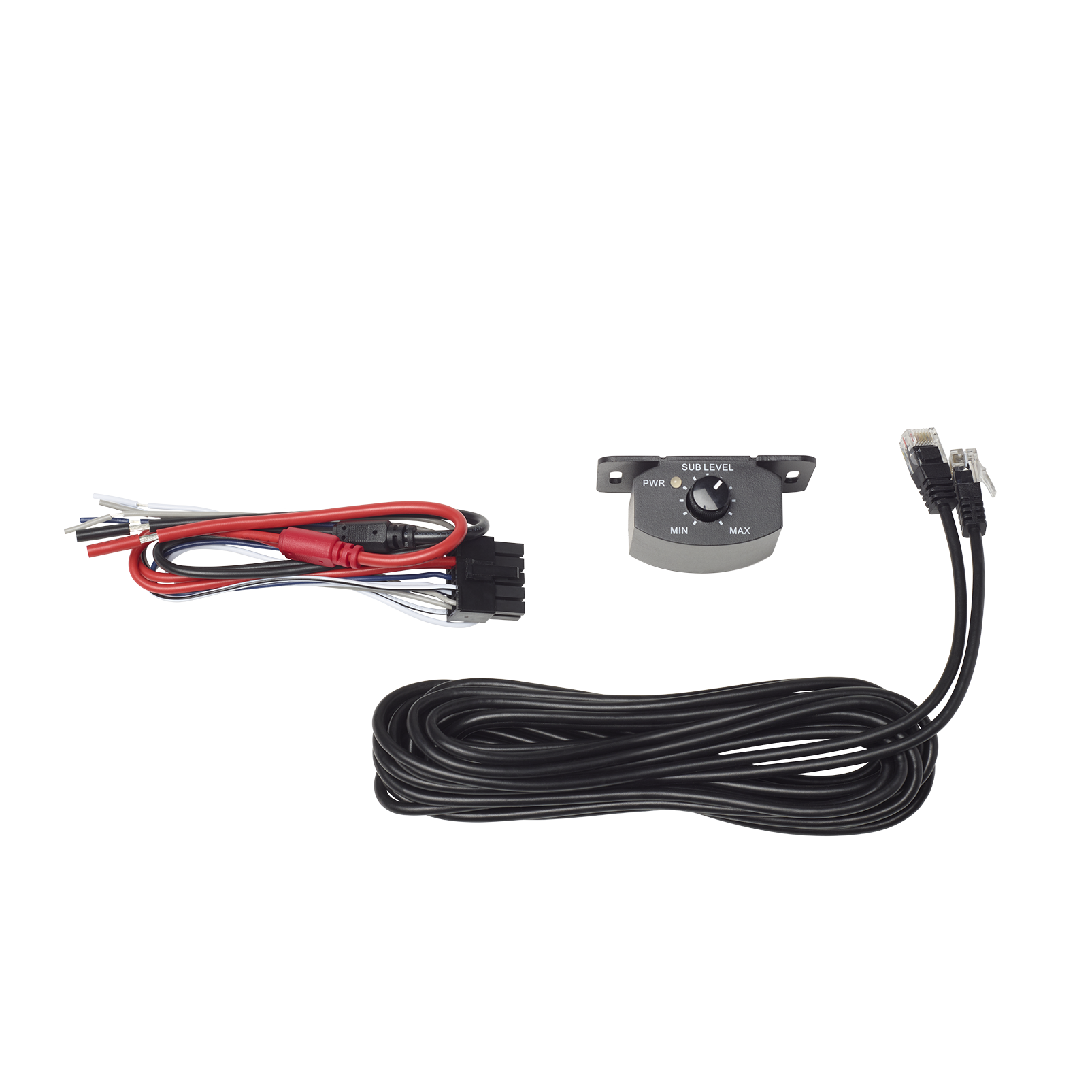

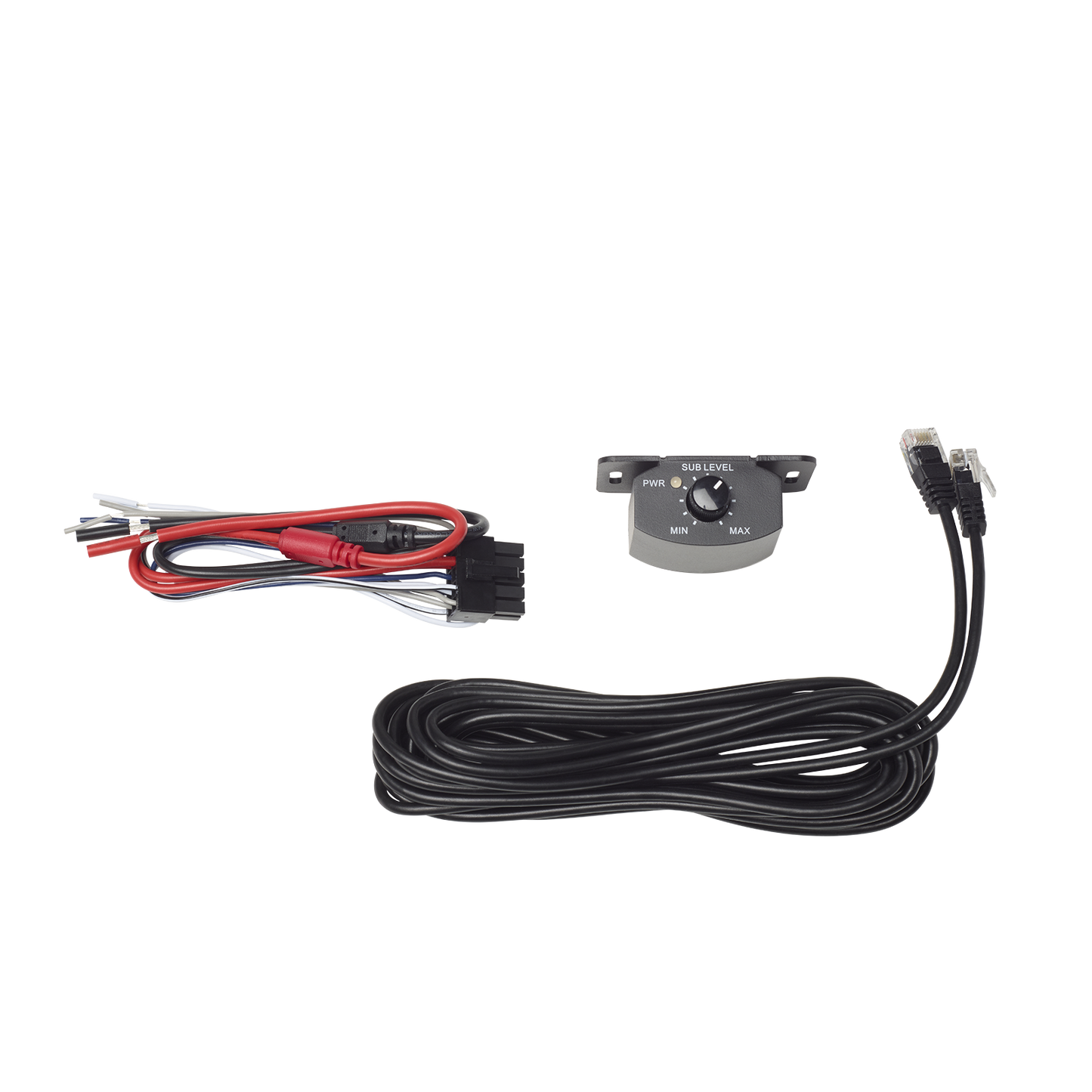

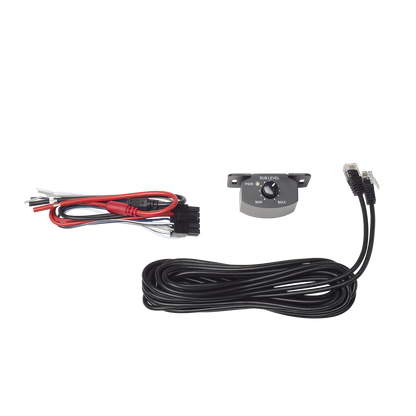

    • wired remote volume control (with 16.5-foot cable)
  • speaker and line-level inputs
  • frequency response: 30-150 Hz
  • dimensions: 11-3/8"W x 2-7/8"H x 8-1/4"D



Infinity BassLink MINI delivers deep bass and takes up little space. Infinity's smallest powered subwoofer can be hid in the most compact of locations and deliver exceptional performance to any car audio system. Powered by a 100Watts Amplifier, Basslink MINI delivers accurate, tight bass you would expect from Infinity, all while running cool and drawing minimal current from your vehicles charging system.

Specifications

Specification Details
Driver Complement 6" × 8" (152 × 203 mm) subwoofer
Amplifier Power 100W RMS, 200W max
Frequency Response 30Hz – 150Hz
Fuse 15A
Maximum Current Draw 13 A
Quiescent Current Draw < 600 mA
Input Sensitivity 0.1V – 4.0V (low-level), 0.25V – 20V (high-level)
Crossover Frequency 50Hz – 150Hz
Crossover Slope 12 dB/octave
Bass Boost 0 dB to +12 dB @ 50Hz
Dimensions (L × W × H) 11-7/16" × 8-5/16" × 3" (289.6 × 209.6 × 75.0 mm)
Weight 8.22 lbs (3.73 kg)
