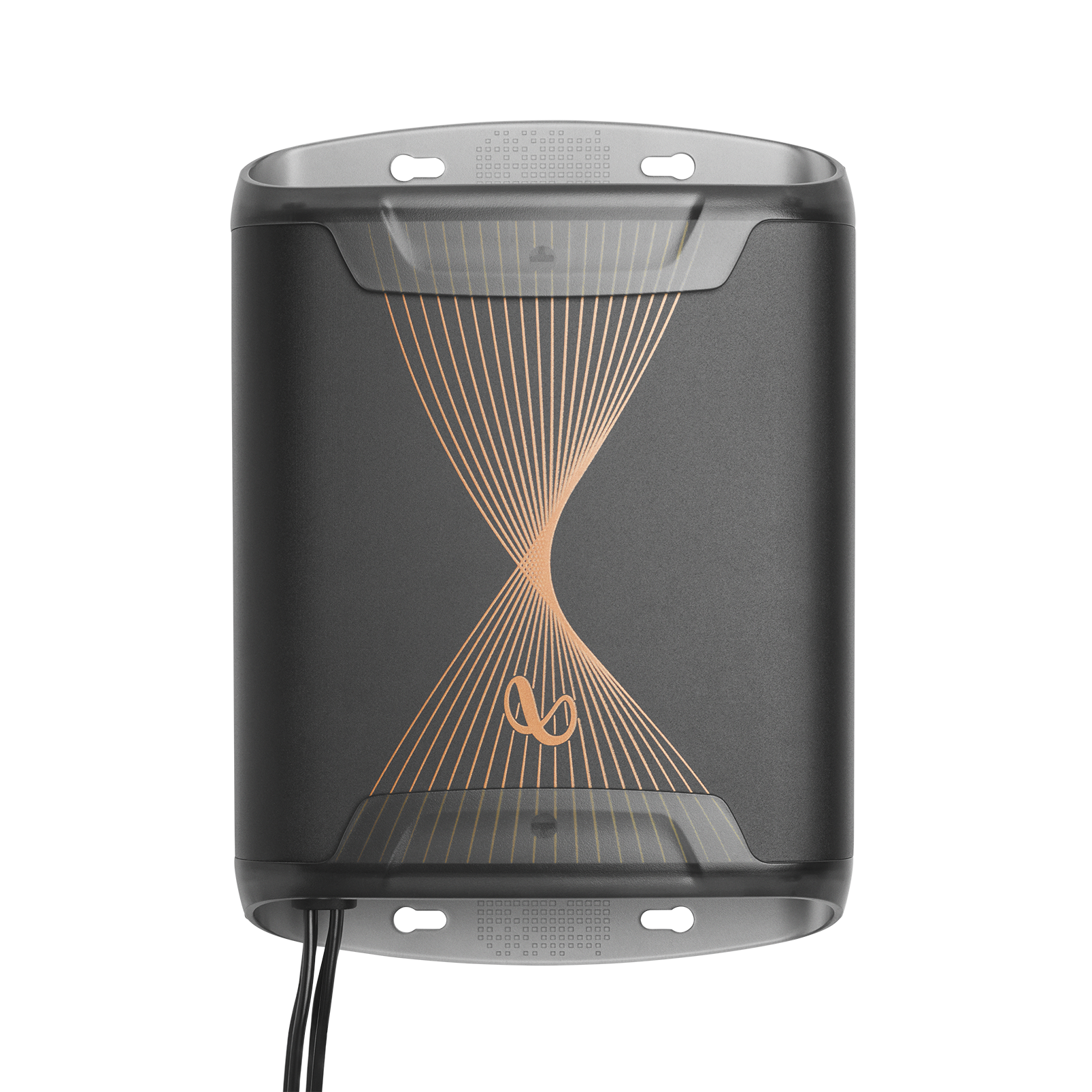

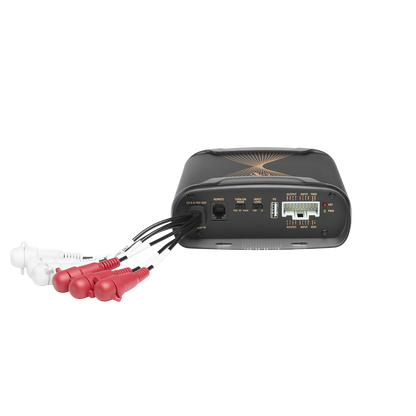

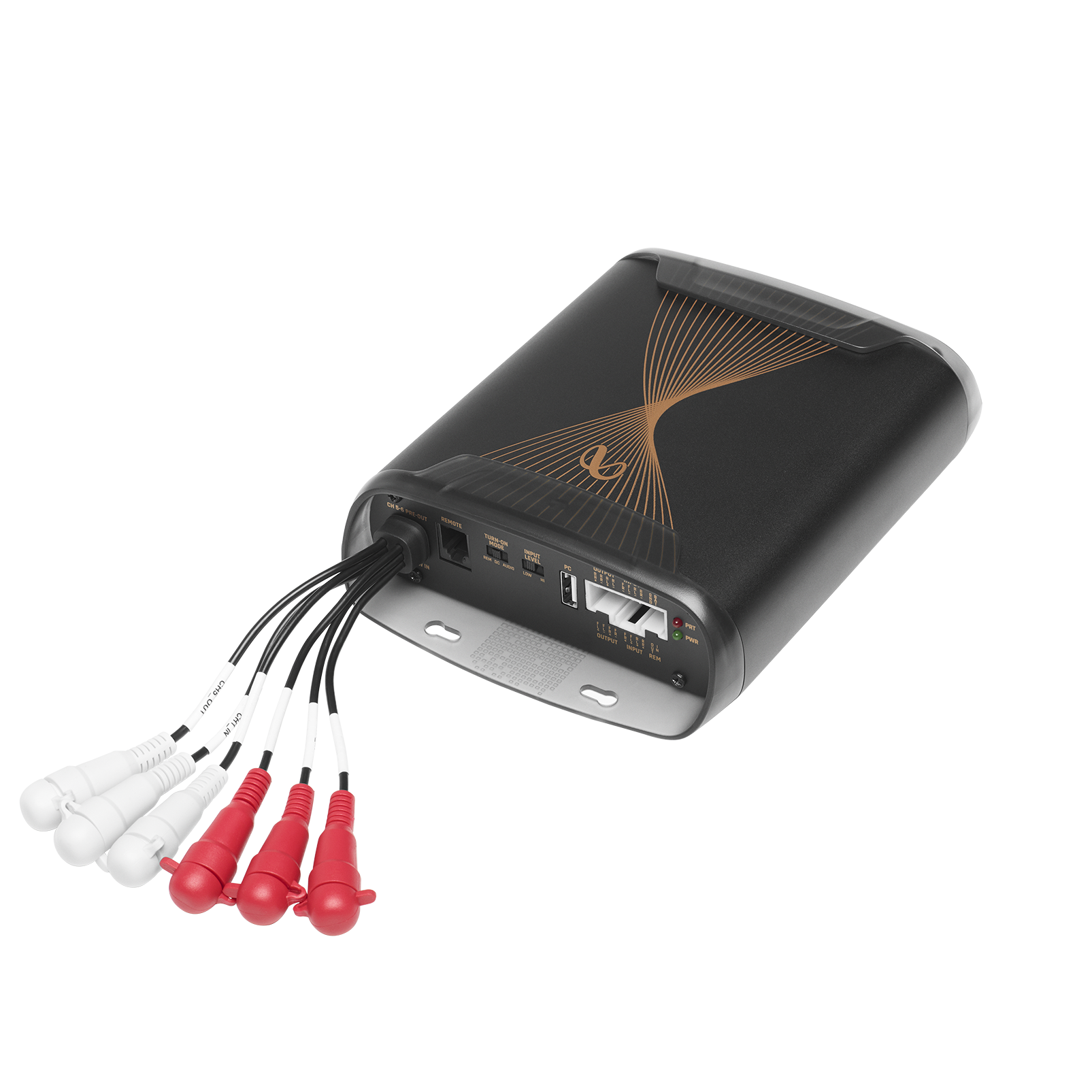

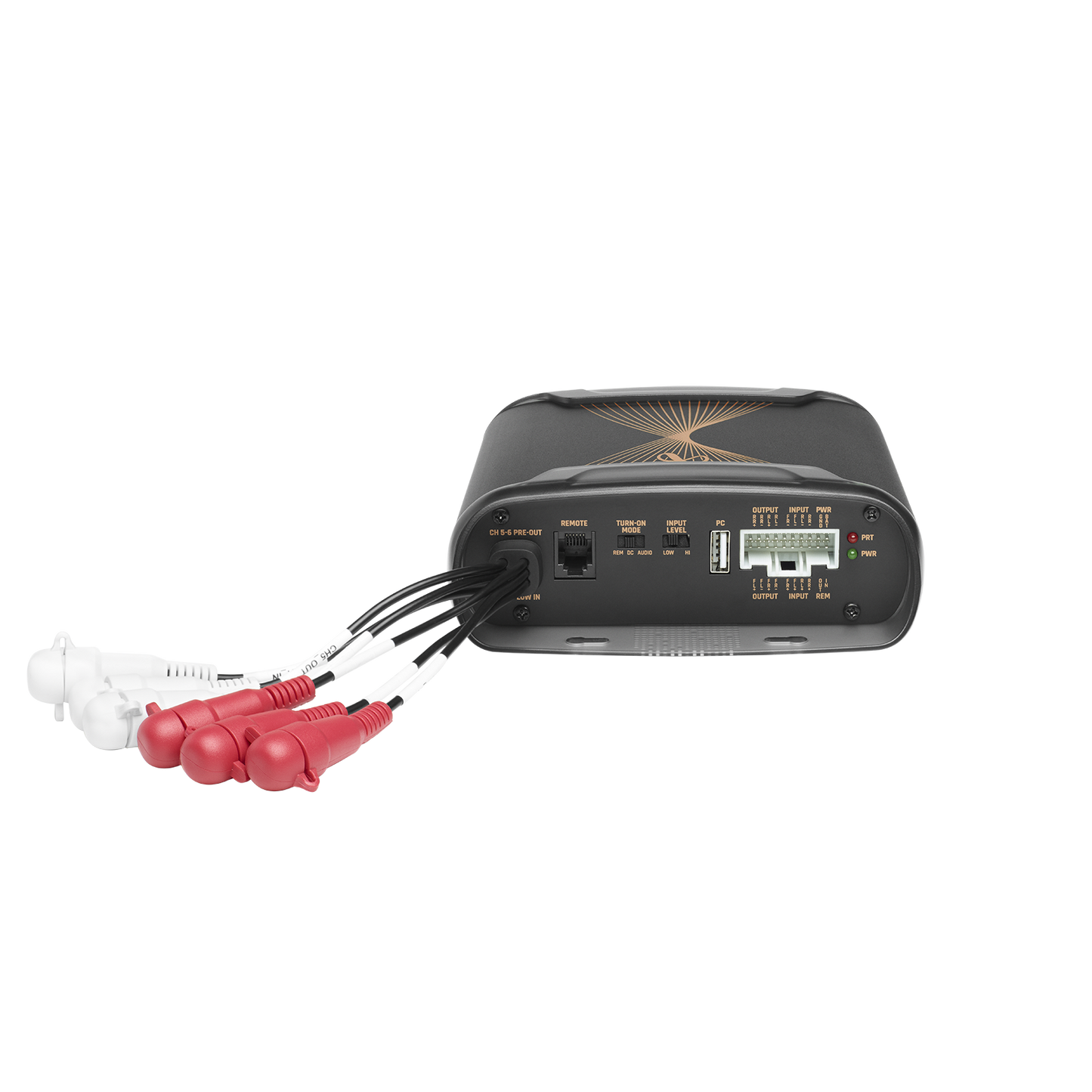

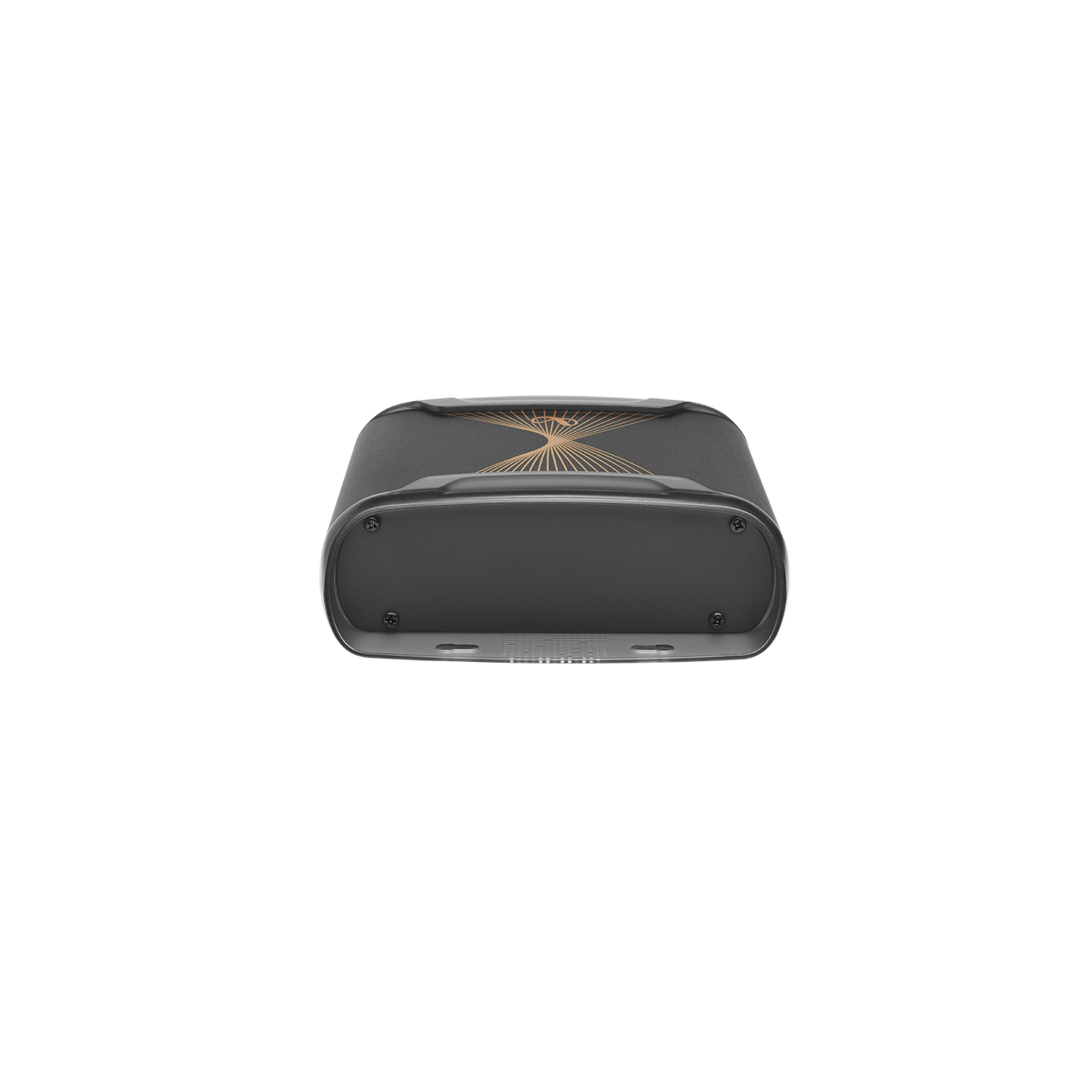

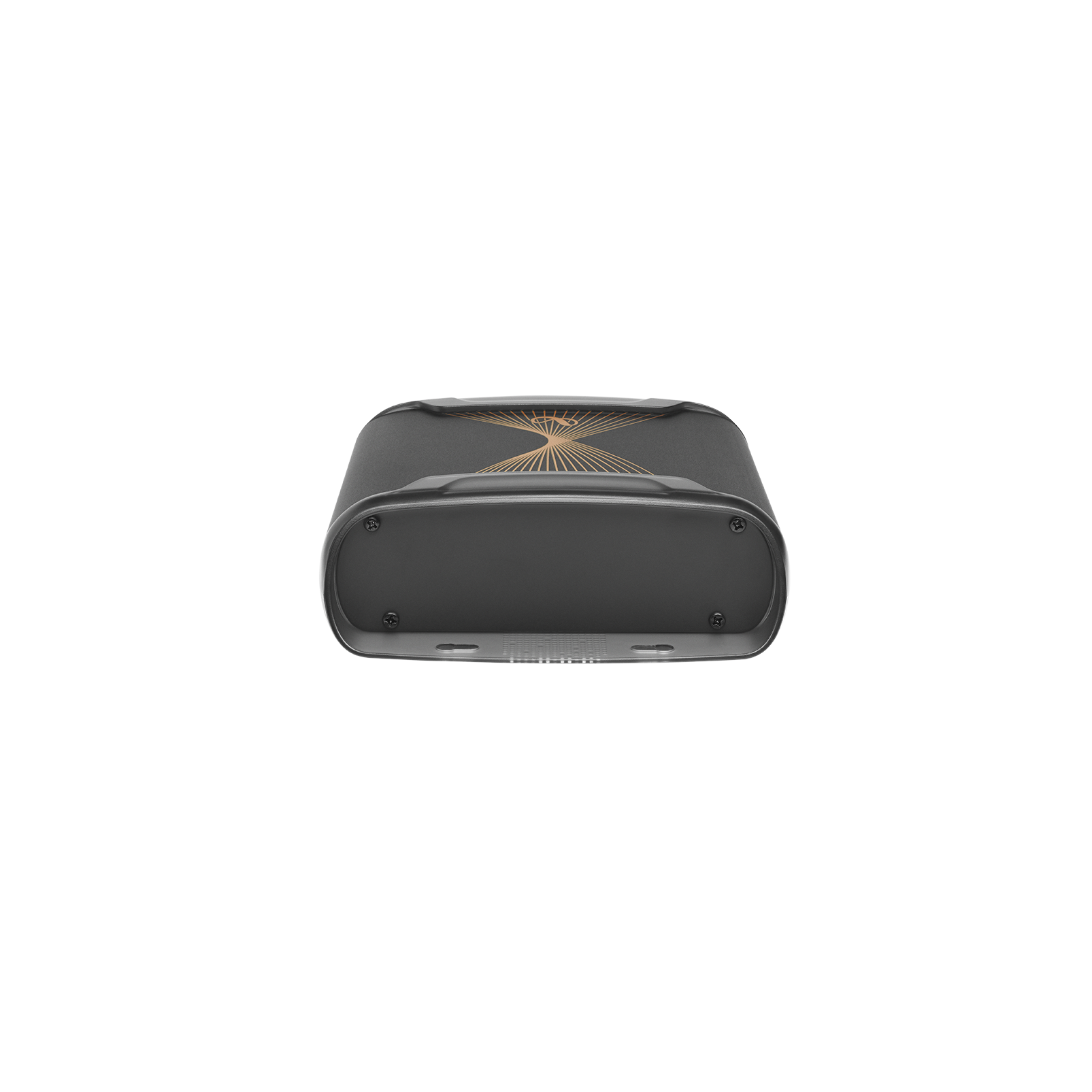

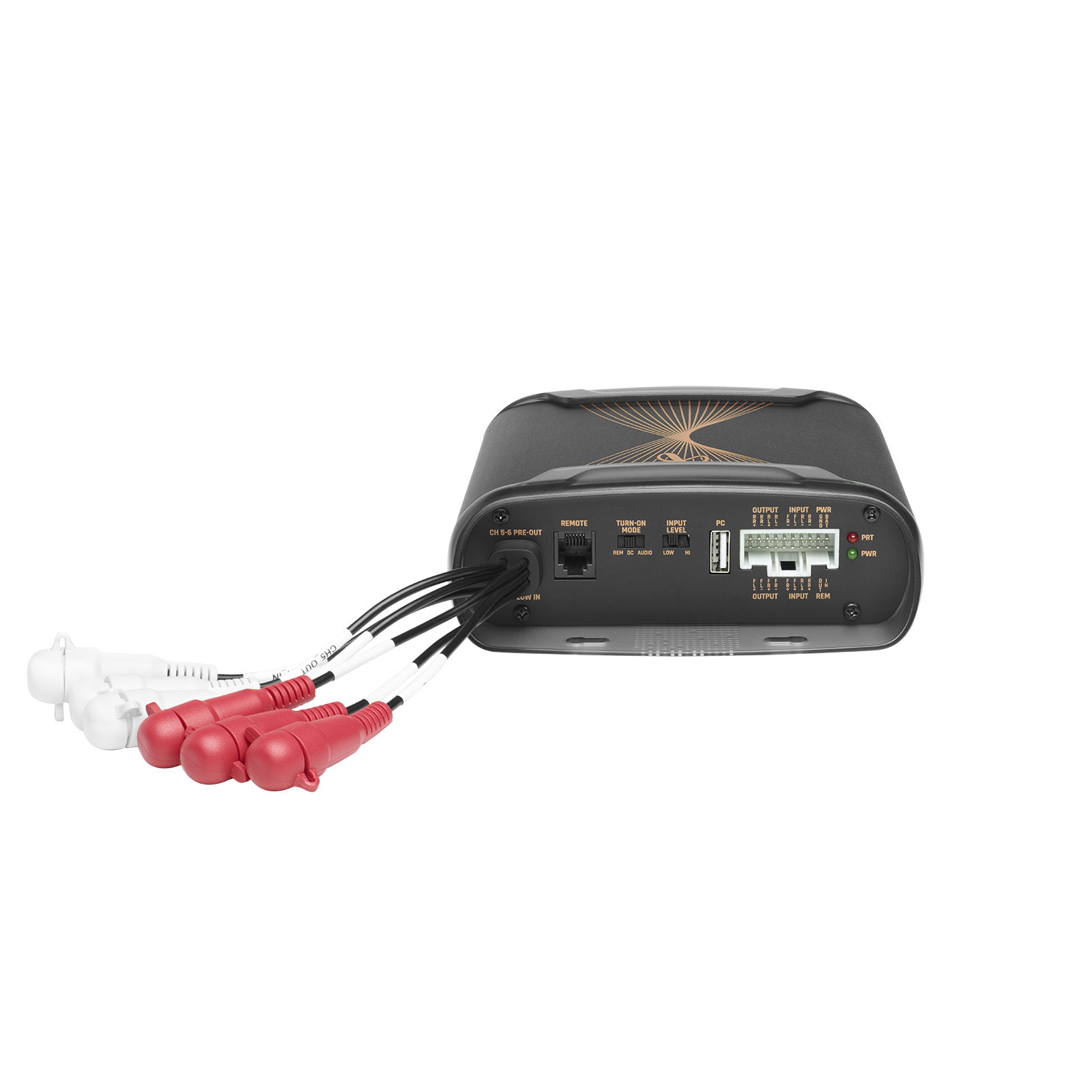

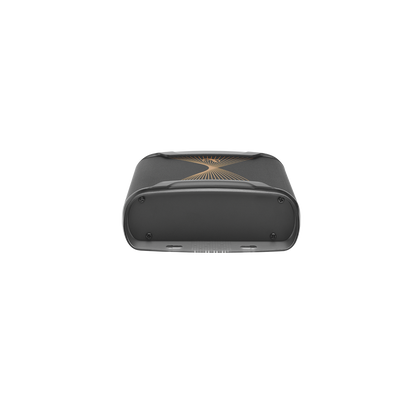

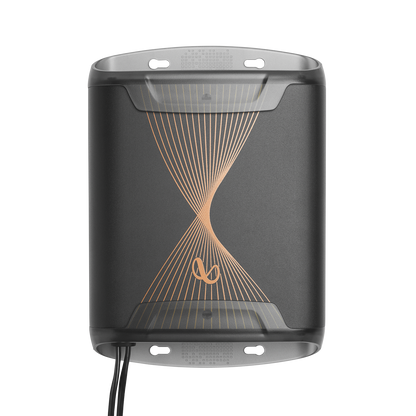

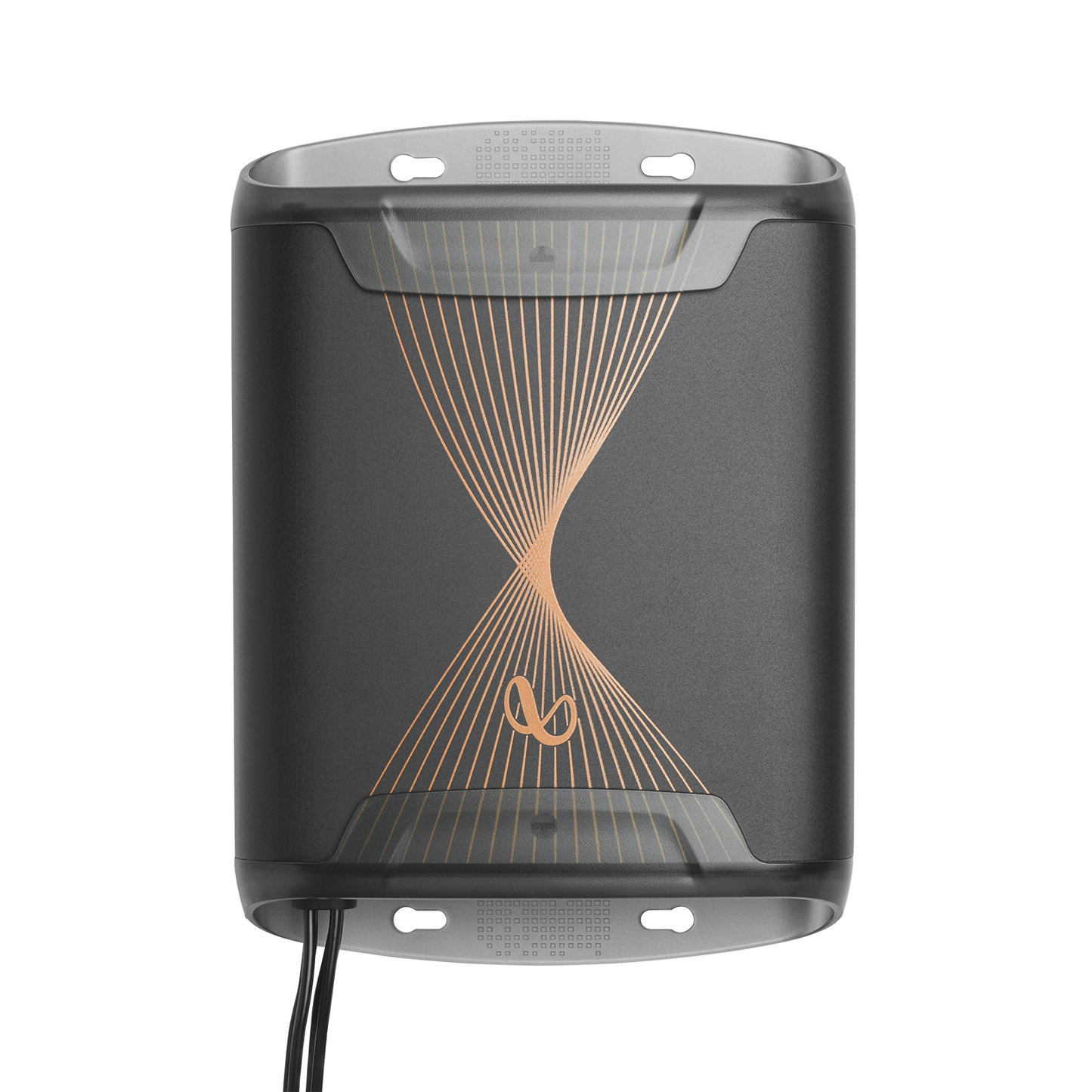

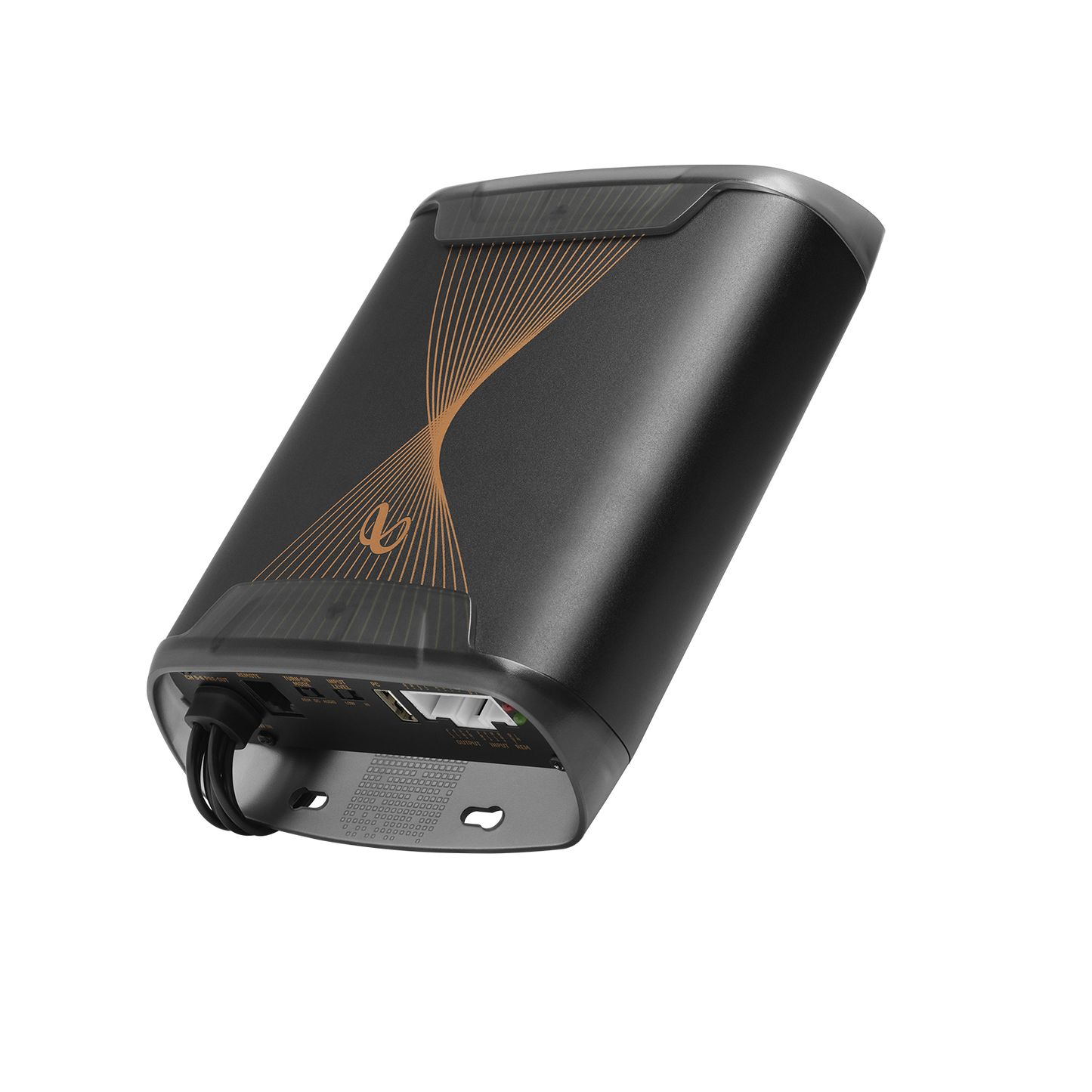

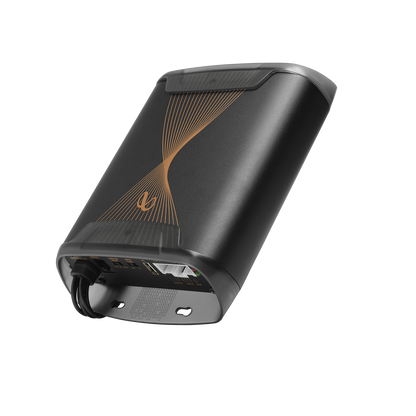

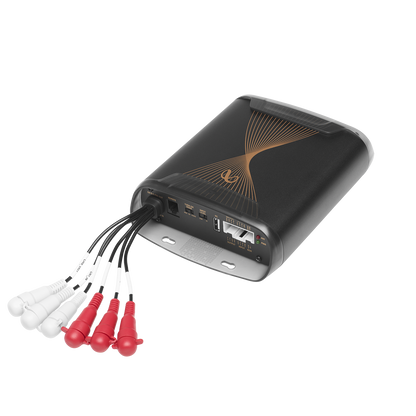

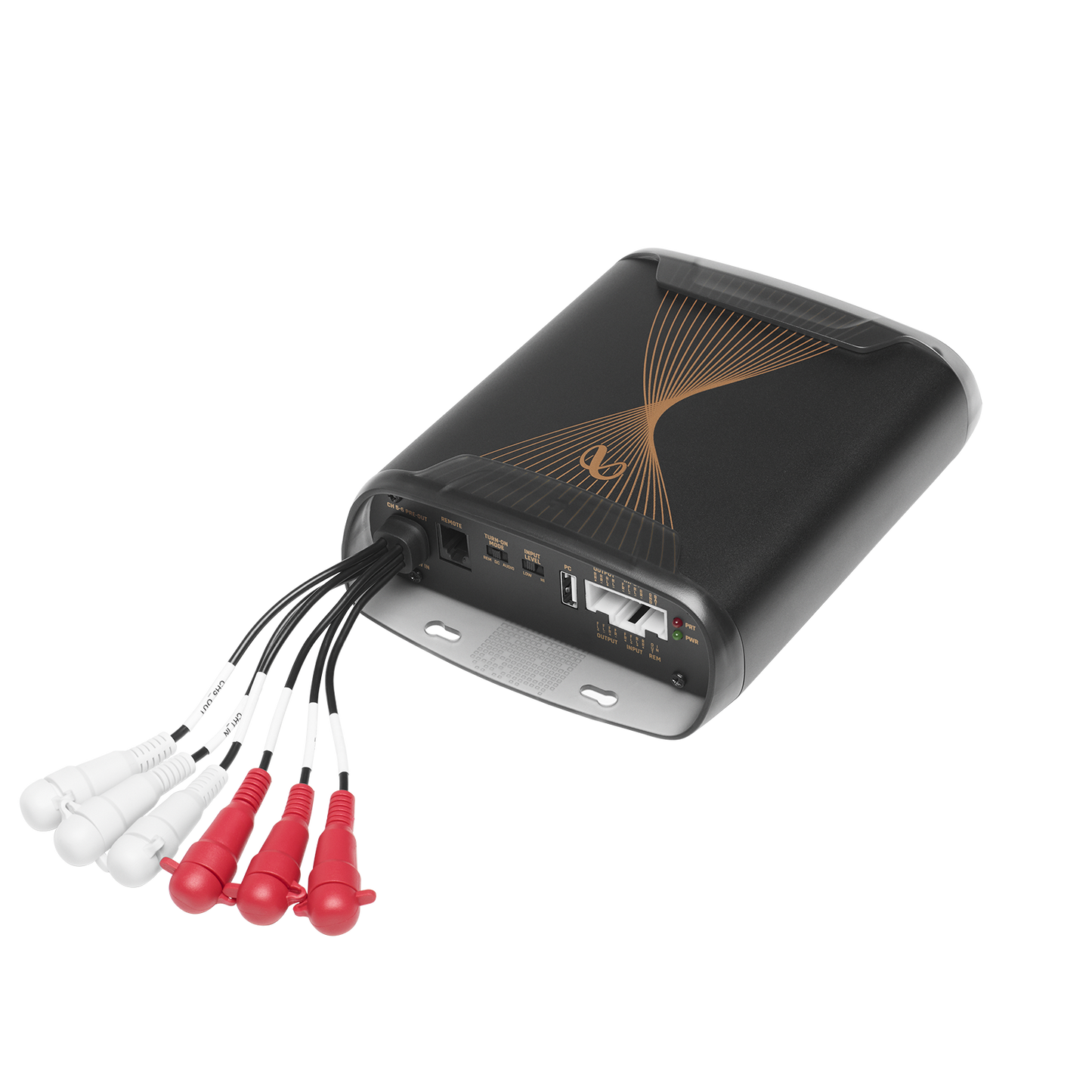

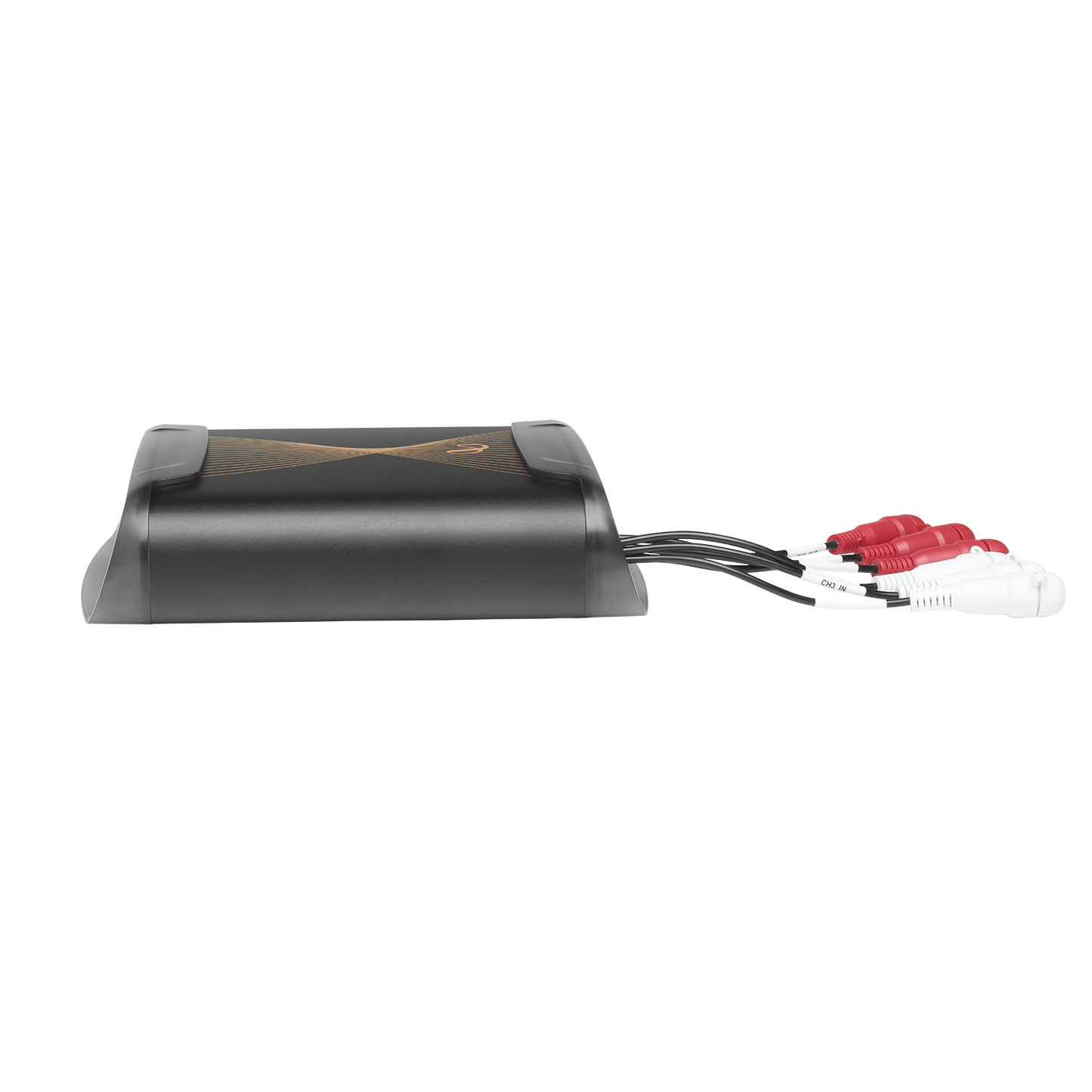

Infinity DSP Amplifier DSP4425

Product info:

• 4-channel car amplifier with digital signal processing
  • 25 watts RMS x 4 at 4 ohms
  • 35 watts RMS x 4 at 2 ohms
• Class AB amp technology
• DSP and EQ tuning tool adjustments made via USB connection to a Windows PC
  • save up to 10 presets
  • USB cable included

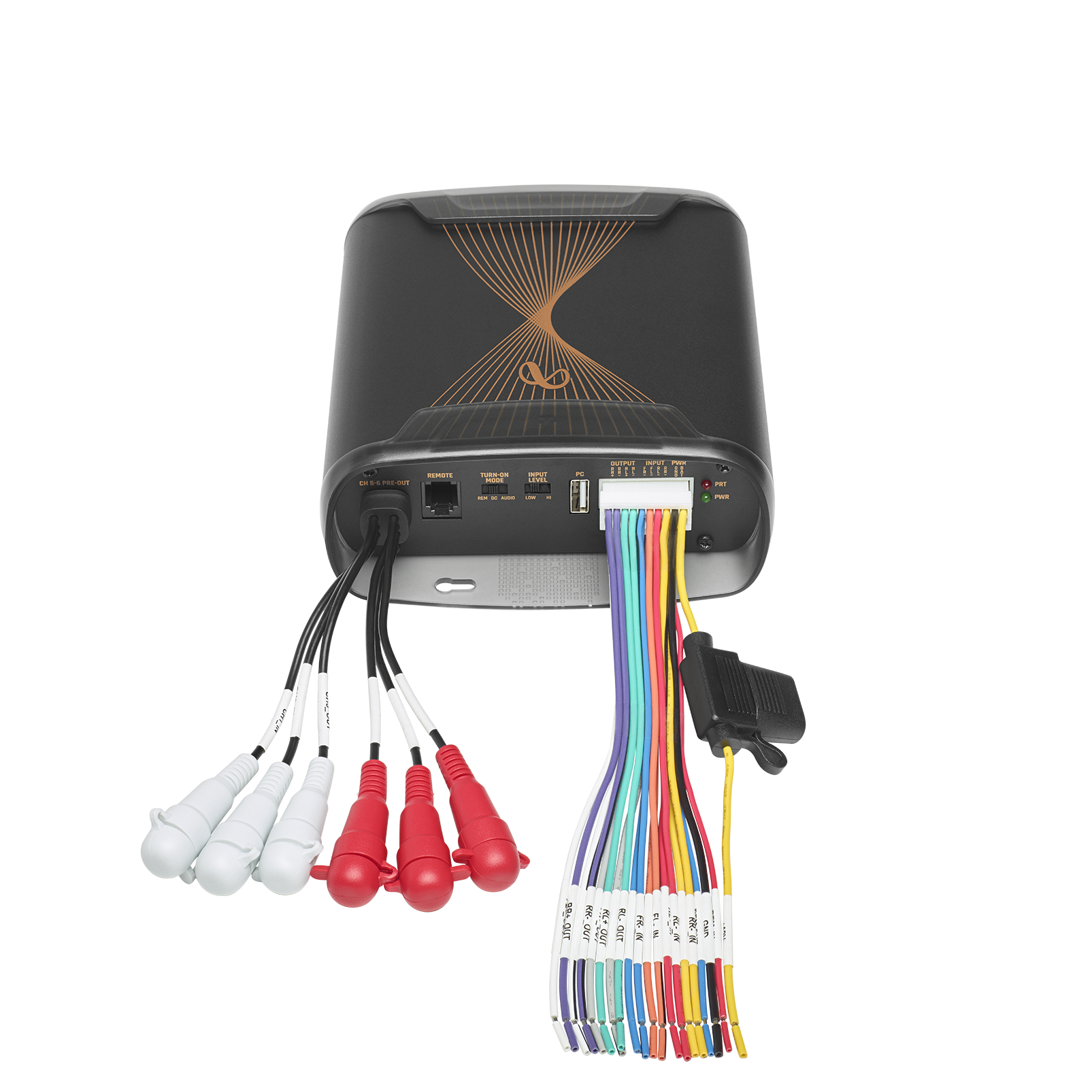

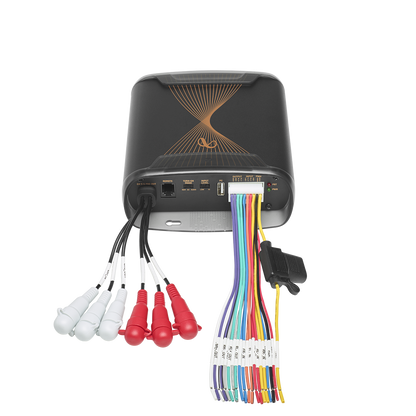

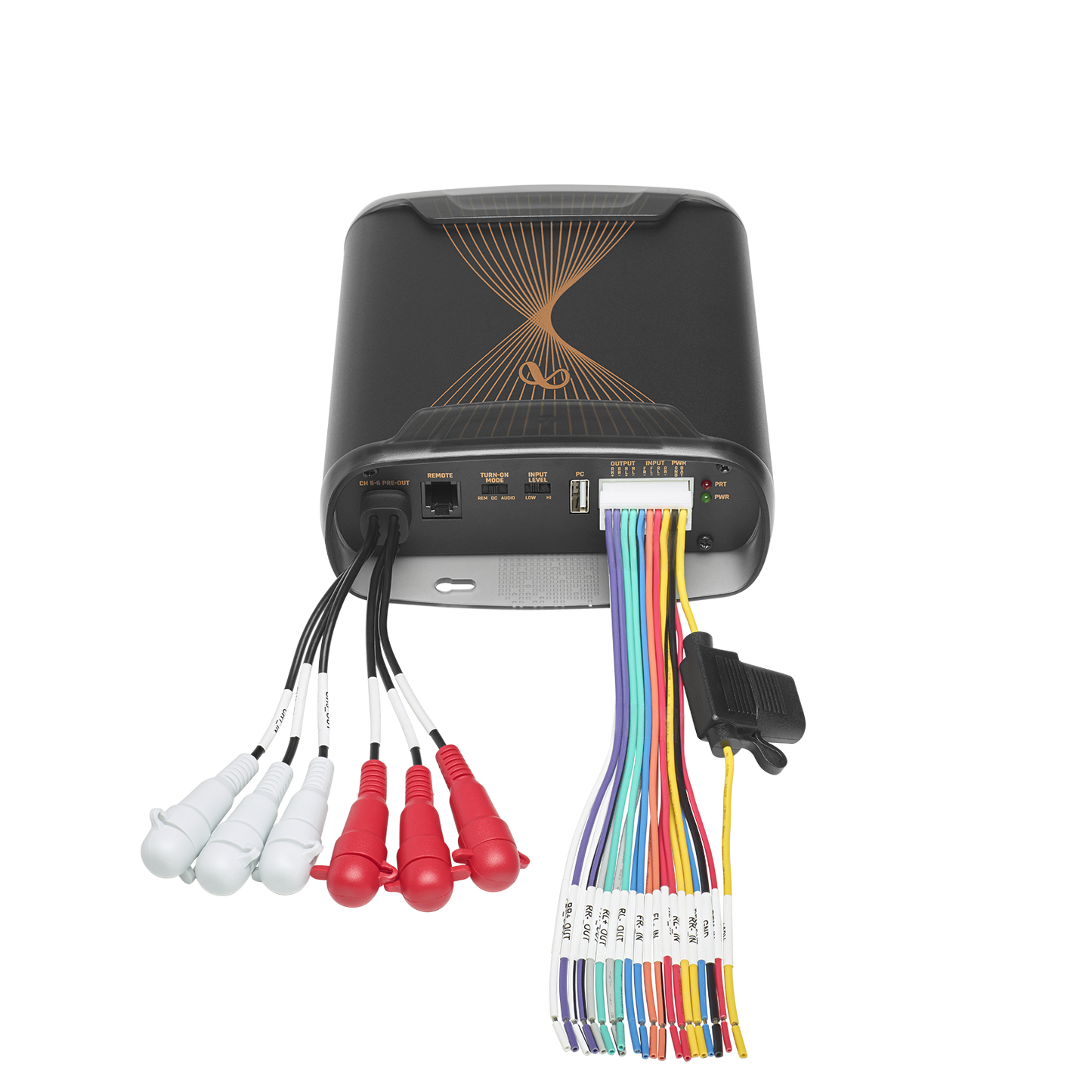

• inputs: 4 assignable preamp and speaker-level
• outputs: 4 processed speaker-level, 2 full-range preamp (4-volt)

Adjustment Details:

• 31-band EQ (selectable parametric or graphic)
• adjustable high-, low-, and band-pass filters (20-20,000 Hz)
  • selectable filter slopes (6, 12, 18, 24, 30, 36, 42, 48 dB/octave)
• adjustable delay: 0 to 12ms in 0.2ms increments
• selectable phase: 0° or 180°
• programming done by your Windows-run PC

Other Features:

• optional wired remote (for ch 5/6) available (#108RBC)
• fuse rating: 15A x 1

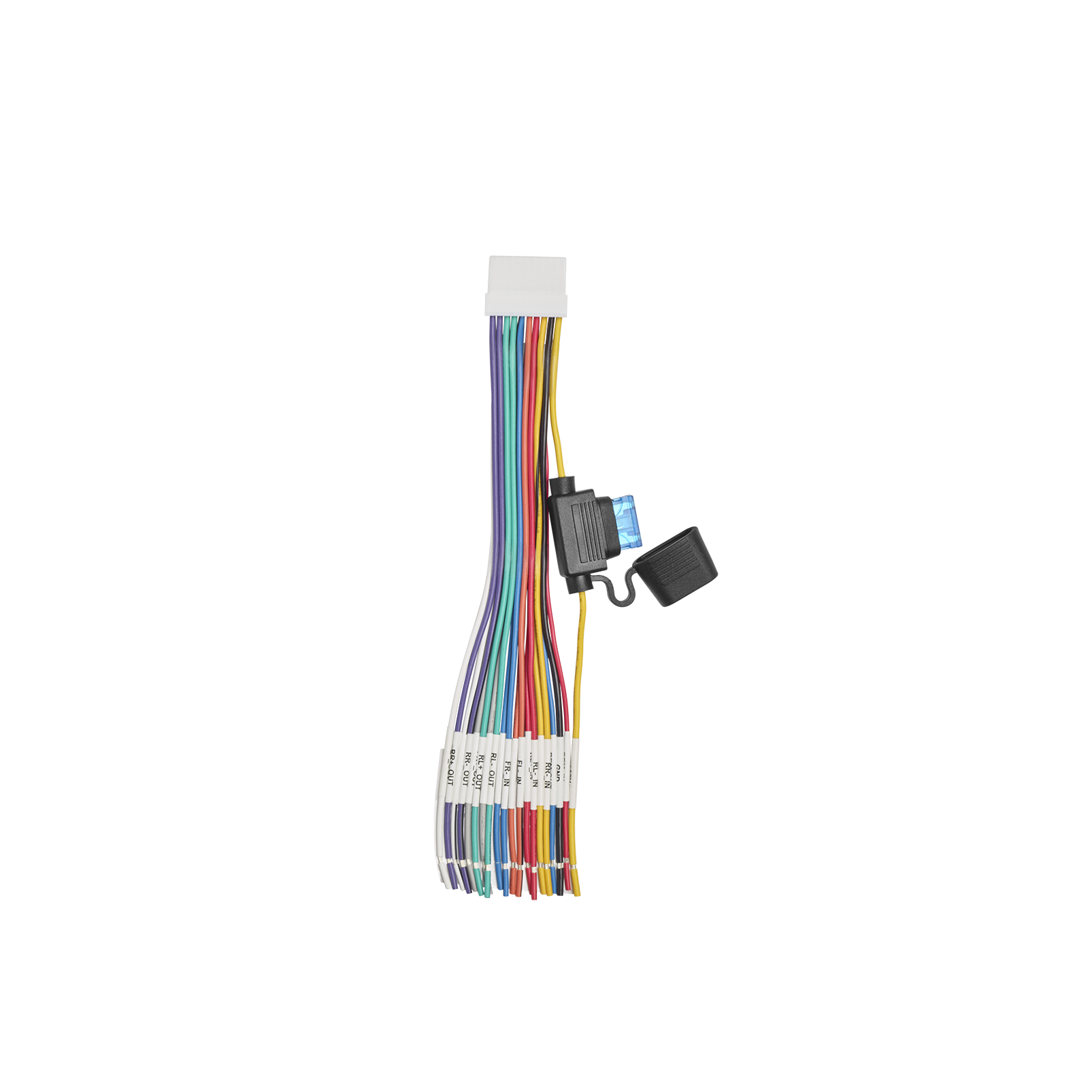

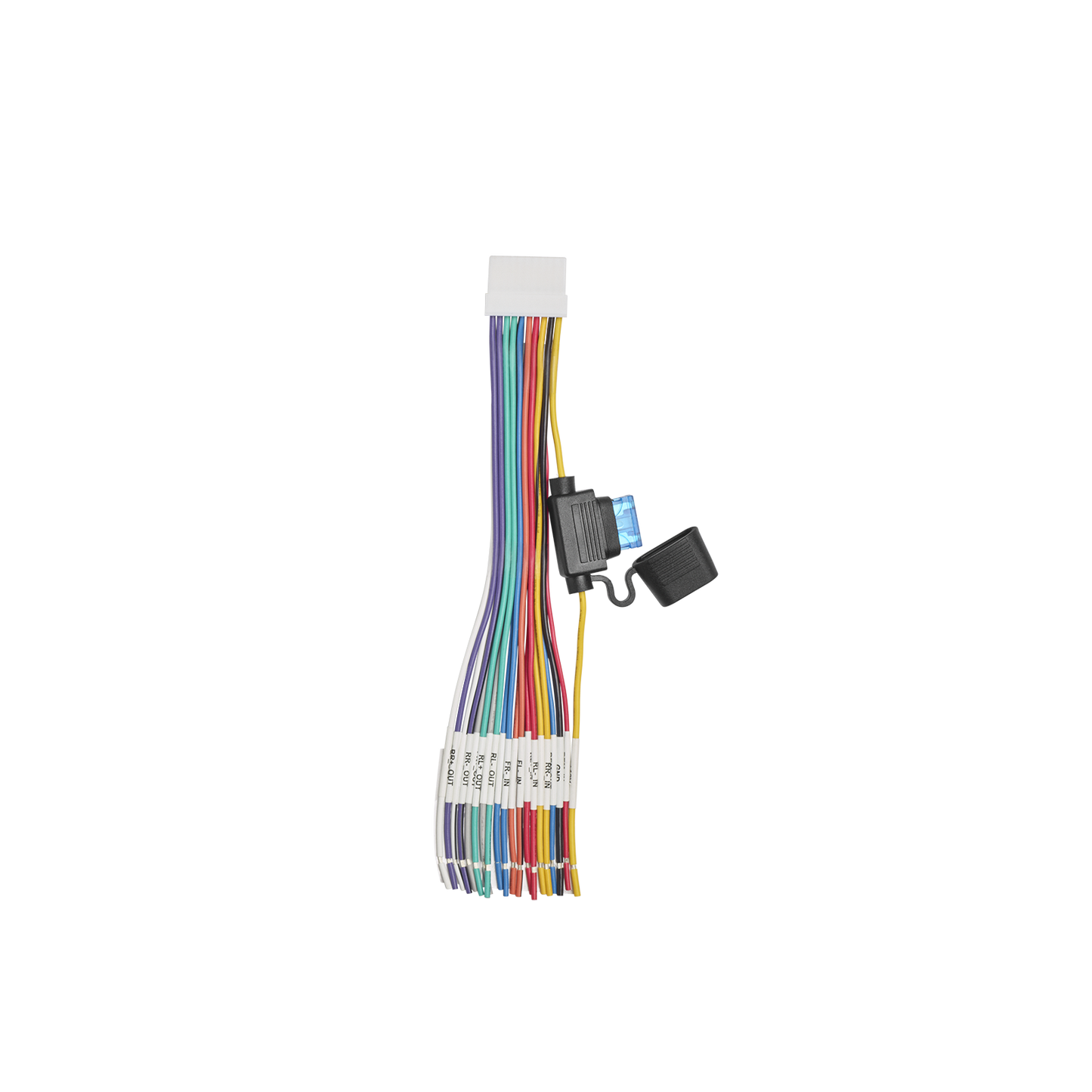

• wiring and hardware not included with amplifier
  • 8-gauge power and ground leads recommended
• dimensions: 5-11/16"W x 2"H x 7-15/16"D

Infinity DSP Amplifier is an audio processor for fine-tuning of aftermarket audio systems. It is a self-contained audio system with 4-channel audio inputs, 4-channel powered audio outputs, 2-channel pre-amp outputs, easy to use tuning interface and detailed tuning capabilities to satisfy any enthusiast. With a USB connection to access the tuning interface using a Windows PC, you can control fully variable crossovers, selectable 0-to-48dB slopes, time delay, 31-band parametric or graphic EQ adjustment, assignable input to output mixer with input channel summing, channel gain, master volume control, clipping indicator to ensure the audio output is not distorted and ability to save up to 10 presets.
