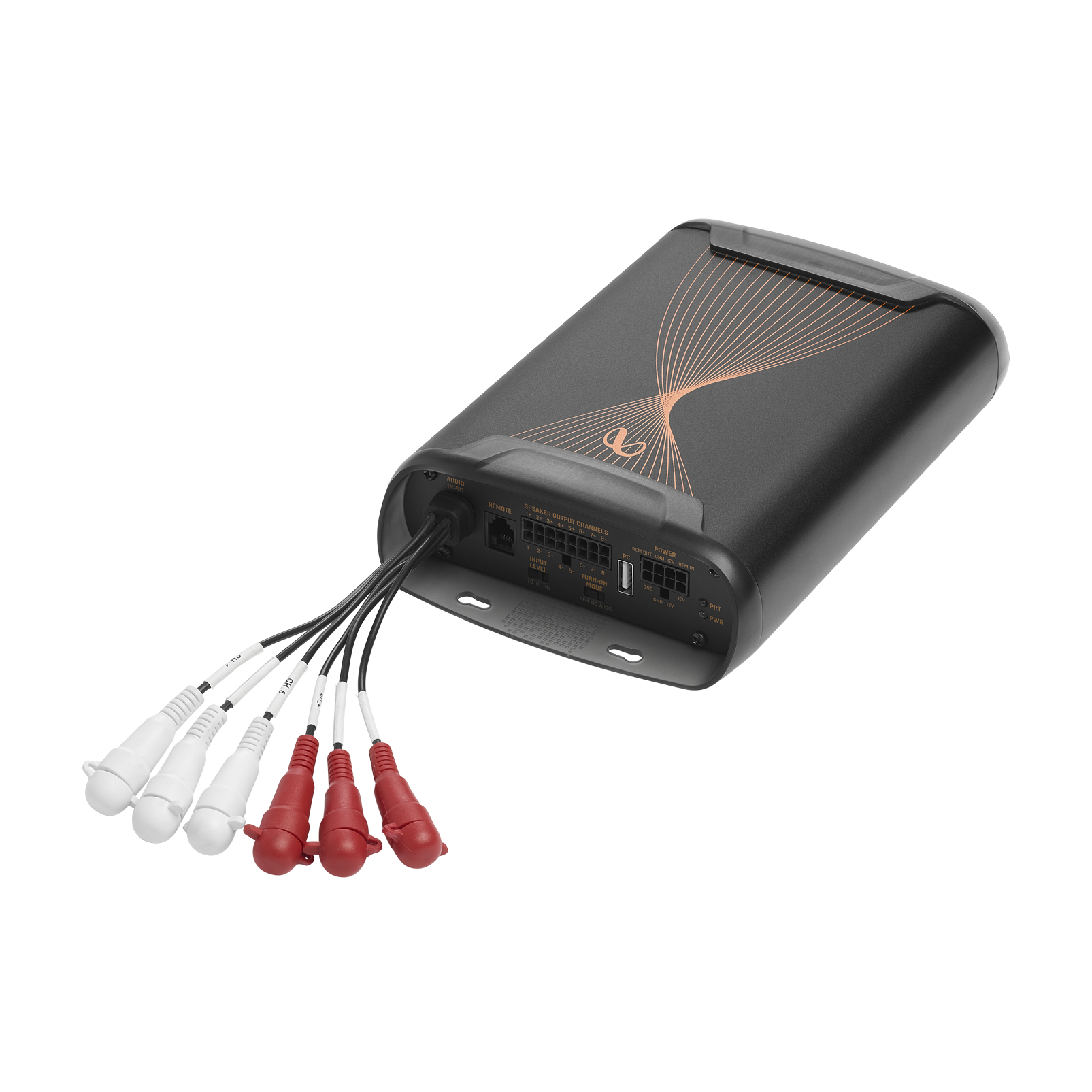

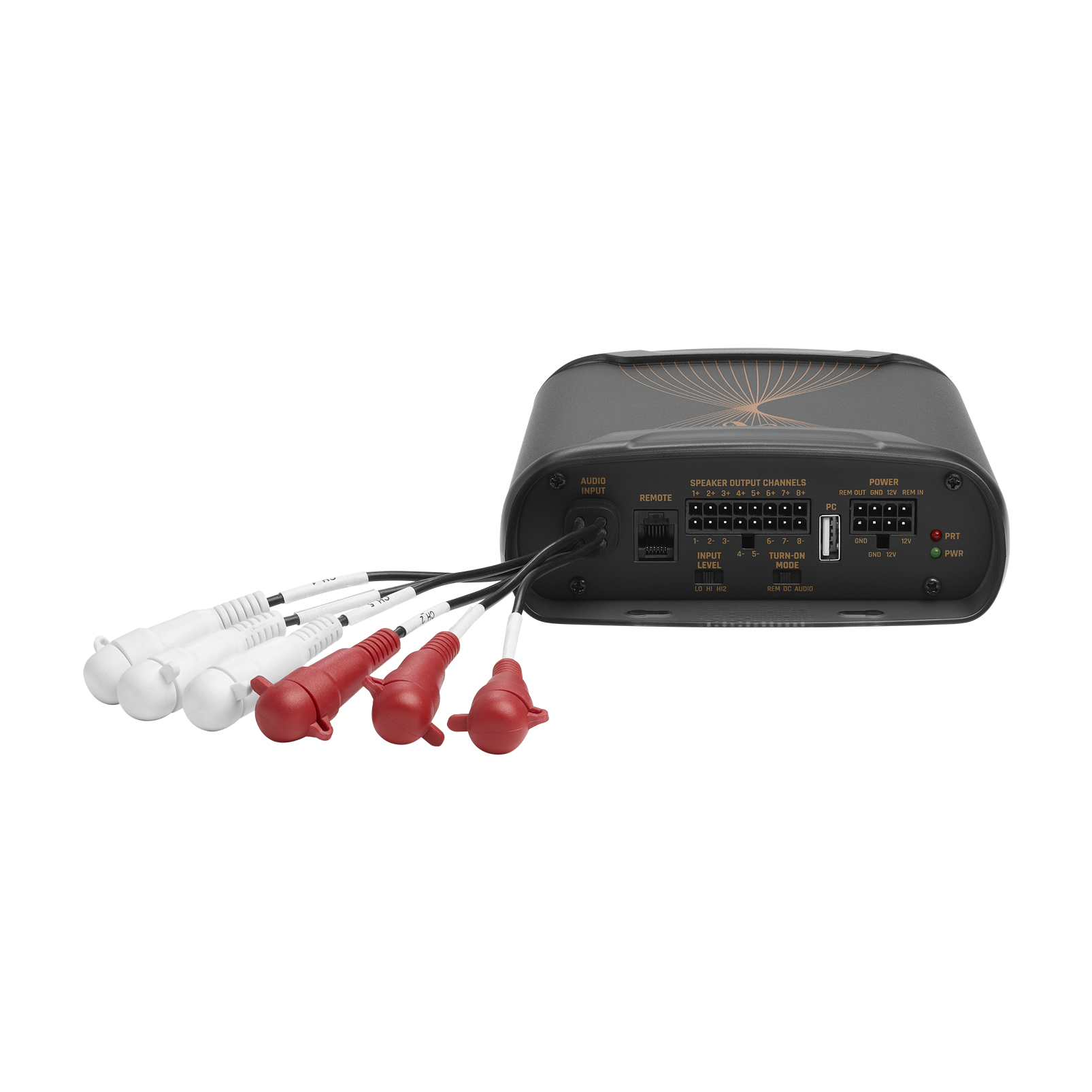

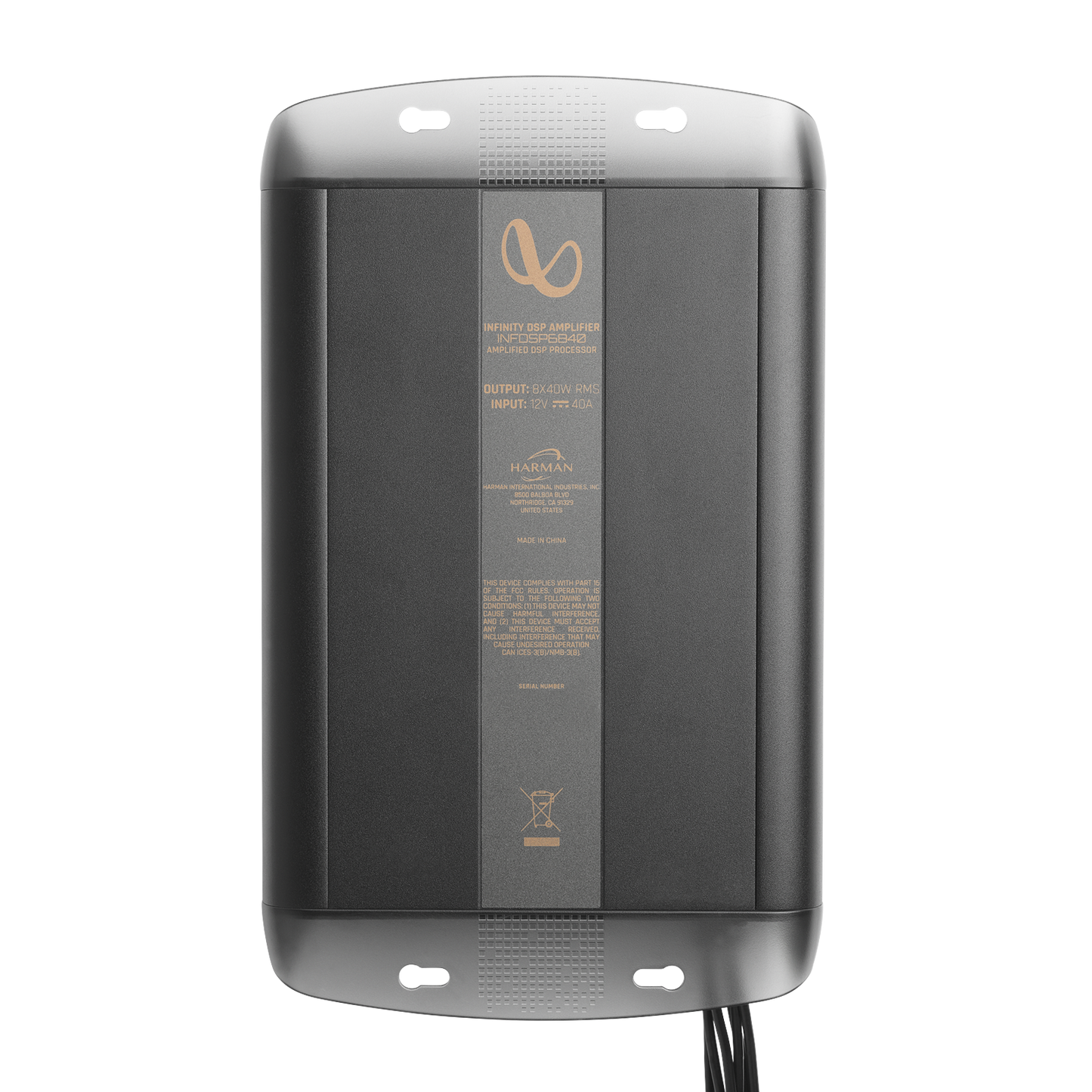

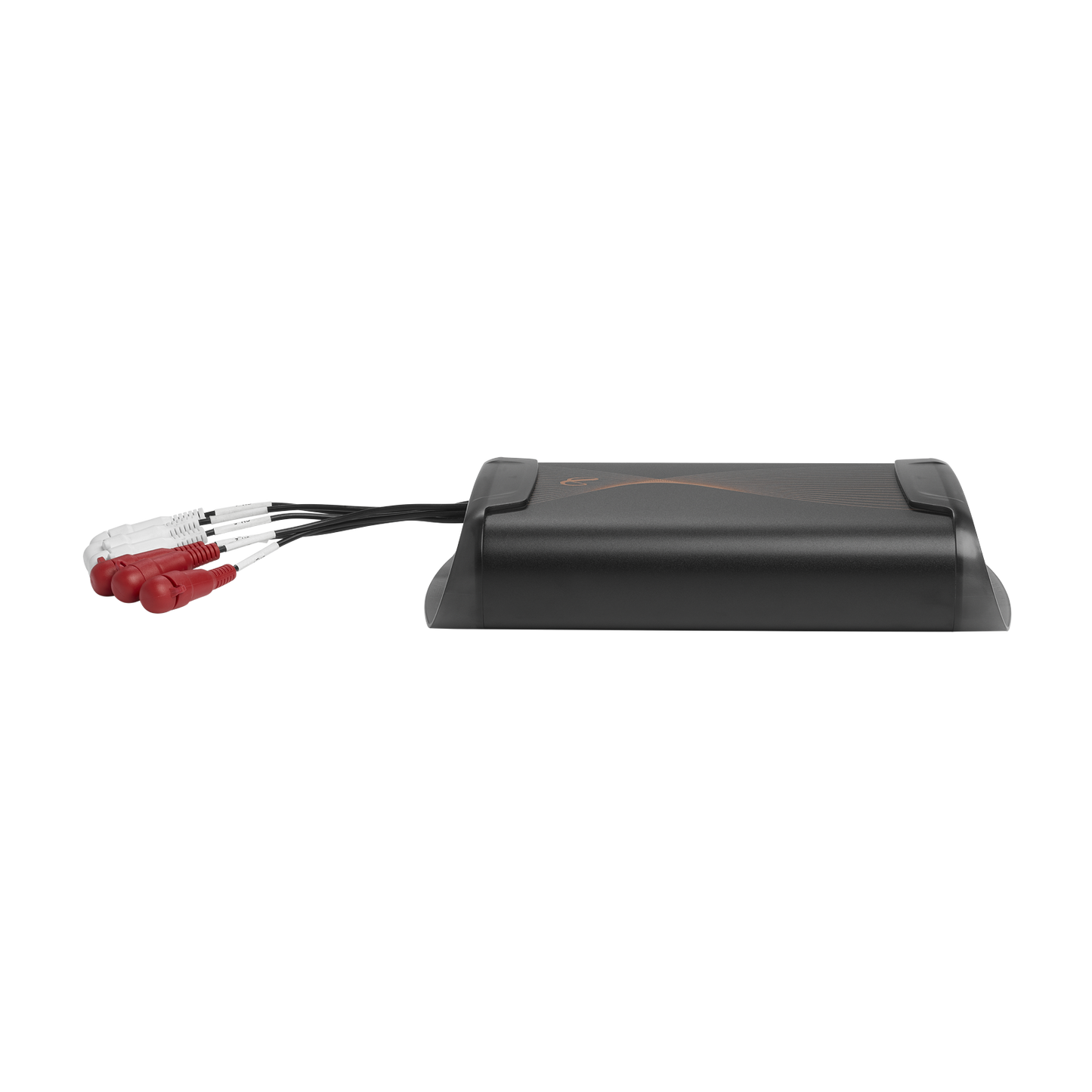

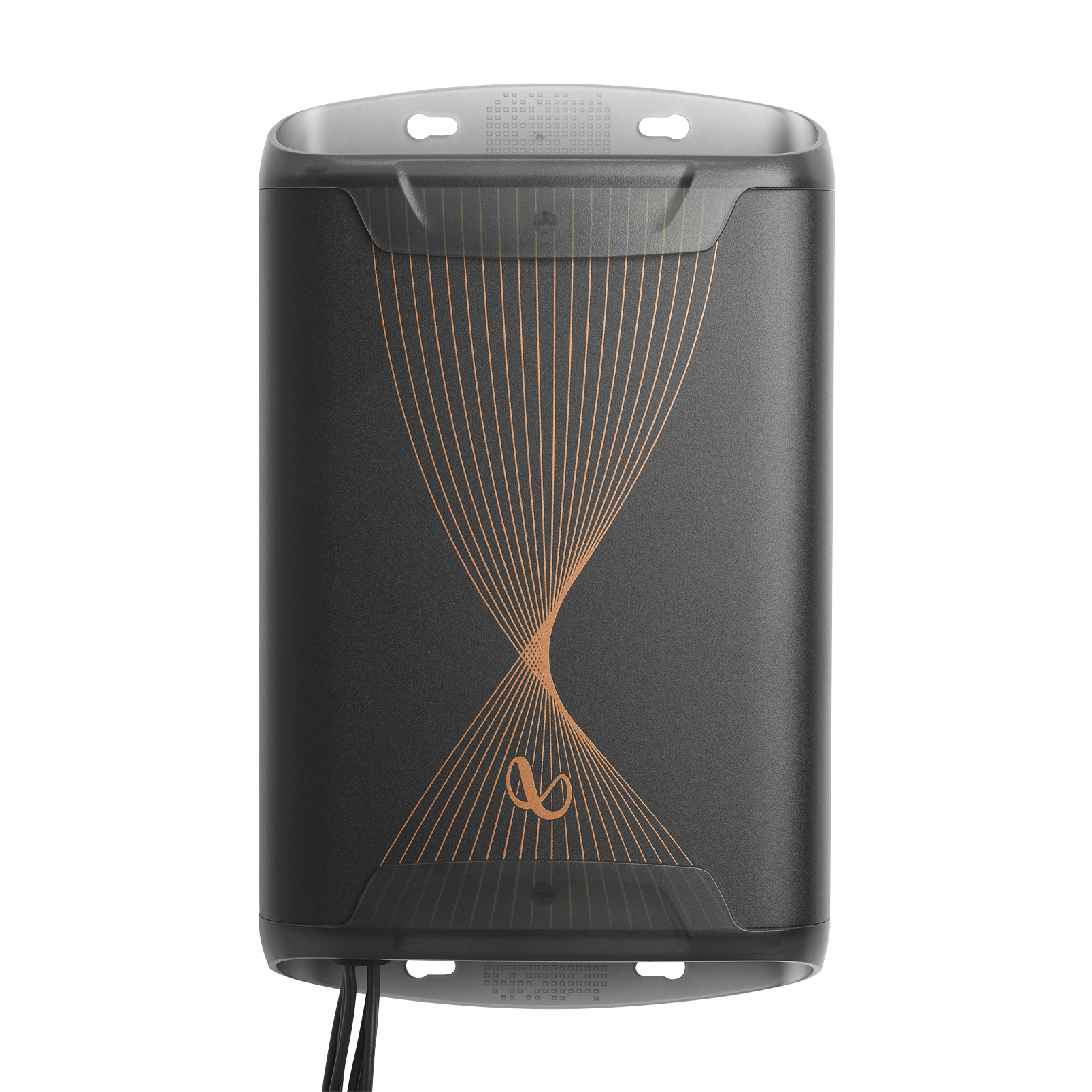

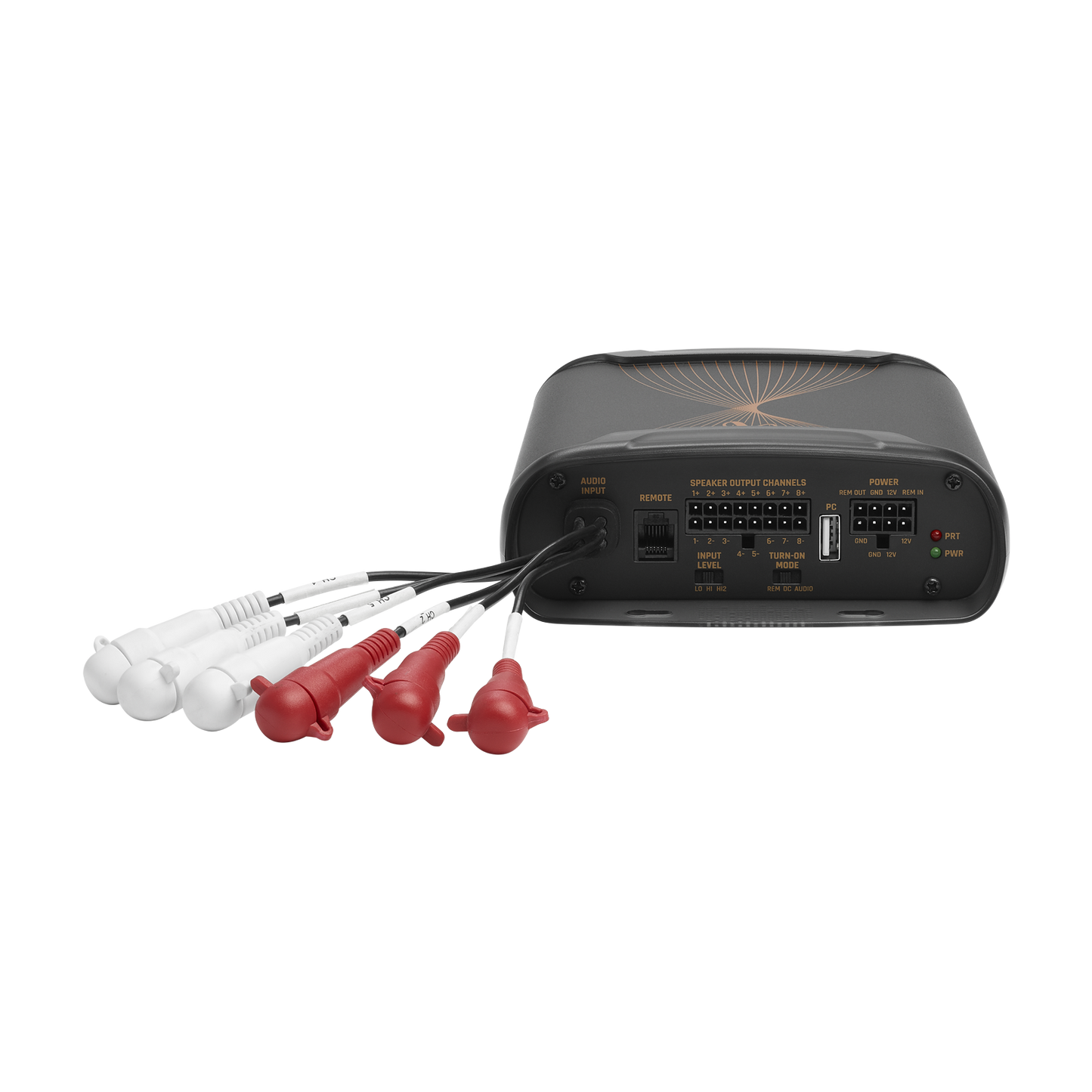

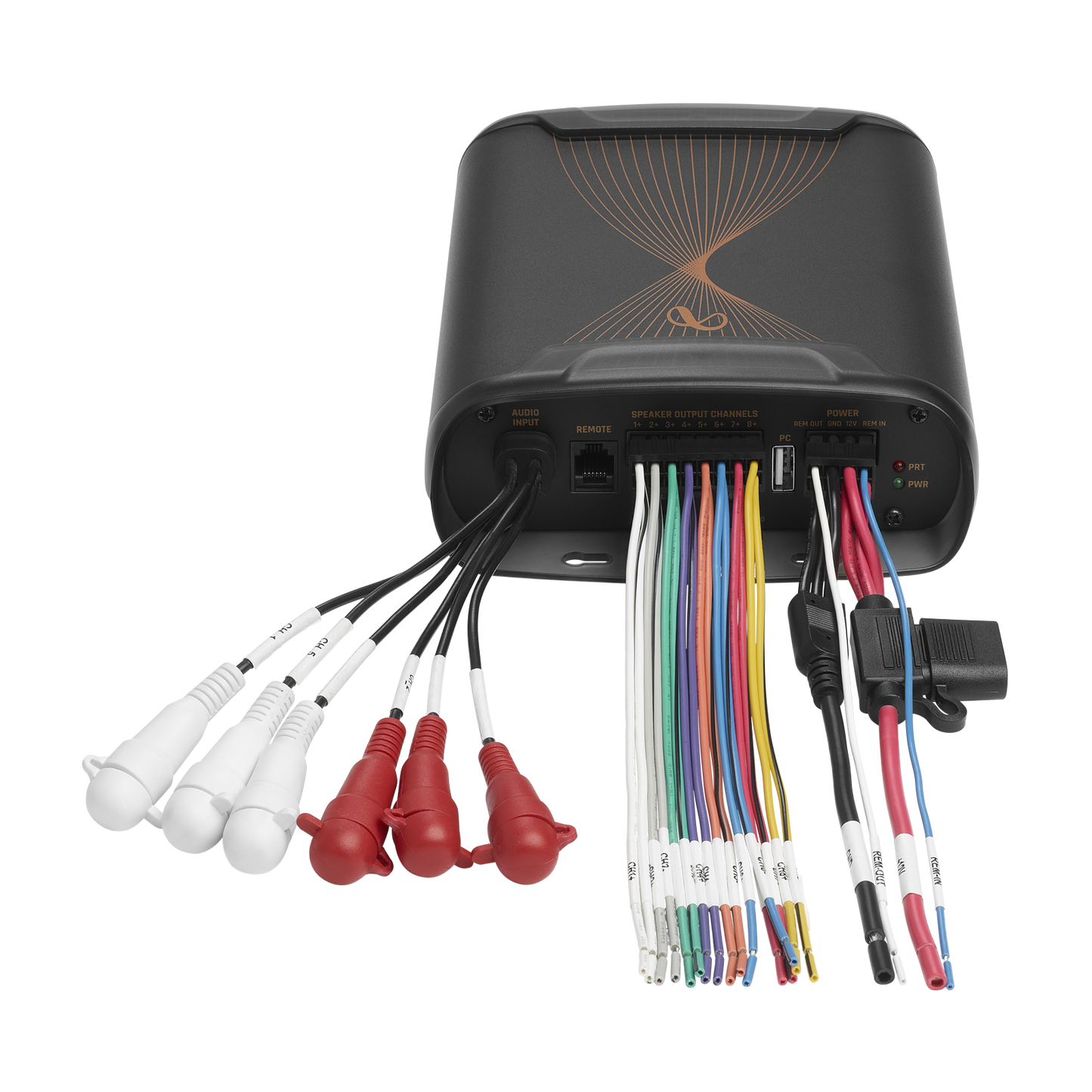

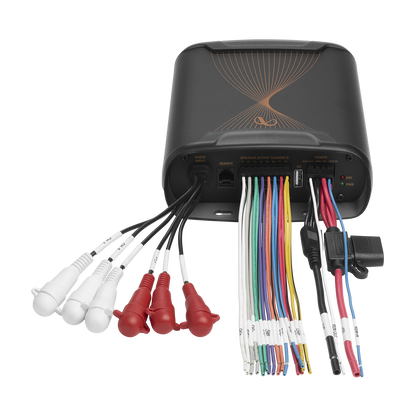

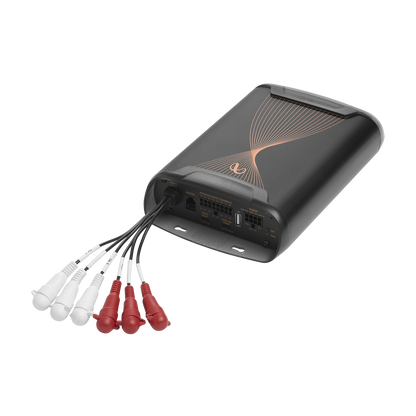

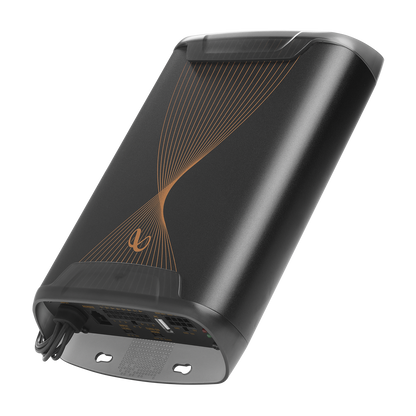

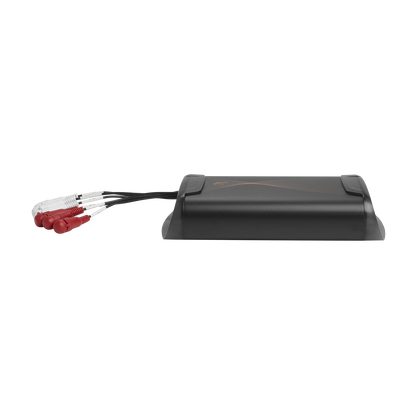

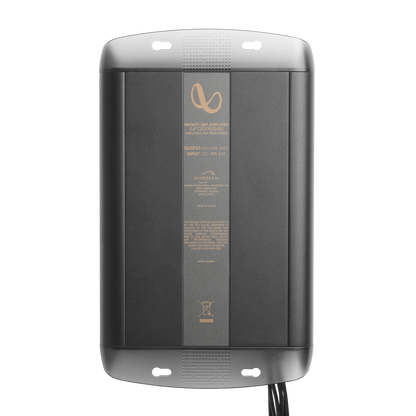

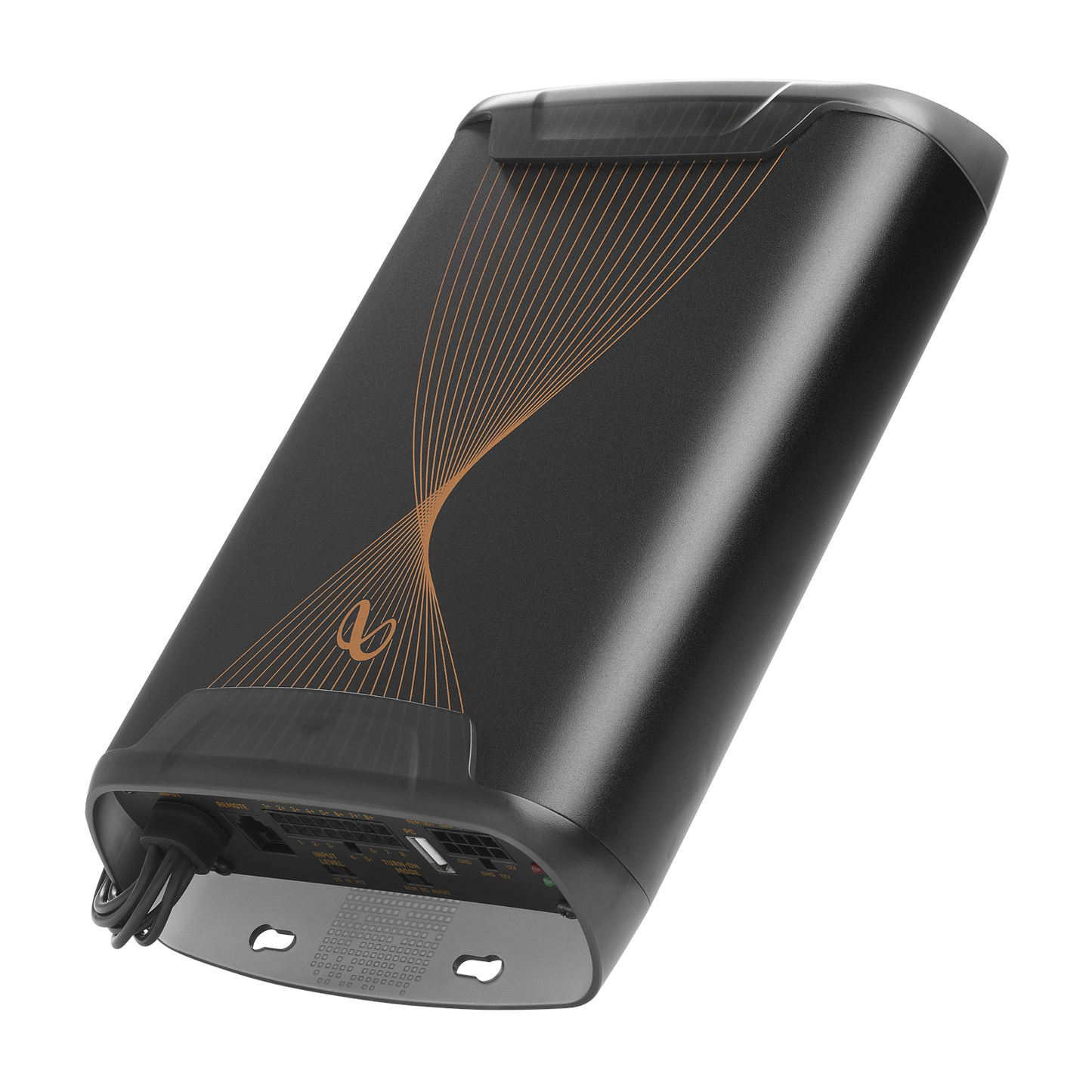

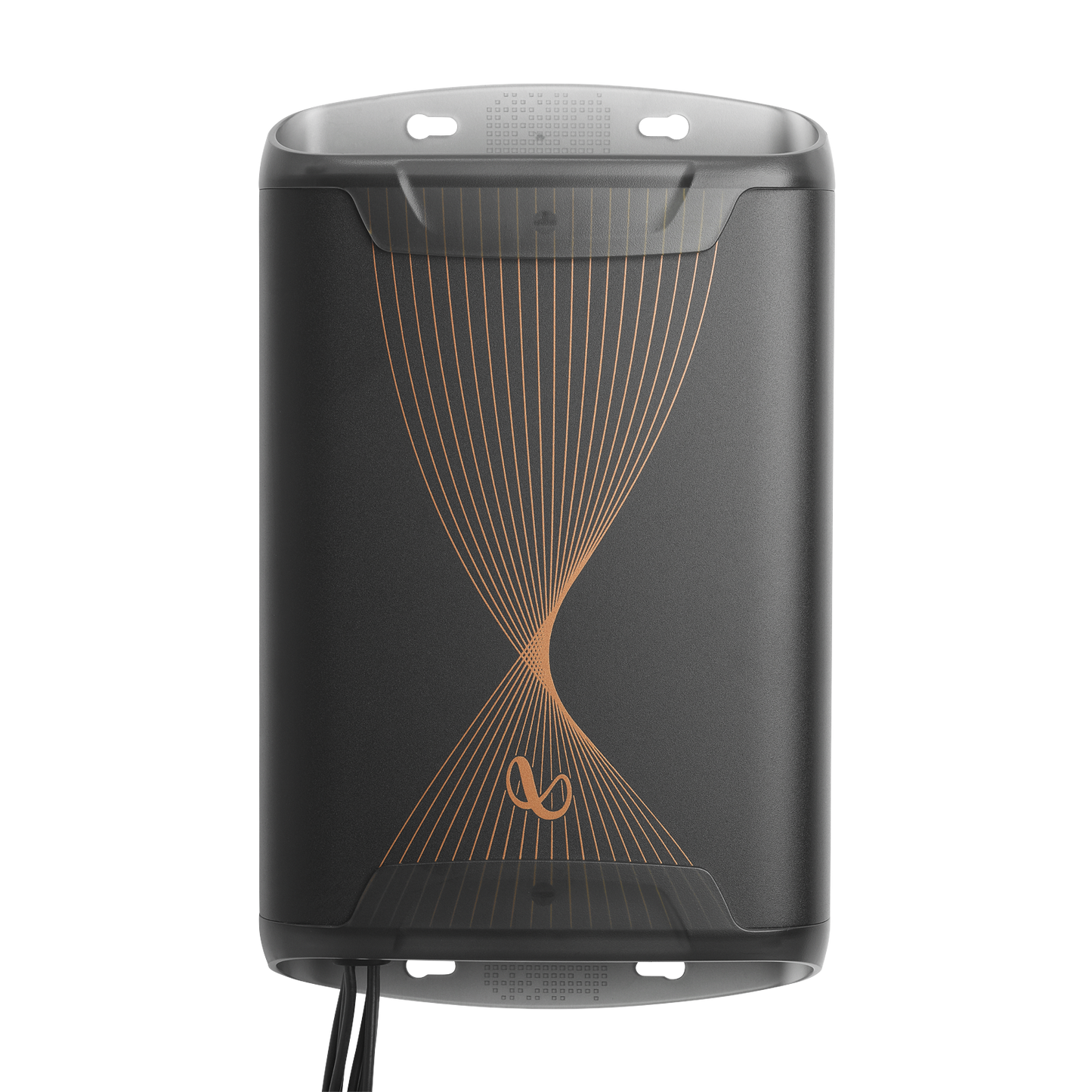

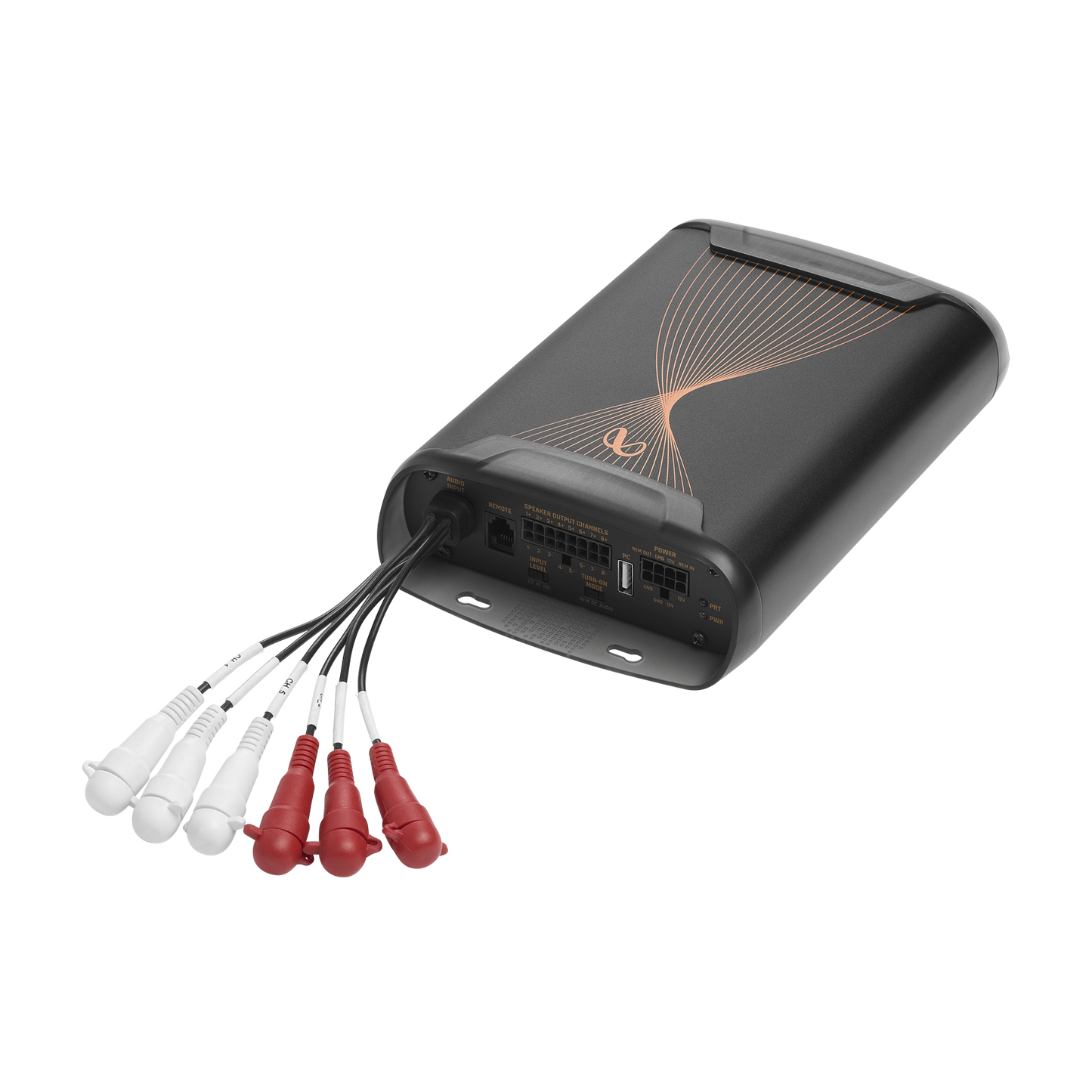

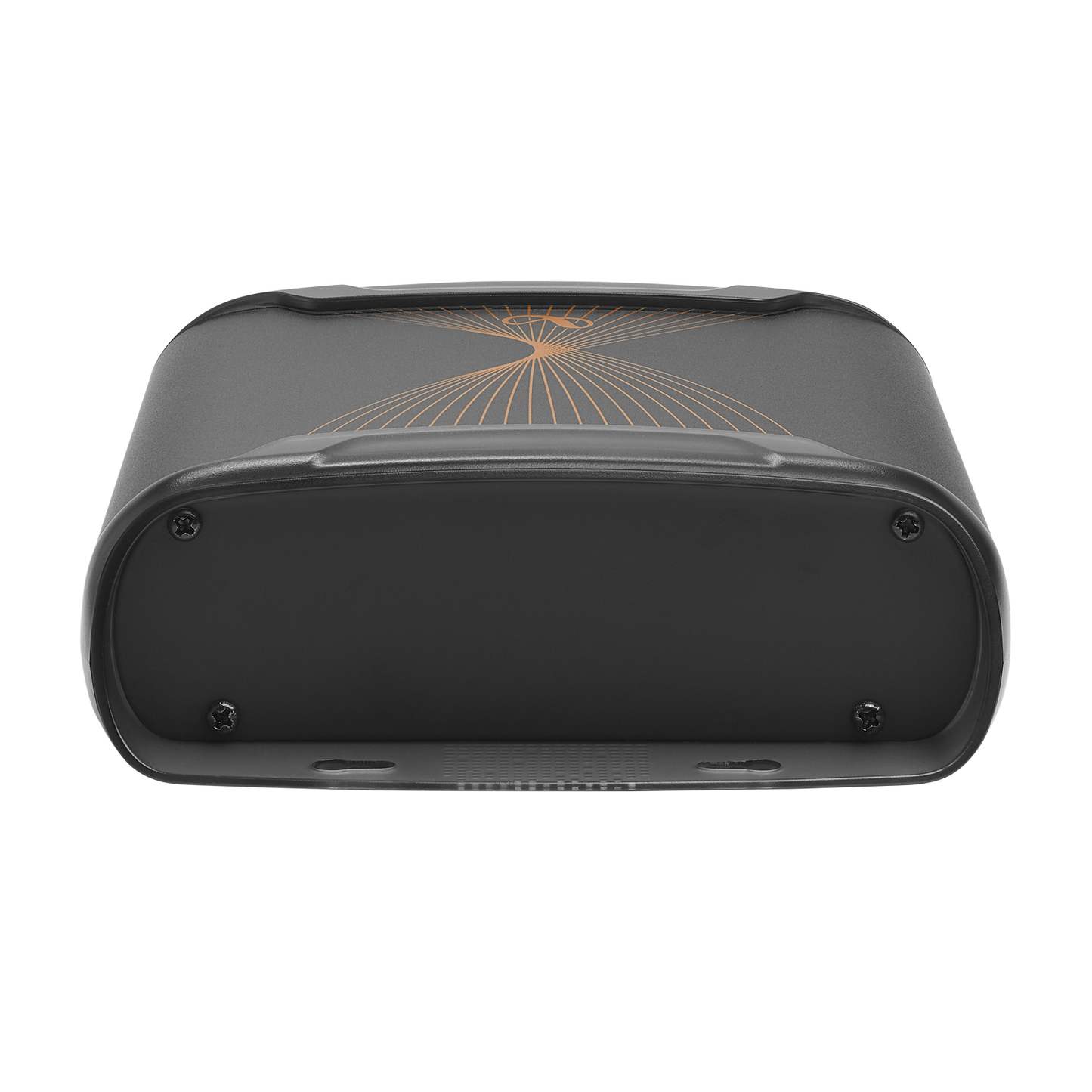

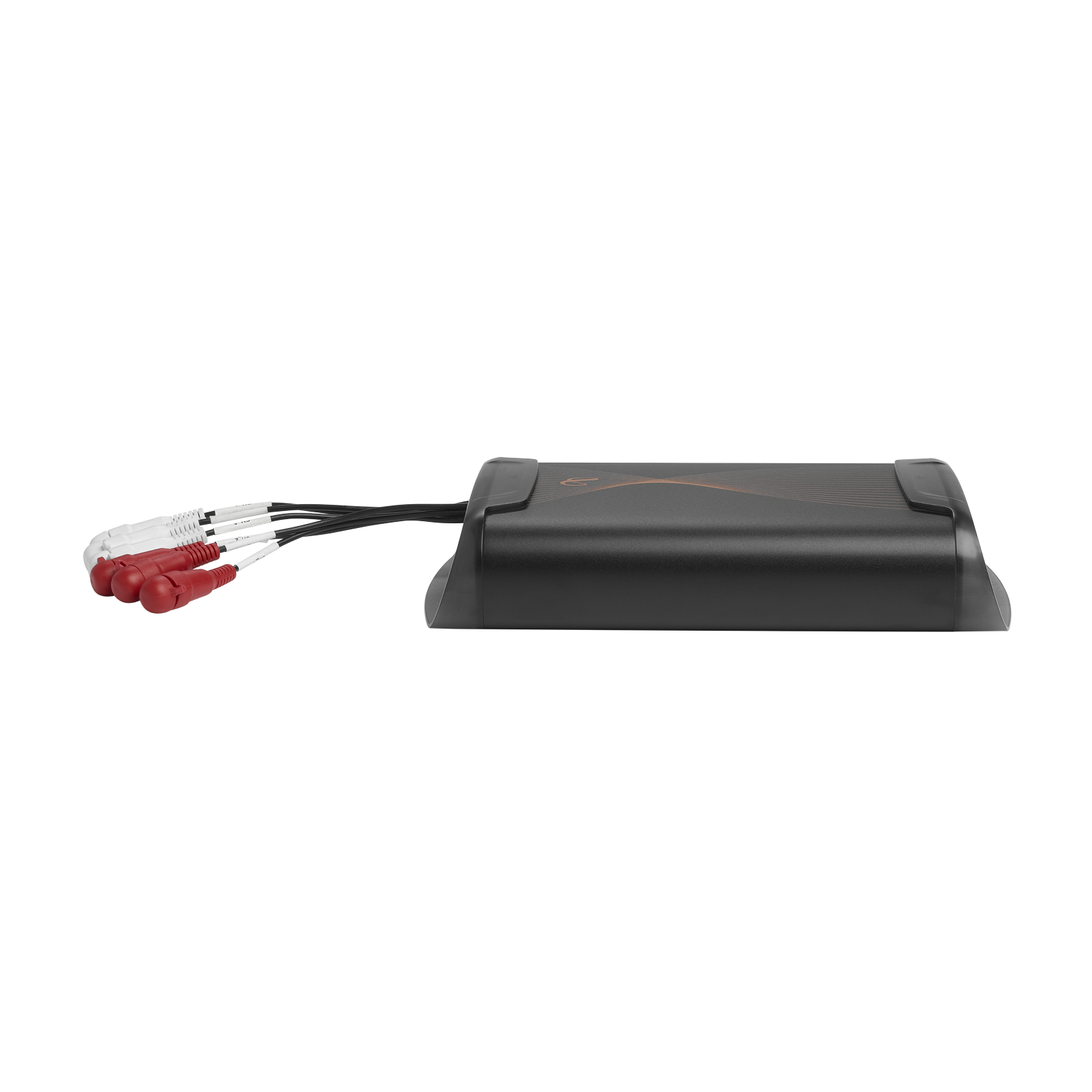

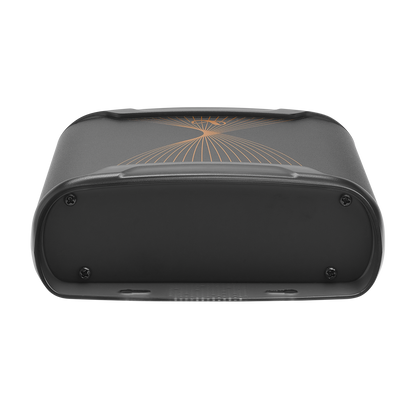

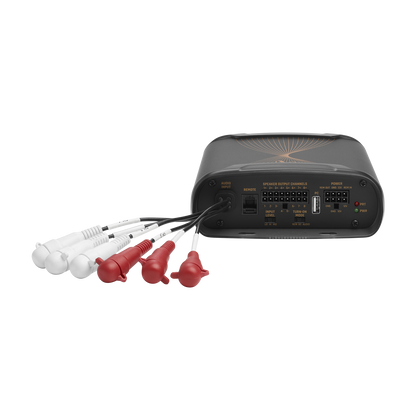

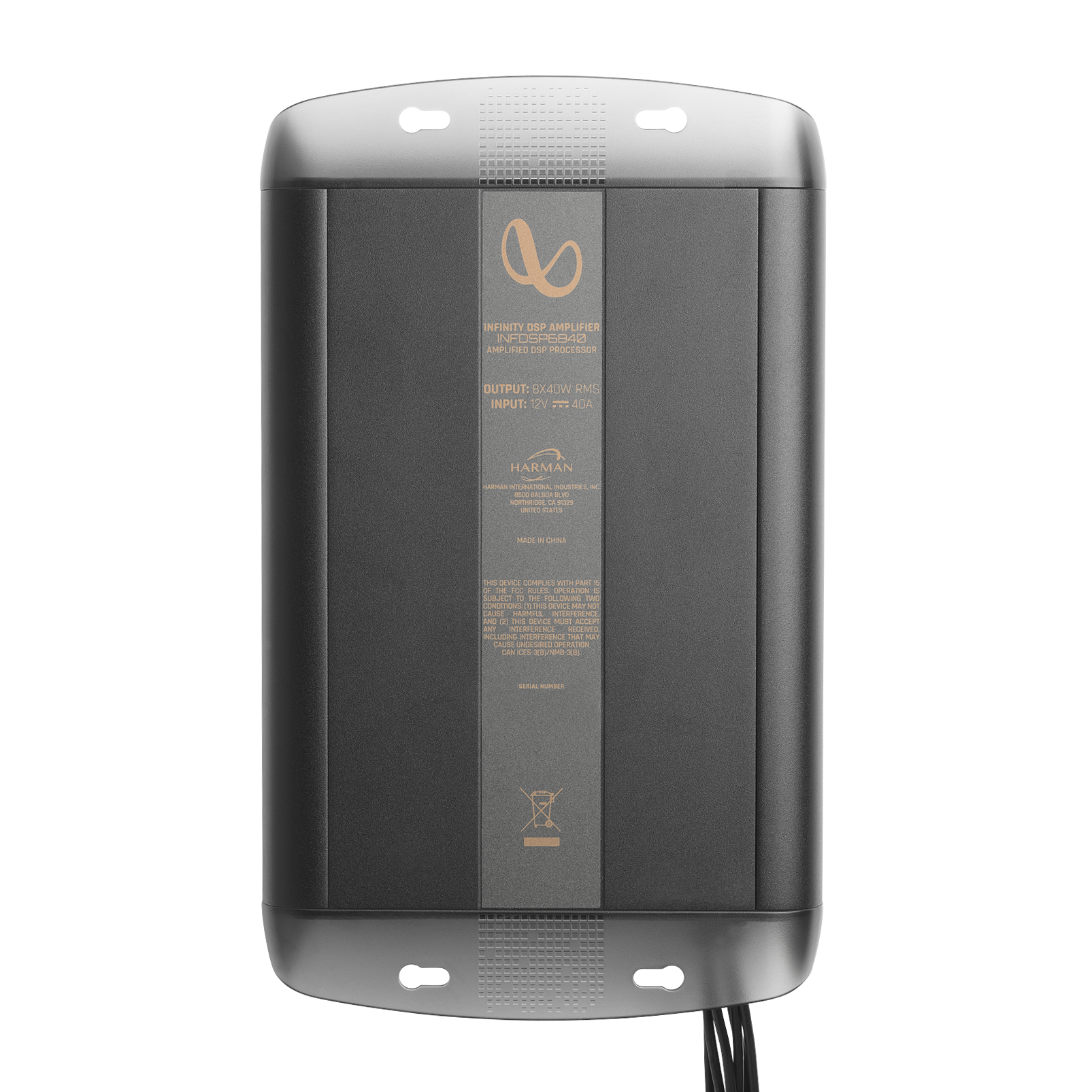

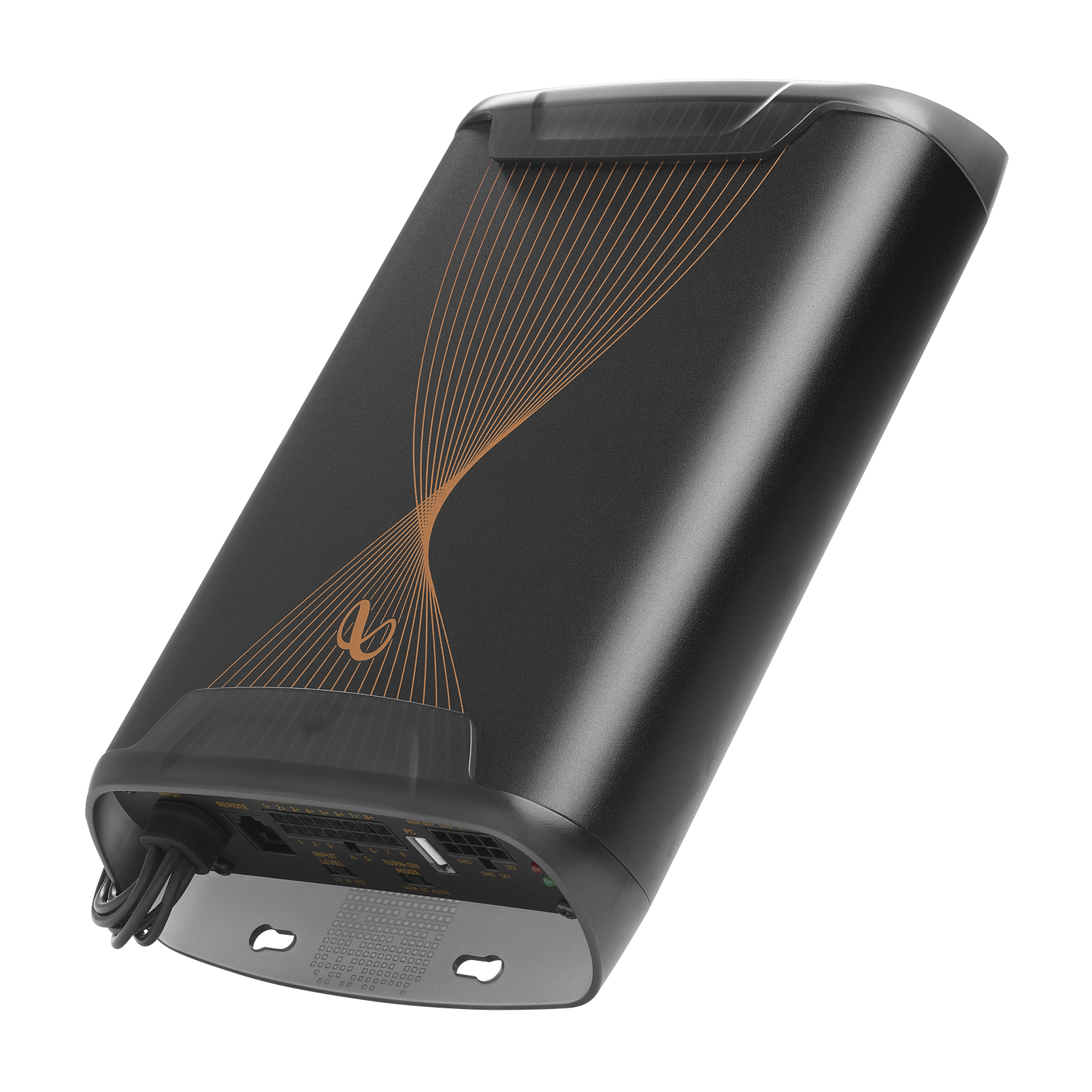

Infinity DSP Amplifier DSP6840

Infinity DSP Amplifier is a DSP audio processor for fine-tuning of aftermarket audio systems. It is a self-contained audio system with 6-channel audio inputs and 8-channel powered audio outputs.

Specifications

Product info:

• 8-channel car amplifier with digital signal processing
  • 40 watts RMS x 8 at 4 ohms
  • 60 watts RMS x 8 at 2 ohms
  • non-bridgeable
• Class D amp technology
  • frequency response: 10-22,000 Hz

Digital processing:

• DSP and EQ tuning tool adjustments made via USB connection to a Windows PC
  • save up to 10 presets

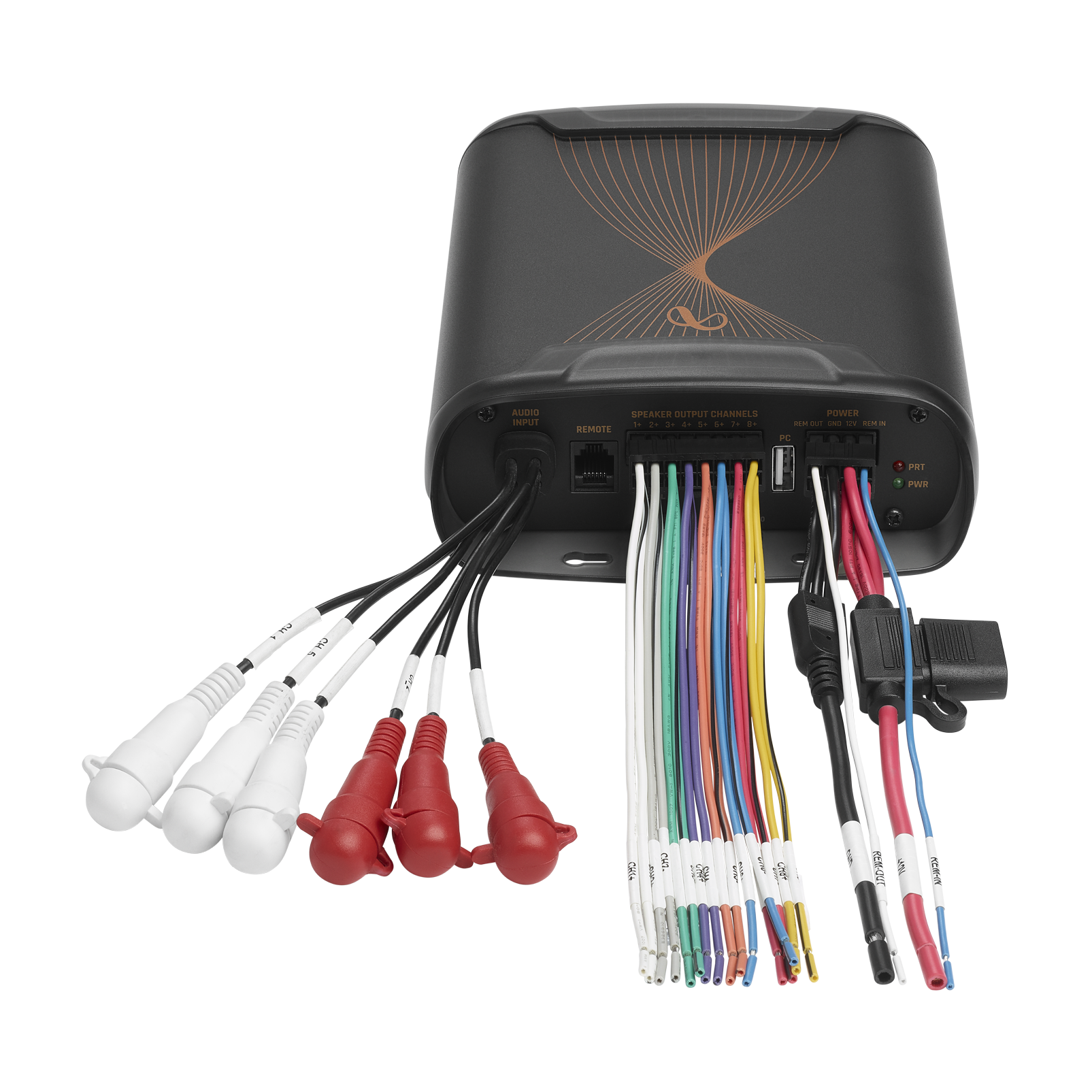

• 6 assignable preamp and speaker-level inputs

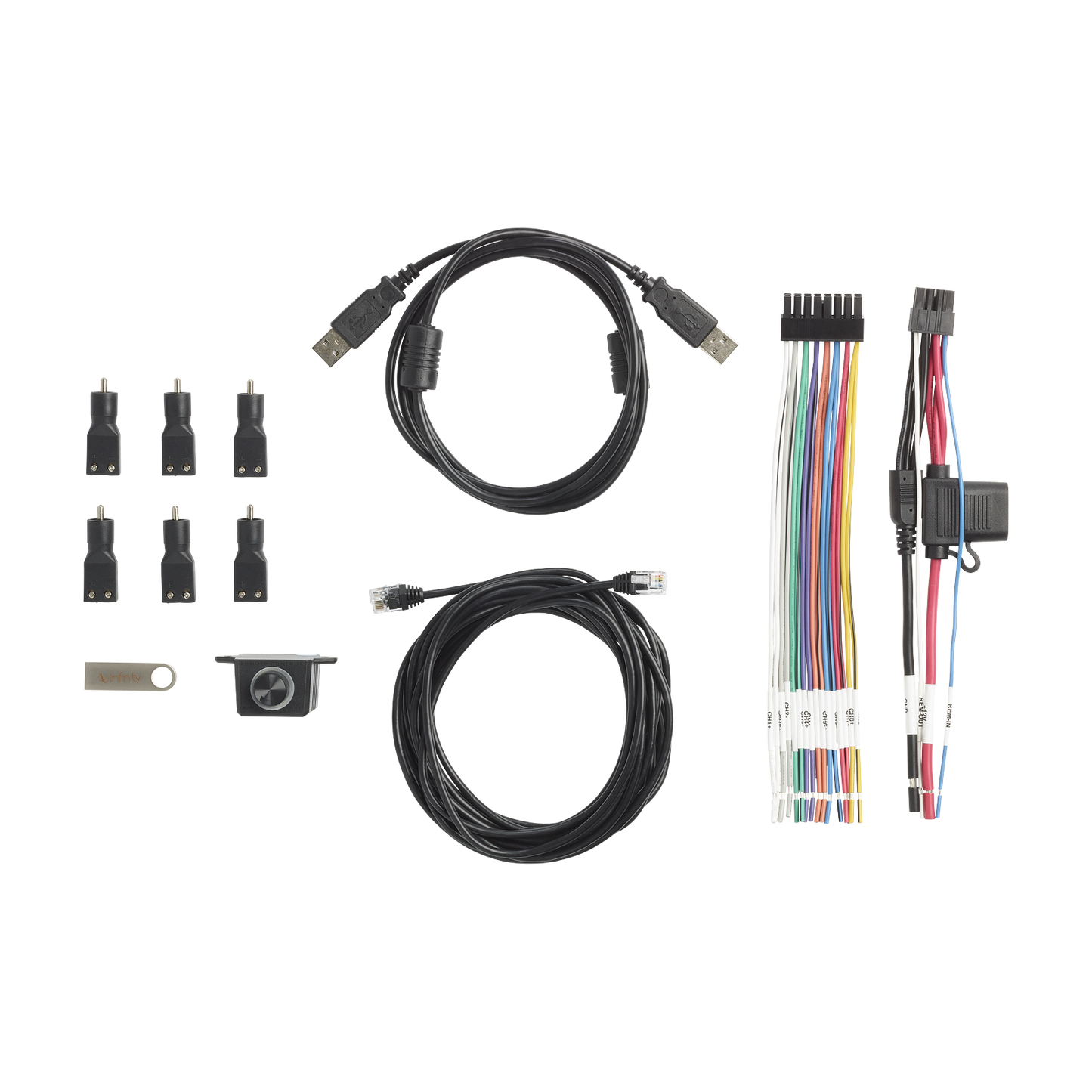

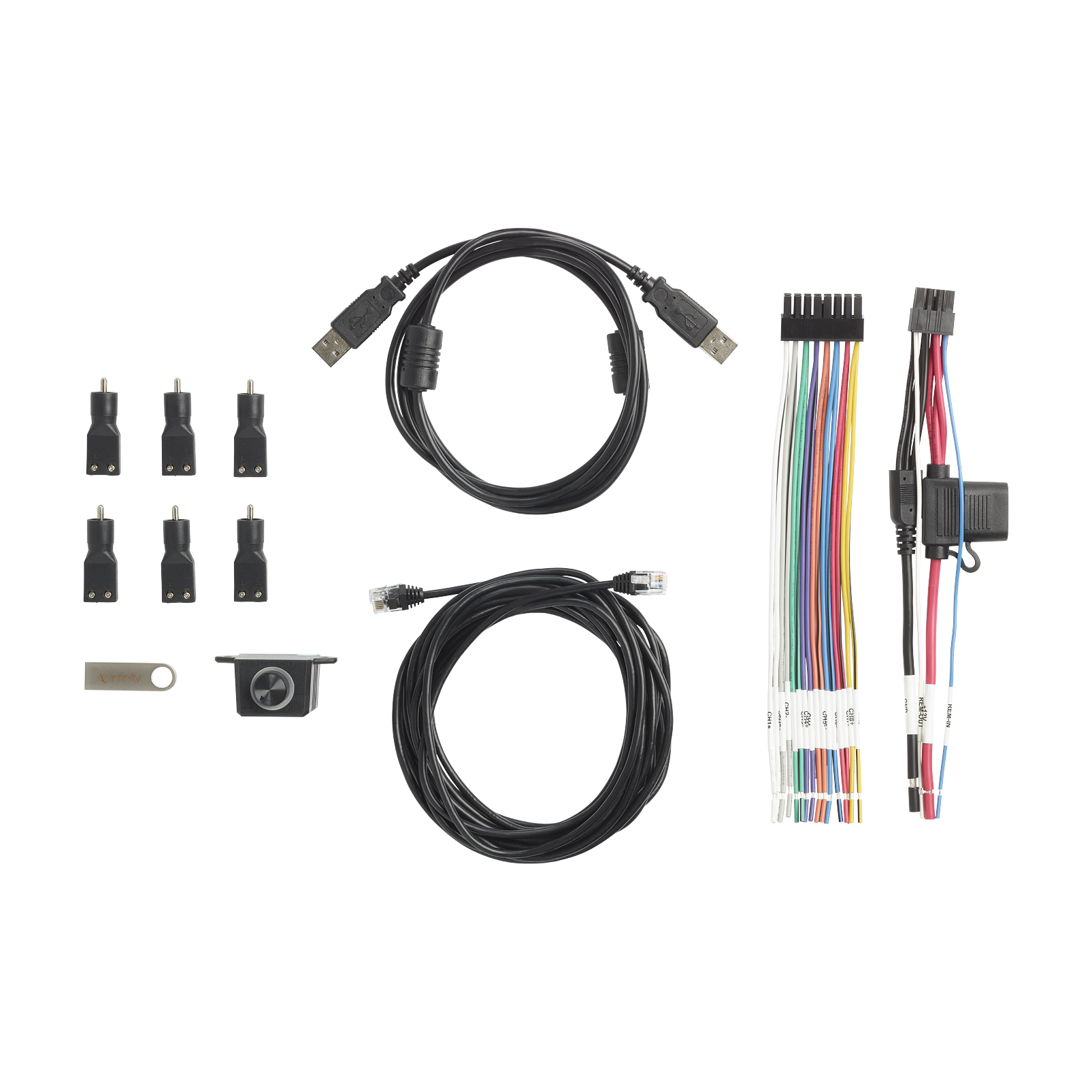

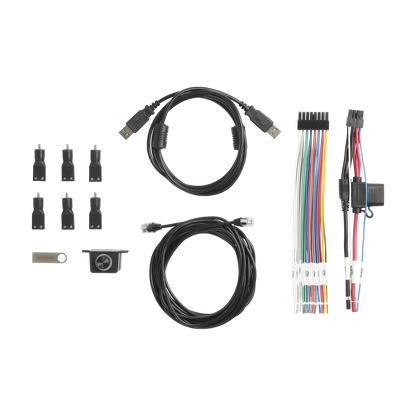

  • high-level input adapters included
• 31-band EQ (selectable parametric and graphic)
• adjustable high-, low-, and band-pass filters: 20-20,000 Hz
  • selectable filter slopes: 6, 12, 18, 24, 30, 36, 42, 48 dB/octave
• adjustable delay: 0 to 12ms in 0.2ms increments
• phase adjustment: 0/180°

Other Features:

• includes wired remote bass control for ch 7 & 8
• conformal coated PCB
• fuse rating: 40A x 1
• wiring and hardware not included with amplifier
  • 8-gauge power and ground leads recommended
• dimensions: 5.67"W x 1.95"H x 9.35"D
