The

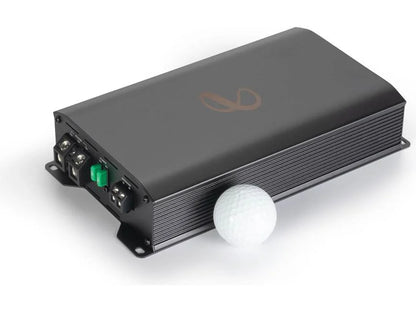

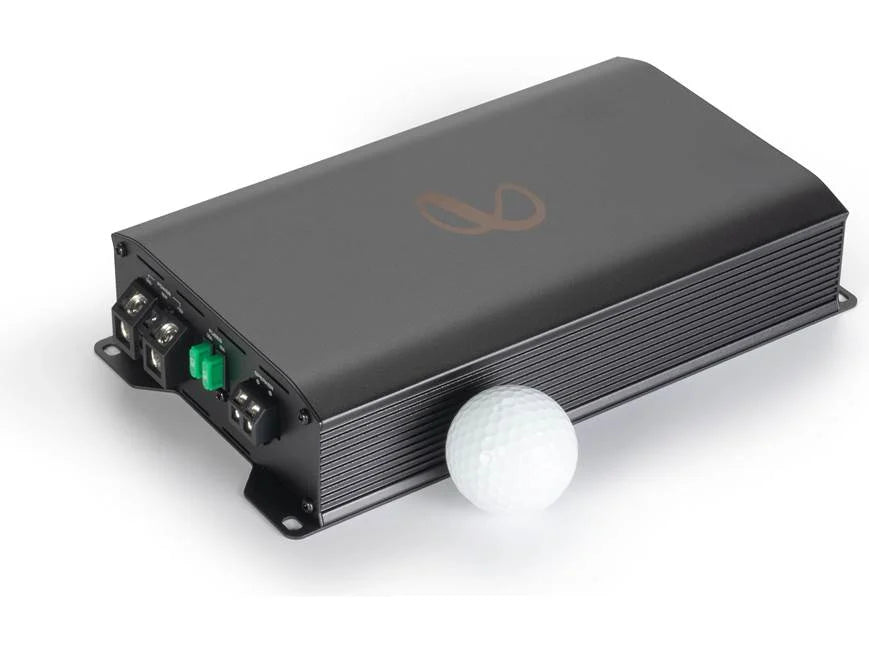

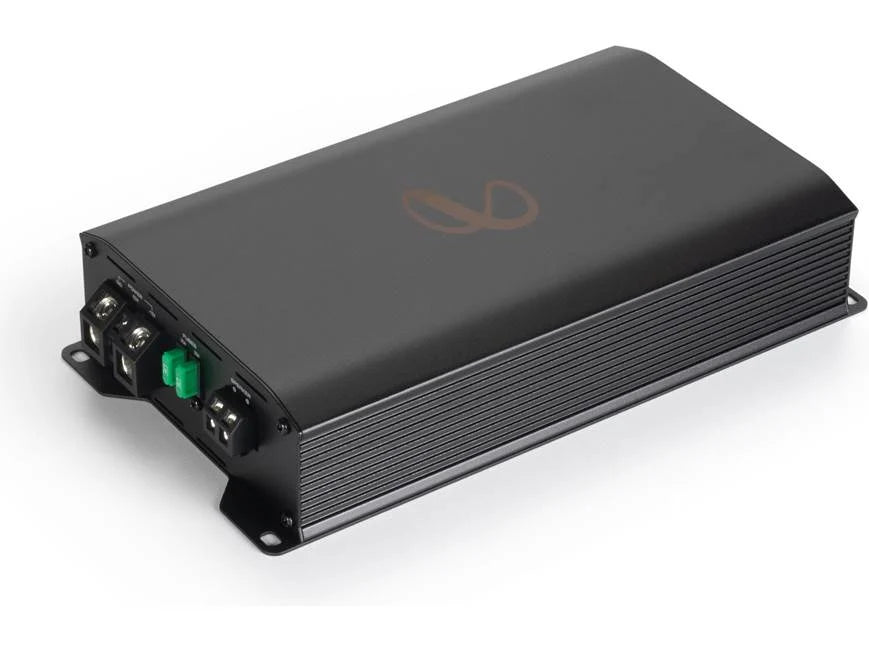

Infinity Primus 50011A (item model number
INFPRIMUS50011AAM) is a
high-performance Class D mono subwoofer car amplifier. It is engineered to deliver efficient, high-output power to subwoofers from a compact chassis that fits into tight vehicle spaces.
Technical Specifications
-
RMS Power Output:
-
300 Watts x 1 channel @ 4-Ohms
-
500 Watts x 1 channel @ 2-Ohms
-
Peak Power Output: 1,220 Watts
-
Frequency Response: 10 Hz – 320 Hz
-
Signal-to-Noise Ratio: 75 dB
-
Total Harmonic Distortion (THD): 1%
Key Features
-
Class D Topology: Highly efficient circuit engineering that minimizes heat generation while producing heavy power levels.
-
Start/Stop Engine Compatibility: Regulates power delivery smoothly so audio performance does not drop out when the vehicle engine cycles at stoplights.
-
Advanced Bass EQ Controls: Allows customization of a 0 to 12 dB bass boost centered at 45Hz, alongside adjustable width (Q factor) and frequency tuning (30–100 Hz).
-
OEM Load Detect System: Simulates speaker impedance loads to cleanly integrate with restrictive factory stereos without needing extra override hardware.
-
On-Board Diagnostics Protection: Built-in protection circuitry guards the hardware against short circuits, overvoltage, undervoltage, and extreme thermal spikes.
- Included Remote Bass Controller (RLC)
Core Build & Materials
-
Color: Matte black chassis with dark gray brushed accents and copper badge highlights
-
Material: Extruded aluminum heatsink core with high-impact ABS endcaps
-
Heatsink Type: High-efficiency top-and-side dissipation fins
Audio & System Architecture
-
Audio Component Form Factor: Compact single-channel (monoblock) mobile chassis
-
Audio Output Channels: 1 channel (designed strictly for low-frequency subwoofer loads)
-
Audio Purpose: Dedicated high-output subwoofer driver amplification
-
Circuit Design / Topology: Class D (Switching amplifier topology)
Connectivity & Installation
-
Compatible Devices: Single or multiple subwoofers (stable down to a 2-ohm load) and car stereo systems
-
Connectivity Technology: Hardwired screw-down and plug-in modular interfaces
-
Device Interface:
-
1 pair of low-level differential-balanced RCA inputs
-

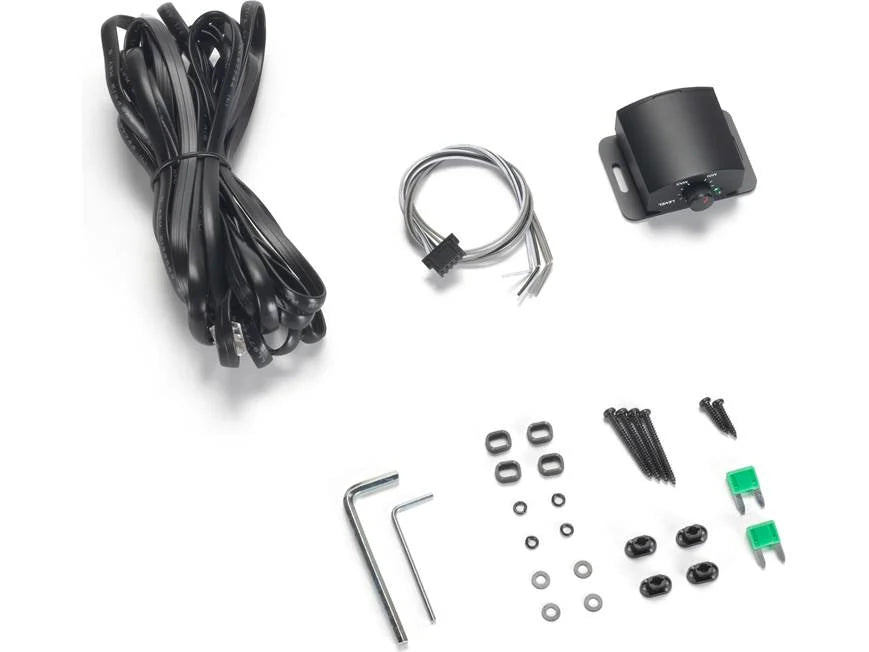

Line-level speaker adapter wiring harnesses (included)
-
Dedicated RJ25 modular port for the included Remote Bass Controller (RLC)
-

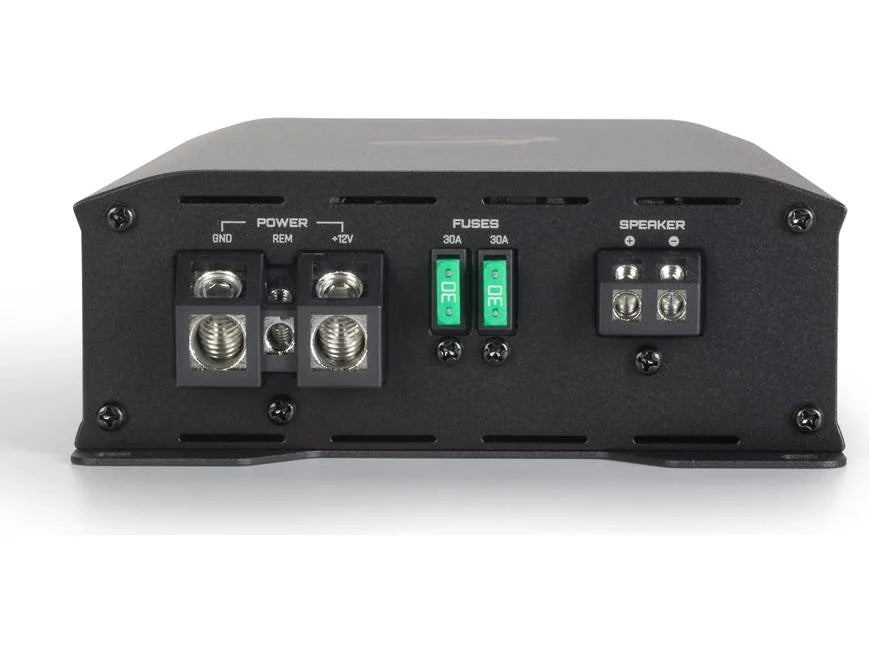

Set-screw power, ground, and remote turn-on terminals
-
Mounting Type: Flat surface mount (under seat, trunk floor, or custom amp rack/sub box)
Power & Control Features
-
Power Source: 12V DC vehicle electrical system (requires direct wiring to the car battery)
-
Speaker Enclosure Compatibility: Optimized for sealed, ported, or bandpass subwoofer enclosures
-

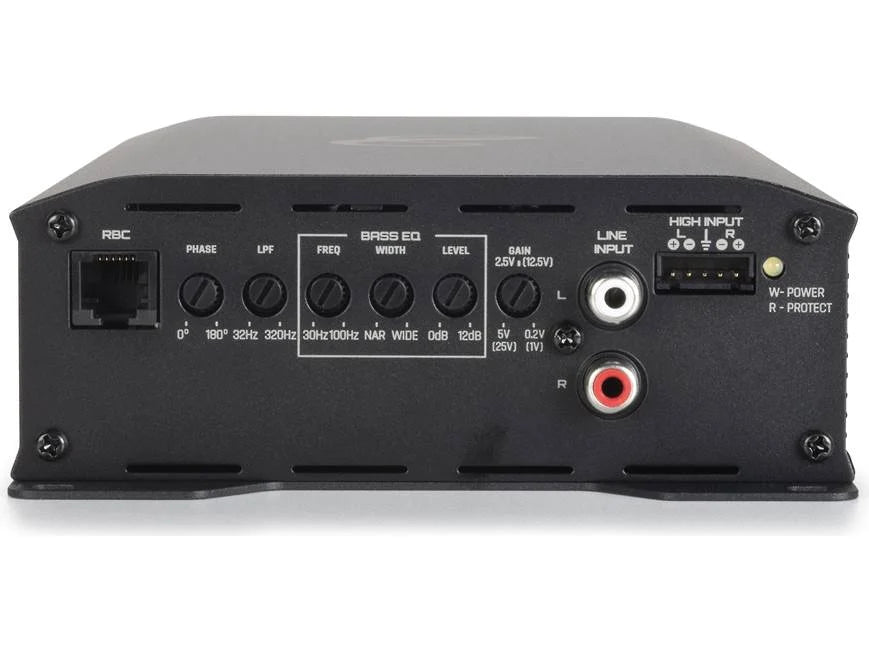

Amplifier Control Features:
-
Variable low-pass crossover filter (LPF) ranging from 32Hz to 320Hz (12dB/octave slope)
-
Parameteric Bass EQ controls (0 to +12dB boost adjustment)
-
Center frequency selector dial (30Hz to 100Hz)
-
Q-factor control dial to adjust the bass boost bandwidth width
-
Rotary gain/sensitivity control dial
