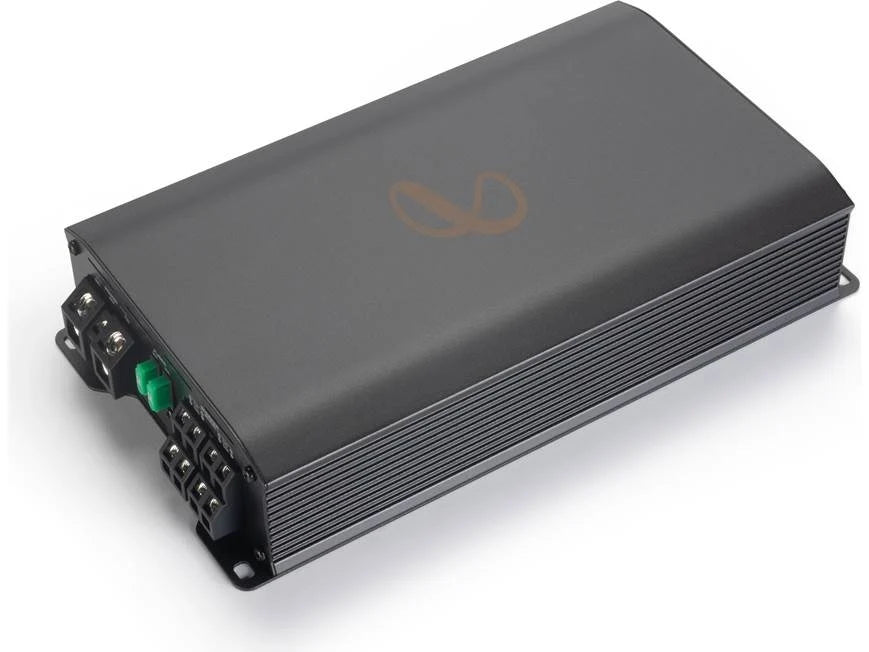

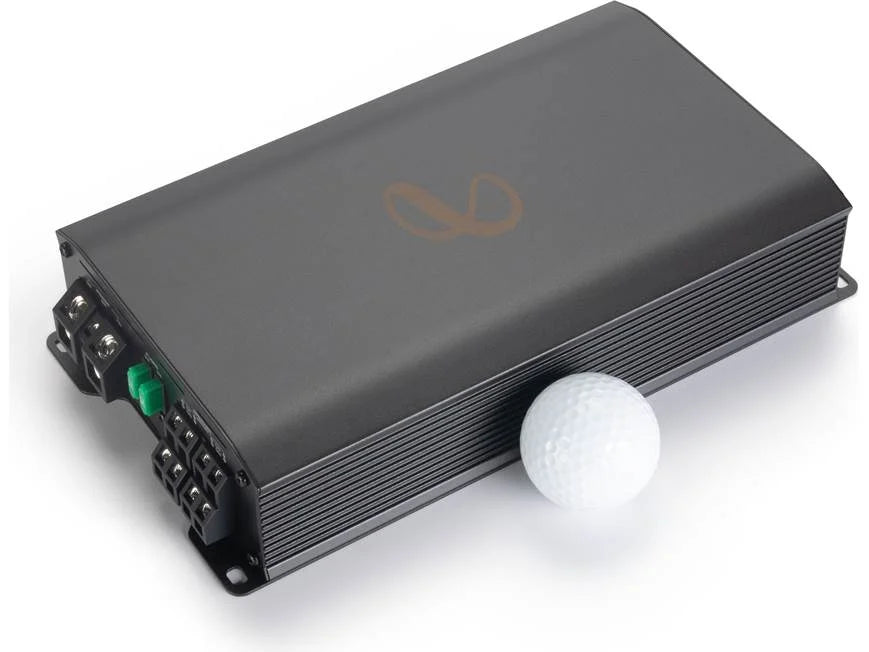

The
Infinity Primus 90041A (item model number
INFPRIMUS90041AAM) is a
high-performance Class D 4-channel car audio Compact amplifier. It is engineered to pack clean, efficient power into a compact footprint, making it easy to mount in tight vehicle spaces like under seats or behind panels.
Technical Specifications
-
RMS Power Handling:
-
90 Watts x 4 channels @ 4-Ohms
-
130 Watts x 4 channels @ 2-Ohms
-
260 Watts x 2 channels bridged @ 4-Ohms
-
Peak Power Output: 1,480 Watts
-
Frequency Response: 20 Hz – 20,000 Hz
-
Signal-to-Noise Ratio: 75 dB
-
Total Harmonic Distortion (THD): 1%
Key Features
-
Class D Amp Technology: Highly efficient architecture that runs much cooler than traditional circuitry while drawing less power from your car's electrical system. [1]
-
Start/Stop Engine Compatibility: Seamlessly maintains consistent, uninterrupted audio performance when integrated with vehicles utilizing automated engine start/stop systems.
-
OEM Load Detect System: Ensures complete compatibility with restrictive factory head units that require specific resistance to unlock sound, eliminating the need for extra installation hardware.
-
On-Board Protection Circuitry: Guarded against short circuits, extreme temperatures, overvoltage, and undervoltage to protect your hardware investment.
-
Precise Crossover Tuning: Features switchable high-pass (HPF) and low-pass (LPF) filters ranging from 32 to 320 Hz with a sharp 12 dB/octave slope for tailored separation.
-
Adjustable Bass EQ: Provides a variable bass boost from 0 to 12 dB centered at 45Hz to maximize your loudspeakers' or subwoofer's low-end performance. [1]
- Flexible Input Range: Accommodates low-level RCA inputs (200mV to 5V) and speaker-level inputs (1V to 25V) to connect to virtually any factory or aftermarket radio setup.
Core Build & Materials
-
Color: Matte black chassis with dark gray brushed accents and copper badge highlights
-
Material: Extruded aluminum heatsink core with high-impact ABS endcaps
-
Heatsink Type: High-efficiency top-and-side dissipation fins
Audio & System Architecture
-
Audio Component Form Factor: Compact multi-channel mobile chassis
-
Audio Output Channels: 4 channels (bridgeable to 3 or 2 channels)
-
Audio Purpose: Multi-speaker high-fidelity power distribution or subwoofer driver amplification
-
Circuit Design / Topology: Class D (Switching amplifier topology)
Connectivity & Installation
-
Compatible Devices: Coaxial speakers, component speaker networks, subwoofers, and standard car stereo systems
-
Connectivity Technology: Hardwired screw-down and plug-in modular interfaces
-
Device Interface:
-
2 pairs of low-level differential-balanced RCA inputs
-

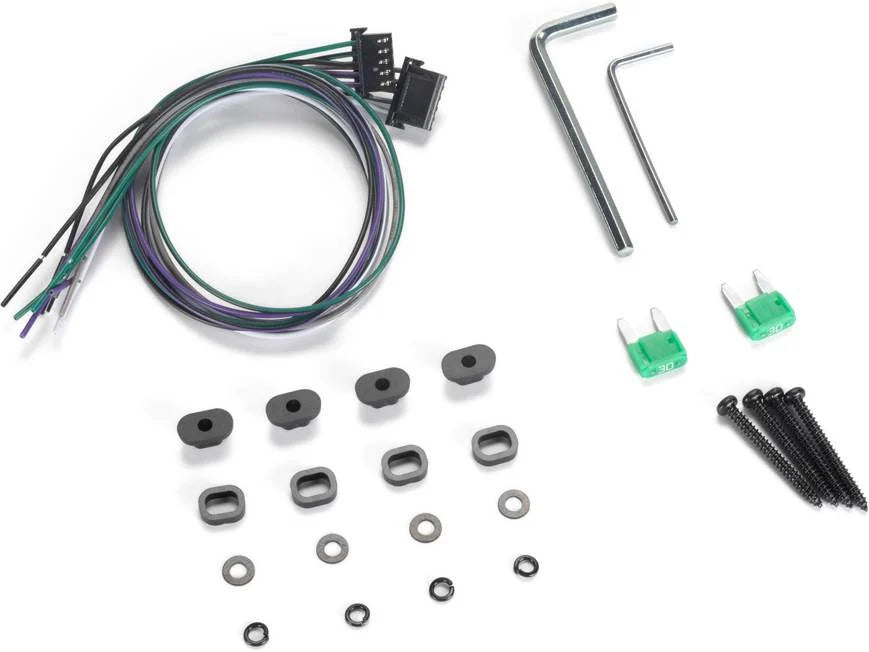

Line-level speaker adapter wiring harnesses (included)
-

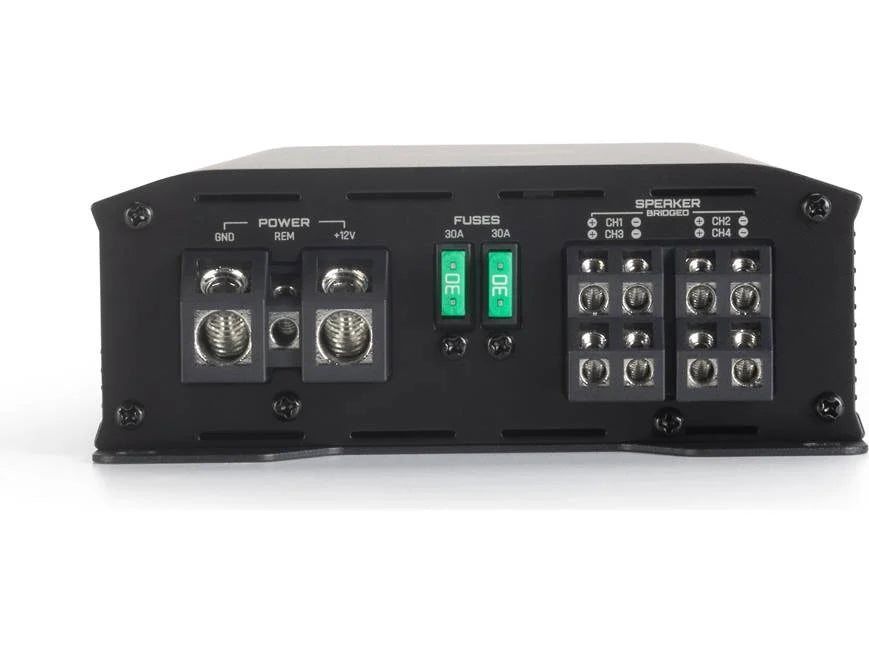

Set-screw power, ground, and remote turn-on terminals
-
Mounting Type: Flat surface mount (under seat, trunk floor, or custom amp rack)
Power & Control Features
-
Power Source: 12V DC vehicle electrical system (requires direct wiring to the car battery)
-
Speaker Enclosure Compatibility: Infinite baffle, sealed, or ported speaker configurations (operates at 4-ohm or 2-ohm stable loads)
-

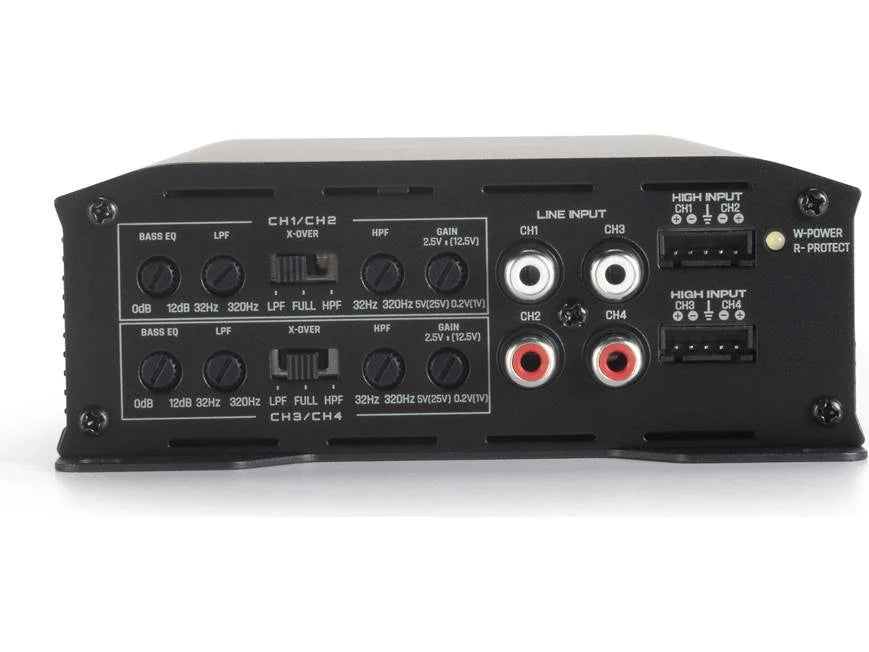

Amplifier Control Features:
-
Dual variable electronic crossovers (HPF/Full/LPF)
-
Crossover adjustment range: 32Hz to 320Hz (12dB/octave slope)
-
Variable Bass EQ adjustment (0 to +12dB centered at 45Hz)
- Independent front and rear gain/sensitivity dials
