The
Infinity Primus PR503CF is
a high-efficiency 5-1/4" (5.25") two-way component car speaker system designed to bring accurate, lifelike vocals and sharp detailing to compact factory speaker locations.
As a component system, it separates the mid-bass woofers from the tweeters using external crossovers to optimize sound staging and clarity.
Technical Specifications
-
Power Handling: 50 Watts RMS (150 Watts Peak per speaker)
-
Impedance: 3-Ohm (True Four Ohm architecture safely pulls extra power from factory or aftermarket head units)
-
Frequency Response: 75 Hz – 20,000 Hz
-
Sensitivity: 91 dB at 2.83V
-
Woofer Mounting Depth: 1.81" (1-13/16")
Key Features
-
Plus One+ Woofer Cones: Patented polypropylene cone design provides up to 35% more surface area than competitors, boosting bass punch and efficiency.
-
Edge-Driven Silk Dome Tweeters: The 3/4" silk tweeters deliver smooth, non-fatiguing high frequencies and expanded detail without distortion at high volumes.
-
Super-Rigid Vented Baskets: Designed to cool the voice coils by wicking heat away during heavy use, ensuring long-term reliability.
- Starfish™ Tweeter Mounts: Includes flexible installation hardware designed for simple flush or surface mounting in factory tweeter spots.
Audio Performance
-
RMS Power Handling: 50 Watts
-
Peak Power Handling: 150 Watts
-
Frequency Response: 75 Hz – 20,000 Hz
-
Sensitivity: 91 dB at 2.83V
-
Impedance: 3-Ohm True Four Ohm technology
Driver & Material Details
-

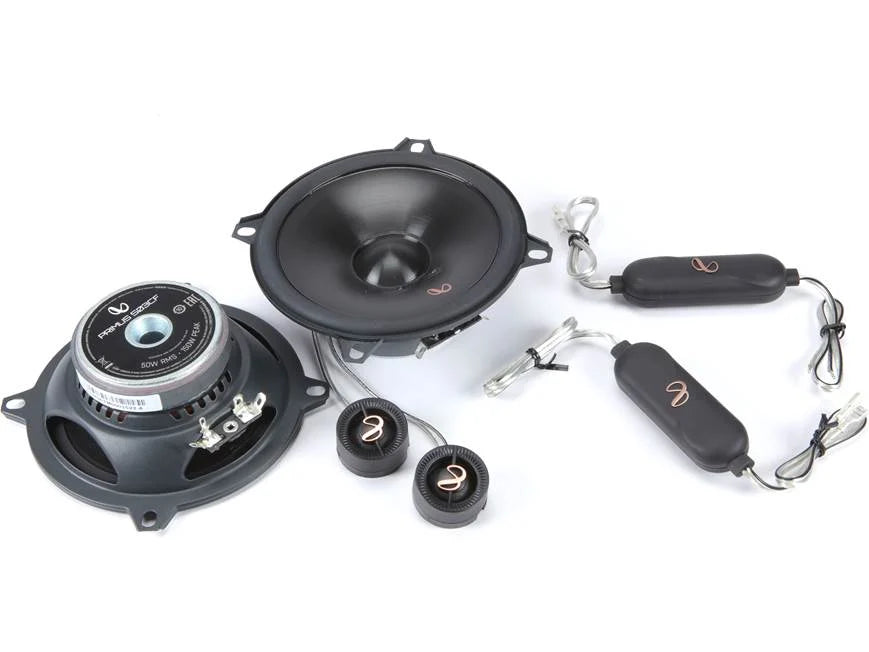

Speaker Design: 2-Way Component System
-

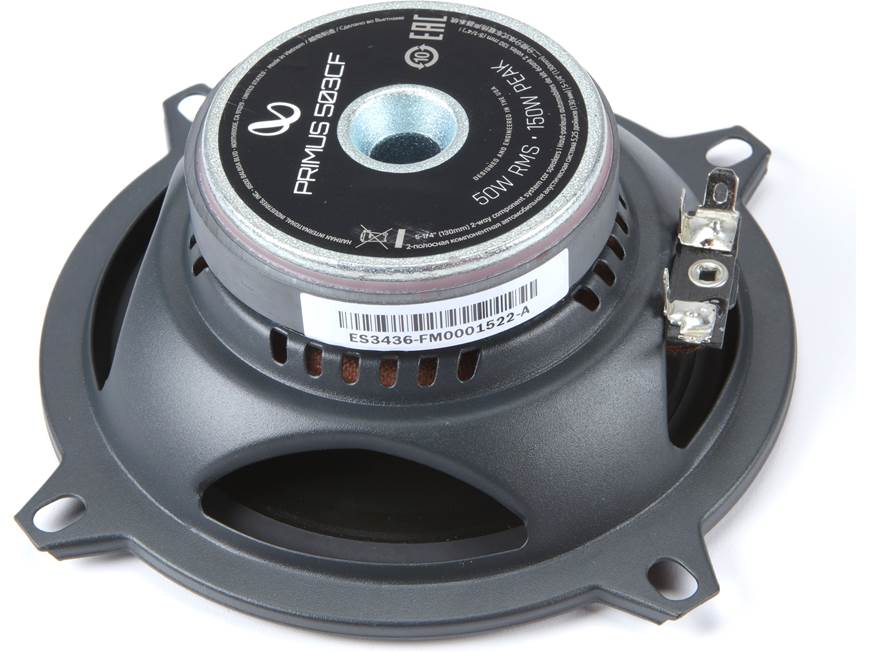

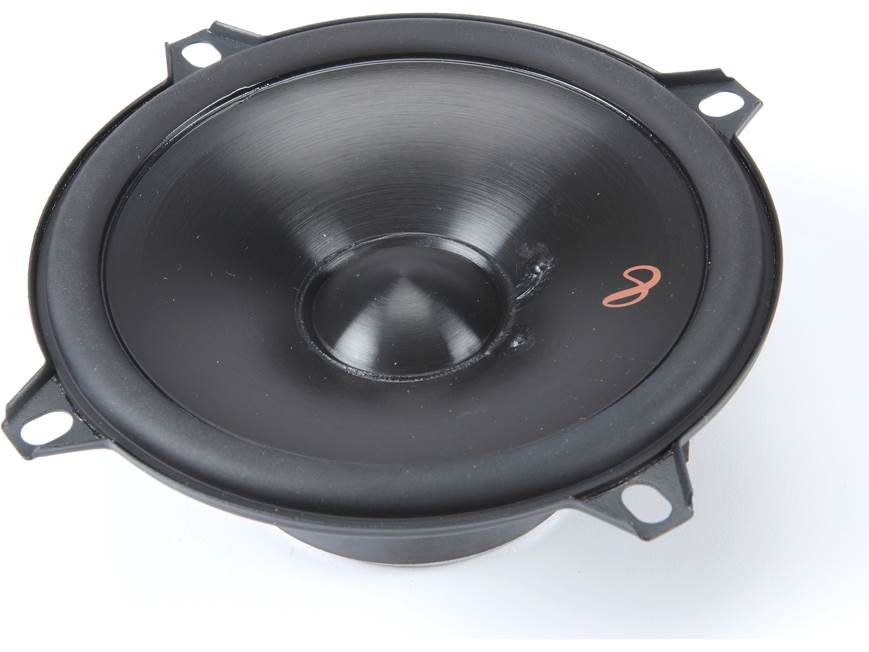

Woofer Size: 5-1/4" (5.25")
-
Woofer Composition: Plus One+ Polypropylene
-
Woofer Surround: Hi-Roll Rubber
-

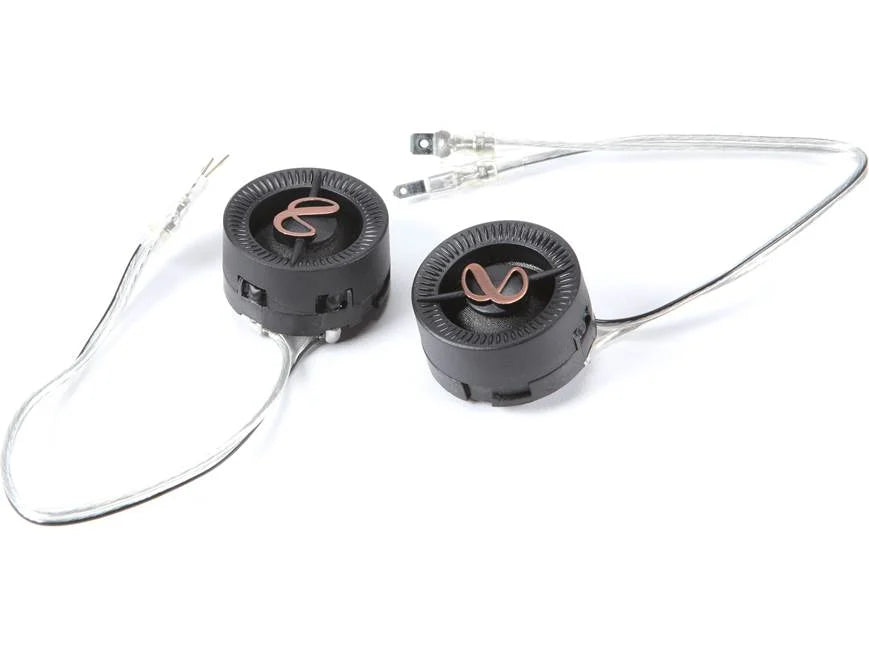

Tweeter Size: 3/4"
-
Tweeter Design: Edge-driven dome
-
Tweeter Composition: Silk
Physical Dimensions
-
Woofer Top-Mount Depth: 1.812" (1-13/16")
-
Woofer Bottom-Mount Depth: 2-1/16"
-
Cutout Diameter: 4.687" (4-11/16")
-
Mounting Height: 0.44"
System Features
-

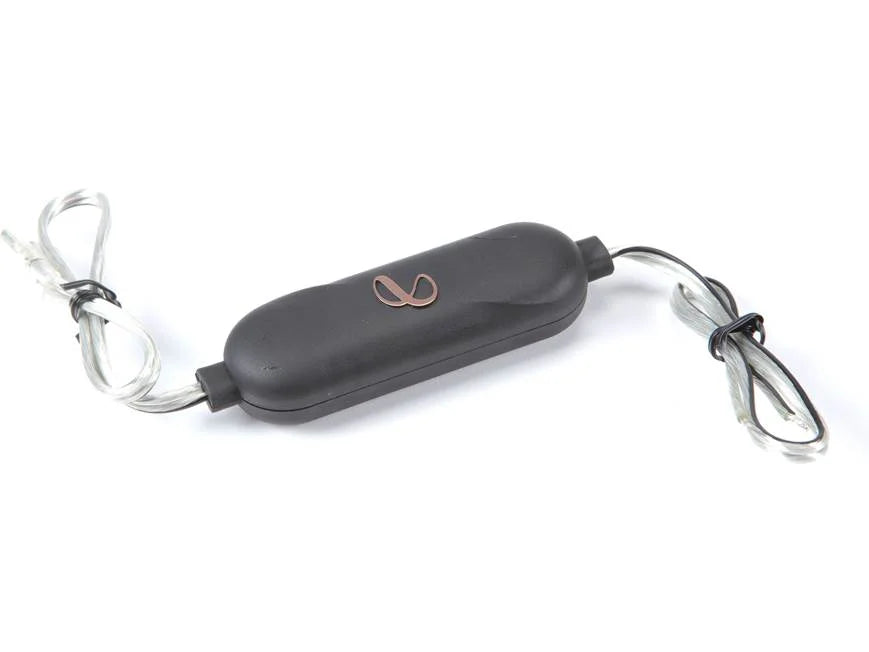

Crossover: Includes inline passive crossover networks
-
Tweeter Level Control: Fixed (Standard attenuation handled via inline network)
-

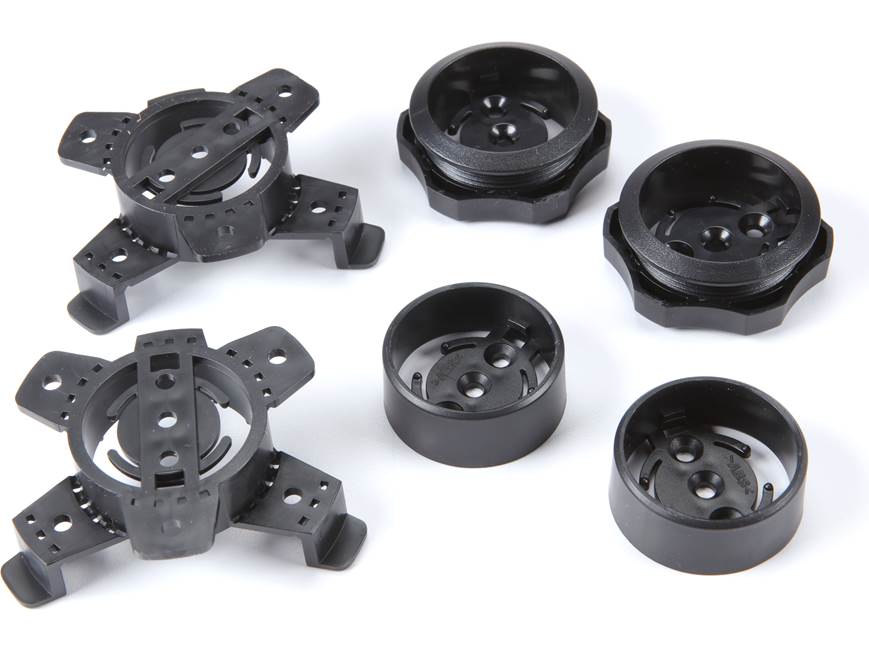

Tweeter Brackets: Starfish™ factory mounting adapters included
