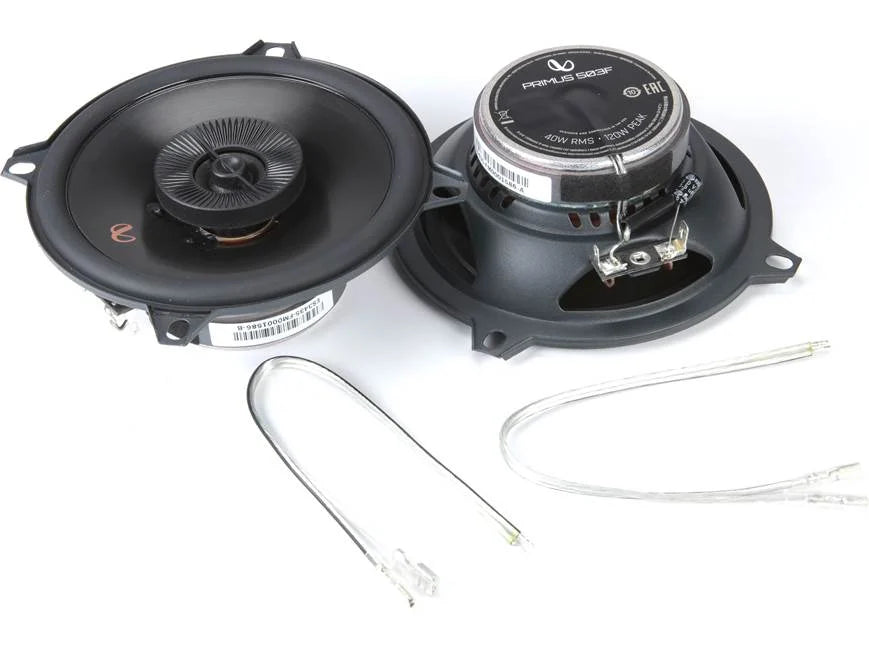

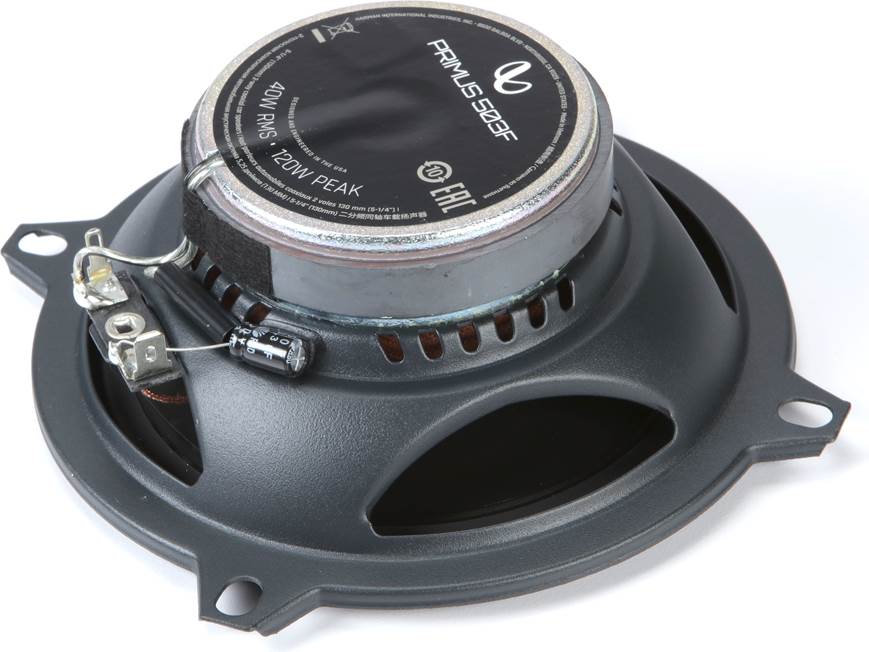

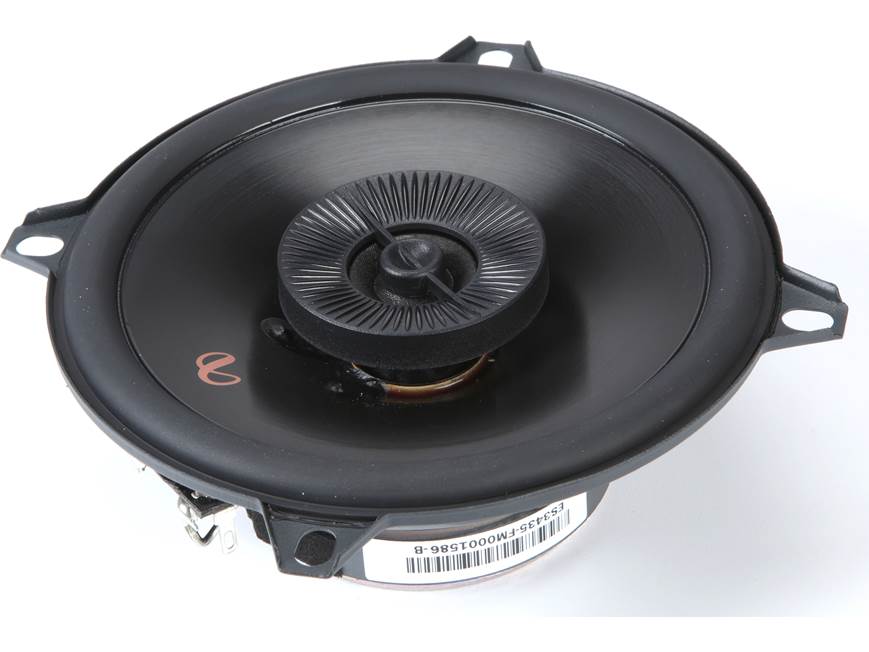

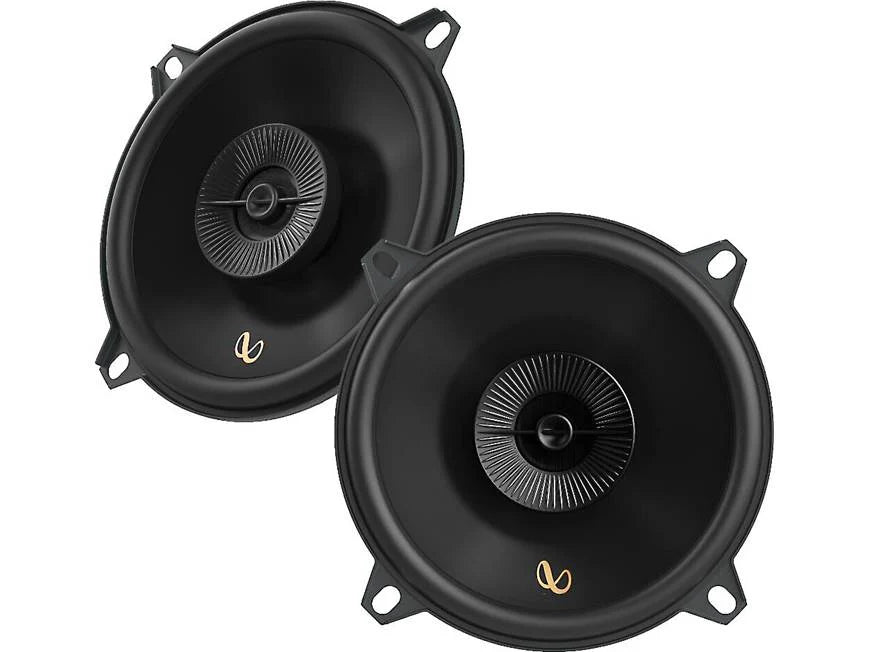

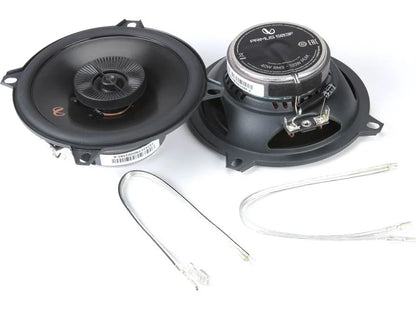

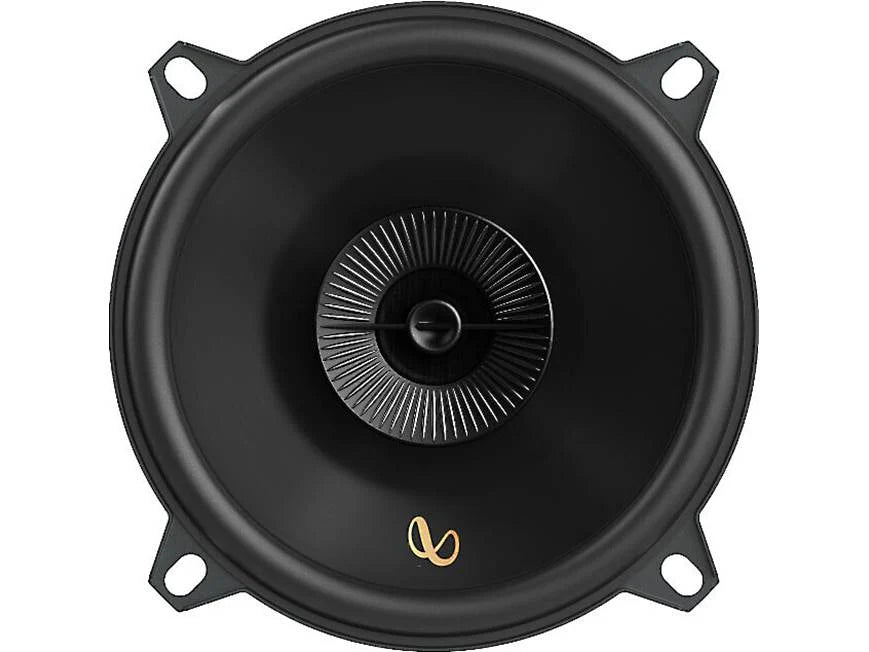

The
Infinity Primus PR503F is
a high-efficiency 5-1/4" (5.25") two-way coaxial car speaker pair built to upgrade dull factory sound with crisp, lifelike details.
Unlike the component "CF" version, this model features a coaxial setup with the silk dome tweeter mounted directly in the center of the main woofer cone.
Technical Specifications
-
Power Handling: 40 Watts RMS (120 Watts Peak per speaker)
-
Impedance: 3-Ohm (True Four Ohm design draws extra power out of standard factory wires safely)
-
Frequency Response: 75 Hz – 20,000 Hz
-
Sensitivity: 91 dB at 2.83V
-
Woofer Mounting Depth: 1.812" (1-13/16")
Key Features
-
Plus One™ Woofer Architecture: Patented polypropylene cones expand overall surface area by up to 35%, boosting midbass output and overall speaker efficiency. []
-
Edge-Driven Silk Dome Tweeters: The 3/4" silk dome tweeters deliver smooth high frequencies and clear vocals without harsh harmonic distortion at high volumes.
-
Vented Basket Frame Design: Super-rigid baskets utilize active air venting to cool down voice coils during long playback sessions, extending the life of your hardware.
- Aesthetic Integration: Features an all-black design accented with a radial starburst pattern and a mirror-like copper logo badge.
Audio Performance
-
RMS Power Handling: 40 Watts
-
Peak Power Handling: 120 Watts
-
Frequency Response: 75 Hz – 20,000 Hz
-
Sensitivity: 91 dB at 2.83V
-
Impedance: 3-Ohm True Four Ohm technology
Driver & Material Details
-
Speaker Design: 2-Way Coaxial System
-
Woofer Size: 5-1/4" (5.25")
-
Woofer Composition: Plus One+ Polypropylene
-
Woofer Surround: Hi-Roll Rubber
-
Tweeter Size: 3/4"
-
Tweeter Design: Edge-driven dome
-
Tweeter Composition: Silk
Physical Dimensions
-
Woofer Top-Mount Depth: 1.812" (1-13/16")
-
Woofer Bottom-Mount Depth: 2-1/16"
-
Cutout Diameter: 4.687" (4-11/16")
-
Mounting Height: 0.44"
System Features
-
Crossover: Integrated on-speaker network
-
Tweeter Level Control: Fixed (Standard attenuation handled via integrated network)
- Grilles: Included in the box
