The
Infinity Primus PR9693M (often marketed interchangeably as the PR693M) is a high-efficiency
6"x9" three-way coaxial car speaker pair. It is engineered to deliver wide, full-range frequency reproduction by pairing a large mid-bass driver with a separate tweeter and supertweeter.
Technical Specifications
-
Power Handling: 60 Watts RMS (180 Watts Peak per speaker)
-
Impedance: 3-Ohm (True Four Ohm design safely increases performance when coupled with thin factory wiring)
-
Frequency Response: 50 Hz – 20,000 Hz
-
Sensitivity: 93 dB at 2.83V
-
Woofer Mounting Depth: 3.063" (3-1/16")
Key Features
-
3-Way Multi-Element Array: Built with a large polypropylene woofer cone, a 3/4" edge-driven silk dome tweeter, and a dedicated piezo supertweeter for maximum high-end resolution.
-
Plus One+ Woofer Cones: The patented cone architecture expands overall surface boundary area by up to 35%, ensuring tighter bass control and extra efficiency.
-

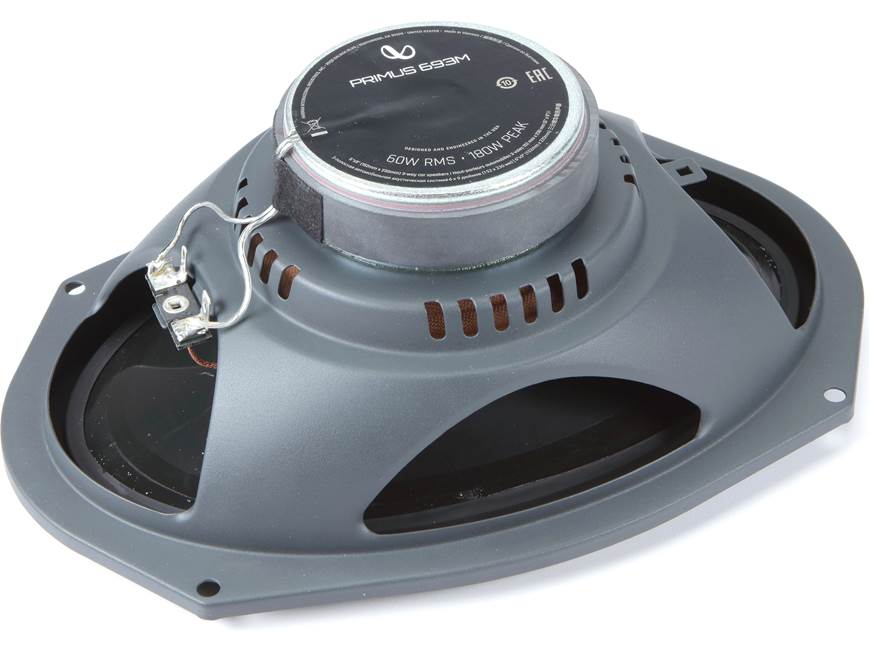

Vented Basket Frames: Super-rigid basket shells utilize custom ventilation patterns to actively draw damaging heat away from the sensitive voice coils.
- Supernova Styling: Features a rich, matte-black configuration featuring a supernova starburst pattern and a mirror-polished copper Mobius strip logo.
The technical specifications for the
Infinity Primus PR9693M (PR693M) 3-way coaxial speaker system are detailed below:
Audio Performance
-
RMS Power Handling: 60 Watts
-
Peak Power Handling: 180 Watts
-
Frequency Response: 50 Hz – 20,000 Hz
-
Sensitivity: 93 dB at 2.83V
-
Impedance: 3-Ohm True Four Ohm technology
Driver & Material Details
-
Speaker Design: 3-Way Coaxial System
-
Woofer Size: 6" x 9"
-
Woofer Composition: Plus One+ Polypropylene
-
Woofer Surround: Hi-Roll Rubber
-
Tweeter Size: 3/4"
-
Tweeter Design: Edge-driven dome
-
Tweeter Composition: Silk
-
Supertweeter Design: Piezoelectric dome
Physical Dimensions
-
Woofer Top-Mount Depth: 3.063" (3-1/16")
-
Woofer Bottom-Mount Depth: 3-5/8"
-
Cutout Dimensions: 8-7/16" x 5-11/16"
-
Mounting Height: 0.38"
System Features
-
Crossover: Integrated on-speaker network
-
Tweeter Level Control: Fixed (Standard attenuation handled via integrated network)
-

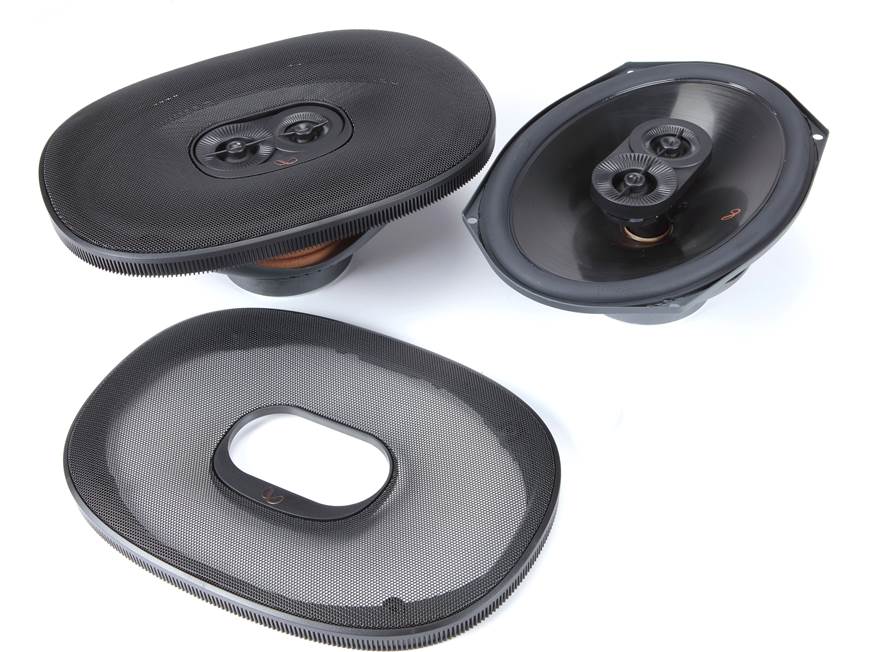

Grilles: Included in the box
