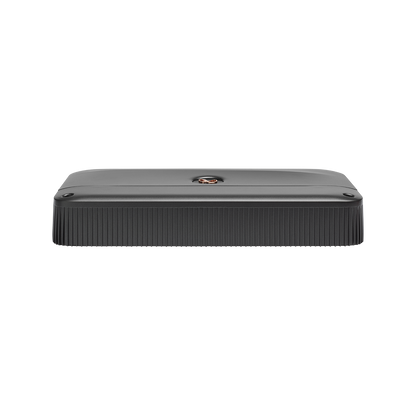

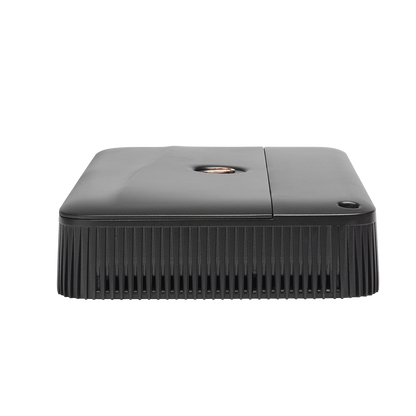

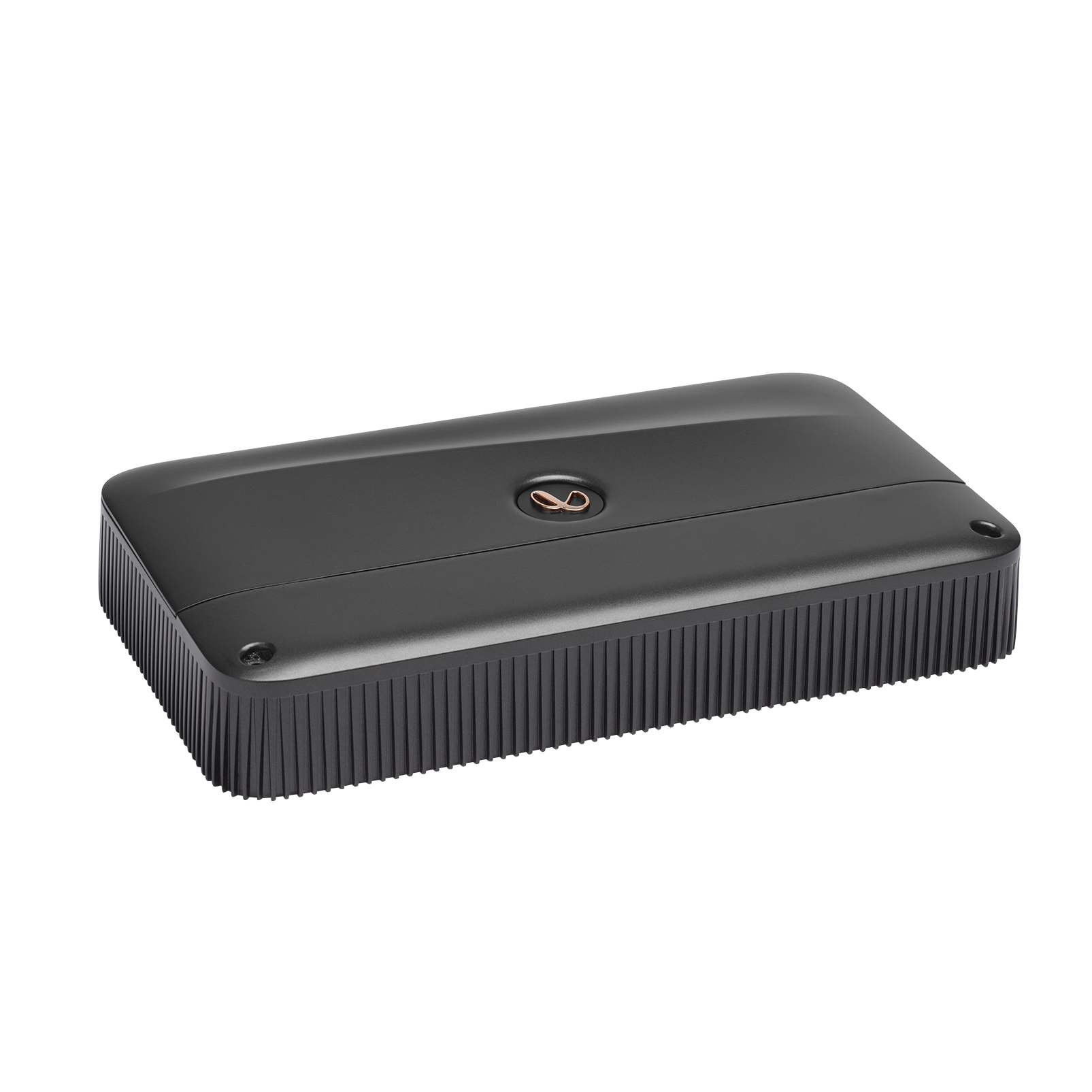

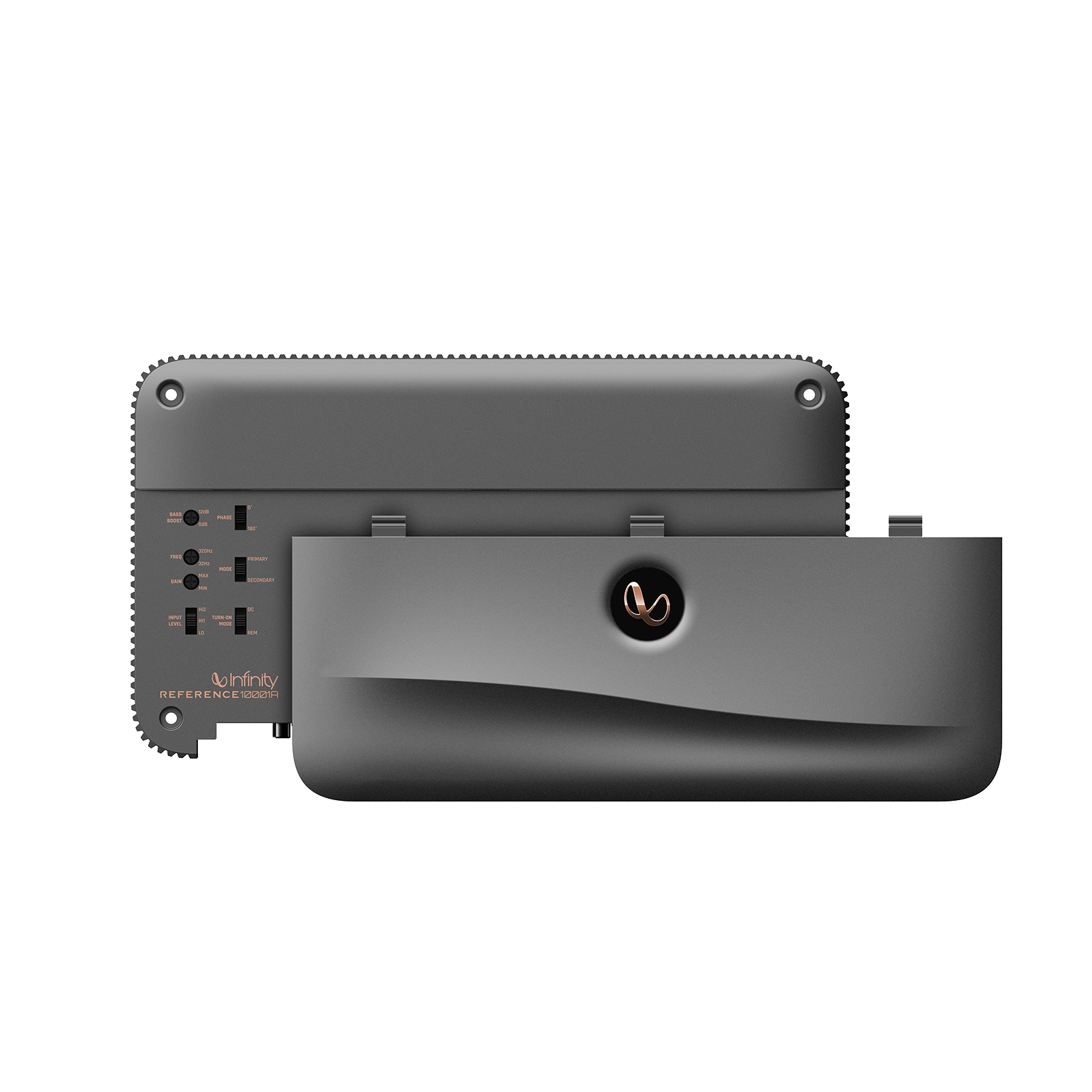

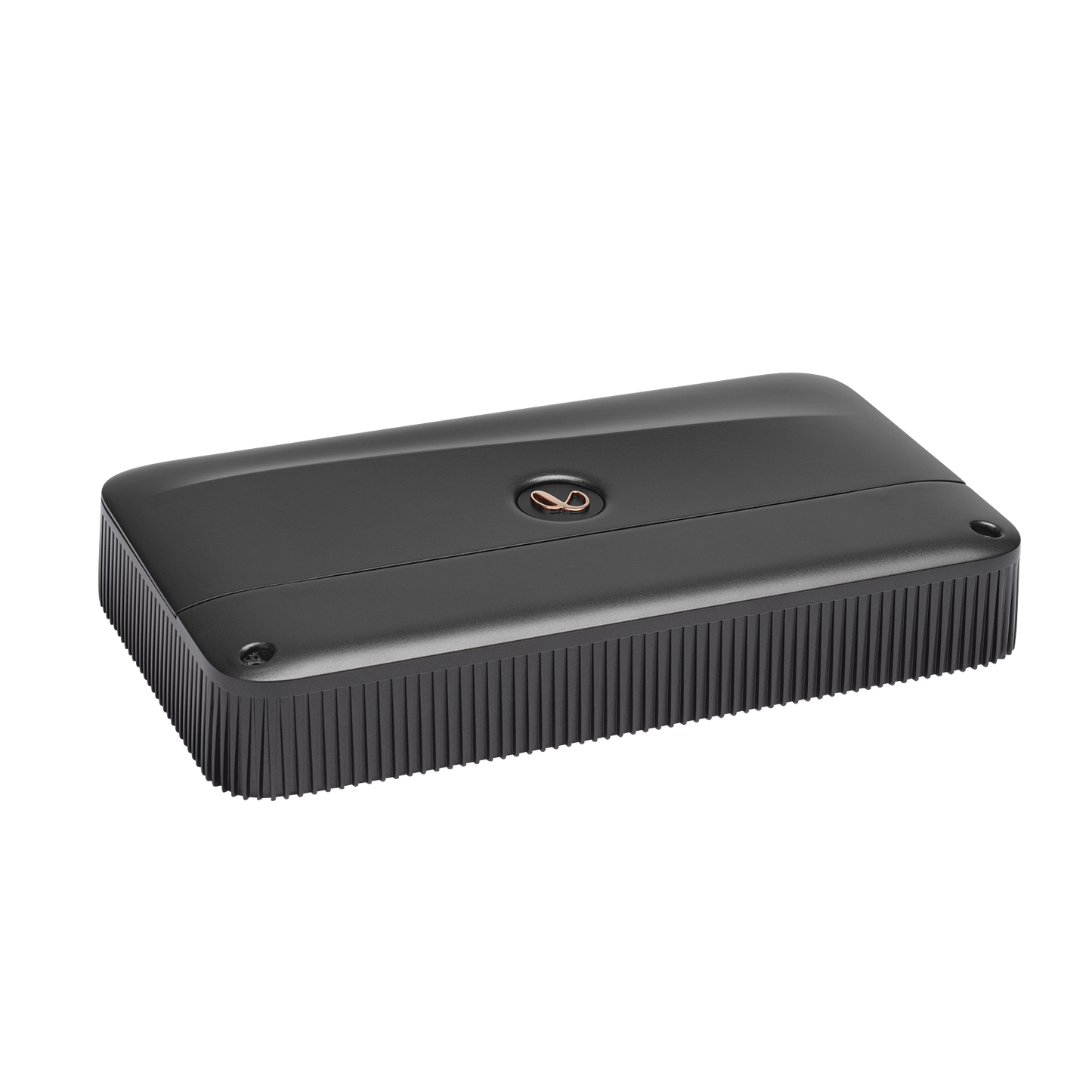

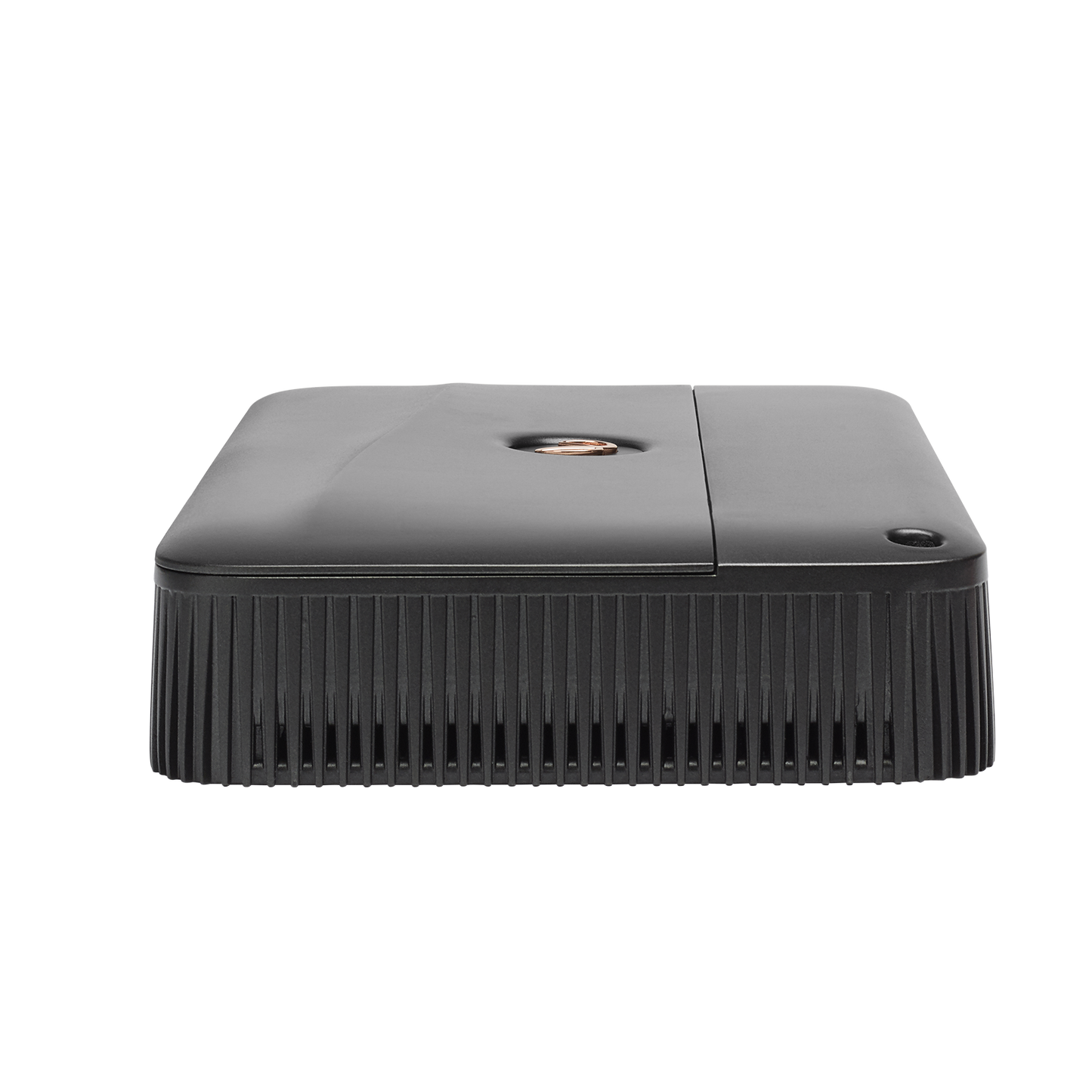

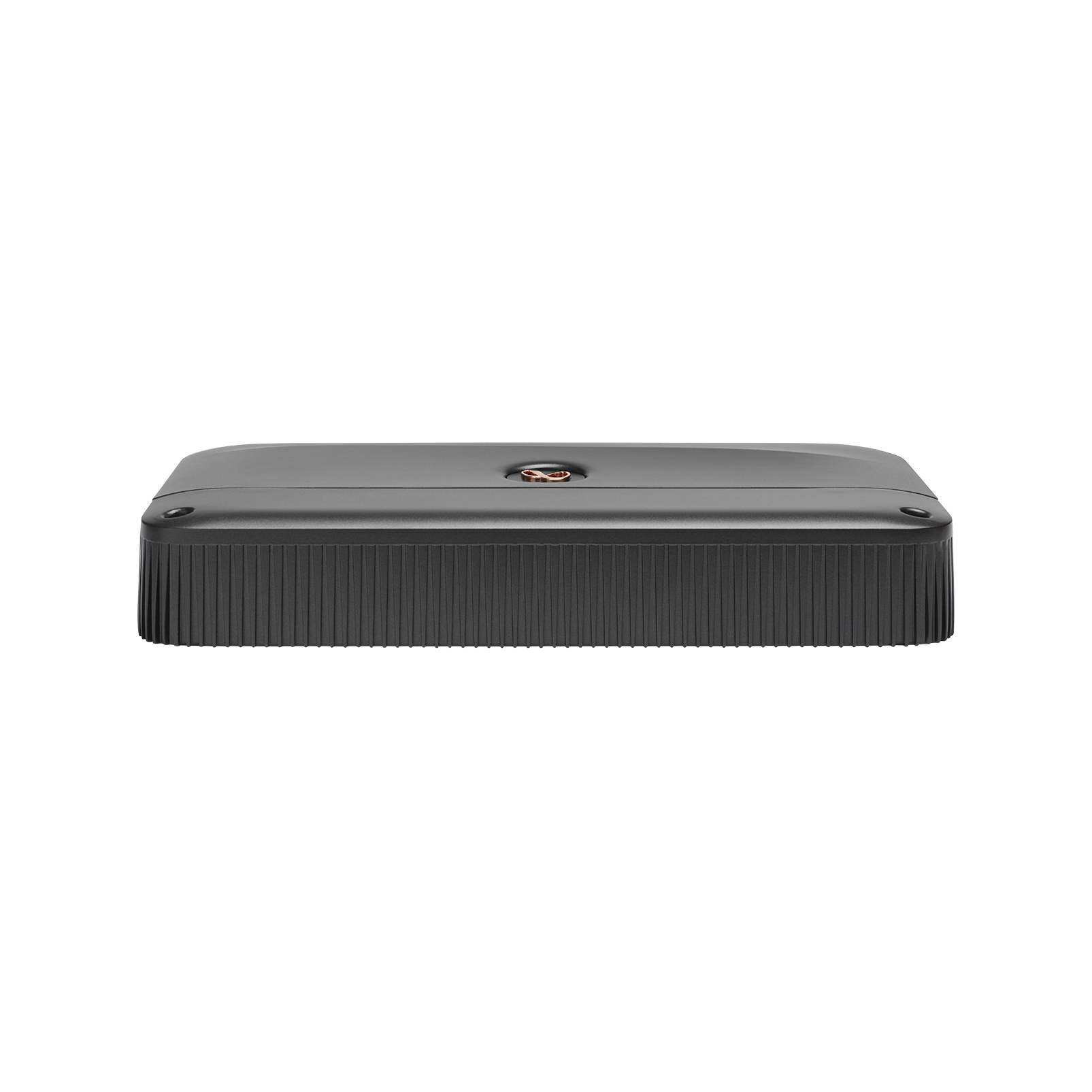

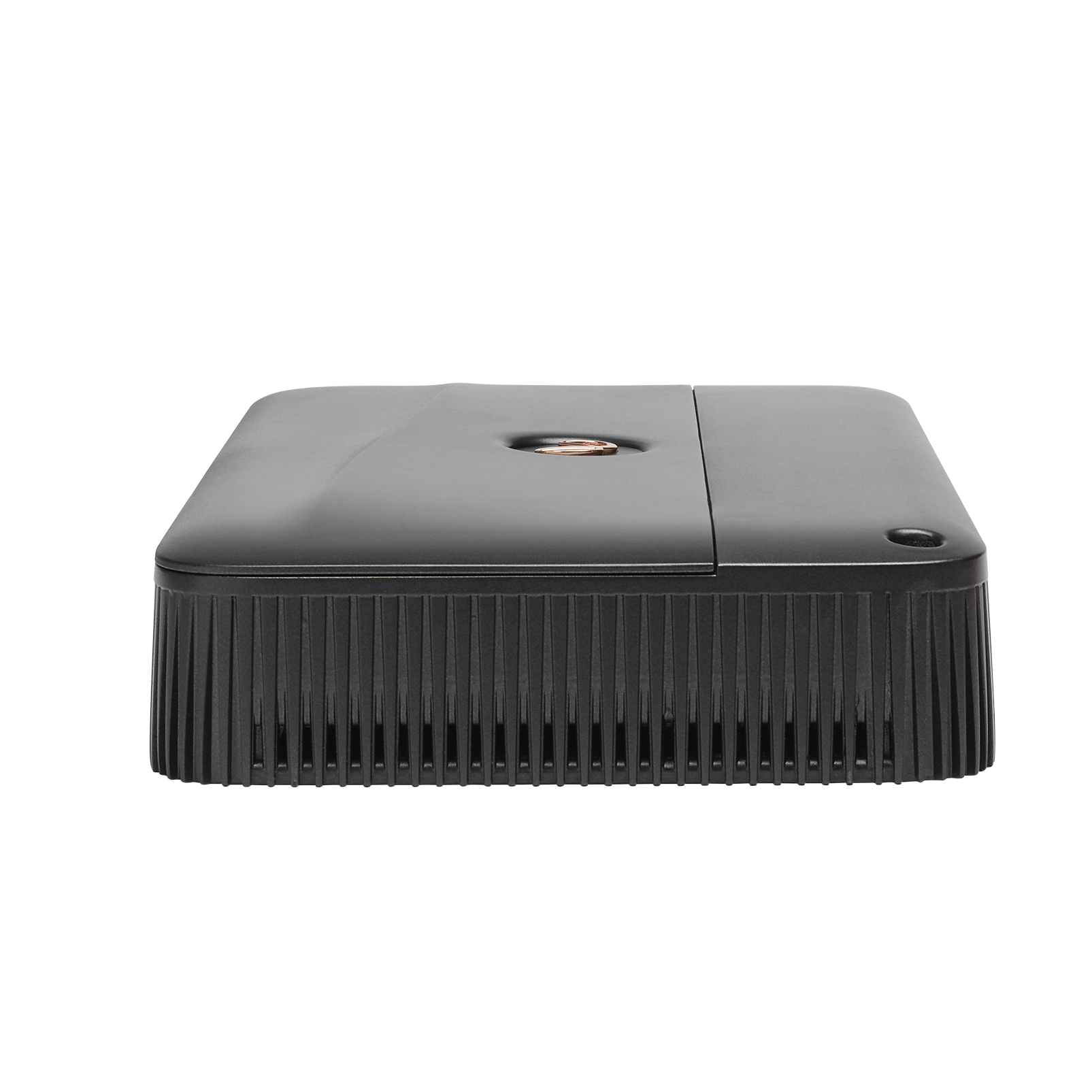

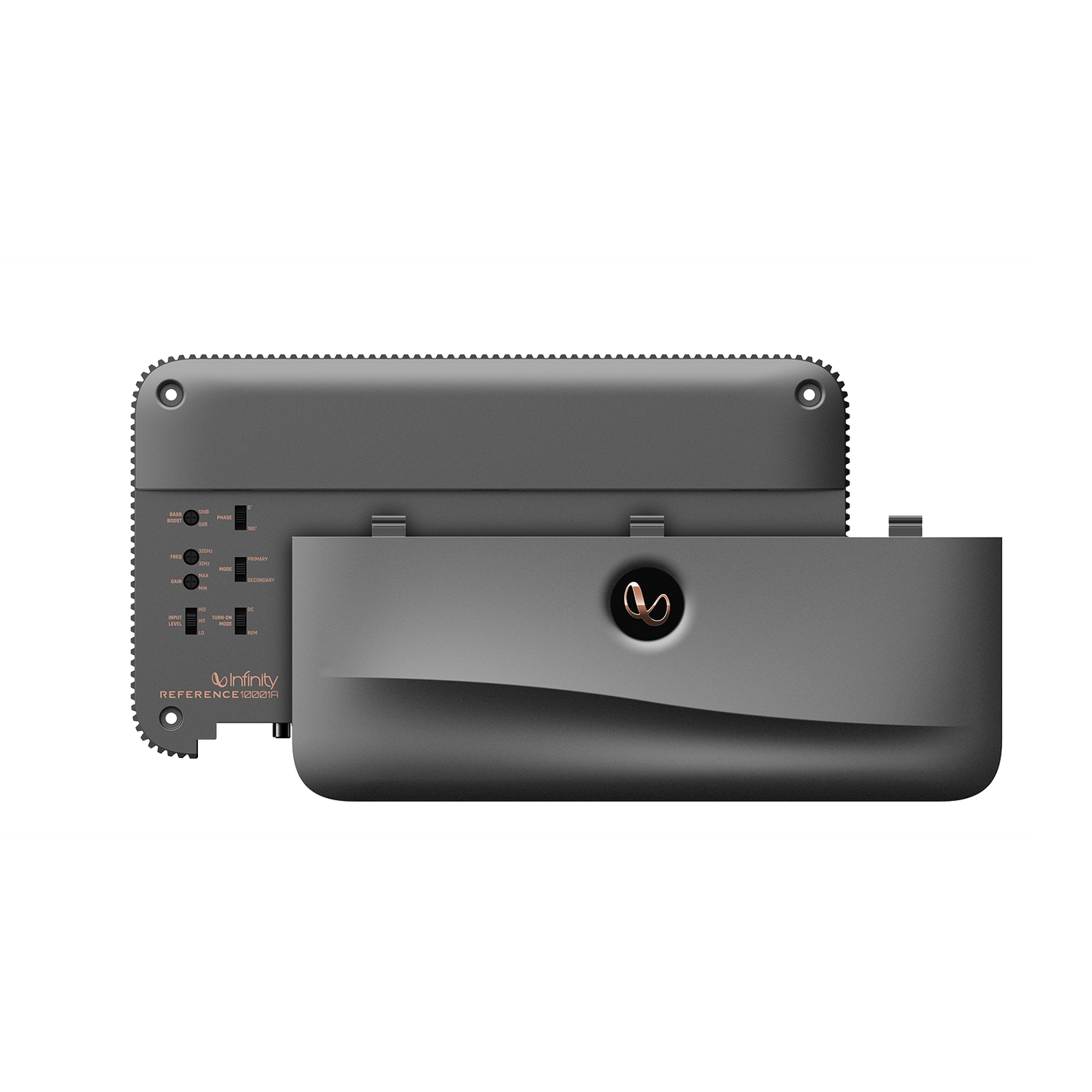

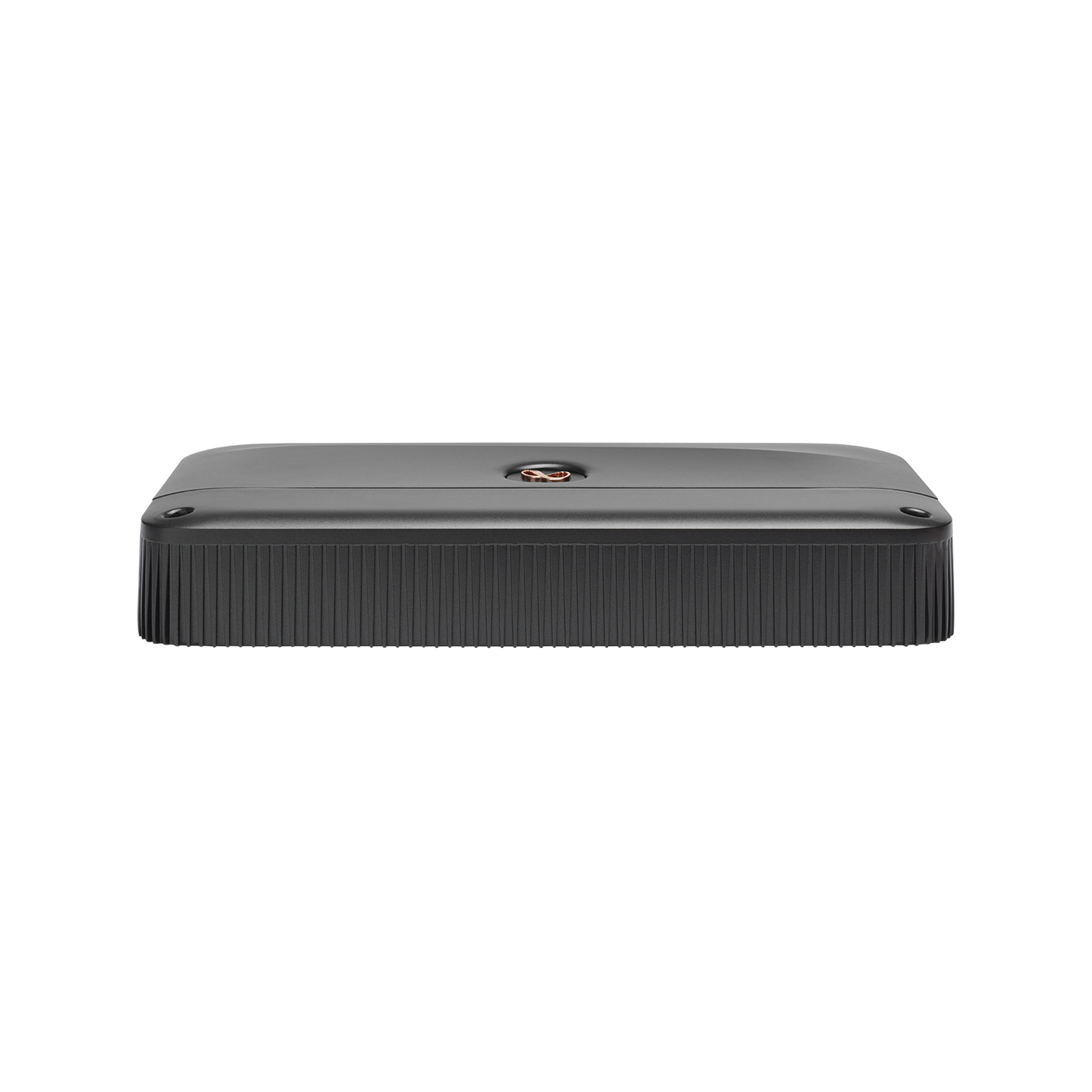

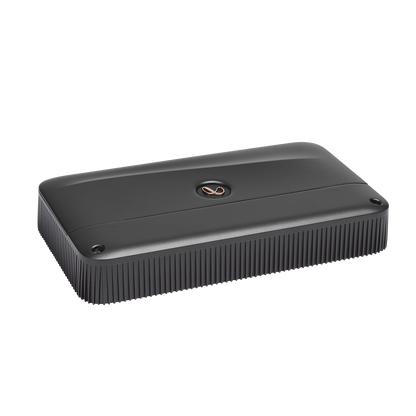

Infinity Reference 10001A Amplifier

Product info:

• mono subwoofer amplifier
  • 600 watts RMS x 1 at 4 ohms
  • 1000 watts RMS x 1 at 2 ohms
  • 2000 total watts RMS x 1 at 4 ohms when strapped to a second Reference 10001A
• Class D amp technology
• variable low-pass filter (32-320 Hz, 12 dB/octave)
• variable bass boost (0-12 dB at 45 Hz)
• phase switch (0, 180 degrees)
• wired remote bass control module included

More Info:

• preamp and speaker-level inputs
  • bare wire to RCA adapters included for high-level input
• preamp outputs
• wiring and hardware not included with amplifier
  • 4-gauge power and ground leads recommended
• fuse rating: 35A x 3
• dimensions: 12-5/8"W x 2-1/4"H x 7-3/4"D

Reference 10001A mono subwoofer amplifier delivers a blistering 1,000-Watts RMS using Class D amplifier topology to ensure cool running and minimal current draw. Speaker-level inputs allow this amplifier to integrate into almost any system, even one using your car's factory radio — and Infinity includes RCA-to-speaker wire adapters so you'll make the right connections. You can use the low-pass filter and variable bass boost to maximize the performance of your subwoofer and enclosure, while a phase switch ensures that the bass will blend well with your full-range speakers.
