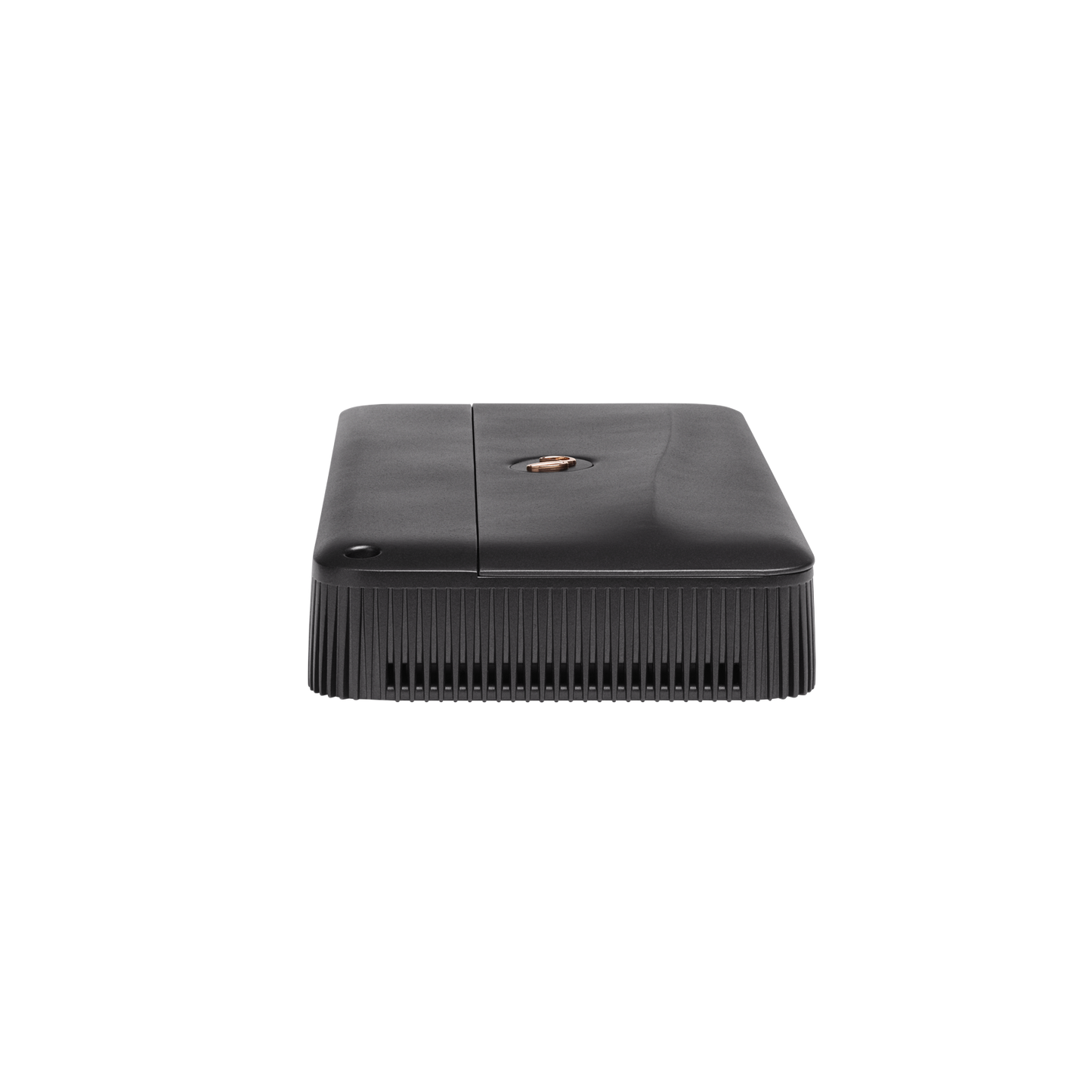

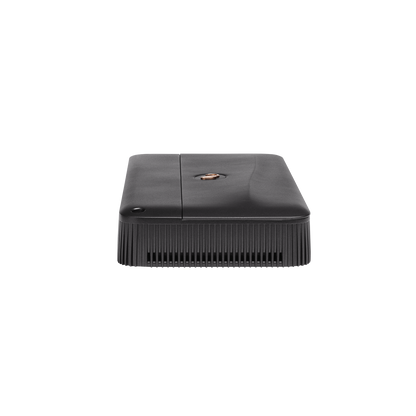

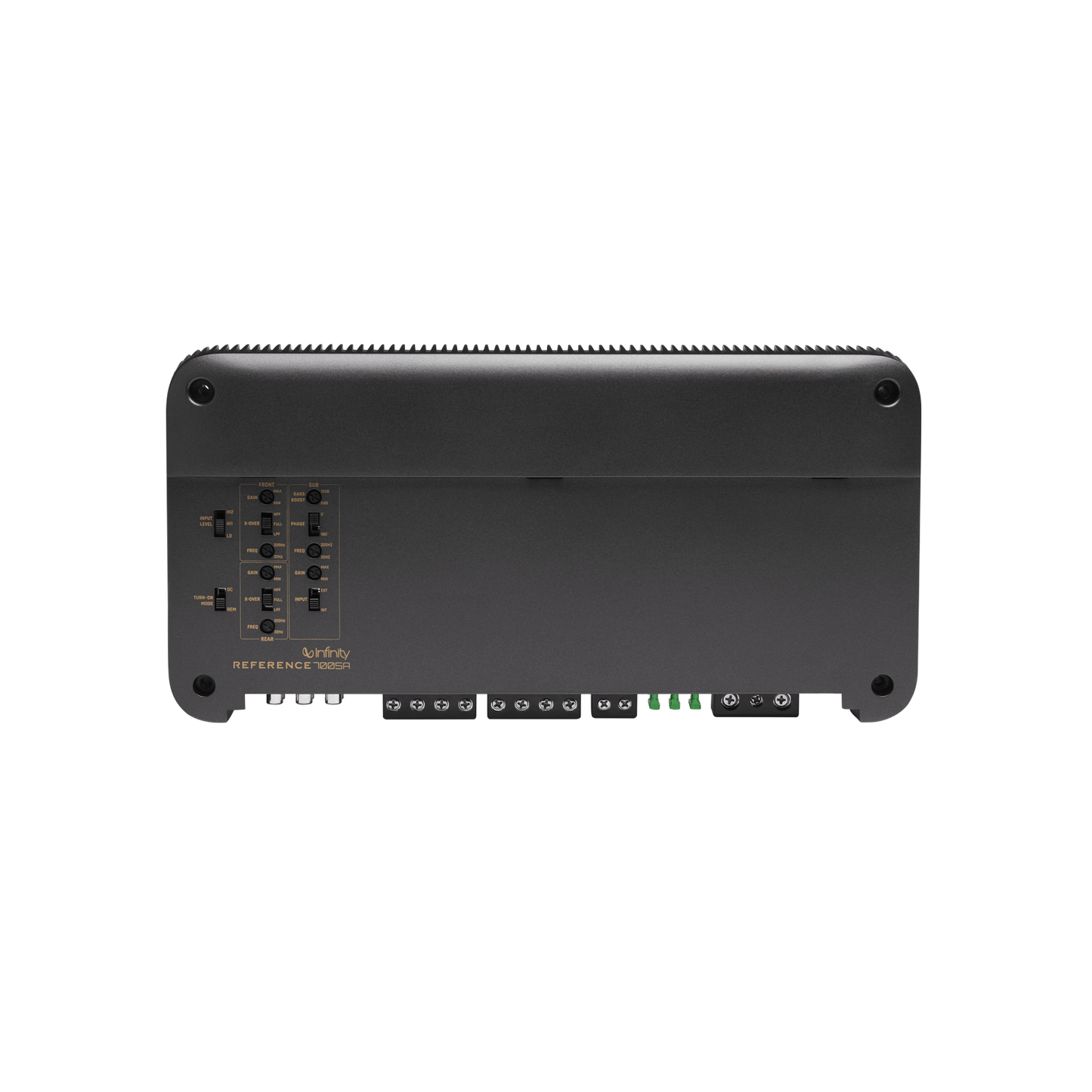

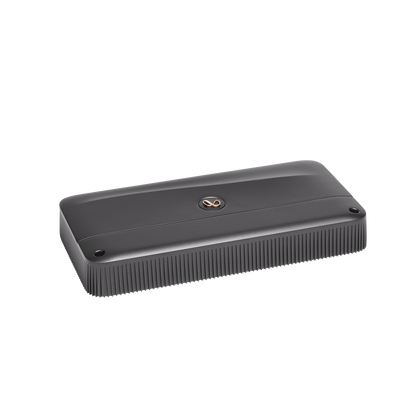

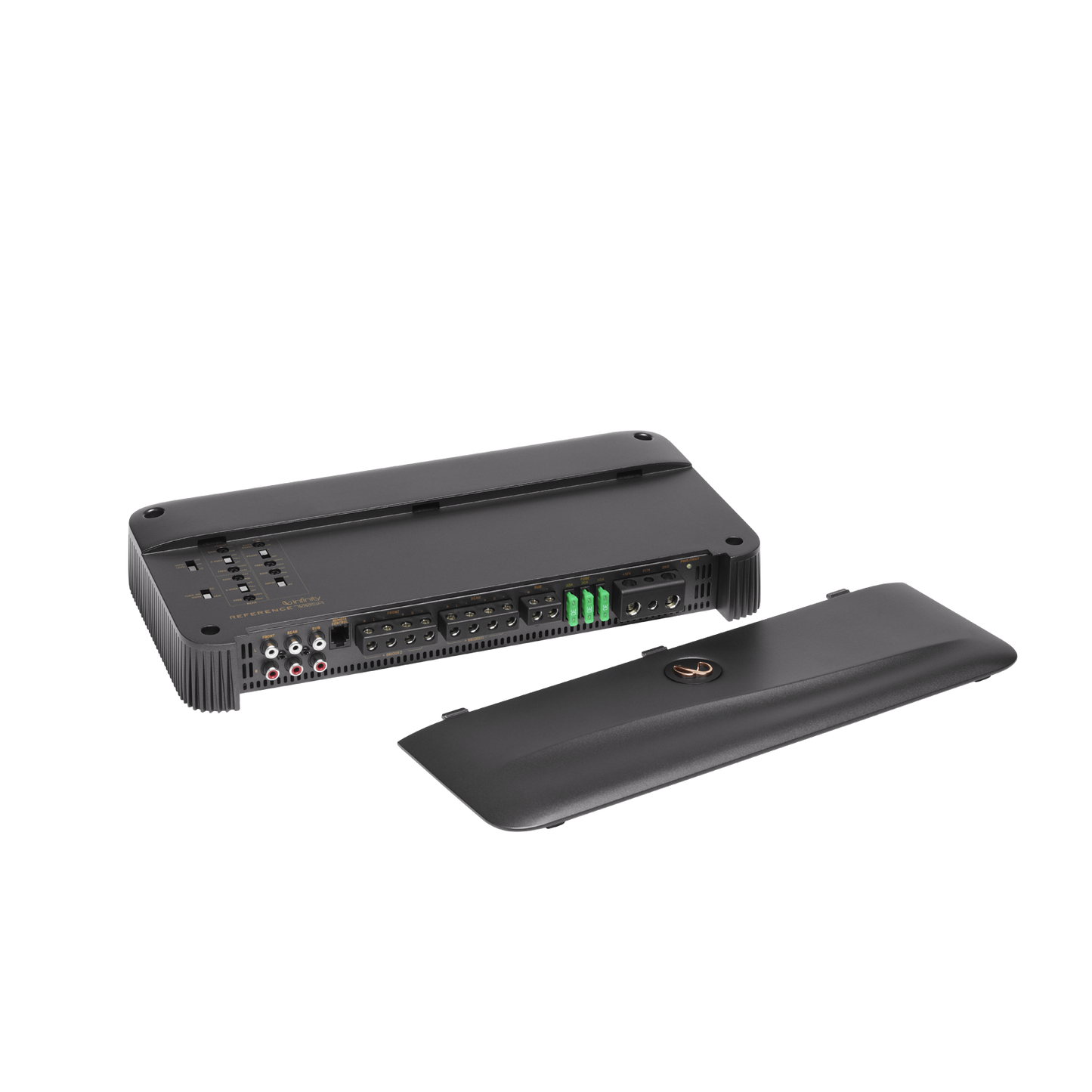

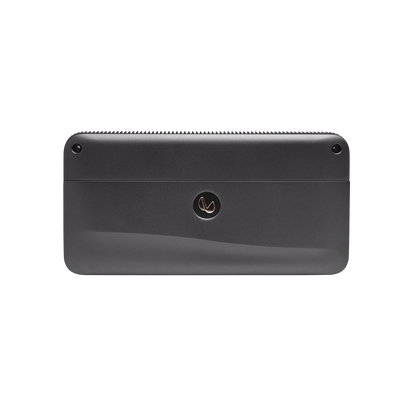

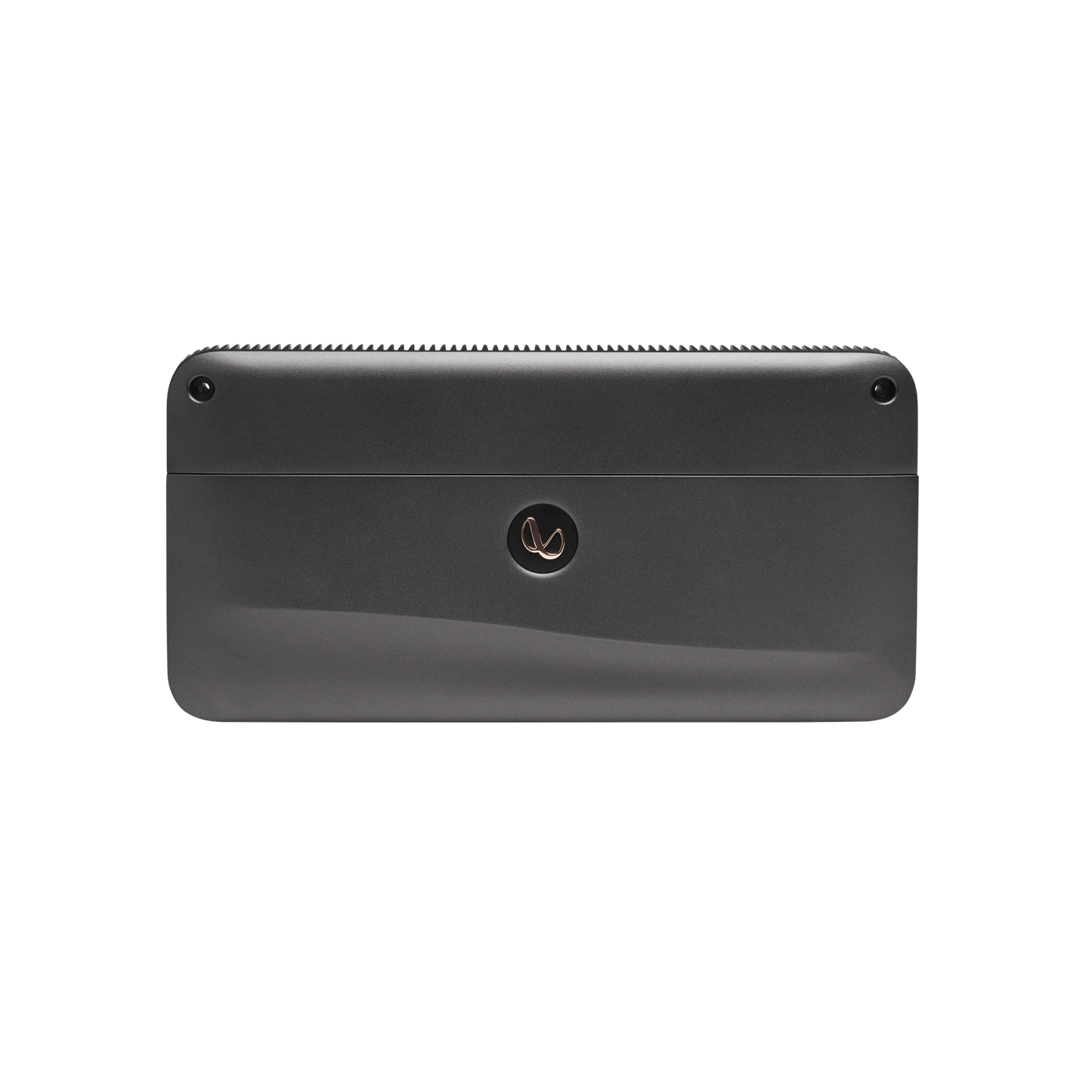

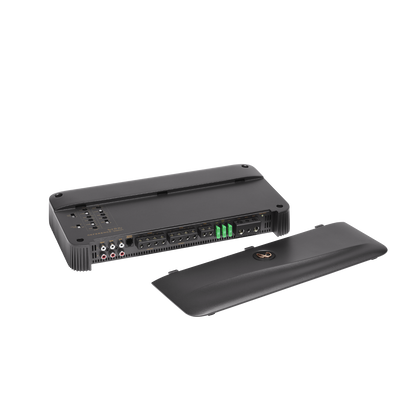

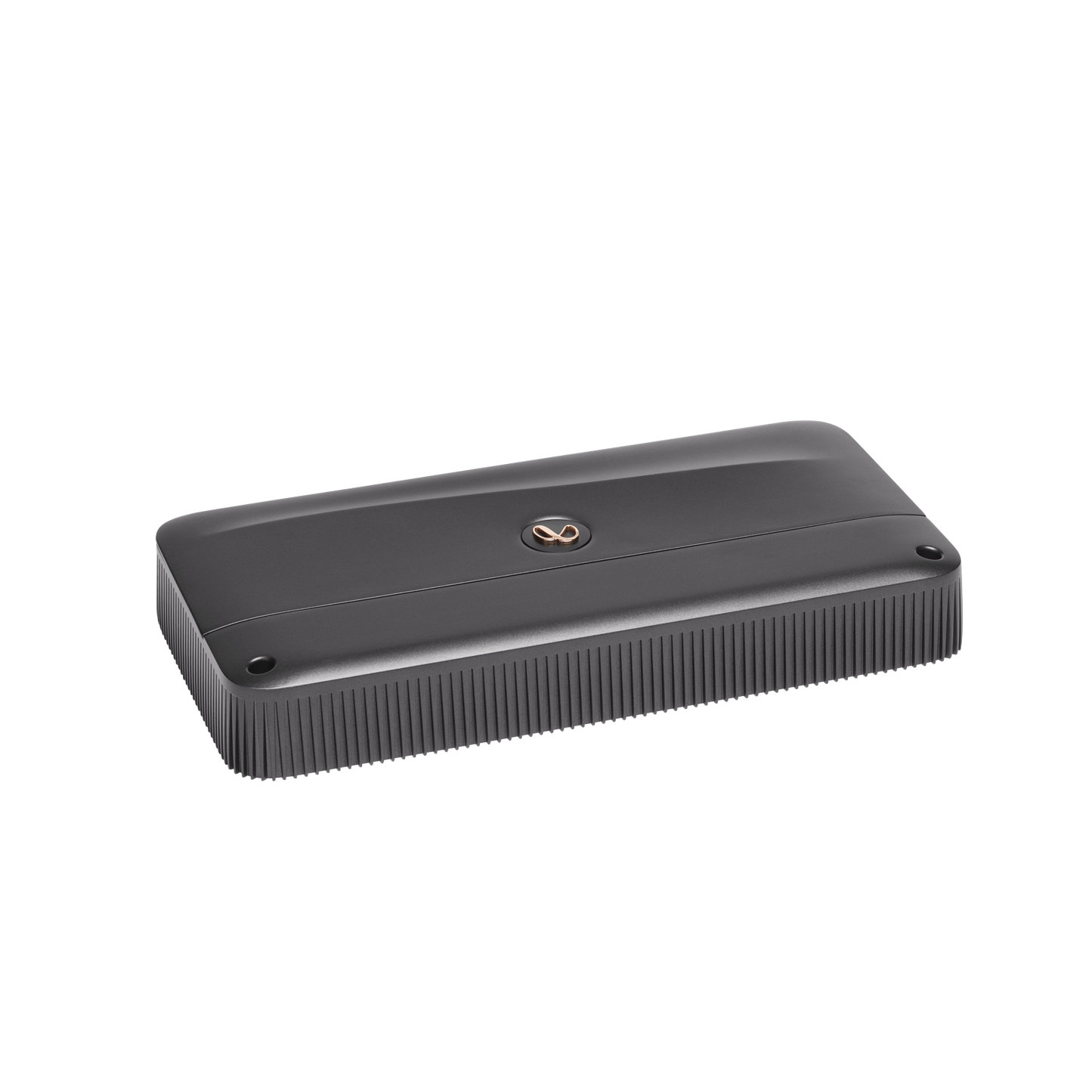

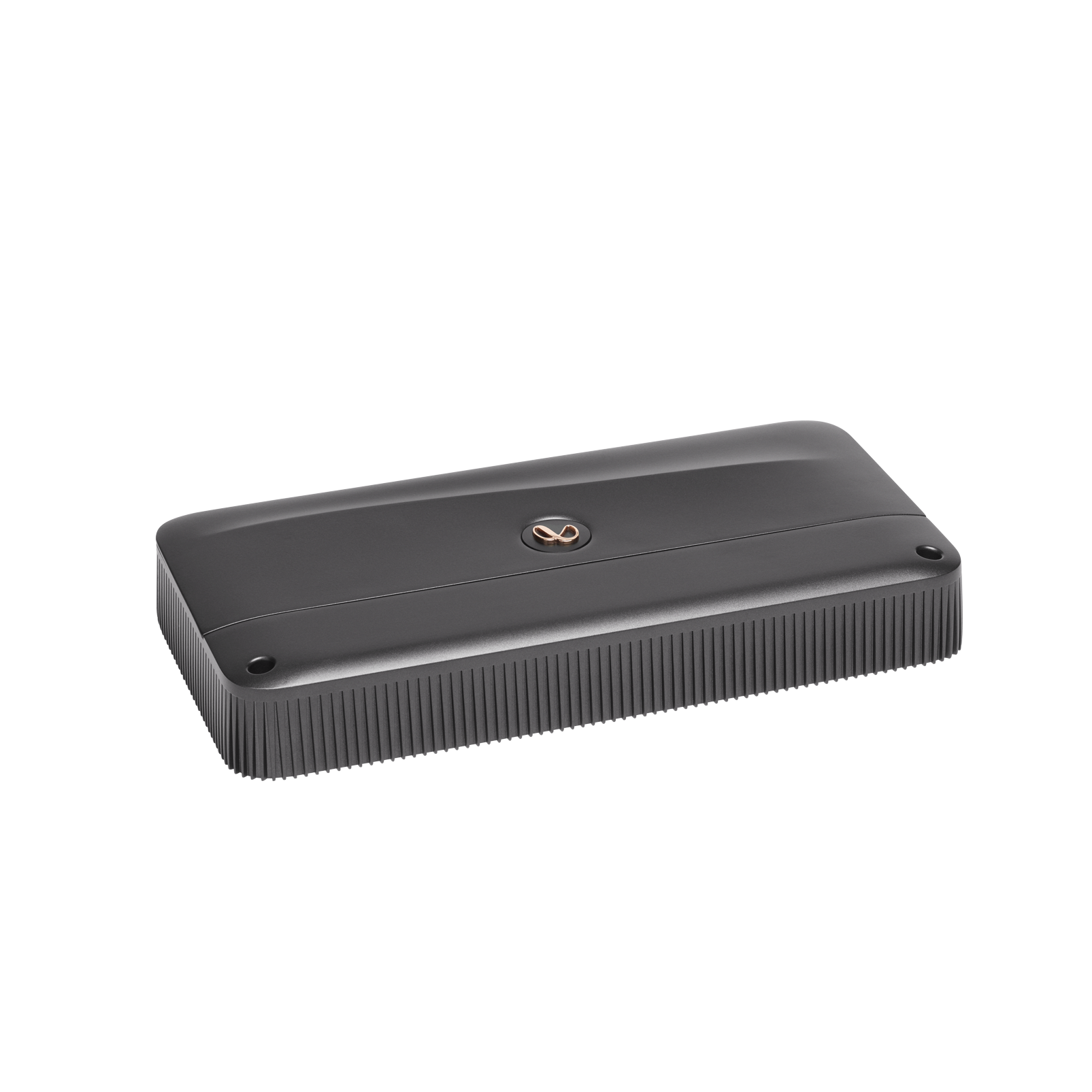

Infinity Reference 7005A Amplifier

Product info:

• 5-channel car amplifier
  • 50 watts RMS x 4 + 320 watts RMS x 1 at 4 ohms
  • 75 watts RMS x 4 + 500 watts RMS x 1 at 2 ohms
  • 150 watts RMS x 2 bridged at 4 ohms + 500 watts RMS x 1 at 2 ohms
• front and rear channels:
  • Class AB amp technology
  • variable high- and low-pass filters (32-320 Hz, 12 dB/octave)
• subwoofer channel:
  • Class D amp technology
  • low-pass filter (32-320 Hz, 12 dB/octave)
  • bass boost (0-12 dB at 45 Hz)
  • phase switch (0, 180 degrees)

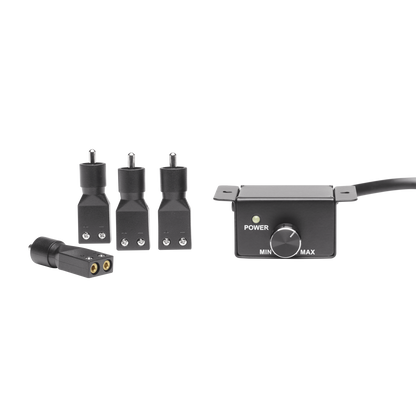

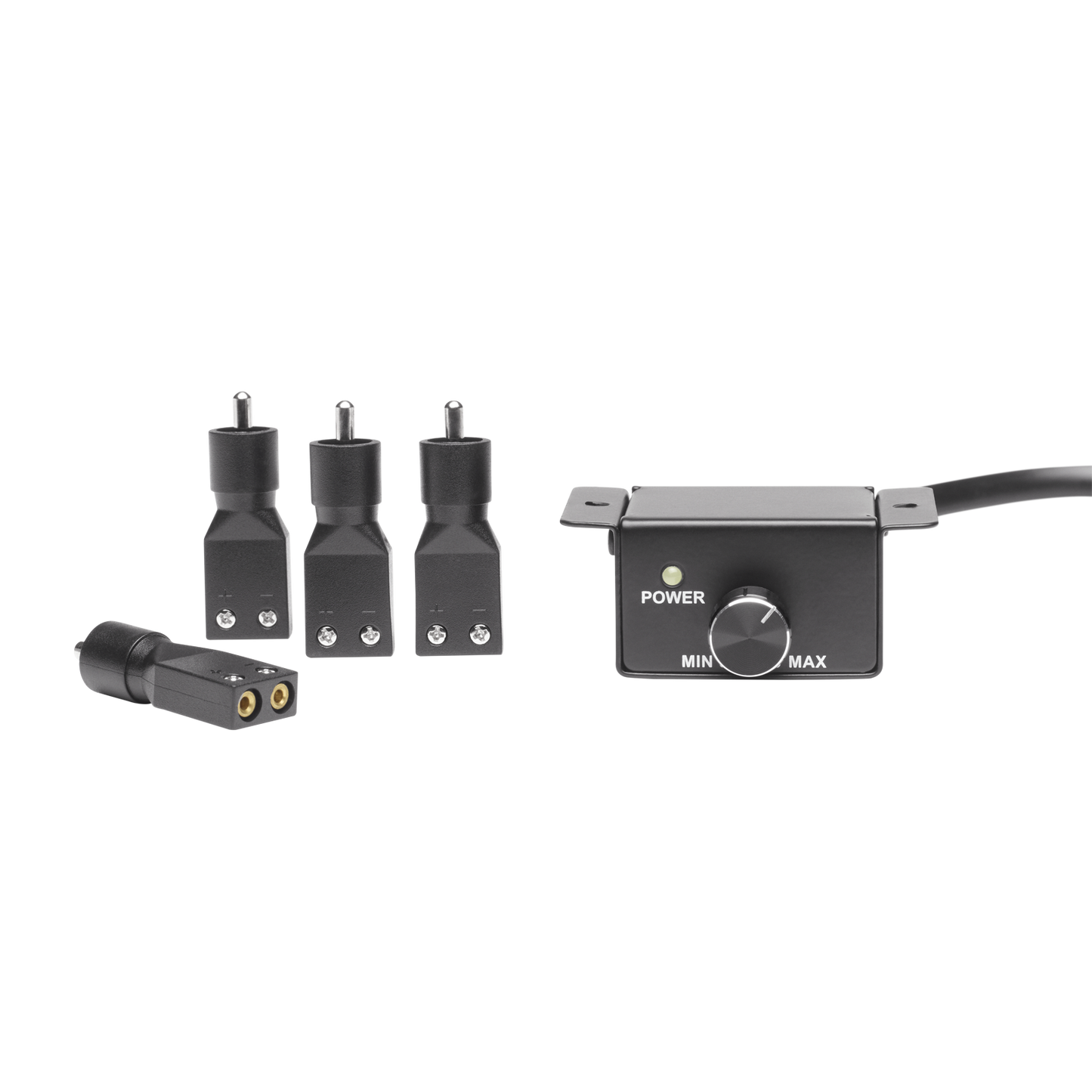

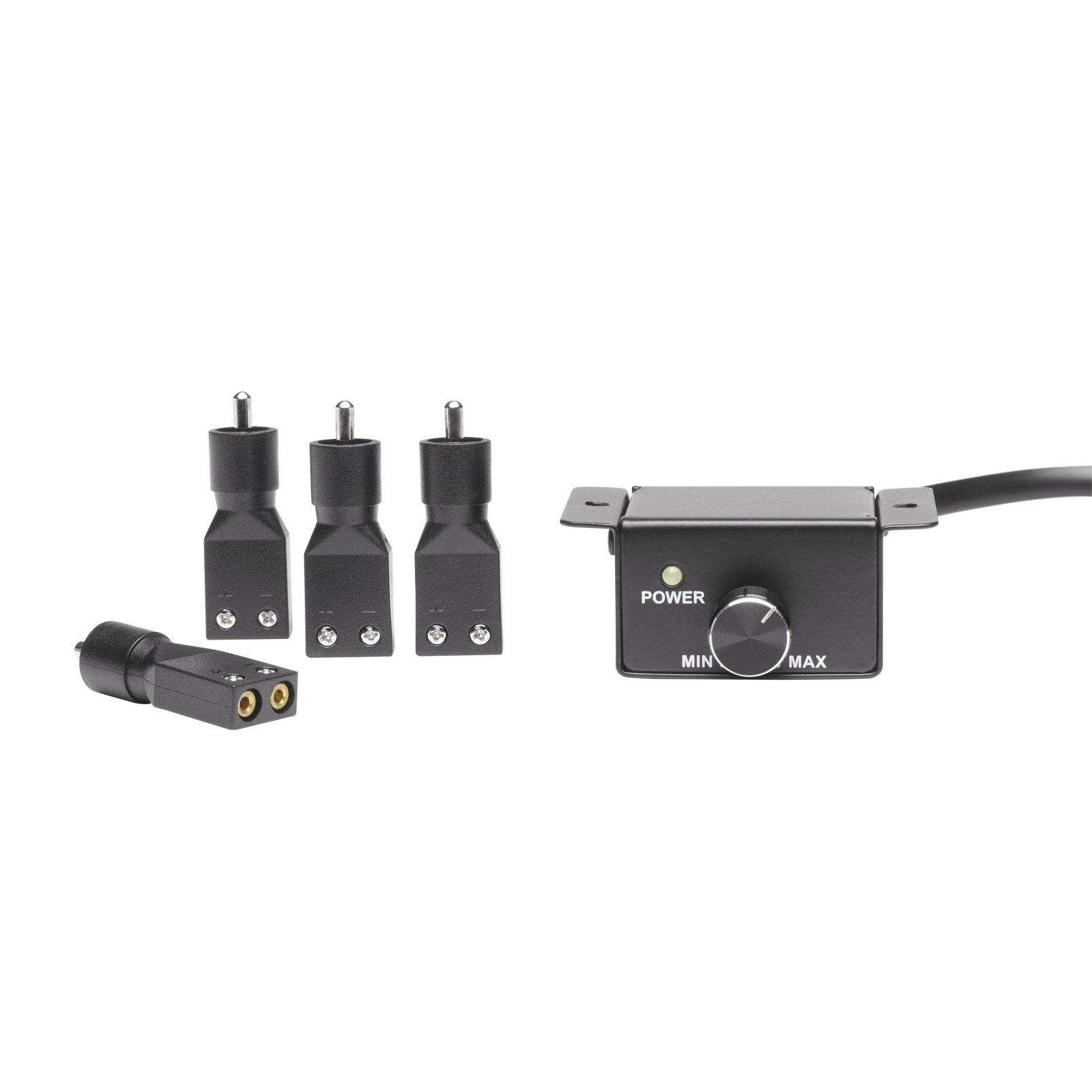

  • wired remote bass control module included

More Info:

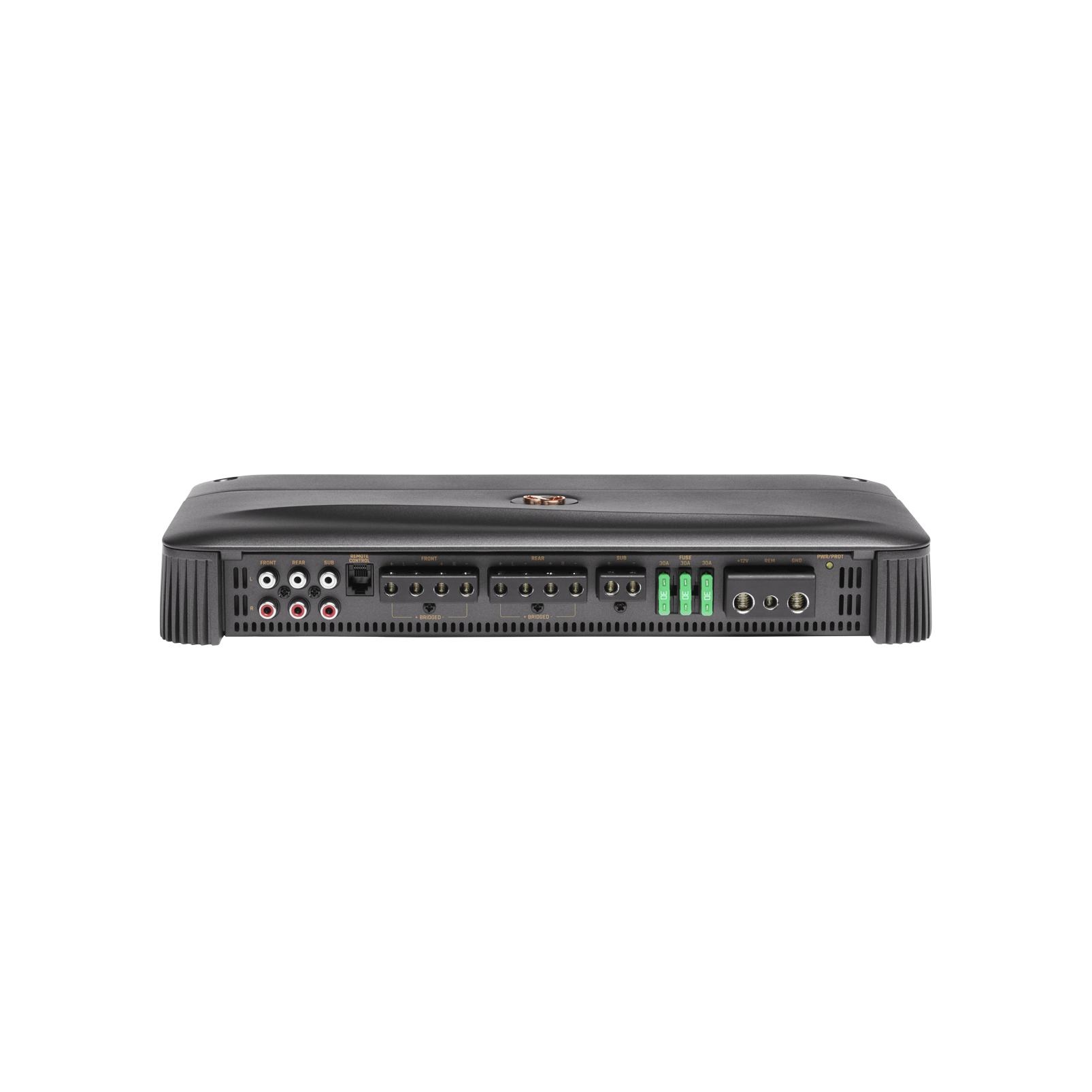

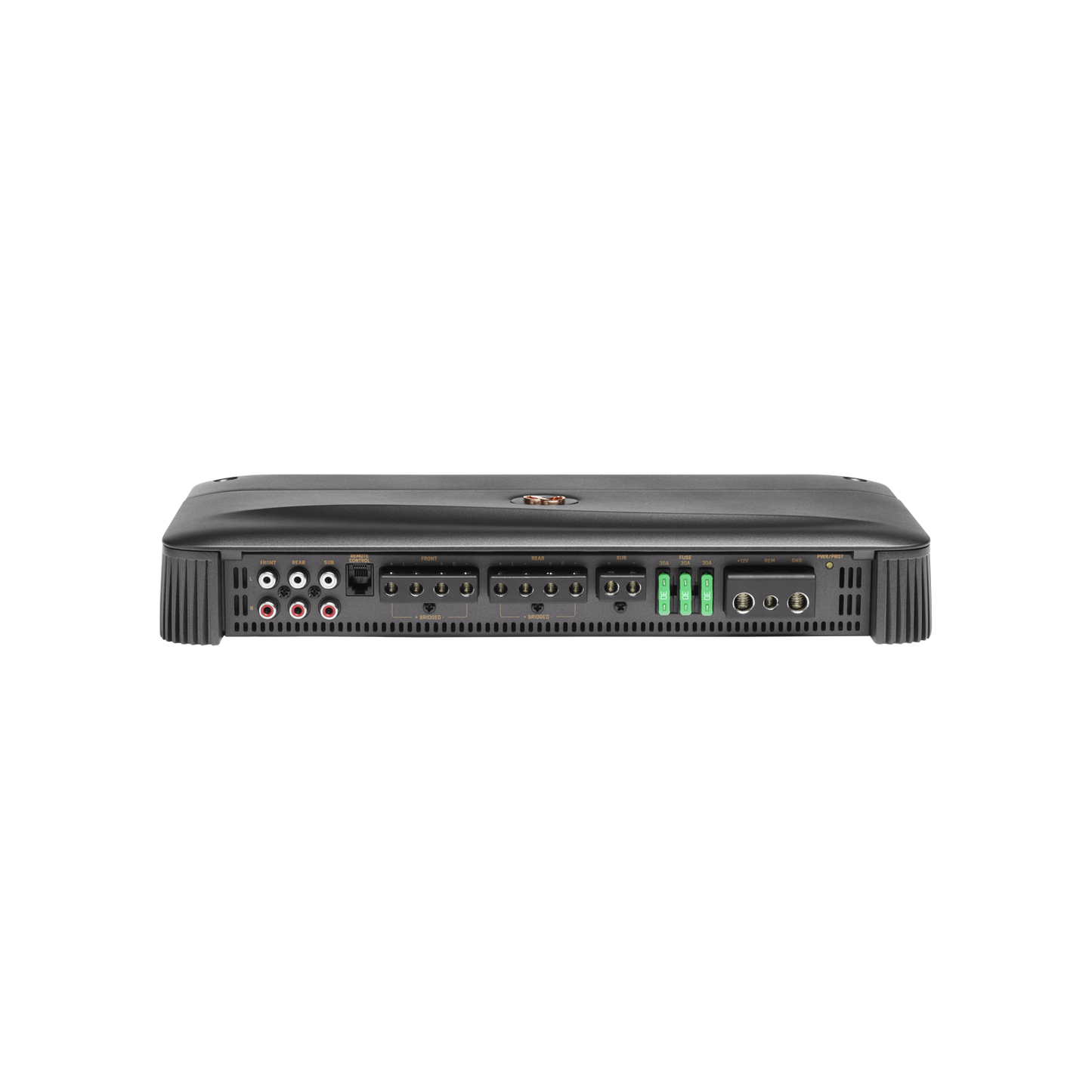

• preamp and speaker-level inputs
  • bare wire to RCA adapters included for high-level input
• wiring and hardware not included with amplifier
  • 4-gauge power and ground leads recommended
• fuse rating: 30A x 3
• dimensions: 14-3/16"W x 2-3/16"H x 7-1/8"D

Infinity's Reference 7005A 5-channel amplifier provides a full system solutions without breaking a sweat, and it'll look good doing it. It delivers 50-Watts RMS to each of the front and rear speakers, and a ground pounding 500-Watts RMS to the subwoofer channel — a much better balance of "speaker-to-sub" power than most of conventional 5-channel amplifiers on the market. For higher output, you can bridge the amp to 3-channel mode and power your front speakers with 140-Watts per channel, while still delivering 500-Watts to the subwoofer channel. Speaker-level inputs allow the Reference 7005A to work in almost any system, even if you're keeping your factory radio. Separate high-pass and low-pass crossovers on the front and rear channels and dedicated low-pass crossover, bass boost, and phase switch for the subwoofer channel provides an incredible amount of control and tuning capability. The Reference 7005A is truly a total system solution in one easy to install chassis.
