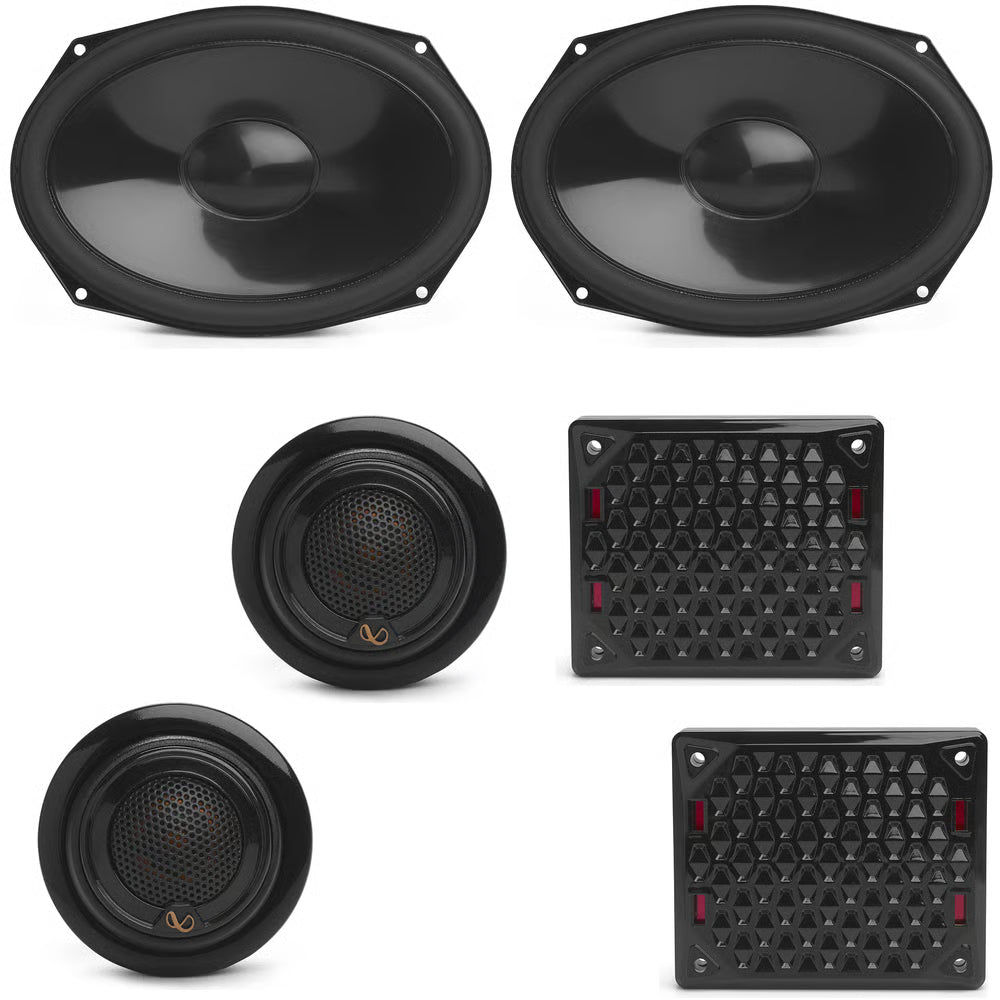

The
Infinity Reference REF697CF is
a premium 6"x9" two-way component car speaker system designed to deliver clear, audiophile-grade audio performance.
Technical Specifications
-
Power Handling: 125 Watts RMS (375 Watts Peak)
-
Impedance: 3-Ohm (True Four Ohm technology adapts to car wiring)
-
Frequency Response: 46 Hz – 21,000 Hz
-
Sensitivity: 93 dB
-
Woofer Mounting Depth: 3.075"
Key Features
-
Plus One+ Woofers: Polypropylene cones offer a larger surface area for higher bass output.
-
Edge-Driven Tweeters: Textile dome tweeters provide smooth, non-fatiguing highs.
-
Adjustable Output: Crossovers feature a 0 / +3 dB tweeter adjustment switch.
- Easy Installation: Includes Starfish™ brackets for simple factory tweeter mounting.
Audio Performance
-
RMS Power Handling: 125 Watts
-
Peak Power Handling: 375 Watts
-
Frequency Response: 46 Hz – 21,000 Hz
-
Sensitivity: 93 dB at 2.83V
-
Impedance: 3-Ohm True Four Ohm technology
Driver & Material Details
-
Speaker Design: 2-Way Component System
-

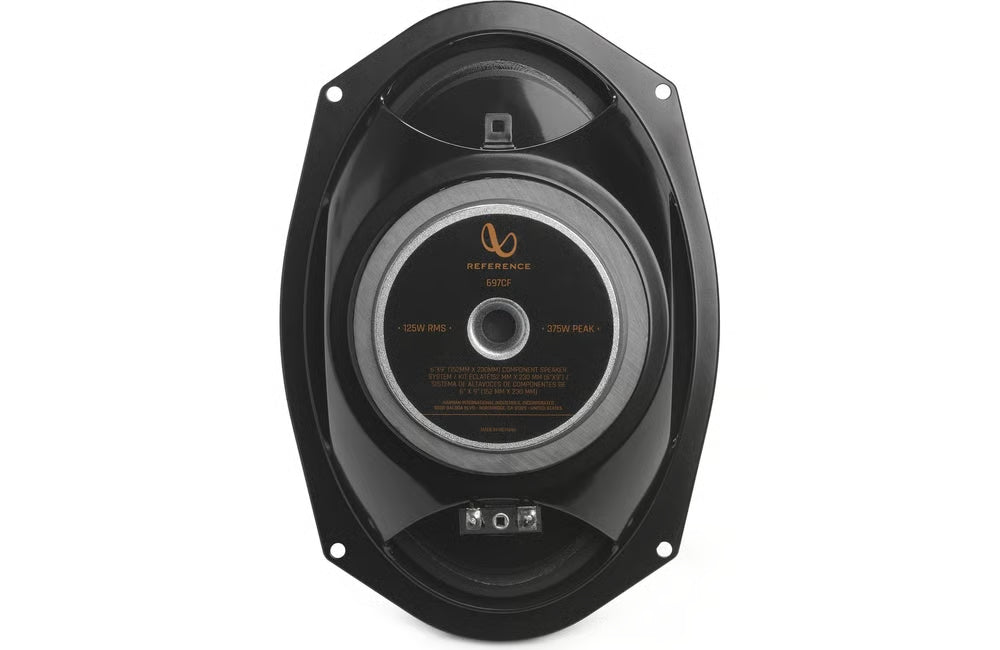

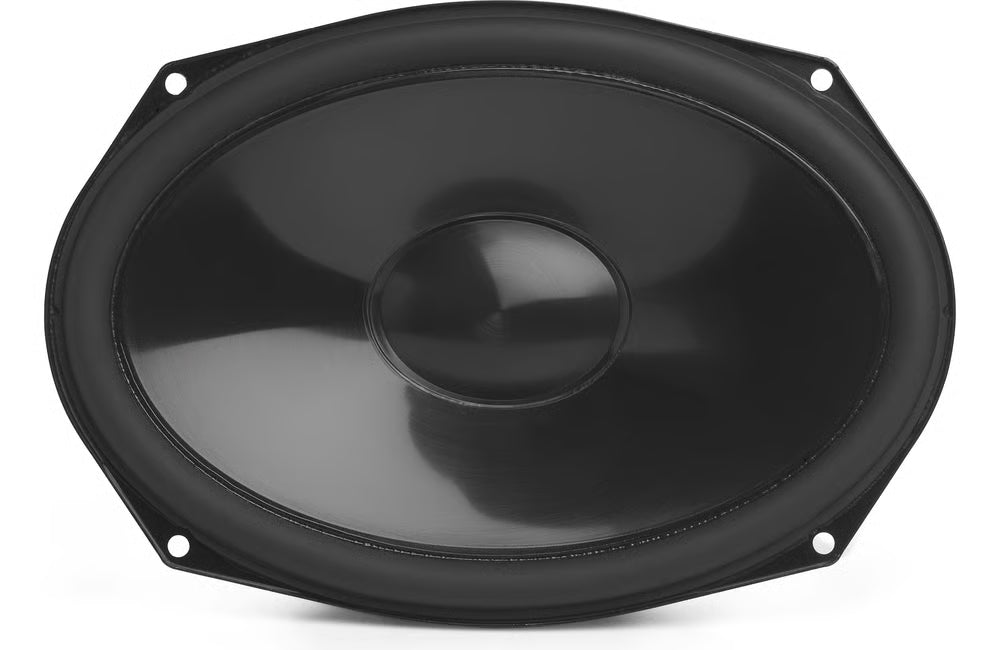

Woofer Size: 6" x 9"
-
Woofer Composition: Plus One+ Polypropylene
-
Woofer Surround: Hi-Roll Rubber
-

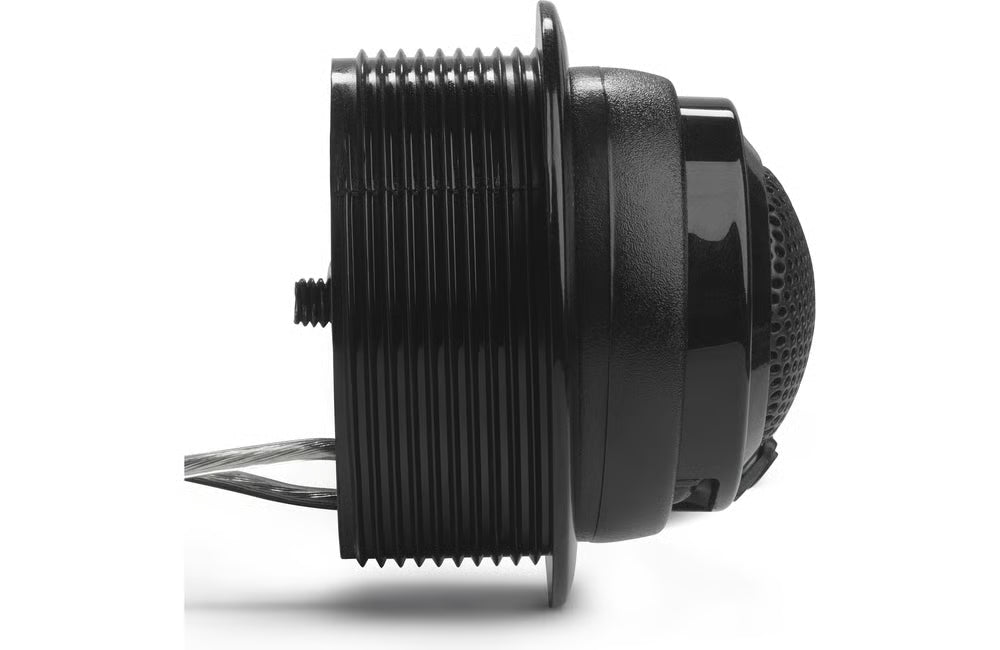

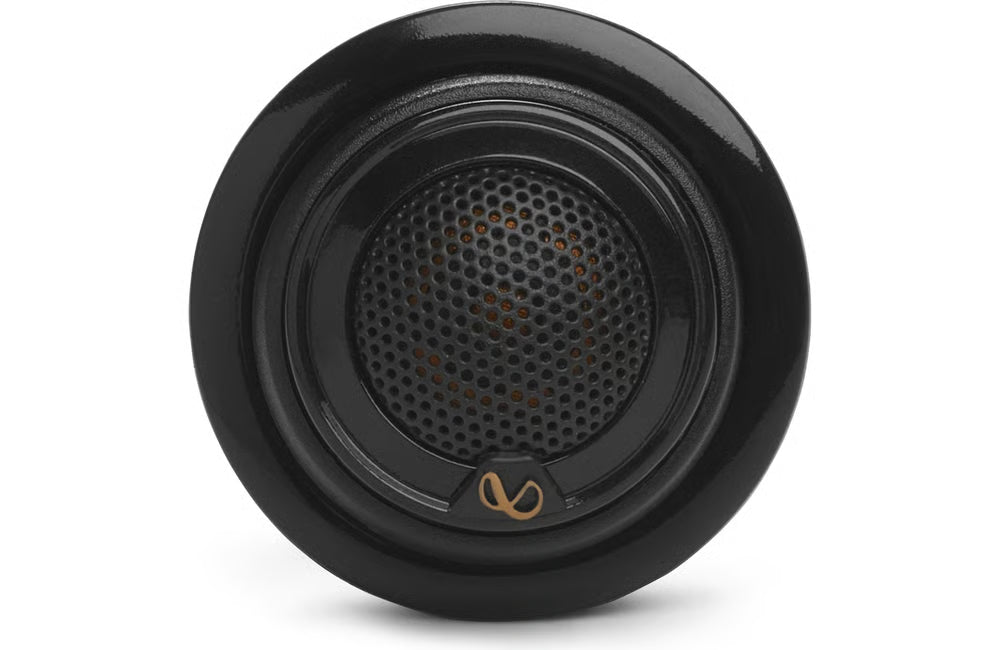

Tweeter Size: 3/4"
-
Tweeter Design: Edge-driven dome
-
Tweeter Composition: Textile
Physical Dimensions
-

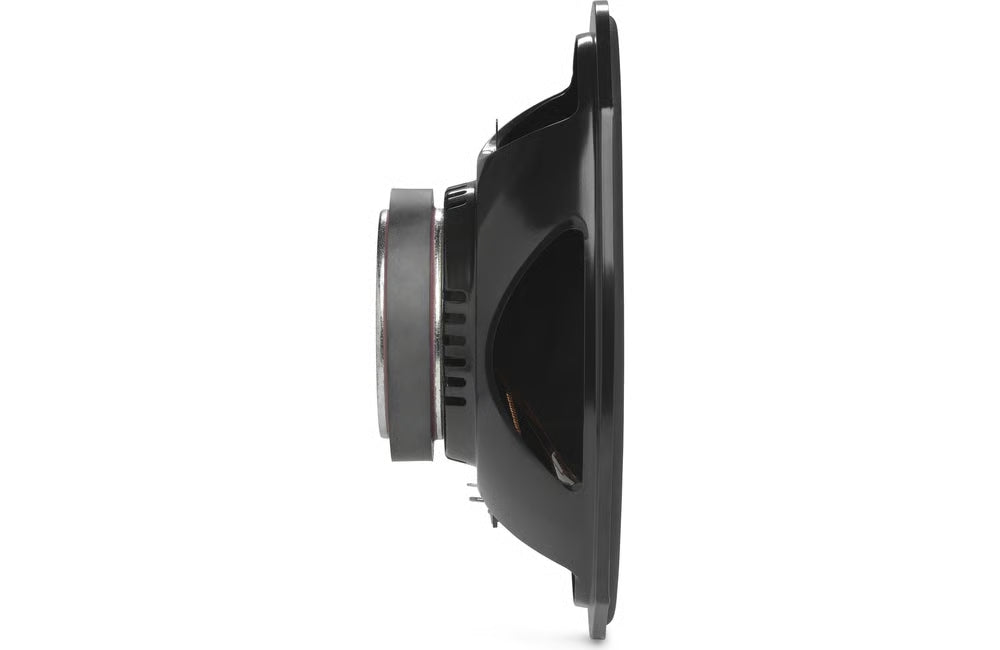

Woofer Top-Mount Depth: 3.075" (3-1/8")
-
Woofer Bottom-Mount Depth: 3-11/16"
-
Cutout Dimensions: 8-1/2" x 5-3/4"
-
Mounting Height: 0.382"
System Features
-
Crossover: Includes external passive crossovers
-
Tweeter Level Control: 0 dB / +3 dB switch
- Tweeter Brackets: Starfish™ factory mounting adapters
