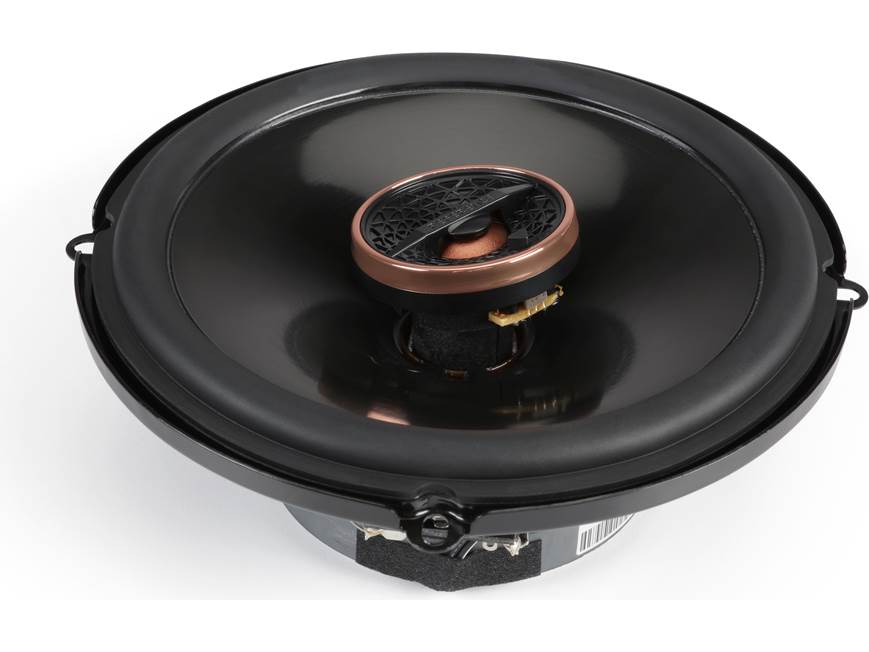

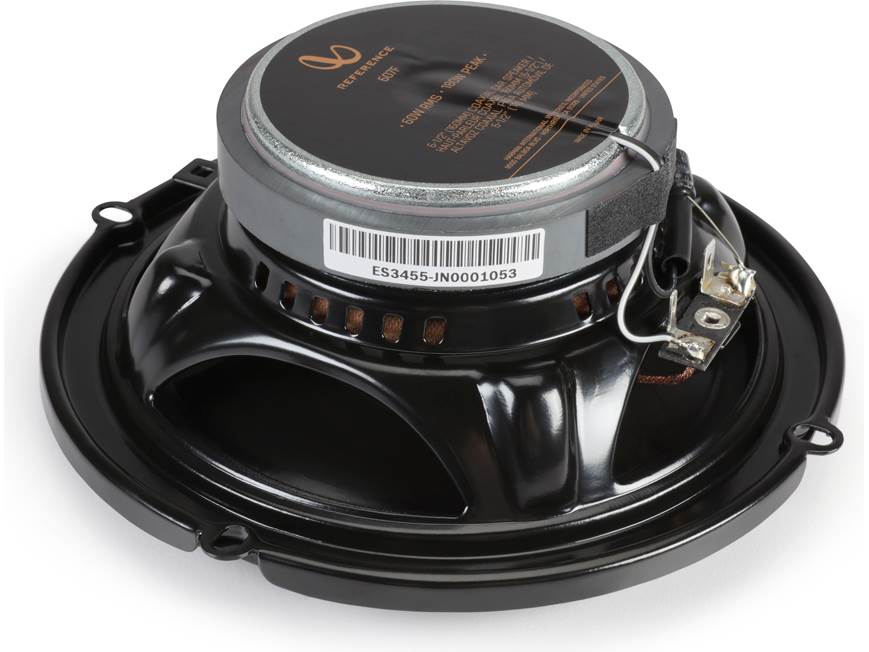

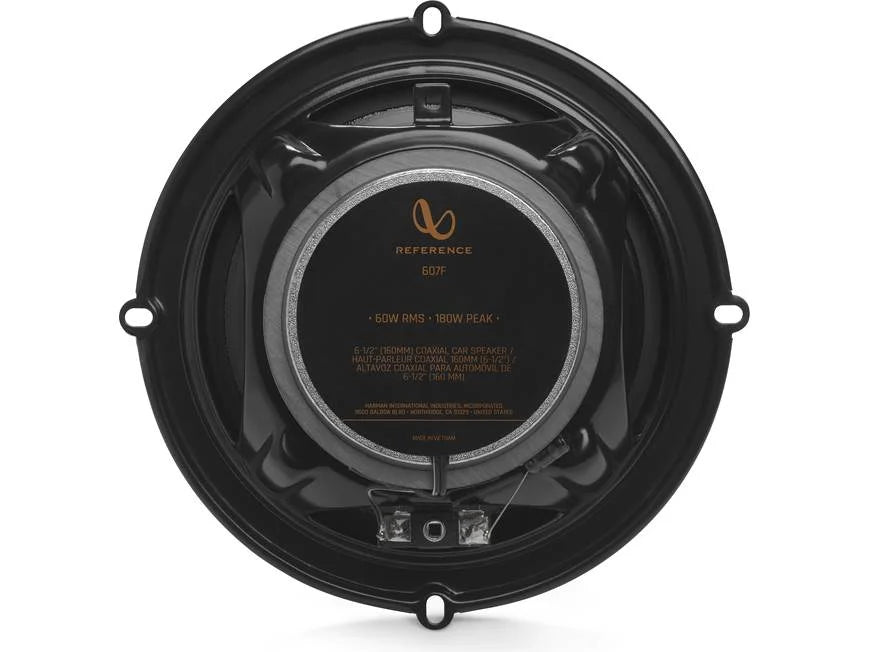

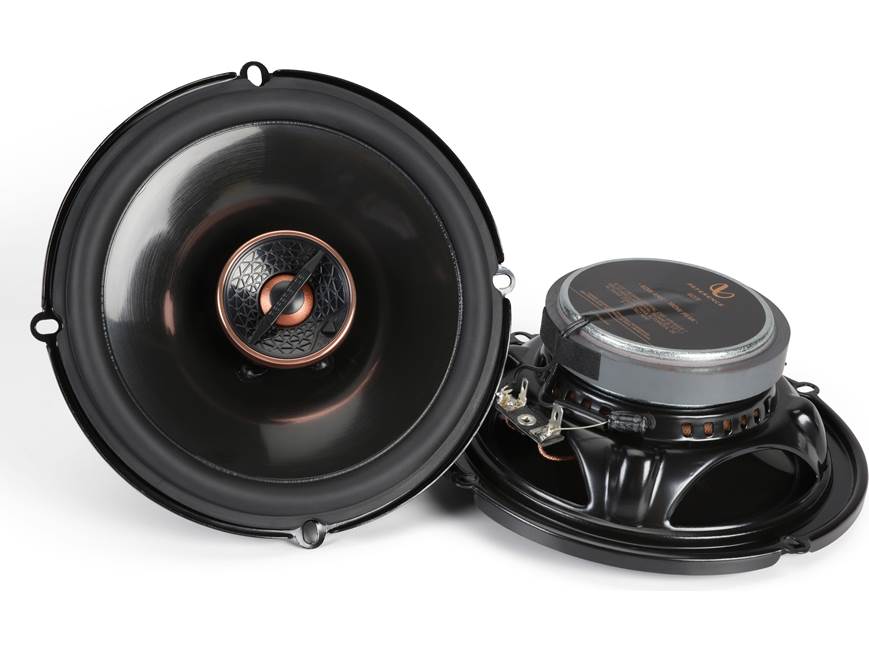

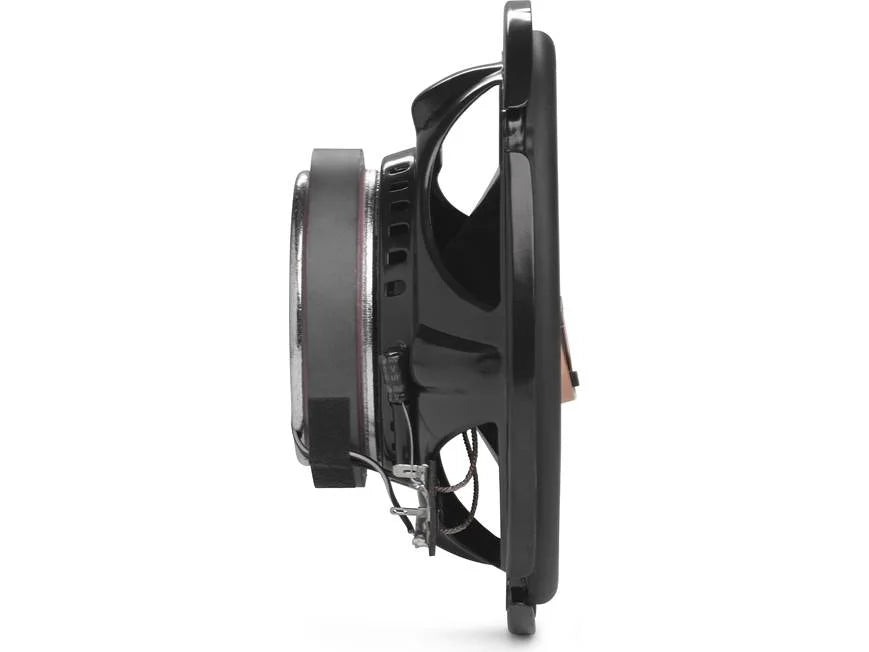

The
Infinity Reference REF607F is
a high-performance 6.5" two-way coaxial car speaker pair engineered to replace muddy factory speakers with bright, accurate audio.
Unlike the component REF697CF system, this is a coaxial design where the tweeter is built directly into the center of the main woofer frame.
Technical Specifications
-
Power Handling: 60 Watts RMS (180 Watts Peak)
-
Impedance: 3-Ohm (True Four Ohm technology safely utilizes factory or aftermarket wiring)
-
Frequency Response: 53 Hz – 21,000 Hz
-
Sensitivity: 93 dB
-
Woofer Mounting Depth: 2.063"
Key Features
-
Plus One+ Woofer Cones: Oversized polypropylene cones extend the cone area to boost bass punch and rich midrange performance.
-
Angled, Edge-Driven Tweeters: The 1" textile dome tweeters are edge-driven for clear highs and angled slightly upward to improve staging when mounted low in car doors.
-
On-Speaker Tweeter Level Adjustment: Features an integrated push-button switch to apply a +3 dB high-frequency boost if vehicle interior acoustics absorb sound.
- Universal Fit Design: Shipped with versatile adapter rings and specialized spacing baskets to easily slip into most factory locations.
Audio Performance
-
RMS Power Handling: 60 Watts
-
Peak Power Handling: 180 Watts
-
Frequency Response: 53 Hz – 21,000 Hz
-
Sensitivity: 93 dB at 2.83V
-
Impedance: 3-Ohm True Four Ohm technology
Driver & Material Details
-
Speaker Design: 2-Way Coaxial System
-
Woofer Size: 6.5" (6-1/2")
-
Woofer Composition: Plus One+ Polypropylene
-
Woofer Surround: Hi-Roll Rubber
-
Tweeter Size: 1"
-
Tweeter Design: Edge-driven dome, UniPivot angled
-
Tweeter Composition: Textile
Physical Dimensions
-
Woofer Top-Mount Depth: 2.063" (2-1/16")
-
Woofer Bottom-Mount Depth: 2-1/4"
-
Cutout Diameter: 5.063" (5-1/16")
-
Mounting Height: 0.495"
System Features
-
Crossover: Integrated on-speaker network
-
Tweeter Level Control: Integrated push-button switch (0 dB / +3 dB)
- Grilles: Included in the box
