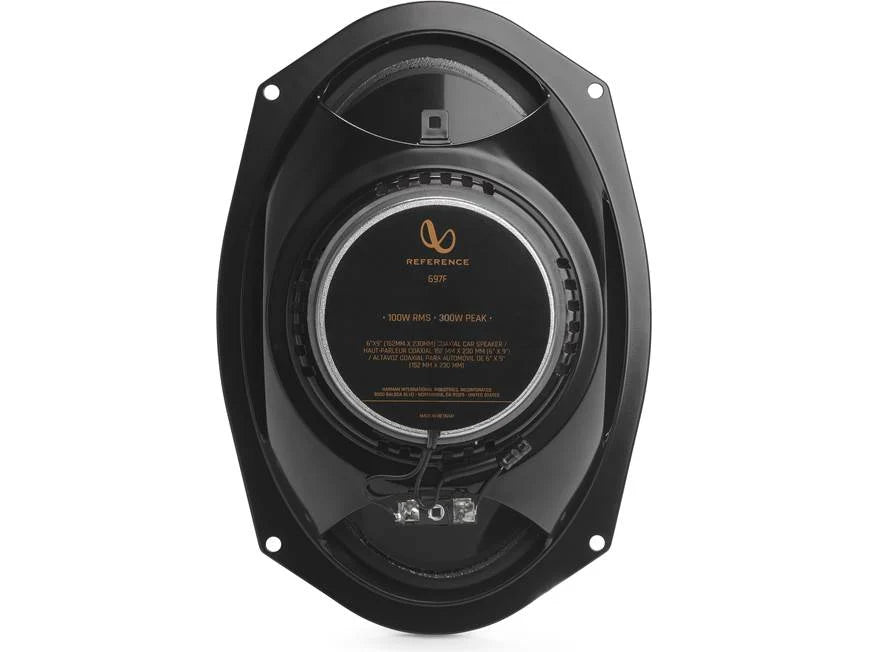

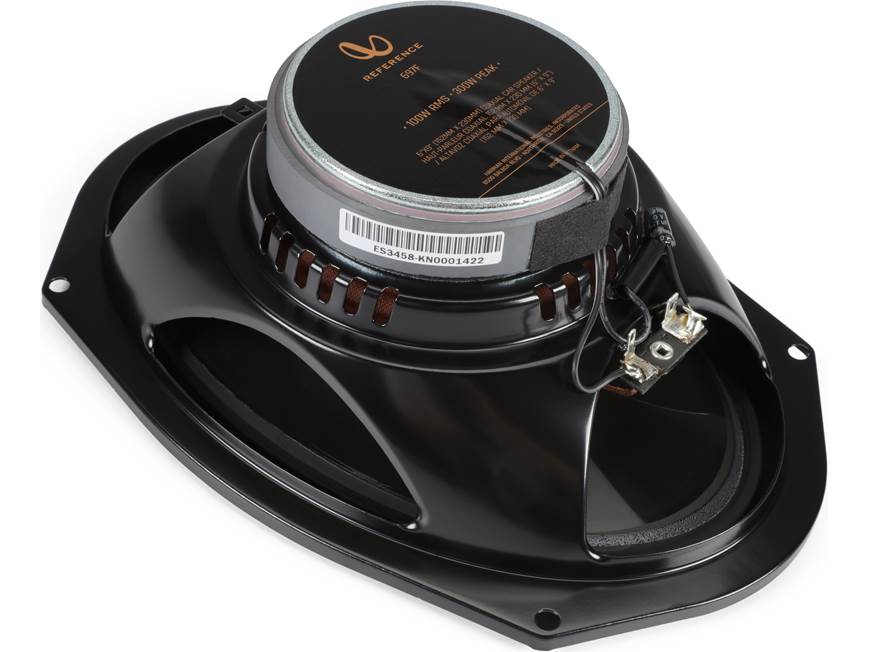

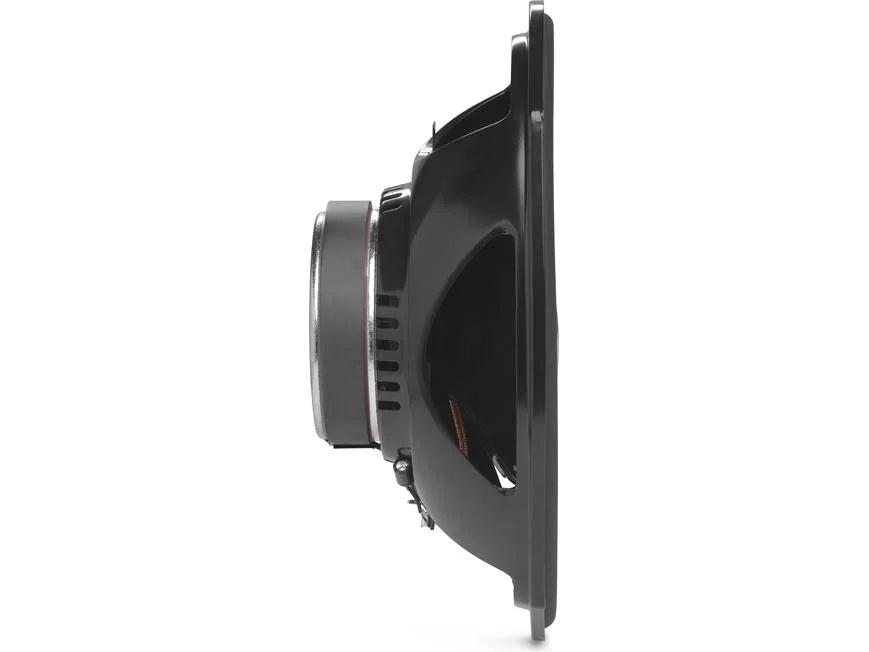

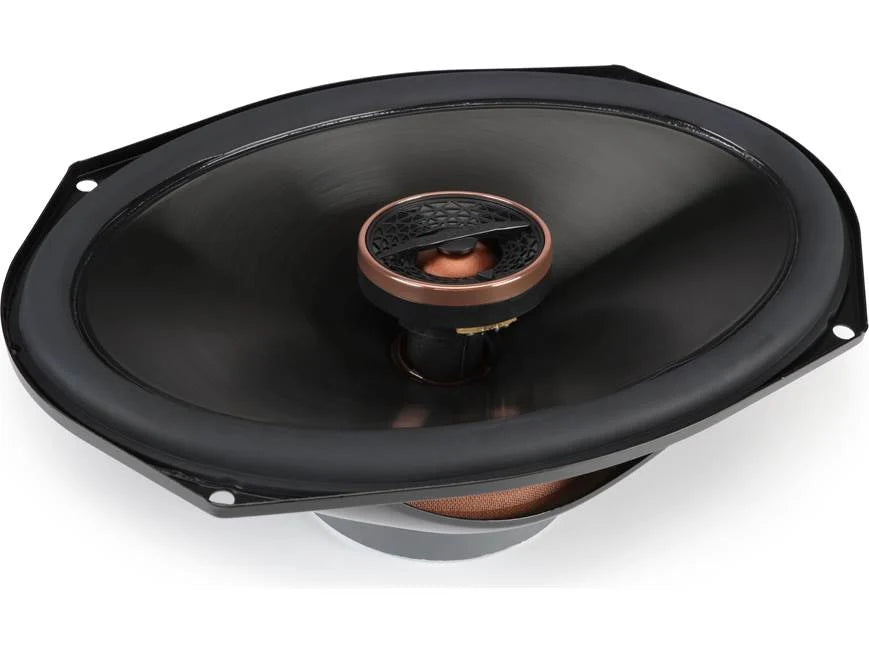

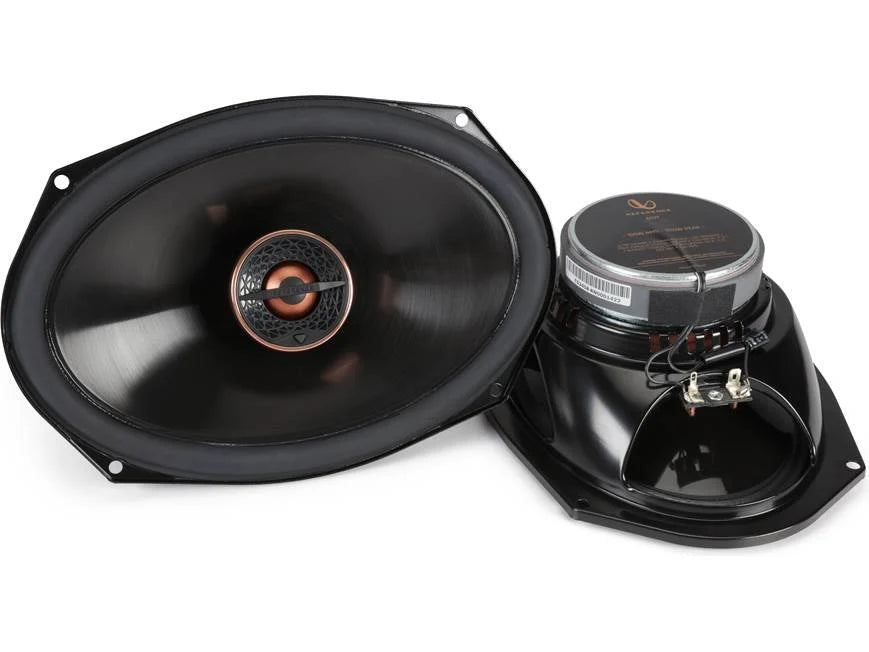

The
Infinity Reference REF697F is
a high-efficiency 6"x9" two-way coaxial car speaker pair engineered to deliver premium sound clarity and deep midbass output.
Unlike the component "CF" version, this model features a coaxial design with a high-quality tweeter built directly into the center of the woofer cone.
Technical Specifications
-
Power Handling: 100 Watts RMS (300 Watts Peak)
-
Impedance: 3-Ohm (True Four Ohm technology securely balances with factory wiring to draw safe 4-Ohm power)
-
Frequency Response: 46 Hz – 20,000 Hz
-
Sensitivity: 94 dB at 2.83V
-
Woofer Mounting Depth: 3.075" (3-1/8")
Key Features
-
Oversized Plus One+ Woofers: Polypropylene cones move more air than standard 6x9s, supplying deeper bass and rich midrange performance.
-
Angled, Edge-Driven Tweeters: The 1" textile dome tweeters are edge-driven for clear, non-fatiguing highs and angled to aim sound upwards when mounted low in car doors.
-
On-Speaker Tweeter Boost: Features an integrated switch to apply a +3 dB high-frequency boost, easily compensating for sound absorption in tight cabins.
- High-Efficiency Design: Highly sensitive architecture lets them produce powerful sound even when driven by low-powered factory stereos
Audio Performance
-
RMS Power Handling: 100 Watts
-
Peak Power Handling: 300 Watts
-
Frequency Response: 46 Hz – 20,000 Hz
-
Sensitivity: 94 dB at 2.83V
-
Impedance: 3-Ohm True Four Ohm technology
Driver & Material Details
-
Speaker Design: 2-Way Coaxial System
-
Woofer Size: 6" x 9"
-
Woofer Composition: Plus One+ Polypropylene
-
Woofer Surround: Hi-Roll Rubber
-
Tweeter Size: 1"
-
Tweeter Design: Edge-driven dome, UniPivot angled
-
Tweeter Composition: Textile
Physical Dimensions
-
Woofer Top-Mount Depth: 3.075" (3-1/8")
-
Woofer Bottom-Mount Depth: 3-11/16"
-
Cutout Dimensions: 8-1/2" x 5-3/4"
-
Mounting Height: 0.382"
System Features
-
Crossover: Integrated on-speaker network
-
Tweeter Level Control: Integrated push-button switch (0 dB / +3 dB)
- Grilles: Included in the box
