The

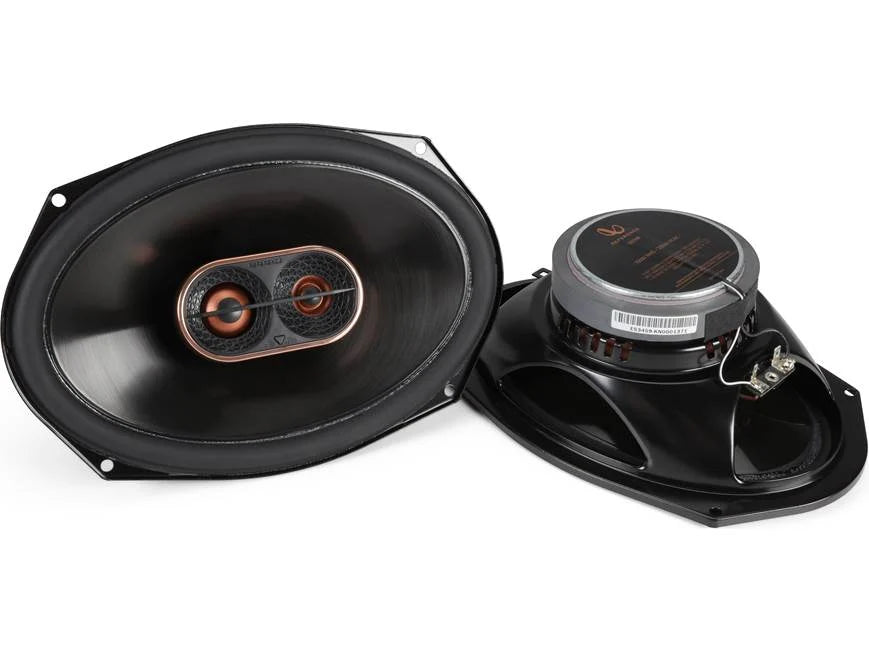

Infinity Reference REF697MF is
a high-performance 6"x9" three-way coaxial car speaker pair engineered to deliver crisp, full-range audio across an expanded frequency spectrum.
Unlike the standard two-way "F" model, this "MF" version adds a dedicated supertweeter to enhance high-frequency detail and vocal clarity.
Technical Specifications
-
Power Handling: 100 Watts RMS (300 Watts Peak)
-
Impedance: 3-Ohm (True Four Ohm technology safely utilizes vehicle wiring to project a standard 4-Ohm load)
-
Frequency Response: 46 Hz – 30,000 Hz (extended high-frequency capability)
-
Sensitivity: 94 dB at 2.83V
-
Woofer Mounting Depth: 3.075" (3-1/8")
Key Features
-
3-Way Multielement Design: Employs a Plus One+ woofer cone, a 1" edge-driven textile dome tweeter, and a specialized textile semi-dome supertweeter for meticulous sound staging.
-
Oversized Plus One+ Woofers: Polypropylene cones create a larger surface area than competing 6x9s, delivering deeper bass and rich midrange accuracy.
-
Acoustic Tweeter Boost: Includes an integrated switch providing a +3 dB treble boost to compensate for off-axis or muffled factory door placements.
- Optimized Compact Basket: Redesigned frame structures ensure drop-in compatibility with most factory 6"x9" mounting layouts.
Audio Performance
-
RMS Power Handling: 100 Watts
-
Peak Power Handling: 300 Watts
-
Frequency Response: 46 Hz – 30,000 Hz
-
Sensitivity: 94 dB at 2.83V
-
Impedance: 3-Ohm True Four Ohm technology
Driver & Material Details
-
Speaker Design: 3-Way Coaxial System
-
Woofer Size: 6" x 9"
-
Woofer Composition: Plus One+ Polypropylene
-
Woofer Surround: Hi-Roll Rubber
-
Tweeter Size: 1"
-
Tweeter Design: Edge-driven dome
-
Tweeter Composition: Textile
-
Supertweeter Design: Textile semi-dome
Physical Dimensions
-
Woofer Top-Mount Depth: 3.075" (3-1/8")
-
Woofer Bottom-Mount Depth: 3-11/16"
-
Cutout Dimensions: 8-1/2" x 5-3/4"
-
Mounting Height: 0.382"
System Features
-
Crossover: Integrated on-speaker network
-
Tweeter Level Control: Integrated push-button switch (0 dB / +3 dB)
- Grilles: Included in the box
