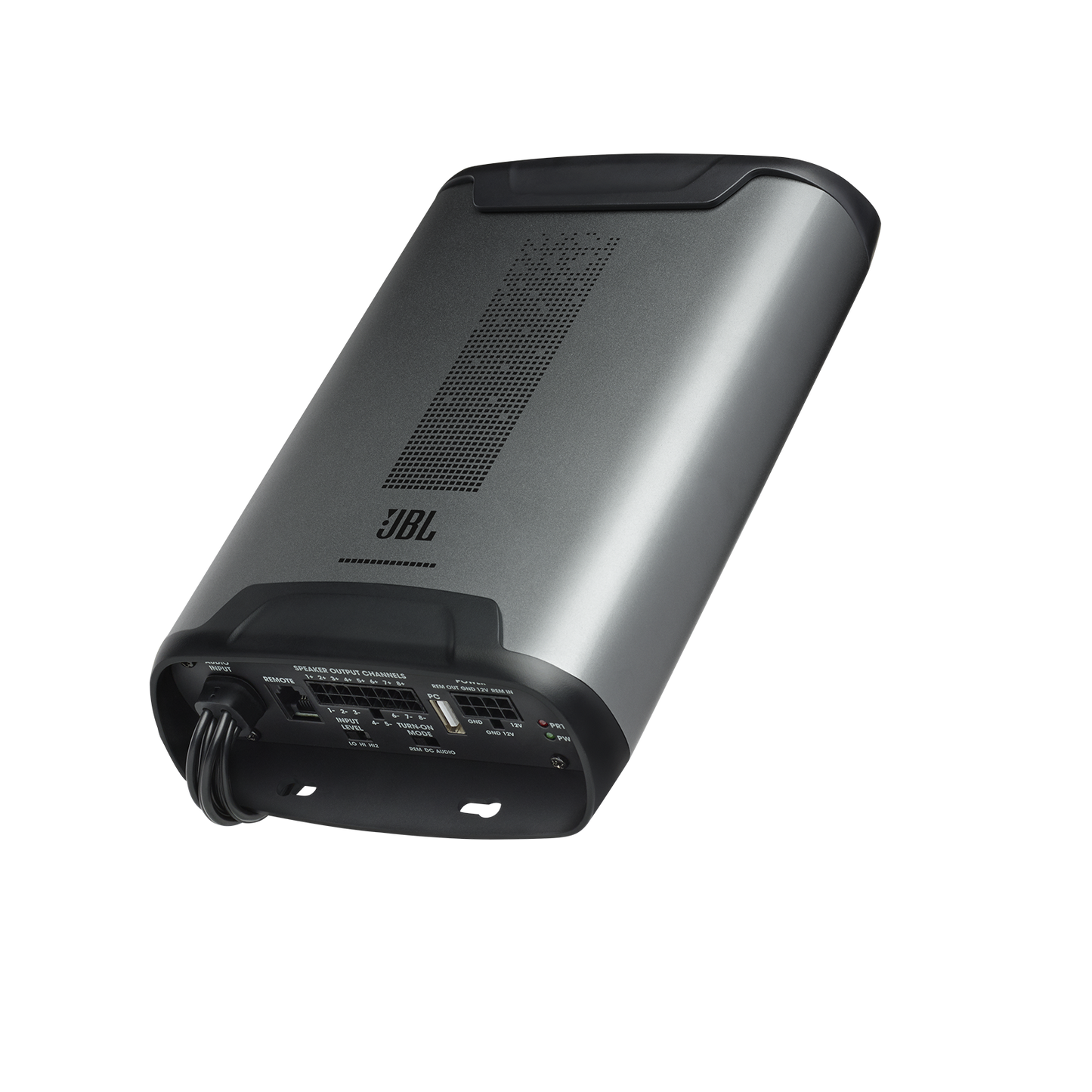

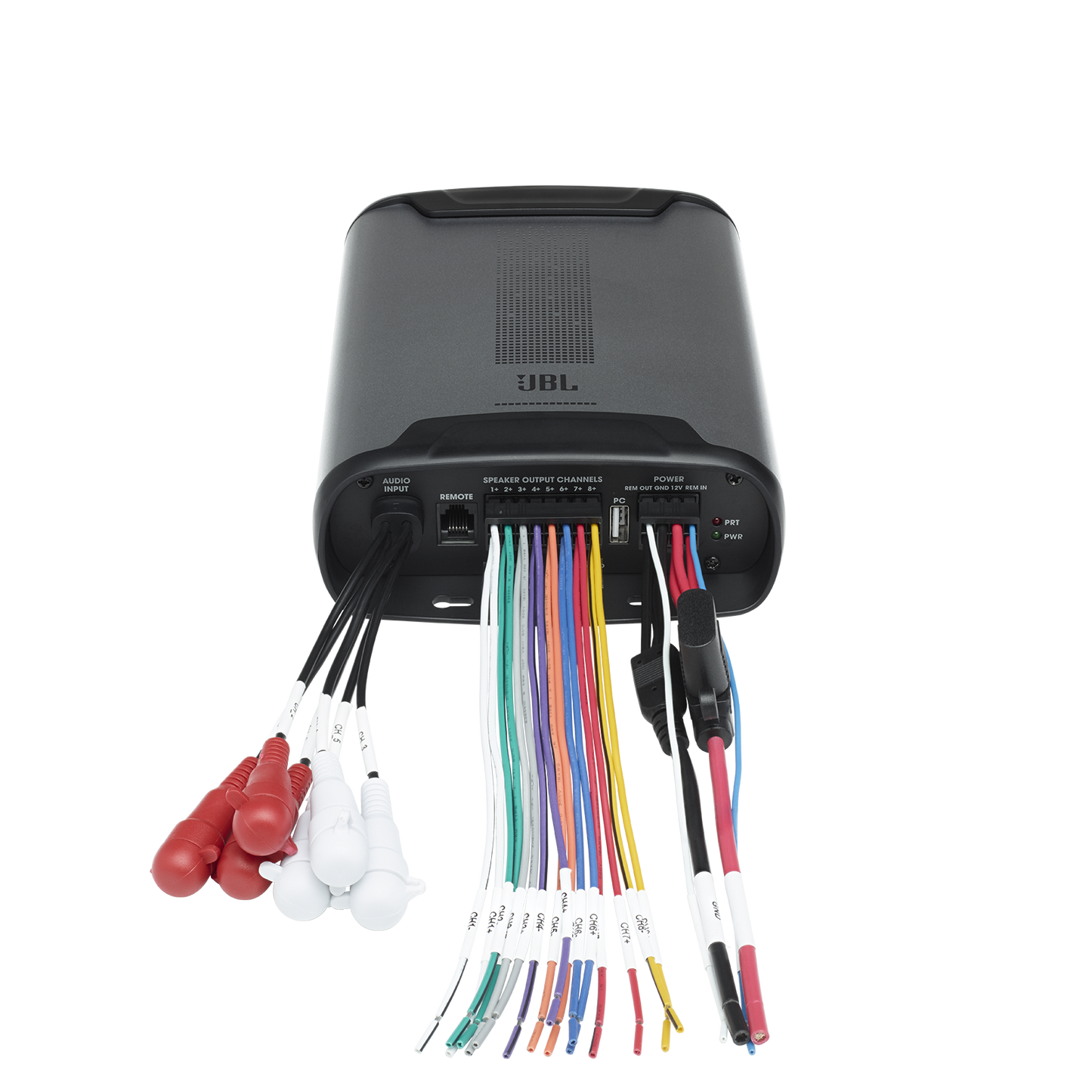

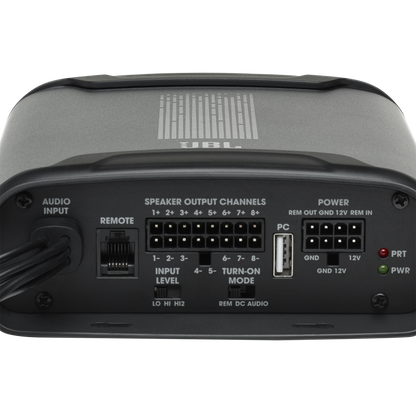

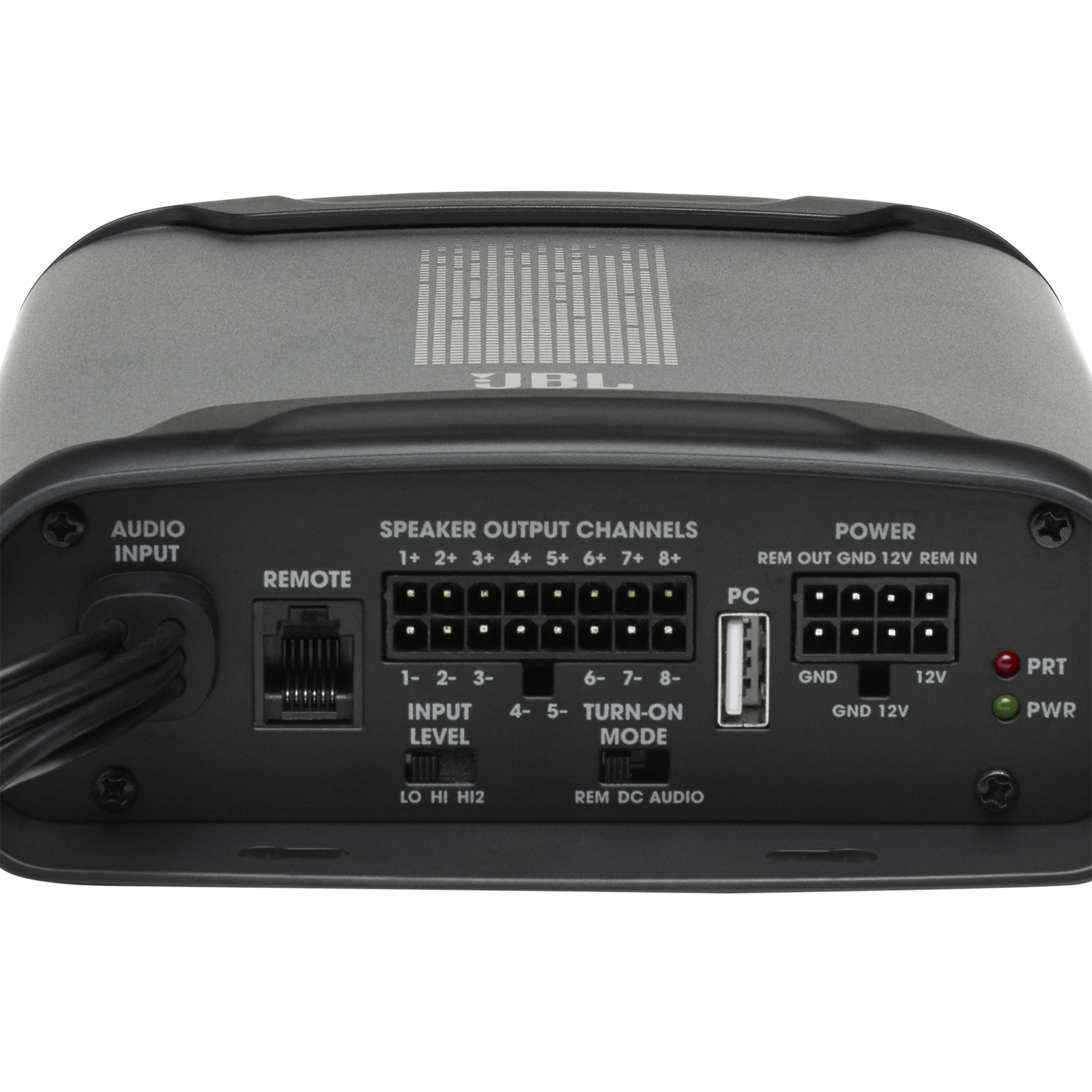

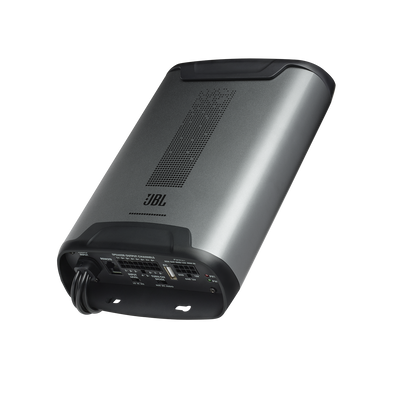

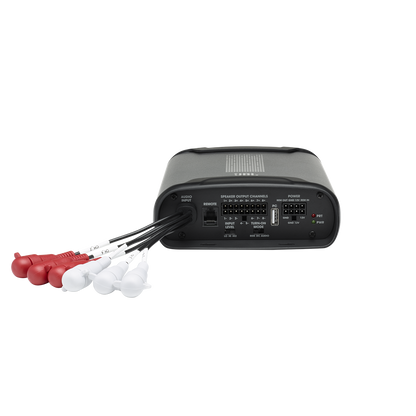

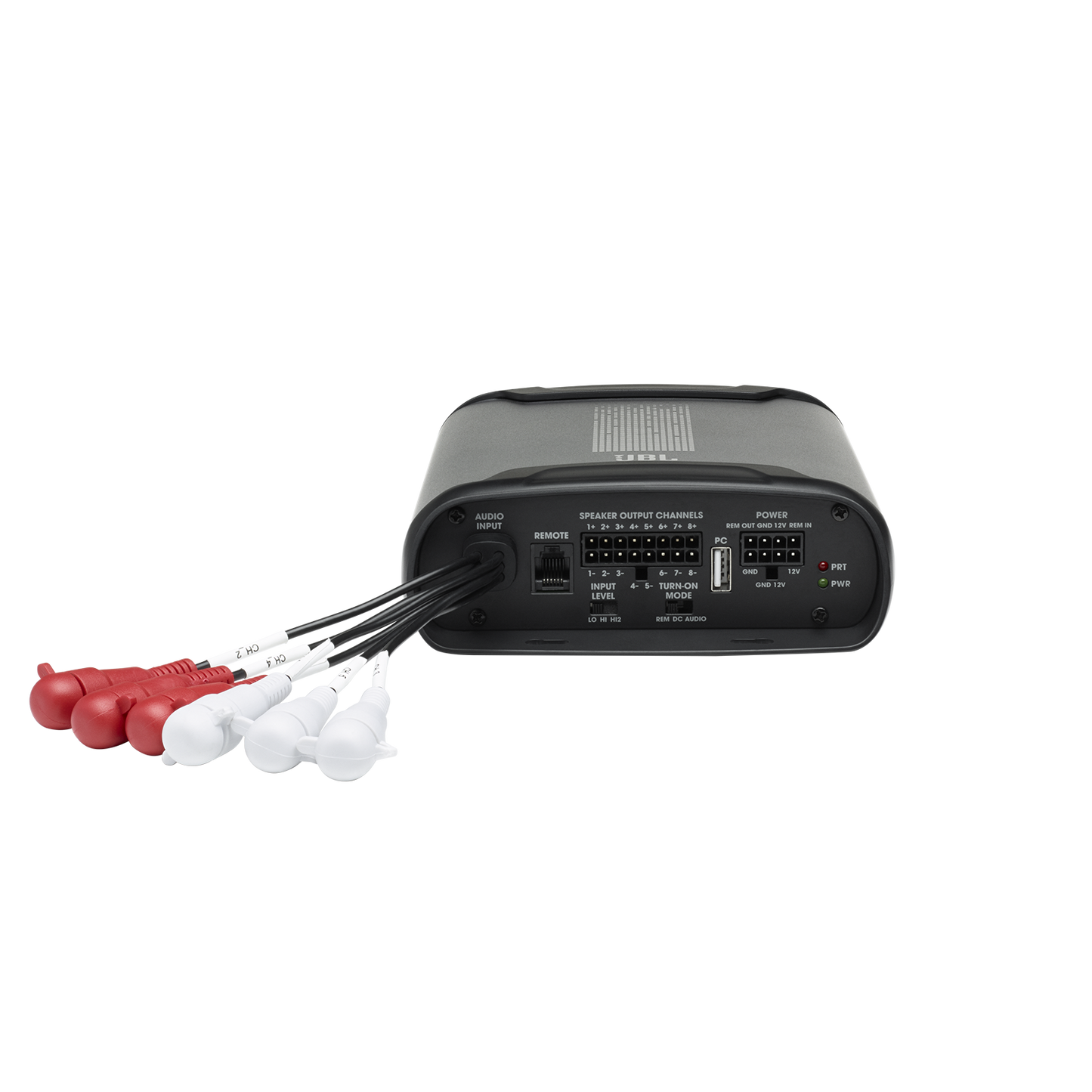

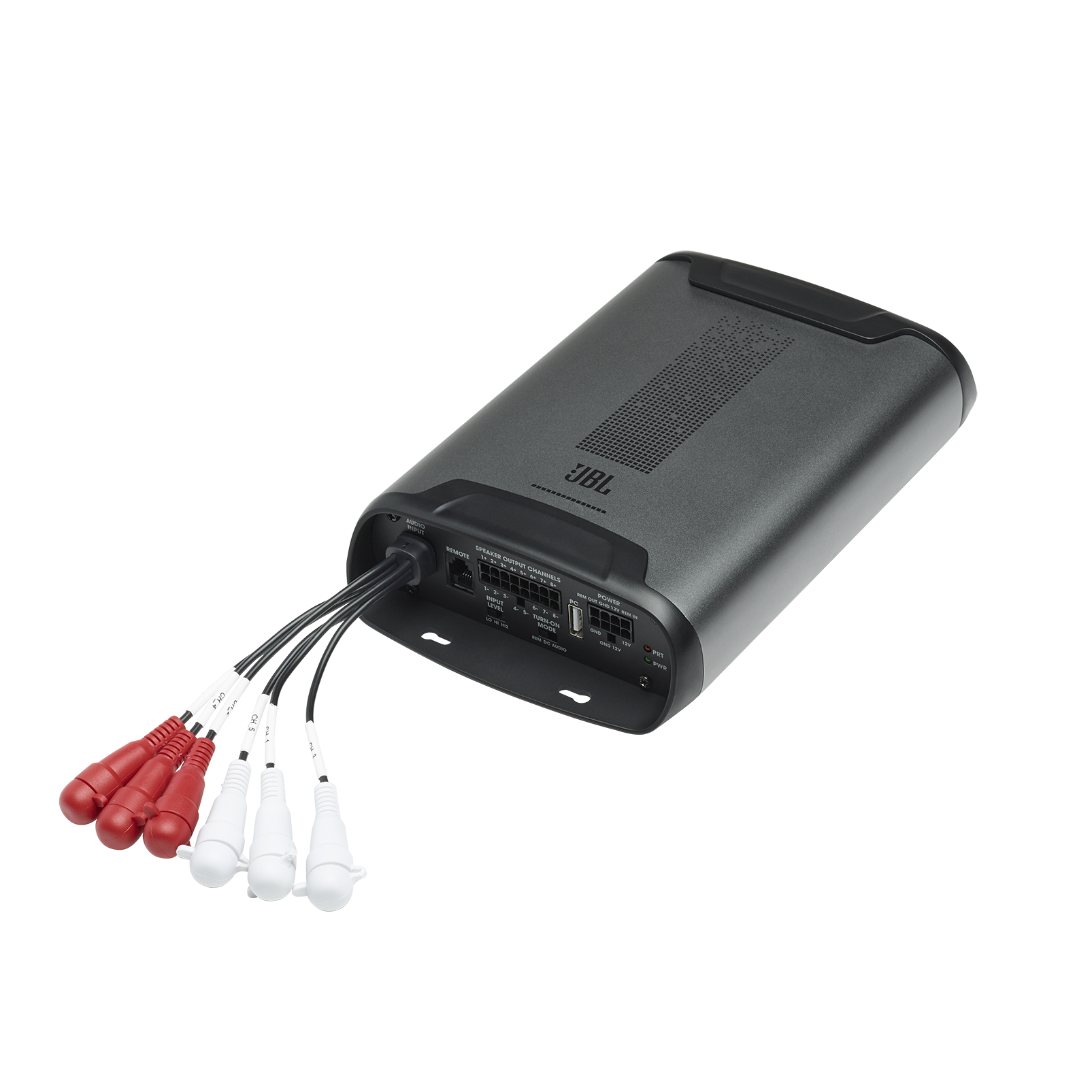

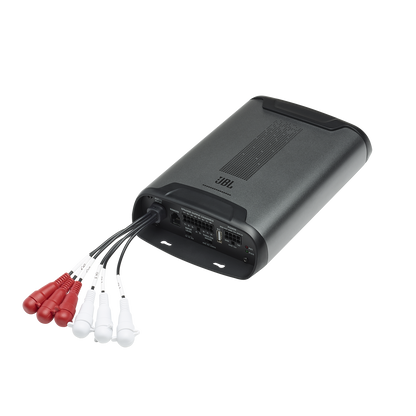

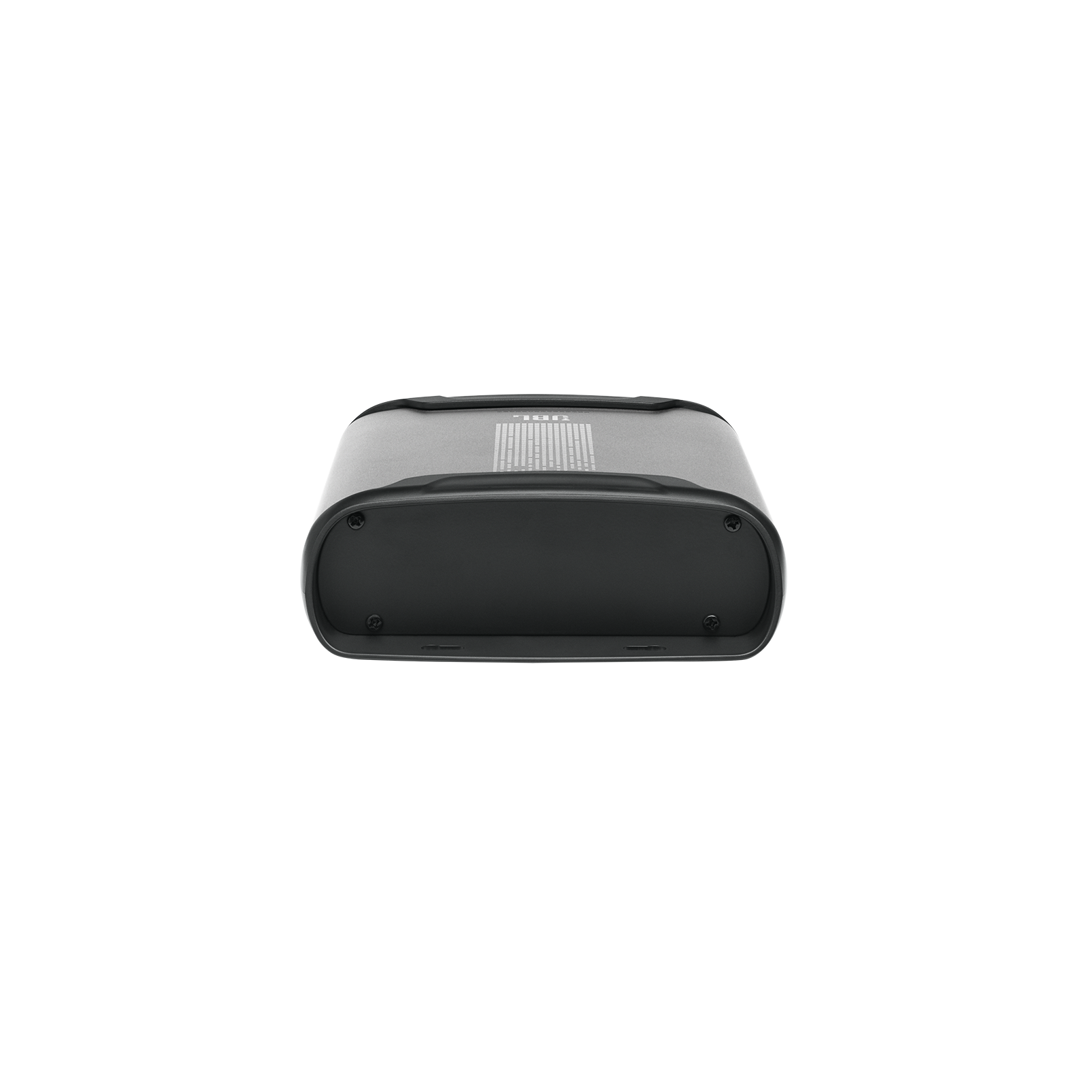

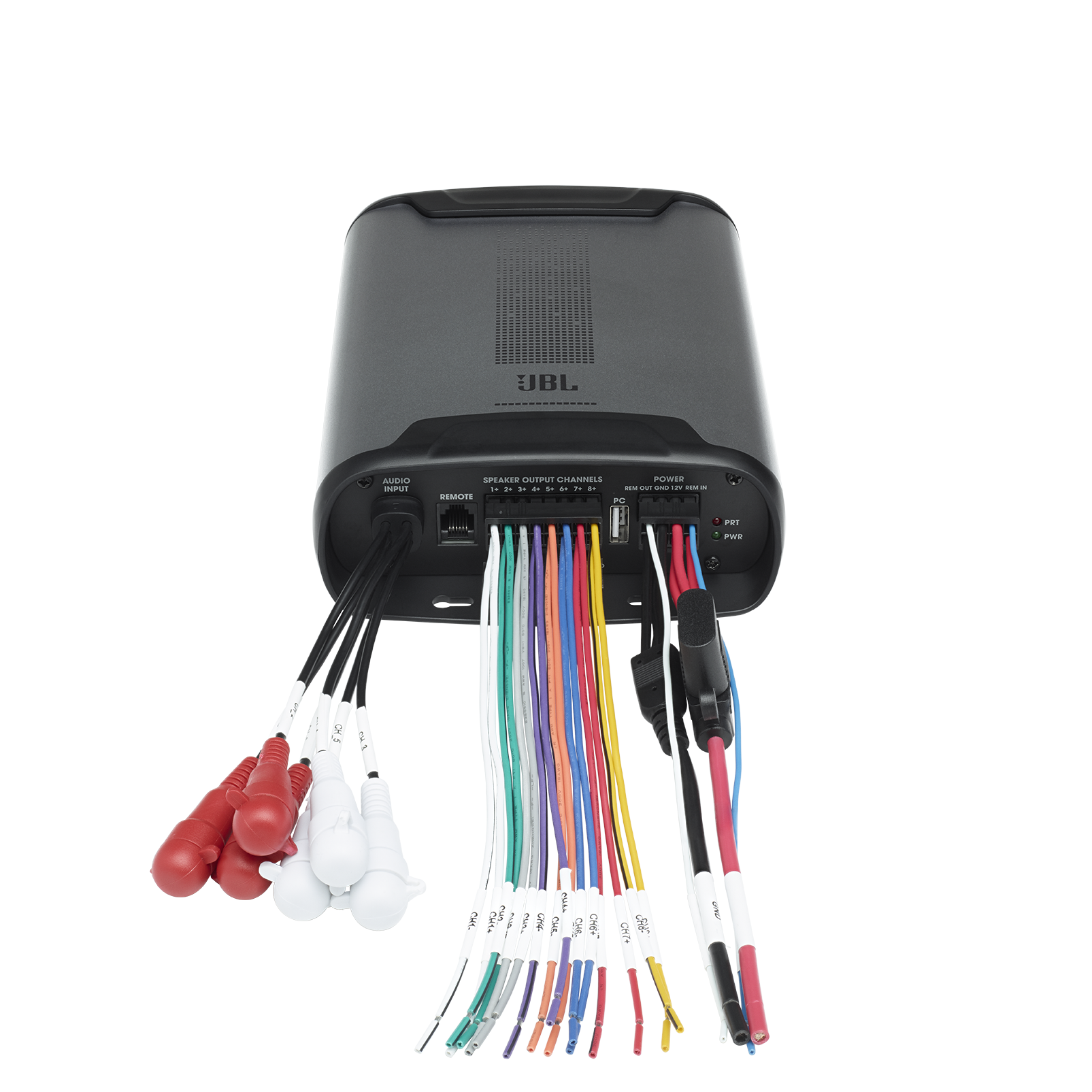

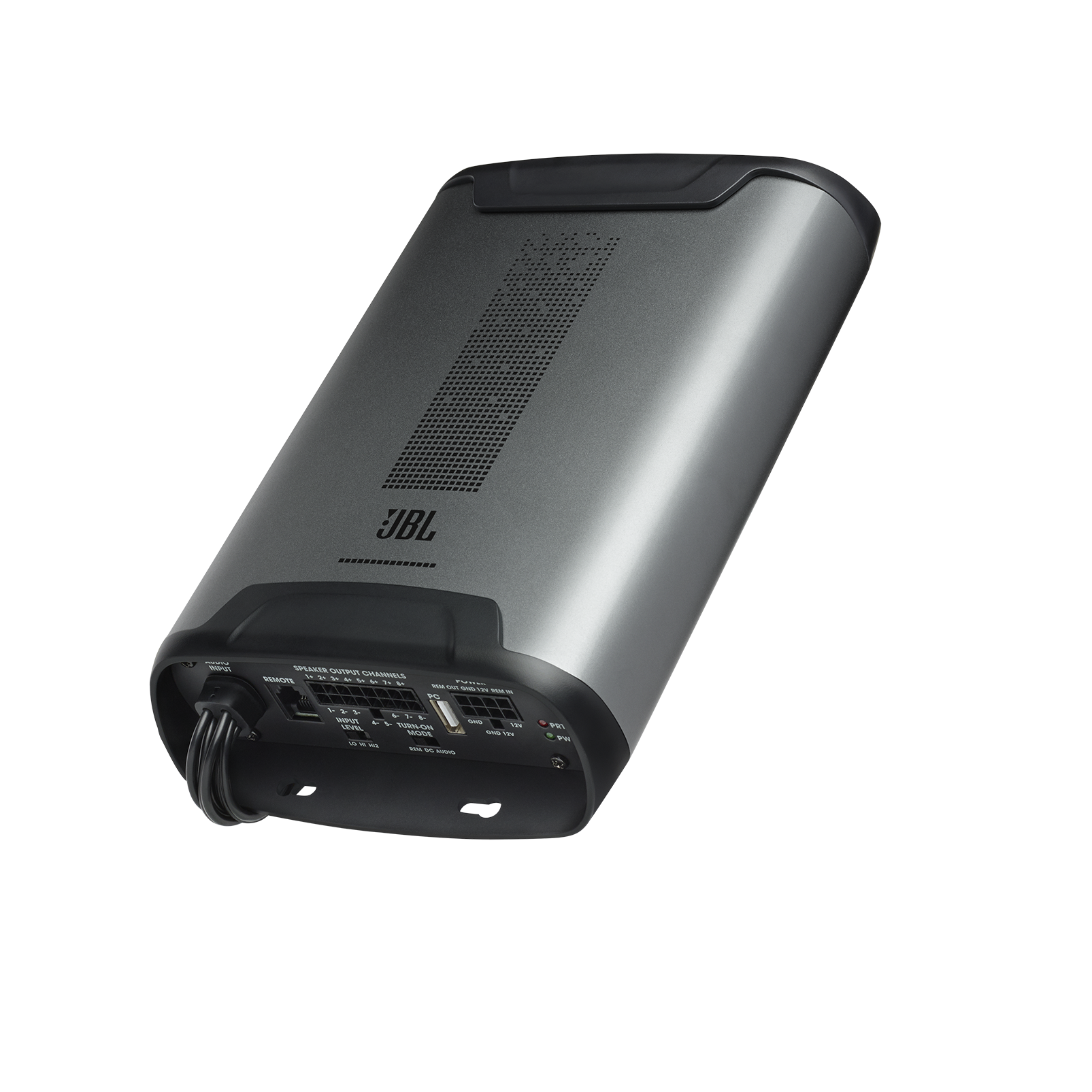

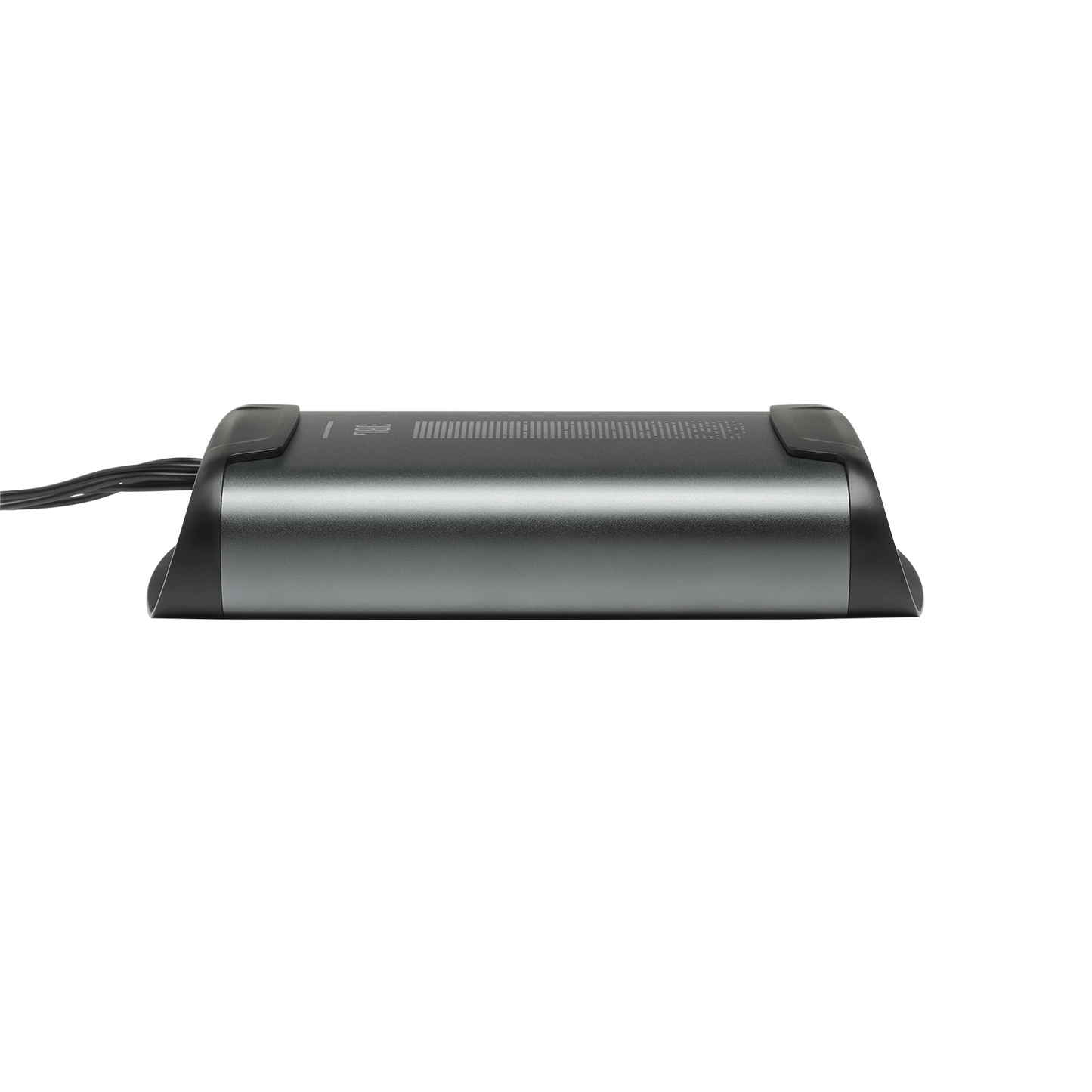

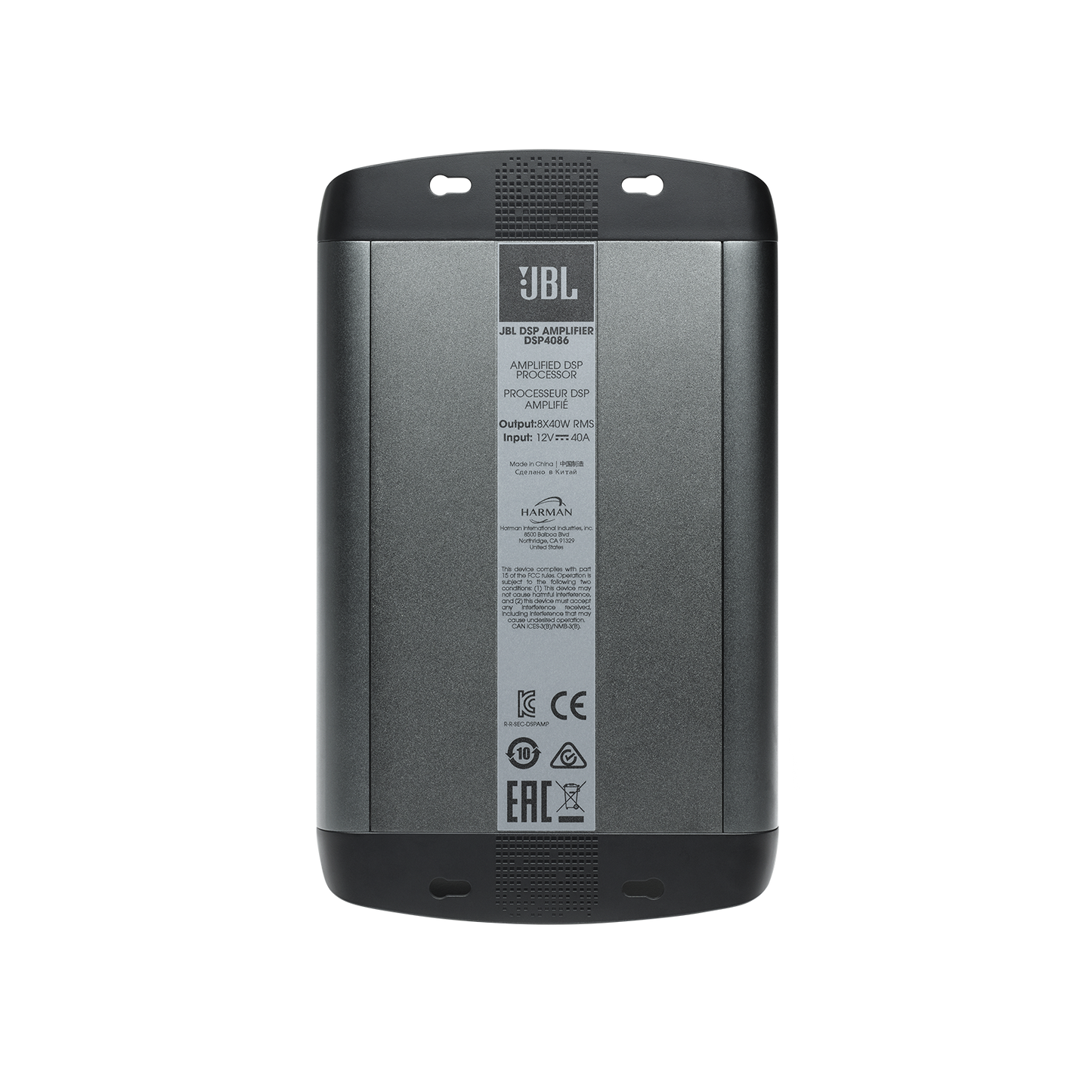

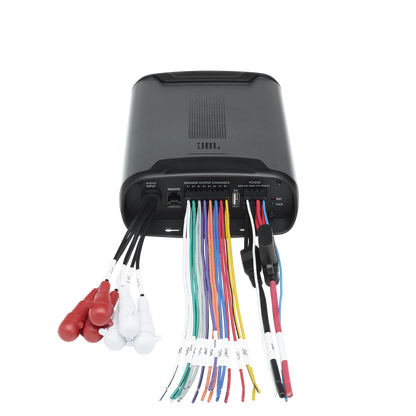

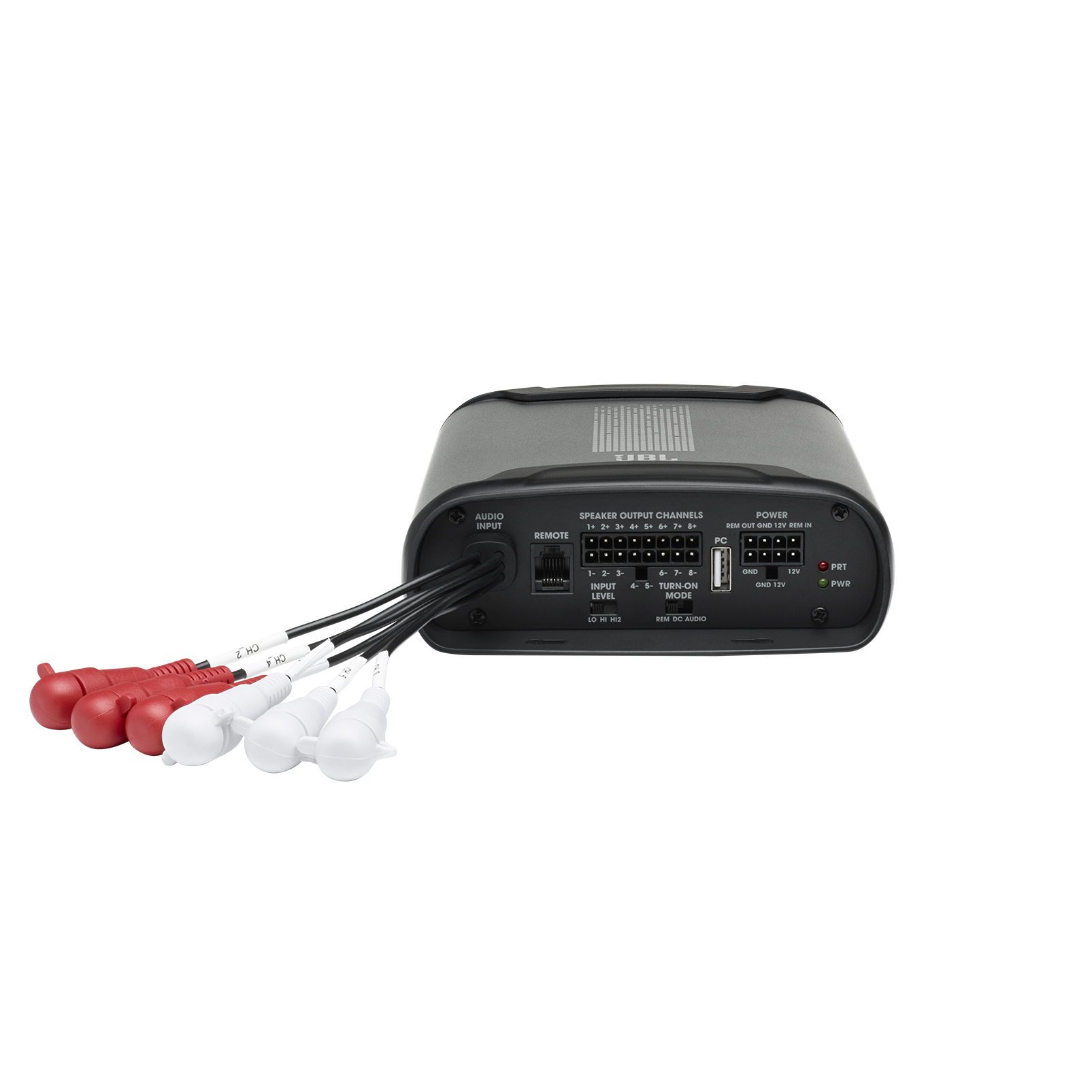

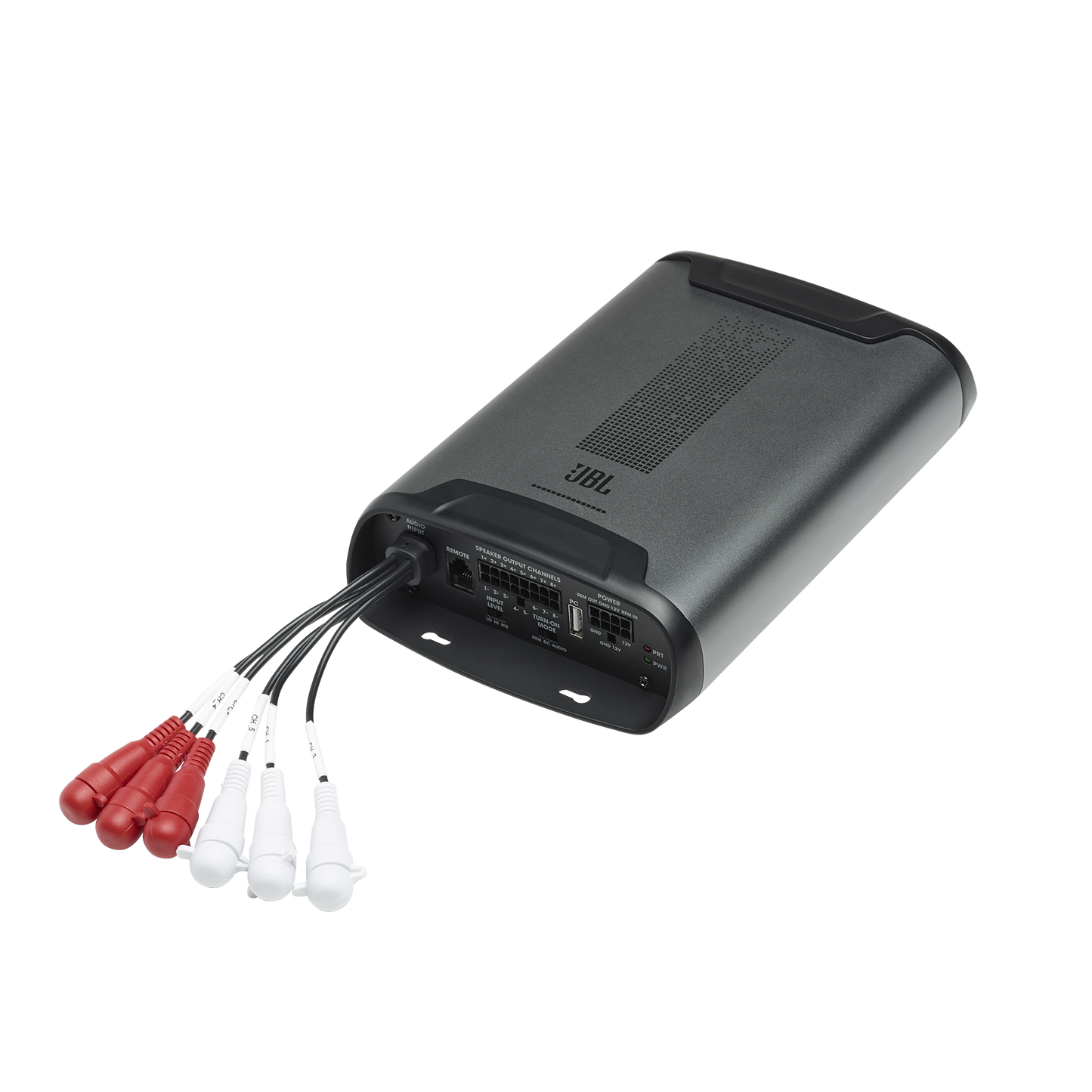

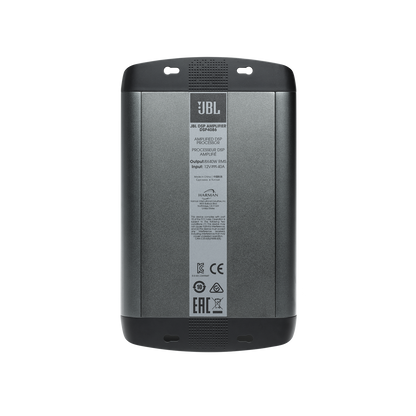

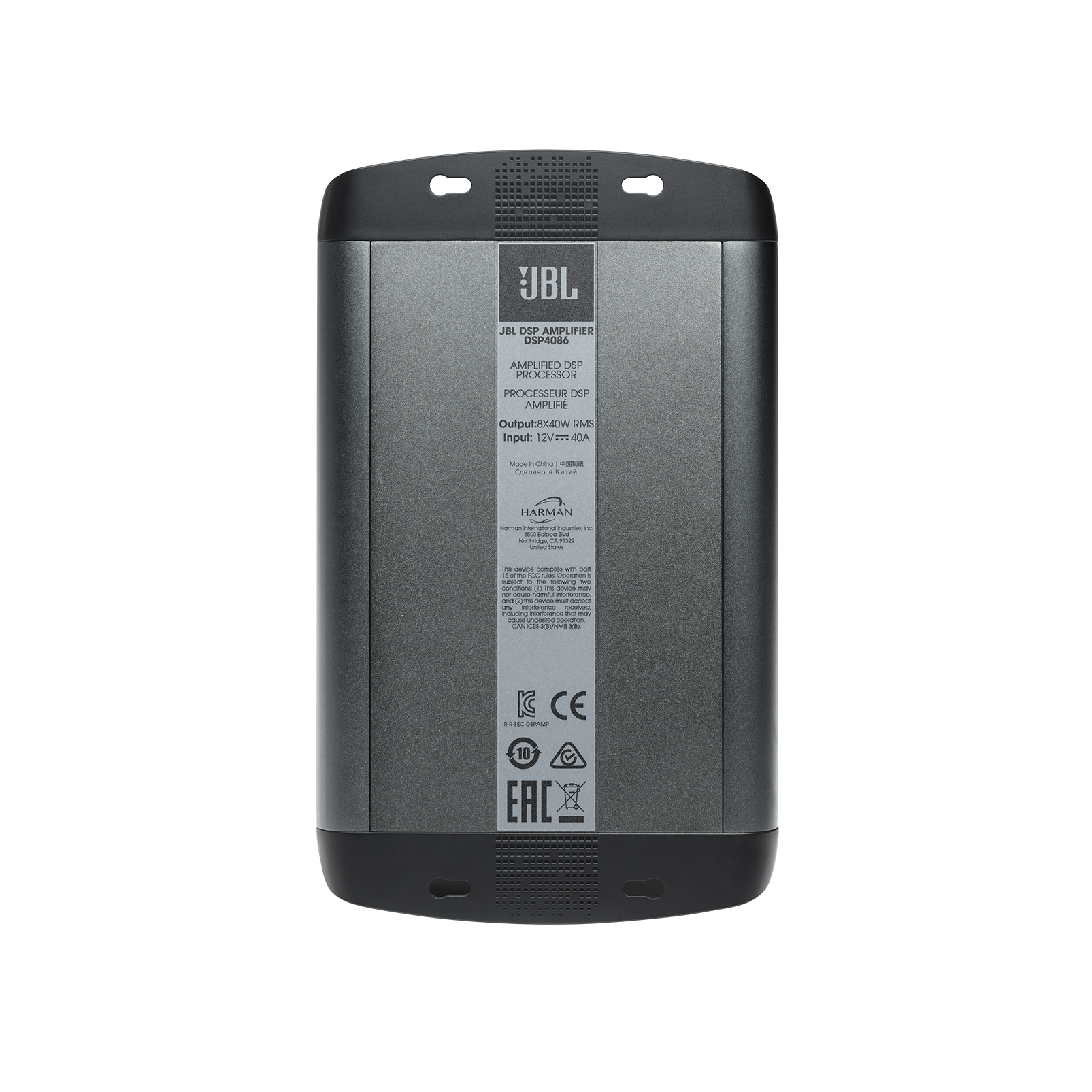

JBL DSP Amplifier is an audio processor for fine-tuning of aftermarket audio systems. It is a self-contained audio system with 6-channel audio inputs, 8-channel powered audio outputs, an easy to use tuning interface a novice can understand and detailed tuning capabilities to satisfy even experienced installers. With a USB connection to access the tuning interface using a Windows PC, you can control fully variable crossovers, selectable 0-to-48dB slopes, time delay, 31-band parametric or graphic EQ adjustment, assignable input to output mixer with input channel summing, channel gain, master volume control, clipping indicator to ensure the audio output is not distorted and ability to save up to 10 presets.
| Specification | Details |
|---|---|
| Max Power | 1000W peak |
| RMS Power Output (2Ω) | 60W × 8 (<1% THD+N) |
| RMS Power Output (4Ω) | 40W × 8 (<1% THD+N) |
| Crossovers | Variable (hi-pass, lo-pass, band-pass, 0–48dB slopes) |
| EQ Adjustment | Selectable (Parametric or Graphic) |

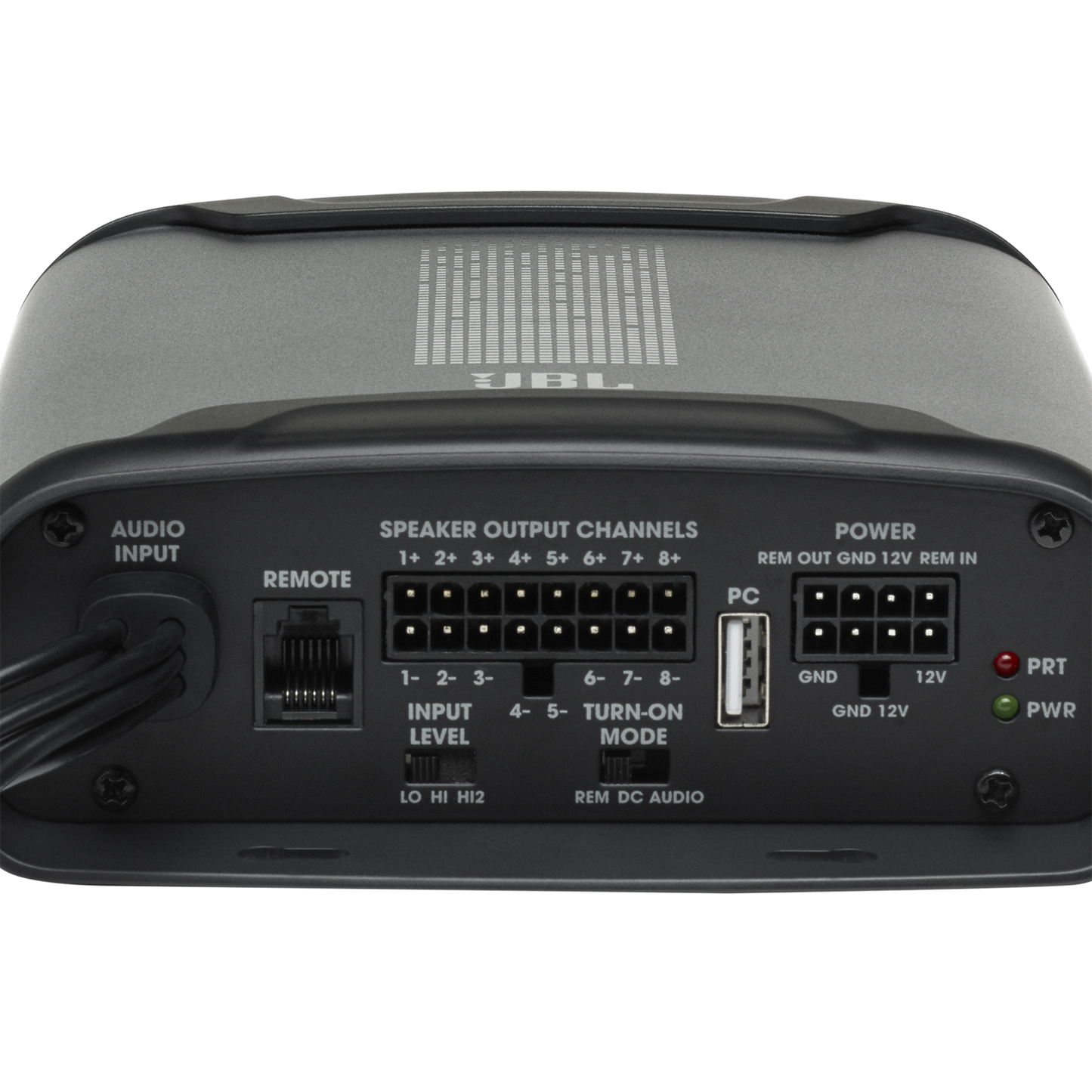

| Turn-On Modes | 12V / Signal Sense / DC Offset with 12V remote output |
| Frequency Response | 10Hz – 22kHz (@ -3dB) |
| Signal-to-Noise Ratio | >90 dB @ 4Ω |
| Subwoofer Level Control | -30 dB to +6 dB |
| Fuse Rating | 40A |
| Operating Voltage | 8V – 16V |
