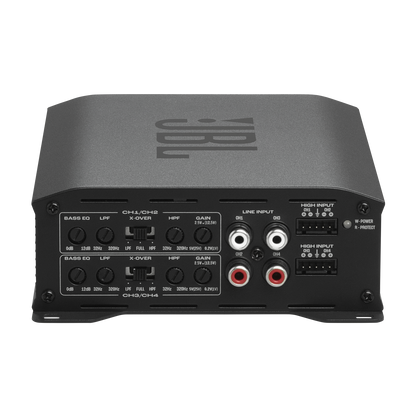

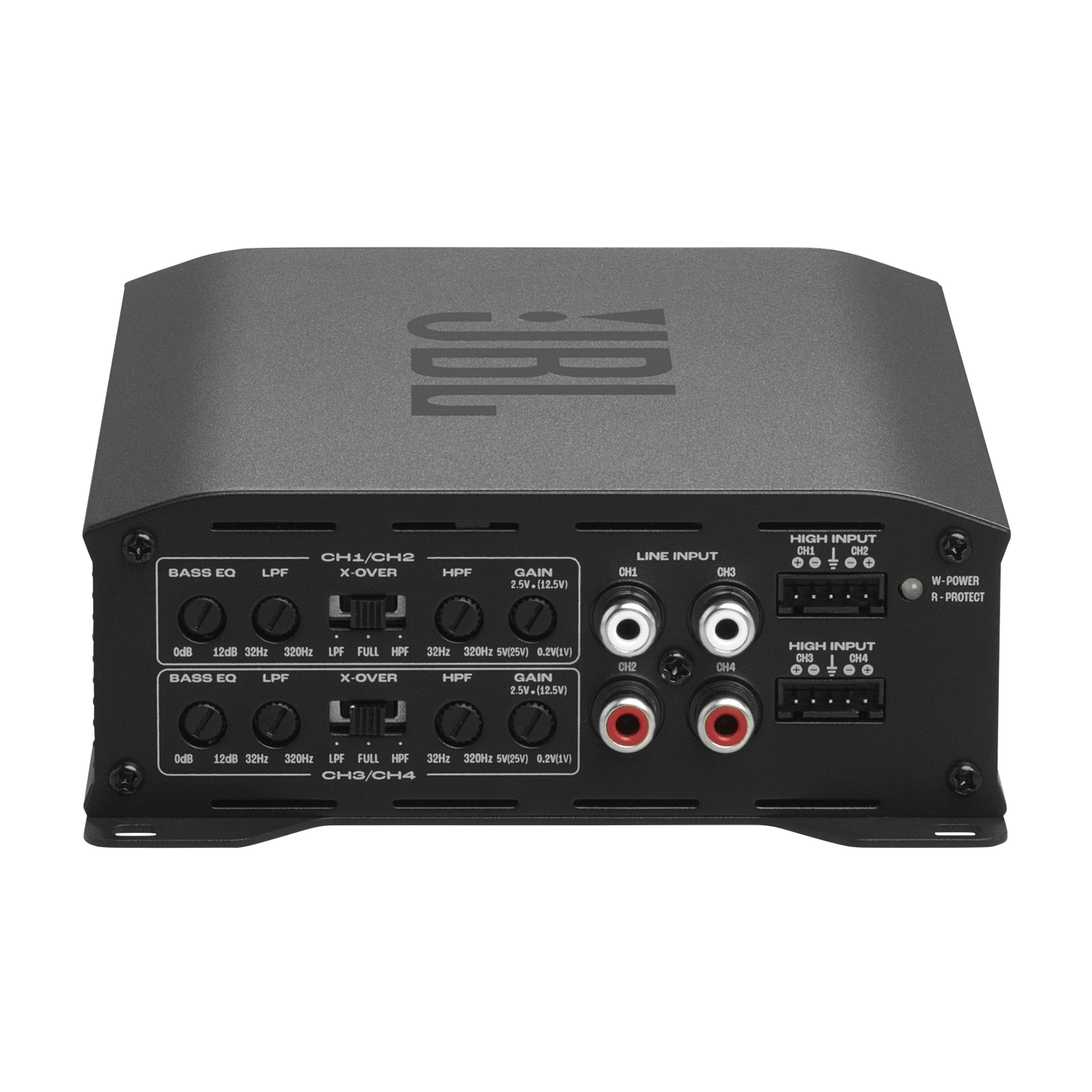

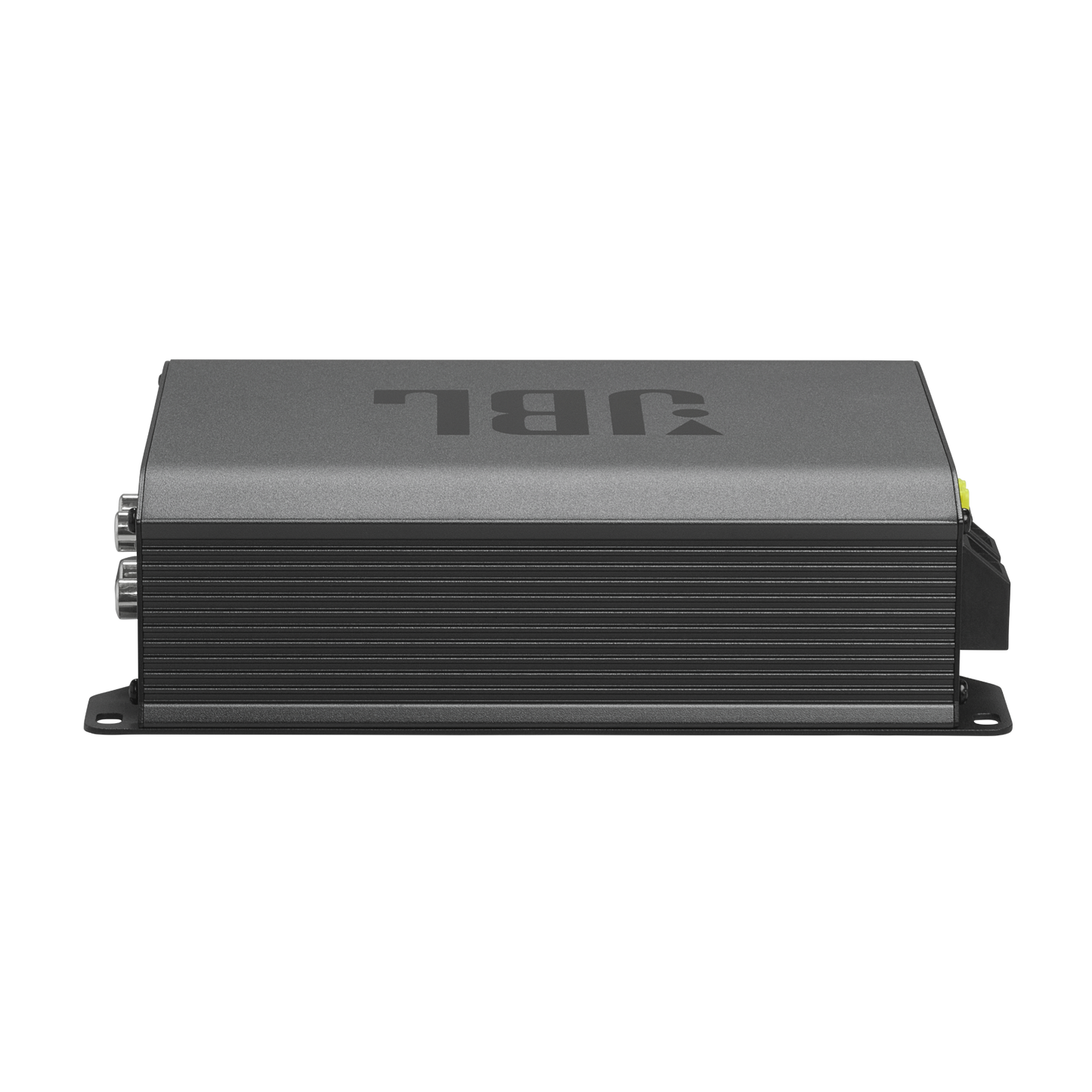

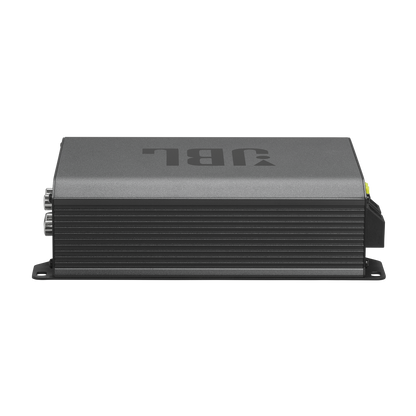

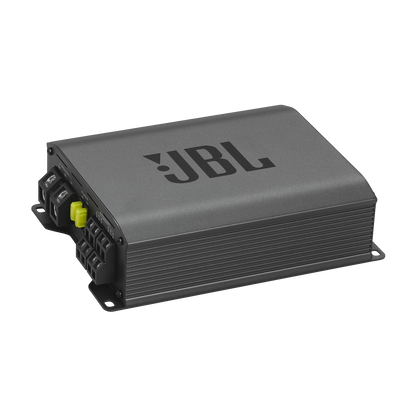

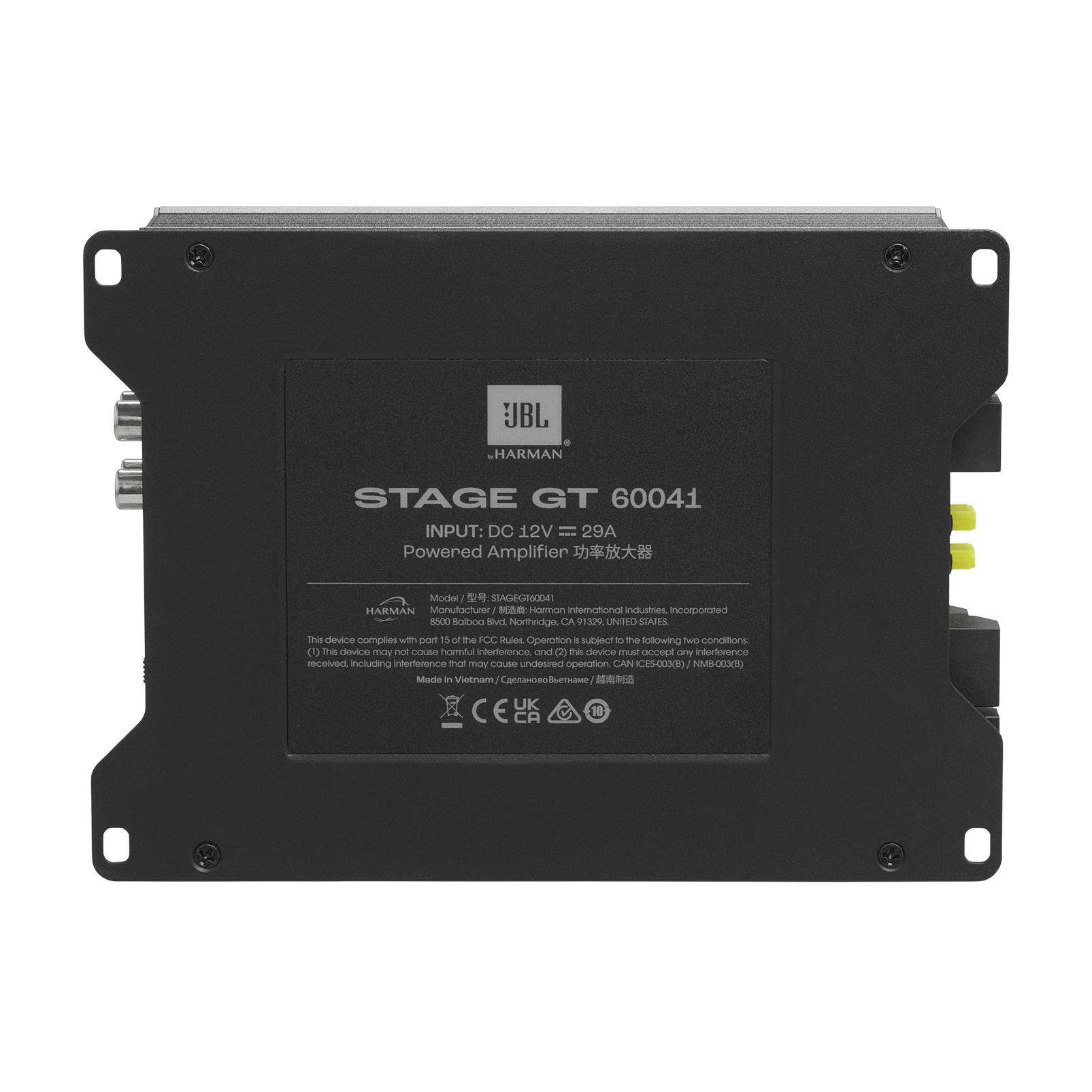

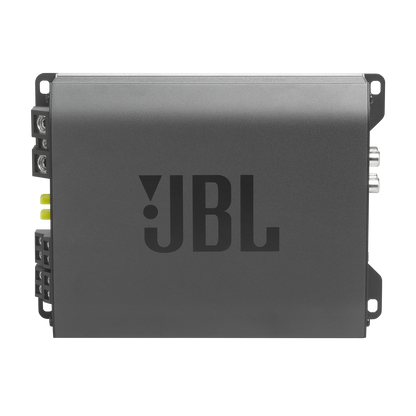

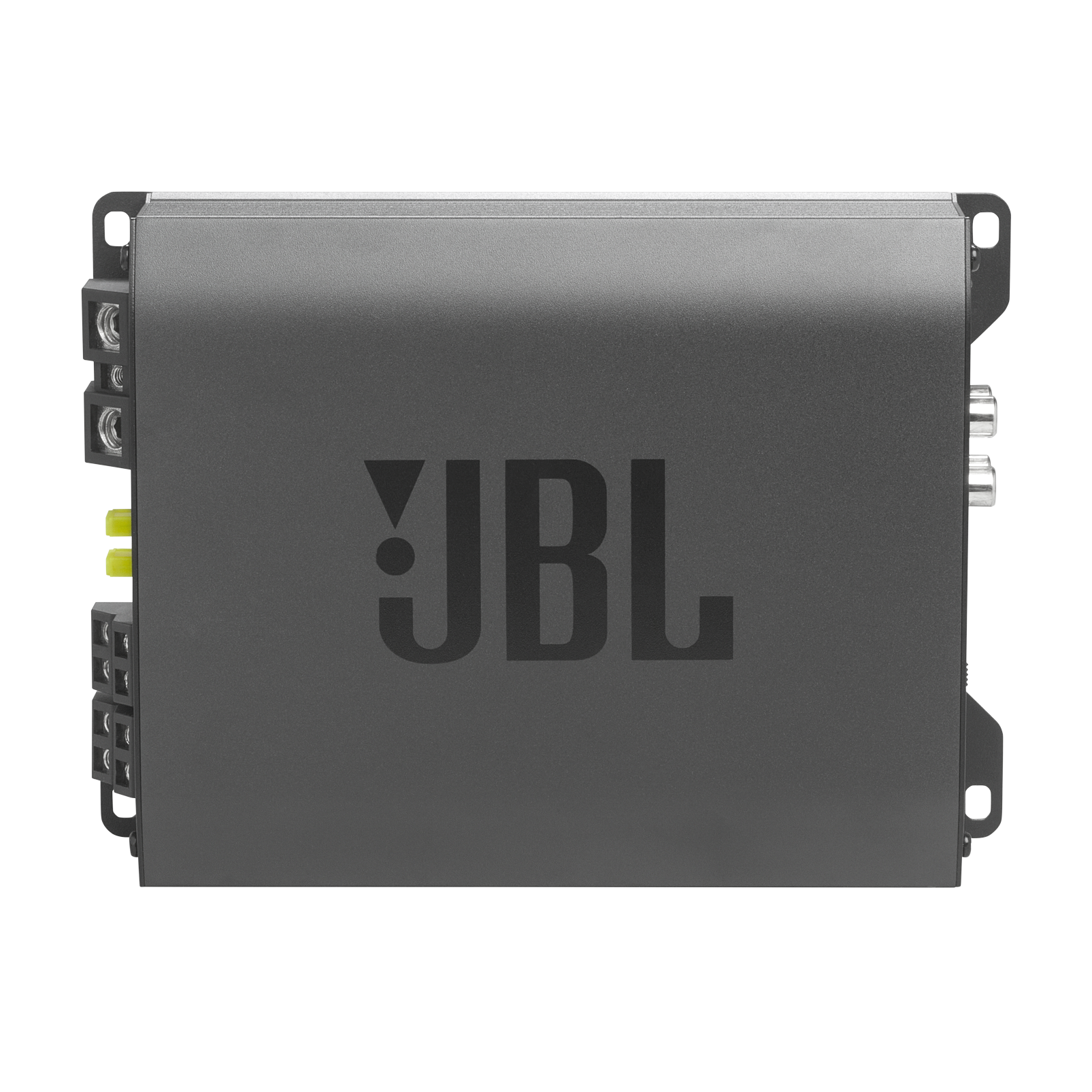

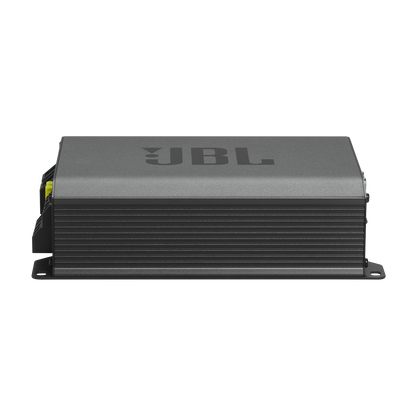

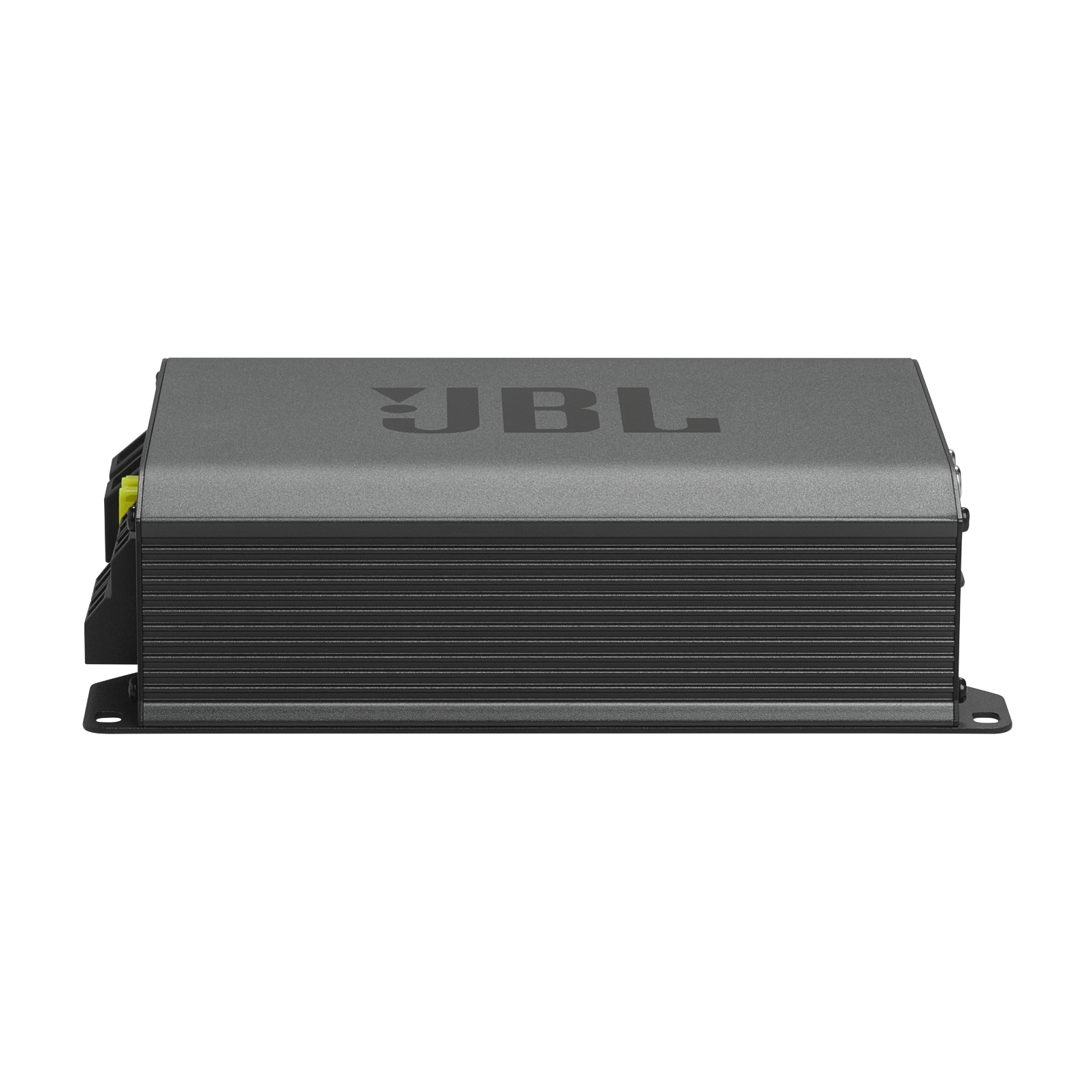

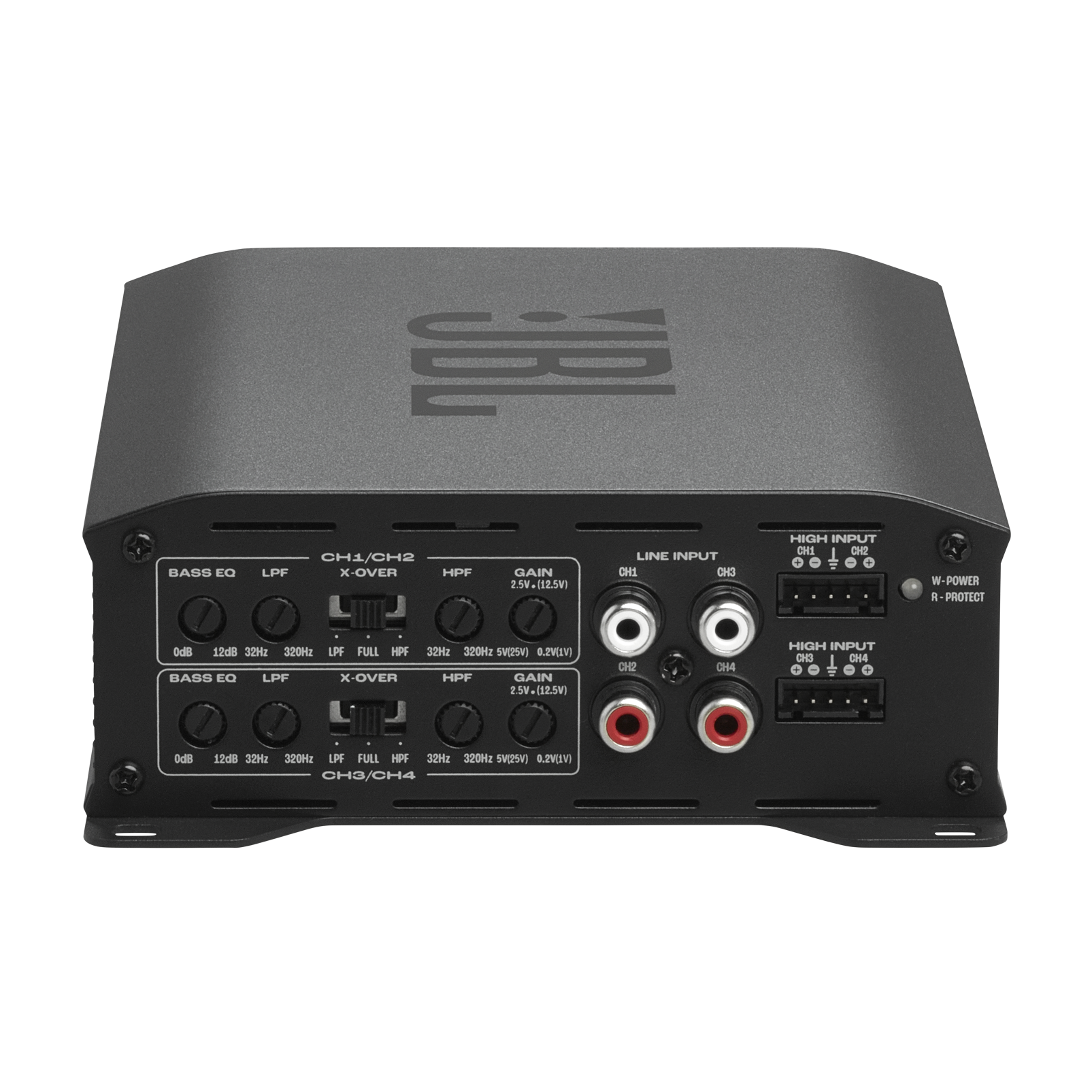

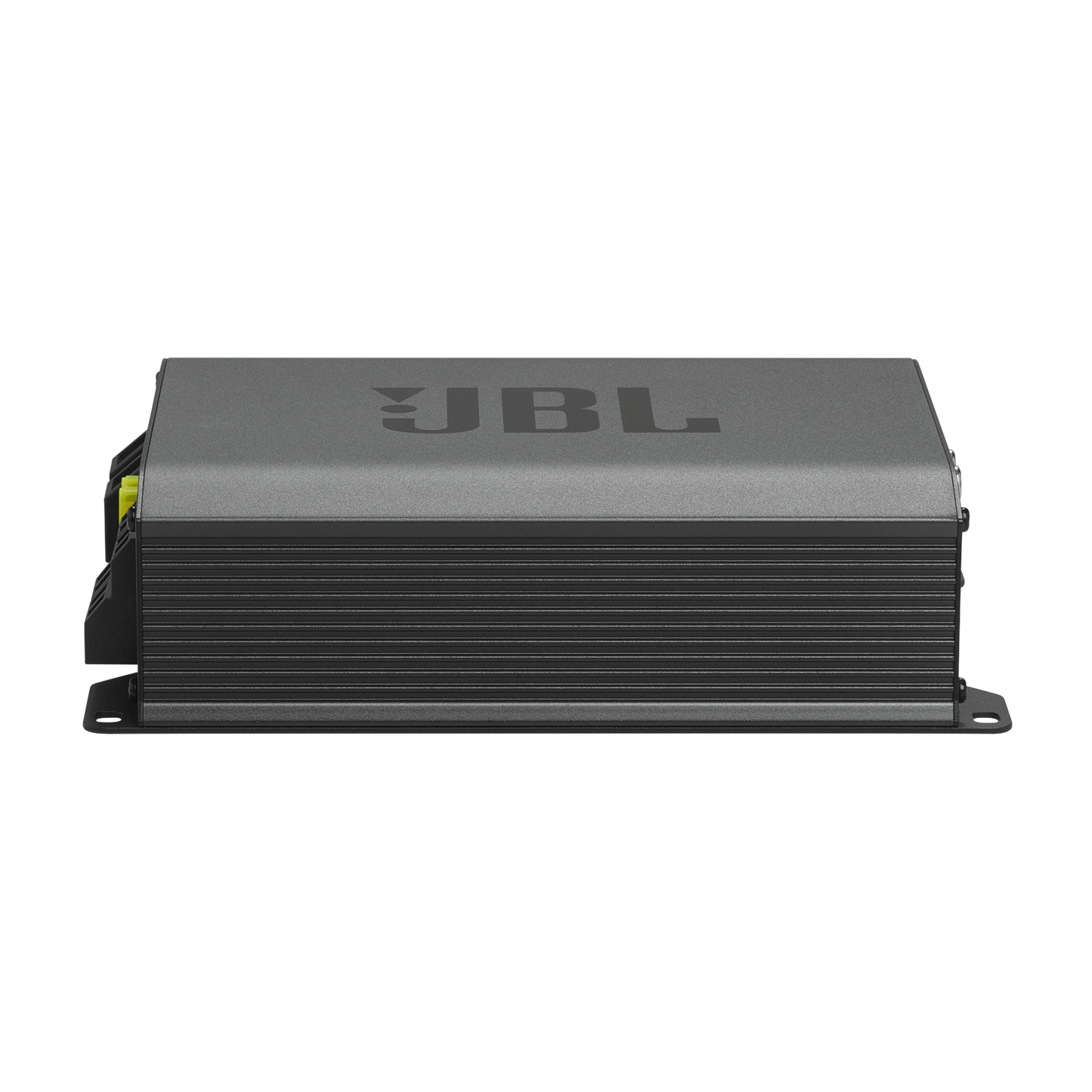

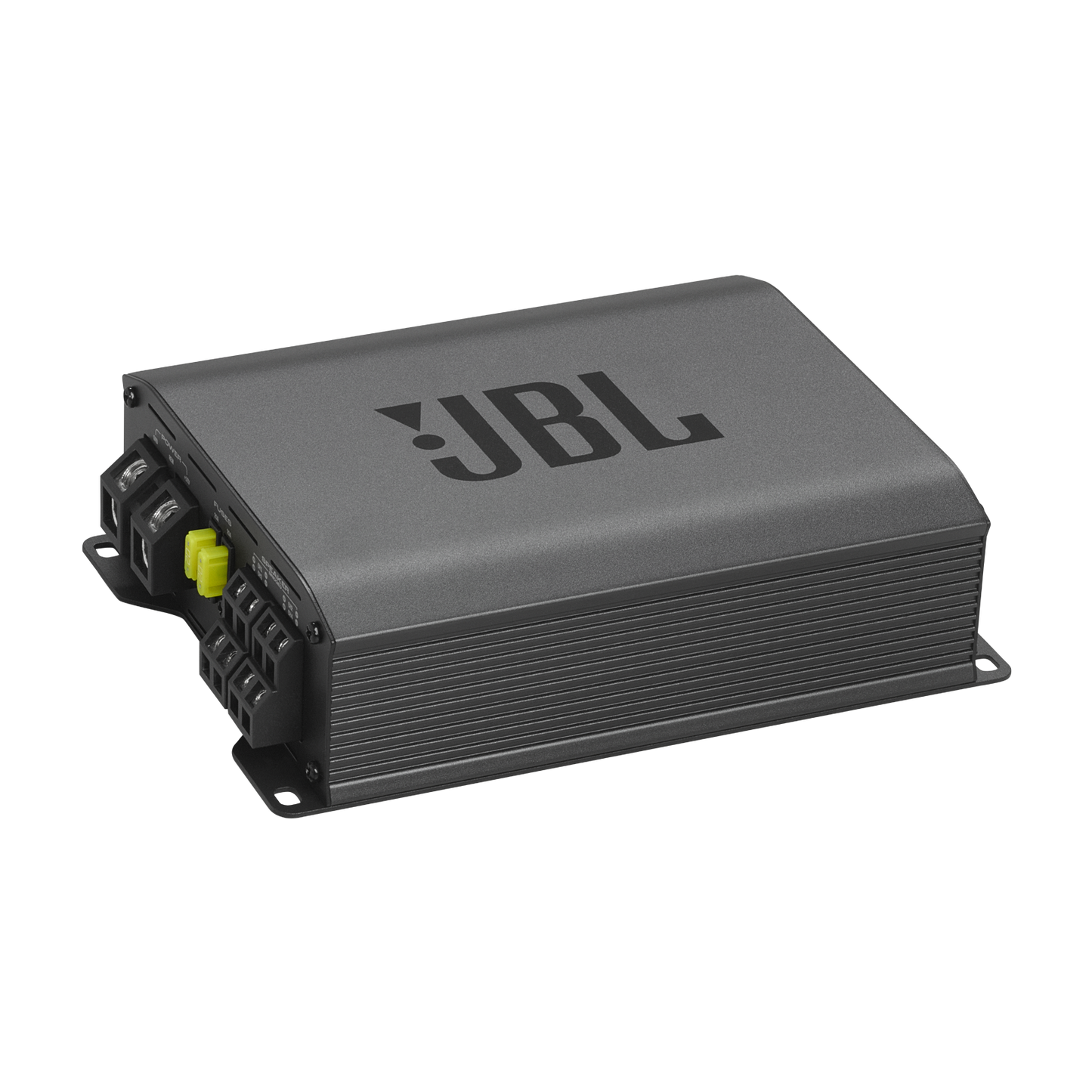

The JBL STAGE GT 60041 Amplifier is a High-Performance 4-Channel Class-D Amplifier is designed to meet a variety of system configuration needs, with a suite of advanced engineering features to tune and optimize system performance for the ultimate listening experience. This compact amplifier is equipped with user controls including a bass EQ as well as HPF, LPF crossover control for tailoring sound to suit the characteristics of your vehicles.
| Specification | Details |
|---|---|
| Max Power | 1240W peak |
| Power Output (Bridged 4Ω) | 180W RMS × 2 (full range) |
| Power Output (2 ohms) | 90W RMS × 4 (full range) |
| Power Output (4 ohms) | 65W RMS × 4 (full range) |
| Frequency Response | 20Hz – 20kHz (±1 dB) |
| THD+N @ ROP | 1% |
| Input Sensitivity (Low) | 0.2V – 5V |
| Input Sensitivity (High) | 1V – 25V |
| High/Low Pass Filter | Variable (32Hz – 320Hz) |
| Bass EQ @ 45Hz | 0 – 12 dB (variable) |

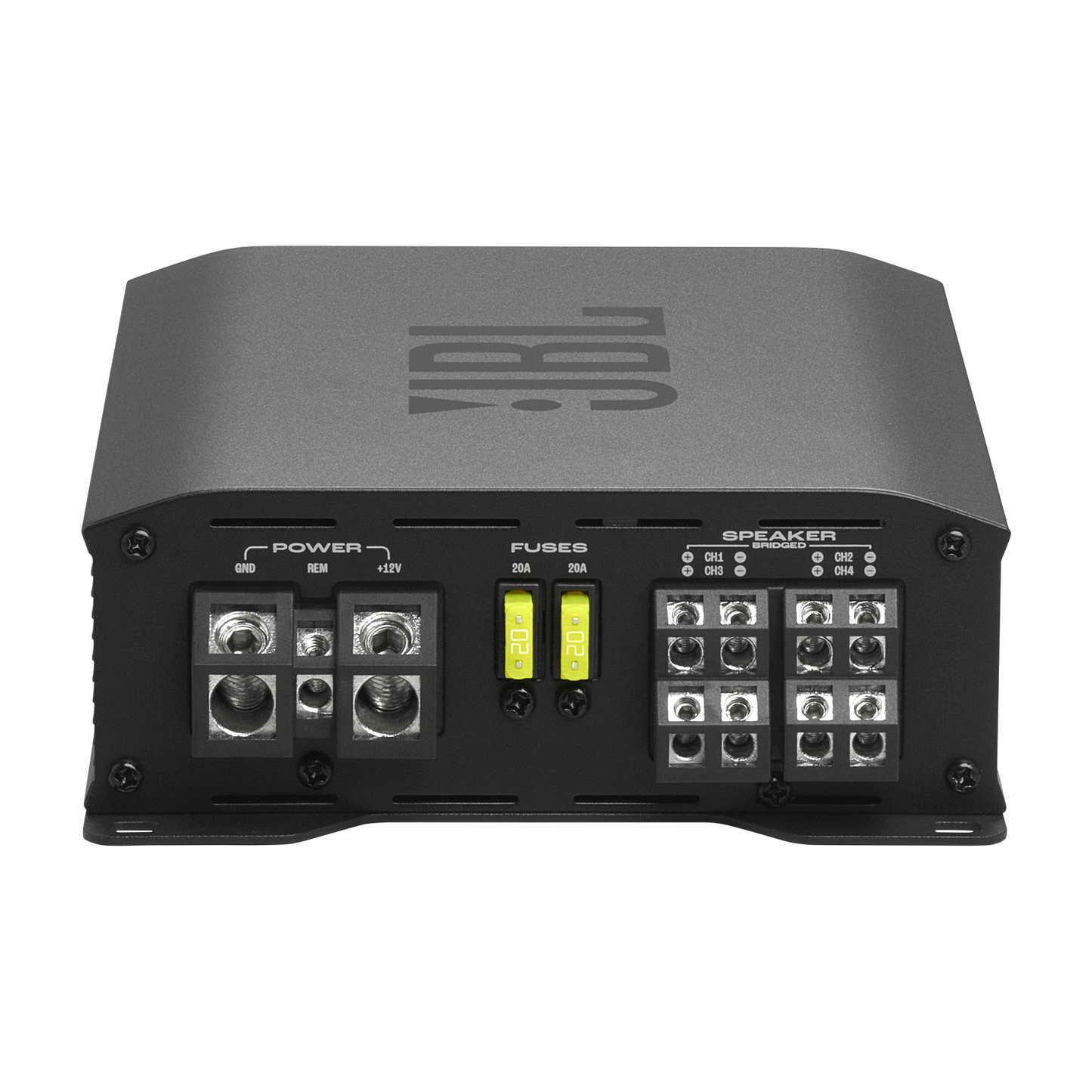

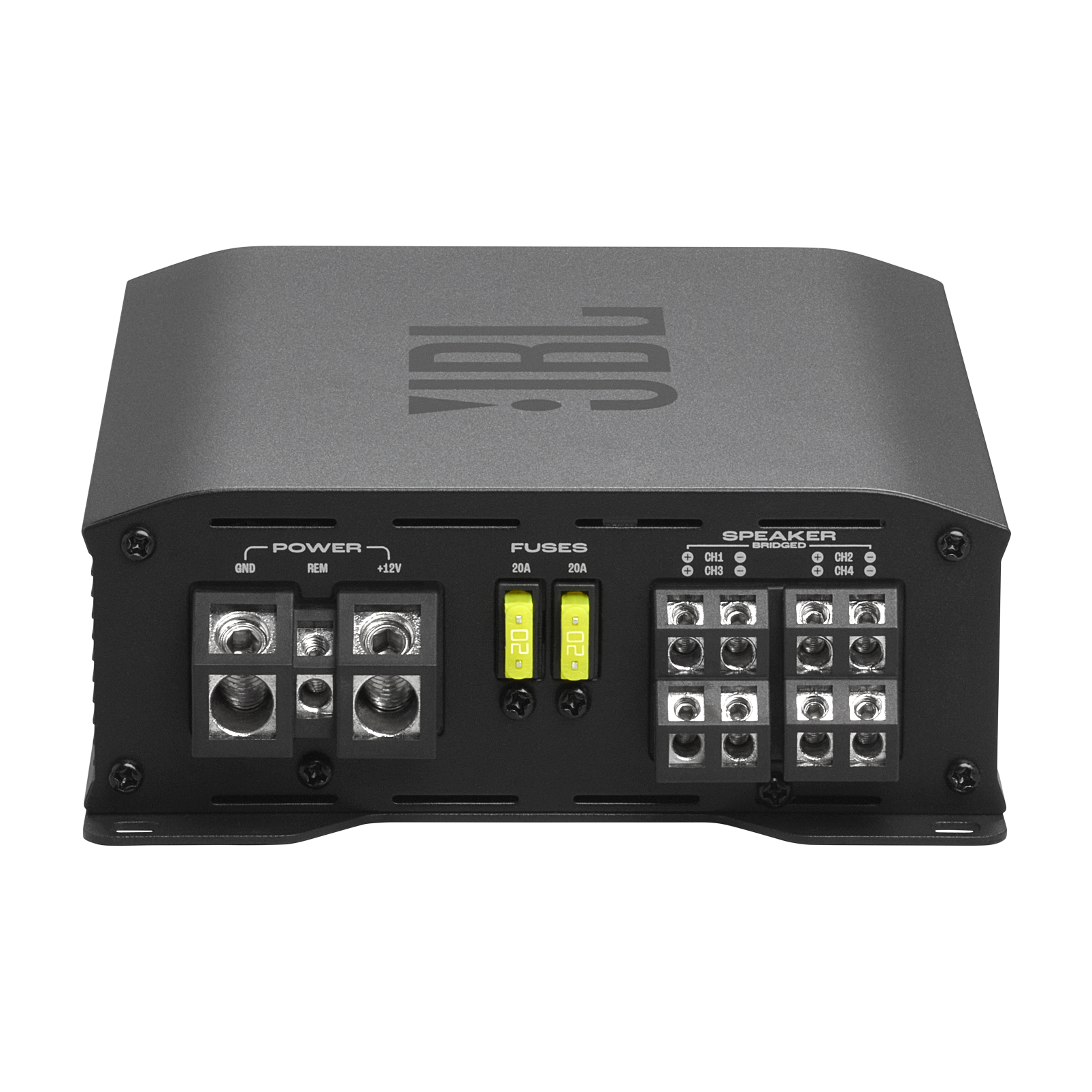

| Protection | DCP, OVP, UVP, OCP, OTP |
| Operating Voltage | 9V – 16V |
| Fuse Rating | 20A × 2 |
