The standout feature of the JBL BassPro Micro is its unique dockable design. The high-efficiency Class-D amplifier is built permanently into a small base station that mounts to your car floor. The actual 8-inch subwoofer enclosure slides right into this base and locks down securely. If you ever need maximum trunk space for groceries or luggage, you can unlatch and remove the subwoofer enclosure in seconds without disconnecting a single power or audio wire.

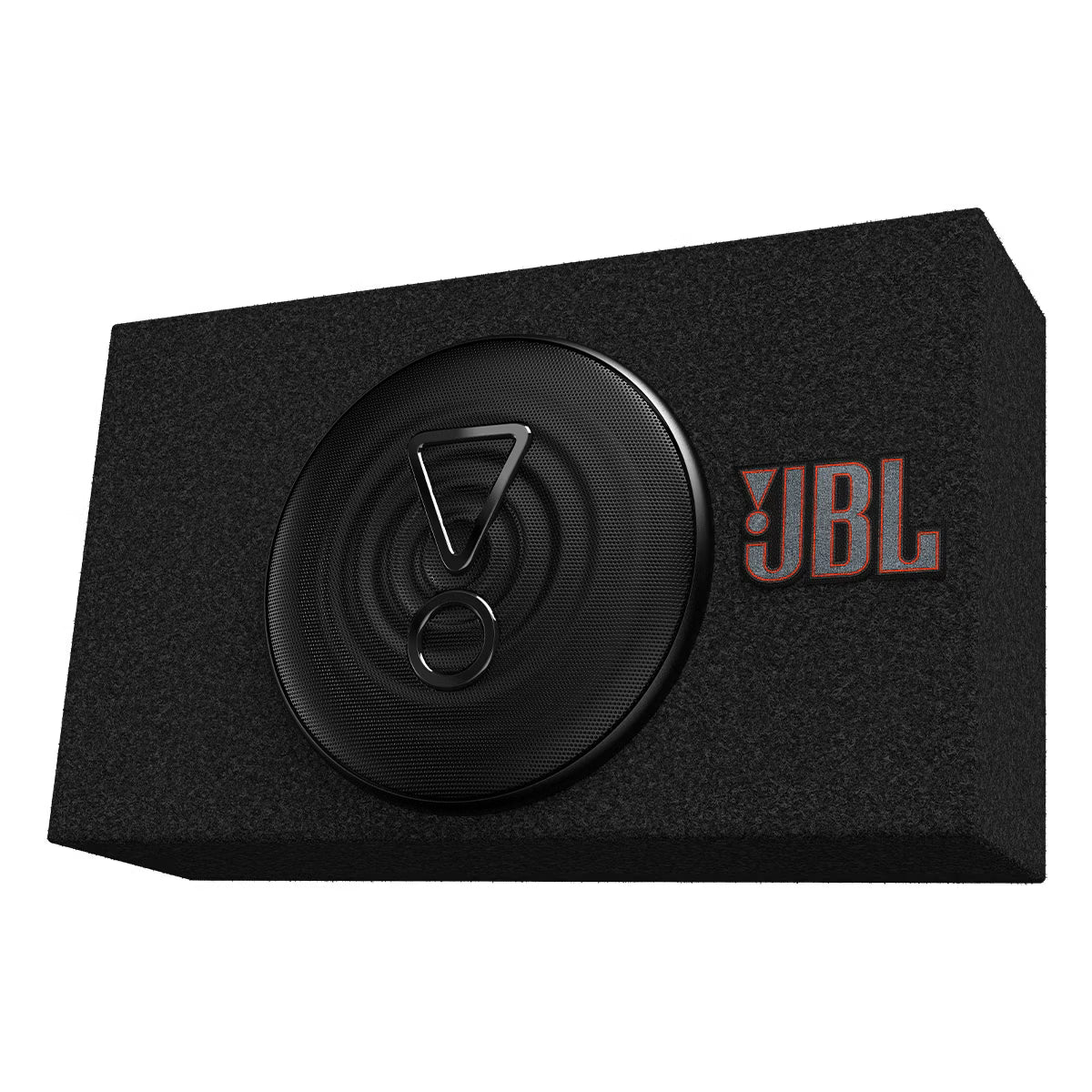

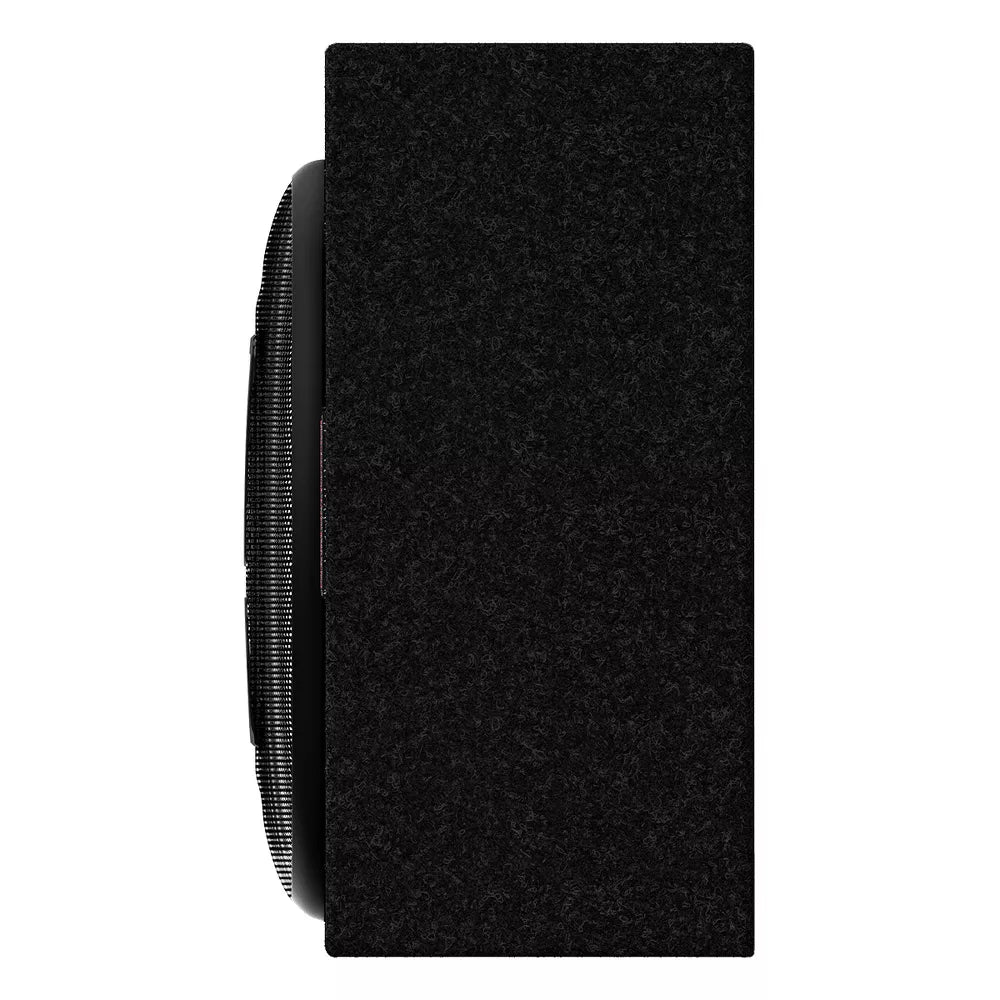

The enclosure itself is made to fit easily under truck seats or in small trunk spaces. It comes with removable feet so you can choose a standard vertical mount or a down-firing placement to push deeper bass vibrations through your vehicle cabin floor. It is built to blend seamlessly with both factory car radios and high-end aftermarket systems.
Technical Specifications
-
Subwoofer Size: 8 inches (200mm)
-
Amplifier Type: High-efficiency Class D
-
Continuous Power Handling (RMS): 140 Watts
-
Peak Power Handling: 300 Watts (Up to 600 Watts maximum burst)
-
Frequency Response: 35Hz – 120Hz
-
Maximum Current Draw: 14.5 Amps
-
Standby/Quiescent Current Draw: Less than 800mA
-
Onboard Fuse Rating: 1 x 15-Amp fuse
-
Overall System Weight: Around 16 lbs

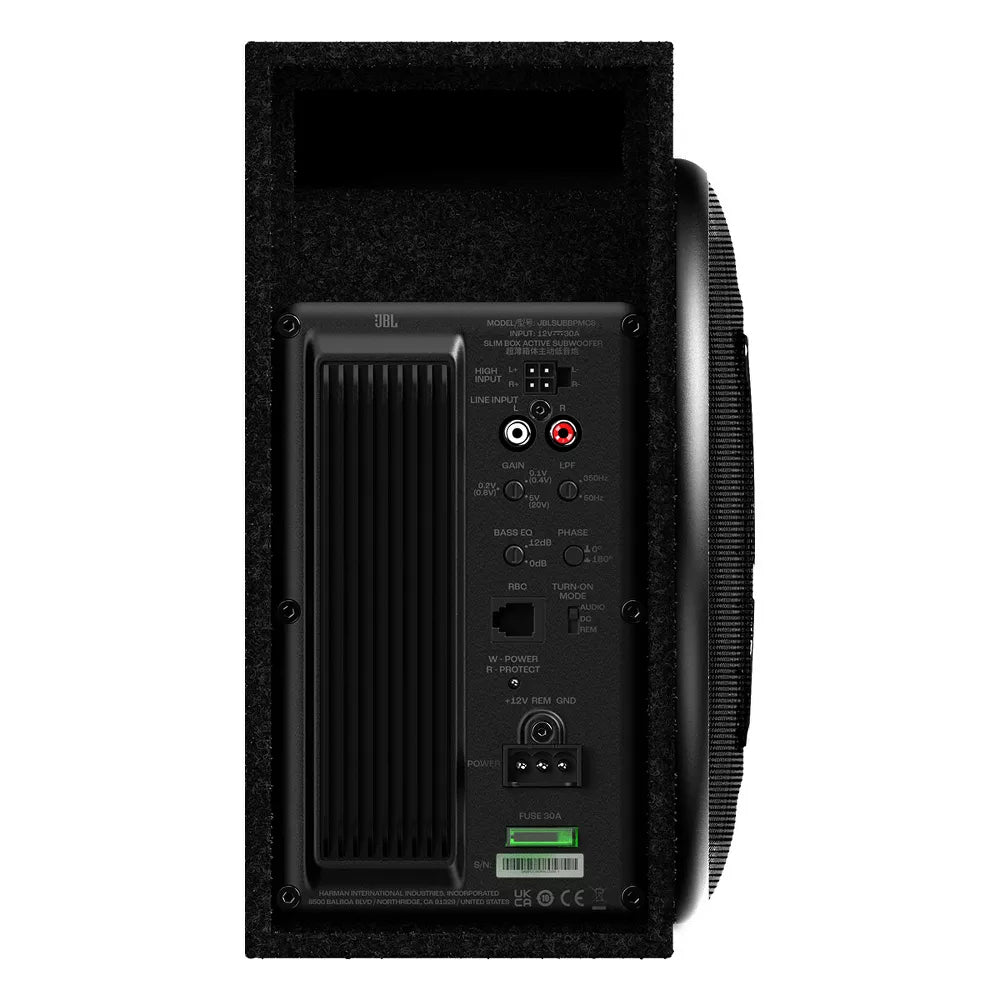

Audio Controls & Tuning
-
Low-Level Input Sensitivity (RCA): 0.05V – 2.0V
-
High-Level Input Sensitivity (Speaker Wire): 0.5V – 20V
-
Adjustable Low-Pass Crossover: Variable dial from 50Hz to 120Hz
-
Crossover Slope: 12dB per octave
-
Onboard Bass Boost EQ: Variable from 0dB to +9dB centered at 65Hz
-
Phase Alignment Switch: 0° or 180° selectable toggle to match your vehicle's audio timing
System Dimensions
-
Total Physical Size (L x W x H): 16-3/16 inches x 7 inches x 10-7/8 inches (411mm x 177mm x 275mm)
