The
JBL Celebrity 100 is
an entry-level, Single-DIN mechless car audio receiver designed to offer essential modern digital connectivity in a highly compact, cost-effective form factor.
Hardware & Chassis Form Factor
-
Single-DIN Profile: Built to fit standard 2" x 7" dashboard slots. Its slim 87mm depth design optimizes rear clearance inside the dash.
-
Mechless Architecture: Features zero moving internal components. It completely omits a CD or DVD mechanical deck, running exclusively off of digital media inputs.
-

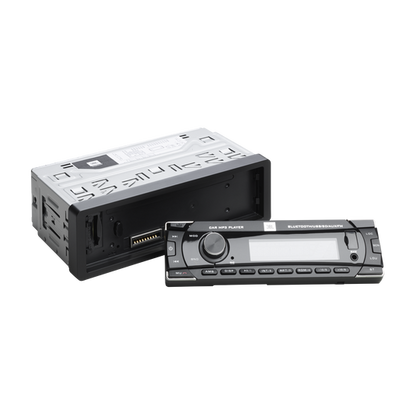

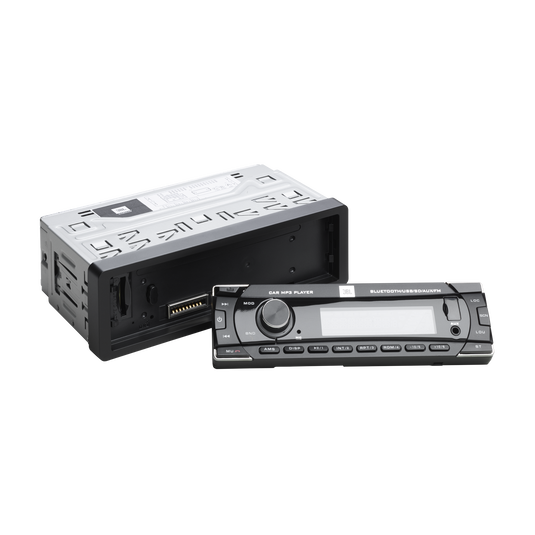

Detachable Faceplate: The physical front control panel is fully removable, serving as a theft-deterrent measure when leaving the vehicle unattended.
-

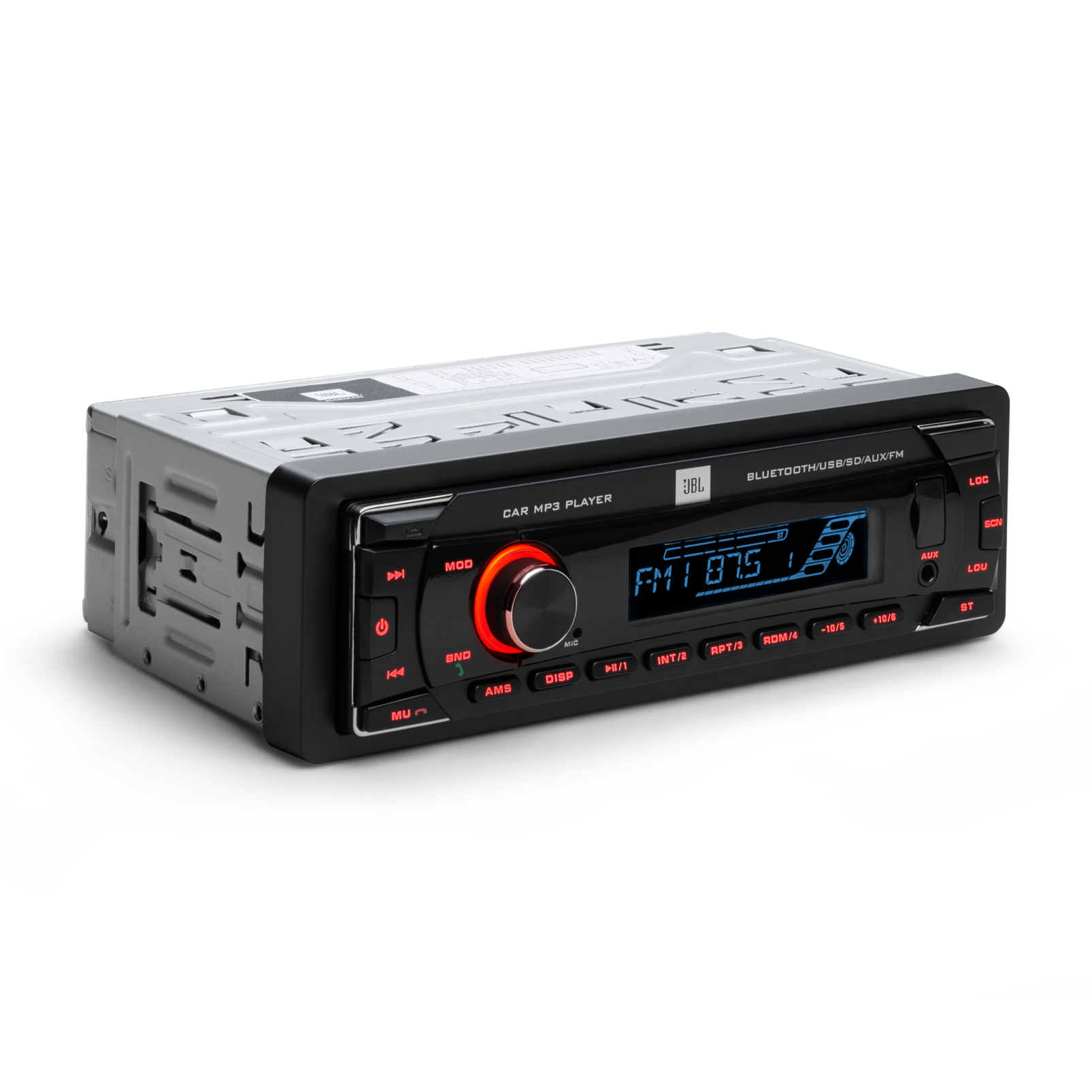

Interface Panel: Equipped with a high-contrast LCD text display panel alongside white backlighting for clean night readability.
Media Sources & Interfacing
-
Integrated Bluetooth Baseband: Supports dual-profile wireless connectivity:
-
A2DP / AVRCP: For wireless music streaming and metadata control.
-
HFP / HSP: Paired with an integrated microphone to allow safe hands-free calling.
-
Front Ingress Hardware:
-
USB Port: Direct playback of files from standard USB flash storage drives.
-
SD Card Reader: Dedicated card slot tucked under the front faceplate for supplementary local audio libraries.
-
Auxiliary Port: Standard 3.5mm stereo input jack for connecting analog headphone outputs.
-
Radio Tuner: An analog FM radio tuning matrix providing memory storage for up to 18 preset stations.
Electro-Acoustic Specifications
-
Power Delivery: High-power Class-AB amplifier architecture pushing 22 Watts RMS x 4 channels (up to a maximum peak layout of 50 Watts x 4 channels) into standard 4-Ohm speaker loads.
-
Frequency Bandwidth: Handles sound reproduction across a clean 20 Hz to 20,000 Hz operational spectrum.
-

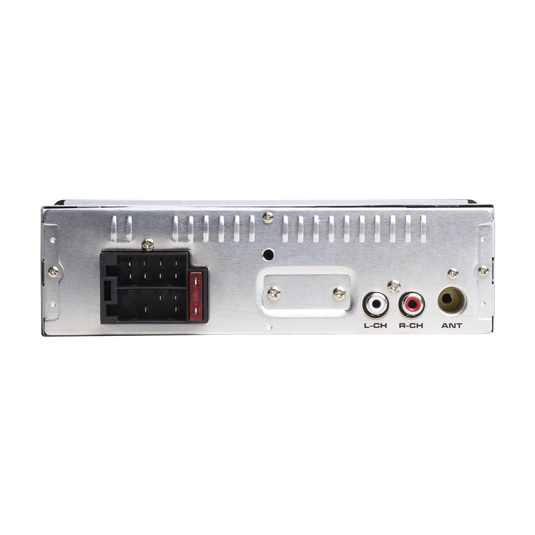

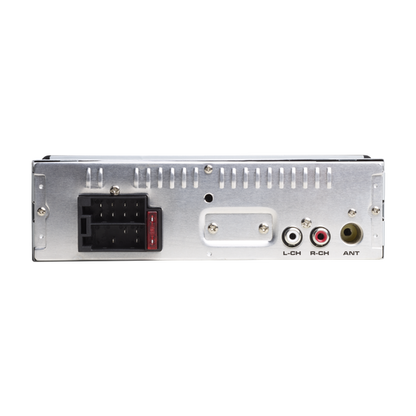

Pre-Amplifier Line Out: Built with one pair of rear-channel RCA pre-outs to deliver stable low-voltage audio signaling to an aftermarket external speaker amplifier.
- Power Infrastructure: Works on standard 12V DC automotive negative-ground electrical networks, protected via an on-chassis 10-amp blade fuse.
Micro-Architecture & System Design
-
Mechless Solid-State Topology: The internal chassis is devoid of mechanical optical drives (CD/DVD engines). This drastically reduces the physical footprint, moving parts wear, and thermal generation.
-

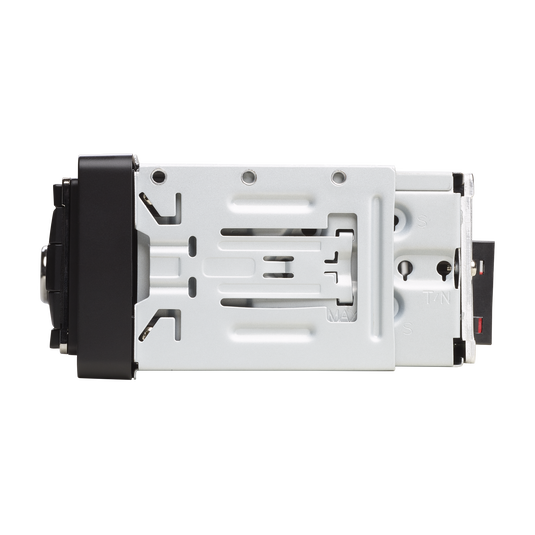

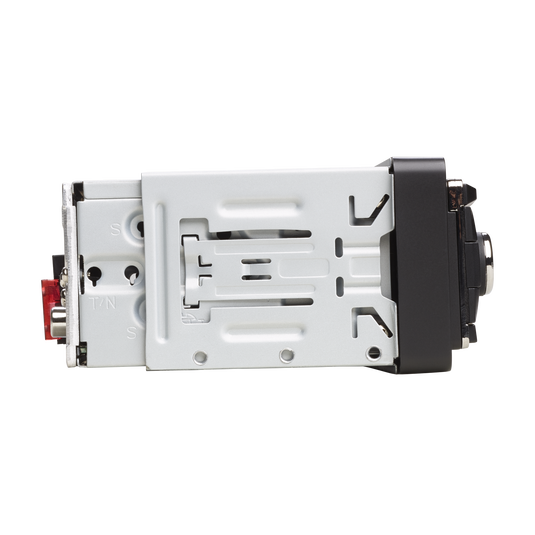

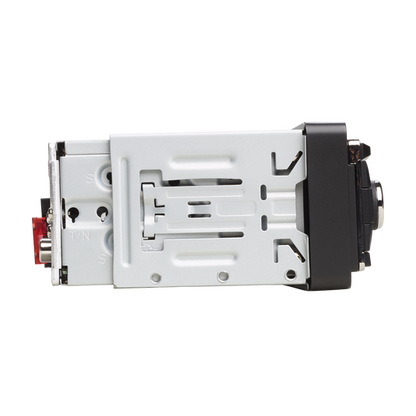

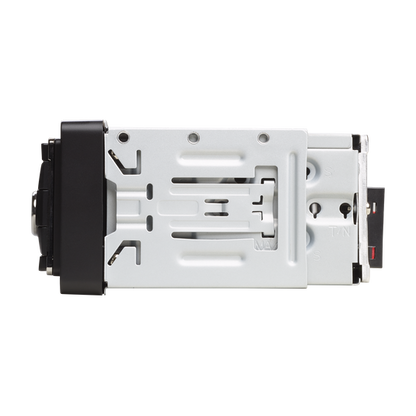

Ultra-Shallow Mechanical Chassis: Built with an active installation depth of only 87mm (approx. 3.42 inches). This ultra-short profile allows for effortless wire routing and fits into shallow-depth dashboard cavities where traditional radios fail to clear HVAC ducting.
-
Detachable Control Interface: Features a volatile, completely removable faceplate utilizing gold-plated spring pin data connectors.
Audio Signal Processing & Amplification Stage
-
Integrated Class-AB Power IC: Utilizes a standard automotive high-power Class-AB bridge-tied load (BTL) amplifier integrated circuit.
-
Continuous Power Output (RMS): Generates 20 Watts RMS x 4 channels into a nominal 4-Ohm speaker load at less than 1% Total Harmonic Distortion plus Noise (THD+N).
-
Peak Power Capacity: 50 Watts x 4 channels maximum output.
-
Pre-Amplifier Signal Path: Contains one single pair (Left/Right) of low-voltage RCA pre-amplifier outputs dedicated to the rear or subwoofer channels, allowing for system expansion via an external amplifier.
-
Equalizer Tuning Matrix: Features basic fixed digital signal processing (DSP) curves hardcoded into the firmware. It offers four non-adjustable preset equalizer curves: Flat, Pop, Rock, and Classic.
Data Ingress & Source Codec Engineering
-
Bluetooth Transceiver Subsystem: Houses a built-in Bluetooth RF module supporting basic cellular integration profiles:
-
HFP 1.6 (Hands-Free Profile): Enables hands-free voice calls utilizing the microphone element embedded on the front panel.
-
A2DP 1.2 (Advanced Audio Distribution Profile): Allows wireless stereo audio streaming from mobile host devices.
-
Physical Media Core Controllers:
-
USB Host Controller: Front-facing USB Type-A port supporting Mass Storage Class (MSC) flash drives formatted in FAT16 or FAT32.
-
Secure Digital (SD) Controller: A physical slot hidden behind the detachable faceplate supporting standard SD/SDHC cards.
-
Hardware Decoding Engine: Offers native firmware-level decompression for lossy, compressed digital audio file containers, limited strictly to MP3 and WMA formats.
-
Analog Auxiliary Stage: A direct-pass 3.5mm stereo mini-jack creating a high-impedance line-level analog path to the internal pre-amp.
RF Tuner & Electrical Power Infrastructure
-
FM Phase-Locked Loop (PLL) Tuner: An analog radio frequency receiver stage optimized specifically for the FM broadcast band. It includes 18 non-volatile memory slots across 3 selectable bands (FM1, FM2, FM3). Note: This unit does not feature an AM tuner circuit or RDS text encoding data.
-
Electrical Demands: Engineered for negative-ground, nominal 12V DC electrical systems (operational window of 11V to 16V DC).
- Circuit Protection: The main power harness entry point is protected by a rear-mounted, standard 10-Amp automotive blade fuse.
