The

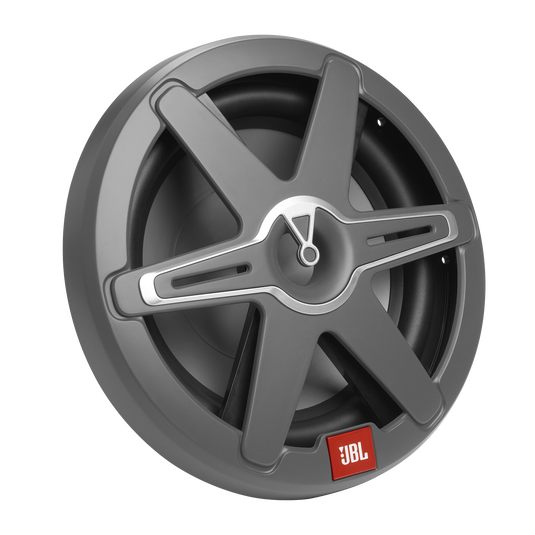

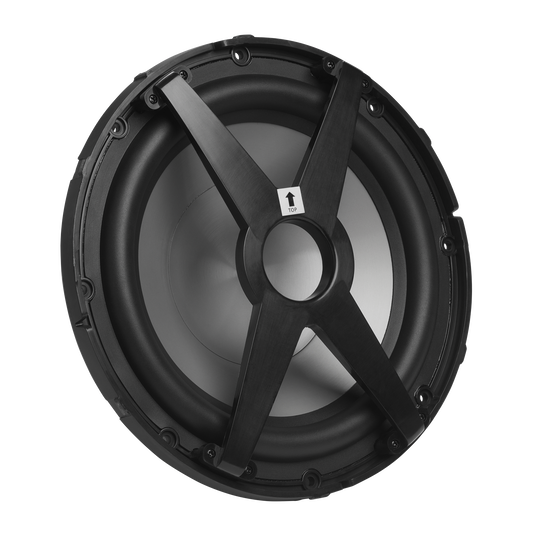

JBL Club Marine 10 (model number
JBLMARSUBCB102AM) is
a premium, open-air 10-inch marine audio subwoofer engineered to deliver deep, low-frequency impact on boats, yachts, and off-road vehicles.
📋 General Description
The
JBL Club Marine 10 is fully marinized to survive harsh marine and outdoor environments. It features a sealed motor layout, a UV-resistant single-piece framework, and completely waterproof safeguards designed to block sun, salt, and heavy spray.

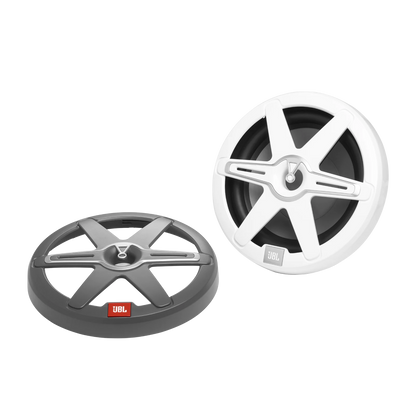

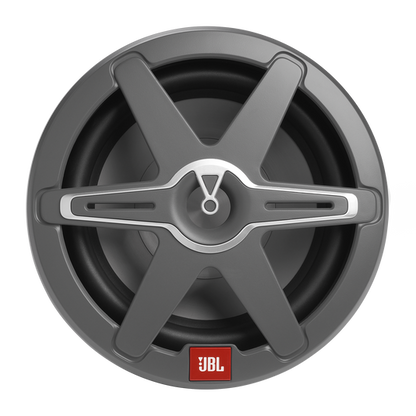

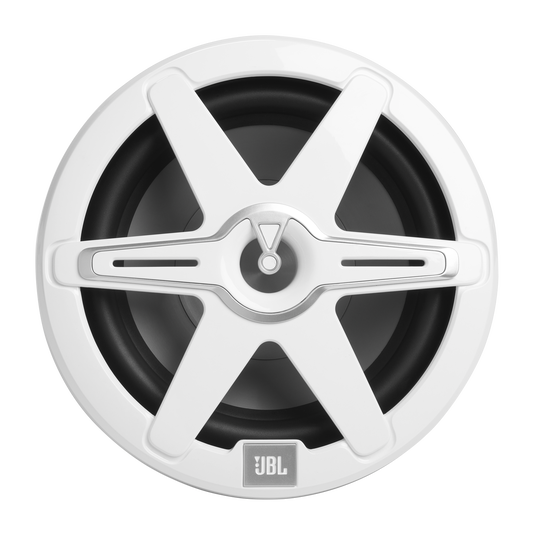

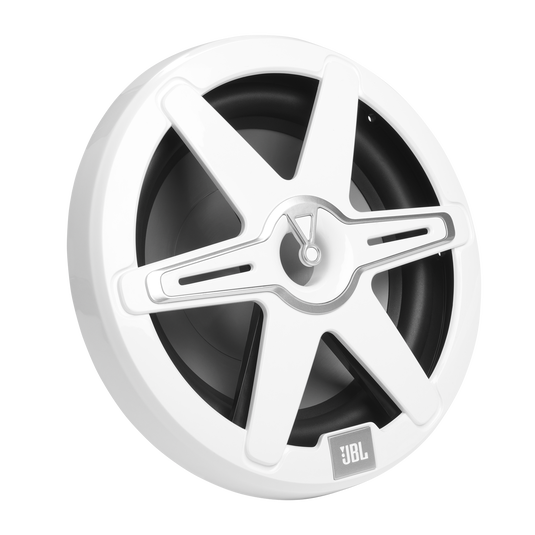

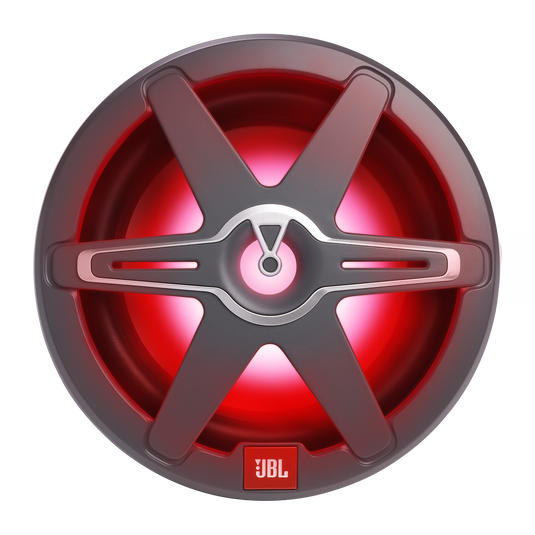

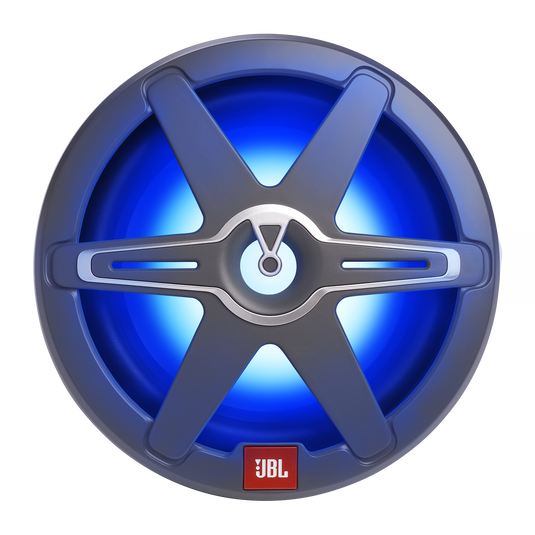

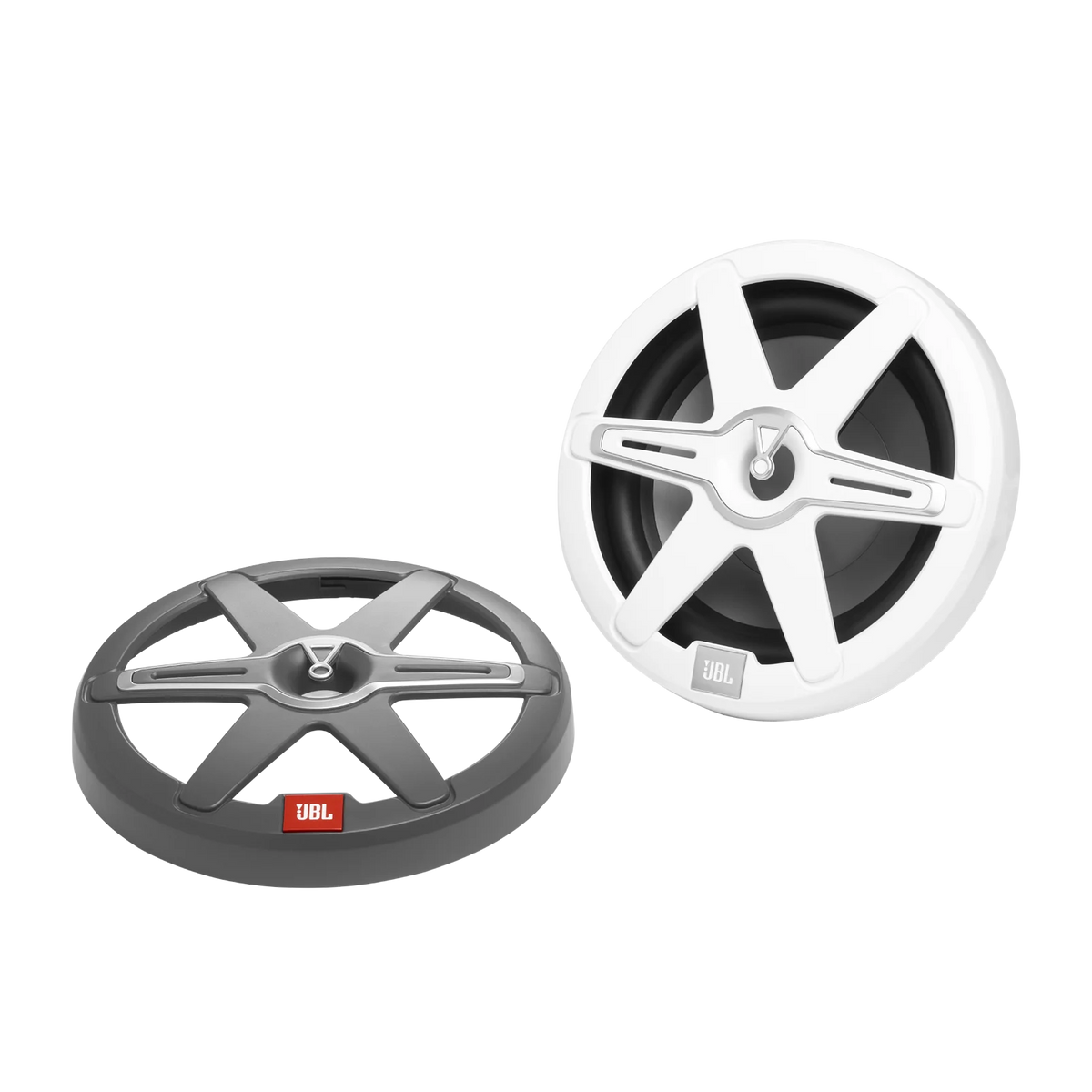

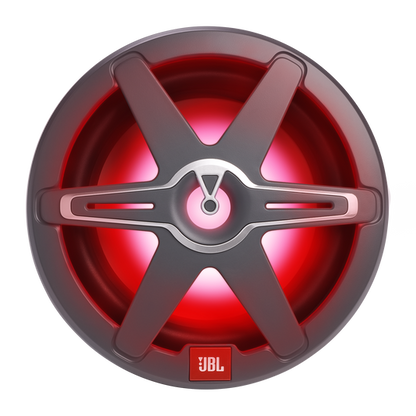

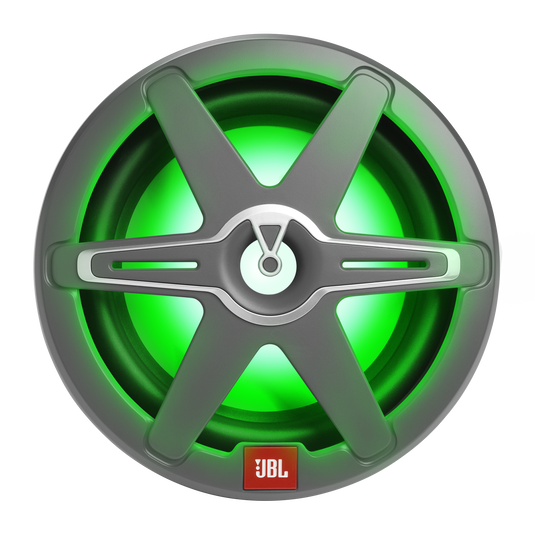

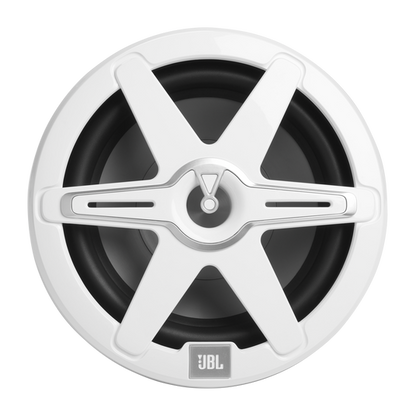

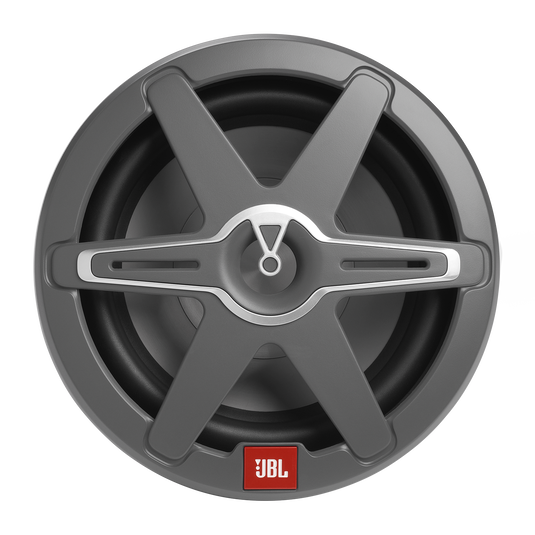

To complement your boat's aesthetic, it features integrated multi-color RGB LED lighting that illuminates the speaker cone. The lighting can be hooked up directly to a 12V switch or tied into an aftermarket LED control deck. It also provides maximum design flexibility by including both Gloss White and Satin Gray twist-lock grilles inside the box, completely hiding the mounting screws.
⚙️ Technical Description
This passive marine subwoofer uses specialized component materials designed to retain rigidity and deep bass output even under heavy exposure to the elements.
1. Transducer & Structural Features
-

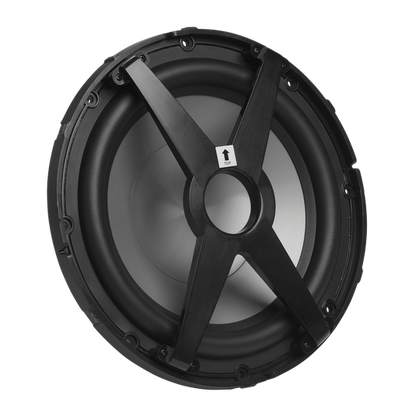

Woofer Cone: High-excursion polypropylene driver matched with a heavy-duty synthetic rubber surround.
-

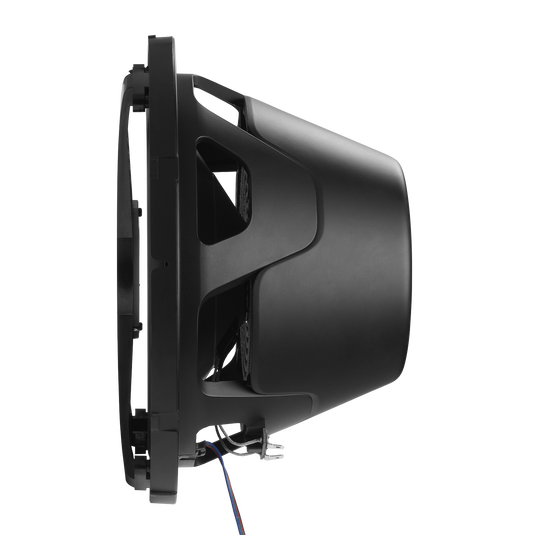

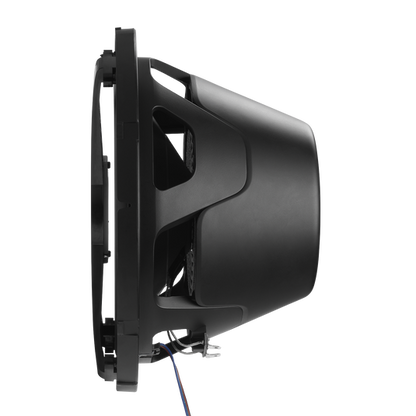

Chassis Frame: One-piece molded polymer basket that resists corrosion, structural fatigue, and yellowing from UV rays.
-
Weatherproof Protection: Front-face IPX5 Marine Waterproof certification. Includes a sealed magnet housing and protective motor assemblies.
2. Power & Audio Performance
| Metric / Specification
|
Engineering Rating
|
|
Subwoofer Size
|
10 Inches (250mm)
|
|
Continuous Power Handling (RMS)
|
300 Watts
|
|
Peak Power Handling
|
900 Watts
|
|
Nominal System Impedance
|
4 Ohms
|
|
Frequency Response Range
|
25 Hz – 500 Hz
|
|
System Sensitivity (@ 2.83V)
|
89 dB
|
|
Voice Coil Layout
|
Single Voice Coil configuration
|
3. Wiring & Package Contents
-

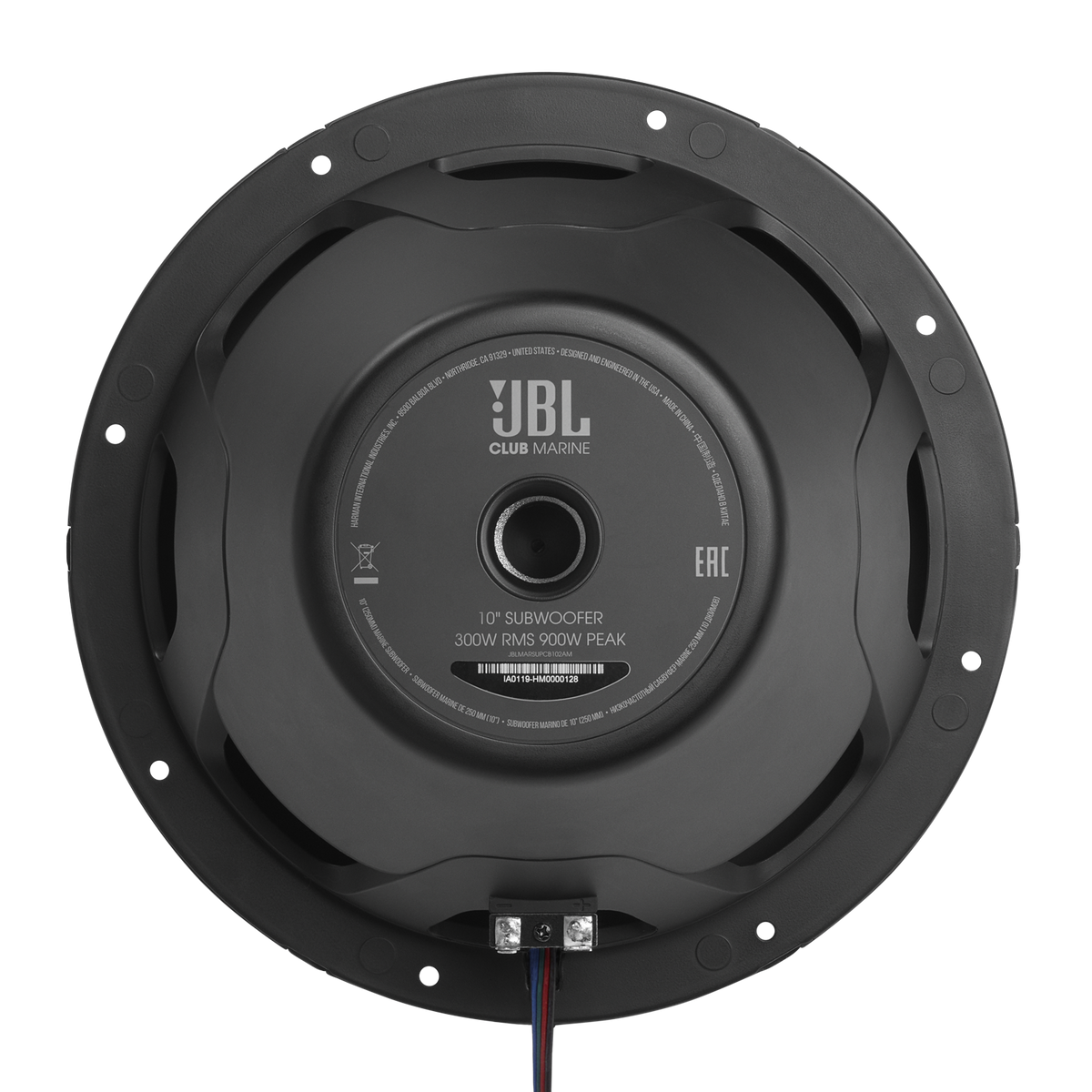

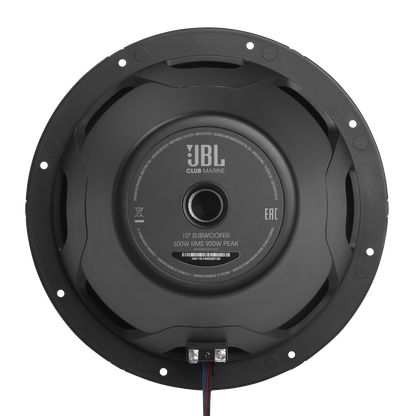

Wiring Leads: Ships with specialized separate speaker pigtail and RGB pigtail harnesses.
-
Installation Gear: Packaged with stainless steel mounting screws, speed clips, a custom foam sealing gasket, a drill bit, and a precise cutout template.
